2AL8S-0235C6TXIndoor Monitor

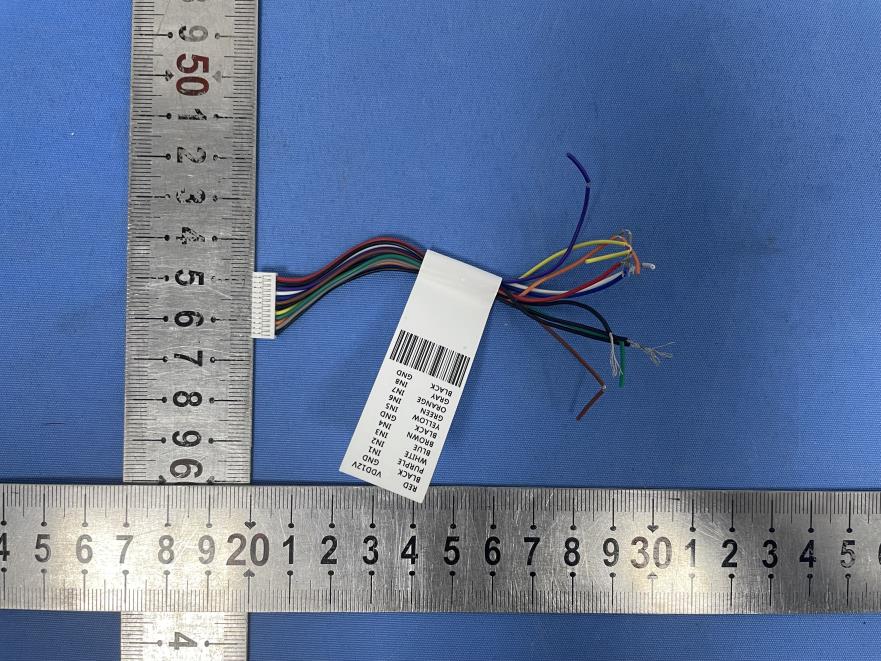

Indoor Station Quick Guide V1.00 1 1 Packing List The package contents may vary with device model and version. No. Name Qty Unit 1 Indoor station 1 PCS 2 Screw pack 1 Set 3 12-pin connector cable 1 PCS 4 10-pin connector cable 1 PCS 5 Wall mount bracket 1 PCS 6 Product documents 1 Set 2 Appearance 2.1 Dimensions The dimensions may vary with device model. 2.2 Structure and Cable The structure and cable may vary with device model. The cable specifications are as follows. 2 Cable Color Remarks Description 12-pin connector cable Red VDD12V Power interface Black GND Grounding terminal Purple IN1 Zone detector interface White IN2 Blue IN3 Brown IN4 Yellow IN5 Green IN6 Orange IN7 Gray IN8 10-pin connector cable Black GND Grounding terminal Yellow RS485_A RS485 interface Green RS485_B Orange OUT1_NC Alarm output interface Gray OUT1_COM Purple OUT1_NO White OUT2_NC Blue OUT2_COM Brown OUT2_NO 3 Installation 3.1 Device Wiring Before installation, plan wiring for power cable, network cable, etc. The number of cables depends on the actual networking conditions. 3.2 Tool Preparation Marker Phillips screwdriver Tape measure Electric drill Glue gun ESD wrist strap or gloves 3.3 Installation Step The following figures are for reference only. The installation method may vary with scenarios. 3 1. Determine the position of the 86*86mm junction box (user-supplied or purchased separately): Use the existing junction box embedded in the wall or drill a hole to embed one. The two installation holes on the box should be parallel to the ground during installation. 2. Keep the four legs of the wall mount bracket facing outward and upward, align the holes on the bracket with the installation holes on the junction box, and then secure the bracket by tightening the round head cross screws. 3. Connect the power cable and network cable to the rear panel correctly (see Structure and Cable for details). 4. Fix the indoor station and bracket: Align the slots on the indoor station with the four legs of the bracket and install the indoor station. 4 Startup After the indoor station is installed properly, connect one end of the power adapter (user- supplied or purchased separately) to the power interface and the other end to the mains supply, and then start it up. The display screen lights up, and live video is displayed on the screen when it is started successfully. 5 Network Settings You can configure network settings on the Web interface or on the display screen. 4 5.1 On the Display Screen 1. Go to Settings > Activation Config > Enter project password, enter the default password (123456). 2. Select Indoor Station on the left, and then complete the network settings. If a DHCP server is deployed in your network, an IP address may be dynamically assigned to the indoor station, and you need to log in with the actual IP address. 3. Tap Apply. 5.2 On the Web Interface You can log in to the Web interface to manage and maintain the indoor station after it is started successfully. 1. Open your Internet Explorer (IE 9 or later), enter the IP address (192.168.1.13 by default) of your indoor station in the address bar and then press Enter to open the login page. 2. Enter the username and password (admin/123456 by default) and then click Login. NOTE! • DHCP is enabled by default. If a DHCP server is used in your network, your indoor station may be assigned an IP address, and you need to use the assigned IP address to log in. • The default password is intended only for your first login. To ensure security, please change the password after your first login. You are strongly recommended to set a strong password of at least nine characters including all three elements: digits, uppercase and lowercase letters and special characters. If the password has been changed, use the new password to log in. 3. Go to Setup > Common > Wired Network, and then complete the network settings. 4. Click Save, and the settings will take effect. 5 Disclaimer and Safety Warnings Copyright Statement ©2022 Zhejiang Uniview Technologies Co., Ltd. All rights reserved. No part of this manual may be copied, reproduced, translated or distributed in any form or by any means without prior consent in writing from Zhejiang Uniview Technologies Co., Ltd (referred to as Uniview or us hereafter). The product described in this manual may contain proprietary software owned by Uniview and its possible licensors. Unless permitted by Uniview and its licensors, no one is allowed to copy, distribute, modify, abstract, decompile, disassemble, decrypt, reverse engineer, rent, transfer, or sublicense the software in any form or by any means. Trademark Acknowledgements are trademarks or registered trademarks of Uniview. All other trademarks, products, services and companies in this manual or the product described in this manual are the property of their respective owners. Export Compliance Statement Uniview complies with applicable export control laws and regulations worldwide, including that of the People's Republic of China and the United States, and abides by relevant regulations relating to the export, re-export and transfer of hardware, software and technology. Regarding the product described in this manual, Uniview asks you to fully understand and strictly abide by the applicable export laws and regulations worldwide. EU Authorised Representative UNV Technology EUROPE B.V. Room 2945,3rd Floor,Randstad 21-05 G,1314 BD,Almere,Netherlands. Privacy Protection Reminder Uniview complies with appropriate privacy protection laws and is committed to protecting user privacy. You may want to read our full privacy policy at our website and get to know the ways we process your personal information. Please be aware, using the product described in this manual may involve the collection of personal information such as face, fingerprint, license plate number, email, phone number, GPS. Please abide by your local laws and regulations while using the product. About This Manual ⚫ This manual is int…
