2AL8S-0235C8PAUNV-Link Pro Connect Box

Connect Box Quick Guide V1.01 1 1 Packing List Contact your local dealer if the package is damaged or incomplete. The package contents may vary with device model. No. Name Qty Unit 1 Connect box 1 PCS 2 12V power cable 1 PCS 3 Anti-drop protective case 1 PCS 4 Lanyard 1 PCS 2 Overview The connect box is intended to improve the installation and commissioning efficiency of cameras, and provide solutions to common construction problems, such as IP address modification, temporary power and network supply, voltage detection, etc. The product features multi- usage, lightweight and easy to carry. In the actual deployment, the construction personnel can install and test the camera with the UNV-Link Pro app that connects the box, without connecting to the PC, simplifying and mobilizing the deployment process. For some construction sites without electricity and network, the box can provide temporary power supply and network, so that the camera can get online to help to adjust the installation angle. NOTE! • Turn off the box to extend its battery life if you don’t use it. • The battery performance may degrade at low temperatures. 2 3 Appearance and Interfaces The appearance and interfaces may vary with device model. The figure below is only for illustration. Item Description System indicator: Steady on after powering on Wi-Fi indicator: Steady on after enabling hot-spot; Blinking when transmitting data Battery indicator: Show the current battery level after turning on Low battery. Please charge in time Voltage detection: Test the voltage. Range: 0 to 56V. 12V output: Supply power for IPC. Maximum DC 12V 1A. PoE output: 802.3af PoE power supply. Maximum DC 48V 0.25A. PoE test: Test whether the output voltage of the external PoE power supply device is normal. Range: 0 to 56V. Connect a lanyard 3 NOTE! • Press the Reset button and hold for at least 10 seconds to restore the default Wi-Fi configuration. • When the power switch is ON, long press to turn off the box. Press the button again to turn on the box. CAUTION! The DC12V output and PoE output cannot be used at the same time. Otherwise, the connected external devices may be powered off due to insufficient box battery. 4 Device Management NOTE! The actual operations may be slightly different from the steps in the quick guide as the app may be upgraded or updated. Please follow the on-screen instructions in the app. S tart up the box Connect the box Wi-Fi with your phone Download and install UNV -Link Pro app Adjust andtest device Youcan adjustparameters of theconnectedcameras, including changingcamera name orpassword, syncing mobile phone’s longitude and latitudeto thecamera,etc. Turn on the power swit chto s tart up the box, and then the system indi cator is ste ady green. Connect network port and DC 12V output * The pow ercable supplied with the b ox and networkcable pur chased separately are required. * To supply powerto thecamera, pleaseconnect the networkcableto the network port marked withPoE output. View the Wi-FiSSID on the devi ce label, andconnectyour phoneto the box Wi-Fi. SelectConnect B ox, and follow the on-screen instructionst o addcame rasto the app. WL AN WLAN GCBWiFi Connect Box Project List Device(s)：10Online:4 Offline:6 My Pro ject 4 Disclaimer and Safety Warnings Copyright Statement ©2024 Zhejiang Uniview Technologies Co., Ltd. All rights reserved. No part of this manual may be copied, reproduced, translated or distributed in any form or by any means without prior consent in writing from Zhejiang Uniview Technologies Co., Ltd (referred to as Uniview or us hereafter). The product described in this manual may contain proprietary software owned by Uniview and its possible licensors. Unless permitted by Uniview and its licensors, no one is allowed to copy, distribute, modify, abstract, decompile, disassemble, decrypt, reverse engineer, rent, transfer, or sublicense the software in any form or by any means. Trademark Acknowledgements are trademarks or registered trademarks of Uniview. All other trademarks, products, services and companies in this manual or the product described in this manual are the property of their respective owners. Export Compliance Statement Uniview complies with applicable export control laws and regulations worldwide, including that of the People's Republic of China and the United States, and abides by relevant regulations relating to the export, re-export and transfer of hardware, software and technology. Regarding the product described in this manual, Uniview asks you to fully understand and strictly abide by the applicable export laws and regulations worldwide. EU Authorised Representative UNV Technology EUROPE B.V. Room 2945,3rd Floor,Randstad 21-05 G,1314 BD,Almere,Netherlands. Privacy Protection Reminder Uniview complies with appropriate privacy protection laws and is committed to protecting user privacy. You may want to read our full privacy policy at our website and get to know the ways we process your personal information. Please be aware, using the product described in this manual may involve the collection of personal information such as face, fingerprint, license plate number, email, phone number, GPS. Please abide by your local laws and regulations while using the product. About This Manual  This manual is intended for multiple product models, and the photos, illustrations, descriptions, etc, in this manual may be different from the actual appearances, functions, features, etc, of the product.  This manual is intended for multiple software versions, and the illustrations and descriptions in this manual may be different from the actual GUI and functions of the software.  Despite our best efforts, technical or typographical errors may exist in this manual. Uniview cannot be held responsible for any such errors and reserves the right to change the manual without prior notice.  Users are fully responsible for the damages and losses that arise due to improper operation.  Uniview reserves the righ…

Text truncated - open the document above for the full version.

ZheJiangUniviewTechnologies Co.,Ltd. U.S. Agent Designationfor Serviceof Process (Applicant and U.S.Agentare SeparateParties) TO:FederalCommunications Commission 7435OaklandMillsRoad Columbia,MD 21046 ATTENTION: FCC Certification – Section 2.911(d)(7) Information Designa ted U.S. Ag ent Company Na me: United Consulting Tec h nology Services Co., Ltd. FRN: 0 033495714 Cont act Na me: Da v id Wu Str eet Address: 1 7800 CASTLETON ST STE 665 CITY OF IND UST RY City/Province/Zip: CA 91748 Teleph one No: (626) 217-402 2 Email: [email protected] This letter is to confirm that we (“the Designated U.S. Agent) hav e accepted the responsibility to act as the Designated U.S. Agent for Service of Pr ocess as required by section 47 CFR 2.911(d)(7) on behalf of the Applicant noted belo w. U.S. Agent Signature: Da te:2024-04-23 Signed by (Printed Name/Title): Da vid Wu / CEO T he Applicant acknowledgesthat theymustmaintainan agentfor noless than one year after terminating all marketing andimportationOR the conclusionofany Commission-relatedproceedinginvolving the equipment.The applicantfurtheracknowledgestheir responsibility toinformthe FCCwheneverthe DesignatedU.S. Agentinformationabove changes. A pplicant Companyname: ZheJiangUniviewTechnologies Co.,Ltd. Grantee Code:2AL8S FRN : 0026550475 FCCID: 2AL8S-0235C8PA Contact Name:FengXu StreetAddress: No. 369, XietongRoad,Xixing Sub-district, Binjiang District City/Province/Zip:HangzhouCity, ZhejiangProvince, 310051, China Telephone No: 18106582562 Email:[email protected] Applicant Signature: Date:2024-04-23 Signed by(Printed Name/Title):Feng Xu,Manager

Applicant Declaration QSF27-14-04 Rev 1.1 Jan 17, 2024 Page 1 of 2 Original Issue: Jan. 4, 2021 SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia 30024 United States Applicant Legal Business Name ZheJiang Uniview Technologies Co.,Ltd. Address No. 369, Xietong Road, Xixing Sub-district, Binjiang District, Hangzhou City, 310051, Zhejiang Province, China FRN 0026550475 Grantee Code 2AL8S FCC ID 2AL8S-0235C8PA Authorized Contact Name Feng Xu Contact Email [email protected] Contact Phone 18106582562 I, the undersigned, certify that I am an authorized signatory for the Applicant and therefore declare; a) in accordance with 47CFR2.911(d), all of the statements herein and the exhibits attached hereto are true and correct to the best of my knowledge and belief. b) in accepting a Grant of Equipment Authorization issued by a TCB, under the authority of the FCC, as a result of the representations made in this application, the Applicant is responsible for: (1) labeling the equipment with the exact FCC ID as specified in this application, (2) compliance statement labeling pursuant to the applicable rules, (3) compliance of the equipment with the applicable technical rules, c) if the Applicant is not the actual manufacturer of the equipment, appropriate arrangements have been made with the manufacturer to ensure that production units of this equipment will continue to comply with the FCC’s technical requirements. d) in accordance with 47 CFR 2.909 and KDB394321, the Applicant has read, understood and agrees to accept that they are the responsible party and agree to abide by their responsibilities as specified under 47 CFR 2.909 and KDB394321. e) in accordance with ISO 17065, FCC KDB641163, FCC KDB610077, KDB394321 and RSP-100, the Applicant has read, understood, accepts and agrees to abide by the post market surveillance requirements. (1) the Applicant understands, accepts and agrees that a sample may be requested for surveillance testing. (2) the Applicant shall make provisions to always have a production sample available upon request by SGS, FCC and/or ISED. (3) the Applicant shall, upon request by SGS, at the Applicant’s expense, provide a production sample of the requested product to SGS, FCC and/or ISED as instructed. The sample shall include all support devices, cables, software, accessories or other hardware or software required for evaluation, review, certification and audit surveillance of products certified by SGS. f) neither the Applicant nor any party to the application is subject to a denial of Federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. §862 because of a conviction for possession or distribution of a controlled substance. See 47CFR 1.2002(b) for the definition of a “party” for these purposes. g) the Applicant has read, understood, accepts and agrees to abide by the SGS North America, Inc.(TCB) terms and conditions. Link to CFRs: https://www.fcc.gov/wireless/bureau-divisions/technologies-systems-and-innovation-division/rules-regulations-title-47 Link to KDBs: https://apps.fcc.gov/oetcf/kdb/index.cfm Link to RSP-100: https://www.ic.gc.ca/eic/site/smt-gst.nsf/eng/sf01130.html Link to the Covered List: Covered List [ZheJiang Uniview Technologies Co.,Ltd.] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. [ZheJiang Uniview Technologies Co.,Ltd.] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant [is not] identified on the Covered list, established pursuant to §1.50002, as an entity producing “covered” equipment. Applicant Signature: Date: 2024-04-18 Print Name: Feng Xu Title: Manager *NOTE: This declaration cannot be signed by an Agent, it shall be signed by an authorized person listed in the FCC database Applicant Declaration QSF27-14-04 Rev 1.1 Jan 17, 2024 Page 2 of 2 Original Issue: Jan. 4, 2021 SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia 30024 United States

ZheJiang Uniview Technologies Co.,Ltd. Current Date 2024-04-18 To: SGS-CSTC Standards Technical Services (Shanghai) Co., Ltd. No. 588 West Jindu Road, Songjiang District, Shanghai, China. 201612 Dear Sir/Madam, Subject: Declaration Letter about Identity of Products *WE ZheJiang Uniview Technologies Co.,Ltd., HEREBY DECLARED THAT Product Description: UNV-Link Pro Connect Box Model No.: GCBxxxx-yyyy-zzzz("x" can be 0-9, A-Z, a-z or blank, denoting difference in interface,"y" can be 0-9,A-Z,a-z or blank, denoting difference in interface,"z" can be 0-9,A-Z,a-z or blank, denoting difference in interface,"-" may be blank) Manufacturer’s Name: ZheJiang Uniview Technologies Co.,Ltd. Manufacturer’s Address: No. 369, Xietong Road, Xixing Sub-district, Binjiang District, Hangzhou City, 310051, Zhejiang Province, China *Except that the model number and appearance deviation, are identical with the original product as follows: Note: The definition of identical should be “electrically identical”. A device will be considered to be electrically identical if no changes are made to the devices’ schematics, board layouts, component layouts, chip sets, resistors and all other electrical aspects of the device are identical with the model which has been tested by SGS. Model No.: GCB01-B7 Manufacturer’s Name: ZheJiang Uniview Technologies Co.,Ltd. Manufacturer’s Address: No. 369, Xietong Road, Xixing Sub-district, Binjiang District, Hangzhou City, 310051, Zhejiang Province, China Sincerely, Signature: Printed Name : Feng Xu Position/Title : Manager Contact Number: 18106582562

ZheJiang Uniview Technologies Co.,Ltd. To: SGS North America Inc. 620 Old Peachtree Road SUITE 100 Suwanee, Georgia United States From: ZheJiang Uniview Technologies Co.,Ltd. No. 369, Xietong Road, Xixing Sub-district, Binjiang District, Hangzhou City, 310051, Zhejiang Province, China Regarding: Confidentiality Request regarding application for FCC ID: 2AL8S-0235C8PA LONG TERM CONFIDENTIALITY Pursuant to 47 CFR Section 0.459 and 0.457 of the commission’s rules, the applicant hereby request confidential treatment of the documents listed below, associated with the certification application referenced above. Schematic(s) Block Diagrams Operational Descriptions The documents above contain proprietary information not released to the public. Public disclosure of this information may prove harmful to the business of the applicant. Sincerely, Signature: Printed Name (on file with the FCC associated with the Grantee Code): Feng Xu Title: Manager Company Name: ZheJiang Uniview Technologies Co.,Ltd.

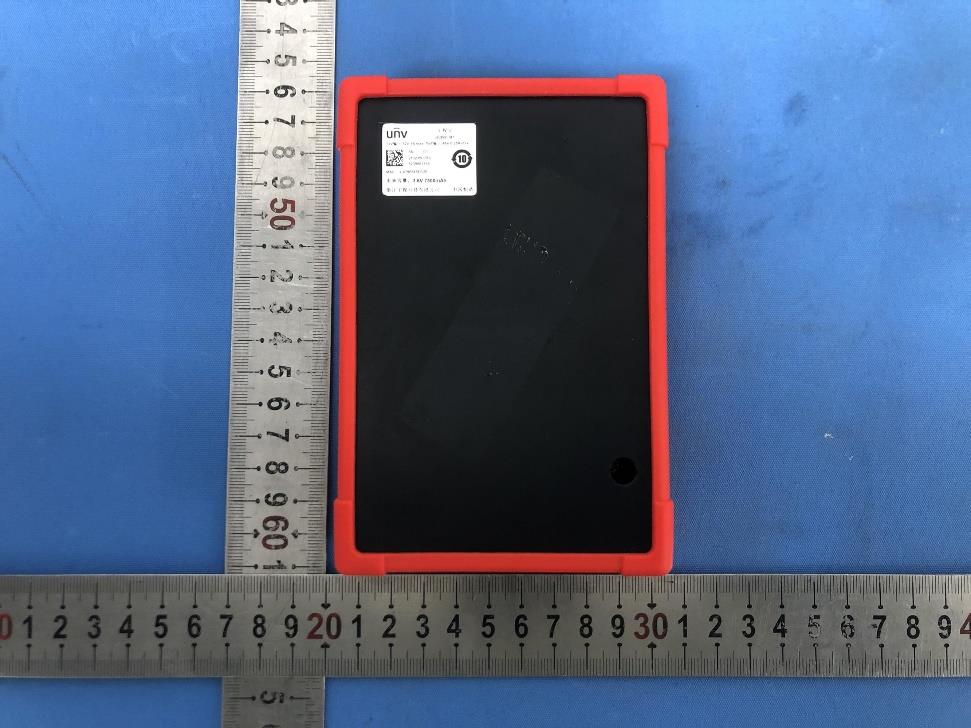

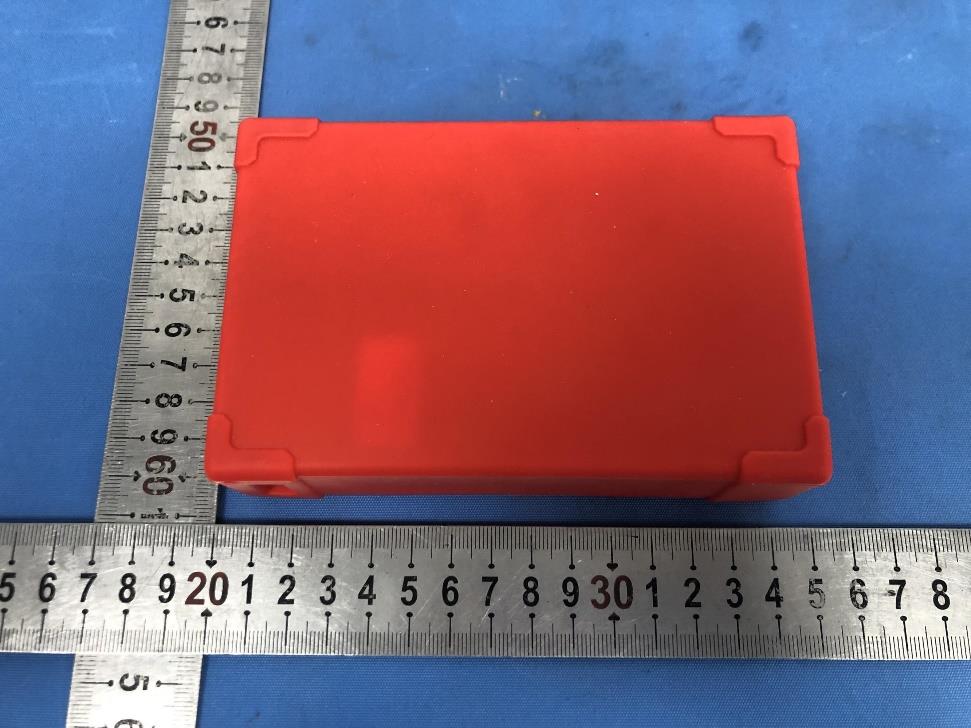

Compliance Certification Services (Kunshan) Inc. Page: 1 of 5 External Photos for KSCR2403000420AT Test Model No: GCB01-B7 Compliance Certification Services (Kunshan) Inc. Page: 2 of 5 EUT Constructional Details (EUT Photos) Compliance Certification Services (Kunshan) Inc. Page: 3 of 5 Compliance Certification Services (Kunshan) Inc. Page: 4 of 5 Compliance Certification Services (Kunshan) Inc. Page: 5 of 5
