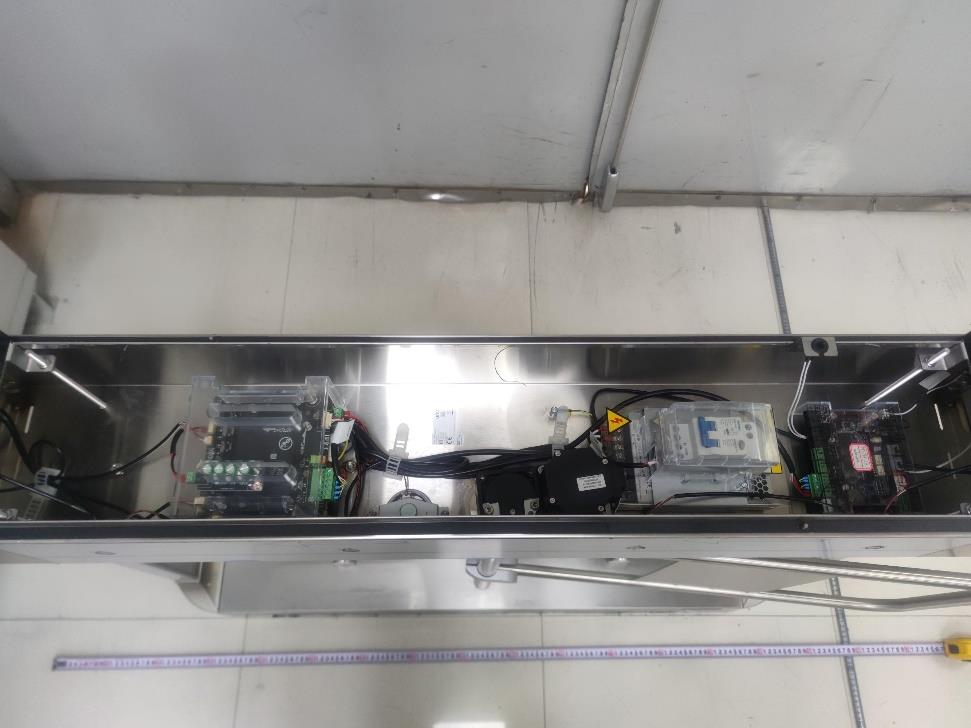

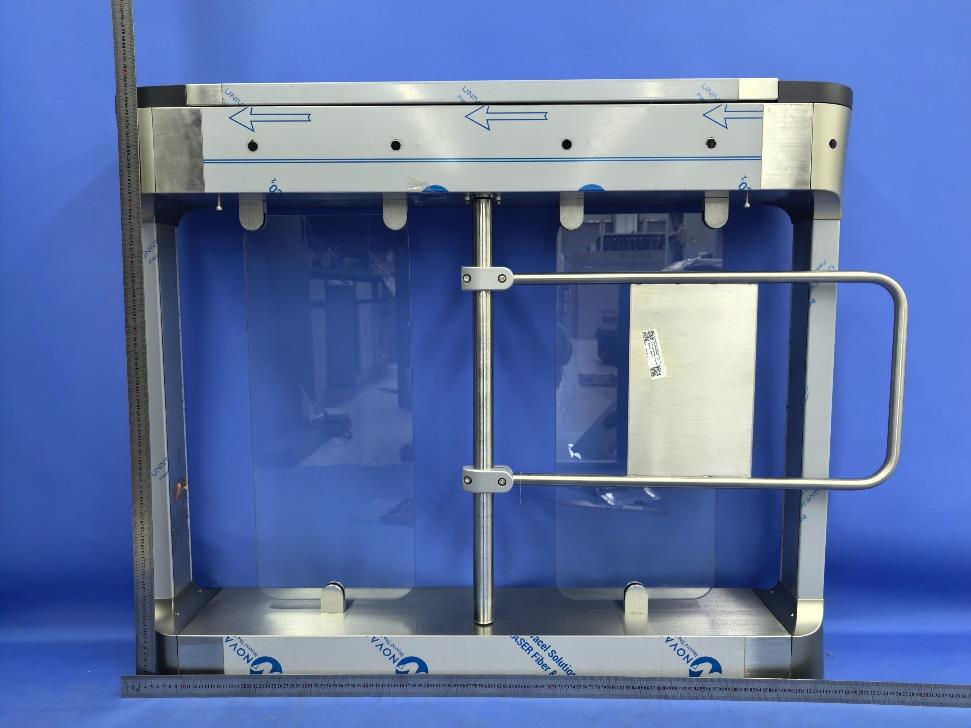

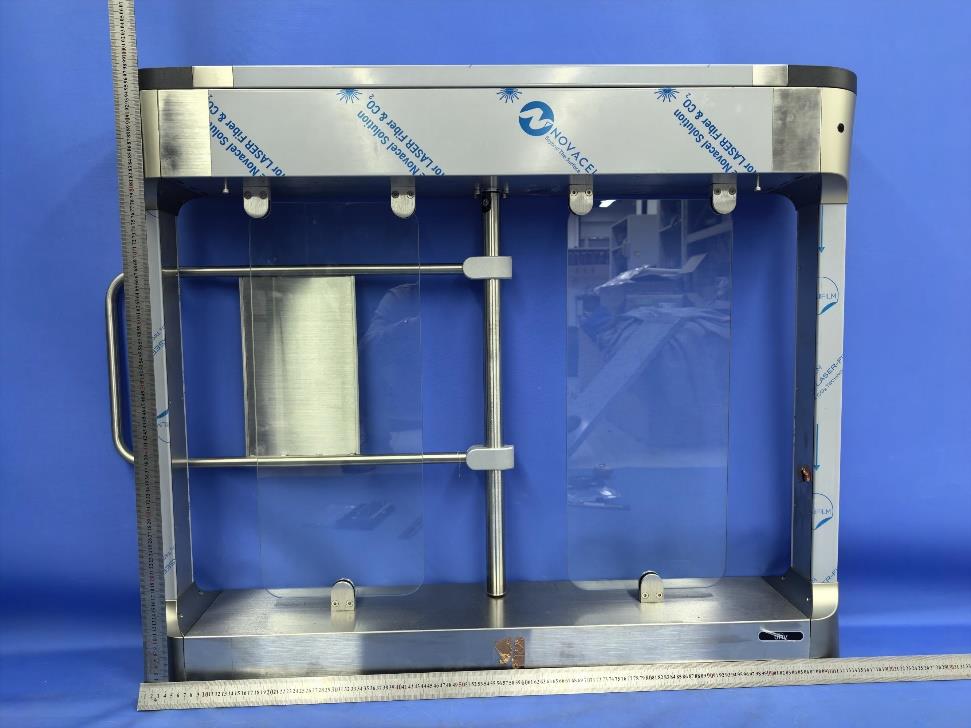

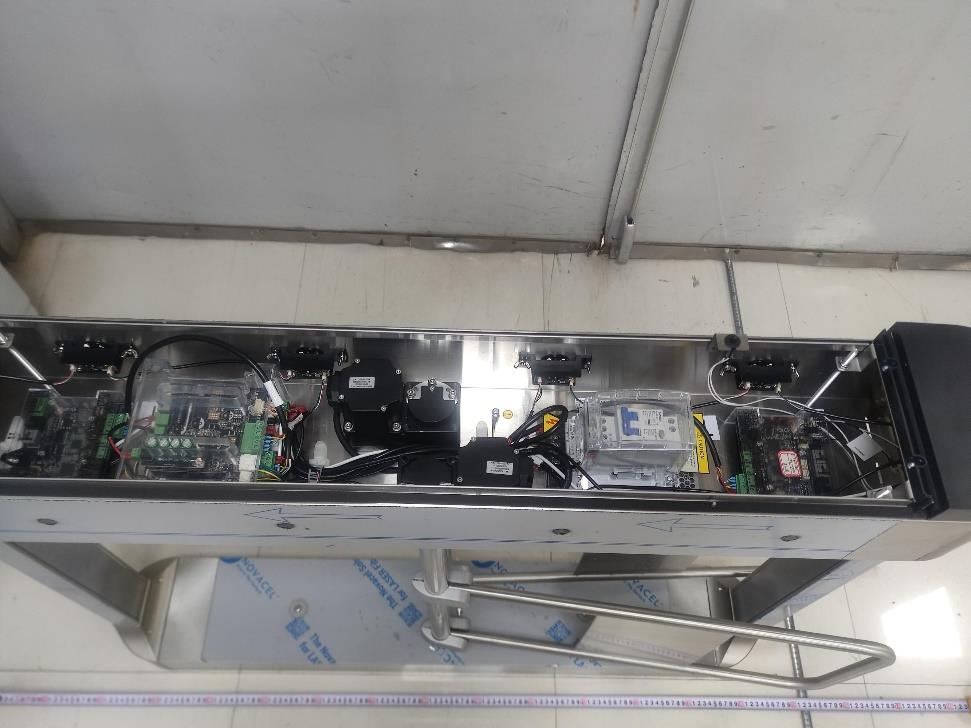

Report No.: KSCR251200278404 Page: 1 of 12 CCSEM-TRF-001 Rev. 03 Dec 18, 2024 1 Cover Page RF Exposure Evaluation Report Application No.: KSCR2512002784AT FCC ID: 2AL8S-0235CBQL Applicant: Zhejiang Uniview Technologies Co., Ltd. Address of Applicant: No. 369, Xietong Road, Xixing Sub-district, Binjiang District, Hangzhou City, 310051, Zhejiang Province, China Manufacturer: Zhejiang Uniview Technologies Co., Ltd. Address of Manufacturer: No. 369, Xietong Road, Xixing Sub-district, Binjiang District, Hangzhou City, 310051, Zhejiang Province, China Equipment Under Test (EUT): EUT Name: Fast Lane Guard Model No.: OFG8321N@L, OFG8321N Subcategory:L,OFG8321N-xxxxxxxx- yyyyyyyy-zzz, (“x”,”y”,”z” can be 0-9,A-Z,a-z z,@ or blank;”- ” may be blank); OFG8321N@R, OFG8321N Subcategory:R,OFG8321N-rrrrrrrr- ssssssss-ttt, (“r”,”s”,”t” can be 0-9,A-Z,a-z z,@ or blank;”-” may be blank); OFG8321N@M, OFG8321N Subcategory:M,OFG8321N- mmmmmmmm-nnnnnnnn-ooo, (“m”,”n”,”o” can be 0-9,A-Z,a-z z,@ or blank;”-” may be blank) Standard(s) : FCC Rules 47 CFR §2.1091 KDB 447498 D04 interim General RF Exposure Guidance v01 Date of Receipt: 2025-12-18 Date of Test: 2025-12-30 to 2026-01-13 Date of Issue: 2026-01-22 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. Report No.: KSCR251200278404 Page: 2 of 12 CCSEM-TRF-001 Rev. 03 Dec 18, 2024 Revision Record Version Description Date Remark 00 Original 2026-01-22 / Authorized for issue by: Tested By Maker Qi /Project Engineer Approved By Terry Hou /Reviewer Report No.: KSCR251200278404 Page: 3 of 12 CCSEM-TRF-001 Rev. 03 Dec 18, 2024 2 Contents Page 1 Cover Page ........................................................................................................................................ 1 2 Contents ............................................................................................................................................ 3 3 General Information .......................................................................................................................... 4 3.1 General Description of E.U.T. .................................................................................................... 4 3.2 Technical Specifications ............................................................................................................. 4 3.3 Separation Distance ................................................................................................................... 5 3.4 Test Location ............................................................................................................................ 6 3.5 Test Facility ............................................................................................................................... 6 4 RF Exposure Test Exemptions ........................................................................................................ 7 4.1 FCC RF Exposure Test Exemptions for single RF sources ....................................................... 7 4.2 RF Exposure Test Exemptions for Simultaneous Transmission ................................................ 9 5 asurement and Calculation ............................................................................................................ 11 5.1 Maximum transmit power ......................................................................................................... 11 5.2 RF Exposure Calculation ......................................................................................................... 12 Report No.: KSCR251200278404 Page: 4 of 12 CCSEM-TRF-001 Rev. 03 Dec 18, 2024 3 General Information 3.1 General Description of E.U.T. Power supply: AC 100-240V,50/60Hz,2.5A; 24Vdc,1.0A 3.2 Technical Specifications 2.4GHz WiFi Operation Frequency: 802.11b/g/n(HT20): 2412MHz to 2462MHz Modulation Type: 802.11b: DSSS (DBPSK, DQPSK, CCK); 802.11g/n: OFDM (BPSK, QPSK, 16QAM, 64QAM) Number of Channels: 802.11b/g/n(HT20):11 Channel Spacing: 5MHz Antenna Type: FPC antenna Antenna Gain: 3.8dBi (Provided by the manufacturer) BT Operation Frequency: 2402MHz to 2480MHz Modulation Type: GFSK, pi/4DQPSK, 8DPSK Number of Channels: 79 Channel Spacing: 1MHz Spectrum Spread Technology: Frequency Hopping Spread Spectrum(FHSS) Antenna Type: FPC antenna Antenna Gain: 3.8dBi (Provided by the manufacturer) BLE Operation Frequency: 2402MHz to 2480MHz Modulation Type: GFSK Number of Channels: 40 Channel Spacing: 2MHz Antenna Type: FPC antenna Antenna Gain: 3.8dBi (Provided by the manufacturer) Report No.: KSCR251200278404 Page: 5 of 12 CCSEM-TRF-001 Rev. 03 Dec 18, 2024 3.3 Separation Distance Separation distance between the antenna to person (R): ＞20cm Remark: This minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander. R has been stated in user manual. Report No.: KSCR251200278404 Page: 6 of 12 CCSEM-TRF-001 Rev. 03 Dec 18, 2024 3.4 Test Location All tests were performed at: Compliance Certification Services (Kunshan) Inc. No.10 Weiye Rd, Innovation park, Eco&Tec, Development Zone, Kunshan City, Jiangsu, China. Tel: +86 512 5735 5888 Fax: +86 512 5737 0818 No tests were sub-contracted. Note: 1. SGS is not responsible for wrong test results due to incorrect information (e.g., max. internal working frequency, antenna gain, cable loss, etc) is provided by the applicant. (If applicable). 2. SGS is not responsible for the authenticity, integrity and the validity of the conclusion based on results of the data provided by applicant. (If applicable). 3. Sample source: sent by customer. 3.5 Test Facility The test facility is recognized, certified, or accredited by the following organizations: • A2LA (Certificate No. 2541.01) Compliance Certification Services (Kunshan) Inc.…

Text truncated - open the document above for the full version.

Compliance Certification Services (Kunshan) Inc. Page: 1 of 3 Appendix Photographs of Test Setup for KSCR2512002784AT Test Model No.: OFG8321N@L, OFG8321N@R, OFG8321N@M Compliance Certification Services (Kunshan) Inc. Page: 2 of 3 Test Setup Photo Conducted Emissions at AC Power Line (150kHz-30MHz) RF Conducted setup Compliance Certification Services (Kunshan) Inc. Page: 3 of 3 Radiated Spurious Emissions Below 1GHz Radiated Spurious Emissions Above 1GHz - End of the Appendix -

Report No.: KSCR251200278402 Page: 1 of 87 CCSEM-TRF-001 Rev. 03 Dec 18, 2024 TEST REPORT Application No.: KSCR2512002784AT FCC ID: 2AL8S-0235CBQL Applicant: Zhejiang Uniview Technologies Co., Ltd. Address of Applicant: No. 369, Xietong Road, Xixing Sub-district, Binjiang District, Hangzhou City, 310051, Zhejiang Province, China Manufacturer: Zhejiang Uniview Technologies Co., Ltd. Address of Manufacturer: No. 369, Xietong Road, Xixing Sub-district, Binjiang District, Hangzhou City, 310051, Zhejiang Province, China Equipment Under Test (EUT): EUT Name: Fast Lane Guard Model No.: OFG8321N@L, OFG8321N Subcategory:L,OFG8321N-xxxxxxxx- yyyyyyyy-zzz, (“x”,”y”,”z” can be 0-9,A-Z,a-z z,@ or blank;”-” may be blank); OFG8321N@R, OFG8321N Subcategory:R,OFG8321N-rrrrrrrr-ssssssss- ttt, (“r”,”s”,”t” can be 0-9,A-Z,a-z z,@ or blank;”-” may be blank); OFG8321N@M, OFG8321N Subcategory:M,OFG8321N-mmmmmmmm- nnnnnnnn-ooo, (“m”,”n”,”o” can be 0-9,A-Z,a-z z,@ or blank;”-” may be blank)   Please refer to section 2 of this report which indicates which model was actually tested and which were electrically identical. Standard(s) : 47 CFR Part 15, Subpart C 15.247 Date of Receipt: 2025-12-19 Date of Test: 2025-12-30 to 2026-01-13 Date of Issue: 2026-01-22 Test Result: Pass* * In the configuration tested, the EUT complied with the standards specified above. Report No.: KSCR251200278402 Page: 2 of 87 CCSEM-TRF-001 Rev. 03 Dec 18, 2024 Revision Record Version Description Date Remark 00 Original 2026-01-22 / Authorized for issue by: Tested By Maker_Qi/Project Engineer Approved By Terry Hou /Reviewer Report No.: KSCR251200278402 Page: 3 of 87 CCSEM-TRF-001 Rev. 03 Dec 18, 2024 2 Test Summary Radio Spectrum Technical Requirement Item Standard Method Requirement Result Antenna Requirement 47 CFR Part 15, Subpart C 15.247 N/A 47 CFR Part 15, Subpart C 15.203 & 15.247(b)(4) Customer Declaration Radio Spectrum Matter Part Item Standard Method Requirement Result Conducted Emissions at AC Power Line (150kHz-30MHz) 47 CFR Part 15, Subpart C 15.247 ANSI C63.10 (2020) Section 6.2 47 CFR Part 15, Subpart C 15.207 Pass Radiated Emissions which fall in the restricted bands ANSI C63.10 (2020) Section 6.10.5 47 CFR Part 15, Subpart C 15.205 & 15.209 Pass Radiated Spurious Emissions Below 1GHz ANSI C63.10 (2020) Section 6.4,6.5 47 CFR Part 15, Subpart C 15.205 & 15.209 Pass Radiated Spurious Emissions Above 1GHz ANSI C63.10 (2020) Section 6.6 47 CFR Part 15, Subpart C 15.205 & 15.209 Pass Conducted Peak Output Power ANSI C63.10 (2020) Section 11.9.1 47 CFR Part 15, Subpart C 15.247(b)(3) Pass Minimum 6dB Bandwidth ANSI C63.10 (2020) Section 11.8.1 47 CFR Part 15, Subpart C 15.247a(2) Pass Power Spectrum Density ANSI C63.10 (2020) Section 11.10.2 47 CFR Part 15, Subpart C 15.247(e) Pass Conducted Band Edges Measurement ANSI C63.10 (2020) Section 6.10.4 47 CFR Part 15, Subpart C 15.247(d) Pass Conducted Spurious Emissions ANSI C63.10 (2020) Section 11.11 47 CFR Part 15, Subpart C 15.247(d) Pass Declaration of EUT Family Grouping: Note: There are series models mentioned in this report, and they are identical in electrical and electronic characters. Only the model OFG8321N@L was tested since their differences were the model number and appearance. Report No.: KSCR251200278402 Page: 4 of 87 CCSEM-TRF-001 Rev. 03 Dec 18, 2024 3 Contents Page 1 COVER PAGE ........................................................................................................................................... 1 2 Test Summary ......................................................................................................................................... 3 3 Contents ................................................................................................................................................... 4 4 General Information ................................................................................................................................ 5 4.1 Details of E.U.T. ............................................................................................................................... 5 4.2 Power level setting using in test ....................................................................................................... 5 4.3 Description of Support Units ............................................................................................................ 5 4.4 Measurement Uncertainty ................................................................................................................ 6 4.5 Test Location .................................................................................................................................... 7 4.6 Test Facility ...................................................................................................................................... 7 4.7 Deviation from Standards ................................................................................................................. 7 4.8 Abnormalities from Standard Conditions .......................................................................................... 7 5 Equipment List ........................................................................................................................................ 8 6 Radio Spectrum Technical Requirement ............................................................................................ 10 6.1 Antenna Requirement .................................................................................................................... 10 7 Radio Spectrum Matter Test Results .................................................................................................. 11 7.1 Conducted Emissions at AC Power Line (150kHz-30MHz) ........................................................... 11 7.2 Radiated Emissions which fall in the restricted bands ................................................................... 15 7.3 Radiated Spurious Emissio…

Text truncated - open the document above for the full version.

Report No.: KSCR251200278401 Page: 98 of 102 CCSEM-TRF-001 Rev. 03 Dec 18, 2024 802.11g_MCH_2437MHz_Ant1 (SISO)_NTNV Report No.: KSCR251200278401 Page: 99 of 102 CCSEM-TRF-001 Rev. 03 Dec 18, 2024 802.11g_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11g_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11n(HT20)_LCH_2412MHz_Ant1 (SISO)_NTNV Report No.: KSCR251200278401 Page: 100 of 102 CCSEM-TRF-001 Rev. 03 Dec 18, 2024 802.11n(HT20)_LCH_2412MHz_Ant1 (SISO)_NTNV Report No.: KSCR251200278401 Page: 101 of 102 CCSEM-TRF-001 Rev. 03 Dec 18, 2024 802.11n(HT20)_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11n(HT20)_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11n(HT20)_HCH_2462MHz_Ant1 (SISO)_NTNV Report No.: KSCR251200278401 Page: 102 of 102 CCSEM-TRF-001 Rev. 03 Dec 18, 2024 - End of the Report -

Report No.: KSCR251200278401 Page: 64 of 102 CCSEM-TRF-001 Rev. 03 Dec 18, 2024 802.11n(HT20)_MCH_2437MHz_Ant1 (SISO)_NTNV Report No.: KSCR251200278401 Page: 65 of 102 CCSEM-TRF-001 Rev. 03 Dec 18, 2024 802.11n(HT20)_HCH_2462MHz_Ant1 (SISO)_NTNV Report No.: KSCR251200278401 Page: 66 of 102 CCSEM-TRF-001 Rev. 03 Dec 18, 2024 2. Bandwidth 2.1 Test Result 2.1.1 OBW Mode TX Type Frequency (MHz) ANT 99% Occupied Bandwidth (MHz) Verdict Result Limit 802.11b SISO 2412 1 13.516 / Pass 2437 1 13.503 / Pass 2462 1 13.480 / Pass 802.11g SISO 2412 1 17.504 / Pass 2437 1 17.506 / Pass 2462 1 17.568 / Pass 802.11n (HT20) SISO 2412 1 18.392 / Pass 2437 1 18.409 / Pass 2462 1 18.407 / Pass 2.1.2 6dB BW Mode TX Type Frequency (MHz) ANT 6dB Bandwidth (MHz) Verdict Result Limit 802.11b SISO 2412 1 9.190 >=0.5 Pass 2437 1 9.195 >=0.5 Pass 2462 1 9.189 >=0.5 Pass 802.11g SISO 2412 1 16.639 >=0.5 Pass 2437 1 16.713 >=0.5 Pass 2462 1 16.904 >=0.5 Pass 802.11n (HT20) SISO 2412 1 17.826 >=0.5 Pass 2437 1 17.819 >=0.5 Pass 2462 1 17.803 >=0.5 Pass Report No.: KSCR251200278401 Page: 67 of 102 CCSEM-TRF-001 Rev. 03 Dec 18, 2024 2.2 Test Graph 2.2.1 OBW 802.11b_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11b_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11b_HCH_2462MHz_Ant1 (SISO)_NTNV Report No.: KSCR251200278401 Page: 68 of 102 CCSEM-TRF-001 Rev. 03 Dec 18, 2024 802.11g_LCH_2412MHz_Ant1 (SISO)_NTNV Report No.: KSCR251200278401 Page: 69 of 102 CCSEM-TRF-001 Rev. 03 Dec 18, 2024 802.11g_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11g_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11n(HT20)_LCH_2412MHz_Ant1 (SISO)_NTNV Report No.: KSCR251200278401 Page: 70 of 102 CCSEM-TRF-001 Rev. 03 Dec 18, 2024 802.11n(HT20)_MCH_2437MHz_Ant1 (SISO)_NTNV Report No.: KSCR251200278401 Page: 71 of 102 CCSEM-TRF-001 Rev. 03 Dec 18, 2024 802.11n(HT20)_HCH_2462MHz_Ant1 (SISO)_NTNV Report No.: KSCR251200278401 Page: 72 of 102 CCSEM-TRF-001 Rev. 03 Dec 18, 2024 2.2.2 6dB BW 802.11b_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11b_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11b_HCH_2462MHz_Ant1 (SISO)_NTNV Report No.: KSCR251200278401 Page: 73 of 102 CCSEM-TRF-001 Rev. 03 Dec 18, 2024 802.11g_LCH_2412MHz_Ant1 (SISO)_NTNV Report No.: KSCR251200278401 Page: 74 of 102 CCSEM-TRF-001 Rev. 03 Dec 18, 2024 802.11g_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11g_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11n(HT20)_LCH_2412MHz_Ant1 (SISO)_NTNV Report No.: KSCR251200278401 Page: 75 of 102 CCSEM-TRF-001 Rev. 03 Dec 18, 2024 802.11n(HT20)_MCH_2437MHz_Ant1 (SISO)_NTNV Report No.: KSCR251200278401 Page: 76 of 102 CCSEM-TRF-001 Rev. 03 Dec 18, 2024 802.11n(HT20)_HCH_2462MHz_Ant1 (SISO)_NTNV Report No.: KSCR251200278401 Page: 77 of 102 CCSEM-TRF-001 Rev. 03 Dec 18, 2024 3. Maximum Conducted Output Power 3.1 Test Result 3.1.1 Power Mode TX Type Frequency (MHz) Maximum Average Conducted Output Power (dBm) Verdict ANT1 Limit 802.11b SISO 2412 11.99 <=30 Pass 2437 12.69 <=30 Pass 2462 12.42 <=30 Pass 802.11g SISO 2412 11.42 <=30 Pass 2437 12.27 <=30 Pass 2462 12.04 <=30 Pass 802.11n (HT20) SISO 2412 12.31 <=30 Pass 2437 13.13 <=30 Pass 2462 12.93 <=30 Pass Note1: Antenna Gain: Ant1: 3.80dBi; Report No.: KSCR251200278401 Page: 78 of 102 CCSEM-TRF-001 Rev. 03 Dec 18, 2024 3.2 Test Graph 3.2.1 Power 802.11b_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11b_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11b_HCH_2462MHz_Ant1 (SISO)_NTNV Report No.: KSCR251200278401 Page: 79 of 102 CCSEM-TRF-001 Rev. 03 Dec 18, 2024 802.11g_LCH_2412MHz_Ant1 (SISO)_NTNV Report No.: KSCR251200278401 Page: 80 of 102 CCSEM-TRF-001 Rev. 03 Dec 18, 2024 802.11g_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11g_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11n(HT20)_LCH_2412MHz_Ant1 (SISO)_NTNV Report No.: KSCR251200278401 Page: 81 of 102 CCSEM-TRF-001 Rev. 03 Dec 18, 2024 802.11n(HT20)_MCH_2437MHz_Ant1 (SISO)_NTNV Report No.: KSCR251200278401 Page: 82 of 102 CCSEM-TRF-001 Rev. 03 Dec 18, 2024 802.11n(HT20)_HCH_2462MHz_Ant1 (SISO)_NTNV Report No.: KSCR251200278401 Page: 83 of 102 CCSEM-TRF-001 Rev. 03 Dec 18, 2024 4. Maximum Power Spectral Density 4.1 Test Result 4.1.1 PSD Mode TX Type Frequency (MHz) Maximum PSD (dBm) Verdict ANT1 Limit 802.11b SISO 2412 -4.85 <=8 Pass 2437 -4.23 <=8 Pass 2462 -4.55 <=8 Pass 802.11g SISO 2412 -8.58 <=8 Pass 2437 -8.14 <=8 Pass 2462 -8.08 <=8 Pass 802.11n (HT20) SISO 2412 -8.06 <=8 Pass 2437 -7.44 <=8 Pass 2462 -7.29 <=8 Pass Note1: Antenna Gain: Ant1: 3.80dBi; Report No.: KSCR251200278401 Page: 84 of 102 CCSEM-TRF-001 Rev. 03 Dec 18, 2024 4.2 Test Graph 4.2.1 PSD 802.11b_LCH_2412MHz_Ant1 (SISO)_NTNV 802.11b_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11b_HCH_2462MHz_Ant1 (SISO)_NTNV Report No.: KSCR251200278401 Page: 85 of 102 CCSEM-TRF-001 Rev. 03 Dec 18, 2024 802.11g_LCH_2412MHz_Ant1 (SISO)_NTNV Report No.: KSCR251200278401 Page: 86 of 102 CCSEM-TRF-001 Rev. 03 Dec 18, 2024 802.11g_MCH_2437MHz_Ant1 (SISO)_NTNV 802.11g_HCH_2462MHz_Ant1 (SISO)_NTNV 802.11n(HT20)_LCH_2412MHz_Ant1 (SISO)_NTNV Report No.: KSCR251200278401 Page: 87 of 102 CCSEM-TRF-001 Rev. 03 Dec 18, 2024 802.11n(HT20)_MCH_2437MHz_Ant1 (SISO)_NTNV Report No.: KSCR251200278401 Page: 88 of 102 CCSEM-TRF-001 Rev. 03 Dec 18, 2024 802.11n(HT20)_HCH_2462MHz_Ant1 (SISO)_NTNV Report No.: KSCR251200278401 Page: 89 of 102 CCSEM-TRF-001 Rev. 03 Dec 18, 2024 5. Unwanted Emissions In Non-restricted Frequency Bands 5.1 Test Result 5.1.1 Ref Mode TX Type Frequency (MHz) ANT Level of Reference (dBm) 802.11b SISO 2412 1 2.74 2437 1 3.43 2462 1 3.19 802.11g SISO 2412 1 -2.70 2437 1 -2.04 2462 1 -2.10 802.11n (HT20) SISO 2412 1 -1.89 2437 1 -0.78 2462 1 -0.73 Note1: Refer to FCC Part 15.247 (d) and ANSI C63.10-2020, the channel contains the maximum PSD level was used to establish the reference level. 5.1.2 CSE Mode TX Type Frequency (MHz) ANT Level of Reference (dBm) Limit (dBm) Verdict 802.11b SISO 2412 1 3.43 -26.57 Pass 2437 1 3.43 -26.57 Pass 2462 1 3.43 -26.57 Pass 802.11g SISO 2412 1 -2.04 -32.04 Pass 2437 1 -2.04 -32.04 Pass 2462 1 -2.04 -32.04 Pass 802.11n (HT20) SISO 2412 1 -0.73 -30.73 Pass 2437 1 -0.73 -30.73 Pass 2462 1 -0.73 -30.73 Pass Note1: Refer t…

Text truncated - open the document above for the full version.

Report No.: KSCR251200278401 Page: 34 of 102 CCSEM-TRF-001 Rev. 03 Dec 18, 2024 7.3.4 Measurement Procedure and Data a. For below 1GHz, the EUT was placed on the top of a rotating table 0.8 meters above the ground at a 3 meter semi-anechoic chamber. The table was rotated 360 degrees to determine the position of the highest radiation. b. The EUT was set 3 meters away from the interference-receiving antenna, which was mounted on the top of a variable-height antenna tower. c. The antenna height is varied from one meter to four meters above the ground to determine the maximum value of the field strength. Both horizontal and vertical polarizations of the antenna are set to make the measurement. d. For each suspected emission, the EUT was arranged to its worst case and then the antenna was tuned to heights from 1 meter to 4 meters (for the test frequency of below 30MHz, the antenna was tuned to heights 1 meter) and the rotatable table was turned from 0 degrees to 360 degrees to find the maximum reading. e. The test-receiver system was set to Peak Detect Function and Specified Bandwidth with Maximum Hold Mode. f. If the emission level of the EUT in peak mode was 10dB lower than the limit specified, then testing could be stopped and the peak values of the EUT would be reported. Otherwise the emissions that did not have 10dB margin would be re-tested one by one using quasi-peak method as specified and then reported in a data sheet. g. Test the EUT in the lowest channel, the middle channel, the Highest channel. h. The radiation measurements are performed in X, Y, Z axis positioning for Transmitting mode, and found the X axis positioning which it is the worst case. i. Repeat above procedures until all frequencies measured was complete. Remark: 1. Level= Read Level+ Cable Loss+ Antenna Factor- Preamp Factor 2. Scan from 9kHz to 30MHz, the disturbance below 30MHz was very low. The points marked on above plots are the highest emissions could be found when testing, so only above points had been displayed. The amplitude of spurious emissions from the radiator which are attenuated more than 20dB below the limit need not be reported. Report No.: KSCR251200278401 Page: 35 of 102 CCSEM-TRF-001 Rev. 03 Dec 18, 2024 Test Mode: 00; Polarity: Horizontal Data List NO. Frequency [MHz] Reading [dBμV] AF [dB/m] Factor [dB] Level [dBμV/m] Limit [dBμV/m] Margin [dB] Polarity 1 38.245 44.97 12.33 -32.43 24.87 40.00 15.13 Horizontal 2 72.195 56.81 7.74 -32.06 32.49 40.00 7.51 Horizontal 3 97.6575 52.13 11.80 -31.86 32.07 43.50 11.43 Horizontal 4 177.925 48.21 11.22 -31.48 27.95 43.50 15.55 Horizontal 5 336.7625 45.74 15.26 -30.72 30.28 46.00 15.72 Horizontal 6 797.27 39.01 22.42 -29.29 32.14 46.00 13.86 Horizontal Report No.: KSCR251200278401 Page: 36 of 102 CCSEM-TRF-001 Rev. 03 Dec 18, 2024 Test Mode: 00; Polarity: Vertical Data List NO. Frequency [MHz] Reading [dBμV] AF [dB/m] Factor [dB] Level [dBμV/m] Limit [dBμV/m] Margin [dB] Polarity 1 34.1225 41.89 16.48 -32.49 25.88 40.00 14.12 Vertical 2 65.6475 59.08 6.16 -32.11 33.13 40.00 6.87 Vertical 3 88.4425 50.47 10.63 -31.92 29.18 43.50 14.32 Vertical 4 178.41 42.44 11.12 -31.48 22.08 43.50 21.42 Vertical 5 336.2775 43.79 15.27 -30.72 28.34 46.00 17.66 Vertical 6 731.31 45.63 21.45 -29.53 37.55 46.00 8.45 Vertical Report No.: KSCR251200278401 Page: 37 of 102 CCSEM-TRF-001 Rev. 03 Dec 18, 2024 7.4 Radiated Spurious Emissions Above 1GHz Test Requirement 47 CFR Part 15, Subpart C 15.205 & 15.209 Test Method: ANSI C63.10 (2020) Section 6.6 Measurement Distance: 3M Limit: Frequency(MHz) Field strength(microvolts/meter) Measurement distance(meters) Above 1000 500 3 7.4.1 E.U.T. Operation Operating Environment: Temperature: 21.6 C Humidity: 52.3 % RH Atmospheric Pressure: 1010 mbar 7.4.2 Test Mode Description Pre-scan / Final test Mode Code Description Final test 00 TX mode_Keep the EUT in continuously transmitting mode with all modulation types. All data rates for each modulation type have been tested and found the data rate @ 1Mbps is the worst case of IEEE 802.11b; data rate @ 6.5Mbps is the worst case of IEEE 802.11n(HT20), final test modes are considering the modulation and worse data rates. Only the data of worst case is recorded in the report. 7.4.3 Test Setup Diagram Report No.: KSCR251200278401 Page: 38 of 102 CCSEM-TRF-001 Rev. 03 Dec 18, 2024 7.4.4 Measurement Procedure and Data a. For above 1GHz, the EUT was placed on the top of a rotating table 1.5 meters above the ground at a 3 meter anechoic chamber. The table was rotated 360 degrees to determine the position of the highest radiation. b. The EUT was set 3 meters away from the interference-receiving antenna, which was mounted on the top of a variable-height antenna tower. c. The antenna height is var…
