2AL8S-0235CBTBIP Camera

EN/ES/DE/FR/IT/PL Pan&Tilt Wi-Fi Camera Quick Guide Fa cebook : Unia r ch Youtube : Uniarch Global LinkedIn : uniarch_global Instagram : uniarch_global See more Contents English.................................................................1 Spanish.....................................................................8 German....................................................................15 French.....................................................................22 Italian.......................................................................29 Polish....................................................................... 36 For more information, please visit https://www.uniarch.cn/Support/ Disclaimer and Safety Warnings.............................43 √ √ √ Packing List The package contents may vary with device model and version. Screw components Bracket Camera Power adapterSticker Quick guideWarning sticker 1/EN Waterproof components Interfaces Speaker Antenna Reset 10s Network interface （used for wired connection） Power interface CAUTION Do not insert or remove the Micro SD card while power is connected; it may damage the camera and the SD card 2/EN 4. Add the camera to uniarch. Tap , and follow the on-screen instructions to proceed. + 2.4GHz Wi-Fi only Add Device to Uniarch 3. Download and install uniarch. 1. Ensure that your router supports a 2.4GHz Wi-Fi network. 2. Connect the camera to power. A：Scan QR code B：Search in app stores + 5G 3/EN 1. Connect the camera to power and a router. (Optional) Web Login 2. Log in to the Web interface. Default IP: 192.168.1.13 Username: admin Password: 123456 4/EN Avoid direct sunlight Installation Environment Avoid lens tampering Ensure that the live video can be played smoothly Installation height： 3m/10ft-4m/13ft 5/EN 3. Mount the camera. Take wall mount as an example. Mount Your Camera 1. Tools 2. Accessories 6/EN Please waterproof cables in accordance with the following instructions. User shall assume all responsibility for device damage caused by water due to improper waterproof measures. Waterproof Requirements Caution Use insulation tape (not included in the package) to insulate the connection part of each cable 7/EN √ √ √ Lista de embalaje El contenido del paquete puede variar según el modelo y la versión del dispositivo. Soporte Piezas de impermeabilidad Adhesivo Cámara Tornillos Adaptador de corriente Guía rápida Adhesivo de advertencia 8/ES Aspecto Antena Altavoz Interfaz de alimentación Conector de red (se usa para la conexión con cable) Precaución No inserte ni retire la tarjeta microSD mientras el dispositivo esté conectado a la alimentación; ya que podría dañar la cámara y la tarjeta SD 9/ES Botón Restablecer 10s + 5G 4. Añada la cámara a uniarch. Pulse y siga las instrucciones que aparecen en la pantalla para continuar. Solo red wifi 2,4 de GHz Añadir el dispositivo a uniarch 3. Descargue e instale uniarch. 1. Asegúrese de que su rúter admita la red wifi de 2,4 GHz. 2. Conecte la cámara a la alimentación. A: Escanee el código QR B: Busque en las tiendas de aplicaciones 10/ES 1. Conecte la cámara a la alimentación y a un rúter. (Opcional) Acceso a la Web 2. Inicie sesión en la interfaz web. IP predeterminada: 192.168.1.13 nombre de usuario: admin Contraseña: 123456 11/ES Por ello, antes de instalar la cámara, asegúrese de que el vídeo en directo se reproduzca de forma fluida. Altura de instalación: 3m/10ft-4m/13ft Evite la luz directa del sol Entorno de instalación No obstruya la lente 12/ES Montar la cámara 1. Herramientas 3. Monte la cámara. Tome el techo o el montaje en pared como ejemplo. 2. Accesorios 13/ES Impermeabilice los cables como se muestra a continuación. El usuario será el único responsable en caso de que se produzcan daños en el dispositivo como consecuencia de una incorrecta implementación de las medidas de impermeabilidad. Requisitos de impermeabilidad PrecauciónUse cinta aislante (no incluida) para aislar la conexión de los cables 14/ES √ √ √ Lieferumfang Der Verpackungsinhalt kann je nach Gerätemodell und Version variieren. Schraubkompo nenten Kamera Netzteil Kurzanleitung Warnaufkleber Kameramontage Wasserdichte Komponenten Aufkleber 15/DE Erscheinungsbild Antenne Lautsprecher Stromanschluss Netzwerkschnittstelle (für kabelgebundene Verbindung) Reset-Taste 10s Die SD-Karte nicht einsetzen oder entfernen, wenn das Gerät an die Stromversorgung angeschlossen ist, da dies die Kamera und die SD-Karte beschädigen kann Vorsicht 16/DE + 5G 4. Fügen Sie die Kamera zu uniarch hinzu. Tippen Sie auf und folgen Sie den Anweisungen auf dem Bildschirm, um fortzufahren. Nur 2,4-GHz-WLAN Gerät zu Uniarch hinzufügen 3. Laden Sie Uniarch herunter und installieren Sie die Software. 1. Stellen Sie sicher, dass Ihr Router 2,4-GHz-WLAN unterstützt. 2. Schließen Sie die Kamera an die Stromversorgung an. A: QR-Code scannen B: In App-Stores suchen 17/DE 1. Verbinden Sie die Kamera mit der Stromversorgung und einem Router. (Optional) Web-Anmeldung 2. Melden Sie sich an der Weboberfläche an. Standard-IP: 192.168.1.13 Benutzername: admin Passwort: 123456 18/DE 3m/10ft-4m/13ft Vermeiden Sie direkte Sonneneinstrahlung Installationsumgebung Vermeiden Sie Manipulationen des Objektivs Vergewissern Sie sich daher vor der Montage der Kamera, dass Live-Video reibungslos wiedergegeben werden kann. Montagehöhe: 19/DE Montieren der Kamera 1. Werkzeuge 3. Montieren Sie die Kamera. Hier nehmen wir als Beispiel die Decken-/Wandmontage. 2. Zubehör 20/DE Machen Sie die Kabel gemäß den folgenden Hinweisen wasserdicht. Für Geräteschäden, die durch Wasser aufgrund unsachgemäßer Wasserdichtigkeitsmaßnahmen entstehen, trägt der Anwender die alleinige Verantwortung. Anforderungen an die Wasserdichtigkeit Vorsicht Verwenden Sie Isolierband (nicht im Lieferumfang enthalten), um den Anschluss der einzelnen Kabel zu isolieren 21/DE √ √ √ Contenu de l’emballage Le contenu de l’emballage peut varier selon le modèle et la version de l’appareil. Éléments à visser…

Text truncated - open the document above for the full version.

2026-02-05 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for FCC ID: 2AL8S-0235CBTB [ZHEJIANG UNIVIEW TECHNOLOGIES CO LTD] certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, the equipment does not utilize cyber-security or anti-virus software from Kaspersky Lab, Inc, or any of its successors and assignees, which is also on the “covered list”. Sincerely, Signature: Name: Feng Xu 2026-02-05 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for FCC ID: 2AL8S-0235CBTB ZHEJIANG UNIVIEW TECHNOLOGIES CO LTD certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Signature: Name: Feng Xu

U.S. Agent Designation for Service of Process (Applicant and U.S. Agent are Separate Parties) ATTENTION: FCC Certification – Section 2.911(d)(7) Information Designated U.S. Agent Company Name: Baihetian Innovative Solutions Street Address: 6837 Chase Rd City/Province/Zip: Dearborn, MI 48126 FRN: 0033401605 Contact Name: Kenneth Young Telephone No: 313-395-3113 Email: [email protected] Signature: Signed by (Printed Name/Title): Kenneth Young This letter is to confirm that we (“the Designated U.S. Agent) have accepted the responsibility to act as the Designated U.S. Agent for Service of Process as required by section 47 CFR 2.911(d)(7) on behalf of the Applicant noted below. The Applicant acknowledges that they must maintain an agent for no less than one year after terminating all marketing and importation OR the conclusion of any Commission-related proceeding involving the equipment. The applicant further acknowledges their responsibility to inform the FCC whenever the Designated U.S. Agent information above changes. Applicant Company name: ZHEJIANG UNIVIEW TECHNOLOGIES CO LTD FRN: 0026550475 Grantee Code: 2AL8S FCC ID: 2AL8S-0235CBTB Contact Name: Feng Xu Address: No. 369, Xietong Road, Xixing Sub-district, Binjiang District, Hangzhou City, Zhejiang Province, China Telephone No: 18106582562 Email: [email protected] Signature: Date: 2026-02-05 Signed by (Printed Name/Title): Feng Xu

Date: 2026-02-05 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: CONFIDENTIALITY REQUEST FOR (IP Camera / Uho-P1A-M3F4D-A / FCC ID: 2AL8S-0235CBTB) To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the (Block Diagrams, Schematics, Operational Descriptions) required to be submitted with this application be permanently withheld from public review. The above documents are company proprietary information that could never get into the possession of your competition. Please contact me if there is any information you may need. Sincerely, Signature: Name: Feng Xu Applicant: ZHEJIANG UNIVIEW TECHNOLOGIES CO LTD Address: No. 369, Xietong Road, Xixing Sub-district, Binjiang District, Hangzhou City, Zhejiang Province, China

Date: 2026-02-05 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize (Eurofins Electrical Testing Service (Shenzhen) Co., Ltd.) to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Signature: Name: Feng Xu Applicant: ZHEJIANG UNIVIEW TECHNOLOGIES CO LTD Address: No. 369, Xietong Road, Xixing Sub-district, Binjiang District, Hangzhou City, Zhejiang Province, China TEL: 18106582562

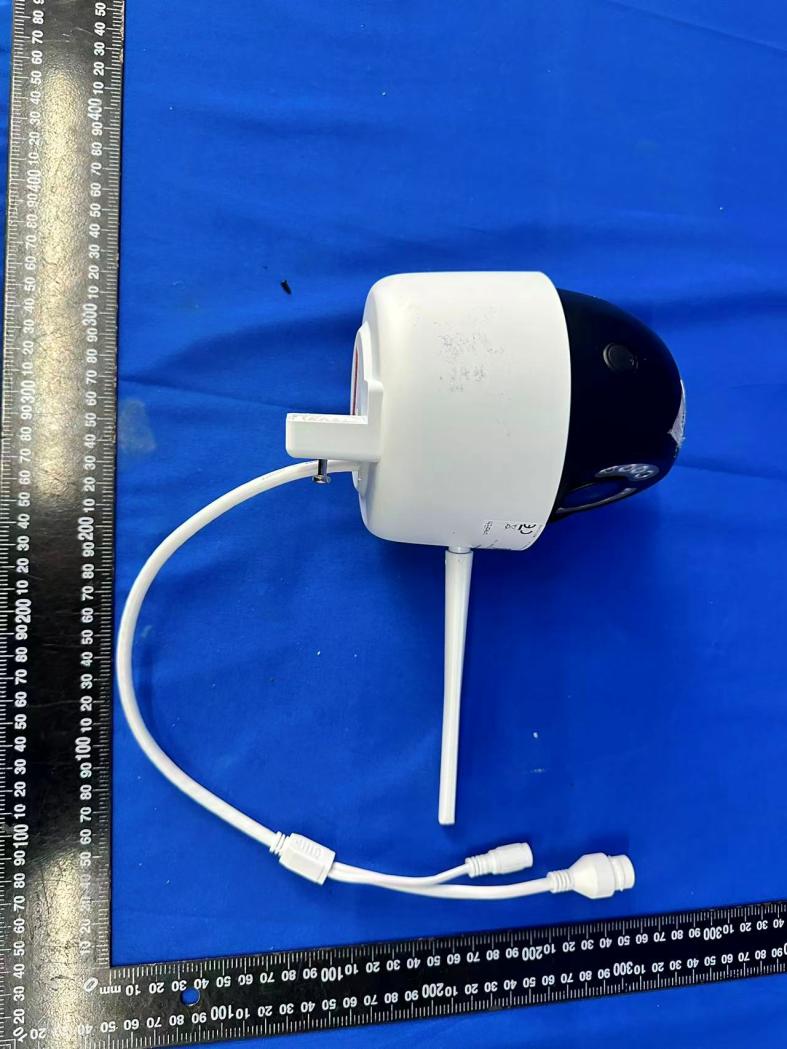

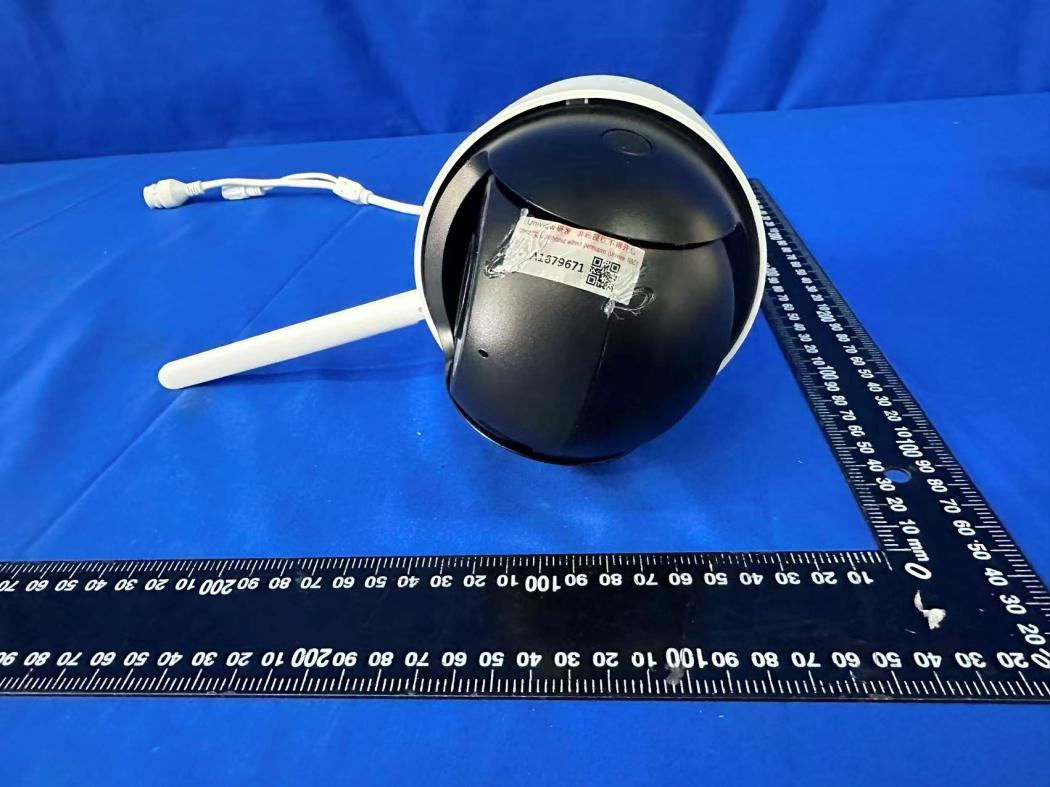

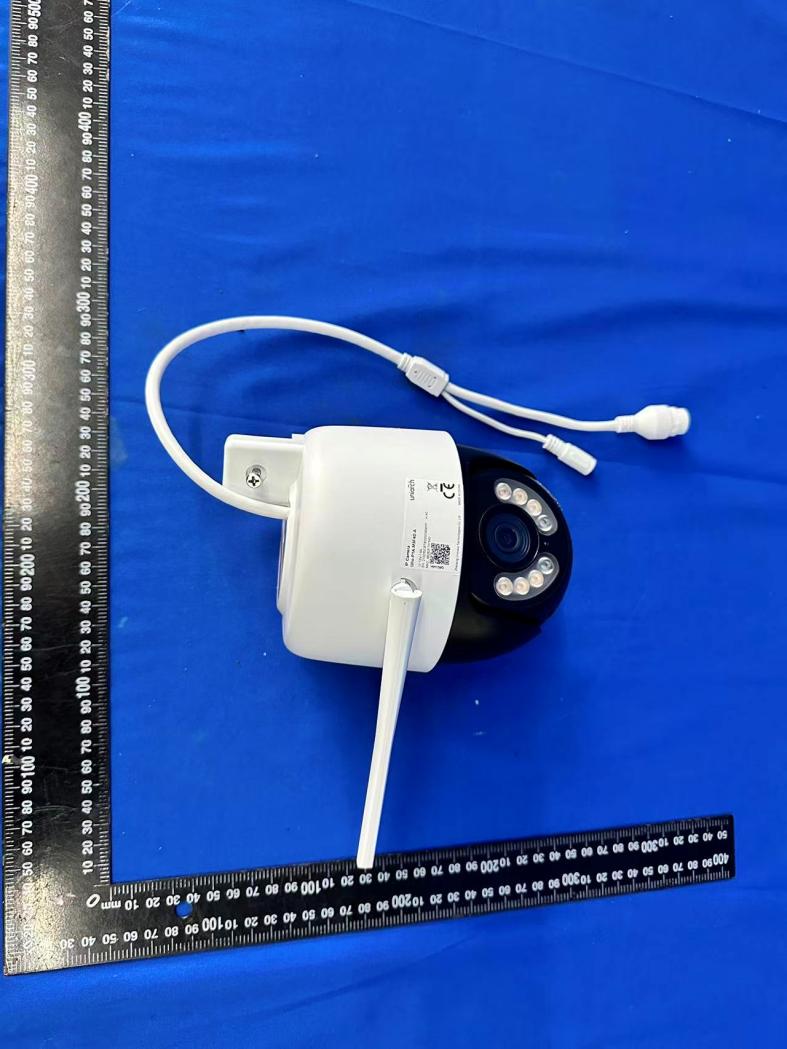

EFGX26010229-IE-02-External Photos 1 / 4 External Photos Model Name: Uho-P1A-M3F4D-A EFGX26010229-IE-02-External Photos 2 / 4 EFGX26010229-IE-02-External Photos 3 / 4 EFGX26010229-IE-02-External Photos 4 / 4

EFGX26010229-IE-02-Internal Photos 1 / 7 Internal Photos Model Name: Uho-P1A-M3F4D-A EFGX26010229-IE-02-Internal Photos 2 / 7 EFGX26010229-IE-02-Internal Photos 3 / 7 EFGX26010229-IE-02-Internal Photos 4 / 7 EFGX26010229-IE-02-Internal Photos 5 / 7 Antenna EFGX26010229-IE-02-Internal Photos 6 / 7 EFGX26010229-IE-02-Internal Photos 7 / 7

Radiofrequency radiation exposure evaluation: mobile devices RESULT : Pass Test Specification Test item : IP Camera Identification / Type No. : Uho-P1A-M3F4D-A FCC ID : 2AL8S-0235CBTB Test standard : CFR47 FCC Part 2: Section 2.1091 CFR47 FCC Part 1: Section 1.1310 FCC KDB Publication 447498 D04 ➢ FCC requirements FCC requirement: Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 20cm normally can be maintained between the user and the device. RF Exposure Evaluation Result RF exposure evaluation method is based on KDB 447498 D01, this calculation is based on the conducted power, maximum power and antenna gain with provides the minimum separation distance. The formula shown below is from OET Bulletin 65 Edition 97-01 Per KDB 447498 D01: S = PG/(4πR 2 ) S = Power Density (mW/m 2 ) P = RF output Power (mW) G = EUT Antenna gain (numeric) R = Separation distance between radiator and human body (cm) From the minimum separation distance, R=20cm Test mode Max. RF Output Power (dBm) Antenna Gain (dBi) Max EIRP (dBm) Max EIRP (mW) Power Density (mW/cm 2 ) Limit of Power Density (mW/cm 2 ) Result 2.4G WLAN 14.90 4.24 19.14 82.035 0.01632 1 Pass “RF Radiation Exposure Statement Caution: This Transmitter must be installed to provide a separation distance of at least 20 cm from all persons.”

承 认 书 SPECIFICATION FOR APPROVAL 客 户 名 称 CUSTOMER NAME: 宇视 产 品 名 称 PRODUCT NAME:2.4G 4dBi白色天线 L=100mm+I-PEX 客 户 料 号 CUSTOMER P/N: 仁 丰 料 号 Ren Feng P/N: RF21C03638A REV: A 内部结构 Internal structure： PCB+螺旋 Dongguan RF electronic technology Co.,LTD No. 3, Building BC, Shayuan 1st Road, Keyuan City, Tangxia Town, Dongguan City 地址：东莞市塘厦镇科苑城沙苑一路 3号 BC栋 3楼 电话：0769--38940168 传真：0769--38940199网址：www.rflink.net.cn 主要技术指标 Main technical specifications 频率范围 （MHZ） 2400-2500 Frequency Range (MHZ) 2400-2500 特性阻抗(Ω) 50±10 Impedance(Ω)50±10 增益(dBi) 4±0.5 Gain(dBi)4±0.5 反射损耗 ≤-9.5ReTurnLoss(dB) ≤-9.5 输出电压 驻波比 ≤2.0 VSWR≤2.0 最大功率 1W Admitted Power1W 极化方式 垂直极化 PolarizationLinear,Vertical 方向性 全向性 RadiationOmni-directional 连接方式 I-PEXConnector Type I-PEX 物理性能Physical Properties 天线本体材 料 ABS Antenna BaseABS 工作温度 -35°C~+75°COperating Temp-35°C~+75°C 保存温度 -35°C~+75°CStorage Temp-35°C~+75°C 地址：东莞市塘厦镇科苑城沙苑一路 3号 BC栋 3楼 电话：0769--38940168 传真：0769--38940199网址：www.rflink.net.cn 地址：东莞市塘厦镇科苑城沙苑一路 3号 BC栋 3楼 电话：0769--38940168 传真：0769--38940199网址：www.rflink.net.cn 3.2：暗室2D、3DRaditation Pattern： 2.40GHz Gain(Peak):3.63dBi Efficiency:93.5% 2.45GHz Gain(Peak):3.87dBi Efficiency:85.3% 2.50GHz Gain(Peak):4.24dBi Efficiency:87.6% 江阴凯博通信科技有限公司 JiangYinKaiBoCommunicationTechnologyCO.,LID. DATE：2013-7-3 Page:3to3 4.包装Packing 标准单位包装长度为1000米/盘,每盘最多允许5个接头,接头最短长度10米,在搬运过程中不能损坏 包装. Standardunitforthe1000m/reellengthofpackaging,eachsetuptoallow5joints,thejoint shortestlengthof10m,Thefinishedcableshallbepackednotbedamagedduring transportation 结构图/Configuration

Page 1 of 28 EUROFINS ELECTRICAL TESTING SERVICE (SHENZHEN) CO., LTD. RADIO TEST - REPORT FCC Compliance Test Report for Product name: IP Camera Model name: Uho-P1A-M3F4D-A FCC ID: 2AL8S-0235CBTB Test Report Number: EFGX26010229-IE-02-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. Phone: +86-0755-829118671 Room 20 of 2/F., 1/F., Building 2, Spring Block & Room 102, Building 8 Fax: +86-0755-82910749 Autumn Block, Meishenghuigu Innovation Park, No.83, Dabao Road, Bao’an District, Shenzhen, Guangdong, China Page 2 of 28 Content 1 General Information 3 1.1 Notes 3 1.2 Testing laboratory 4 1.3 Details of applicant 4 1.4 Details of manufacturer 4 1.5 Application details 5 1.6 Test item 5 1.7 Test standards 6 2 Technical test 7 2.1 Summary of test results 7 2.2 Test environment 7 2.3 Measurement uncertainty 7 2.4 Test mode 8 2.5 Test equipment utilized 9 2.6 Auxiliary equipment used during test 10 2.7 Test software information 10 2.8 Test setup 11 2.9 Test results 13 3 Technical Requirement 14 3.1 Conducted emission AC power port 14 3.2 Duty cycle 15 3.3 6dB bandwidth 16 3.4 99% Occupied Bandwidth 17 3.5 DTS fundamental emission output power 18 3.6 Power spectral density 21 3.7 Conducted Band Edge & Conducted Spurious Emissions 24 3.8 Spurious emissions & Restricted Band 25 4 Test Setup Photos 28 5 External Photos 28 6 Internal Photos 28 7 Appendix 28 Test Report No.: EFGX26010229-IE-02-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. Room 20 of 2/F., 1/F., Building 2, Spring Block & Room 102, Building 8, Autumn Block, Meishenghuigu Innovation Park, No.83, Dabao Road, Bao’an District, Shenzhen, Guangdong, China Page 3 of 28 1 General Information 1.1 Notes The results of this test report relate exclusively to the item tested as specified in chapter “Description of test item” and are not transferable to any other test items. Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. is not responsible for any generalisations and conclusions drawn from this report. Any modification of the test item can lead to invalidity of test results and this test report may therefore be not applicable to the modified test item. The test report may only be reproduced or published in full. Reproducing or publishing extracts of the report requires the prior written approval of the Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. This document is subject to the General Terms and Conditions and the Testing and Certification System of Eurofins Electrical Testing Service (Shenzhen) Co., Ltd., available on request or accessible at www.eurofins.com. Operator 2026-02-04 Bruce Zheng / Project Engineer Date Eurofins-Lab. Name / Title Signature Technical responsibility for area of testing: 2026-02-04 Albert Xu / Lab Manager Date Eurofins-Lab. Name / Title Signature Test Report No.: EFGX26010229-IE-02-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. Room 20 of 2/F., 1/F., Building 2, Spring Block & Room 102, Building 8, Autumn Block, Meishenghuigu Innovation Park, No.83, Dabao Road, Bao’an District, Shenzhen, Guangdong, China Page 4 of 28 1.2 Testing laboratory Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. Room 20 of 2/F., 1/F., Building 2, Spring Block & Room 102, Building 8, Autumn Block, Meishenghuigu Innovation Park, No.83, Dabao Road, Bao’an District, Shenzhen, Guangdong, China Telephone : +86-755-82911867 Fax : +86-755-82910749 The Laboratory has passed the Accreditation by the American Association for Laboratory Accrediation (A2LA). The Accreditation number is 5376.01 The Laboratory has been listed by industry Canada to perform electromagnetic emission measurements, The CAB identifier is CN0088 1.3 Details of applicant Name : ZHEJIANG UNIVIEW TECHNOLOGIES CO LTD Address : No. 369, Xietong Road, Xixing Sub-district, Binjiang District, Hangzhou City, Zhejiang Province, China Telephone : ./. Fax : ./. 1.4 Details of manufacturer Name : ZHEJIANG UNIVIEW TECHNOLOGIES CO LTD Address : No. 369, Xietong Road, Xixing Sub-district, Binjiang District, Hangzhou City, Zhejiang Province, China Telephone : ./. Fax : ./. Test Report No.: EFGX26010229-IE-02-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. Room 20 of 2/F., 1/F., Building 2, Spring Block & Room 102, Building 8, Autumn Block, Meishenghuigu Innovation Park, No.83, Dabao Road, Bao’an District, Shenzhen, Guangdong, China Page 5 of 28 1.5 Application details Date of receipt of application : 2026-01-13 Date of receipt of test item : 2026-01-13 Date of test : 2026-01-13 to 2026-02-04 Date of issue : 2026-02-04 1.6 Test item Product type : IP Camera Test Model : Uho-P1A-M3F4D-A Sample ID : 260113-05-001 Brand : ./. Serial number : ./. Ratings : DC 12V, 1A Test voltage : 120V RadioTechnical data Radio Tech. : WLAN 2.4G Modulation : 802.11b(DSSS):CCK,DQPSK,DBPSK 802.11g(OFDM):BPSK,QPSK,16-QAM,64-QAM 802.11n(OFDM):BPSK,QPSK,16-QAM,64-QAM 802.11ax(OFDM):BPSK,QPSK,16-QAM,64-QAM,256QAM Antenna type : External antenna Maximum antenna gain : 4.24 dBi Additional information : ./. The above sample(s) and sample information was/were submitted and identified on behalf of the applicant. Eurofins assures objectivity and impartiality of the test, and fulfills the obligation of confidentiality for applicant’s commercial infor- mation and technical documents. Test Report No.: EFGX26010229-IE-02-E01 Eurofins Electrical Testing Service (Shenzhen) Co., Ltd. Room 20 of 2/F., 1/F., Building 2, Spring Block & Room 102, Building 8, Autumn Block, Meishenghuigu Innovation Park, No.83, Dabao Road, Bao’an District, Shenzhen, Guangdong, China Page 6 of 28 1.7 Test standards Test Standards FCC Part 15 Subpart C PART 15 - RADIO FREQUENCY DEVICES Subpart C - Intentional Radiators Test Method 1: ANSI C63.4-2014, American National Standard for Methods of Measurement of Radio-Noise Emis- sions from Low-Voltage Electrical and Electronic Equipment in the Range of 9 kHz to 40 GHz. 2: ANSI C63.10-2020 + COR.1-2023, American National Standard for Tes…

Text truncated - open the document above for the full version.

EFGX26010229-IE-02-E01 Appendix 1 / 96 Appendix A: DTS Bandwidth Test Result TestMode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 10.160 2406.920 2417.080 0.5 PASS 2437 10.160 2431.920 2442.080 0.5 PASS 2462 10.160 2456.920 2467.080 0.5 PASS 11G Ant1 2412 16.240 2403.800 2420.040 0.5 PASS 2437 16.240 2428.760 2445.000 0.5 PASS 2462 16.280 2453.880 2470.160 0.5 PASS 11N20SI SO Ant1 2412 17.440 2403.200 2420.640 0.5 PASS 2437 17.480 2428.240 2445.720 0.5 PASS 2462 17.400 2453.280 2470.680 0.5 PASS 11N40SI SO Ant1 2422 29.200 2410.960 2440.160 0.5 PASS 2437 36.160 2418.920 2455.080 0.5 PASS 2452 36.240 2433.840 2470.080 0.5 PASS 11AX20S ISO Ant1 2412 18.600 2402.720 2421.320 0.5 PASS 2437 18.440 2427.720 2446.160 0.5 PASS 2462 18.760 2452.640 2471.400 0.5 PASS 11AX40S ISO Ant1 2422 37.360 2403.280 2440.640 0.5 PASS 2437 37.440 2418.120 2455.560 0.5 PASS 2452 37.840 2433.040 2470.880 0.5 PASS EFGX26010229-IE-02-E01 Appendix 2 / 96 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 EFGX26010229-IE-02-E01 Appendix 3 / 96 11G_Ant1_2412 11G_Ant1_2437 EFGX26010229-IE-02-E01 Appendix 4 / 96 11G_Ant1_2462 11N20SISO_Ant1_2412 EFGX26010229-IE-02-E01 Appendix 5 / 96 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462 EFGX26010229-IE-02-E01 Appendix 6 / 96 11N40SISO_Ant1_2422 11N40SISO_Ant1_2437 EFGX26010229-IE-02-E01 Appendix 7 / 96 11N40SISO_Ant1_2452 11AX20SISO_Ant1_2412 EFGX26010229-IE-02-E01 Appendix 8 / 96 11AX20SISO_Ant1_2437 11AX20SISO_Ant1_2462 EFGX26010229-IE-02-E01 Appendix 9 / 96 11AX40SISO_Ant1_2422 11AX40SISO_Ant1_2437 EFGX26010229-IE-02-E01 Appendix 10 / 96 11AX40SISO_Ant1_2452 EFGX26010229-IE-02-E01 Appendix 11 / 96 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Channel Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 14.641 2404.7058 2419.3468 --- --- 2437 14.551 2429.6993 2444.2503 --- --- 2462 14.621 2454.6706 2469.2916 --- --- 11G Ant1 2412 17.673 2403.1060 2420.7790 --- --- 2437 17.735 2427.9965 2445.7315 --- --- 2462 17.678 2453.0561 2470.7341 --- --- 11N20SIS O Ant1 2412 18.870 2402.5246 2421.3946 --- --- 2437 18.746 2427.5576 2446.3036 --- --- 2462 18.842 2452.4968 2471.3388 --- --- 11N40SIS O Ant1 2422 34.836 2406.0928 2440.9288 --- --- 2437 37.971 2417.8354 2455.8064 --- --- 2452 37.980 2432.8104 2470.7904 --- --- 11AX20SI SO Ant1 2412 19.522 2402.3189 2421.8409 --- --- 2437 19.437 2427.2959 2446.7329 --- --- 2462 19.505 2452.2687 2471.7737 --- --- 11AX40SI SO Ant1 2422 38.408 2402.7186 2441.1266 --- --- 2437 38.319 2417.7522 2456.0712 --- --- 2452 38.538 2432.6169 2471.1549 --- --- EFGX26010229-IE-02-E01 Appendix 12 / 96 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 EFGX26010229-IE-02-E01 Appendix 13 / 96 11G_Ant1_2412 11G_Ant1_2437 EFGX26010229-IE-02-E01 Appendix 14 / 96 11G_Ant1_2462 11N20SISO_Ant1_2412 EFGX26010229-IE-02-E01 Appendix 15 / 96 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462 EFGX26010229-IE-02-E01 Appendix 16 / 96 11N40SISO_Ant1_2422 11N40SISO_Ant1_2437 EFGX26010229-IE-02-E01 Appendix 17 / 96 11N40SISO_Ant1_2452 11AX20SISO_Ant1_2412 EFGX26010229-IE-02-E01 Appendix 18 / 96 11AX20SISO_Ant1_2437 11AX20SISO_Ant1_2462 EFGX26010229-IE-02-E01 Appendix 19 / 96 11AX40SISO_Ant1_2422 11AX40SISO_Ant1_2437 EFGX26010229-IE-02-E01 Appendix 20 / 96 11AX40SISO_Ant1_2452 EFGX26010229-IE-02-E01 Appendix 21 / 96 Appendix C: Maximum conducted output power Test Result Average Test Mode Antenna Frequency [MHz] Duty Cycle [%] DC Factor [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 98.31 0.07 13.89 ≤30.00 PASS 2437 98.31 0.07 14.60 ≤30.00 PASS 2462 98.39 0.07 14.20 ≤30.00 PASS 11G Ant1 2412 90.63 0.43 9.54 ≤30.00 PASS 2437 90.67 0.43 10.36 ≤30.00 PASS 2462 90.63 0.43 9.41 ≤30.00 PASS 11N20SI SO Ant1 2412 73.36 1.35 9.85 ≤30.00 PASS 2437 90.00 0.46 9.38 ≤30.00 PASS 2462 90.00 0.46 8.45 ≤30.00 PASS 11N40SI SO Ant1 2422 81.58 0.88 9.74 ≤30.00 PASS 2437 81.74 0.88 8.96 ≤30.00 PASS 2452 81.58 0.88 8.62 ≤30.00 PASS 11AX20S ISO Ant1 2412 86.83 0.61 13.89 ≤30.00 PASS 2437 87.50 0.58 14.22 ≤30.00 PASS 2462 87.43 0.58 13.54 ≤30.00 PASS 11AX40S ISO Ant1 2422 77.32 1.12 13.56 ≤30.00 PASS 2437 78.35 1.06 14.22 ≤30.00 PASS 2452 63.87 1.95 14.90 ≤30.00 PASS EFGX26010229-IE-02-E01 Appendix 22 / 96 Appendix D: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict 11B Ant1 2412 -17.36 ≤8.00 PASS 2437 -16.34 ≤8.00 PASS 2462 -16.81 ≤8.00 PASS 11G Ant1 2412 -23.20 ≤8.00 PASS 2437 -22.64 ≤8.00 PASS 2462 -22.98 ≤8.00 PASS 11N20SISO Ant1 2412 -23.32 ≤8.00 PASS 2437 -23.61 ≤8.00 PASS 2462 -24.50 ≤8.00 PASS 11N40SISO Ant1 2422 -24.56 ≤8.00 PASS 2437 -26.30 ≤8.00 PASS 2452 -26.97 ≤8.00 PASS 11AX20SIS O Ant1 2412 -19.14 ≤8.00 PASS 2437 -17.60 ≤8.00 PASS 2462 -18.60 ≤8.00 PASS 11AX40SIS O Ant1 2422 -21.40 ≤8.00 PASS 2437 -20.33 ≤8.00 PASS 2452 -19.93 ≤8.00 PASS EFGX26010229-IE-02-E01 Appendix 23 / 96 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 EFGX26010229-IE-02-E01 Appendix 24 / 96 11G_Ant1_2412 11G_Ant1_2437 EFGX26010229-IE-02-E01 Appendix 25 / 96 11G_Ant1_2462 11N20SISO_Ant1_2412 EFGX26010229-IE-02-E01 Appendix 26 / 96 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462

EFGX26010229-IE-02-E01 Appendix 27 / 96 11N40SISO_Ant1_2422 11N40SISO_Ant1_2437 EFGX26010229-IE-02-E01 Appendix 28 / 96 11N40SISO_Ant1_2452 11AX20SISO_Ant1_2412 EFGX26010229-IE-02-E01 Appendix 29 / 96 11AX20SISO_Ant1_2437 11AX20SISO_Ant1_2462 EFGX26010229-IE-02-E01 Appendix 30 / 96 11AX40SISO_Ant1_2422 11AX40SISO_Ant1_2437 EFGX26010229-IE-02-E01 Appendix 31 / 96 11AX40SISO_Ant1_2452 EFGX26010229-IE-02-E01 Appendix 32 / 96 Appendix E: Band edge measurements Test Result TestMode Antenna ChName Frequency [MHz] RefLevel[dBm] Result[dBm] Limit[dBm] Verdict 11B Ant1 Low 2412 5.68 -37.19 ≤-24.32 PASS High 2462 5.64 -46.04 ≤-24.36 PASS 11G Ant1 Low 2412 -0.84 -31.43 ≤-30.84 PASS High 2462 -0.65 -45 ≤-30.65 PASS 11N20SIS O Ant1 Low 2412 -1.17 -31.38 ≤-31.17 PASS High 2462 -2.28 -45.93 ≤-32.28 PASS 11N40SIS O Ant1 Low 2422 -2.88 -46.51 ≤-32.88 PASS High 2452 -4.70 -44.66 ≤-34.7 PASS 11AX20SI SO Ant1 Low 2412 4.29 -43.93 ≤-25.71 PASS High 2462 3.18 -36.79 ≤-26.82 PASS 11AX40SI SO Ant1 Low 2422 0.62 -29.87 ≤-29.38 PASS High 2452 0.49 -32.14 ≤-29.51 PASS EFGX26010229-IE-02-E01 Appendix 33 / 96 Test Graphs 11B_Ant1_Low_2412 11B_Ant1_High_2462 11G_Ant1_Low_2412 EFGX26010229-IE-02-E01 Appendix 34 / 96 11G_Ant1_High_2462 11N20SISO_Ant1_Low_2412 EFGX26010229-IE-02-E01 Appendix 35 / 96 11N20SISO_Ant1_High_2462 11N40SISO_Ant1_Low_2422 EFGX26010229-IE-02-E01 Appendix 36 / 96 11N40SISO_Ant1_High_2452 11AX20SISO_Ant1_Low_2412 EFGX26010229-IE-02-E01 Appendix 37 / 96 11AX20SISO_Ant1_High_2462 11AX40SISO_Ant1_Low_2422 EFGX26010229-IE-02-E01 Appendix 38 / 96 11AX40SISO_Ant1_High_2452 EFGX26010229-IE-02-E01 Appendix 39 / 96 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Frequency [MHz] FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 Reference 5.65 5.65 --- PASS 30~1000 5.65 -57.93 ≤-24.35 PASS 1000~26500 5.65 -49.67 ≤-24.35 PASS 2437 Reference 6.03 6.03 --- PASS 30~1000 6.03 -58.42 ≤-23.97 PASS 1000~26500 6.03 -50.7 ≤-23.97 PASS 2462 Reference 5.92 5.92 --- PASS 30~1000 5.92 -57.91 ≤-24.08 PASS 1000~26500 5.92 -49.71 ≤-24.08 PASS 11G Ant1 2412 Reference -0.50 -0.50 --- PASS 30~1000 -0.50 -57.8 ≤-30.5 PASS 1000~26500 -0.50 -49.53 ≤-30.5 PASS 2437 Reference 0.17 0.17 --- PASS 30~1000 0.17 -58.74 ≤-29.83 PASS 1000~26500 0.17 -49.86 ≤-29.83 PASS 2462 Reference -0.79 -0.79 --- PASS 30~1000 -0.79 -58.54 ≤-30.79 PASS 1000~26500 -0.79 -50.54 ≤-30.79 PASS 11N20SI SO Ant1 2412 Reference -1.04 -1.04 --- PASS 30~1000 -1.04 -58.55 ≤-31.04 PASS 1000~26500 -1.04 -49.12 ≤-31.04 PASS 2437 Reference -1.34 -1.34 --- PASS 30~1000 -1.34 -57.78 ≤-31.34 PASS 1000~26500 -1.34 -49.78 ≤-31.34 PASS 2462 Reference -1.55 -1.55 --- PASS 30~1000 -1.55 -57.38 ≤-31.55 PASS 1000~26500 -1.55 -50.64 ≤-31.55 PASS 11N40SI SO Ant1 2422 Reference -2.77 -2.77 --- PASS 30~1000 -2.77 -58.5 ≤-32.77 PASS 1000~26500 -2.77 -49.91 ≤-32.77 PASS 2437 Reference -4.14 -4.14 --- PASS 30~1000 -4.14 -58.56 ≤-34.14 PASS 1000~26500 -4.14 -48.32 ≤-34.14 PASS 2452 Reference -4.68 -4.68 --- PASS 30~1000 -4.68 -58.38 ≤-34.68 PASS EFGX26010229-IE-02-E01 Appendix 40 / 96 1000~26500 -4.68 -49.82 ≤-34.68 PASS 11AX20S ISO Ant1 2412 Reference 4.09 4.09 --- PASS 30~1000 4.09 -58.18 ≤-25.91 PASS 1000~26500 4.09 -46.25 ≤-25.91 PASS 2437 Reference 3.91 3.91 --- PASS 30~1000 3.91 -58.45 ≤-26.09 PASS 1000~26500 3.91 -50.09 ≤-26.09 PASS 2462 Reference 3.75 3.75 --- PASS 30~1000 3.75 -58.59 ≤-26.25 PASS 1000~26500 3.75 -48.61 ≤-26.25 PASS 11AX40S ISO Ant1 2422 Reference 0.39 0.39 --- PASS 30~1000 0.39 -58.22 ≤-29.61 PASS 1000~26500 0.39 -40.39 ≤-29.61 PASS 2437 Reference 1.20 1.20 --- PASS 30~1000 1.20 -58.4 ≤-28.8 PASS 1000~26500 1.20 -50.34 ≤-28.8 PASS 2452 Reference 0.80 0.80 --- PASS 30~1000 0.80 -57.69 ≤-29.2 PASS 1000~26500 0.80 -46.73 ≤-29.2 PASS EFGX26010229-IE-02-E01 Appendix 41 / 96 Test Graphs 11B_Ant1_2412_0~Reference 11B_Ant1_2412_30~1000 11B_Ant1_2412_1000~26500 EFGX26010229-IE-02-E01 Appendix 42 / 96 11B_Ant1_2437_0~Reference 11B_Ant1_2437_30~1000 EFGX26010229-IE-02-E01 Appendix 43 / 96 11B_Ant1_2437_1000~26500 11B_Ant1_2462_0~Reference EFGX26010229-IE-02-E01 Appendix 44 / 96 11B_Ant1_2462_30~1000 11B_Ant1_2462_1000~26500 EFGX26010229-IE-02-E01 Appendix 45 / 96 11G_Ant1_2412_0~Reference 11G_Ant1_2412_30~1000 EFGX26010229-IE-02-E01 Appendix 46 / 96 11G_Ant1_2412_1000~26500 11G_Ant1_2437_0~Reference EFGX26010229-IE-02-E01 Appendix 47 / 96 11G_Ant1_2437_30~1000 11G_Ant1_2437_1000~26500 EFGX26010229-IE-02-E01 Appendix 48 / 96 11G_Ant1_2462_0~Reference 11G_Ant1_2462_30~1000 EFGX26010229-IE-02-E01 Appendix 49 / 96 11G_Ant1_2462_1000~26500 11N20SISO_Ant1_2412_0~Reference EFGX26010229-IE-02-E01 Appendix 50 / 96 11N20SISO_Ant1_2412_30~1000 11N20SISO_Ant1_2412_1000~26500 EFGX26010229-IE-02-E01 Appendix 51 / 96 11N20SISO_Ant1_2437_0~Reference 11N20SISO_Ant1_2437_30~1000

EFGX26010…
