2ALEPT0005946LoRaWAN IoT BLE Tracker for indoor use

PROPRIETARY: The information contained in this document is the property of TEKTELIC Communications Inc. Except as specifically authorized in writing by TEKTELIC, the holder of this document shall keep all information contained herein confidential, and shall protect the same in whole or in part from disclosure to all third parties. © 2020 TEKTELIC Communications Inc., all rights reserved. All products, names, and services are trademarks and registered trademarks of their respective companies. TEKTELIC Communications Inc. 7657 10 th Street NE Calgary, AB, Canada T2E 8X2 Phone: (403) 338-6900 BLE ASSET TRACKER User Guide Document Type: User Guide Document Number: T0005946_UG Document Issue: 1.1 Document Status: Release Product Name: BLE Asset Tracker Product Codes: T0005944 (NA Module) T0005945 (EU Module) Issue Date: March 30, 2020 BLE Asset Tracker User Guide T0005946_UG Version 1.1 TEKTELIC Communications Inc. Confidential Page 2 of 21 Document Revision Revision Issue Date Status Editor Comments 0.1 March 3, 2020 Draft Carter Mudryk • Initial draft based on Industrial Tracker T0006279_UG v1.2 and Home Sensor T0006338_UG v1.4. • Additional information taken from BLE Tracker T0005946_TRM v0.4. 0.2 March 11, 2020 Draft Carter Mudryk • Minor corrections based on feedback. • Confirmed operational temperature range and battery life. • Corrected temperature transducer from battery gauge to on-board MCU thermometer. 1.0 March 11, 2020 Release Carter Mudryk Confirmed upper operating temperature at 45°C. 1.1 March 30, 2020 Release Conor Karperien Updates to compliance statement BLE Asset Tracker User Guide T0005946_UG Version 1.1 TEKTELIC Communications Inc. Confidential Page 3 of 21 Table of Contents 1 Product Description ................................................................................................................. 7 1.1 Overview .......................................................................................................................... 7 1.2 Specifications and Sensing Functions............................................................................... 9 1.2.1 Bluetooth Low-Energy Scanner .............................................................................. 10 1.2.2 Accelerometer Transducer ..................................................................................... 11 1.2.3 Temperature Transducer ........................................................................................ 11 2 Installation ............................................................................................................................. 12 2.1 Included Product and Installation Material ................................................................... 12 2.2 Safety Precautions .......................................................................................................... 12 2.3 Unpacking and Inspection .............................................................................................. 12 2.4 Commissioning and Activation ....................................................................................... 13 2.5 Mounting ........................................................................................................................ 13 2.6 Battery Replacement ...................................................................................................... 14 3 Operation, Alarms, and Management ................................................................................... 16 3.1 Configuration .................................................................................................................. 16 3.2 Default Configuration ..................................................................................................... 16 3.3 LED Behaviour ................................................................................................................ 16 3.4 Reset Button Function .................................................................................................... 17 3.5 Push Button Function ..................................................................................................... 17 4 Compliance Statements ......................................................................................................... 18 References .................................................................................................................................... 20 BLE Asset Tracker User Guide T0005946_UG Version 1.1 TEKTELIC Communications Inc. Confidential Page 4 of 21 List of Tables Table 1-1: BLE Asset Tracker models. ............................................................................................. 7 Table 1-2: BLE Asset Tracker specifications. ................................................................................... 9 BLE Asset Tracker User Guide T0005946_UG Version 1.1 TEKTELIC Communications Inc. Confidential Page 5 of 21 List of Figures Figure 1-1: The BLE Asset Tracker module..................................................................................... 8 Figure 1-2: The BLE Asset Tracker external interface layout. ......................................................... 8 Figure 1-3: The BLE scan schematic procedure. ........................................................................... 10 Figure 2-1: The mounting hole locations on the bottom of the Tracker. ..................................... 13 Figure 2-2: Threading zip ties through the mounting holes to fasten the Tracker. ..................... 14 Figure 2-3: Opening the BLE Tracker Enclosure. ........................................................................... 14 Figure 2-4: Replacing the battery after opening the Tracker enclosure. ..................................... 15 Figure 2-5: Left: Location of the long snap tab. Right: Inserting the long snap tab side first to reattach enclosure bottom. .................................................................................…

Text truncated - open the document above for the full version.

Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: March 30, 2020 SUBJECT: FCC Application for FCC ID: 2ALEPT0005946 To Whom It May Concern: We, the undersigned, hereby authorize Marc Rousseau at Electronics Test Centre – Airdrie (MPB Technologies Inc.) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Electronics Test Center – Airdrie (MPB Technologies Inc.) on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Regards, Tom Danshin, P.Eng Senior System Engineer TEKTELIC Communications Inc.

Rev 30/Mar/2020 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: 2ALEPT0005946 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request to hold permanently confidential the information accompanying this application as outlined below: Exhibit Type File Name Block Diagram Schematics Operational Description Parts List Tuning Procedure T0005946_BlkDia.pdf T0005946_Sch.pdf T0005946_OpDesc.pdf T0005946_PartsList.xls T0005946_TunProc.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation not listed above will not be made before the date of the Grant for this application. Sincerely, Tom Danshin, System Engineer TEKTELIC Communications Inc.

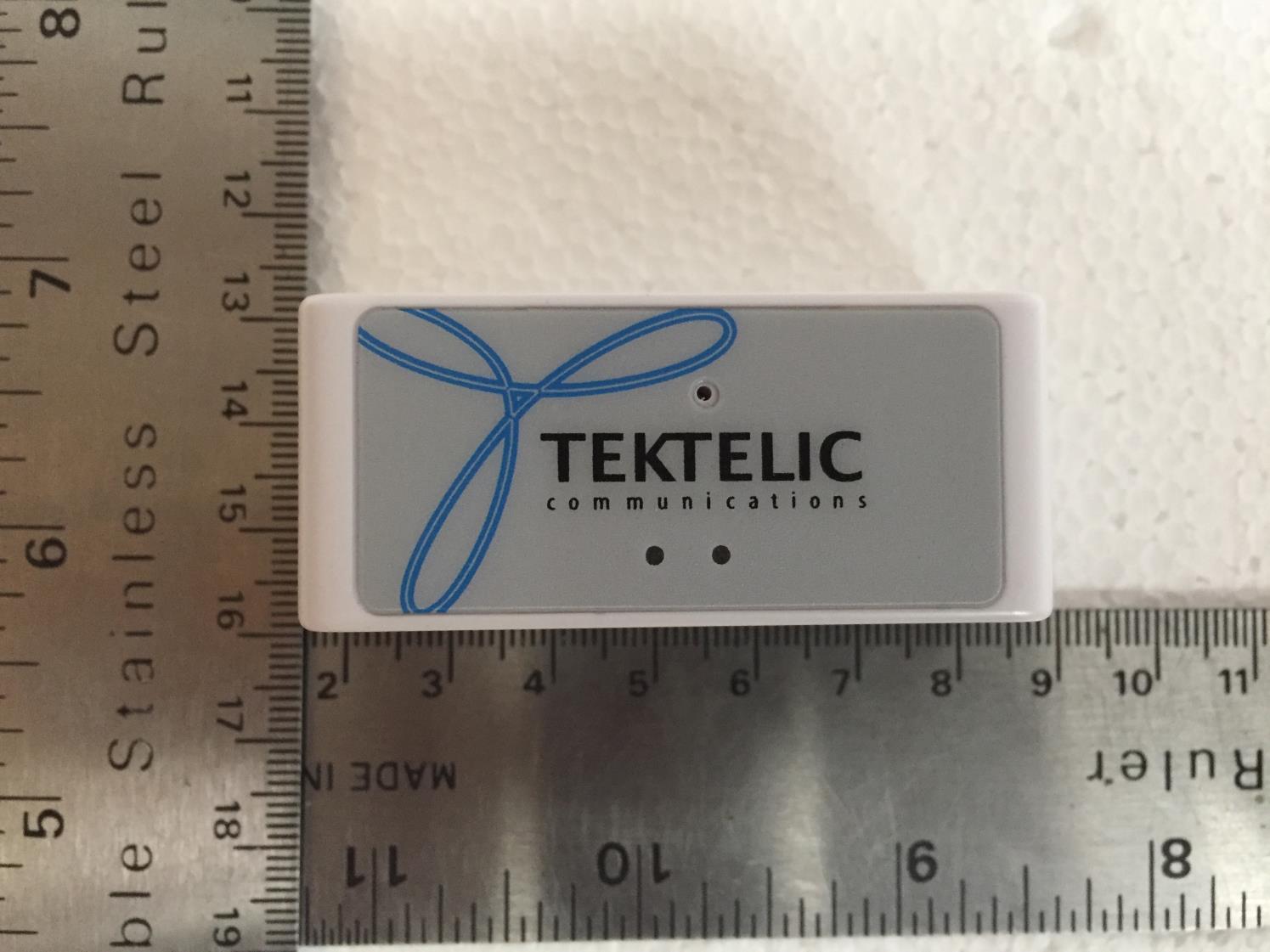

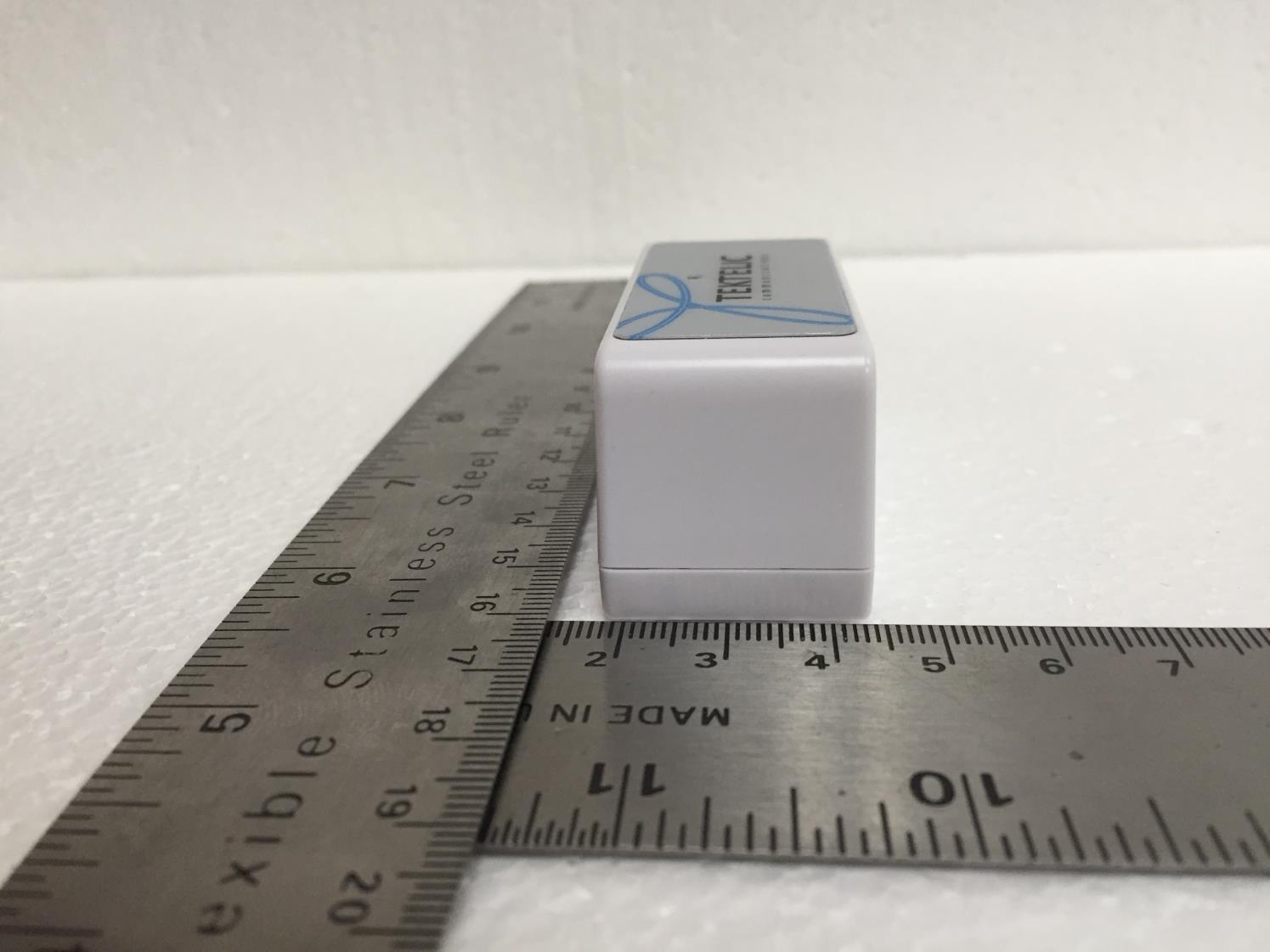

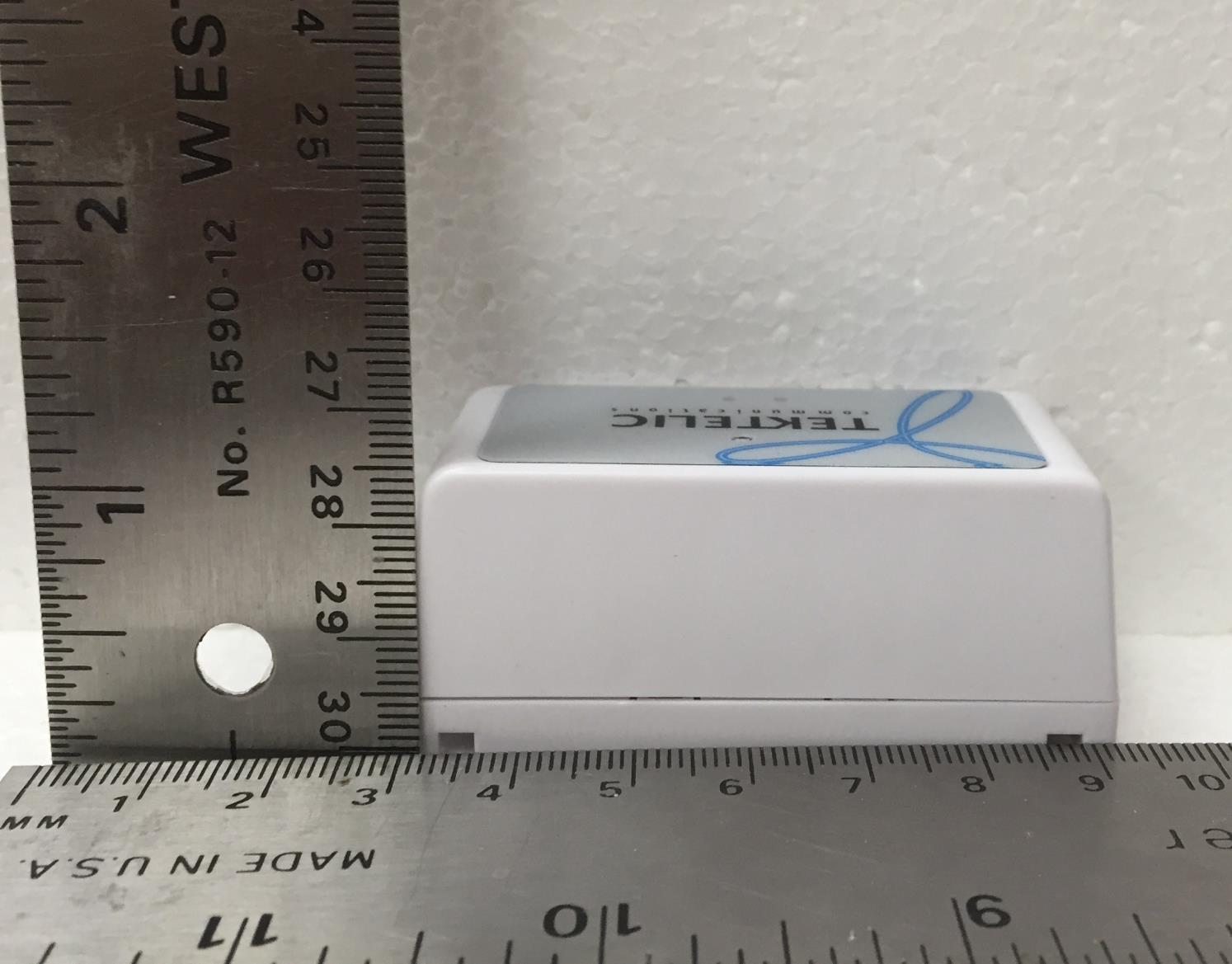

FCC ID: 2ALEPT0005946 IC: 22504-T0005946 External Photos Top view FCC ID: 2ALEPT0005946 IC: 22504-T0005946 External Photos Bottom view FCC ID: 2ALEPT0005946 IC: 22504-T0005946 External Photos 1 st Side (view) FCC ID: 2ALEPT0005946 IC: 22504-T0005946 External Photos 2 nd Side View FCC ID: 2ALEPT0005946 IC: 22504-T0005946 External Photos 3 rd Side View FCC ID: 2ALEPT0005946 IC: 22504-T0005946 External Photos 4 th Side View

FCC ID: 2ALEPT0005946 Label & Location IC: 22504-T0005946 Label Location FCC ID: 2ALEPT0005946 Label & Location IC: 22504-T0005946

FCC ID: 2ALEPT0005946 IC: 22504-T0005946 EUT Internal Photo Top Cover Removed: FCC ID: 2ALEPT0005946 IC: 22504-T0005946 EUT Internal Photo Enclosure inside view: FCC ID: 2ALEPT0005946 IC: 22504-T0005946 EUT Internal Photo PCB Top View with Shield: LoRa Antenna BTLE Antenna FCC ID: 2ALEPT0005946 IC: 22504-T0005946 EUT Internal Photo PCB Top View without Shield: FCC ID: 2ALEPT0005946 IC: 22504-T0005946 EUT Internal Photo PCB Bottom View with without battery: Battery Holder Battery Holder FCC ID: 2ALEPT0005946 IC: 22504-T0005946 EUT Internal Photo PCB Bottom View with battery:

FCC ID: 2ALEPT0005946 FCC RF Exposure Evaluation 1 The Device is a mobile BLE Asset Tracker for IoT applications. BLE Tracker is suitable for commercial indoor application. BLE Tracker evaluated for RF radiation exposure according to the provisions of FCC §2.1091, MPE guidelines identified in FCC §1.1310 and FCC KDB 447498:2015. Limits for General Population/Uncontrolled Exposure: 47 CFR 1.1310 Table 1 (B) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) 0.3-1.34 614 1.63 *100 30 1.34-30 824/f 2.19/f *180/f 2 30 30-300 27.5 0.073 0.2 30 300-1,500 f/1500 30 1.500-100.000 1.0 30 Where f is in MHz The worst-case scenario is provided at 902 MHz. The maximum power density exposure is f/1500: S = 0.60133 mW/cm 2 , for uncontrolled exposure LoRa RF conducted power measurement and antenna gain as per ETC test reports t29e20a152- DTS_FCC and t29e20a152-DSS_FCC section 2.3.5 are reported below. The maximum duty cycle of the radio is stated in the Operation Description exhibit to be 33%. The worst-case value is in bold below TX Frequency (MHz) Conducted RF Output 100% Duty Cycle (dBm) Max. antenna gain (dBi) Conducted EIRP 100% duty Cycle(dBm) EIRP 100% Duty Cycle (mW) EIRP 33% Duty Cycle (mW) LoRa 500 KHz 903 15.27 2 17.27 53.3335 17.600055 907.8 15.18 2 17.18 52.2396 17.239068 914.2 15.20 2 17.20 52.4807 17.318631 LoRa 125 KHz 902.3 15.31 2 17.31 53.827 17.76291 908.5 15.17 2 17.17 52.1195 17.199435 914.9 15.38 2 17.38 54.7016 18.051528 FCC ID: 2ALEPT0005946 FCC RF Exposure Evaluation 2 Using worst case scenario, the highest measured EIRP or [P*G(numeric gain)] value for the LoRa transmitter was rounded up to 18.1 mW. Using the highest transmitted power at a distance of 20 cm in the equation below: S = EIRP / ( 4πR 2 ) Where: S, power density in ‘mW/cm 2 ’ (we use the value for the LoRa band of 0.60153 W/m 2 ) EIRP, Effective Isotropic Radiated Power in ‘mW’ R, distance to the center of the radiation of the antenna in ‘cm’ The RF exposure from the radio is less than the limit specified as shown below and meets the exemption criteria. S (mW/cm 2 ) = (18.1 mW) / (4 x π x 20²) S = 0.003601 mW/cm 2 <<< 0.60133 mW/cm 2 (max limit) The manufacturer manual specified a minimum safe distance of 20 cm.

This report shall not be reproduced, except in full, without prior written approval of Electronics Test Centre - MPB Technologies Inc. Page 1 of 46 Test Report Prepared By: Electronics Test Centre 27 East Lake Hill Airdrie, Alberta Canada T4A 2K3 [email protected] http://www.etc-mpb.com Telephone: 1-403-912-0037 ETC Report #: t29e20a152-DSS_FCC Release 1 Test Dates: March 16, 17 and 18, 2020 Report date: April 13, 2020 EMC testing of the Tektelic Communication Inc. BLE TRACKER in accordance with FCC Part 15.247, ANSI C63.4: 2014 and ANSI C63.10: 2013 as referenced by KDB 558074 D01 15.247 Measurement Guidance v05r02. FCC ID: 2ALEPT0005946 Tested by: Bushra Muharram, Imran Akram, David Szczesniak Prepared for: Tektelic Communication Inc. 7657 10 th Street NE Calgary, Alberta Canada T2E 8X2 Telephone: 1-403-338-6910 _________________________ _________________________ Bushra Muharram Marc Rousseau [email protected] [email protected] EMC Technologist QA Manager Electronics Test Centre (Airdrie) Electronics Test Centre (Airdrie) Test Sample BLE TRACKER FCC ID: 2ALEPT0005946 FCC Part 15.247 902 – 928 MHz Report #: t29e20a152-DSS_FCC Release 1 This report shall not be reproduced, except in full, without prior written approval of MPB Technologies Page 2 of 46 REVISION RECORD ISSUE DATE AUTHOR REVISIONS DRAFT 1 2020-04-01 I. Akram Initial draft submitted for review. Release 1 2020-04-13 M. Rousseau Sign off Test Sample BLE TRACKER FCC ID: 2ALEPT0005946 FCC Part 15.247 902 – 928 MHz Report #: t29e20a152-DSS_FCC Release 1 This report shall not be reproduced, except in full, without prior written approval of MPB Technologies Page 3 of 46 TABLE OF CONTENTS 1.0 INTRODUCTION 5 1.1 Scope ......................................................................................................................................5 1.2 Applicant .................................................................................................................. 5 1.3 Test Sample Description .........................................................................................................5 1.4 General Test Conditions and Assumptions .............................................................................5 1.5 Scope of Testing .....................................................................................................................6 1.5.1 Test Methodology .................................................................................................... 6 1.5.2 Variations in Test Methodology ............................................................................... 6 1.5.3 Test Sample Verification, Configuration & Modifications ...................................... 6 1.5.4 Uncertainty of Measurement: ................................................................................... 6 2.0 TEST CONCLUSION 7 2.1 AC Power Line Conducted Emissions – N/A .........................................................................8 2.2 Channel Occupied Bandwidth (Hybrid Mode) .......................................................................9 2.2.1 Test Guidance: ANSI C63.10-2013, Clause 6.9.2, 6.9.3 &7.8.7 / KDB 558074 D01 15.247 Measurement Guidance v05r02 .................................................................................. 9 2.2.2 Deviations From The Standard: ............................................................................... 9 2.2.3 Test Equipment ........................................................................................................ 9 2.2.4 Test Sample Verification, Configuration & Modifications .................................... 10 2.2.5 Channel Occupied Bandwidth Data: (Hybrid Mode) ............................................. 10 2.3 Max Average Output Power (Hybrid Mode) ........................................................................ 12 2.3.1 Test Guidance: ANSI C63.10-2013, Clause 11.9.2.2.2, Clause 7.8.5 / 558074 D01 15.247 Measurement Guidance v05r02 ................................................................................ 12 2.3.2 Deviations From The Standard: ............................................................................. 13 2.3.3 Test Equipment ...................................................................................................... 13 2.3.4 Test Sample Verification, Configuration & Modifications .................................... 13 2.3.5 Average Output Power Data (Hybrid Mode) ......................................................... 13 2.4 Power Spectral Density (Hybrid Mode) ............................................................................... 16 2.4.1 Test Guidance: ANSI C63.10-2013, Clause 11.10.3 / 558074 D01 15.247 Measurement Guidance v05r02 ............................................................................................ 16 2.4.2 Deviations From The Standard: ............................................................................. 16 2.4.3 Test Equipment ...................................................................................................... 17 2.4.4 Test Sample Verification, Configuration & Modifications .................................... 17 2.4.5 Peak PSD Data (Hybrid Mode) .............................................................................. 17 2.5 Band Edge Attenuation (Hybrid Mode) ............................................................................... 20 2.5.1 Test Guidance: ANSI C63.10-2013 Clause 6.10.4, 6.10.6 & 7.8.6 / 558074 D01 15.247 Measurement Guidance v05r02 ................................................................................ 20 2.5.2 Deviations From The Standard: ............................................................................. 21 2.5.3 Test Equipment ...................................................................................................... 21 2.5.4 Test Sample Verification, Configuration & Modifications .................................... 21 2.5.5 Band…

Text truncated - open the document above for the full version.

FCC ID: 2ALEPT0005946 IC: 22504-T0005946 EUT Test Setup Photo EUT Antenna Port Conducted Measurement Test Setup: FCC ID: 2ALEPT0005946 IC: 22504-T0005946 EUT Test Setup Photo X Axis FCC ID: 2ALEPT0005946 IC: 22504-T0005946 EUT Test Setup Photo Y Axis FCC ID: 2ALEPT0005946 IC: 22504-T0005946 EUT Test Setup Photo Z Axis FCC ID: 2ALEPT0005946 IC: 22504-T0005946 EUT Test Setup Photo Radiated Emission below 30 MHz Test Setup: FCC ID: 2ALEPT0005946 IC: 22504-T0005946 EUT Test Setup Photo Radiated Emission 30 MHz to 1 GHz Test Setup: FCC ID: 2ALEPT0005946 IC: 22504-T0005946 EUT Test Setup Photo Radiated Emission 1 GHz – 10 GHz Test Setup:
