2ALEPT0006623LoRaWAN IoT AC Outlet for indoor use

2020 TEKTELIC Communications Inc. v1.2 1/2 T0006623 SMART AC OUTLET USER GUIDE DESCRIPTION The Smart AC Outlet has the form factor of a standard NEMA 5-15R Decorator style duplex tamper-resistant receptacle but incorporates a LoRa radio with power control and monitoring circuitry which allows for the following remote user features:  Power on-off control and status  Measurement of consumed energy (kWh), line voltage (Vrms), load current (Arms), load power (real, reactive, and apparent, W), line frequency (Hz), and load power factor. Note that only the lower receptacle is controlled and monitored, the top receptacle is always live when line power is connected to the module and any connected load does not contribute to the energy monitoring. The Smart AC Outlet also has a momentary contact push-button switch located on the faceplate for local user on-off control of the controlled receptacle as well as an LED for local status indication. SPECIFICATIONS Dimensions 43 mm (1.7”) W x 46 mm (1.8”) D x 104 mm (4.1”) H Weight 0.12 kg (0.26 lb) Operating Environment Indoor residential & commercial 0 to 40 °C (-40 to 104 °F) 5 - 95% non-condensing RH Line 120 VAC, 60 Hz, 15 A circuit Load 1800 W (15 A) Resistive 1000 W Incandescent 5 A Electronic ballast 1200 VA Standard ballast ½ HP Motor Wire Termination Max. 2 wires per terminal except 1 wire for Ground #14 AWG copper or copper clad solid conductor 16 mm (5/8”) strip length Torque terminal screw to 2.3 N.m (20 lbf-in) Surge Prot. IEEE C62.41 Category A Air Interface LoRa US915 (902 - 928 MHz) Class C Approvals UL pending FCC Pt. 15, RSS-247, FCC Pt. 27 pending WARNINGS AND PRECAUTIONS  TO AVOID FIRE, SHOCK, OR DEATH, ALWAYS TURN OFF POWER at the circuit breaker or fuse panel before wiring the module!  If you are unsure or uncomfortable with installation of this module, consult an electrician.  To be installed in a standard electrical box and used in accordance with appropriate electrical codes and regulations.  To be installed with copper or copper clad wires only.  Exercise caution when powering loads from the LoRa radio- controlled receptacle. Loads connected to this receptacle may be automatically powered on by a timer or by a remote user. Such unexpected operation may present a hazardous condition for local personnel.  This product shall not be used with medical and/or life support equipment. INSTALLATION PROCEDURE 1. Locate the electrical box into which the Smart AC Outlet will be installed. 2. Remove power to the wiring by turning off circuit power at the circuit breaker or fuse panel. 3. Test the existing wiring to ensure that power has been removed. 4. Inspect the electrical box, a box depth of at least 2” is required. The electrical box may be metal or plastic but a plastic box will result in the best all-around RF performance. 5. Identify the appropriate wiring diagram for your installation situation. 6. Strip wire insulation back 5/8” (16 mm) and maintain a straight conductor for each of the wires to be terminated to the receptacle module. 7. Connect the wires to the module in accordance with the wiring diagram by inserting the bare wire fully into the wire hole for each of the Line (Hot), Load, and Ground terminals on the receptacle module. 8. Once the module is fully wired, push the wiring and the module into the electrical box, secure the module with the two mounting ear screws, and install the trim plate with the two trim plate screws. Always use a plastic faceplate for best RF reception. 9. Reapply power to the circuit. The module faceplate LED will now begin to flash indicating connection to a LoRa network is underway. 10. Connect a load and test using the local on-off button on the receptacle faceplate. 11. Commission the module on the appropriate LoRa network. OPERATION REMOTE OPERATION The top receptacle is always on and does not contribute to load energy metering. Only the bottom receptacle is on-off controllable through the LoRa radio network. By default, the bottom receptacle will be off after AC power to the module is restored, although this logic can be changed through the LoRa remote interface. Measurement of energy supplied by the bottom receptacle as well as other real-time parametric information including line voltage, load current, load power (real, reactive, and apparent), and load power factor is available through the LoRa radio network. Please refer to the TEKTELIC Communications AC Sensors Technical Reference Manual (TRM) for details regarding the LoRa network interface. LOCAL OPERATION The bottom, controlled receptacle can be toggled on-off by pressing momentarily the faceplate control button. By default, this load status change will be reported over the LoRa network. The module faceplate has an LED indicator which can be interpreted according to the following default logic: Note that this logic may be changed through the LoRa remote interface. Solid Blue Load power is OFF Module is connected to LoRaWAN Dark Load power if ON Module is connected to LoRaWAN 90% On - 10% Off 1s cadence Load power is OFF Module is connecting to LoRaWAN 10% On - 90% Off 1s cadence Load power if ON Module is connecting to LoRaWAN LoRa Radio Controlled Receptacle Always-on Receptacle Control Button LED Indicator 2020 TEKTELIC Communications Inc. v1.2 2/2 WIRING DIAGRAMS The following diagrams illustrate common installation diagrams, other options are possible. Always follow appropriate electrical codes and regulations. Single Outlet End of Run Note: An electrical box ground wire is required. Multiple Outlet Run Note: An electrical box ground wire is required. COMPLIANCE STATEMENTS FCC This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. To comply with FCC exposure limits for general population / uncontrolled exp…

Text truncated - open the document above for the full version.

Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: April 21 st , 2020 SUBJECT: FCC Application for FCC ID: 2ALEPT0006623 To Whom It May Concern: We, the undersigned, hereby authorize Marc Rousseau at Electronics Test Centre – Airdrie (MPB Technologies Inc.) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Electronics Test Center – Airdrie (MPB Technologies Inc.) on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti- Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Regards, Tom Danshin, P.Eng. Senior System Engineer TEKTELIC Communications Inc.

Federal Communications Commission Authorization and Evaluation Division Date: April 21, 2020 Subject: Confidentiality Request regarding application for certification of FCC ID: 2ALEPT0006623 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request to hold permanently confidential the information accompanying this application as outlined below: Exhibit Type File Name Block Diagram T0006623_BlkDia Schematics T0006623_Sch Part List T0006623_PartList Operational Description T0006623_OpDesc Tune up T0006623_TunProc The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation not listed above will not be made before the date of the Grant for this application. Sincerely, Tom Danshin, System Engineer TEKTELIC Communications Inc.

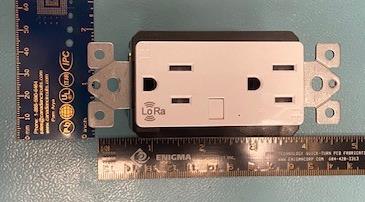

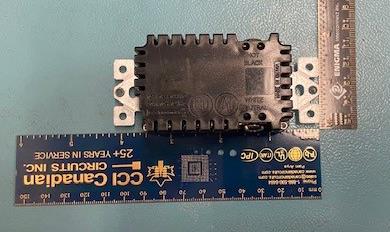

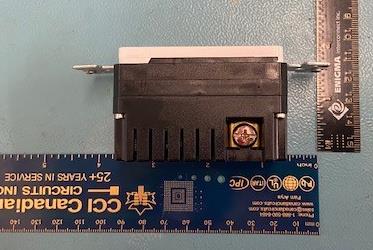

FCC ID: 2ALEPT0006623 IC: 22504-T0006623 External Photos Top view FCC ID: 2ALEPT0006623 IC: 22504-T0006623 External Photos Bottom view FCC ID: 2ALEPT0006623 IC: 22504-T0006623 External Photos 1 st Side (view) FCC ID: 2ALEPT0006623 IC: 22504-T0006623 External Photos 2 nd Side View FCC ID: 2ALEPT0006623 IC: 22504-T0006623 External Photos 3 rd Side View FCC ID: 2ALEPT0006623 IC: 22504-T0006623 External Photos 4 th Side View

FCC ID: 2ALEPT0006623 Label & Location IC: 22504-T0006623 Label Location FCC ID: 2ALEPT0006623 Label & Location IC: 22504-T0006623

FCC ID: 2ALEPT0006623 IC: 22504-T0006623 EUT Internal Photo Top Cover Removed: Wire antenna Button/LED PCBA (sub-contracted) Antenna lenght FCC ID: 2ALEPT0006623 IC: 22504-T0006623 EUT Internal Photo AC power PCBA Internal assembly All PCBA stacking (without enclosure and AC prongs) FCC ID: 2ALEPT0006623 IC: 22504-T0006623 EUT Internal Photo AC Power PCBA top view: AC Power PCBA bottom view: FCC ID: 2ALEPT0006623 IC: 22504-T0006623 EUT Internal Photo Radio PCBA top view: Radio PCBA to view (shield removed): FCC ID: 2ALEPT0006623 IC: 22504-T0006623 EUT Internal Photo Radio PCBA bottom view: Button/LED PCBA top view Button/LED PCBA bottom view

FCC ID: 2ALEPT0006623 FCC RF Exposure Evaluation 1 The Device is a mobile AC Outlet for IoT applications. Smart AC Outlet is suitable for commercial and residential indoor application. Smart AC Outlet evaluated for RF radiation exposure according to the provisions of FCC §2.1091, MPE guidelines identified in FCC §1.1310 and FCC KDB 447498:2015. Limits for General Population/Uncontrolled Exposure: 47 CFR 1.1310 Table 1 (B) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) 0.3-1.34 614 1.63 *100 30 1.34-30 824/f 2.19/f *180/f 2 30 30-300 27.5 0.073 0.2 30 300-1,500 f/1500 30 1.500-100.000 1.0 30 Where f is in MHz The worst-case scenario is provided at 902 MHz. The maximum power density exposure is: S = 0.60133 mW/cm 2 , for uncontrolled exposure LoRa RF conducted power measurement and antenna gain as per ETC test reports t29e20a162_outlet-DTS_FCC and t29e20a162_outlet-DSS_FCC section 2.3.5 are reported below. The maximum duty cycle of the radio is stated in the Operation Description exhibit to be 33%. The worst case value is in bold below TX Frequency (MHz) Conducted RF Output 100% Duty Cycle (dBm) Max. antenna gain (dBi) Conducted EIRP 100% duty Cycle(dBm) EIRP 100% Duty Cycle (mW) EIRP 33% Duty Cycle (mW LoRa 500 KHz 903 20.29 0 20.29 106.9055 35.278815 909.4 20.45 0 20.45 110.9175 36.602775 914.9 20.45 0 20.45 110.9175 36.602775 LoRa 125 KHz 902.3 20.25 0 20.25 105.9254 34.955382 908.5 20.27 0 20.27 106.4143 35.116719 914.9 20.49 0 20.49 111.9438 36.941454 After Tuning max. power 22.0 0 22.0 158.4893 52.301469 FCC ID: 2ALEPT0006623 FCC RF Exposure Evaluation 2 Using worst case scenario, the highest measured EIRP or [P*G(numeric gain)] value for the LoRa transmitter was rounded up to 52.0 mW. Using the highest transmitted power general equation, at a distance of 20 cm S = EIRP / ( 4πR 2 ) Where: S, power density in ‘mW/cm 2 ’ (we use the value for the LoRa band of 0.60153 W/m 2 ) EIRP, Effective Isotropic Radiated Power in ‘mW’ R, distance to the center of the radiation of the antenna in ‘cm’ The RF exposure from the radio is less than the limit specified as shown below and meets the exemption criteria. 0.010345071 mW/cm 2 = (52.0 mW) / (4 x π x 20²) S = 0.0103451 mW/cm 2 <<< 0.60133 mW/cm 2 (max limit) The manufacturer manual specified a minimum safe distance of 20 cm.

This report shall not be reproduced, except in full, without prior written approval of MPB Technologies Page 1 of 41 Test Report Prepared By: Electronics Test Centre 27 East Lake Hill Airdrie, Alberta Canada T4A 2K3 [email protected] http://www.etc-mpb.com Telephone: 1-403-912-0037 ETC Report #: t29e20a162_Outlet-DTS_FCC Release 1 Test Dates: March 16, 17 and 25, 2020 Report date: April 28, 2020 EMC testing of the Tektelic Communication Inc. AC Outlet in accordance with FCC Part 15.247, ANSI C63.4: 2014 and ANSI C63.10: 2013 as referenced by FCC OET KDB 558074 D01 15.247 Measurement Guidance v05r02. FCC ID: 2ALEPT0006623 Tested by: Bushra Muharram, Imran Akram, David Szczesniak Prepared for: Tektelic Communication Inc. 7657 10 th Street NE Calgary, Alberta Canada T2E 8X2 Telephone: 1-403-338-6910 _________________________ _________________________ Imran Akram Marc Rousseau [email protected] [email protected] Sr. EMC Technologist QA Manager Electronics Test Centre (Airdrie) Electronics Test Centre (Airdrie) Test Sample: AC Outlet FCC ID: 2ALEPT0006623 FCC Part 15.247 (902 – 928 MHz) Report #: t29e20a162_Outlet-DTS_FCC Release 1 This report shall not be reproduced, except in full, without prior written approval of MPB Technologies Page 2 of 41 REVISION RECORD ISSUE DATE AUTHOR REVISIONS DRAFT 1 2020-03-30 I. Akram Initial draft submitted for review. Release 1 2020-04-28 M. Rousseau Sign off Test Sample: AC Outlet FCC ID: 2ALEPT0006623 FCC Part 15.247 (902 – 928 MHz) Report #: t29e20a162_Outlet-DTS_FCC Release 1 This report shall not be reproduced, except in full, without prior written approval of MPB Technologies Page 3 of 41 TABLE OF CONTENTS 1.0 INTRODUCTION 5 1.1 Scope ......................................................................................................................................5 1.2 Applicant ................................................................................................................................5 1.3 Test Sample Description .........................................................................................................5 1.4 General Test Conditions and Assumptions .............................................................................5 1.5 Scope of Testing .....................................................................................................................6 1.5.1 Test Methodology .................................................................................................... 6 1.5.2 Variations in Test Methodology ............................................................................... 6 1.5.3 Test Sample Verification, Configuration & Modifications ...................................... 6 1.5.4 Uncertainty of Measurement: ................................................................................... 6 2.0 TEST CONCLUSION 7 2.1 AC Power Line Conducted Emissions ...................................................................................8 2.1.1 Test Guidance: ANSI C63.4-2014, Clause 7.3.1 & ANSI C63.10: 2013 ................. 8 2.1.2 Deviations From The Standard: ............................................................................... 8 2.1.3 Test Equipment ........................................................................................................ 8 2.1.4 Test Sample Verification, Configuration & Modifications ...................................... 9 2.1.5 Conducted Emissions Data: .................................................................................. 10 2.2 Channel Occupied Bandwidth (DTS Mode) ......................................................................... 12 2.2.1 Test Guidance: FCC KDB 558074 D01 15.247 Measurement Guidance v05r02/ ANSI C63.10 clause 11.8 ..................................................................................................... 12 2.2.2 Deviations From The Standard: ............................................................................. 12 2.2.3 Test Equipment ...................................................................................................... 12 2.2.4 Test Sample Verification, Configuration & Modifications .................................... 13 2.2.5 Channel Occupied Bandwidth Data: (DTS Mode) ................................................. 13 2.3 Maximum conducted (average) output power (DTS Mode) ................................................. 15 2.3.1 Test Guidance: FCC KDB 558074 D01 15.247 Measurement Guidance v05r02/ ANSI C63.10 Sub clause 11.9.2.2 ........................................................................................ 15 2.3.2 Deviations From The Standard: ............................................................................. 15 2.3.3 Test Equipment ...................................................................................................... 16 2.3.4 Test Sample Verification, Configuration & Modifications .................................... 16 2.3.5 Average Output Power Data (DTS Mode) ............................................................. 16 2.4 Power Spectral Density (DTS Mode) ................................................................................... 19 2.4.1 Test Guidance: FCC KDB 558074 D01 15.247 Measurement Guidance v05r02/ Sub clause 11.10 of ANSI C63.10 ............................................................................................... 19 2.4.2 Deviations From The Standard: ............................................................................. 19 2.4.3 Test Equipment ...................................................................................................... 19 2.4.4 Test Sample Verification, Configuration & Modifications .................................... 20 2.4.5 Peak PSD Data (DTS MODE) ............................................................................... 20 2.5 Band Edge Attenuation (DTS Mode) ..........................................................................…

Text truncated - open the document above for the full version.

FCC ID: 2ALEPT0006623 IC: 22504-T0006623 Test Setup Photo EUT Antenna Port Conducted Measurement Test Setup: FCC ID: 2ALEPT0006623 IC: 22504-T0006623 Test Setup Photo Radiated Emission below 30 MHz Test Setup: FCC ID: 2ALEPT0006623 IC: 22504-T0006623 Test Setup Photo Radiated Emission 30 MHz to 1 GHz Test Setup: FCC ID: 2ALEPT0006623 IC: 22504-T0006623 Test Setup Photo Radiated Emission 1 GHz – 10 GHz Test Setup: FCC ID: 2ALEPT0006623 IC: 22504-T0006623 Test Setup Photo AC Port Conducted Emission Test Setup
