2ALEPT0007805SRS is multi sensor for IoT applications

© 2022 TEKTELIC Communications Inc., all rights reserved. All products, names, and services are trademarks and registered trademarks of their respective companies. BREEZE/BREEZE-V/VIVID+ User Guide Document Type: User Guide Document Number: T0007805_UG Document Issue: 1.2 Document Status: Release Product Name: Breeze/Breeze-V/Vivid+ Product Code: T0007838 (Breeze Module) T0007848 (Vivid+ Module) T0007806 (Breeze-V Module) Issue Date: March 24, 2022 Breeze/Breeze-V/Vivid+ User Guide T0007805_UG Version 1.2 TEKTELIC Communications Inc. Page 2 of 22 Document Revision Revision Issue Date Status Editor Comments 1.0 March 16, 2022 Release Shania Stewart Release based on T0007525_UG_ver1.0. 1.1 March 22, 2022 Release Shania Stewart Removed “Confidential” from footers. 1.2 March 24, 2022 Release Shania Stewart Updated the product marketing name throughout the document. Breeze/Breeze-V/Vivid+ User Guide T0007805_UG Version 1.2 TEKTELIC Communications Inc. Page 3 of 22 Table of Contents 1 Product Description ................................................................................................................. 7 1.1 Overview .......................................................................................................................... 7 1.2 Specifications.................................................................................................................... 9 1.3 Transducer Details .......................................................................................................... 10 1.3.1 Temperature/Humidity Transducer ........................................................................ 10 1.3.2 Ambient Light Transducer ....................................................................................... 12 1.3.3 Barometer ............................................................................................................... 12 1.3.4 CO 2 Transducer ....................................................................................................... 12 1.3.5 PIR Transducer ........................................................................................................ 12 2 Installation ............................................................................................................................. 14 2.1 Included Product and Installation Material ................................................................... 14 2.2 Safety Precautions .......................................................................................................... 14 2.3 Unpacking and Inspection .............................................................................................. 14 2.4 Required Equipment for Installation .............................................................................. 14 2.5 Breeze/Breeze-V/Vivid+ Mounting ................................................................................ 14 3 Power Up, Commissioning, and Monitoring ......................................................................... 16 3.1 Required Equipment ...................................................................................................... 16 3.2 Power Up/Down Procedure ........................................................................................... 16 4 Operations, Alarms, and Management ................................................................................. 17 4.1 Configuration .................................................................................................................. 17 4.2 Default Configuration ..................................................................................................... 17 4.3 LED Behavior .................................................................................................................. 18 4.4 Push-Button Functions ................................................................................................... 19 4.4.1 CO 2 Calibration Button ............................................................................................ 19 4.4.2 Reset Button ........................................................................................................... 19 5 Compliance Statements ......................................................................................................... 20 References .................................................................................................................................... 22 Breeze/Breeze-V/Vivid+ User Guide T0007805_UG Version 1.2 TEKTELIC Communications Inc. Page 4 of 22 List of Tables Table 1-1: Transducers in Breeze/Breeze-V/Vivid+ ....................................................................... 7 Table 1-2: Breeze/Breeze-V/Vivid+ Specifications ......................................................................... 9 Table 4-1: Breeze/Breeze-V/Vivid+ Default Reporting Behavior ................................................. 17 Breeze/Breeze-V/Vivid+ User Guide T0007805_UG Version 1.2 TEKTELIC Communications Inc. Page 5 of 22 List of Figures Figure 1-1: Breeze/Breeze-V/Vivid+ Enclosures ............................................................................ 8 Figure 1-2: Breeze/Breeze-V/Vivid+ External Interfaces ............................................................... 9 Figure 1-3: The typical and maximal tolerance for %RH at 25°C ................................................. 11 Figure 1-4: The typical and maximal tolerance for the temperature transducer at 25°C ........... 11 Figure 4-1: Breeze/Breeze-V/Vivid+ With Marked LED Positions ................................................ 18 Breeze/Breeze-V/Vivid+ User Guide T0007805_UG Version 1.2 TEKTELIC Communications Inc. Page 6 of 22 List of Acronyms ADR ............................Adaptive Data Rate ALOHA ........................Additive Links On-line Hawaii Area BLE ..............................Bluetooth Low Energy CO 2 .............................Carbon Dioxide CSS .....…

Text truncated - open the document above for the full version.

Rev 11/20/07 Federal Communications Commission Authorization and Evaluation Division April 4 th , 2022 FCC Application for FCC ID: 2ALEPT0007805 I, the undersigned, declare that the Breeze/Breeze-V/Vivid+ Sensors, FCC ID: 2ALEPT0007805, are compliant to class B Rx mode requirements tested under FCC part15 Sub part B and ISED- 003. The test report is provided to us by our agent, Electronic Test Centre – Airdrie (MPB Technologies Inc.), and TEKTELIC follows the supplier’s declaration of conformity (SDoC) authorization procedure. Sincerely, Tom Danshin Manager, System Design

Federal Communications Commission Authorization and Evaluation Division Date: April 4 th , 2022 Subject: Compliance to Permissive Change Policy for Functional Variants Regarding Application for FCC ID: 2ALEPT0007805 The Breeze, Breeze-V, and Vivid+ are LoRa sensors for IoT applications. Each sensor can support multiple RF regions, including North America. The Breeze, Breeze-V, and Vivid+ are all functional variants in the same sensor family that share the same printed circuit board. The Breeze, Vivid+, and Breeze-V variants are not different in RF circuitry, but are only different in transducer population: Breeze has the CO 2 transducer and barometer populated; Vivid+ has the PIR human motion detector populated. The Breeze-V variant has the CO 2 transducer, barometer, and PIR human motion detector populated. The functional variants are compliant to the requirements outlined in Section III of KDB Publication 178919 D01 (Permissive Change Policy) to be authorized under one FCC ID. Specifics for the compliance to each subpart are described below. Section III Part A: Each variant is considered electrically equivalent as per the permitted changes described in § 2.1043(a). Section III Part B: The same transmitters are populated on each variant. Section III Part C: There are no changes in the integral active hardware components between functional variants that would otherwise result in different radio parameters or cause the device to be non-electrically identical. Section III Part D: There are no substitutions of non-electrically identical parts required between variants. Section III Part E: There are no changes in transmitter amplifiers between variants. Section III Part F: There are changes to minor circuitry for non-transmitter portions, the specifics of which are depopulated components related to the excluded sensing functions and their interfacing circuitry. The variant acting as the “worst case” from an emissions perspective was tested, namely, the Breeze-V (T0007806) model. Sincerely, Tom Danshin, P.Eng. Manager, System Design TEKTELIC Communications Inc.

Federal Communications Commission Authorization and Evaluation Division Date: March 16 th , 2022 Subject: Confidentiality Request regarding application for certification of FCC ID: 2ALEPT0007805 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request to hold permanently confidential the information accompanying this application as outlined below: Exhibit Type File Name Block Diagram T0007805_BlkDia.pdf Schematics T0007937_SCH_RevA3_Jan19.pdf T0007937_SCH_RevB1_March1.pdf T0007938_SCH_RevA3_Jan19.pdf T0007938_SCH_RevB1_March01.pdf T0007939_SCH_RevA3_Jan19.pdf T0007939_SCH_RevB1_March01.pdf Part List T0007805_PartList.xlsx Operational Description T0007805_OD_ver1.0.pdf Tune up T0007805_TP_ver1.0.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation not listed above will not be made before the date of the Grant for this application. Sincerely, Tom Danshin, Manager, System Design TEKTELIC Communications Inc.

Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: March 16 th , 2022 SUBJECT: FCC Application for FCC ID: 2ALEPT0007805 To Whom It May Concern: We, the undersigned, hereby authorize Marc Rousseau at Electronics Test Centre – Airdrie (MPB Technologies Inc.) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Electronics Test Center – Airdrie (MPB Technologies Inc.) on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti- Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Regards, Tom Danshin, P.Eng. Manager, System Design TEKTELIC Communications Inc.

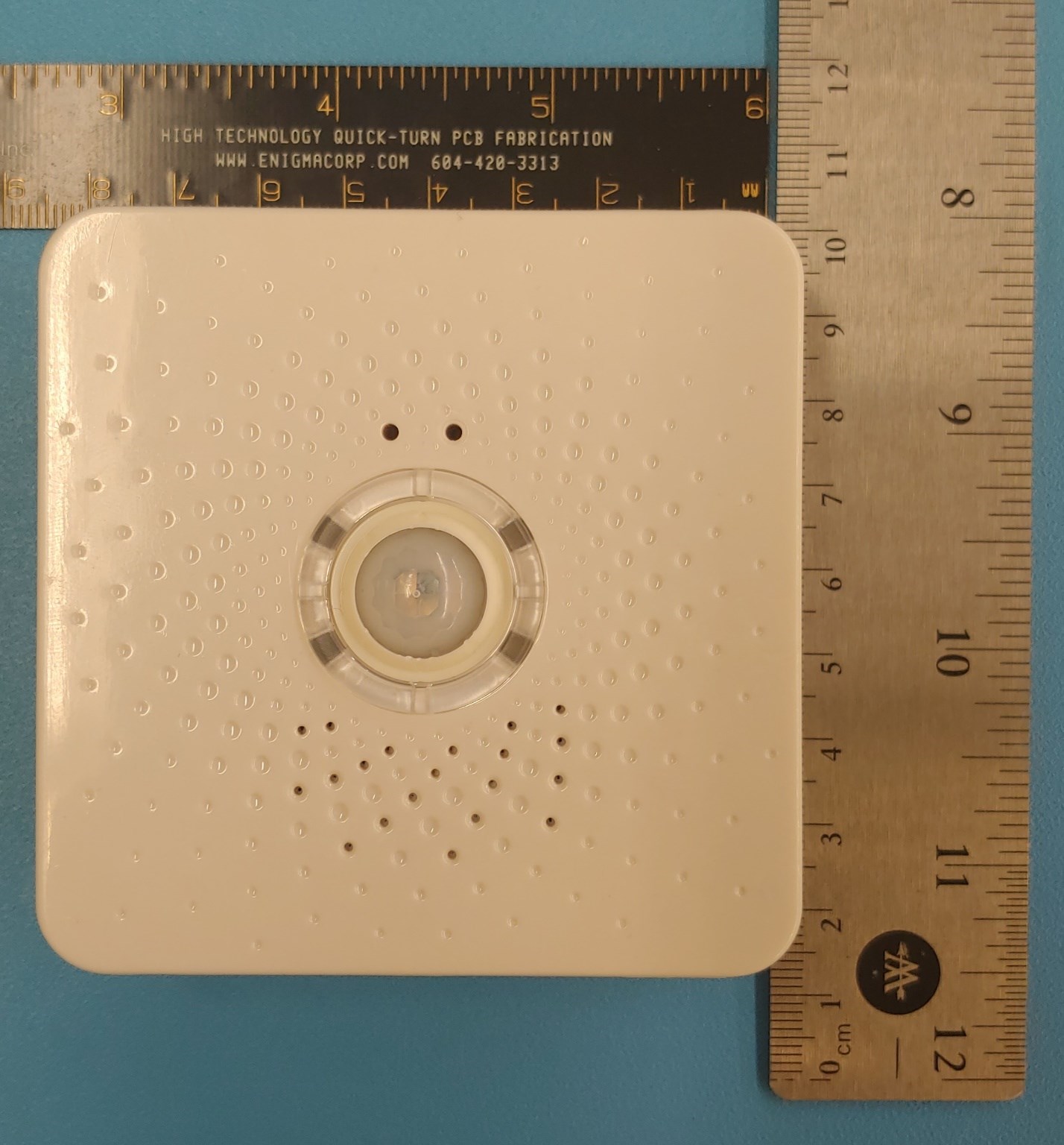

FCC ID: 2ALEPT0007805 External Photos Photo IC: 22504-T0007805 T0007806 (Breeze-V Model) Top View FCC ID: 2ALEPT0007805 External Photos Photo IC: 22504-T0007805 T0007806 (Breeze-V Model) Bottom View FCC ID: 2ALEPT0007805 External Photos Photo IC: 22504-T0007805 T0007806 (Breeze-V Model) Side View 1 FCC ID: 2ALEPT0007805 External Photos Photo IC: 22504-T0007805 T0007806 (Breeze-V Model) Side View 2 FCC ID: 2ALEPT0007805 External Photos Photo IC: 22504-T0007805 T0007806 (Breeze-V Model) Side View 3 FCC ID: 2ALEPT0007805 External Photos Photo IC: 22504-T0007805 T0007806 (Breeze-V Model) Side View 4 FCC ID: 2ALEPT0007805 External Photos Photo IC: 22504-T0007805 T0007838 (Breeze Model) Top View FCC ID: 2ALEPT0007805 External Photos Photo IC: 22504-T0007805 T0007838 (Breeze Model) Bottom View FCC ID: 2ALEPT0007805 External Photos Photo IC: 22504-T0007805 T0007838 (Breeze Model) Side View 1 FCC ID: 2ALEPT0007805 External Photos Photo IC: 22504-T0007805 T0007838 (Breeze Model) Side View 2 FCC ID: 2ALEPT0007805 External Photos Photo IC: 22504-T0007805 T0007838 (Breeze Model) Side View 3 FCC ID: 2ALEPT0007805 External Photos Photo IC: 22504-T0007805 T0007838 (Breeze Model) Side View 4 FCC ID: 2ALEPT0007805 External Photos Photo IC: 22504-T0007805 T0007848 (Vivid+ Model) Top View FCC ID: 2ALEPT0007805 External Photos Photo IC: 22504-T0007805 T0007848 (Vivid+ Model) Bottom View FCC ID: 2ALEPT0007805 External Photos Photo IC: 22504-T0007805 T0007848 (Vivid+ Model) Side View 1 FCC ID: 2ALEPT0007805 External Photos Photo IC: 22504-T0007805 T0007848 (Vivid+ Model) Side View 2 FCC ID: 2ALEPT0007805 External Photos Photo IC: 22504-T0007805 T0007848 (Vivid+ Model) Side View 3 FCC ID: 2ALEPT0007805 External Photos Photo IC: 22504-T0007805 T0007848 (Vivid+ Model) Side View 4

REVISIONS REV.DESCRIPTIONDATE MODULE, SMART ROOM SENSOR, GEN 5, CO2 & PIR Smart Room Sensor Gen5 labels and locations A3 SHEET 1 OF 2SCALE:2:1 DWG NO. TITLE: REVISION A5 This document contains proprietary information and may not be copied or reproduced without the express written permission of a duly authorized representative of TEKTELIC Communications Inc. Copyright © 2021 TEKTELIC Communications Inc. All Rights Reserved SIZE 1.00" 0.50" 0.50" 1.00" LABEL, UNIT ACTIVATION, 0.5"X1.0", GENERIC Smart Room Sensor Gen5 labels and locations A3 SHEET 2 OF 2SCALE:5:1 DWG NO. TITLE: REVISION A0 This document contains proprietary information and may not be copied or reproduced without the express written permission of a duly authorized representative of TEKTELIC Communications Inc. Copyright © 2021 TEKTELIC Communications Inc. All Rights Reserved SIZE

FCC ID: 2ALEPT0007805 EUT Internal Photo IC: 22504-T0007805 T0007806 (Breeze-V Model) Battery Cover Open FCC ID: 2ALEPT0007805 EUT Internal Photo IC: 22504-T0007805 T0007806 (Breeze-V Model) Inside Enclosure (No Battery) LoRa Antenna BLE Antenna FCC ID: 2ALEPT0007805 EUT Internal Photo IC: 22504-T0007805 T0007806 (Breeze-V Model) Inside Enclosure (No PCB) FCC ID: 2ALEPT0007805 EUT Internal Photo IC: 22504-T0007805 T0007806 (Breeze-V Model) PCB Top with CO 2 and PIR Transducers PIR Transducer CO 2 Transducer FCC ID: 2ALEPT0007805 EUT Internal Photo IC: 22504-T0007805 T0007806 (Breeze-V Model) PCBA Bottom with Shield FCC ID: 2ALEPT0007805 EUT Internal Photo IC: 22504-T0007805 T0007806 (Breeze-V Model) PCBA Bottom without Shield (Crystal Variant) FCC ID: 2ALEPT0007805 EUT Internal Photo IC: 22504-T0007805 T0007806 (Breeze-V Model) PCBA Bottom without Shield (TCXO Variant) FCC ID: 2ALEPT0007805 EUT Internal Photo IC: 22504-T0007805 T0007838 (Breeze Model) Battery Cover Open FCC ID: 2ALEPT0007805 EUT Internal Photo IC: 22504-T0007805 T0007838 (Breeze Model) Inside Enclosure (No Battery) LoRa Antenna BLE Antenna FCC ID: 2ALEPT0007805 EUT Internal Photo IC: 22504-T0007805 T0007838 (Breeze Model) Inside Enclosure (No PCB) FCC ID: 2ALEPT0007805 EUT Internal Photo IC: 22504-T0007805 T0007838 (Breeze Model) PCB Top with CO 2 Transducer CO 2 Transducer FCC ID: 2ALEPT0007805 EUT Internal Photo IC: 22504-T0007805 T0007838 (Breeze Model) PCBA Bottom with Shield FCC ID: 2ALEPT0007805 EUT Internal Photo IC: 22504-T0007805 T0007838 (Breeze Model) PCBA Bottom without Shield (Crystal Variant) FCC ID: 2ALEPT0007805 EUT Internal Photo IC: 22504-T0007805 T0007838 (Breeze Model) PCBA Bottom without Shield (TCXO Variant) FCC ID: 2ALEPT0007805 EUT Internal Photo IC: 22504-T0007805 T0007848 (Vivid+ Model) Battery Cover Open FCC ID: 2ALEPT0007805 EUT Internal Photo IC: 22504-T0007805 T0007848 (Vivid+ Model) Inside Enclosure (No Battery) LoRa Antenna BLE Antenna FCC ID: 2ALEPT0007805 EUT Internal Photo IC: 22504-T0007805 T0007848 (Vivid+ Model) Inside Enclosure (No PCB) FCC ID: 2ALEPT0007805 EUT Internal Photo IC: 22504-T0007805 T0007848 (Vivid+ Model) PCB Top with PIR Transducer PIR Transducer FCC ID: 2ALEPT0007805 EUT Internal Photo IC: 22504-T0007805 T0007848 (Vivid+ Model) PCBA Bottom with Shield FCC ID: 2ALEPT0007805 EUT Internal Photo IC: 22504-T0007805 T0007848 (Vivid+ Model) PCBA Bottom without Shield (Crystal Variant) FCC ID: 2ALEPT0007805 EUT Internal Photo IC: 22504-T0007805 T0007848 (Vivid+ Model) PCBA Bottom without Shield (TCXO Variant)

FCC ID: 2ALEPT0007805 FCC RF Exposure Evaluation 1 The Device is a mobile Sensor for IoT applications. SRS is suitable for commercial application. SRS evaluated for RF radiation exposure according to the provisions of FCC §2.1091, MPE guidelines identified in FCC §1.1310 and FCC KDB 447498:2015. Limits for General Population/Uncontrolled Exposure: 47 CFR 1.1310 Table 1 (B) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) 0.3-1.34 614 1.63 *100 30 1.34-30 824/f 2.19/f *180/f 2 30 30-300 27.5 0.073 0.2 30 300-1,500 f/1500 30 1,500-100,000 1.0 30 Where f is in MHz The worst-case scenario is provided at 902.3 MHz. The maximum power density exposure is f/1500: S = 0.60133 mW/cm 2 , for uncontrolled exposure LoRa and BLE RF conducted power measurement and antenna gain as per ETC test reports t29e21a238-DTS_FCC and t29e21a238-DSS_FCC section 2.3.5 are reported below. The maximum duty cycle of the radio is stated in the Operation Description exhibit to be 33%. The worst-case value is in bold below TX Frequency (MHz) Conducted RF Output 100% Duty Cycle (dBm) Max. antenna gain (dBi) Conducted EIRP 100% duty Cycle(dBm) EIRP 100% Duty Cycle (mW) EIRP 33% Duty Cycle (mW) LoRa 500 KHz 903 13.94 2.1 16.04 40.18 13.26 907.8 14.03 2.1 16.13 41.02 13.54 914.2 14.11 2.1 16.21 41.78 13.79 LoRa 125 KHz 902.3 13.75 2.1 15.85 38.46 12.69 908.7 14.01 2.1 16.11 40.83 13.47 914.9 14.62 2.1 16.72 46.99 15.51 BLE 2402 -0.11 1.1 0.99 1.26 0.416 2440 -0.29 1.1 0.81 1.205 0.398 2480 -0.24 1.1 0.86 1.22 0.403 Worse Case 15 2.1 17.1 51.29 16.93 As per tuning procedure document +15 dBm is the absolute maximum power that LoRa chip is capable to handle. FCC ID: 2ALEPT0007805 FCC RF Exposure Evaluation 2 Using worst case scenario with 100% duty Cycle, the highest measured EIRP or [P*G(numeric gain)] value for the LoRa transmitter was rounded up to 52.0 mW. Using the highest transmitted power at a distance of 20 cm in the equation below: S = EIRP / ( 4πR 2 ) Where: S, power density in ‘mW/cm 2 ’ EIRP, Effective Isotropic Radiated Power in ‘mW’ R, distance to the center of the radiation of the antenna in ‘cm’ The RF exposure from the radio is less than the limit specified as shown below and meets the exemption criteria. S (mW/cm 2 ) = (52 mW) / (4 x π x 20²) S = 0.010345071 mW/cm 2 <<< 0.60133 mW/cm 2 (max limit) Rounded up S = 0.013 mW/cm 2 <<<<<<<<<<<<<<< 0.60133 mW/cm 2 (max limit) To determine the minimum safe distance R = √ [EIRP / (4πS)] R = √ [52 / (4π x 0.60133)] R = 2.6 cm The manufacturer manual specified a minimum safe distance of 20 cm.

This report shall not be reproduced, except in full, without prior written approval of MPB Technologies Page 1 of 59 Test Report Prepared By: Electronics Test Centre 27 East Lake Hill Airdrie, Alberta Canada T4A 2K3 [email protected] http://www.etc-mpb.com Telephone: 1-403-912-0037 ETC Report #: t29e22a153-DTS Release1 Test Date: February 28, 2022 March 01 and 08, 2022 Report date: March 29, 2022 EMC testing of the Tektelic Communication Inc. Breeze-V in accordance with FCC Part 15.247and ANSI C63.10: 2013 as referenced by FCC OET KDB 558074 D01 15.247 Meas Guidance v05r02. FCC ID: 2ALEPT0007805 Test Personnel: Imran Akram, Janet Mijares, Branden Van Hee Prepared for: Tektelic Communication Inc. 7657 10 th Street NE Calgary, Alberta Canada T2E 8X2 Telephone: 1-403-338-6910 _________________________ _________________________ Imran Akram Marc Rousseau [email protected] [email protected] EMC Technologist QA Manager Electronics Test Centre (Airdrie) Electronics Test Centre (Airdrie) Test Sample: Breeze-V FCC ID:2ALEPT0007805 FCC Part 15.247 Report #: t29e21a153-DTS Release1 This report shall not be reproduced, except in full, without prior written approval of MPB Technologies Page 2 of 59 REVISION RECORD ISSUE DATE AUTHOR REVISIONS DRAFT 1 2022-03-08 I. Akram Initial draft submitted for review. Release1 2022-03-29 I. Akram Sign Off Test Sample: Breeze-V FCC ID:2ALEPT0007805 FCC Part 15.247 Report #: t29e21a153-DTS Release1 This report shall not be reproduced, except in full, without prior written approval of MPB Technologies Page 3 of 59 TABLE OF CONTENTS 1.0 INTRODUCTION 5 1.1 Scope .........................................................................................................................5 1.2 Applicant ....................................................................................................................5 1.3 Test Sample Description ............................................................................................5 1.4 General Test Conditions ............................................................................................5 1.5 Reference Standards .................................................................................... 6 1.6 Test Methodology .......................................................................................................6 1.6.1 Variations in Test Methodology ..................................................................... 6 1.6.2 Test Sample Verification, Configuration & Modifications .............................. 6 1.6.3 Uncertainty of Measurement: ............................................................................ 6 2.0 TEST CONCLUSION 7 2.1 AC Power Line Conducted Emissions: Transmit Mode .............................................8 2.2 6dB Bandwidth ...........................................................................................................9 2.2.1 Test Guidance: ANSI C63.10-2013, Clause 11.8 / FCC OET KDB 558074 . 9 2.2.2 Deviations From The Standard: .................................................................... 9 2.2.3 Test Equipment ............................................................................................. 9 2.2.4 Test Sample Verification, Configuration & Modifications .............................. 9 2.2.5 Channel Occupied Bandwidth Data: LoRa DTS ......................................... 10 2.2.6 Channel Occupied Bandwidth Data: BLE ................................................... 12 2.3 Max Average Output Power .....................................................................................14 2.3.1 Test Guidance: ANSI C63.10-2013, Clause 11.9.2.2.2/ FCC OET KDB 558074 14 2.3.2 Deviations From The Standard: .................................................................. 14 2.3.3 Test Equipment ........................................................................................... 15 2.3.4 Test Sample Verification, Configuration & Modifications ............................ 15 2.3.5 Max Average Output Power Data: LoRa DTS ............................................ 15 2.3.6 Max Average Output Power Data: BLE ...................................................... 18 2.4 Power Spectral Density ............................................................................................22 2.4.1 Test Guidance: ANSI C63.10-2013, Clause 11.10.3 / FCC OET KDB 558074 22 2.4.2 Deviations From The Standard: .................................................................. 23 2.4.3 Test Equipment ........................................................................................... 23 2.4.4 Test Sample Verification, Configuration & Modifications ............................ 23 2.4.5 Average PSD Data LoRa DTS .................................................................... 23 2.4.6 Average PSD Data BLE .............................................................................. 26 2.5 Band Edge Attenuation ............................................................................................29 2.5.1 Test Guidance: ANSI C63.10-2013 Clause 11.13.2 & 6.10.4, 6.10.6 / FCC OET KDB 558074 .................................................................................................... 29 2.5.2 Deviations From The Standard: .................................................................. 29 2.5.3 Test Equipment ........................................................................................... 30 2.5.4 Test Sample Verification, Configuration & Modifications ............................ 30 2.5.5 Band Edge Data LoRa DTS ........................................................................ 30 2.5.6 Band Edge Data BLE .................................................................................. 32 Test Sample: Breeze-V FCC ID:2ALEPT0007805 FCC Part 15.247 Report #: t29e21a153-DTS Release1 This report shall not be reproduced, except in full, without prior written approval of MPB Technologies Page 4 of 5…

Text truncated - open the document above for the full version.

FCC ID: 2ALEP T0007805 IC: 22504- T0007805 EUT Test Setup Photo EUT Antenna Port Conducted Measurement Test Setup: LoRa Radio FCC ID: 2ALEP T0007805 IC: 22504- T0007805 EUT Test Setup Photo EUT Antenna Port Conducted Measurement Test Setup: BLE Radio FCC ID: 2ALEP T0007805 IC: 22504- T0007805 EUT Test Setup Photo 1 st Orientation (Y-axis’s) FCC ID: 2ALEP T0007805 IC: 22504- T0007805 EUT Test Setup Photo 2 nd Orientation (X-Axis’s) FCC ID: 2ALEP T0007805 IC: 22504- T0007805 EUT Test Setup Photo 3 rd Orientation (Z-Axis’s) FCC ID: 2ALEP T0007805 IC: 22504- T0007805 EUT Test Setup Photo Radiated Emission below 30 MHz Test Setup: FCC ID: 2ALEP T0007805 IC: 22504- T0007805 EUT Test Setup Photo Radiated Emission 30 MHz to 1 GHz Test Setup: FCC ID: 2ALEP T0007805 IC: 22504- T0007805 EUT Test Setup Photo Radiated Emission 1 GHz – 18 GHz Test Setup: FCC ID: 2ALEP T0007805 IC: 22504- T0007805 EUT Test Setup Photo Radiated Emission 18 GHz – 26 GHz Test Setup
