2ALEPT0006377LoRaWAN IoT Display Tablet is indoor use

USER GUIDE Document Type: User Guide Document Number: T0006377_UG Document Version: 0.5 Product Name: Meeting Room Display Tablet Product Codes & Revisions: T0006086 –Battery Powered Digital Signage, NA T0006093 – Externally Powered Digital Signage, NA Issue Date: Mar 2, 2020 Meeting Room Display Tablet User Guide T0006377_UG Version 0.5 TEKTELIC Communications Inc. Confidential Page 2 of 28 Revision History Version Date Editor Comments 0.1 July 17, 2019 Emma Tholl Initial Draft. 0.2 November 7, 2019 C Karperien General updates and template updates 0.3 November 25, 2019 A Narayanan Updated to include Tablet specific instructions. 0.4 December 5, 2019 C Karperien General Updates and addition of Firmware Upgrade Feature 0.5 March 2, 2015 A. Narayanan Updated Tcodes in Table 1 and Temperature specification in Table 2 Meeting Room Display Tablet User Guide T0006377_UG Version 0.5 TEKTELIC Communications Inc. Confidential Page 3 of 28 Table of Contents List of Tables ................................................................................................................................... 5 List of Figures .................................................................................................................................. 6 1 Product Description ................................................................................................................. 7 1.1 Overview .......................................................................................................................... 7 1.2 Specifications.................................................................................................................... 8 1.3 Physical Interfaces .......................................................................................................... 10 2 Commissioning ...................................................................................................................... 12 2.1 Power Up/Down Procedure ........................................................................................... 12 3 Installation ............................................................................................................................. 13 3.1 Included Product and Installation Material ................................................................... 13 3.2 Safety Precautions .......................................................................................................... 13 3.3 Unpacking and Inspection .............................................................................................. 13 3.4 Equipment Required for Installation .............................................................................. 14 3.5 Meeting Room Display Tablet mounting ....................................................................... 14 3.6 Battery Replacement ...................................................................................................... 16 4 Graphical User Interface ........................................................................................................ 17 4.1 Available ......................................................................................................................... 17 4.2 Occupied ......................................................................................................................... 19 5 Operation, Alarms, and Management ................................................................................... 21 5.1 Configuration .................................................................................................................. 21 5.2 Default Configuration ..................................................................................................... 21 5.3 LED Behaviour ................................................................................................................ 21 6 Firmware Upgrade Feature ................................................................................................... 22 6.1 Overview ........................................................................................................................ 22 6.2 Prerequisites................................................................................................................... 22 6.3 Setup .............................................................................................................................. 22 6.4 Firmware Upgrade ......................................................................................................... 24 7 Compliance Statements ......................................................................................................... 26 Meeting Room Display Tablet User Guide T0006377_UG Version 0.5 TEKTELIC Communications Inc. Confidential Page 4 of 28 8 Bibliography ........................................................................................................................... 28 Meeting Room Display Tablet User Guide T0006377_UG Version 0.5 TEKTELIC Communications Inc. Confidential Page 5 of 28 List of Tables Table 1: Meeting Room Display Tablet Models ............................................................................. 7 Table 2: Meeting Room Display Tablet Specifications ................................................................... 9 Meeting Room Display Tablet User Guide T0006377_UG Version 0.5 TEKTELIC Communications Inc. Confidential Page 6 of 28 List of Figures Figure 1-1: Meeting Room Display Tablet ...................................................................................... 8 Figure 1-2: The Tablet (external) interface layout. ...................................................................... 10 Figure 1-3: The Tablet (Battery) interface layout. ....................................................................... 11 Figure 2-1: Meeting Room Display Tablet’s infrastructure .......................................................... 12 Figure 3-1: Wall mount plat…

Text truncated - open the document above for the full version.

Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Date: March 2, 2020 SUBJECT: FCC Application for FCC ID: 2ALEPT0006377 To Whom It May Concern: We, the undersigned, hereby authorize Marc Rousseau at Electronics Test Centre – Airdrie (MPB Technologies Inc.) on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Electronics Test Center – Airdrie (MPB Technologies Inc.) on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Regards, Tom Danshin, P.Eng Senior System Engineer TEKTELIC Communications Inc.

Rev 03/Mar/2020 Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: 2ALEPT0006377 Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request to hold permanently confidential the information accompanying this application as outlined below: Exhibit Type File Name Block Diagram, Schematics, Operational Description, Parts List, T0006377_BlkDia.pdf T0006377_Sch.pdf T0006377_OpDesc.pdf T0006377_PartList.xls Tuning-Procedure T0006377_TunProc.pdf The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation not listed above will not be made before the date of the Grant for this application. Sincerely, Tom Danshin, System Engineer TEKTELIC Communications Inc.

PROPRIETARY: The information contained in this document is the property of Tektelic Communications Inc. Except as specifically authorized in writing by Tektelic, the holder of this document shall keep all information contained herein confidential, and shall protect the same in whole or in part from disclosure to all third parties. Copyright © 2020 Tektelic Communications Inc. All Rights Reserved. TEKTELIC COMMUNICATIONS INC. Document type: Product Family Description Document number: T0006377_Family_Certification_Information Document version: 1.0 Document Status: Approved Product name: MEETING ROOM DISPLAY TABLET Product codes: T0006086, T0006093 TEKTELIC Communications Inc. Product Family Description T0006377 _FCI Version 1.0 TEKTELIC Communications Inc. Confidential Page 2 of 7 Revision History Version Date Comments 1.0 March 03, 2020 Initial Release TEKTELIC Communications Inc. Product Family Description T0006377 _FCI Version 1.0 TEKTELIC Communications Inc. Confidential Page 3 of 7 Contents 1 Family Certification Information ............................................................................................. 4 2 References ............................................................................................................................... 7 TEKTELIC Communications Inc. Product Family Description T0006377 _FCI Version 1.0 TEKTELIC Communications Inc. Confidential Page 4 of 7 1 Family Certification Information The T0006377 Meeting Room Display Tablet family consist of two variants: Battery powered and externally powered. The individual LoRa transceivers in each variant are all electrically identical. There is no post factory module configuration allowed. Table 1-1 presents the Tablet variants which are being certified. Table 1-1 Meeting Room Display Tablet Variants Product Code Description PCBA RF Region Tx Band (MHz) Rx Band (MHz) T0006086 MODULE, DIGITAL SIGNAGE, BATTERY POWERED T0006521 US915 923-928 902-915 T0006093 MODULE, DIGITAL SIGNAGE, EXTERNALLY POWERED T0006522 US915 923-928 902-915 The differences in features supported by the two variants are listed Table 1-2. Table 1-2: Features supported by Tablet models Features suppored Tablet Model T0006086 T0006093 6” EPD screen with Touch X X Front light for the screen X RGB LED Room status indicators X Accelerometer X X PoE X 5V 2mm Barrel connector X Battery Contacts X Battery Gauge X LoRa Radio X X An illustration of Meeting room display tablet variants can be seen in Figure 1-1, Figure 1-2 and Figure 1-3 TEKTELIC Communications Inc. Product Family Description T0006377 _FCI Version 1.0 TEKTELIC Communications Inc. Confidential Page 5 of 7 Figure 1-1: Meeting Room Display Tablet Figure 1-2: Meeting Room Display Tablet (Externally powered) 5V DC PoE RJ45 TEKTELIC Communications Inc. Product Family Description T0006377 _FCI Version 1.0 TEKTELIC Communications Inc. Confidential Page 6 of 7 Figure 1-3: Meeting Room Display Tablet (Battery powered) TEKTELIC Communications Inc. Product Family Description T0006377 _FCI Version 1.0 TEKTELIC Communications Inc. Confidential Page 7 of 7 2 References There are no sources in the current document.

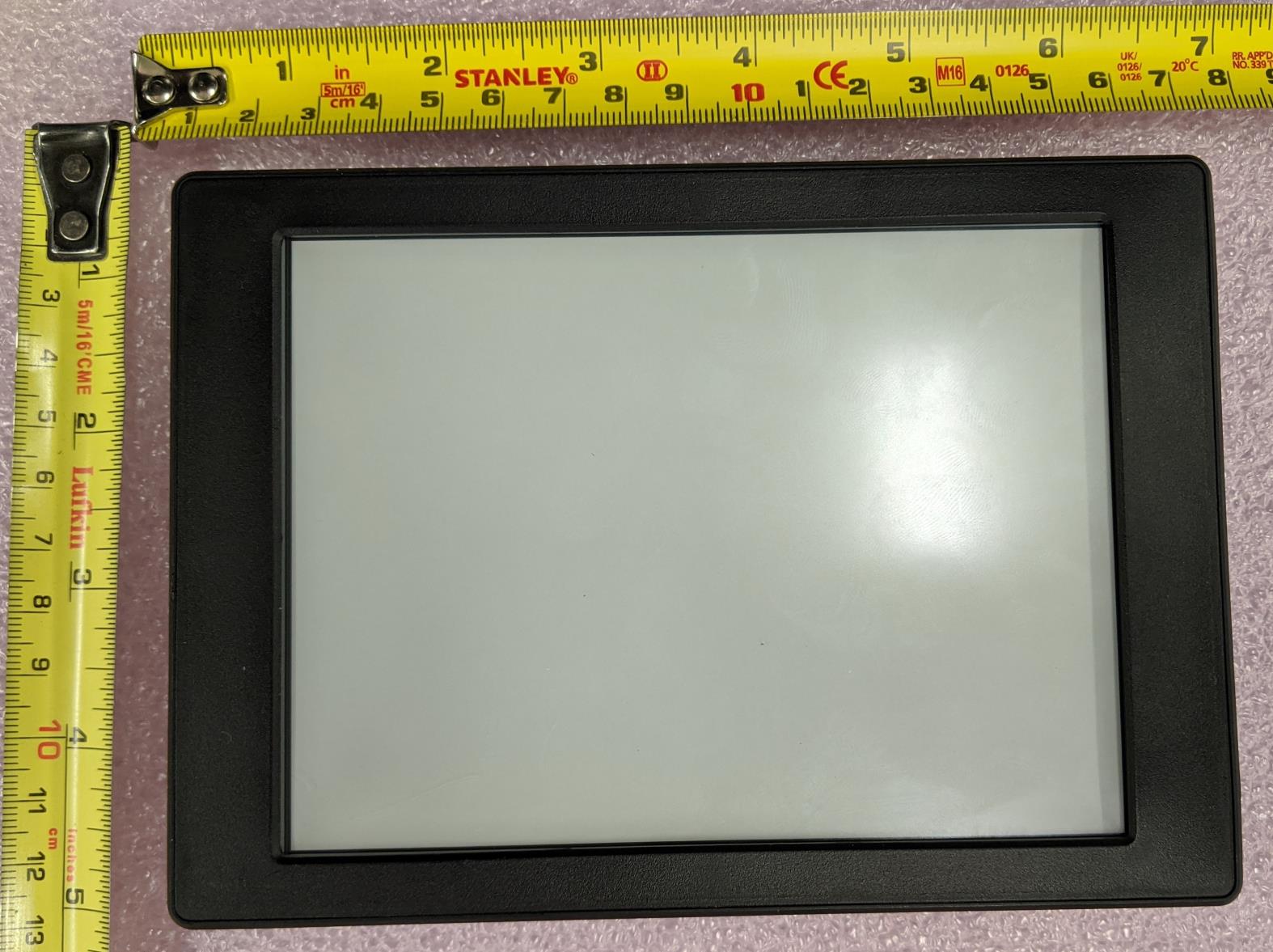

FCC ID: 2ALEPT0006377 IC: 22504-T0006377 External Photos Top view FCC ID: 2ALEPT0006377 IC: 22504-T0006377 External Photos Bottom view FCC ID: 2ALEPT0006377 IC: 22504-T0006377 External Photos 1 st Side (view) 2 nd Side View FCC ID: 2ALEPT0006377 IC: 22504-T0006377 External Photos 3 rd Side View 4 th Side View

FCC ID: 2ALEPT0006377 Label & Location IC: 22504-T0006377 Label Location FCC ID: 2ALEPT0006377 Label & Location IC: 22504-T0006377 Label Detail for T0006086 FCC ID: 2ALEPT0006377 Label & Location IC: 22504-T0006377 Label Detail for T0006093

FCC ID: 2ALEPT0006377 IC: 22504-T0006377 EUT Internal Photo Battery Enclosure without battery: T0006086 FCC ID: 2ALEPT0006377 IC: 22504-T0006377 EUT Internal Photo Battery Enclosure with battery: T0006086 FCC ID: 2ALEPT0006377 IC: 22504-T0006377 EUT Internal Photo Inside View Top Cover Removed: T0006086 FCC ID: 2ALEPT0006377 IC: 22504-T0006377 EUT Internal Photo Inside View without PCB FCC ID: 2ALEPT0006377 IC: 22504-T0006377 EUT Internal Photo PCB Top View: T0006086 FCC ID: 2ALEPT0006377 IC: 22504-T0006377 EUT Internal Photo PCB Bottom View with Shield: T0006086 LoRa Antenna Location FCC ID: 2ALEPT0006377 IC: 22504-T0006377 EUT Internal Photo PCB unshielded Bottom View: T0006086 LoRa Antenna Location FCC ID: 2ALEPT0006377 IC: 22504-T0006377 EUT Internal Photo POE Port: T0006093 FCC ID: 2ALEPT0006377 IC: 22504-T0006377 EUT Internal Photo AC/DC Adaptor Port: T0006093 FCC ID: 2ALEPT0006377 IC: 22504-T0006377 EUT Internal Photo Enclosure with PCB top cover removed: T0006093 FCC ID: 2ALEPT0006377 IC: 22504-T0006377 EUT Internal Photo Enclosure without PCB: T0006093 FCC ID: 2ALEPT0006377 IC: 22504-T0006377 EUT Internal Photo PCB Top View: T0006093 FCC ID: 2ALEPT0006377 IC: 22504-T0006377 EUT Internal Photo PCB Bottom View with Shield: T0006093 FCC ID: 2ALEPT0006377 IC: 22504-T0006377 EUT Internal Photo PCB unshielded Bottom View: T0006093 LoRa Antenna Location

FCC ID: 2ALEPT0006377 FCC RF Exposure Evaluation 1 The Device is a mobile Meeting Room Display Tablet for IoT applications. Meeting Room Display Tablet is suitable for commercial and residential indoor application. Meeting Room Display Tablet evaluated for RF radiation exposure according to the provisions of FCC §2.1091, MPE guidelines identified in FCC §1.1310 and FCC KDB 447498:2015. Limits for General Population/Uncontrolled Exposure: 47 CFR 1.1310 Table 1 (B) LIMITS FOR MAXIMUM PERMISSIBLE EXPOSURE (MPE) Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) 0.3-1.34 614 1.63 *100 30 1.34-30 824/f 2.19/f *180/f 2 30 30-300 27.5 0.073 0.2 30 300-1,500 f/1500 30 1.500-100.000 1.0 30 Where f is in MHz The worst-case scenario is provided at 902 MHz. The maximum power density exposure is: S = 0.60133 mW/cm 2 , for uncontrolled exposure LoRa RF conducted power measurement and antenna gain as per ETC test reports t29e20a138- DTS_FCC and t29e20a138-DSS_FCC section 2.3.5 are reported below. The maximum duty cycle of the radio is stated in the Operation Description exhibit to be 33%. The worst case value is in bold below TX Frequency (MHz) Conducted RF Output 100% Duty Cycle (dBm) Max. antenna gain (dBi) Conducted EIRP 100% duty Cycle(dBm) EIRP 100% Duty Cycle (mW) EIRP 33% Duty Cycle (mW LoRa 500 KHz 903 13.57 0 13.57 22.751 7.5075 907.8 13.78 0 13.78 23.8781 7.887 914.2 14.41 0 14.41 27.6058 9.1113 LoRa 125 KHz 902.3 12.93 0 12.93 19.6336 6.4779 908.5 13.34 0 13.34 21.5774 7.1214 914.9 14.42 0 14.42 27.6694 9.130902 FCC ID: 2ALEPT0006377 FCC RF Exposure Evaluation 2 Using worst case scenario, the highest measured EIRP or [P*G(numeric gain)] value for the LoRa transmitter was rounded up to 9.131 mW. Using the highest transmitted power general equation, at a distance of 20 cm S = EIRP / ( 4πR 2 ) Where: S, power density in ‘mW/cm 2 ’ (we use the value for the LoRa band of 0.60153 W/m 2 ) EIRP, Effective Isotropic Radiated Power in ‘mW’ R, distance to the center of the radiation of the antenna in ‘cm’ The RF exposure from the radio is less than the limit specified as shown below and meets the exemption criteria. 0.001816554 mW/cm 2 = (9.131 mW) / (4 x π x 20²) S = 0.00182 mW/cm 2 <<< 0.60133 mW/cm 2 (max limit) In addition, we re-arrange the above equation to determine the minimum safe distance. R = √ [EIRP / (4πS)] 0.015519765 = √ [0.00182mW / (4xπx0.60133mw/cm²) ] R = 0.01552 cm, for uncontrolled exposure (rounded up to the first decimal) The manufacturer manual specified a minimum safe distance of 20 cm.

This report shall not be reproduced, except in full, without prior written approval of MPB Technologies Page 1 of 43 Test Report Prepared By: Electronics Test Centre 27 East Lake Hill Airdrie, Alberta Canada T4A 2K3 [email protected] http://www.etc-mpb.com Telephone: 1-403-912-0037 ETC Report #: t29e20a138-DTS_FCC Release 1 Test Dates: February 12,13,14 18 and19, 2020 Report date: March 16, 2020 EMC testing of the Tektelic Communication Inc. MEETING ROOM DISPLAY TABLET in accordance with FCC Part 15.247, ANSI C63.4: 2014 and ANSI C63.10: 2013 as referenced by FCC OET KDB 558074 D01 15.247 Measurement Guidance v05r02. FCC ID: 2ALEPT0006377 Tested by: Bushra Muharram, Imran Akram Prepared for: Tektelic Communication Inc. 7657 10 th Street NE Calgary, Alberta Canada T2E 8X2 Telephone: 1-403-338-6910 _________________________ _________________________ Bushra Muharram Marc Rousseau [email protected] [email protected] EMC Technologist QA Manager Electronics Test Centre (Airdrie) Electronics Test Centre (Airdrie) Test Sample: MEETING ROOM DISPLAY TABLET FCC ID: 2ALEPT0006377 FCC Part 15.247 (902 – 928 MHz) Report #: t29e20a138-DTS_FCC Release 1 This report shall not be reproduced, except in full, without prior written approval of MPB Technologies Page 2 of 43 REVISION RECORD ISSUE DATE AUTHOR REVISIONS DRAFT 1 2020-02-18 I. Akram Initial draft submitted for review. DRAFT 2 2020-03-13 I. Akram Corrected EUT name and some typo throughout the document. Release 1 2020-03-16 M. Rousseau Sign off Test Sample: MEETING ROOM DISPLAY TABLET FCC ID: 2ALEPT0006377 FCC Part 15.247 (902 – 928 MHz) Report #: t29e20a138-DTS_FCC Release 1 This report shall not be reproduced, except in full, without prior written approval of MPB Technologies Page 3 of 43 TABLE OF CONTENTS 1.0 INTRODUCTION 5 1.1 Scope .........................................................................................................................5 1.2 Applicant ....................................................................................................................5 1.3 Test Sample Description ............................................................................................5 1.4 General Test Conditions and Assumptions ...............................................................5 1.5 Scope of Testing ........................................................................................................6 1.5.1 Test Methodology ......................................................................................... 6 1.5.2 Variations in Test Methodology .................................................................... 6 1.5.3 Test Sample Verification, Configuration & Modifications .............................. 6 1.5.4 Uncertainty of Measurement: ........................................................................ 6 2.0 TEST CONCLUSION 7 2.1 AC Power Line Conducted Emissions .......................................................................8 2.1.1 Test Guidance: ANSI C63.4-2014, Clause 7.3.1 & ANSI C63.10: 2013 ...... 8 2.1.2 Deviations From The Standard: .................................................................... 8 2.1.3 Test Equipment ............................................................................................. 8 2.1.4 Test Sample Verification, Configuration & Modifications .............................. 9 2.1.5 Conducted Emissions Data: ...................................................................... 10 2.2 Channel Occupied Bandwidth (DTS Mode) ............................................................ 13 2.2.1 Test Guidance: FCC KDB 558074 D01 15.247 Measurement Guidance v05r02/ ANSI C63.10 clause 11.8 ........................................................................... 13 2.2.2 Deviations From The Standard: .................................................................. 13 2.2.3 Test Equipment ........................................................................................... 13 2.2.4 Test Sample Verification, Configuration & Modifications ............................ 14 2.2.5 Channel Occupied Bandwidth Data: (DTS Mode) ...................................... 14 2.3 Maximum conducted (average) output power (DTS Mode) ................................... 16 2.3.1 Test Guidance: FCC KDB 558074 D01 15.247 Measurement Guidance v05r02/ ANSI C63.10 Sub clause 11.9.2.2 .............................................................. 16 2.3.2 Deviations From The Standard: .................................................................. 16 2.3.3 Test Equipment ........................................................................................... 17 2.3.4 Test Sample Verification, Configuration & Modifications ............................ 17 2.3.5 Peak Output Power Data (DTS Mode) ....................................................... 17 2.4 Power Spectral Density (DTS Mode) ...................................................................... 20 2.4.1 Test Guidance: FCC KDB 558074 D01 15.247 Measurement Guidance v05r02/ Sub clause 11.10 of ANSI C63.10 .............................................................. 20 2.4.2 Deviations From The Standard: .................................................................. 20 2.4.3 Test Equipment ........................................................................................... 20 2.4.4 Test Sample Verification, Configuration & Modifications ............................ 21 2.4.5 Peak PSD Data (DTS MODE) .................................................................... 21 2.5 Band Edge Attenuation (DTS Mode) ...................................................................... 23 2.5.1 Test Guidance: ANSI C63.10-2013 Clause 11.11, 11.13.2 / FCC KDB 558074 D01 15.247 Measurement Guidance v05r02 Clause 8.7 ........................... 23 2.5.2 Deviations From The Standard: .................................................................. 23 2.5.3 Test Equipment .....................…

Text truncated - open the document above for the full version.

FCC ID: 2ALEPT0006377 IC: 22504-T0006377 EUT Test Setup Photo EUT Antenna Port Conducted Measurement Test Setup: FCC ID: 2ALEPT0006377 IC: 22504-T0006377 EUT Test Setup Photo X Axis FCC ID: 2ALEPT0006377 IC: 22504-T0006377 EUT Test Setup Photo Y Axis FCC ID: 2ALEPT0006377 IC: 22504-T0006377 EUT Test Setup Photo Z Axis FCC ID: 2ALEPT0006377 IC: 22504-T0006377 EUT Test Setup Photo Radiated Emission below 30 MHz Test Setup: FCC ID: 2ALEPT0006377 IC: 22504-T0006377 EUT Test Setup Photo Radiated Emission 30 MHz to 1 GHz Test Setup: FCC ID: 2ALEPT0006377 IC: 22504-T0006377 EUT Test Setup Photo Radiated Emission 1 GHz – 10 GHz Test Setup: FCC ID: 2ALEPT0006377 IC: 22504-T0006377 EUT Test Setup Photo AC Port Conducted Emission (POE) Test Setup FCC ID: 2ALEPT0006377 IC: 22504-T0006377 EUT Test Setup Photo AC Port Conducted Emission (AC/DC Adaptor) Test Setup
