2ANLP-HOBOCONTROLRemote Control

OPERATION MANUAL Detachable Control Panel Battery 3.7V 180mAh Dimension Net Weight 96x98x24mm/ 3.78x3.85x0.94in 0.119kg/ 0.26Lbs DETACHABLE CONTROL PANEL FCC Warning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The device has been evaluated to meet general RF exposure requirement. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.

* the applicant must designate a contact located in the United States for purposes of acting as the applicant’s agent for service of process, regardless of whether the applicant is a domestic or foreign entity. An applicant located in the United States may designate itself as the agent for service of process. AEC Lighting Solutions Co., Ltd U.S. Agent Designation for Service of Process - Certification Attestation Letter 3/28/2023 Nem ko Nort h America, Inc. 303 Ri ver Road Ottawa K1V 1H2 Canada ATTN.: Reviewing Engineer FCC ID: 2ANLP-HOBOMINI01, 2ANLP-HOBOANVAT01, 2ANLP-HOBOPRO01, 2ANLP- HOBOCONTROL Per sect ion 2.911(d)(7) of th e FCC rules, AE C Lighting Solutions Co. , Ltd (“t he applicant”) certifies tha t the equipment for whic h authorization is sough t is designated to th e following U.S. agent* fo r service of process: Comp any Name : HOBOLITE LCC Physical U.S. Company Address: 401N MICHIGAN AVE STE 1200, CHICAGO, IL 60611 Agent contact name/Title : Weisun Rao/Compliance manager Agent Em ail Address: [email protected] Te l No. : (507)513-3745 FRN No. : 0033478256 Th e above contact perso n accepts th e obligation fo r servic e of process. Th e applicant accepts to maint ain an agent fo r no less th an one yea r after t he grante e has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Applicant Signed: Agent Signed (if different to Applicant): Signed: Printed name: Astro Ma Title: Lab supervisor Company Name: AEC Lighting Solutions Co., Ltd Date: 3/28/2023 Signed: Printed name: Weisun Rao Title: Compliance manager Company Name: HOBOLITE LCC Date: 3/28/2023

AEC Lighting Solutions Co., Ltd Covered Equipment Certification Attestation Letter DATE Nemko North America, Inc. 303 River Road Ottawa K1V 1H2 Canada ATTN.: Reviewing Engineer FCC ID: 2ANLP-HOBOMINI01, 2ANLP-HOBOANVAT01, 2ANLP-HOBOPRO01, 2ANLP-HOBOCONTROL AEC Lighting Solutions Co., Ltd (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Note: If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, the applicant should include an explanation on why the equipment is not “covered” equipment. AEC Lighting Solutions Co., Ltd (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Signed: Printed name: Astro Ma Title: Lab supervisor Company Name: AEC Lighting Solutions Co., Ltd Date: 3/21/2023 March 21, 2023

March 7, 2023 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2ANLP-HOBOCONTROL Product Name: Remote Control Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential:  Schematics Long-term confidential  Block diagram Long-term confidential  Operation description Long-term confidential  BOM Long-term confidential These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Signature: Name Astro Ma Position Lab supervisor Company Name AEC Lighting Solutions Co., Ltd Address 2548 Bao’an Highway, Jiading District, Shanghai 201801, China Tel 86-21-69153369 Fax 86-21-69153321 Email [email protected]

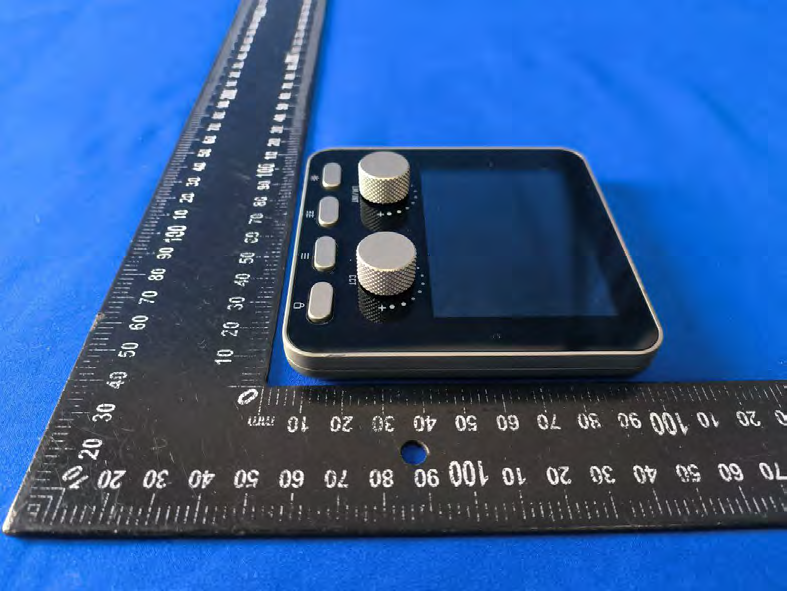

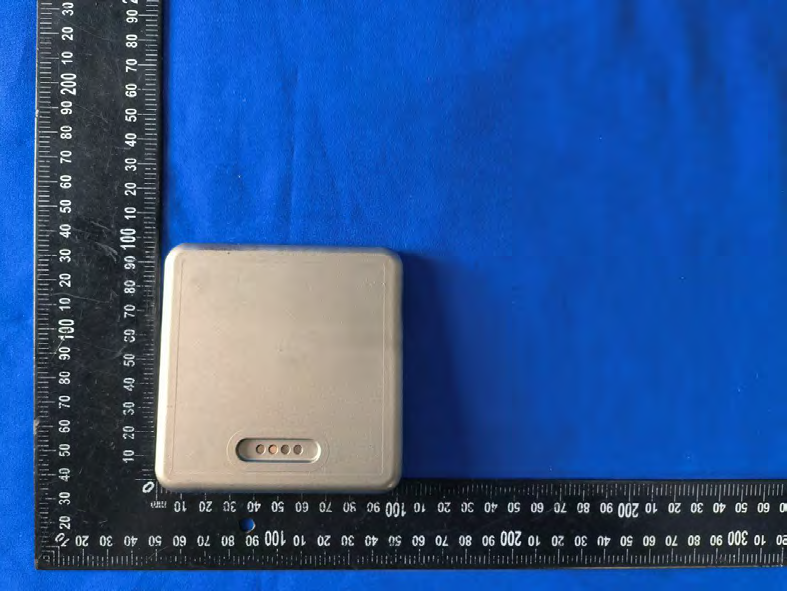

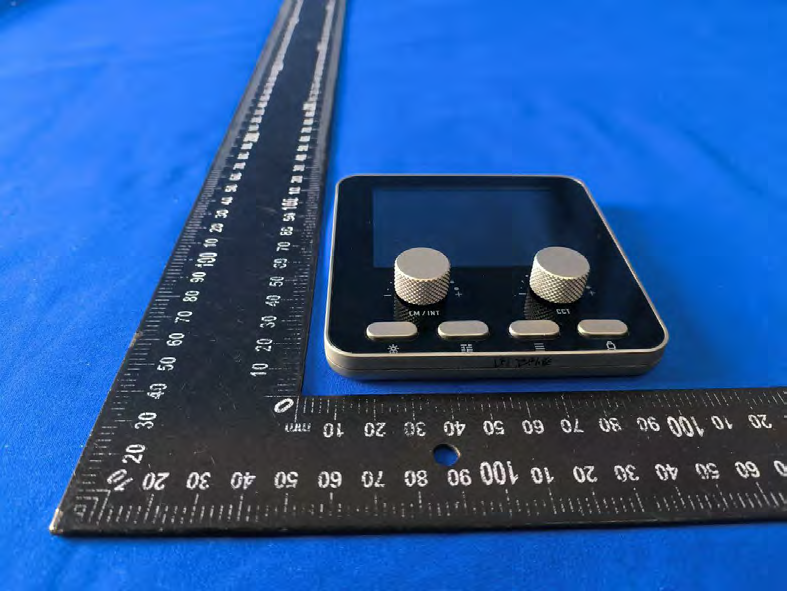

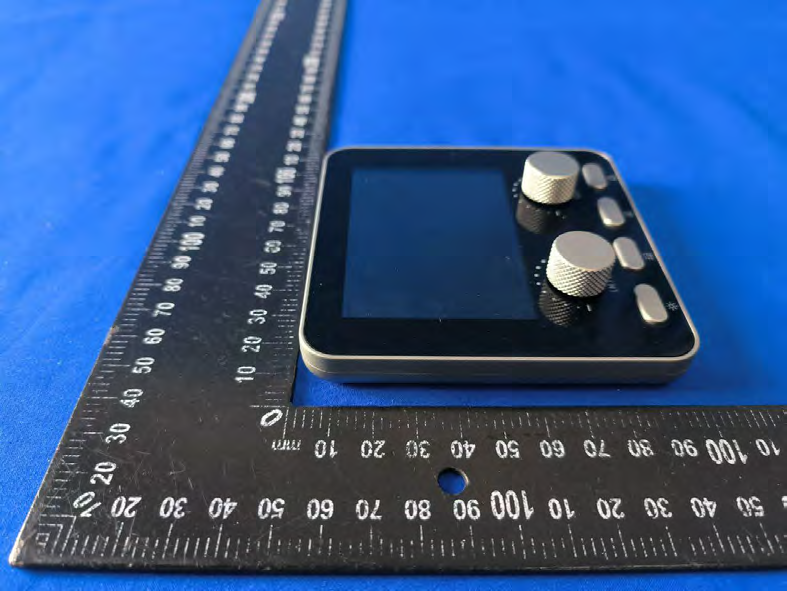

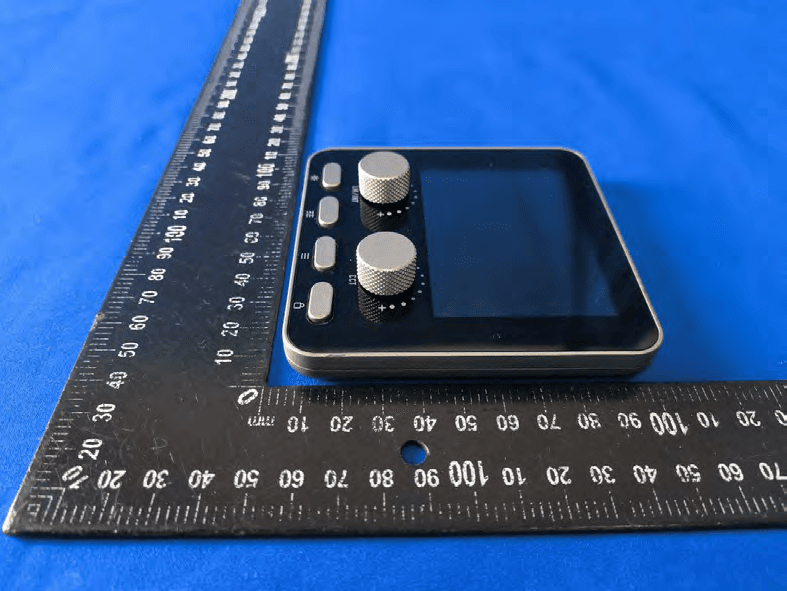

FCC ID: 2ANLP-HOBOCONTROL FCC ID: 2ANLP-HOBOCONTROL FCC ID: 2ANLP-HOBOCONTROL

4.5cm 2.5cm Label Location FCC ID: 2ANLP-HOBOCONTROL AEC Lighting Solutions Co., Ltd Product name: Remote Control Model No.: CONTROL 131001 This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC ID: 2ANLP-HOBOCONTROL FCC ID: 2ANLP-HOBOCONTROL FCC ID: 2ANLP-HOBOCONTROL FCC ID: 2ANLP-HOBOCONTROL ANT FCC ID: 2ANLP-HOBOCONTROL

FCC ID: 2ANLP-HOBOCONTROL Prediction of MPE at a given distance 1. Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) 2. Test Procedure Equation from page 18 of OET Bulletin 65, Edition 97-01 Where: S = power density P = power input to the antenna G = numeric gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the centre of radiation of the antenna FCC ID: 2ANLP-HOBOCONTROL 3. Result Worse case is as below: Mode Frequency (MHz) Prediction distance (cm) RF output power MPE (mW/cm 2 ) Limit (mW/cm 2 ) SAR Test Exclusion dBm mW BLE GFSK 2402 20 5.689 0.00371 0.00117 1 Yes Then SAR evaluation is not required.

ALPHA's reports is using a digital certificate that is trusted on Adobe's official server. If there is no digital certificate or the digital certificate shows damaged in your report. Please do not accept the report. E-mail: [email protected] Tel: 4008-3008-95 Website: http://www.a-lab.cn FCC TEST REPORT FCC ID: 2ANLP-HOBOCONTROL On Behalf of AEC Lighting Solutions Co., Ltd Remote Control Model No.: CONTROL 131001 Prepared for : AEC Lighting Solutions Co., Ltd Address : 2548 Bao’an Highway, Jiading District, Shanghai 201801, China Prepared By : Shenzhen Alpha Product Testing Co., Ltd. Address : Building i, No.2, Lixin Road, Fuyong Street, Bao’an District, 518103, Shenzhen, Guangdong, China Report Number : A2209170-C01-R02 Date of Receipt : October 8, 2022 Date of Test : October 8, 2022-December 20, 2022 Date of Report : December 20, 2022 Version Number : V0 Page 2 of 52 Report No.: A2209170-C01-R02 TABLE OF CONTENTS Description Page 1. Summary of Standards And Results -------------------------------------------------------------------------------- 5 1.1. Description of Standards and Results ------------------------------------------------------------------------ 5 2. General Information ------------------------------------------------------------------------------------------------------ 6 2.1. Description of Device (EUT) ------------------------------------------------------------------------------------ 6 2.2. Accessories of Device (EUT) ----------------------------------------------------------------------------------- 7 2.3. Tested Supporting System Details----------------------------------------------------------------------------- 7 2.4. Block Diagram of connection between EUT and simulators -------------------------------------------- 7 2.5. Test Mode Description -------------------------------------------------------------------------------------------- 7 2.6. Test Conditions ----------------------------------------------------------------------------------------------------- 8 2.7. Test Facility ---------------------------------------------------------------------------------------------------------- 8 2.8. Measurement Uncertainty --------------------------------------------------------------------------------------- 8 2.9. Test Equipment List ----------------------------------------------------------------------------------------------- 9 3. Spurious Emission ------------------------------------------------------------------------------------------------------- 10 3.1. Test Limits ---------------------------------------------------------------------------------------------------------- 10 3.2. Test Procedure ---------------------------------------------------------------------------------------------------- 10 3.3. Test Setup ---------------------------------------------------------------------------------------------------------- 11 3.4. Test Results -------------------------------------------------------------------------------------------------------- 12 4. Power Line Conducted Emission ----------------------------------------------------------------------------------- 22 4.1. Test Limits ---------------------------------------------------------------------------------------------------------- 22 4.2. Test Procedure ---------------------------------------------------------------------------------------------------- 22 4.3. Test Setup ---------------------------------------------------------------------------------------------------------- 22 4.4. Test Results -------------------------------------------------------------------------------------------------------- 22 5. Conducted Maximum Output Power ------------------------------------------------------------------------------- 25 5.1. Test limits ----------------------------------------------------------------------------------------------------------- 25 5.2. Test Procedure ---------------------------------------------------------------------------------------------------- 25 5.3. Test Setup ---------------------------------------------------------------------------------------------------------- 25 5.4. Test Results -------------------------------------------------------------------------------------------------------- 25 6. Peak Power Spectral Density ----------------------------------------------------------------------------------------- 26 6.1. Test limits ----------------------------------------------------------------------------------------------------------- 26 6.2. Test Procedure ---------------------------------------------------------------------------------------------------- 26 6.3. Test Setup ---------------------------------------------------------------------------------------------------------- 26 6.4. Test Results -------------------------------------------------------------------------------------------------------- 26 7. Bandwidth ------------------------------------------------------------------------------------------------------------------ 30 7.1. Test limits ----------------------------------------------------------------------------------------------------------- 30 7.2. Test Procedure ---------------------------------------------------------------------------------------------------- 30 7.3. Test Setup ---------------------------------------------------------------------------------------------------------- 30 7.4. Test Results -------------------------------------------------------------------------------------------------------- 30 8. Band Edge Check -------------------------------------------------------------------------------------------------------- 38 8.1. Test limits ----------------------------------------------------------------------------------------------------------- 38 8.2. Test Procedure ---------------------------------------------------------------------------------------------------- 38 8.3. Test Setup ------------------------------------------------------------------------------…

Text truncated - open the document above for the full version.

Antenna Name Antenna Type Manufacturer Frequency（Hz）EfficiencyGain（dBi） 240000000032%-0.41平果图 241000000029%-0.92 242000000026%-1.41 243000000025%-1.46 244000000023%-1.51 245000000022%-1.73 246000000020%-1.86 247000000020%-1.74 248000000019%-1.94 249000000018%-2.19 250000000017%-2.24 E1 SideX-Z E2面X-Y H面Y-Z Working Frequency Range Gain Azimuth Beamwidth Impedance Operation Temperature 2.4 GHz ～ 2.5GHz -0.41 dBi (max) Omni-directional 50Ω -40 ̊C ~ +85 ̊C ANT-S PCB Antenna Suzhou Pairlink Network Technology Ltd. L14.0mm W7.1mm T1.0mm Address Room 117, Wangyuan, No.55 Suhong West Road, Suzhou Industrial Park

FCC ID: 2ANLP-HOBOCONTROL Radiated Emission FCC ID: 2ANLP-HOBOCONTROL Conducted Emission
