2ANLP-HOBOMICRO01PROFESSIONAL BI-COLOR LED LIGHT

MICRO 8W BI-COLOR CONTINUOUS LED LIGHT Features UK Lit Bluetooth on UnlitBlue and lit Bluetooth offFan on Brightness exceeds 50% when fan is off UnlitRed and flashing Fan off Latch to ReleaseBattery Pack Type-C Charging PortColor Temperature AdjustmentPower On/OffSettings Menu/Brightness Adjustment Battery Pack WARNINGS ••• The product contains batteries. Don't store the batteries in hot environments and keep them away from fire. Only use the originally supplied accessories to avoid product failure/s.Only use the supplied charging adapter and power cable to avoid damage to the product. • Please thoroughly read the manual prior to operating the product and operate in strict accordance with the manual. • Don't disassemble the product by yourself. If the product requires repair, contact our maintenance personnel. • Product failures caused by unauthorized disassembly are not covered by warranty, and will be chargeable. • The product is designed to be actively cooled by fans.Don't block the fan ducts of the product during operation. • Don't touch the heat generating parts of the product during operation to avoid scalding injury. • The power must be switched off during set-up and break down of the product. • Don't submerge the product in water or other liquid/s to avoid safety risk and product failure. • Allow the product to properly cool after each use before storage. App Download You can download the Hobolite app in the (Apple) App Store and Google Play store by scanning the following QR code. 5T5LL www.hobolite.com Hobolite Hobolite Scan QR code 2TQFWEV5RGEKƂECVKQPU PowerLumens (6500K) Lumens (2700K) BatteryCRITLCICCTDimmingWireless MethodWireless Operating RangeDimension Light Net Weight Light InputOperating Temperature Noise 8W 500lm360lm AC 100-240V, 50~60Hz DC 5V 3.7V 2000mAh, 7.4Wh 9696 2700-6500K 0-100% Bluetooth 20m / 65.6ft 18dB@1m -10~40°C / 14~104°F 50x68.9x77mm/1.97x2.71x3.03in 235g / 0.52Lbs MICRO QUALIFIED: PASS Warranty Card Product No.Product namePurchase dateUser nameUser telephoneUser addressDealer stamp AEC LIGHTING SOLUTIONS CO., LTD. Add: 2548 Bao’an Highway, Jiading District, Shanghai 201801, China Warranty Terms We provide a one-year warranty period for the original buyer of the product.For the detailed warranty scope, please log in our website www.hobolite.com. The warranty does not cover:Important notes:The warranty will be invalid if: • Damage caused by improper use, false wiring, incompatible, poor quality or mis-adjusted external devices • Damage to the appearance of the product from mishandling or abuse.• Exposure to rain or water• Damage caused by transportation. Please contact your dealer to issue a claim. • Please retain your original purchase invoice and warranty card and ensure that the complete supplier information is on the invoice, including the purchase date and product serial number, which will be needed when making a claim against the warranty. • The product serial number has been torn off or can't be identified.• The product has been repaired or modified by unauthorized persons. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Ь Reorient or relocate the receiving antenna. Ь Increase the separation between the equipment and receiver. Ь Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Ь Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. The device has been evaluated to meet general RF exposure requirement.

Rev 1/26/2023 AEC Lighting Solutions Co., Ltd Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 7/18/2023 Ref: Attestation Statements Part 2.911(d)(5)(i) Filing FCC ID: 2ANLP-HOBOMICRO01 [Insert applicant name] AEC Lighting Solutions Co., Ltd certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Signed: Printed name: Bruce Li Title: Manager Company Name: AEC Lighting Solutions Co., Ltd Rev 1/26/2023 AEC Lighting Solutions Co., Ltd Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 7/18/2023 Ref: Attestation Statements Part 2.911(d)(5)(ii) Filing FCC ID: 2ANLP-HOBOMICRO01 [Insert applicant name] AEC Lighting Solutions Co., Ltd certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Signed: Printed name: Bruce Li Title: Manager Company Name: AEC Lighting Solutions Co., Ltd

* the applicant must designate a contact located in the United States for purposes of acting as the applicant’s agent for service of process, regardless of whether the applicant is a domestic or foreign entity. An applicant located in the United States may designate itself as the agent for service of process. AEC Lighting Solutions Co., Ltd U.S. Agent Designation for Service of Process - Certification Attestation Letter 7/18/2023 ATTN.: Reviewing Engineer FCC ID: 2ANLP-HOBOMICRO01 Per section 2.911(d)(7) of the FCC rules, AEC Lighting Solutions Co., Ltd (“the applicant”) certifies that the equipment for which authorization is sought is designated to the following U.S. agent* for service of process: Company Name: HOBOLITE LCC Physical U.S. Company Address: 401N MICHIGAN AVE STE 1200, CHICAGO, IL 60611 Agent contact name/Title : Weisun Rao/Compliance manager Agent Email Address: [email protected] Tel No.: (507)513-3745 FRN No.: 0033478256 The above contact person accepts the obligation for service of process. The applicant accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Applicant Signed: Agent Signed (if different to Applicant): Signed: Printed name: Bruce Li Title: Manager Company Name: AEC Lighting Solutions Co., Ltd Date: 7/18/2023 Signed: Printed name: Weisun Rao Title: Compliance manager Company Name: HOBOLITE LCC Date: 7/18/2023

2023-07-20 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint Shenzhen Alpha Product Testing Co., Ltd. Address: Building i, No.2, Lixin Road, Fuyong Street, Bao’an District, 518103, Shenzhen, Guangdong, China Person: Mark Zhu (Name: Shenzhen Alpha Product Testing Co., Ltd. and address: Building i, No.2, Lixin Road, Fuyong Street, Bao’an District, 518103, Shenzhen, Guangdong, China). to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with AEC Lighting Solutions Co., Ltd Address: 2548 Bao’an Highway, Jiading District, Shanghai 201801, China ( applicant name and address). Signature: Name Bruce Li Position Manager Company Name AEC Lighting Solutions Co., Ltd Address 2548 Bao’an Highway, Jiading District, Shanghai 201801, China Tel 86-21-69153369 Fax 86-21-69153321 Email [email protected]

Request for Confidentiality: MUST BE ON COMPANY LETTERHEAD AND SIGNED BY OFFICIAL OF APPLICANT COMPANY 2023-07-20 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2ANLP-HOBOMICRO01 Product Name: PROFESSIONAL BI-COLOR LED LIGHT Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: Schematics Long-term confidential Block diagram Long-term confidential Operation description Long-term confidential These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Signature: Name Bruce Li Position Manager Company Name AEC Lighting Solutions Co., Ltd Address 2548 Bao’an Highway, Jiading District, Shanghai 201801, China Tel 86-21-69153369 Fax 86-21-69153321 Email [email protected]

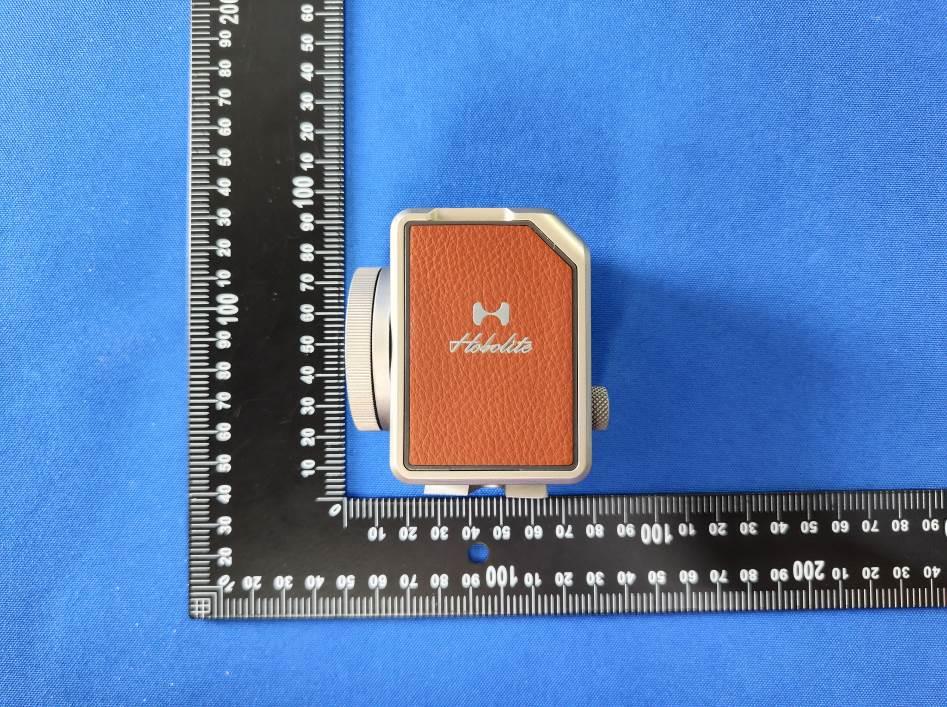

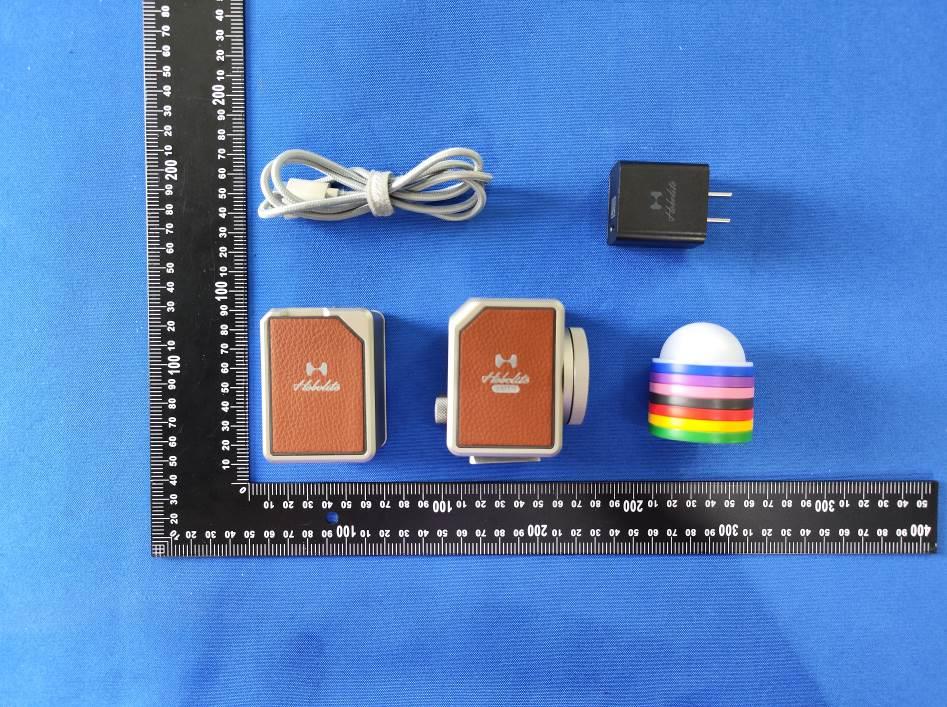

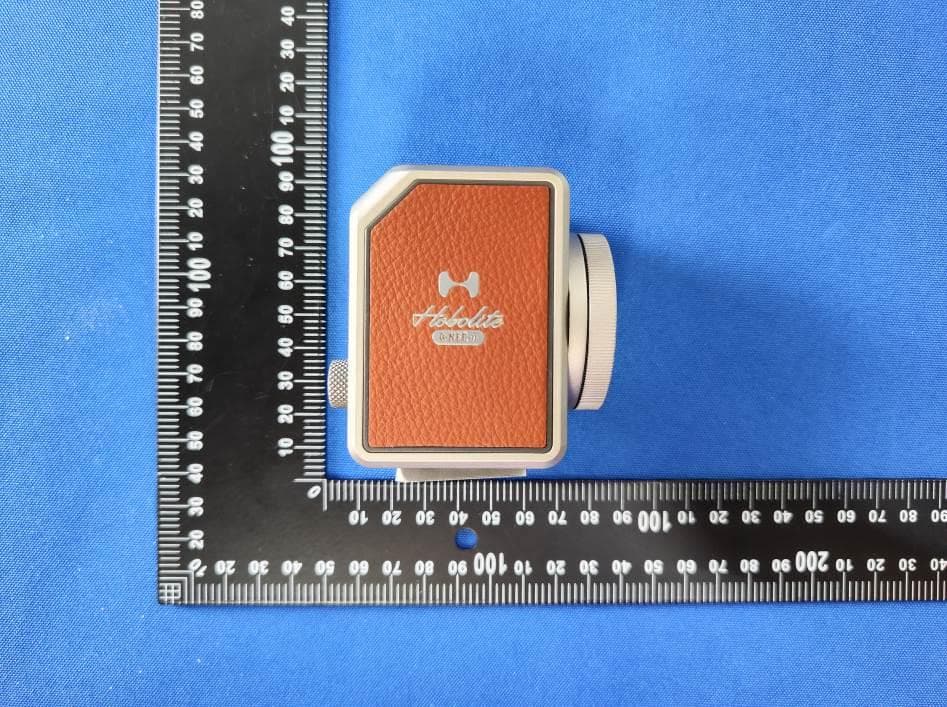

FCC ID: 2ANLP-HOBOMICRO01

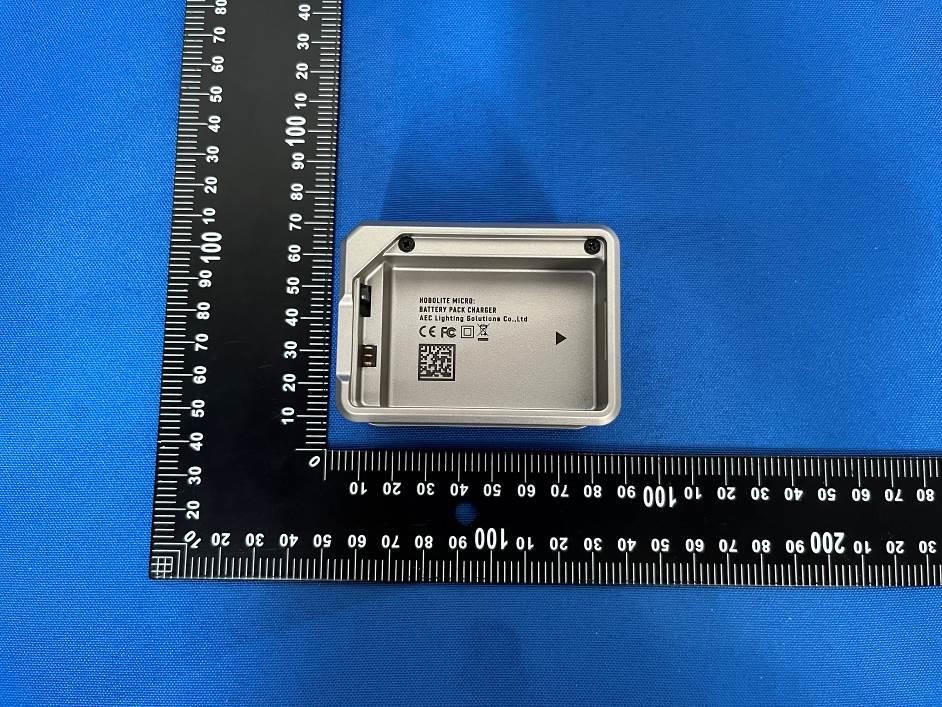

Size: 4.0cm *1.0cm Label Location FCC ID: 2ANLP-HOBOMICRO01 PROFESSIONAL BI-COLOR LED LIGHT Model No.: Micro 101001

FCC ID: 2ANLP-HOBOMICRO01 ANT

FCC ID: 2ANLP-HOBOMICRO01 RF Exposure evaluation According to 447498 D01 General RF Exposure Guidance v06 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison LE Worse case output power is as below: [2402MHz: -5.097dBm] Maximum Gain is 2.0dBi Maximum EIRP is -3.097dBm (0.49mW). (0.49mW /5mm)·[√2.402(GHz)]= 0.15<3.0 for 1-g SAR Then SAR evaluation is not required

ALPHA's reports is using a digital certificate that is trusted on Adobe's official server. If there is no digital certificate or the digital certificate shows damaged in your report. Please do not accept the report. E-mail: [email protected] Tel: 4008300895 Website: http://www.a-lab.cn/ FCC TEST REPORT FCC ID: 2ANLP-HOBOMICRO01 On Behalf of AEC Lighting Solutions Co., Ltd PROFESSIONAL BI-COLOR LED LIGHT Model No.: Micro 101001 Prepared for : AEC Lighting Solutions Co., Ltd Address : No. 2548 Baoan Road, Jiading District, 201801 Shanghai, China Prepared By : Shenzhen Alpha Product Testing Co., Ltd. Address : Building i, No.2, Lixin Road, Fuyong Street, Bao’an District, 518103, Shenzhen, Guangdong, China Report Number : A2306143-C01-R16 Date of Receipt : June 19, 2023 Date of Test : June 19, 2023-July 14, 2023 Date of Report : July 17, 2023 Version Number : V0 Page 2 of 53 Report No.: A2306143-C01-R16 TABLE OF CONTENTS Description Page 1. Summary of Standards And Results -------------------------------------------------------------------------------- 5 1.1. Description of Standards and Results ------------------------------------------------------------------------ 5 2. General Information ------------------------------------------------------------------------------------------------------ 6 2.1. Description of Device (EUT) ------------------------------------------------------------------------------------ 6 2.2. Accessories of Device (EUT) ----------------------------------------------------------------------------------- 7 2.3. Tested Supporting System Details----------------------------------------------------------------------------- 7 2.4. Block Diagram of connection between EUT and simulators -------------------------------------------- 7 2.5. Test Mode Description -------------------------------------------------------------------------------------------- 7 2.6. Test Conditions ----------------------------------------------------------------------------------------------------- 8 2.7. Test Facility ---------------------------------------------------------------------------------------------------------- 8 2.8. Measurement Uncertainty --------------------------------------------------------------------------------------- 8 2.9. Test Equipment List ----------------------------------------------------------------------------------------------- 9 3. Spurious Emission ------------------------------------------------------------------------------------------------------- 10 3.1. Test Limits ---------------------------------------------------------------------------------------------------------- 10 3.2. Test Procedure ---------------------------------------------------------------------------------------------------- 10 3.3. Test Setup ---------------------------------------------------------------------------------------------------------- 11 3.4. Test Results -------------------------------------------------------------------------------------------------------- 12 4. Power Line Conducted Emission ----------------------------------------------------------------------------------- 19 4.1. Test Limits ---------------------------------------------------------------------------------------------------------- 19 4.2. Test Procedure ---------------------------------------------------------------------------------------------------- 19 4.3. Test Setup ---------------------------------------------------------------------------------------------------------- 19 4.4. Test Results -------------------------------------------------------------------------------------------------------- 19 5. Conducted Maximum Output Power ------------------------------------------------------------------------------- 22 5.1. Test limits ----------------------------------------------------------------------------------------------------------- 22 5.2. Test Procedure ---------------------------------------------------------------------------------------------------- 22 5.3. Test Setup ---------------------------------------------------------------------------------------------------------- 22 5.4. Test Results -------------------------------------------------------------------------------------------------------- 22 6. Peak Power Spectral Density ----------------------------------------------------------------------------------------- 23 6.1. Test limits ----------------------------------------------------------------------------------------------------------- 23 6.2. Test Procedure ---------------------------------------------------------------------------------------------------- 23 6.3. Test Setup ---------------------------------------------------------------------------------------------------------- 23 6.4. Test Results -------------------------------------------------------------------------------------------------------- 23 7. Bandwidth ------------------------------------------------------------------------------------------------------------------ 26 7.1. Test limits ----------------------------------------------------------------------------------------------------------- 26 7.2. Test Procedure ---------------------------------------------------------------------------------------------------- 26 7.3. Test Setup ---------------------------------------------------------------------------------------------------------- 26 7.4. Test Results -------------------------------------------------------------------------------------------------------- 26 8. Band Edge Check -------------------------------------------------------------------------------------------------------- 30 8.1. Test limits ----------------------------------------------------------------------------------------------------------- 30 8.2. Test Procedure ---------------------------------------------------------------------------------------------------- 30 8.3. Test Setup ----------------------------------------------------------------------------…

Text truncated - open the document above for the full version.

Page 45 of 53 Report No.: A2306143-C01-R16 Page 46 of 53 Report No.: A2306143-C01-R16 Page 47 of 53 Report No.: A2306143-C01-R16 ANT Page 48 of 53 Report No.: A2306143-C01-R16 Page 49 of 53 Report No.: A2306143-C01-R16 Page 50 of 53 Report No.: A2306143-C01-R16 Page 51 of 53 Report No.: A2306143-C01-R16 Page 52 of 53 Report No.: A2306143-C01-R16 Page 53 of 53 Report No.: A2306143-C01-R16 ------END OF REPORT-------

Approval sheet Page 1 of 9 ASC_RFANT5220110A0T_V14 Mar. 2013 RFANT Pb free Series – RoHS Compliance MULTILAYER CERAMIC ANTENNA Halogens Free Product 2.4 GHz ISM Band Working Frequency P/N: RFANT5220110A0T *Contents in this sheet are subject to change without prior notice. Approval sheet Page 2 of 9 ASC_RFANT5220110A0T_V14 Mar. 2013 FEATURES 1. Surface Mounted Devices with a small dimension of 5.2 x 2.0 x 1.1 mm 3 meet future miniaturization trend. 2. Embedded and LTCC (Low Temperature Co-fired Ceramic) technology is able to future integrate with system design as well as beautifying the housing of final product. 3. High Stability in Temperature / Humidity Change APPLICATIONS 1. Bluetooth 2. Wireless LAN 3. HormRF 4. ISM band 2.4GHz wireless applications CONSTRUCTION DIMENSIONS Figure Symbol Dimension (mm) L 5.20 ± 0.20 W 2.00 ± 0.20 T 1.15 ± 0.10 A 0.40 ± 0.25 PIN Connection 1 Feeding 2 Identification Mark 3 Soldering terminal P1 P3 P2 Approval sheet Page 3 of 9 ASC_RFANT5220110A0T_V14 Mar. 2013 ELECTRICAL CHARACTERISTICS RFANT5220110A0T Specification Working Frequency Range 2.4 GHz ～ 2.5GHz Gain 2 dBi (Typical) VSWR 2 max. Polarization Linear Azimuth Beamwidth Omni-directional Impedance 50Ω Rated Power (max.) 3 Watts Maximum Input Power 5 Watts for 5 minutes Operation Temperature -40 ̊C ~ +85 ̊C Remark: The specification is defined based on the test board dimension as in below SOLDER LAND PATTERN DESIGN Figure Approval sheet Page 4 of 9 ASC_RFANT5220110A0T_V14 Mar. 2013 Antenna on Test Board ( FR4 Thickness 0.8mm) Antenna S11 on Test Board Bandwidth >150MHzBandwidth >150MHz Empty Area Empty Area 18x9 mm 50Ω ΩΩ ΩFeed line GROUND 30x18 mm 1mm 3.3mm 1.5mm WTC 2.5mm 18mm Empty Area Empty Area 18x9 mm 50Ω ΩΩ ΩFeed line GROUND 30x18 mm 1mm 3.3mm 1.5mm WTC 2.5mm 18mm Approval sheet Page 5 of 9 ASC_RFANT5220110A0T_V14 Mar. 2013 RADIATION PATTERN Radiation Pattern and Gain were dependent on measurement board design. The specification of RFANT5220110A0T antenna was measured based on the PCB size and installation position as shown in the below figure Test Board Vertical Horizontal Y - Z Plane Average Gain= - 0.82 dBi Peak Gain = 1.69 dBi Average Gain =-3.22 dBi Peak Gain= -5.42 dBi Average Gain=-8.98 dBi X - Z Plane Average Gain=-0.91 dBi Peak Gain= -5.97 dBi Average Gain=-3.24dBi Peak Gain= 2.66 dBi Average Gain= -8.61 dBi X - Y Plane Average Gain= -0.68 dBi Peak Gain= -5.97 dBi Average Gain=-3.12 dBi Peak Gain= 2.59 dBi Average Gain= -9.24 dBi Y Z WTC X Y Z WTC X Y Z WTC X Y Z WTC X Y Z WTC X Y Z WTC X z Y z Y z X z X X Y X Y Empty Area GROUND 30x18 mm WTC X Y Z Empty Area GROUND 30x18 mm WTC X Y Z X Y Z Approval sheet Page 6 of 9 ASC_RFANT5220110A0T_V14 Mar. 2013 RELIABILITY TEST Test item Test condition / Test method Specification Solderability JIS C 0050-4.6 JESD22-B102D *Solder bath temperature：235 ± 5°C *Immersion time：2 ± 0.5 sec Solder：Sn3Ag0.5Cu for lead-free At least 95% of a surface of each terminal electrode must be covered by fresh solder. Leaching (Resistance to dissolution of metallization) IEC 60068-2-58 *Solder bath temperature：260 ± 5°C *Leaching immersion time：30 ± 0.5 sec Solder : SN63A Loss of metallization on the edges of each electrode shall not exceed 25%. Resistance to soldering heat JIS C 0050-5.4 *Preheating temperature：120~150°C, 1 minute. *Solder temperature：270±5°C *Immersion time：10±1 sec Solder：Sn3Ag0.5Cu for lead-free Measurement to be made after keeping at room temperature for 24±2 hrs No mechanical damage. Electrical specification shall satisfy the descriptions in electrical characteristics under the operational temperature range within -40 ~ 85°C. Loss of metallization on the edges of each electrode shall not exceed 25%. Drop Test JIS C 0044 Customer’s specification. *Height：75 cm *Test Surface：Rigid surface of concrete or steel. *Times：6 surfaces for each units；2 times for each side. No mechanical damage. Electrical specification shall satisfy the descriptions in electrical characteristics under the operational temperature range within -40 ~ 85°C. Vibration JIS C 0040 *Frequency：10Hz~55Hz~10Hz(1min) *Total amplitude：1.5mm *Test times：6hrs.(Two hrs each in three mutually perpendicular directions) No mechanical damage. Electrical specification shall satisfy the descriptions in electrical characteristics under the operational temperature range within -40 ~ 85°C. Adhesive Strength of Termination JIS C 0051- 7.4.3 *Pressurizing force： 5N(≦0603)；10N(>0603) *Test time：10±1 sec No remarkable damage or removal of the termination. Bending test JIS C 0051- 7.4.1 The middle part of substrate shall be pressurized by means of the pressurizing rod at a rate of about 1 mm/s per second until the deflection becomes 1mm/s and then pressure shall be maintained for 5±1 sec. Measurement to be made after keeping at room temperature for 24±2 hours No mechanical damage. Electrical specification shall satisfy the descriptions in electrical characteristics under the operational temperature range within -40 ~ 85°C. Approval sheet Page 7 of 9 ASC_RFANT5220110A0T_V14 Mar. 2013 Temperature cycle JIS C 0025 1.30±3 minutes at -40°C±3°C, 2.10~15 minutes at room temperature, 3.30±3 minutes at +85°C±3°C, 4.10~15 minutes at room temperature, Total 100 continuous cycles Measurement to be made after keeping at room temperature for 24±2 hrs No mechanical damage. Electrical specification shall satisfy the descriptions in electrical characteristics under the operational temperature range within -40 ~ 85°C. High temperature JIS C 0021 *Temperature：85°C±2°C *Test duration：1000+24/-0 hours Measurement to be made after keeping at room temperature for 24±2 hrs No mechanical damage. Electrical specification shall satisfy the descriptions in electrical characteristics under the operational temperature range within -40 ~ 85°C. Humidity (steady conditions) JIS C 0022 *Humidity：90% to 95% R.H. *Temperature：40±2°C *Time：1000+24/-0 hrs. Measurement to be made after keeping at room temperature for 24±2 hrs ※500hrs …

Text truncated - open the document above for the full version.

FCC ID: 2ANLP-HOBOMICRO01 1.1. Photo of Radiated Emission test 1.2. Photo of Conducted Emission test
