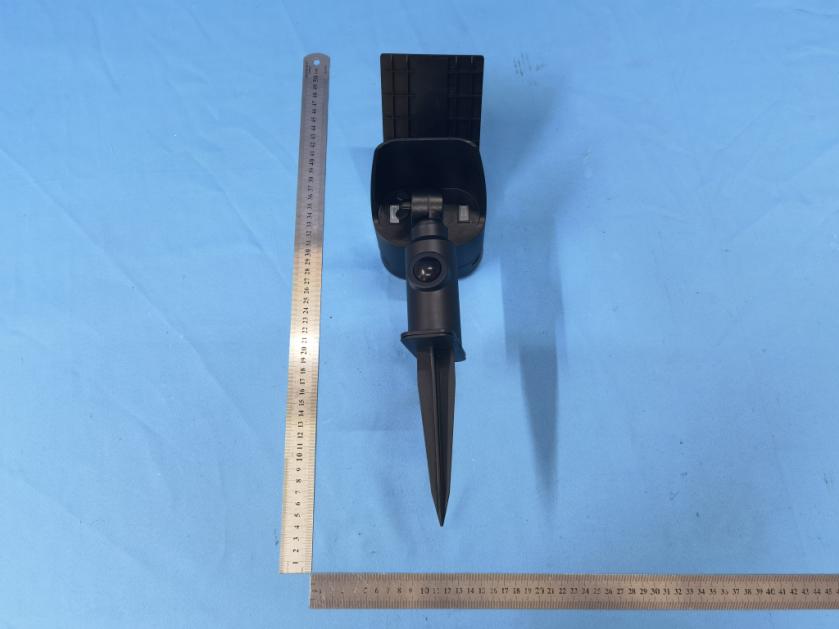

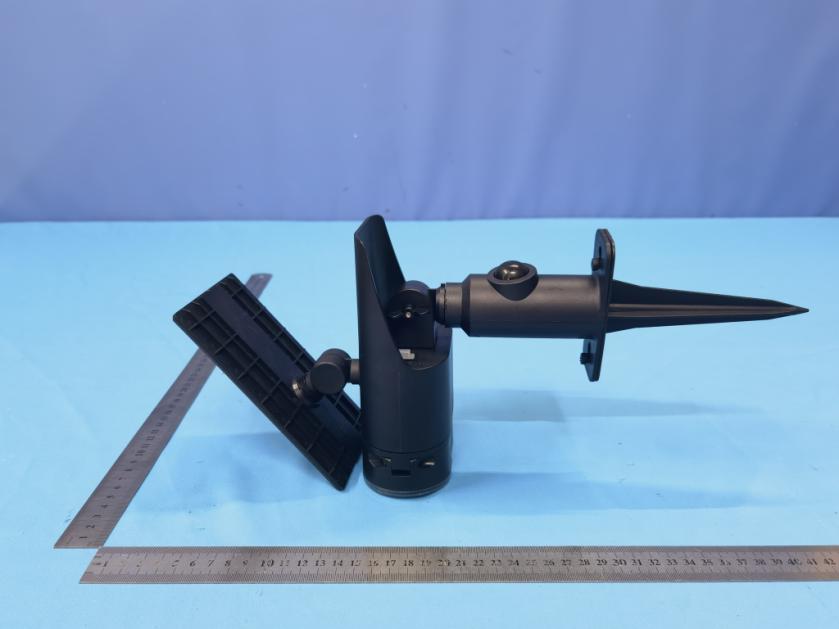

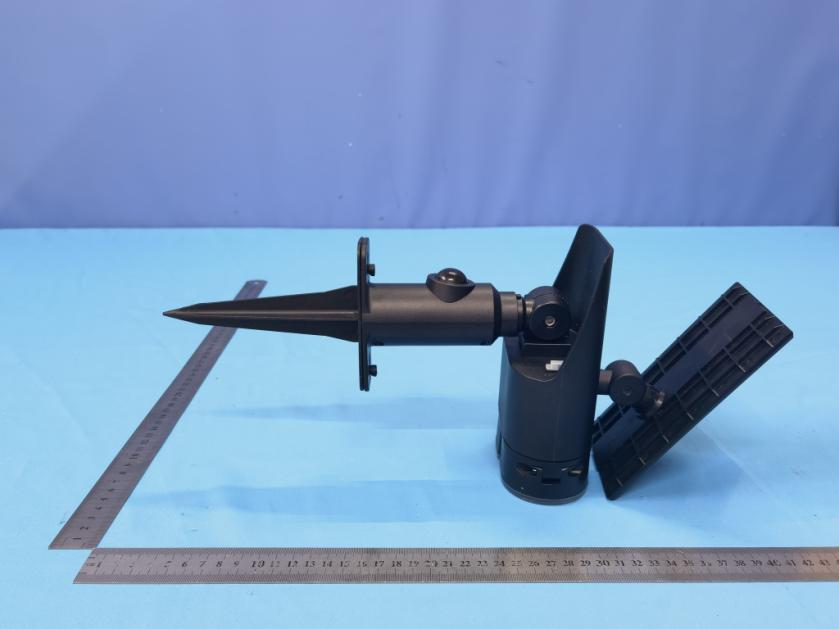

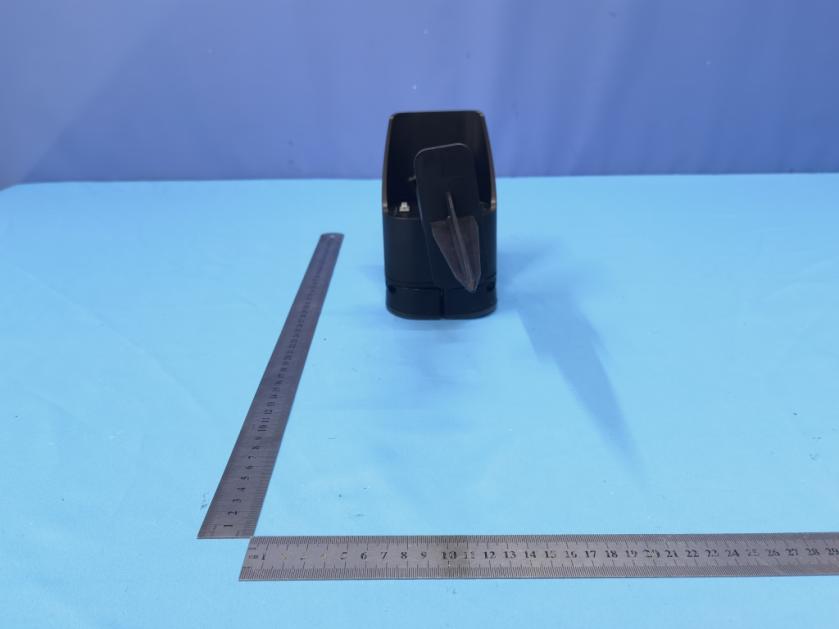

2AP35-SR32SL02H-08Solar LED Light

FOR FIRST TIME USE: THE SOLAR LIGHT NEEDS TO CHARGE 8-12 HOURS IN FULL SUNLIGHT TO FULLY CHARGE THE BATTERIES. INSTRUCTIONS INSTALLATION A. Insert into the ground with ground stake Choose your installation method: -To place in soft ground, please use method A. -To install on wall, please use method B. REPLACING THE BATTERYTROUBLE SHOOTING OPERATION If the light does not turn on, remove the battery, wipe both ends with a clean, dry cloth and reinstall the battery. Check the battery to ensure that it is making secure contact with the terminals. If this does not work, replace with a new battery. 1. Slide the power switch (FF) to “OFF” position. 2. Open the light panels, remove 6 screws from the light base using a Phillips head screwdriver. 3. Pull out and remove 2 screws holding the battery compartment. 4. Remove 2 old batteries and replace with 2 new 3.7V, 2000 mAh lithium (18650) rechargeable batteries. 5. Secure the battery compartment and the light base with the 8 screws removed earlier. 6. Slide the power switch (FF) to “ON” position. For optimal performance, place solar spot light in direct sunlight for 8-12 hours to fully charge the batteries. ITEM: SR32SL02H-02 Slide the ground stake into the keyholes of the mounting bracket. If the ground is hard and packed, moisten the ground with water before inserting the stake to avoid breakage. Apply pressure to light not to solar panel to insert. Tools Required 1. Slide the power switch (FF) to “ON” position. 2. Turn selector switch (EE) to WHITE, for white color mode, then this spot light has two performance levels: Light fixture will stay on for 30 seconds when triggered by motion delivering up to 1000 Lumens and revert back to standby mode delivering up to 50 lumens until motion is detected. 3. Turn selector switch (EE) to to CYCLE, for color changing mode. 4. Turn selector switch (EE) to LOCK, for color select mode. You can select the color you want. 5. Adjust the solar panel to be in direct sunlight for 8-12 hours to fully charge the light. 6. Loosen the wing nut to adjust the light base up and down (The maximum adjustable angle is 90°), or rotate the light base (The maximum adjustable angle is less than 360°.), and adjust two light panels (The maximum adjustable angle is 90°) to desired positions for optiomal lighting coverage. NOTE: Slide the power switch (FF) to “ON” position before charging the battery. The spot light will not charge when power switch (FF) is in the “OFF” position. NOTE: Motion detection range is up to 20 feet (6 m), motion detection angle is up to 120°. Light fixtures use radio frequency technology to link, and light fixtures should not be greater than 65 feet (20 m) apart for linked function to work properly. When one light is triggered by motion, both lights will activate and deliver up to 1000 lumens. The package includes 2 lights. These 2 lights are factory linked, and can not be linked with more of the same type light or any other lights. NOTE: If there are performance or quality issues, both units need to be replaced with another set. Phillips-head Screwdriver Pencil Electric drill drill bit size: ø7.5mm (3/10 in.) SOLAR LED COLOR CHANGING w/COLOR LOCK SPOT LIGHT (FACTORY LINKED) EE: Selector Switch Wing Nut FF: Power Switch B. Mounted on the wall with screws BB 2.76in. (70mm) AA CC Drill two holes. Measure the width of two holes on the mounting bracket of the light to align holes for the 2 screws (BB) on the surface. The distance between the two holes is 2.76in. (70mm). Mark the location where you want to mount the light fixture (CC). 2 Mounting the light xture Insert the wall anchors (AA) so they are flush with the surface. Insert the screws (BB) and leave at least 1/4in. (6.3mm) of the screws (BB) outside of the surface for holding the light. Mount the light (CC) on the screws (BB) by placing the keyholes on the mounting bracket of the light over the screw heads. 1 Marking the location E DD Mounting Bracket Solar Panel Light base Motion Sensor Light Panels Screws X 6 Battery Compartment Screws X 2 Batteries Hardware Included Parts (AA) Wall Anchor X 2 (BB) Screw X 2 (CC) Light Fixture(DD) Ground Stake For additional help and information regarding installation, contact customer service at 1-844-551-0680, 8am-5pm, CST Monday – Friday [email protected] and Westinghouse are trademarks of Westinghouse Electric Corporation. Used under license by Sky Rich Star Limited. All Rights Reserved. FCC WARNING Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user authority to operate the equipment. Notes: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency enerqy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no quarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio / TV technician for help. WARNING: Do not dispose of lithium batteries in municipal waste stream or by fire as batteries may explode. Do not open, short circuit, or destroy batteries. Dispose of batteries in accordance with Local, State, and Federal regulations. Do not mix old and new batteries. Do not mix alkaline, standard (carbon-z…

Text truncated - open the document above for the full version.

DATE : 2022-11-30 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act as Agent On our behalf, I appoint Jason Wu of Global United Technology Services Co., Ltd.and No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, still resides with INTERNATIONAL DEVELOPMENT COMPANY and 899 Henrietta Creek Road, Roanoke, Texas 76262, United States Signature: Name: zhiquan li Title: Manager Company: INTERNATIONAL DEVELOPMENT COMPANY

INTERNATIONAL DEVELOPMENT COMPANY DATE : 2022-11-30 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AP35-SR32SL02H-08 Product Name: Solar LED Light Request for Confidentiality To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuantto KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Signature: Name: zhiquan li Title: Manager

B W258FNX30-8X FPC\PCB\弹簧\金属\胶棒\吸盘等 RF 天线研发定制销售 第 1 页 共 9 页 产品规格承认书 Product specifications acknowledgment 承认厂商： (R ecognized manufacturers) 制造 厂 商 ： （ Manufacturer ） 产品 名 称 ： 2.4G5.8G 双频天线 （ Description ） 日期 （DATE） 2022.9.20 产品选型表： （ Product Type ） 型号说明备注 BW258FND30-8AT0.2L80-A 焊接端子211客户定制禁止外售 供应商承认签章栏 制表者核准 业务 客户承认章栏 审核者 准核者 Shenzhen Bat Wireless Technology Co., LTD BW258FNX30-8X FPC\PCB\弹簧\金属\胶棒\吸盘等 RF 天线研发定制销售 第 2 页 共 9 页 1.1Specifications Antennas Type Antenna for 2.4G 5-5.8G application Connector Type competitor Cable Type 1.13 Impedance 50Ω Polarization Linea Frequency 2.4-2.5GHZ VSWR2.4-2.5GHZ <2.0 Gain 2.4~2.5 GHz : Rad. efficiency 2.4~2.5 GHz >50% Cable type OD:1.13mm Cable length 80mm 1.2 Antenna Picture FPC大小：30*8 mm（实物图供参考） （定制客户中间连接线长度定制，天线形状定制） *天線功能較為敏感，主體周邊機構有變更請通知我們評估 1.48dBi (Peak gain) BW258FNX30-8X FPC\PCB\弹簧\金属\胶棒\吸盘等RF天线研发定制销售 第 3 页共 9 页 2. Electrical Electrical Specification Specification 2.1TestEquipment A.VSWRandinputimpedance:Agilent8753/E5071NetworkAnalyzer B.Antennagainandefficiency:ETSthree-dimensionalanechoicchamber 2.2 TestSetup 2.2.1FrequencyRange A.802.11.a/b/g/n/ac: 2.2.2VSWR Step1:Theantennaisarrangedonthecustomerprovidedtestfixture. Step2:TheVSWRoftheantennaismeasuredviaAgilent8720/8753NetworkAnalyzer(seefigure.1). Figure.1 2.2.3RadiationpatternandGain A.The3Dchamberprovideslessthan-40dBreflectivityfrom800MHzto6GHzanda40cm diametersphericalquietzone.Themeasurementresultsarecalibratedusingbothdipolesand standardgainhorns(seefigure.2). B.Theantennaundertestedisarrangedintheturnedtableandadecouplingsleeveisusedto reducefeedlineradiation(seefigure.3). C.Themeasuredresultsoftheradiationpatternsandantennagainareobtainedfromthecontrol systemandshowedonthemonitor(seefigure.4and5). BW258FNX30-8X FPC\PCB\弹簧\金属\胶棒\吸盘等RF天线研发定制销售 第4页共9页 Figure.2 Figure.3 Figure.4 Figure.5 BW258FNX30-8X FPC\PCB\弹簧\金属\胶棒\吸盘等RF天线研发定制销售 第5页共9页 3.PerformanceData 3.1Passivedata VSWR（电压驻波比）/ReturnLoss（回波损耗）/SmithChart（史密斯圆图 、 测试环境： 温度：10°C——+30°C 相对湿度：≤ 80% （ +40 °C） 大气压力：750mmkg±30mmkg 测试设备： HP8753D网络分析仪 ETS微波暗室 (1)产品的S11图值：VSWR 3.2RadiationPattern （辐射场型） BW258FNX30-8X FPC\PCB\弹簧\金属\胶棒\吸盘等RF天线研发定制销售 第6页共9页 BW258FNX30-8X FPC\PCB\弹簧\金属\胶棒\吸盘等RF天线研发定制销售 第7页共9页 BW258FNX30-8X FPC\PCB\弹簧\金属\胶棒\吸盘等RF天线研发定制销售 第8页共9页 BW258FNX30-8X FPC\PCB\弹簧\金属\胶棒\吸盘等RF天线研发定制销售 第9页共9页 RF113规格

.

FCC Label and Location FCC Label: Label location:

.

FCC ID: 2AP35-SR32SL02H-08 RF Exposure evaluation According to 447498 D04 Interim General RF Exposure Guidance v01 eirp = pt x gt = (EXd) 2 /30 where: pt = transmitter output power in watts, gt = numeric gain of the transmitting antenna (unitless), E = electric field strength in V/m, --- 10 ((dBuV/m)/20) /10 6 d = measurement distance in meters (m)---3m Sopt = (EXd) 2 /30 x gt Frequency(MHz) Field Strength (dBuv/m) antenna gain(dBi) numeric gain calc. Pt (mW) erp(mW) limit (mW) 2450.00 90.63 1.48 1.41 0.35 0.30 3060 WORSE CASE 0.35mW<3060mW Comply with RF exposure exemption limit The minimum mobile separation distance, d=0.2m
