English language TS17 Smart Watch Instruction Manual Watch Charging: When you get a new watch, please use the charging stand attached to the watch to connect to the USB interface of the computer or the 5V-2A charger of the mobile phone charger for charging. After charging for 2 hours, the watch shows full power, and you can start to use the watch: ■ How to Wear Refer to the pictures to wear the watch correctly. According to the comfort level, adjust the tightness of the watch strap, and the heart rate lamp should be close to the skin surface without loosening. (This is conducive to more accurate detection of heart rate.) Smart watch data cannot be used for medical purposes. The monitoring data is for reference only. If you need medical help, please contact a professional doctor. Function Operation Switch On and Off: On: In the power off state, long press the key on the side for about 3S, and then power on and light up the screen after one vibration. Off: In the initial interface of the watch, long press the key on the side for about 3S, and the interface shows power off. Connection between watch and mobile phone: First of all, the mobile phone should download app “Da fit” to the mobile phone and install it. (to search and connect the watch through Da Fit, you can’t directly search and connect the watch through Bluetooth of the mobile phone) Mode 1: IOS, Android mobile phone users can download the QR code directly by scanning the QR code below or scan the QR code of the watch by using the mobile browser (watch QR code path: Set - QRcode) Da Fit Method 2: Open the app store of mobile phone, search “Da Fit” to download and install. Attention: Turn on Da Fit, select to connect the watch, turn on the message reminder switch, and turn on the corresponding function switch as needed. When uploading the custom dial or the dial in the dial market, the watch power must be more than 30%, otherwise the dial cannot be uploaded to the watch, and the watch power is low. Choose to upload the dial market, you need to open the data network by mobile phone. When a new watch is used for the first time, it needs to be connected to Da Fit to synchronize time, date and data. When the watch is connected with Da Fit, pull down the button in the initial interface of the watch. You can see the Bluetooth connection icon in the upper left corner of the shortcut page and the lower left corner of the watch information page. If it is not connected, the icon will not be displayed. APP功能APP Function When the download is completed, there will be all kinds of permission reminders during the installation process, and all of them choose to agree. The watch and the mobile phone should allow all the permissions obtained by the notification on the mobile phone to realize all the functions. How to set up letter notification: mobile phone enters settings - application management, finds "Da Fit" - permission management, and opens all. Then enter notification management - find “Da Fit” and open all permissions. ■ Interface switch ● Dial Plate Switch: Long press the dial plate interface for 3s to switch dial plates. Slide the screen left and right to switch the dial plate and click OK to switch. Slide Up: View information, to display SMS, Wechat, QQ, WhatsApp, twitter, ins, Facebook, etc. Right Slide: All functions can be selected from Display Function Menu.. Left Slide: Enter the shortcut function of step counting - sleep - heart rate - exercise - blood oxygen - weather. Slide Down: The dial interface slides from top to bottom, then the interface shows Bluetooth connection, time display, battery power, no disturb mode, brightness display, mobile phone search, timer, photo control, weather and other shortcut functions. Watch Function Step Count:The watch can record and display the number of steps, calories and distance consumed every day. More detailed information analysis and data records can be viewed in Da Fit. Sleep: The watch can record and display the total sleep duration of last night, as well as the length of deep sleep and light sleep. More detailed information analysis and data records can be viewed in Da Fit. Heart Rate ------ The ●watch can record and display 24-hour heart rate value all day. Click the heart rate interface to measure the current heart rate value. More details analysis and data recording can be viewed in Da Fit. ●Exercise: There are 8 sports modes to choose from, including walking, running, cycling, basketball, football, badminton, rope skipping and swimming. More detailed analysis and data records can be found in Da Fit.. ●Main menu: Click into the main menu, you can choose to display the nine-square grid menu and the list menu. ●Blood Oxygen: Click the blood oxygen interface to measure the current blood oxygen content. Slide up to view the blood oxygen data records for nearly seven times. More detailed information analysis and data records can be viewed in Da Fit. ●Weather Information: When the watch is connected to the mobile app, the weather condition and air quality information of the day will be displayed in the weather interface. The weather condition of the next week can be viewed by sliding up. More detailed information analysis and data records can be viewed in Da Fit. ●Message Push: Watch can receive the notification information push on display mobile phone. The push application switch on Da Fit can be set, and watch message page can store the latest 3 message records. ●Camera Control: After connecting Da Fit, the watch can be used as the shutter of the mobile camera, and the camera can be controlled. After opening the camera on the mobile phone, click the screen icon in the watch camera interface to control the camera taking of your mobile phone. ●Music Control: After the watch is connected to Da Fit, the watch can control the mobile music player, to select pause and play, and to switch between the previous and next music. ●Breathing Training: Click the watch interface function. The watch will …

Text truncated - open the document above for the full version.

SHEN ZHEN TOMSTAR TECHNOLOGY CO., LTD. Agent Authorization Company: SHEN ZHEN TOMSTAR TECHNOLOGY CO., LTD. Address: Room2110-2116, huafeng international building, NO.4018 BaoAn Blvd, Shenzhen, China. Product Name: Smart Watch Trade Mark: N/A Model Number(s): TS17, TS17A, Vastking Fit M3, Urban LITE Z FCC ID: 2APD3-TS17 We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2021-04-17 Name: Jun Li Title: Manager Company: SHEN ZHEN TOMSTAR TECHNOLOGY CO., LTD.

SHEN ZHEN TOMSTAR TECHNOLOGY CO., LTD. Date: 2021-04-17 To: MiCOM Labs Inc 575 Boulder Court, Pleasanton, California 94566, USA Dear Sir/Madam, We, SHEN ZHEN TOMSTAR TECHNOLOGY CO., LTD. Hereby declares the following statement for MiCOM Labs Inc, PCB board, structure and internal of these model(s) are the same, Only models name is different for these models: Product name: Smart Watch Trade Mark: N/A Model No.: TS17, TS17A, Vastking Fit M3, Urban LITE Z Sincerely, Signature: Date: 2021-04-17 Name: Jun Li Title: Manager Company: SHEN ZHEN TOMSTAR TECHNOLOGY CO., LTD.

SHEN ZHEN TOMSTAR TECHNOLOGY CO., LTD. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2021-04-17 Subject; Request for Confidentiality FCC ID: 2APD3-TS17 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Jun Li Title: Manager

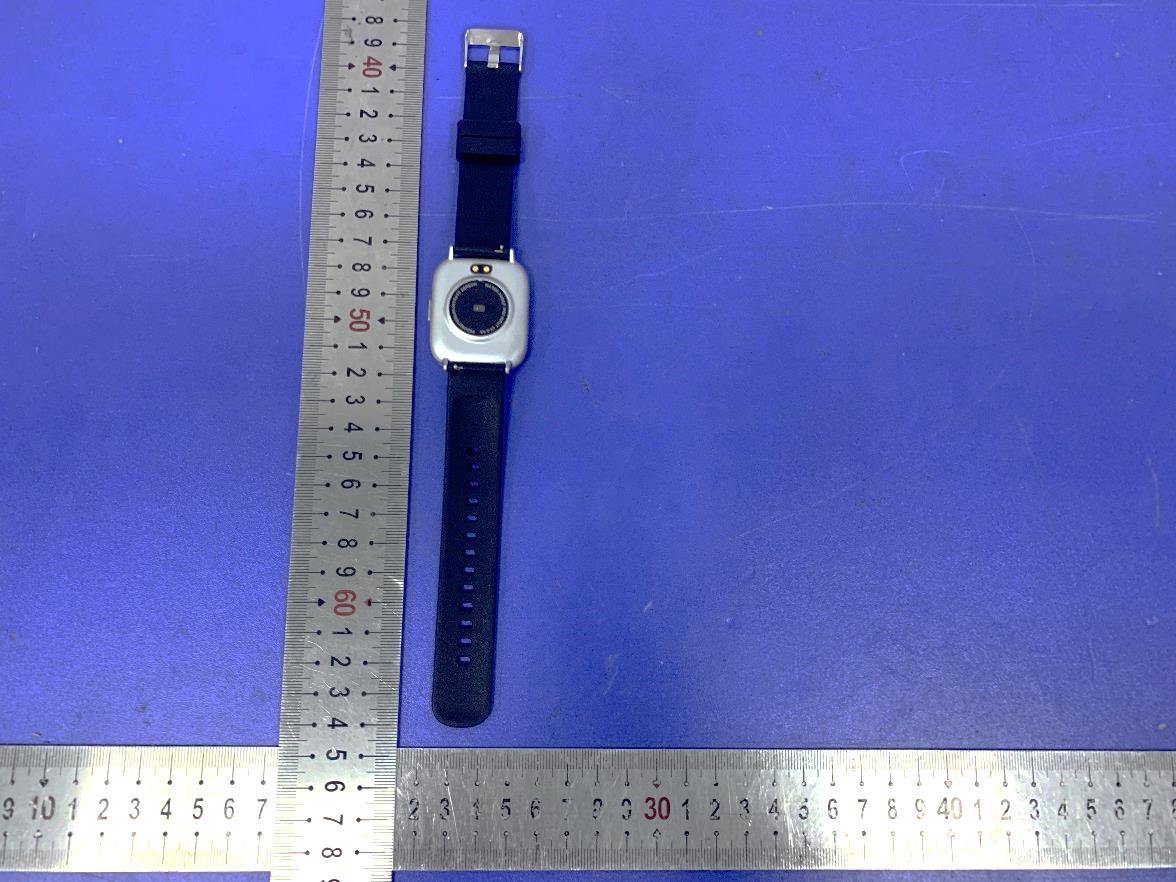

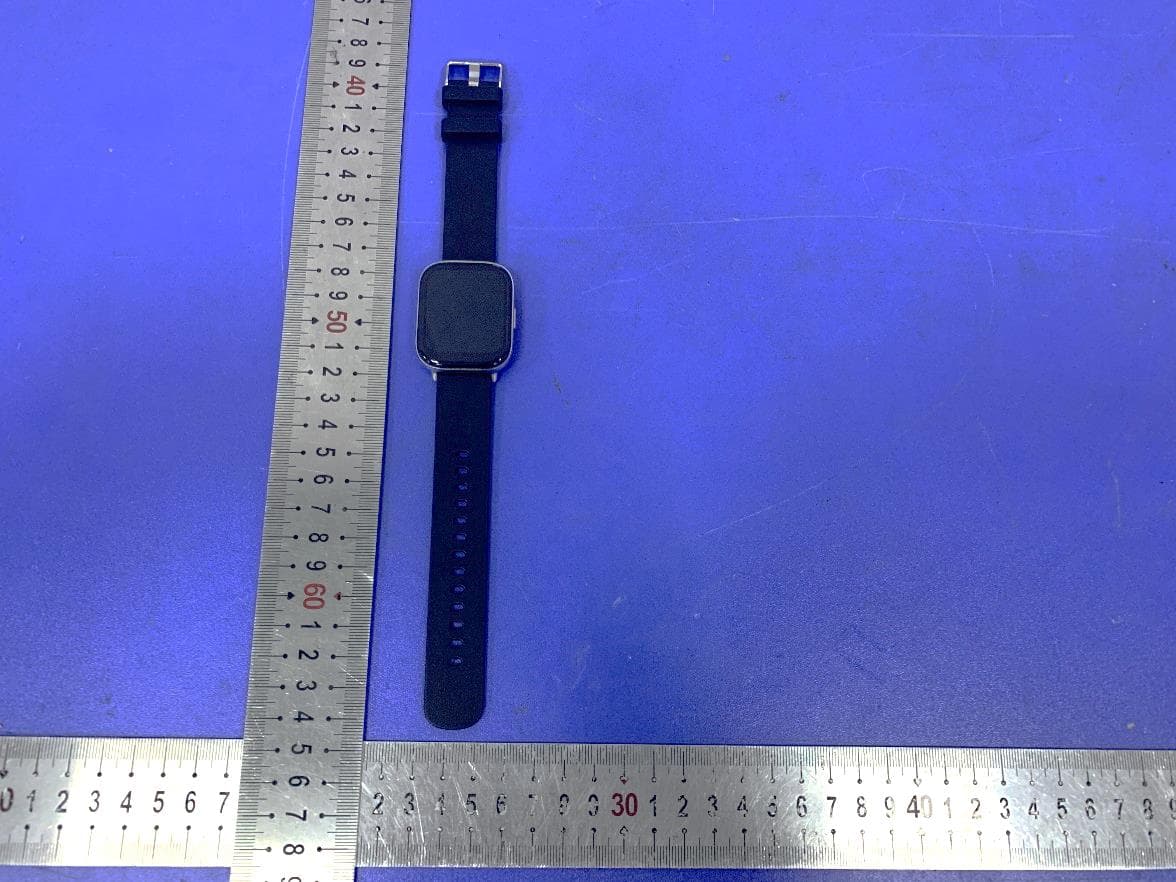

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-TS17 1. EXTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-TS17 Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-TS17 Fig. 5 Fig. 6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-TS17 Fig. 7

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-TS17 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Label and Location SIZE: L 0.8cm * 0.3cm Label Location Model No.: TS17 FCC ID: 2APD3-TS17

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-TS17 1. INTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-TS17 Fig.3 Fig.4 BT Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-TS17 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-TS17 Fig.7 Fig.8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-TS17 Fig.9 Fig.10

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-TS17 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 3 FCC RF Exposure Evaluation 1. Product Information FCC ID : 2APD3-TS17 Product name : Smart Watch Test Model : TS17 Additional Model No. : TS17A, Vastking Fit M3, Urban LITE Z Model Declaration : PCB board, structure and internal of these model(s) are the same, So no additional models were tested. Power supply : Input: DC 5V, 1A DC 3.7V by Rechargeable Li-ion Battery, 200mAh, 0.74Wh Bluetooth : 2402MHz ~ 2480MHz Channel Number : 40 channels for Bluetooth V4.0(DTS) Channel Spacing : 2MHz for Bluetooth V4.0(DTS) Modulation Type : GFSK for Bluetooth V4.0(DTS) Bluetooth Version : V4.0 Antenna Type : Internal antenna Antenna Gain : 0dBi(Max.) Hardware version : / Software version : / Exposure category : General population/uncontrolled environment EUT Type : Production Unit Device Type : Portable Device SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-TS17 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 3 2. Evaluation method and Limit According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.“ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)+ · *√f (GHz)+ ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to f) in section 4.1 is applied to determine SAR test exclusion. When one of the following test exclusion conditions is satisfied for all combinations of simultaneous transmission configurations, further equipment approval is not required to incorporate transmitter modules in host devices that operate in the mixed mobile and portable host platform exposure conditions. The grantee is responsible for documenting this according to Class I permissive change requirements. Antennas that qualify for standalone SAR test exclusion must apply the estimated standalone SAR to determine simultaneous transmission test exclusion. a) The [∑ of (the highest measured or estimated SAR for each standalone antenna configuration, adjusted for maximum tune-up tolerance) / 1.6 W/kg] + [∑ of MPE ratios] is ≤ 1.0. b)The SAR to peak location separation ratios of all simultaneously transmitting antenna pairs operating in portable device exposure conditions are all ≤ 0.04, and the [∑ of MPE ratios] is ≤ 1.0. 3. Refer Evaluation Method ANSI C95.1–2019: IEEE Standard for Safety Levels with Respect to Human Exposure to Electric, Magnetic, and Electromagnetic Fields, 0 Hz to 300 GHz. FCC KDB publication 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1093: Radiofrequency radiation exposure evaluation: portable devices SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-TS17 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 3 4. Conducted Power Results <BT LE> Mode Channel Frequency (MHz) Peak Conducted Output Power (dBm) GFSK 0 2402 -1.245 19 2440 -1.153 39 2480 -2.064 5. Manufacturing Tolerance <BT LE> GFSK (Peak) Channel Channel 0 Channel 19 Channel 39 Target (dBm) -1 -1 -2 Tolerance ±(dB) 1.0 1.0 1.0 6. Evaluation Results 6.1 …

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-TS17 Report No.: LCS210309054AEA Page 1 of 14 Appendix A RF Test Data for BT V4.0(BT LE) (Conducted Measurement) Product Name: Smart Watch Trade Mark: N/A Test Model: TS17 Environmental Conditions Temperature: 24.2  C Relative Humidity: 54.1% ATM Pressure: 100.0 kPa Test Engineer: Jay Li Supervised by: Li Huan A.1 Duty Cycle Test Mode Test Channel Ant Duty Cycle[%] Verdict BT LE 2440 Ant1 100 PASS #im grbble1hchnnav SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-TS17 Report No.: LCS210309054AEA Page 2 of 14 A.2 Maximum Conducted Peak Output Power Mode Channel Conduct Peak Power[dBm] Limit [dBm] Verdict BT LE LCH -1.245 30 PASS BT LE MCH -1.153 30 PASS BT LE HCH -2.064 30 PASS Test Graphs LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-TS17 Report No.: LCS210309054AEA Page 3 of 14 HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-TS17 Report No.: LCS210309054AEA Page 4 of 14 A.3 Maximum Power Spectral Density Mode Channel PSD [dBm/3KHz] Limit [dBm/3KHz] Verdict BT LE LCH -16.469 8 PASS BT LE MCH -15.757 8 PASS BT LE HCH -16.596 8 PASS Test Graphs LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-TS17 Report No.: LCS210309054AEA Page 5 of 14 HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-TS17 Report No.: LCS210309054AEA Page 6 of 14 A.4 6dB Bandwidth Mode Channel 6dB Bandwidth [MHz] Limit [MHz] Verdict BT LE LCH 0.6528 ≥0.5 PASS BT LE MCH 0.6530 ≥0.5 PASS BT LE HCH 0.6472 ≥0.5 PASS Test Graphs LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-TS17 Report No.: LCS210309054AEA Page 7 of 14 HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-TS17 Report No.: LCS210309054AEA Page 8 of 14 A.6 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdict BT LE LCH -1.714 -37.617 -21.714 PASS BT LE MCH -1.702 -36.711 -21.702 PASS BT LE HCH -2.602 -37.281 -22.602 PASS BT LE_LCH_Graphs Pref/BT LE/LCH Puw/BT LE/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-TS17 Report No.: LCS210309054AEA Page 9 of 14 BT LE_MCH_Graphs Pref/BT LE/MCH Puw/BT LE/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-TS17 Report No.: LCS210309054AEA Page 10 of 14 BT LE_HCH_Graphs Pref/BT LE/HCH Puw/BT LE/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-TS17 Report No.: LCS210309054AEA Page 11 of 14 A.7 Band-edge for RF Conducted Emissions Mode Channel Carrier Power[dBm] Max.Spurious Level [dBm] Limit [dBm] Verdict BT LE LCH -1.875 -49.575 -21.88 PASS BT LE HCH -2.503 -47.099 -22.5 PASS Test Graphs LCH HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-TS17 Report No.: LCS210309054AEA Page 12 of 14 A.8 Restrict-band band-edge measurements Test Mode Test Chann el Ant Freq. Power [dBm] Gain Ground Factor E [dBuV/m] Detector Limit [dBuV/ m] Verdi ct BT LE 2402 Ant1 2310.0 -44.03 2.0 0 53.23 PEAK 74 PASS Ant1 2310.0 -53.30 2.0 0 43.96 AV 54 PASS Ant1 2390.0 -40.05 2.0 0 57.21 PEAK 74 PASS Ant1 2390.0 -52.42 2.0 0 44.84 AV 54 PASS 2480 Ant1 2483.5 -41.06 2.0 0 56.2 PEAK 74 PASS Ant1 2483.5 -51.50 2.0 0 45.76 AV 54 PASS Ant1 2500.0 -42.73 2.0 0 54.53 PEAK 74 PASS Ant1 2500.0 -52.26 2.0 0 45.00 AV 54 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-TS17 Report No.: LCS210309054AEA Page 13 of 14 Restrict-band band-edge measurements_BT LE_2402_Ant1_PEAK Restrict-band band-edge measurements_BT LE_2402_Ant1_AV SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-TS17 Report No.: LCS210309054AEA Page 14 of 14 Restrict-band band-edge measurements_BT LE_2480_Ant1_PEAK Restrict-band band-edge measurements_BT LE_2480_Ant1_AV

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-TS17 Report No.: LCS210309054AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 33 FCC TEST REPORT For SHEN ZHEN TOMSTAR TECHNOLOGY CO., LTD Smart Watch Test Model: TS17 Additional Model No.: TS17A, Vastking Fit M3, Urban LITE Z Prepared for : SHEN ZHEN TOMSTAR TECHNOLOGY CO., LTD Address : Room2110-2116, huafeng international building, NO.4018 BaoAn Blvd, Shenzhen, China. Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : April 02, 2021 Number of tested samples : 2 Sample No. : 210309054A-1, 210309054A-2 Serial number : Prototype Date of Test : April 02, 2021 ~ April 12, 2021 Date of Report : April 13, 2021 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-TS17 Report No.: LCS210309054AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 33 FCC TEST REPORT FCC CFR 47 PART 15 C (15.247) Report Reference No. ................. : LCS210309054AEA Date of Issue ................................... : April 13, 2021 Testing Laboratory Name ............ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ........................................... : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Testing Location/ Procedure ........... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name .......................... : SHEN ZHEN TOMSTAR TECHNOLOGY CO., LTD Address ........................................... : Room2110-2116, huafeng international building, NO.4018 BaoAn Blvd, Shenzhen, China. Test Specification Standard.......................................... : FCC CFR 47 PART 15 C (15.247) Test Report Form No. ................... : LCSEMC-1.0 TRF Originator ................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ..................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. EUT Description. ........................... : Smart Watch Trade Mark .......................................................................................................................................... : N/A Test Model .......................................................................................................................................... : TS17 Ratings ................................................................................................................................................ : Input: DC 5V, 1A DC 3.7V by Rechargeable Li-ion Battery, 200mAh, 0.74Wh Result ........................................... : Positive Compiled by: Supervised by: Approved by: Linda He/ File administrators Jin Wang/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-TS17 Report No.: LCS210309054AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 33 FCC -- TEST REPORT Test Model........................... : TS17 EUT......................................... : Smart Watch Applicant............................... : SHEN ZHEN TOMSTAR TECHNOLOGY CO., LTD Address.................................. : Room2110-2116, huafeng international building, NO.4018 BaoAn Blvd, Shenzhen, China. Telephone............................... : / Fax.......................................... : / Manufacturer........................ : SHEN ZHEN TOMSTAR TECHNOLOGY CO., LTD Address................................... : Room2110-2116, huafeng international building, NO.4018 BaoAn Blvd, Shenzhen, China. Telephone............................... : / Fax.......................................... : / Factory................................... : SHEN ZHEN TOMSTAR TECHNOLOGY CO., LTD Address................................... : Room2110-2116, huafeng international building, NO.4018 BaoAn Blvd, Shenzhen, China. Telephone............................... : / Fax.......................................... : / Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS210309054AEA April 13, 2021 Date of issue SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-TS17 Report No.: LCS210309054AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 33 Revision History Revision Issue Date Revisions Revised By 000 April 13, 2021 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-TS17 Report No.: LCS210309054AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 33 TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 6 1.1…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-TS17 _______________________________________________________________________________________________ 1. TEST SETUP PHOTOGRAPHS 1.1. Photo of Radiated Emissions Measurement Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3-TS17 _______________________________________________________________________________________________ Photo of Conducted Emissions Measurement Fig. 3
