2APD3TS03Smart Watch

FCC Warning This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any inte rference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interferenceto radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • In crease the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Radiation Exposure Statement The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

SHEN ZHEN TOMSTAR TECHNOLOGY CO.,LTD. Agent Authorization Company: SHEN ZHEN TOMSTAR TECHNOLOGY CO.,LTD. Address: Room2110-2116, huafeng international building, NO.4018 BaoAn Blvd, Shenzhen, China. Product Name: Smart Watch Trade Mark: N/A Model Number(s): TS03, TS03+, VS3, TS03B, TS11R, CRONOSV6 FCC ID: 2APD3TS03 We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2020-11-19 Name: Jun Li Title: / Company: SHEN ZHEN TOMSTAR TECHNOLOGY CO.,LTD.

SHEN ZHEN TOMSTAR TECHNOLOGY CO.,LTD. Add: Room2110-2116, huafeng international building, NO.4018 BaoAn Blvd, Shenzhen, China. Tel: +86-0755-83588177 Date: 2020-11-19 To: MiCOM Labs Inc 575 Boulder Court, Pleasanton, California 94566, USA Dear Sir/Madam, We, SHEN ZHEN TOMSTAR TECHNOLOGY CO.,LTD. Hereby declares the following statement for MiCOM Labs Inc, PCB board, structure and internal of these model(s) are the same, Only model name and shell color is different for these models.. Product name: Smart Watch Trade Mark: / Model No.: TS03, TS03+, VS3, TS03B, TS11R, CRONOSV6 Sincerely, Client’s name / title : Jun Li / N/A Address: Room2110-2116, huafeng international building, NO.4018 BaoAn Blvd, Shenzhen, China. Tel: +86-0755-83588177 E-mail: [email protected]

SHEN ZHEN TOMSTAR TECHNOLOGY CO.,LTD. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2020-11-19 Subject; Request for Confidentiality FCC ID: 2APD3TS03 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Jun Li Title: /

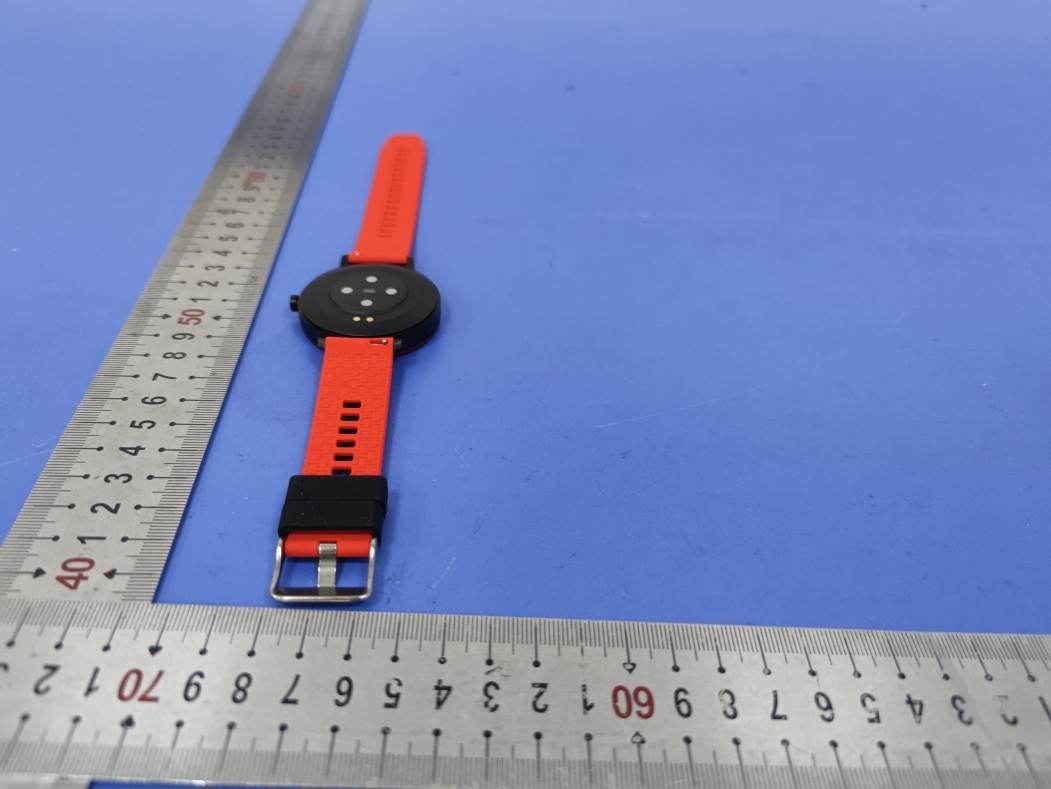

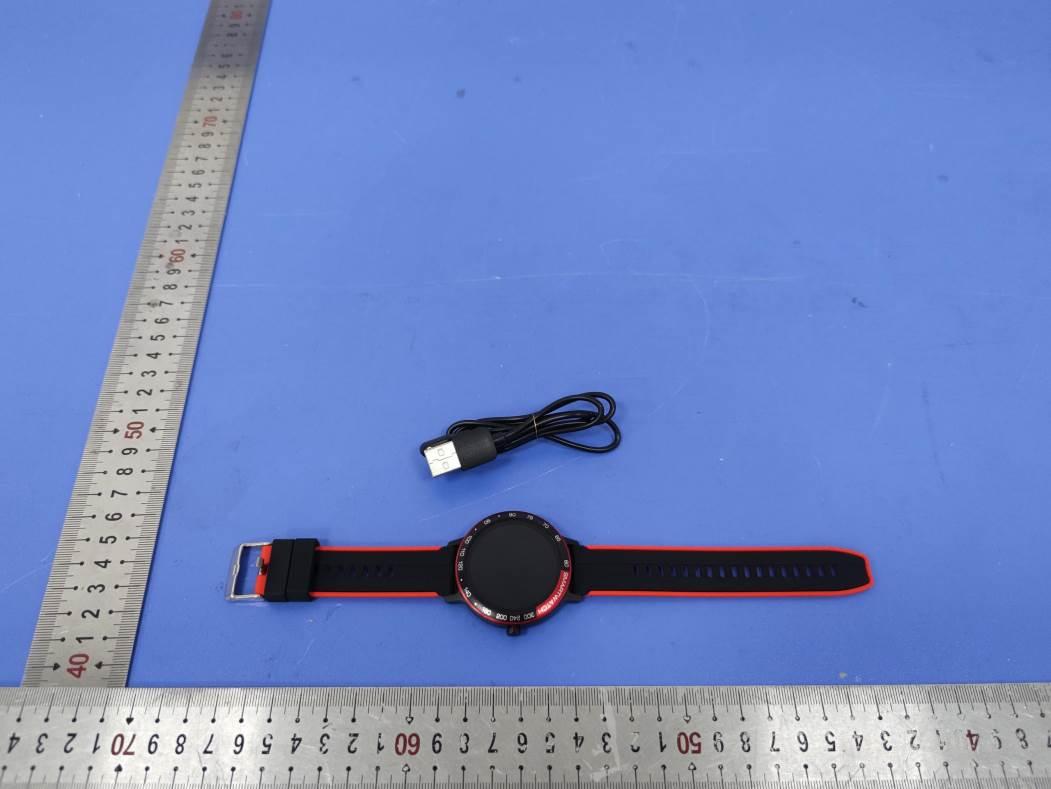

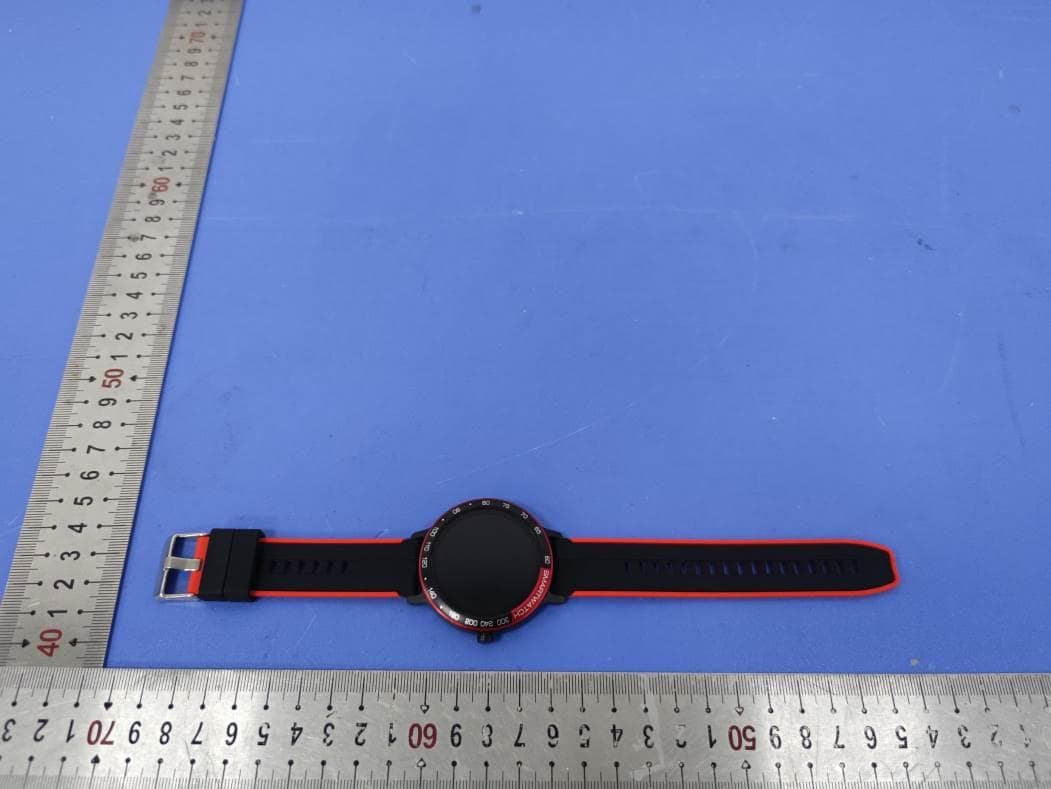

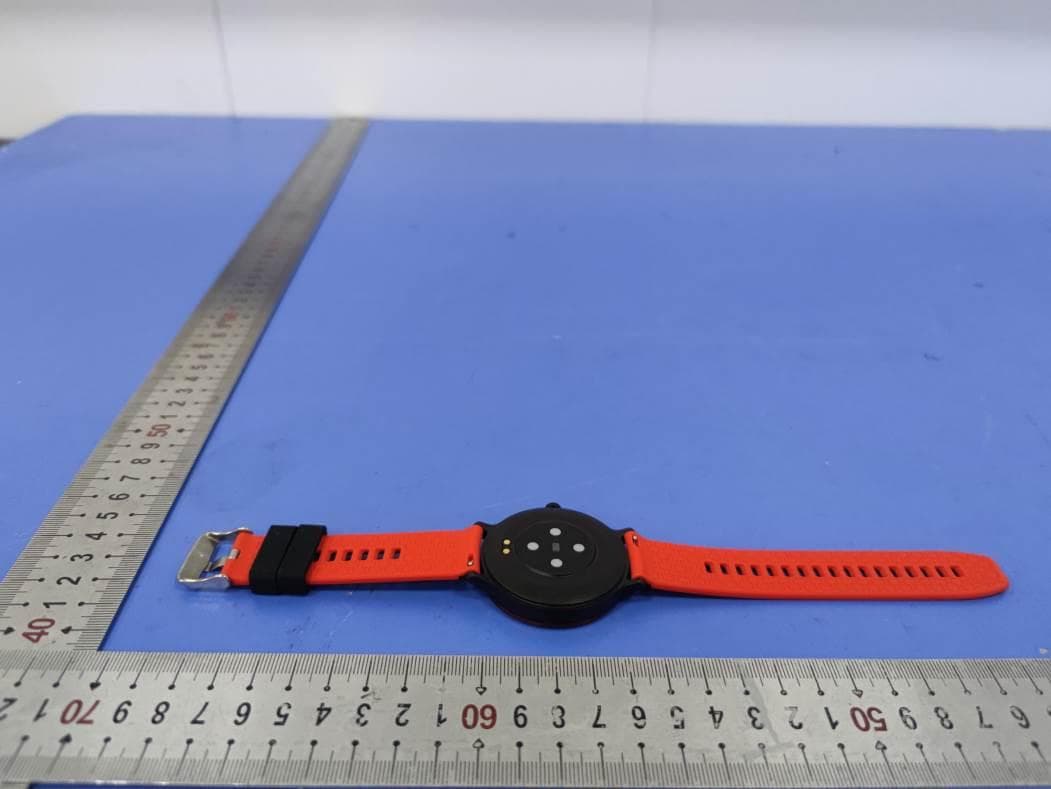

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3TS03 8.EXTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3TS03 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3TS03 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3TS03 Fig.7

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3TS03 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Label and Location Size: L2.0cm*W1.5cm Label Location Smart Watch Model No.: TS03 FCC ID: 2APD3TS03

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3TS03 9.INTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3TS03 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3TS03 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3TS03 Fig.7 Fig.8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3TS03 Fig.9 Fig.10 Bluetooth Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3TS03 Fig.11

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3TS03 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 3 FCC RF Exposure Evaluation 1. Product Information FCC ID : 2APD3TS03 Product name : Smart Watch Test Model : TS03 Additional Model No : TS03+, VS3, TS03B, TS11R, CRONOSV6 Model Declaration : PCB board, structure and internal of these model(s) are the same, So no additional models were tested Power supply : Input: 5V1A DC 3.7V by Rechargeable Li-ion Battery, 180mAh Bluetooth : 2402MHz-2480MHz Channel Number : 40 channels for Bluetooth V5.0 (DTS) Channel Spacing : 2MHz for Bluetooth V5.0 (DTS) Modulation Type : GFSK for Bluetooth V5.0 (DTS) Bluetooth Version : V5.0 Antenna Type : Internal Antenna, Antenna Gain : 0dBi(Max.) Hardware version : MOY.M80028.01 Software version : MOY-RBZ3-2.0.1 Exposure category : General population/uncontrolled environment EUT Type : Production Unit Device Type : Portable Device 2. Evaluation method and Limit According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.“ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3TS03 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 3 transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to f) in section 4.1 is applied to determine SAR test exclusion. When one of the following test exclusion conditions is satisfied for all combinations of simultaneous transmission configurations, further equipment approval is not required to incorporate transmitter modules in host devices that operate in the mixed mobile and portable host platform exposure conditions. The grantee is responsible for documenting this according to Class I permissive change requirements. Antennas that qualify for standalone SAR test exclusion must apply the estimated standalone SAR to determine simultaneous transmission test exclusion. a) The [∑ of (the highest measured or estimated SAR for each standalone antenna configuration, adjusted for maximum tune-up tolerance) / 1.6 W/kg] + [∑ of MPE ratios] is ≤ 1.0. b)The SAR to peak location separation ratios of all simultaneously transmitting antenna pairs operating in portable device exposure conditions are all ≤ 0.04, and the [∑ of MPE ratios] is ≤ 1.0. 3. Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1093: Radiofrequency radiation exposure evaluation: portable devices 4. Conducted Power Results <BT LE> Mode Channel Frequency (MHz) Peak Conducted Output Power (dBm) GFSK 0 2402 1.254 19 2440 1.484 39 2480 1.471 5. Manufacturing Tolerance <BT LE> GFSK (Peak) Channel Channel 0 Channel 19 Channel 39 Target (dBm) 1.0 1.0 1.0 Tolerance ±(dB) 1.0 1.0 1.0 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3TS03 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 3 6. Evaluation Results 6.1 S…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3TS03 Report No.: LCS200923094AEA Page 1 of 14 Appendix A RF Test Data for BT LE V5.0 (Conducted Measurement) Product Name: Smart Watch Trade Mark: N/A Test Model: TS03 Environmental Conditions Temperature: 24.6 C Relative Humidity: 54.1% ATM Pressure: 100.0 kPa Test Engineer: Jenny Wu Supervised by: Li Huan A.1 Duty Cycle Test Mode Test Channel Ant Duty Cycle[%] Verdict BT LE 2440 Ant1 100 PASS #im grbble1hchnnav SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3TS03 Report No.: LCS200923094AEA Page 2 of 14 A.2 Maximum Conducted Peak Output Power Mode Channel Conduct Peak Power[dBm] Limit [dBm] Verdict BT LE LCH 1.254 30 PASS BT LE MCH 1.484 30 PASS BT LE HCH 1.471 30 PASS Test Graphs LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3TS03 Report No.: LCS200923094AEA Page 3 of 14 HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3TS03 Report No.: LCS200923094AEA Page 4 of 14 A.3 Maximum Power Spectral Density Mode Channel PSD [dBm/3KHz] Limit [dBm/3KHz] Verdict BT LE LCH -13.778 8 PASS BT LE MCH -11.064 8 PASS BT LE HCH -12.023 8 PASS Test Graphs LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3TS03 Report No.: LCS200923094AEA Page 5 of 14 HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3TS03 Report No.: LCS200923094AEA Page 6 of 14 A.4 6dB Bandwidth Mode Channel 6dB Bandwidth [MHz] Limit [MHz] Verdict BT LE LCH 0.6474 ≥0.5 PASS BT LE MCH 0.6486 ≥0.5 PASS BT LE HCH 0.7009 ≥0.5 PASS Test Graphs LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3TS03 Report No.: LCS200923094AEA Page 7 of 14 HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3TS03 Report No.: LCS200923094AEA Page 8 of 14 A.5 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdict BT LE LCH 1.059 -25.679 -18.941 PASS BT LE MCH 1.309 -26.072 -18.691 PASS BT LE HCH 1.25 -24.851 -18.750 PASS BT LE_LCH_Graphs Pref/BT LE/LCH Puw/BT LE/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3TS03 Report No.: LCS200923094AEA Page 9 of 14 BT LE_MCH_Graphs Pref/BT LE/MCH Puw/BT LE/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3TS03 Report No.: LCS200923094AEA Page 10 of 14 BT LE_HCH_Graphs Pref/BT LE/HCH Puw/BT LE/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3TS03 Report No.: LCS200923094AEA Page 11 of 14 A.6 Band-edge for RF Conducted Emissions Mode Channel Carrier Power[dBm] Max.Spurious Level [dBm] Limit [dBm] Verdict BT LE LCH 1.240 -49.359 -18.76 PASS BT LE HCH 1.412 -49.316 -18.59 PASS Test Graphs LCH HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3TS03 Report No.: LCS200923094AEA Page 12 of 14 A.7 Restrict-band band-edge measurements Test Mode Test Chann el Ant Freq. Power [dBm] Gain Ground Factor E [dBuV/m] Detector Limit [dBuV/ m] Verdi ct BT LE 2402 Ant1 2310.0 -42.90 2.0 0 52.36 PEAK 74 PASS Ant1 2310.0 -53.28 2.0 0 41.98 AV 54 PASS Ant1 2390.0 -42.34 2.0 0 52.92 PEAK 74 PASS Ant1 2390.0 -52.82 2.0 0 42.44 AV 54 PASS 2480 Ant1 2483.5 -42.60 2.0 0 52.65 PEAK 74 PASS Ant1 2483.5 -52.41 2.0 0 42.85 AV 54 PASS Ant1 2500.0 -42.90 2.0 0 52.36 PEAK 74 PASS Ant1 2500.0 -52.29 2.0 0 42.97 AV 54 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3TS03 Report No.: LCS200923094AEA Page 13 of 14 Restrict-band band-edge measurements_BT LE_2402_Ant1_PEAK Restrict-band band-edge measurements_BT LE_2402_Ant1_AV SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3TS03 Report No.: LCS200923094AEA Page 14 of 14 Restrict-band band-edge measurements_BT LE_2480_Ant1_PEAK Restrict-band band-edge measurements_BT LE_2480_Ant1_AV

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3TS03 Report No.: LCS200923094AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 33 FCC TEST REPORT For SHEN ZHEN TOMSTAR TECHNOLOGY CO.,LTD. Smart Watch Test Model: TS03 Additional Model No.: TS03+, VS3, TS03B, TS11R, CRONOSV6 Prepared for : SHEN ZHEN TOMSTAR TECHNOLOGY CO.,LTD. Address : Room2110-2116, huafeng international building, NO.4018 BaoAn Blvd, Shenzhen, China. Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : October 22, 2020 Number of tested samples : 2 Sample No. : 201022041A-1, 201022041A-2 Serial number : Prototype Date of Test : October 27, 2020 ~ November 03, 2020 Date of Report : November 05, 2020 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3TS03 Report No.: LCS200923094AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 33 FCC TEST REPORT FCC CFR 47 PART 15 C(15.247) Report Reference No. ...................... : LCS200923094AEA Date of Issue ........................................ : November 05, 2020 Testing Laboratory Name ................. : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ................................................ : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Testing Location/ Procedure ................ : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ............................... : SHEN ZHEN TOMSTAR TECHNOLOGY CO.,LTD. Address ................................................ : Room2110-2116, huafeng international building, NO.4018 BaoAn Blvd, Shenzhen, China. Test Specification Standard ............................................... : FCC CFR 47 PART 15 C(15.247) Test Report Form No. ........................ : LCSEMC-1.0 TRF Originator .................................... : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF .......................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. EUT Description. ............................... : Smart Watch Trade Mark .......................................... : N/A Test Model ........................................... : TS03 Ratings ................................................. : Input: 5V 1A DC 3.7V by Rechargeable Li-ion Battery, 180mAh Result ................................................. : Positive Compiled by: Supervised by: Approved by: Ray Yang/ File administrators Jin Wang/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3TS03 Report No.: LCS200923094AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 33 FCC -- TEST REPORT Test Model............................... : TS03 EUT......................................... : Smart Watch Applicant............................... : SHEN ZHEN TOMSTAR TECHNOLOGY CO.,LTD. Address.................................. : Room2110-2116, huafeng international building, NO.4018 BaoAn Blvd, Shenzhen, China. Telephone............................... : / Fax.......................................... : / Manufacturer........................ : SHEN ZHEN TOMSTAR TECHNOLOGY CO.,LTD. Address................................... : Room2110-2116, huafeng international building, NO.4018 BaoAn Blvd, Shenzhen, China. Telephone............................... : / Fax.......................................... : / Factory................................... : SHEN ZHEN TOMSTAR TECHNOLOGY CO.,LTD. Address................................... : Room2110-2116, huafeng international building, NO.4018 BaoAn Blvd, Shenzhen, China. Telephone............................... : / Fax.......................................... : / Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS200923094AEA November 05, 2020 Date of issue SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3TS03 Report No.: LCS200923094AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 33 Revision History Revision Issue Date Revisions Revised By 000 November 05, 2020 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3TS03 Report No.: LCS200923094AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 33 TABLE OF CONTENTS 1. GENERAL INFORMATION .................................................................................................................................. 6 1.1. DESCRIPTION OF DEVICE (EUT) ........................................................................................................................... 6 1.2. HOST SYSTEM CONFIGURATION LIST AND DETAILS ................…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3TS03 _______________________________________________________________________________________________ 7. TEST SETUP PHOTOGRAPHS Photo of Radiated Emissions Measurement Below 1 GHz Above 1 GHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3TS03 _______________________________________________________________________________________________ Power Line Conducted Emission
