2APD3TS12MSmart Watch

1 TS12M User Manual 1. Quick Start 1.1 Power on and off Power on: Long press the side button Shut down: long press the side button on the standby interface 1.2 Function interface 1.2.1 Switch watch face On the standby interface, long press the screen and the preview interface appears, swipe the screen left or right to switch the watch face, click OK to set successfully 1.3 Recharge Connect one end of the charging cable to the watch, and the other end of the charger to a standard power socket. After plugging in the charger, the battery strength icon on the top right of the screen starts to scroll to indicate that charging has started. When the battery is full, the charging icon will stop scrolling, and the battery symbol on the screen will show full. After charging is complete, first disconnect the charger from the power socket, and then disconnect the watch from the charger. When the watch is turned on, it can be charged by connecting the PC data cable/DC power supply. When it is fully charged, the charging interface will prompt "Charge complete". When the watch is turned off, it can be charged by connecting the PC data cable/DC power supply. When the watch is fully charged, the battery strength icon on the charging interface will stop. Scroll, press POWER button to start normally; The battery icon in the standby dial and the drop-down menu is in the charging state, and the battery strength icon will scroll until it is fully charged. 1.4 Paired models Android phones: support the original operating system version 4.4 and above Apple mobile phone: support the original operating system 7.0 and above, that is, products after 5S Second, connect to Bluetooth 2.1 Divided download ①Download through the application market: Android terminal: app market search such as app treasure, 360 and Google store, and download it IOS end: App Store search and transfer to download 2 ②Scan and download through the QR code on the watch Android: Scan the QR code on the bracelet via QQ, WeChat or other applications, and the link will jump to the download interface to download; IOS: Scan the QR code on the bracelet through QQ, WeChat or other applications, and you can choose to jump to the download interface through the QQ browser or the local Safari browser link to download. (Subsequently link directly to APPSTORE Android phone APK name: Divide iPhone APP name: Divide  2.2 Bluetooth connection  Turn on Bluetooth and the notebook in the watch settings to be searched, turn on Bluetooth on the mobile phone, connect to Bluetooth 3.0, then go to the more interface of the apk, click Add Device, and select the name of the bracelet device (the bracelet Bluetooth name is TS12M) , Click Connect to connect successfully.    After the Bluetooth connection is successful, the bracelet time is synchronized with the time of the mobile phone, and the APK terminal clicks to find the watch, and the watch bright screen vibrates and displays a prompt that the phone is searching. Bluetooth automatic reconnection: 1. There is no reminder when the bracelet is out of the Bluetooth connection range. When the bracelet reaches the Bluetooth connection range, open the APK and the Bluetooth will automatically reconnect 2. Close the application background or restart the phone or click the one-key cleanup that comes with the phone, and enter the split bracelet again. If the Bluetooth connection is within the effective range, the Bluetooth will automatically reconnect. At this time, the color of the Bluetooth icon in the status bar of the watch is displayed as a blue-green gradient, and the watch and the mobile phone can search for the device successfully. 3. Telephone 3.1 Make a call 3.1.1 Dial Pad Click the dial menu, touch the screen to enter the number, click the dial icon in the lower left corner, you can choose local dialing or Bluetooth dialing, click on the dial pad should enter the watch call record 3.2 Call record 3 View the call history, select the contact you want to call 3.3 Answer or reject a call When the incoming call interface is displayed: Slide "" to answer the call Slide "" to reject the call 3.4 Menu during Bluetooth call The following operations can be performed on the call interface: Click "" to turn on mute Click "" to hang up Click "" to open the dial pad Swipe the screen up and down to adjust the volume 3.5 Phone book After successfully pairing with the mobile phone Bluetooth, you can synchronize the phone contacts on the mobile phone; 3.6 SMS After successfully pairing with the Bluetooth of the Android mobile phone, the mobile phone text messages can be synchronized; Apple mobile phones do not support the synchronization SMS function; Four, Bluetooth Watch to search mobile phone Bluetooth: click on the Bluetooth search device on the watch side, select the Bluetooth name of the mobile phone you want to pair with, click on pairing, and click on both the phone side/watch side to agree to pairing successfully; Five, notice Bluetooth pairing is successful, the watch and mobile phone can search each other successfully, and the watch can receive new messages qq, WeChat, incoming calls, text messages, etc. from the mobile phone at this time 4 Six, health 6.1 Pedometer When the watch is turned on, slide down on the homepage of the pedometer, change the status to on, the watch will count steps; if the status is changed to off, the watch will not count steps When the watch is turned on, slide down on the homepage of the pedometer, you can view historical steps, set target steps, user height, gender, and weight information The Bluetooth connection between the watch and the mobile phone is successful. After the watch generates data, click Sync Data on the mobile phone APK to synchronize the steps of the watch; if you need to re-count the steps (operation steps: watch settings→restore factory settings→automatically restart when the watch is turned off) . 6.2 Heart rate, blood pressure, blood oxygen, and ECG measurement Put the wa…

Text truncated - open the document above for the full version.

SHEN ZHEN TOMSTAR TECHNOLOGY CO.,LTD. Agent Authorization Company: SHEN ZHEN TOMSTAR TECHNOLOGY CO.,LTD. Address: Room2110-2116, huafeng international building, NO.4018 BaoAn Blvd, Shenzhen, China. Product Name: Smart Watch Trade Mark: N/A Model Number(s): TS12M, TS12 FCC ID: 2APD3TS12M We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2020-11-19 Name: Jun Li Title: / Company: SHEN ZHEN TOMSTAR TECHNOLOGY CO.,LTD.

SHEN ZHEN TOMSTAR TECHNOLOGY CO.,LTD. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2020-11-19 Subject; Request for Confidentiality FCC ID: 2APD3TS12M To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Jun Li Title: /

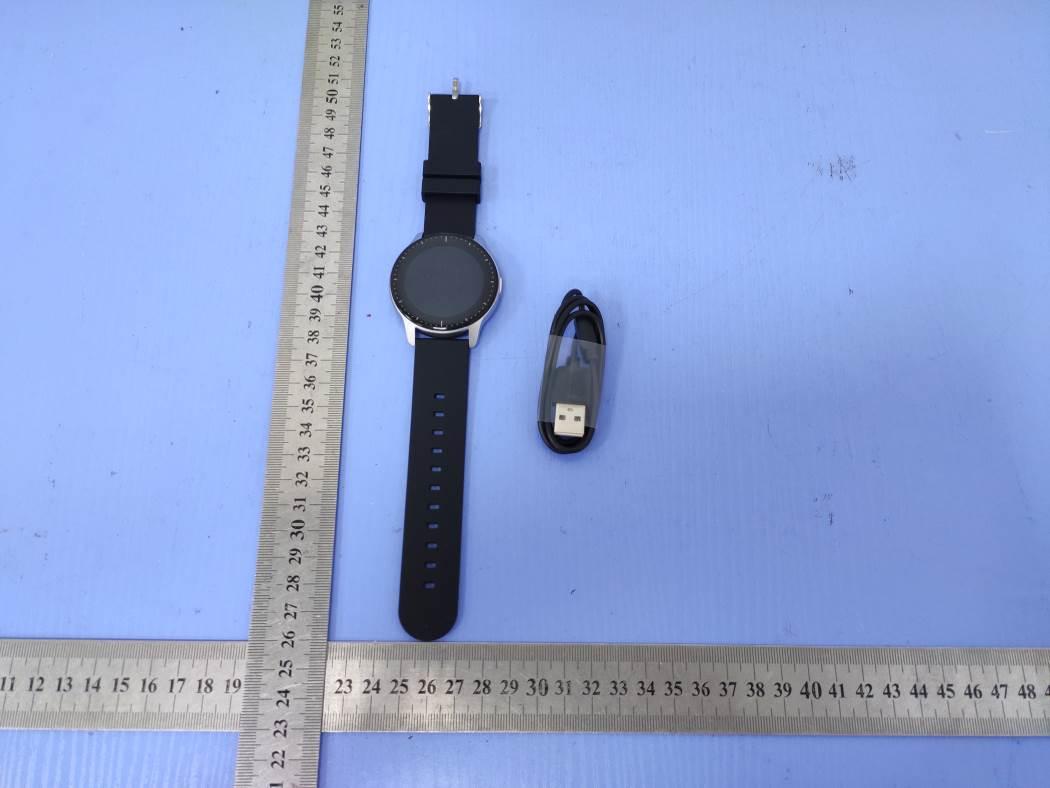

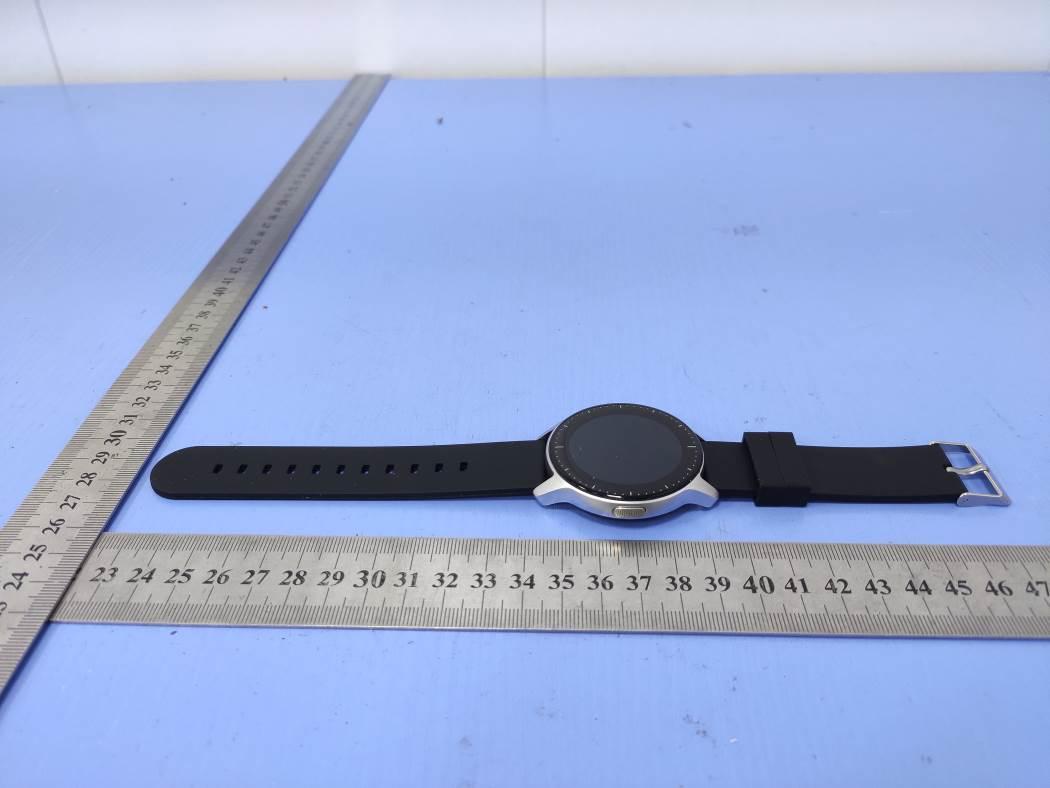

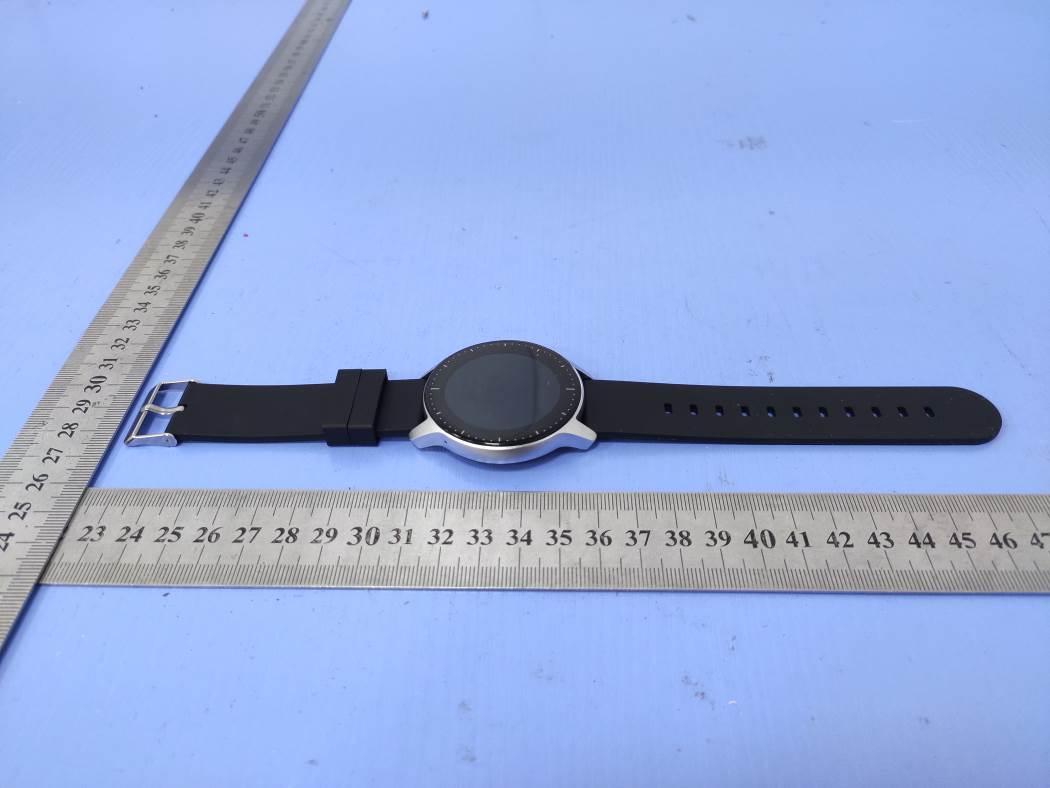

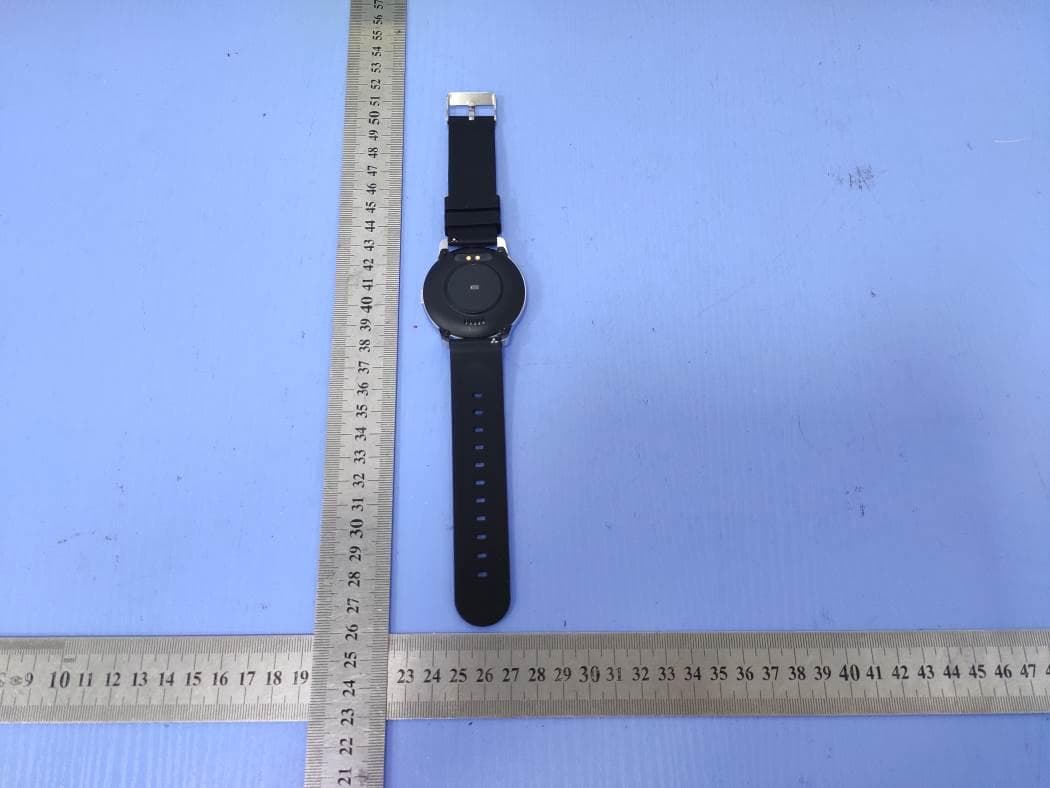

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3TS12M 8.EXTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3TS12M Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3TS12M Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3TS12M Fig.7

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3TS12M This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Label and Location Size: L2.0cm*W1.5cm Label Location Smart Watch Model No.: TS12M FCC ID: 2APD3TS12M

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3TS12M 9.INTERIOR PHOTOGRAPHS Fig.1 Fig.2 ANT SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3TS12M Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3TS12M Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3TS12M Fig.7 Bluetooth Antenna

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3TS12M ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 3 FCC RF Exposure Evaluation 1. Product Information FCC ID : 2APD3TS12M Product name : Smart Watch Test Model : TS12M Additional Model No: TS12 Model Declaration : PCB board, structure and internal of these model(s) are the same, So no additionalmodelsweretested Power supply : Input: 5V 1A DC 3.7V by Rechargeable Li‐ion Battery, 220mAh Bluetooth : 2402MHz‐2480MHz Channel Number : 40 channels for Bluetooth V5.0(DTS) Channel Spacing : 2MHz for Bluetooth V5.0(DTS) Modulation Type : GFSK for Bluetooth V5.0(DTS) Bluetooth Version : V5.0 Antenna Type : InternalAntenna, Antenna Gain : 0dBi(Max.) Hardware version : AB023‐V1.0 Software version : MT2502_AB023_TS12M_A Exposure category : General population/uncontrolled environment EUT Type : Production Unit Device Type : Portable Device 2. Evaluation method and Limit According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1‐g head or body and 10‐g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source‐based time‐averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune‐up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two‐way radios, handsets, laptops & tablets etc.“ [(max. power of channel, including tune‐up tolerance, mW)/ (min. test separaƟon distance, mm)] · [√f (GHz)] ≤ 3.0 for 1‐g SAR and ≤ 7.5 for 10‐g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3TS12M ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 3 transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to f) in section 4.1 is applied to determine SAR test exclusion. When one of the following test exclusion conditions is satisfied for all combinations of simultaneous transmission configurations, further equipment approval is not required to incorporate transmitter modules in host devices that operate in the mixed mobile and portable host platform exposure conditions. The grantee is responsible for documenting this according to Class I permissive change requirements. Antennas that qualify for standalone SAR test exclusion must apply the estimated standalone SAR to determine simultaneous transmission test exclusion. a) The [∑ of (the highest measured or estimated SAR for each standalone antenna configuration, adjusted for maximum tune‐up tolerance) / 1.6 W/kg] + [∑ of MPE ratios] is ≤ 1.0. b)The SAR to peak location separation ratios of all simultaneously transmitting antenna pairs operating in portable device exposure conditions are all ≤ 0.04, and the [∑ of MPE ratios] is ≤ 1.0. 3. Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1093: Radiofrequency radiation exposure evaluation: portable devices 4. Conducted Power Results <BT LE> Mode Channel Frequency (MHz)Peak Conducted Output Power (dBm) GFSK 0 2402‐2.040 19 2440‐1.689 39 2480‐1.581 5. Manufacturing Tolerance <BT LE> GFSK (Peak) Channel Channel 0Channel 19Channel 39 Target (dBm) ‐2.0‐2.0‐2.0 Tolerance ±(dB)1.01.01.0 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3TS12M ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 3 6. Evaluation Results 6.1 Standalone Evaluation <BT LE> Band/M…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3TS12M Report No.: LCS201022042AEA Page 1 of 14 Appendix A RF Test Data for BT LE V5.0 (Conducted Measurement) Product Name: Smart Watch Trade Mark: N/A Test Model: TS12M Environmental Conditions Temperature: 24.6 C Relative Humidity: 54.1% ATM Pressure: 100.0 kPa Test Engineer: Jenny Wu Supervised by: Li Huan A.1 Duty Cycle Test Mode Test Channel Ant Duty Cycle[%] Verdict BT LE 2440 Ant1 100 PASS #im grbble1hchnnav SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3TS12M Report No.: LCS201022042AEA Page 2 of 14 A.2 Maximum Conducted Peak Output Power Mode Channel Conduct Peak Power[dBm] Limit [dBm] Verdict BT LE LCH -2.040 30 PASS BT LE MCH -1.689 30 PASS BT LE HCH -1.581 30 PASS Test Graphs LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3TS12M Report No.: LCS201022042AEA Page 3 of 14 HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3TS12M Report No.: LCS201022042AEA Page 4 of 14 A.3 Maximum Power Spectral Density Mode Channel PSD [dBm/3KHz] Limit [dBm/3KHz] Verdict BT LE LCH -18.780 8 PASS BT LE MCH -18.166 8 PASS BT LE HCH -18.097 8 PASS Test Graphs LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3TS12M Report No.: LCS201022042AEA Page 5 of 14 HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3TS12M Report No.: LCS201022042AEA Page 6 of 14 A.4 6dB Bandwidth Mode Channel 6dB Bandwidth [MHz] Limit [MHz] Verdict BT LE LCH 0.6618 ≥0.5 PASS BT LE MCH 0.6544 ≥0.5 PASS BT LE HCH 0.7120 ≥0.5 PASS Test Graphs LCH MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3TS12M Report No.: LCS201022042AEA Page 7 of 14 HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3TS12M Report No.: LCS201022042AEA Page 8 of 14 A.5 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdict BT LE LCH -2.389 -36.925 -22.389 PASS BT LE MCH -2.028 -36.641 -22.028 PASS BT LE HCH -2.001 -37.349 -22.001 PASS BT LE_LCH_Graphs Pref/BT LE/LCH Puw/BT LE/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3TS12M Report No.: LCS201022042AEA Page 9 of 14 BT LE_MCH_Graphs Pref/BT LE/MCH Puw/BT LE/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3TS12M Report No.: LCS201022042AEA Page 10 of 14 BT LE_HCH_Graphs Pref/BT LE/HCH Puw/BT LE/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3TS12M Report No.: LCS201022042AEA Page 11 of 14 A.6 Band-edge for RF Conducted Emissions Mode Channel Carrier Power[dBm] Max.Spurious Level [dBm] Limit [dBm] Verdict BT LE LCH -3.164 -49.555 -23.16 PASS BT LE HCH -1.930 -49.029 -21.93 PASS Test Graphs LCH HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3TS12M Report No.: LCS201022042AEA Page 12 of 14 A.7 Restrict-band band-edge measurements Test Mode Test Chann el Ant Freq. Power [dBm] Gain Ground Factor E [dBuV/m] Detector Limit [dBuV/ m] Verdi ct BT LE 2402 Ant1 2310.0 -42.79 2.0 0 52.47 PEAK 74 PASS Ant1 2310.0 -53.43 2.0 0 41.83 AV 54 PASS Ant1 2390.0 -44.04 2.0 0 51.21 PEAK 74 PASS Ant1 2390.0 -53.07 2.0 0 42.19 AV 54 PASS 2480 Ant1 2483.5 -41.99 2.0 0 53.27 PEAK 74 PASS Ant1 2483.5 -52.61 2.0 0 42.65 AV 54 PASS Ant1 2500.0 -41.99 2.0 0 53.27 PEAK 74 PASS Ant1 2500.0 -52.42 2.0 0 42.83 AV 54 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3TS12M Report No.: LCS201022042AEA Page 13 of 14 Restrict-band band-edge measurements_BT LE_2402_Ant1_PEAK Restrict-band band-edge measurements_BT LE_2402_Ant1_AV SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3TS12M Report No.: LCS201022042AEA Page 14 of 14 Restrict-band band-edge measurements_BT LE_2480_Ant1_PEAK Restrict-band band-edge measurements_BT LE_2480_Ant1_AV

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3TS12M Report No.: LCS201022042AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 33 FCC TEST REPORT For SHEN ZHEN TOMSTAR TECHNOLOGY CO.,LTD. Smart Watch Test Model: TS12M Additional Model No.: TS12 Prepared for : SHEN ZHEN TOMSTAR TECHNOLOGY CO.,LTD. Address : Room2110-2116, huafeng international building, NO.4018 BaoAn Blvd, Shenzhen, China. Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : October 22, 2020 Number of tested samples : 2 Sample No. : 201022041A-1, 201022041A-2 Serial number : Prototype Date of Test : October 27, 2020 ~ November 03, 2020 Date of Report : November 05, 2020 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3TS12M Report No.: LCS201022042AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 33 FCC TEST REPORT FCC CFR 47 PART 15 C(15.247) Report Reference No. ...................... : LCS201022042AEA Date of Issue ........................................ : November 05, 2020 Testing Laboratory Name ................. : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ................................................ : 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Testing Location/ Procedure ................ : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ............................... : SHEN ZHEN TOMSTAR TECHNOLOGY CO.,LTD. Address ................................................ : Room2110-2116, huafeng international building, NO.4018 BaoAn Blvd, Shenzhen, China. Test Specification Standard ............................................... : FCC CFR 47 PART 15 C(15.247) Test Report Form No. ........................ : LCSEMC-1.0 TRF Originator .................................... : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF .......................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. EUT Description. ............................... : Smart Watch Trade Mark .......................................... : N/A Test Model ........................................... : TS12M Ratings ................................................. : Input: 5V 1A DC 3.7V by Rechargeable Li-ion Battery, 220mAh Result ................................................. : Positive Compiled by: Supervised by: Approved by: Ray Yang/ File administrators Jin Wang/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3TS12M Report No.: LCS201022042AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 33 FCC -- TEST REPORT Test Model............................... : TS12M EUT......................................... : Smart Watch Applicant............................... : SHEN ZHEN TOMSTAR TECHNOLOGY CO.,LTD. Address.................................. : Room2110-2116, huafeng international building, NO.4018 BaoAn Blvd, Shenzhen, China. Telephone............................... : / Fax.......................................... : / Manufacturer........................ : SHEN ZHEN TOMSTAR TECHNOLOGY CO.,LTD. Address................................... : Room2110-2116, huafeng international building, NO.4018 BaoAn Blvd, Shenzhen, China. Telephone............................... : / Fax.......................................... : / Factory................................... : SHEN ZHEN TOMSTAR TECHNOLOGY CO.,LTD. Address................................... : Room2110-2116, huafeng international building, NO.4018 BaoAn Blvd, Shenzhen, China. Telephone............................... : / Fax.......................................... : / Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS201022042AEA November 05, 2020 Date of issue SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3TS12M Report No.: LCS201022042AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 33 Revision History Revision Issue Date Revisions Revised By 000 November 05, 2020 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3TS12M Report No.: LCS201022042AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 33 TABLE OF CONTENTS 1. GENERAL INFORMATION .................................................................................................................................. 6 1.1. DESCRIPTION OF DEVICE (EUT) ........................................................................................................................... 6 1.2. HOST SYSTEM CONFIGURATION LIST AND DETAILS ......................................…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3TS12M _______________________________________________________________________________________________ 7. TEST SETUP PHOTOGRAPHS Photo of Radiated Emissions Measurement Below 1 GHz Above 1 GHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2APD3TS12M _______________________________________________________________________________________________ Power Line Conducted Emission
