2AQRP-C-053Fast Wireless Charging
Dongguan Tyjin Electronics Co., Ltd.
Click to zoom
Application Details
- Equipment Class
- DCD - Part 15 Low Power Transmitter Below 1705 kHz
- Date of Grant
- Jul 04, 2022
- Application Purpose
- Original Equipment
- Date of Application
- Jul 04, 2022
- Equipment Note
- Fast Wireless Charging
- Frequency Range
- 0.11010000 - 0.20500000
- Country
- China
Documents & Files
Document Text
Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.
Users Manual
MODEL: C-053 FAST CHARGE LED INDICATOR QI™ ENABLED AIRPAD ™ FOR iPHONE ! COMPATIBILITY: iPhone ® X, iPhone ® XS iPhone ® XS Max, iPh one ® XR, i Phone ® 8 Plus, iPh one ® 8 Samsung Galaxy S10 ® , Gal axy S10+ ® Gala xy S10e ® , Galaxy S9 ® , & N ote 8 5V2A, 9V1.67A 5W/7.5W/10W Quick Charge adapter FCC ID:2AQRP-C-053 Fast Wireless Charging

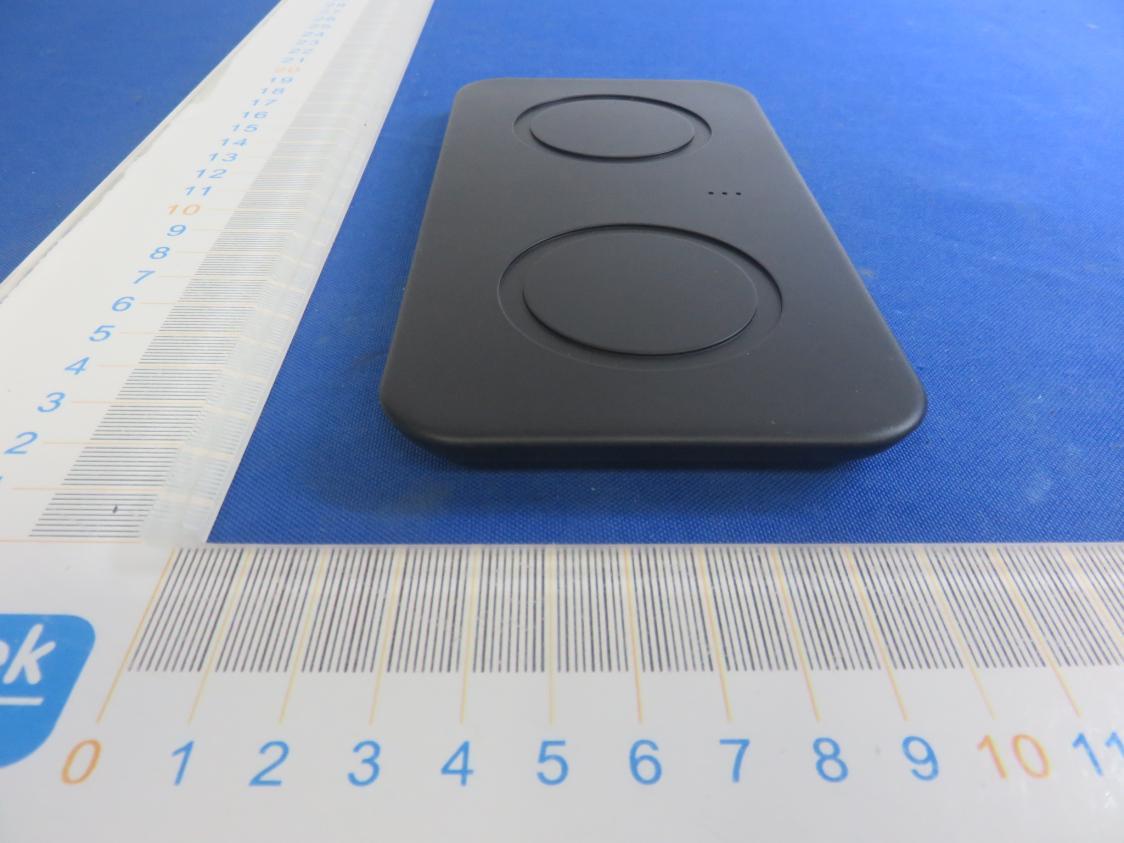

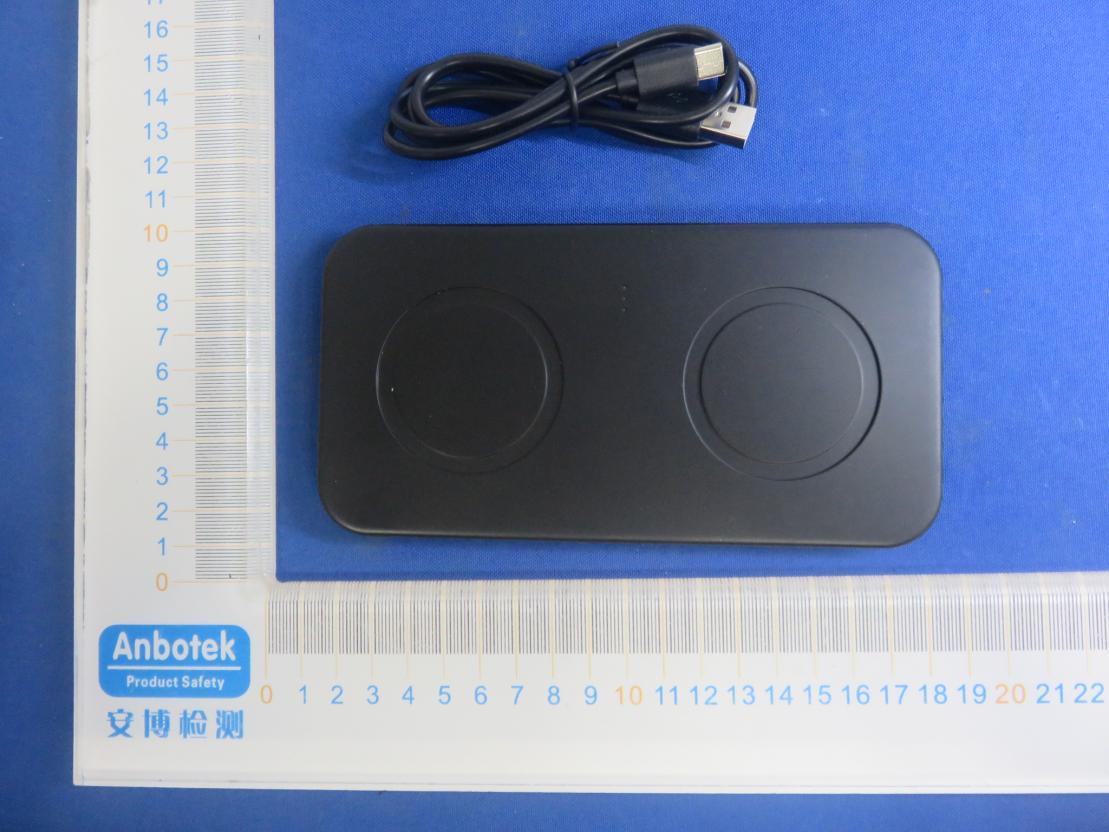

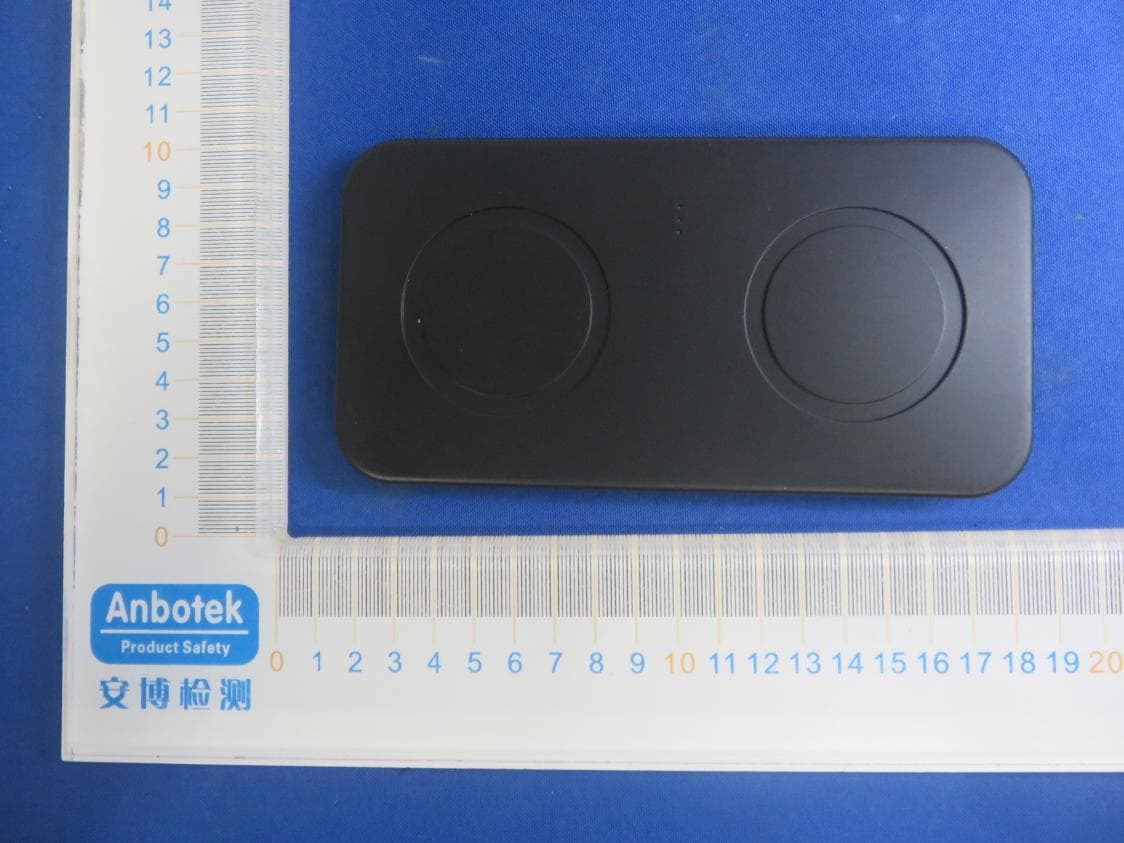

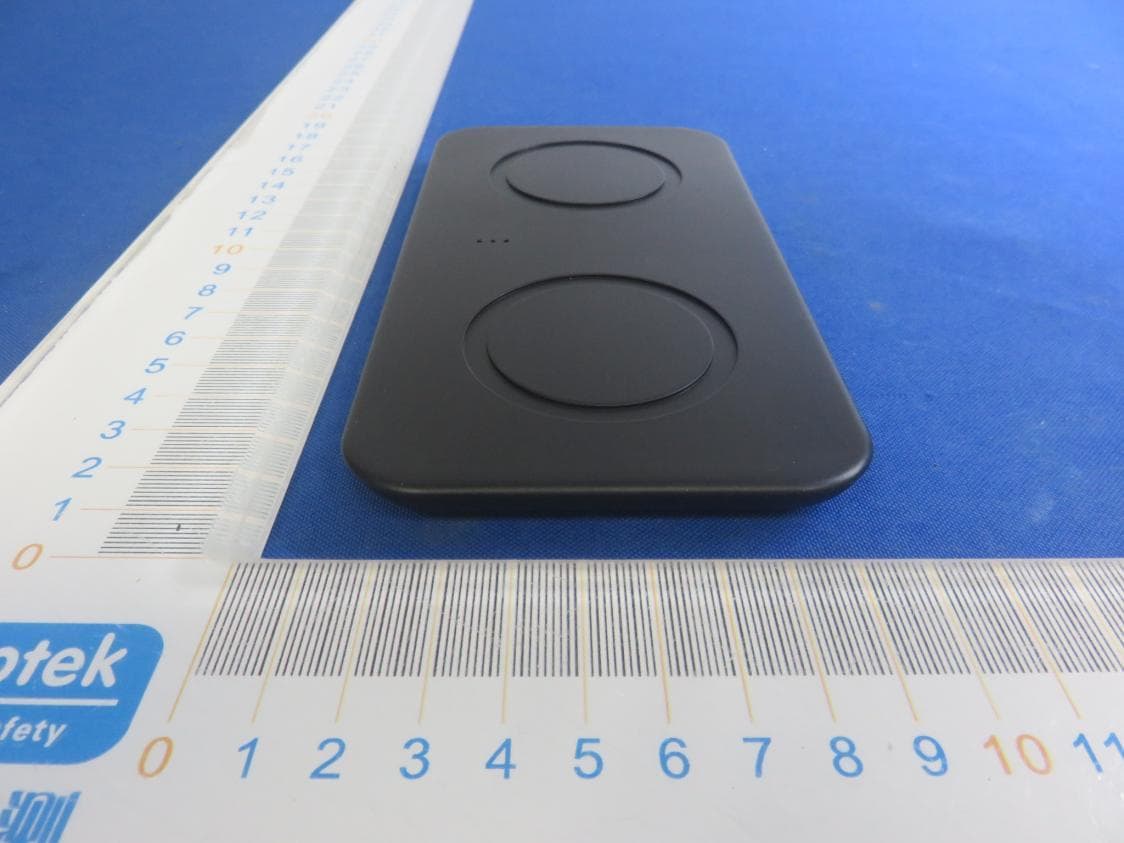

External Photos
FCCID:2AQRP-C-053
ID Label/Location Info
25.5mm lnput:DC 5.0V/3.0A,9.0V/3.0A Output 1:5.0W/7.5W/10.0W Output 2:5.0W/7.5W/10.0W Max.Qutput: 20.0W FCC ID:2AQRP-C-053 Made in China Fast Wireless Charging
Internal Photos
FCCID:2AQRP-C-053 ANT
Operational Description
version01 DongguanTyjinElectronicsCo.,Ltd. DeclarationconcerningAntennaSpecification Itisherebydeclaredthattheproduct ModelNo.: C-053,HYC053,HMC053,HYC001,HMC001,HYC003,HMC003,HYC005,HMC005, HYC007,HMC007 FCCID:2AQRP-C-053 fulfillstherequirementinFCCtestrelatingtotheantennatype. ThedevicespecifiedaboveconfirmstotheFCCrecommendationsfor internal antennatype(s) describedbelow: ANT1: ModelNo.ofantenna:N.A. Typeofantenna:InductiveloopcoilAntenna Gainoftheantenna:0dBi Frequencyrange:110.1-205KHz ANT2: ModelNo.ofantenna:N.A. Typeofantenna:InductiveloopcoilAntenna Gainoftheantenna:0dBi Frequencyrange:110.1-205KHz Themountingoftheantennaisfixedtotheradiomoduleandnootherantennashouldbeused. Companyname:DongguanTyjinElectronicsCo.,Ltd. Address:Room101,Building2,No.7KeyanRoadWulianVillage,FenggangTown Dongguan,GuangdongChina523690 City:Dongguan ZIP/Postalcode:N/A Country:China Place:DongguanDate: 2022-07-05 Signature:
RF Exposure Info
ReportNo.:18220WC20117502FCCID:2AQRP-C-053Page1of12 Code:AB-RF-05-a FCCTESTREPORT ClientName:DongguanTyjinElectronicsCo.,Ltd. Address: Room101,Building2,No.7KeyanRoadWulianVillage, FenggangTown,Dongguan,Guangdong,523690China ProductName:FastWirelessCharging Date:Jul.05,2022 ShenzhenAnbotekComplianceLaboratoryLimited ReportNo.:18220WC20117502FCCID:2AQRP-C-053Page2of12 Code:AB-RF-05-a Contents 1.GeneralInformation ..............................................................................................................................................4 1.1.ClientInformation .......................................................................................................................................4 1.2.DescriptionofDevice(EUT) ....................................................................................................................4 1.3.AuxiliaryEquipmentUsedDuringTest ...................................................................................................5 1.4.TestEquipmentList ...................................................................................................................................5 1.5.MeasurementUncertainty ........................................................................................................................5 1.6.DescriptionofTestFacility ........................................................................................................................5 2.MeasurementandResult .....................................................................................................................................6 2.1.Requirements .............................................................................................................................................6 2.2.TestSetup ...................................................................................................................................................7 2.3.TestProcedure ...........................................................................................................................................7 2.4.TestResult ..................................................................................................................................................7 APPENDIXI--TESTSETUPPHOTOGRAPH ..................................................................................................10 ReportNo.:18220WC20117502FCCID:2AQRP-C-053Page3of12 Code:AB-RF-05-a TESTREPORT Applicant:DongguanTyjinElectronicsCo.,Ltd. Manufacturer:DongguanTyjinElectronicsCo.,Ltd. ProductName:FastWirelessCharging ModelNo.: C-053,HYC053,HMC053,HYC001,HMC001,HYC003,HMC003,HYC005, HMC005,HYC007,HMC007 TradeMark: Proloadist,YIICOBAT Rating(s): Input:5V⎓3A,9V⎓3A Wirelessoutput1:5W,7.5W,10W Wirelessoutput2:5W,7.5W,10W Totalpower:20WMAX TestStandard(s): FCCPart1.1310,1.1307(b) TestMethod(s): KDB680106D01RFExposureWirelessChargingAppsv03 ThedevicedescribedaboveistestedbyShenzhenAnbotekComplianceLaboratoryLimitedto determinethemaximumemissionlevelsemanatingfromthedeviceandtheseverelevelsofthedevice canendureanditsperformancecriterion.Themeasurementresultsarecontainedinthistestreportand ShenzhenAnbotekComplianceLaboratoryLimitedisassumedfullofresponsibilityfortheaccuracy andcompletenessofthesemeasurements.Also,thisreportshowsthattheEUT(EquipmentUnder Test)istechnicallycompliantwiththeFCCPart1.1307&KDB680106D01requirements. Thisreportappliestoabovetestedsampleonlyandshallnotbereproducedinpartwithoutwritten approvalofShenzhenAnbotekComplianceLaboratoryLimited. DateofReceipt Jun.01,2022 DateofTest Jun.01~13,2022 PreparedBy (TuTuHong) Approved&AuthorizedSigner (KingkongJin) ReportNo.:18220WC20117502FCCID:2AQRP-C-053Page4of12 Code:AB-RF-05-a 1.GeneralInformation 1.1.ClientInformation Applicant: DongguanTyjinElectronicsCo.,Ltd. Address: Room101,Building2,No.7KeyanRoadWulianVillage,FenggangTown, Dongguan,Guangdong,523690China Manufacturer: DongguanTyjinElectronicsCo.,Ltd. Address: Room101,Building2,No.7KeyanRoadWulianVillage,FenggangTown, Dongguan,Guangdong,523690China Factory:DongguanTyjinElectronicsCo.,Ltd. Address: Room101,Building2,No.7KeyanRoadWulianVillage,FenggangTown, Dongguan,Guangdong,523690China 1.2.DescriptionofDevice(EUT) ProductName:FastWirelessCharging ModelNo.: C-053,HYC053,HMC053,HYC001,HMC001,HYC003,HMC003,HYC005, HMC005,HYC007,HMC007 (Note:Allsamplesarethesameexceptthemodelnumber,soweprepare “C-053”fortestonly.) TradeMark: Proloadist,YIICOBAT TestPowerSupply:AC120V,60Hzforadapter TestSampleNo.: 1-2-1(NormalSample),1-2-2(EngineeringSample) Product Description : OperationFrequency:110.1-205KHz ModulationType:ASK AntennaType:InductiveloopcoilAntenna AntennaGain(Peak):0dBi(Providedbycustomer) Adapter:N/A Remark:1)Foramoredetailedfeaturesdescription,pleaserefertothemanufacturer’sspecifications ortheUser’sManual. ReportNo.:18220WC20117502FCCID:2AQRP-C-053Page5of12 Code:AB-RF-05-a 1.3.AuxiliaryEquipmentUsedDuringTest Adapter:M/N:MDY-11-EX Input:100-240V-0.7A,50-60Hz Output:5V3A,9V3A,12V2.25A,20V1.35A.11V3A MobilePhone:MI11 MobilePhone:IPhone11 1.4.TestEquipmentList ItemEquipmentManufacturerModelNo.SerialNo.LastCal.Cal.Interval 1 Electricand Magneticfield Analyzer NARDAEHP-200A180ZX10202Nov.12,20211Year 1.5.MeasurementUncertainty MagneticFieldReading(A/m): +/-0.04282(A/m) ElectricFieldReading(V/m): +/-0.03679(V/m) 1.6.DescriptionofTestFacility Thetestfacilityisrecognized,certified,oraccreditedbythefollowingorganizations: FCC-RegistrationNo.:184111 ShenzhenAnbotekComplianceLaboratoryLimited,EMCLaboratoryhasbeenregisteredandfully describedinareportfiledwiththe(FCC)FederalCommunicationsCommission.Theacceptanceletter fromtheFCCismaintainedinourfiles.RegistrationNo.184111. ISED-RegistrationNo.:8058A ShenzhenAnbotekComplianceLaboratoryLimited,EMCLaboratoryhasbeenregisteredandfully describedinareportfiledwiththe(ISED)Innovation,ScienceandEconomicDevelopmentCanada.The acceptanceletterfromtheISEDismaintainedinourfiles.Registration8058A. TestLocation ShenzhenAnbotekC…
Text truncated - open the document above for the full version.
Test Report
ReportNo.:18220WC20117501FCCID:2AQRP-C-053Page1of29 Code:AB-RF-05-a FCCTESTREPORT ClientName:DongguanTyjinElectronicsCo.,Ltd. Address: Room101,Building2,No.7KeyanRoadWulianVillage, FenggangTown,Dongguan,Guangdong,523690China ProductName:FastWirelessCharging Date:Jul.05,2022 ShenzhenAnbotekComplianceLaboratoryLimited ReportNo.:18220WC20117501FCCID:2AQRP-C-053Page2of29 Code:AB-RF-05-a Contents 1.GeneralInformation..............................................................................................................................................4 1.1.ClientInformation.......................................................................................................................................4 1.2.DescriptionofDevice(EUT)....................................................................................................................4 1.3.AuxiliaryEquipmentUsedDuringTest...................................................................................................5 1.4.DescriptionofTestModes........................................................................................................................5 1.5.DescriptionOfTestSetup.........................................................................................................................7 1.6.TestEquipmentList...................................................................................................................................8 1.7.MeasurementUncertainty........................................................................................................................9 1.8.DescriptionofTestFacility........................................................................................................................9 2.SummaryofTestResults...................................................................................................................................10 3.ConductedEmissionTest..................................................................................................................................11 3.1.TestStandardandLimit..........................................................................................................................11 3.2.TestSetup.................................................................................................................................................11 3.3.TestProcedure.........................................................................................................................................11 3.4.TestData...................................................................................................................................................11 4.RadiationSpuriousEmission............................................................................................................................14 4.1.TestStandardandLimit..........................................................................................................................14 4.2.TestSetup.................................................................................................................................................14 4.3.TestProcedure.........................................................................................................................................15 4.4.TestData...................................................................................................................................................15 5.AntennaRequirement.........................................................................................................................................20 5.1.TestStandardandRequirement...........................................................................................................20 5.2.AntennaConnectedConstruction.........................................................................................................20 APPENDIXI--TESTSETUPPHOTOGRAPH..................................................................................................21 APPENDIXII--EXTERNALPHOTOGRAPH.....................................................................................................23 APPENDIXIII--INTERNALPHOTOGRAPH.....................................................................................................27 ReportNo.:18220WC20117501FCCID:2AQRP-C-053Page3of29 Code:AB-RF-05-a TESTREPORT Applicant:DongguanTyjinElectronicsCo.,Ltd. Manufacturer:DongguanTyjinElectronicsCo.,Ltd. ProductName:FastWirelessCharging ModelNo.: C-053,HYC053,HMC053,HYC001,HMC001,HYC003,HMC003,HYC005, HMC005,HYC007,HMC007 TradeMark: Proloadist,YIICOBAT Rating(s): Input:5V⎓3A,9V⎓3A Wirelessoutput1:5W,7.5W,10W Wirelessoutput2:5W,7.5W,10W Totalpower:20WMAX TestStandard(s): FCCPart15SubpartC,Paragraph15.209 TestMethod(s): ANSIC63.10:2020 ThedevicedescribedaboveistestedbyShenzhenAnbotekComplianceLaboratoryLimitedto determinethemaximumemissionlevelsemanatingfromthedeviceandtheseverelevelsofthedevice canendureanditsperformancecriterion.Themeasurementresultsarecontainedinthistestreportand ShenzhenAnbotekComplianceLaboratoryLimitedisassumedfullofresponsibilityfortheaccuracy andcompletenessofthesemeasurements.Also,thisreportshowsthattheEUT(EquipmentUnder Test)istechnicallycompliantwiththeFCCPart15SubpartCrequirements. Thisreportappliestoabovetestedsampleonlyandshallnotbereproducedinpartwithoutwritten approvalofShenzhenAnbotekComplianceLaboratoryLimited. DateofReceiptJun.01,2022 DateofTestJun.01~13,2022 PreparedBy (TuTuHong) Approved&AuthorizedSigner (KingkongJin) ReportNo.:18220WC20117501FCCID:2AQRP-C-053Page4of29 Code:AB-RF-05-a 1.GeneralInformation 1.1.ClientInformation Applicant:DongguanTyjinElectronicsCo.,Ltd. Address: Room101,Building2,No.7KeyanRoadWulianVillage,FenggangTown, Dongguan,Guangdong,523690China Manufacturer:DongguanTyjinElectronicsCo.,Ltd. Address: Room101,Building2,No.7KeyanRoadWulianVillage,FenggangTown, Dongguan,Guangdong,523690China Factory:DongguanTyjinElectronicsCo.,Ltd. Address: …
Text truncated - open the document above for the full version.
Test Setup Photos
FCCID:2AQRP-C-053 PhotoofConductedEmissionMeasurement PhotoofRadiationEmissionTest PhotoofMPEMeasurement
Contact Information
Applicant
Li Shaowei(Sales)
Test Firm
Shenzhen Anbotek Compliance Laboratory LimitedJeff Zhu
Technical Specifications
| # | Rule Parts | Frequency Range | Power Output |
|---|---|---|---|
| 1 | 15C | 0.1101 MHz - 0.205 MHz | - |
