2AQRP-C-093Fast Wireless Charging

Dongguan Tyjin Electronics Co., Ltd.

Click to zoom

Application Details

Equipment Class: DCD - Part 15 Low Power Transmitter Below 1705 kHz
Date of Grant: Jul 04, 2022
Application Purpose: Original Equipment
Date of Application: Jul 04, 2022
Equipment Note: Fast Wireless Charging
Frequency Range: 0.11010000 - 0.20500000
Company: Dongguan Tyjin Electronics Co., Ltd.
Country: China

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

MODEL: C-093 PLEASE MAKE SURE TO USE A WALL ADAPTER OR USB PORT THAT IS 1A - 2.4A 2.4A CHARGERS WILL ENABLE FAST CHARGE FUNCTION. DO NOT USE ANY USB PORTS BELOW 1A (EX: COMPUTERS OR USB PORTS THAT ARE BELOW 1A.) NORMAL & FAST WIRELESS CHARGING GET TO KNOW YOUR CHARGER TROUBLESHOOTING •DOUBLE COIL QI SINGLE CHARGE •INDUCTIVE CHARGING •CHARGING INDICATOR LED •DESIGNED FOR QI COMPLIANCE FAST CHARGE LED INDICATOR QI™ ENABLED ! CAUTION: IF YOU HAVE PROBLEMS WITH WIRELESS CHARGING MAKE SURE YOUR PHONE IS CENTERED ON CHARGER. BACK FRONT HORIZONTAL VERTICALLY COMPATIBILITY: iPhone ® X, iPhone ® XS iPhone ® XS Max, iPh one ® XR, i Phone ® 8 Plus, iPh one ® 8 Samsung Galaxy S10 ® , Gal axy S10+ ® Gala xy S10e ® , Galaxy S9 ® , & N ote 8 5V2A, 9V1.67A 5W/7.5W/10W Quick Charge adapter Fast Wireless Charging

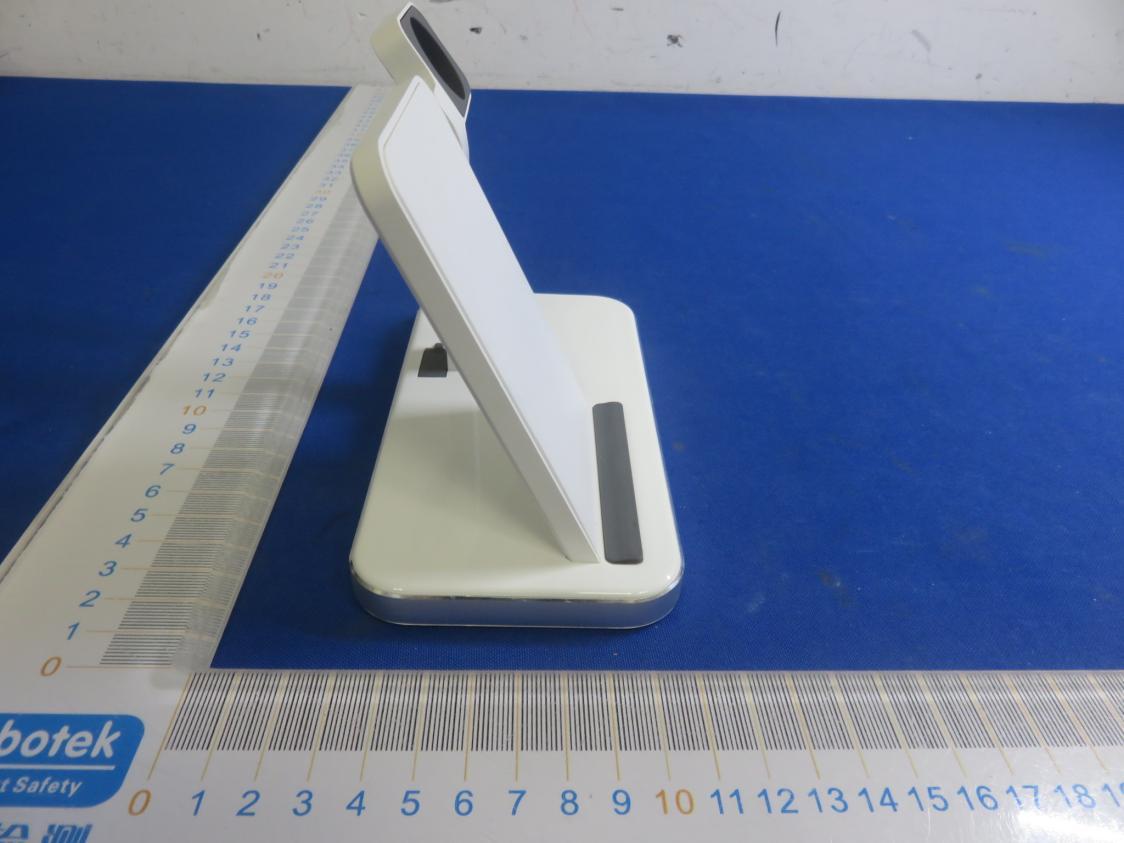

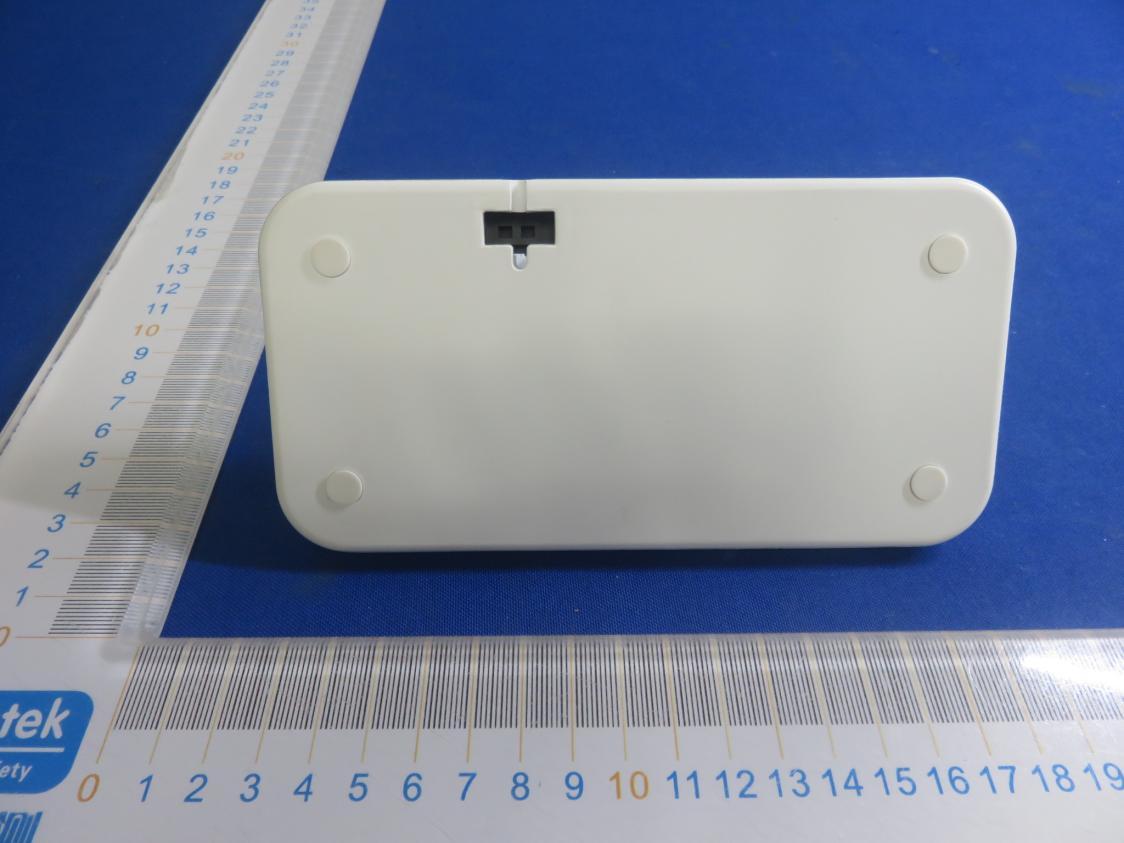

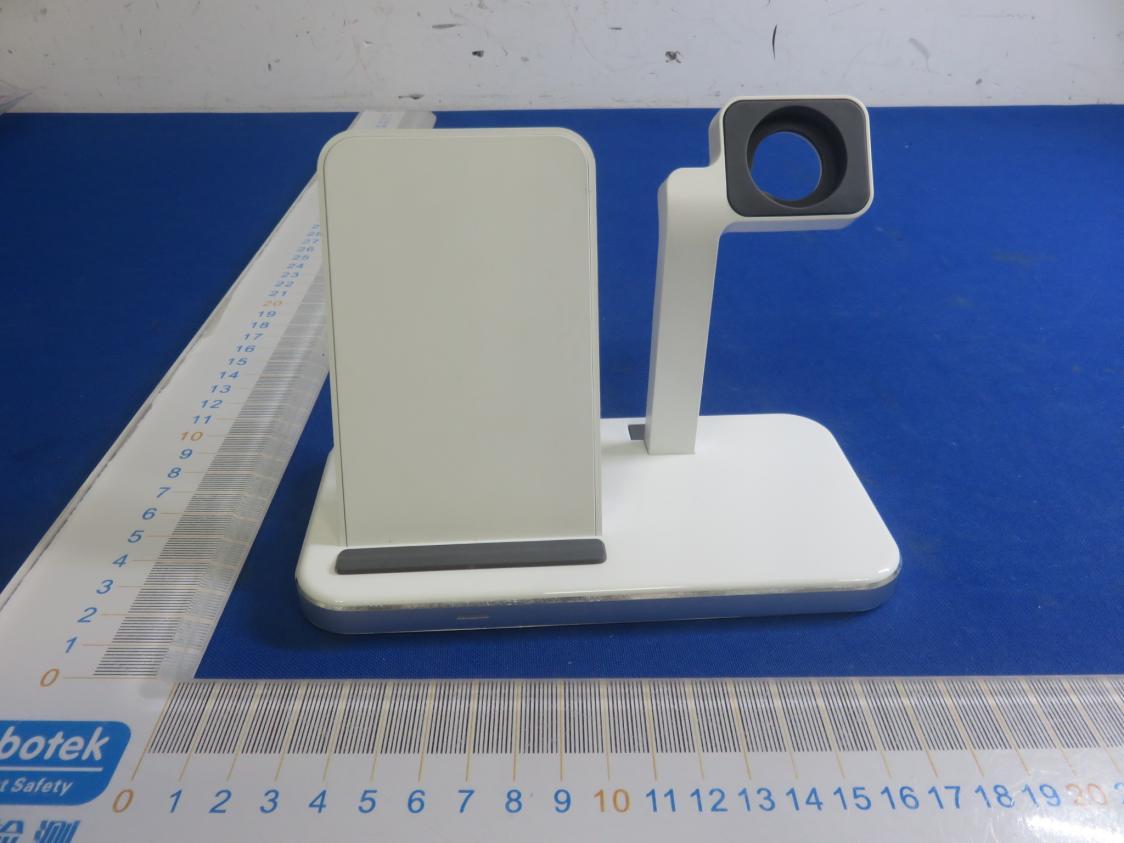

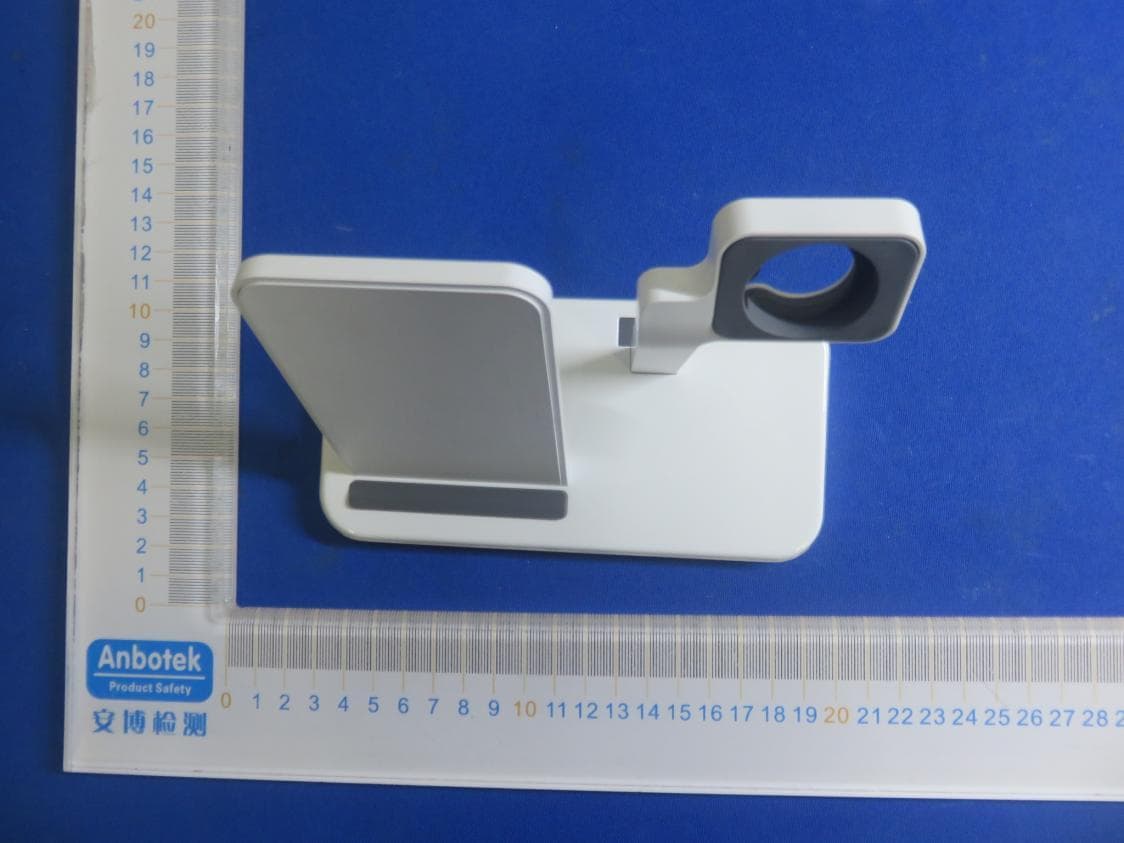

External Photos

FCCID:2AQRP-C-093

ID Label/Location Info

LabelLocationOnEUT Label

Internal Photos

FCCID:2AQRP-C-093 ANT

Operational Description

version01 DongguanTyjinElectronicsCo.,Ltd. DeclarationconcerningAntennaSpecification Itisherebydeclaredthattheproduct ModelNo.: C-093,HYC093,HMC093,C056,C059,C120,HY056,HM056,HY059HM059,HY120, HMC120,HM006HY006,HY008HM008 FCCID:2AQRP-C-093 fulfillstherequirementinFCCtestrelatingtotheantennatype. ThedevicespecifiedaboveconfirmstotheFCCrecommendationsfor internal antennatype(s) describedbelow: ModelNo.ofantenna:N.A. Typeofantenna:InductiveloopcoilAntenna Gainoftheantenna:0dBi Frequencyrange:110.1-205KHz Themountingoftheantennaisfixedtotheradiomoduleandnootherantennashouldbeused. Companyname:DongguanTyjinElectronicsCo.,Ltd. Address:Room101,Building2,No.7KeyanRoadWulianVillage,FenggangTown Dongguan,GuangdongChina523690 City:Dongguan ZIP/Postalcode:N/A Country:China Place:DongguanDate: 2022-07-05 Signature:
