Model : SB52-SW Quick Start Guide ATOZID card Tracker Version 1.0 Appearance Understanding the movement of employees will improve workplace efficiency and address potential work hazards •Appropriate for trackingpeople and management to increase efficiency and security in workplace •Immediate notification of predefined events and panic situation in the workplace •Helps understand the movement and attendance of staff LED Indicator Button (Textured) Button (Smooth) Reset hole Micro-USB 5-pin connector Features Name Tag Press and hold both buttons together until the LED light flashes followed by an alert sound and vibration. Accessing digital door lock Turning the power on Access secured areas by tagging the device to the RFID reader of the door. Whenbatterylevelislow,blueandredLEDflashfor 5secondsina30minuteinterval. (1)PlugthesmallendoftheUSBchargingcableinto themicro-BUSBconnectoronyourdevice. (2)PlugtheotherendintoaUSBwallchargeror computerthatispoweredon. Whenfullycharged,theLEDflashesblue. Charging the battery Press and hold down both buttons for 3 seconds. § (1) Message transmission Message will be sent 10 seconds after the alert sound, LED flashing and vibration. (2) To cancel message transmission Press and hold both buttons again within 3 seconds. § (3) Mute siren Press and hold textured button for 3 seconds. § (in case speaker mode “on” is set as default) §Trigger time is 3 secs asdefault and configurable. Activating Emergency Mode Turning the Bluetooth function on/off Press and hold the smooth button for BLE role mode. §§ BLE role mode is used by engineers for firmware updating. §§The BLE on/off switch time is 10 secs as default. Press and hold the reset button with a paperclip when (1) device is unresponsive when both buttons are pressed; or (2) BLE Mode does not turn on. Reset Hole Resetting and rebooting the device Note:WhenthedeviceisinBluetoothmode,theemergency modedoesnotwork. IMPORTANT: Please read and comply with all of the instructions provided in this manual before using the device. Failure to comply with the instructions given in this manual and/or using the device in ways other than the ones mentioned in this manual may result in serious injury and/or damage the product. -DO NOT use while it is charging. -DO NOT drop, knock, or shake the device. -DO NOT sit on the device -DO NOT expose to high-temperature environments or chemicals. -DO NOT disassemble as it may cause malfunctions. -DO NOT charge in voltage over 5V/2A. Safety Instruction Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: •Reorientorrelocatethereceivingantenna. •Increasetheseparationbetweentheequipmentandreceiver. •Connecttheequipmentintoanoutletonacircuitdifferentfromthattowhichthe receiverisconnected. •Consultthedealeroranexperiencedradio/TVtechnicianforhelp. FCC Statement SB52-SW 32-bit Arm® based Cortex®-M0, 256KB + 1024Kb Flash Sigfox RC 2 Uplink Class0u (>20dBm EIRP) / Bluetooth LE 5.0, NFC Sigfox geolocation, Indoor WiFi positioning 13.56MHz MiFARE classic 1K/4K 7-color LED indicator 2 buttons (1 textured and 1 smooth) Haptic vibration & Buzzer 3-axis nano accelerometer : ±2~16g IPX4, ABS Housing Rechargeable Lithium-polymer cell (4.0V, 500mAh) LED lanyard hole, Micro-USB 5 pin connector L 95 x W 60 X H 6.6 mm, 40g Copyright © 2019 AMOSENSE Co.,Ltd. All rights reserved. No copying, distribution, publication, modification, or incorporation of this document, in whole or part, it is permitted for commercial purposes without the express written permission of AMOSENSE. The contents of this document may be changed without prior notice. Device Specifications ModelNumber MCU Connectivity Positioning RFID UserInterface Sensors MechanicalCasing Battery Accessories Dimensions Customer Support Address:165NorthArcherAvenueMundelein,IL60060,USA Mobile:1-224-619-6579 Email:[email protected] Web:www.amosenseiot.com

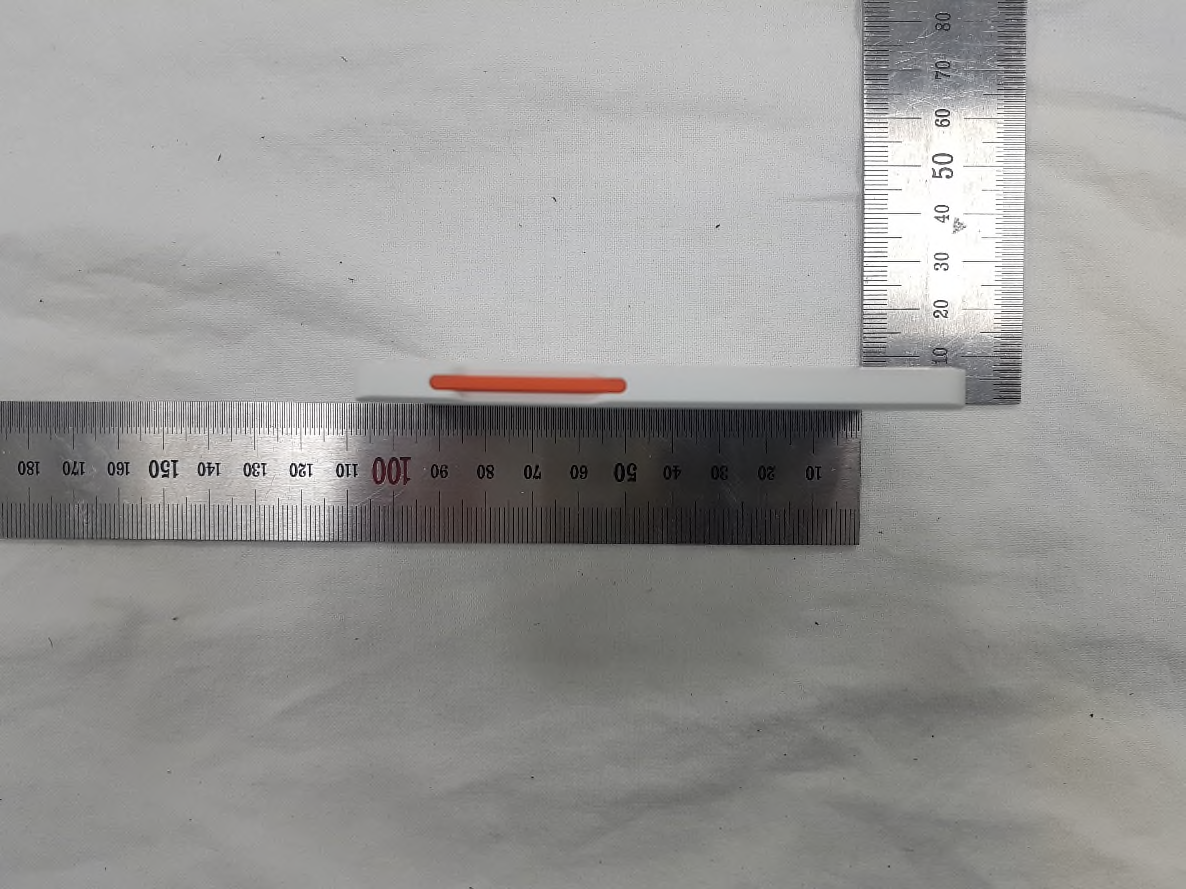

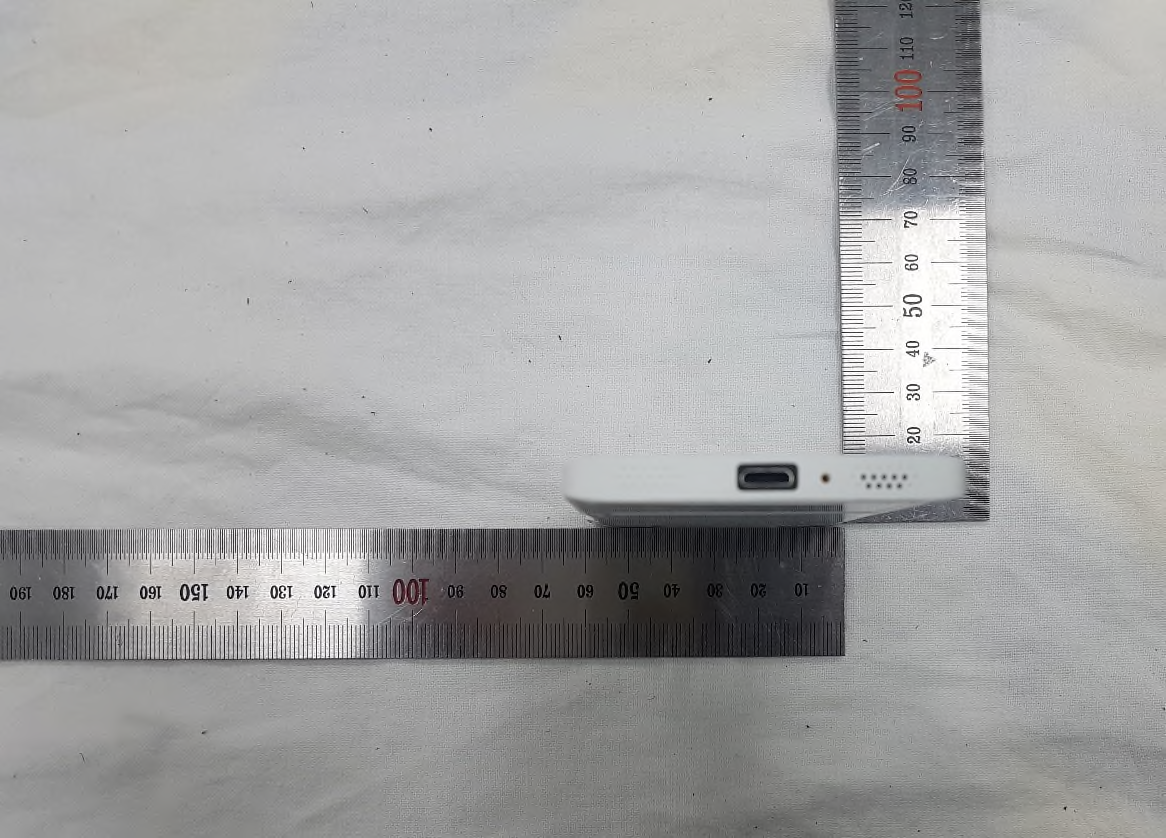

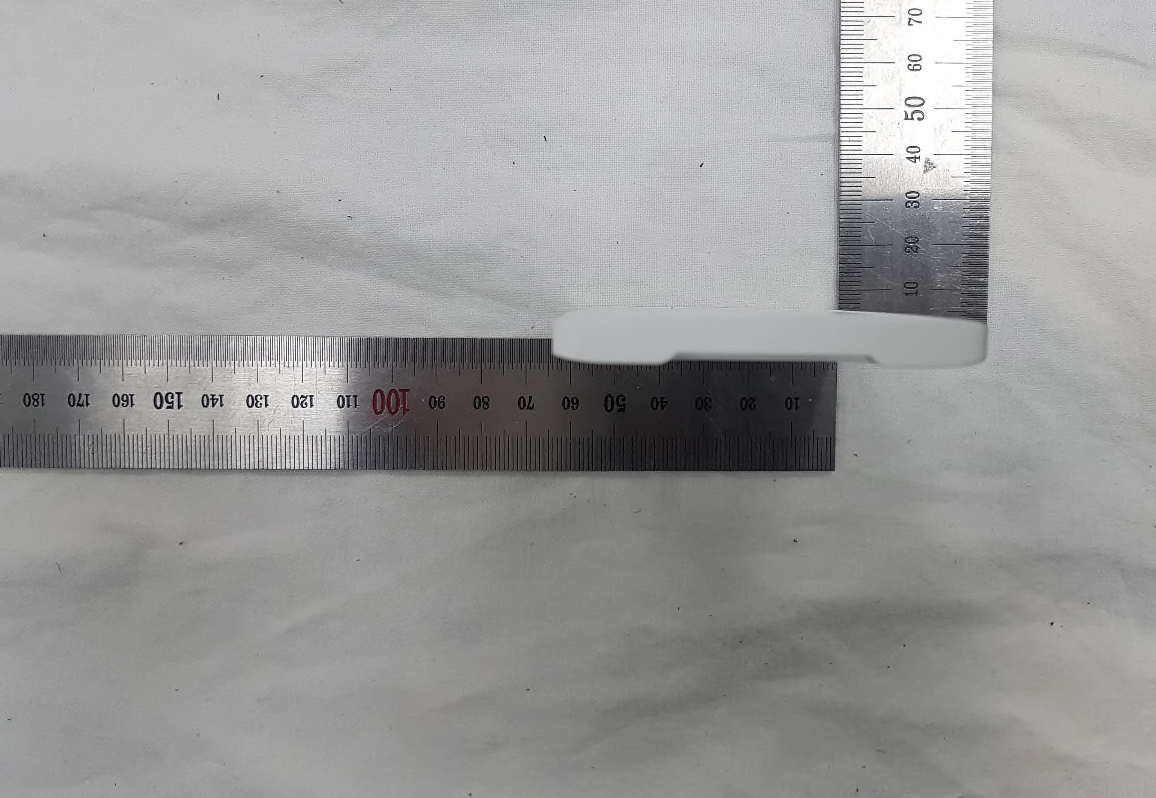

PHOTOGRAPHS FCC ID : 2AS9T-SB52SW2 PHOTOGRAPHS FCC ID : 2AS9T-SB52SW2 PHOTOGRAPHS FCC ID : 2AS9T-SB52SW2

AUTHOR NAME : DATE : SUPERVISOR NAME : DATE : SCALE : FORMAT : A4 1:1 WEIGHT(g) : COMPANY : AMOSENSE Co.,Ltd VERSION : 2020-02-14-01 SHEET : 1 2020.02.14 유병안 2020.02.14 ATOZ 2.0 LABEL SMART IOT Product Strategy TITLE : DEPARTMENT : 양진성 95.0 60.0 46mm 33mm 9mm 9mm 7pt Font : ZEBRA0_2 6.5mm Sheet color : Gray Model Device ID Address Serial No FCC ID : SB52-SW : 0123456F : 00:1A:0B:00:00:76 : 20012700050 : 2AS9T-SB52SW2 Model Device ID Address Serial No FCC ID : SB52-SW : 0123456F : 00:1A:0B:00:00:76 : 20012700050 : 2AS9T-SB52SW2 This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions : (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation Model Device ID Address Serial No FCC ID : SB52-SW : 0123456F : 00:1A:0B:00:00:76 : 20012700050 : 2AS9T-SB52SW2 This device complies with part 15 of FCC Rules. Operation is subject to the following two conditions : (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation

PHOTOGRAPHS FCC ID : 2AS9T-SB52SW2 PHOTOGRAPHS FCC ID : 2AS9T-SB52SW2 PHOTOGRAPHS FCC ID : 2AS9T-SB52SW2 PHOTOGRAPHS FCC ID : 2AS9T-SB52SW2 PHOTOGRAPHS FCC ID : 2AS9T-SB52SW2 PHOTOGRAPHS FCC ID : 2AS9T-SB52SW2 PHOTOGRAPHS FCC ID : 2AS9T-SB52SW2 PHOTOGRAPHS FCC ID : 2AS9T-SB52SW2 PCB Antenna Chip Antenna Chip Antenna

Page 1 of 80 Report No. OT-202-RWD-032 EMC-003 (Rev.2) ONETECH Corp.: 43-14, Jinsaegol-gil, Chowol-eup, Gwangju-si, Gyeonggi-do, 12735, Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) FCC SAR Test Report Report No. : OT-202-RWD-032 AGR. No. : A202A-006 Applicant : AMOSENSE Address : 56 Naruteo-ro, Seocho-gu, SEOUL, South Korea DUT Type : ATOZ FCC ID : 2AS9T-SB52SW2 Brand : AMOSENSE Model No. : SB52-SW FCC Rule Part(s) : CFR §2.1093 Sample Received Date : 2020-02-07 Date of Testing : 2020-02-13 Issue Date : 2020-02-14 This report details the results of the testing carried out on one sample, the results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distribute in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of ONETECH Corp. or testing done by ONETECH Corp. In connection with distribution or use of the product described in this report must be approved by ONETECH Corp. in writing. Tested By : No Gyun Im / Manager Approved By : Jung Wook Kim / Technical Manager This report is for your exclusive use. Any copying or replication of this report to or for any other person or entity, or use of our name or trademark, is permitted only with our prior written permission. This report sets forth our findings solely with respect to the test samples identified herein. The results set forth in this report are not indicative or representative of the quality or characteristics of the lot from which a test sample was taken or any similar or identical product unless specifically and expressly noted. Our report includes all of the tests requested by you and the results thereof based upon the information that you provided to us. You have 60 days from date of issuance of this report to notify us of any material error or omission caused by our negligence, provided, however, that such notice shall be in writing and shall specifically address the issue you wish to raise. A failure to raise such issue within the prescribed time shall constitute your unqualified acceptance of the completeness of this report, the tests conducted and the correctness of the report contents. Unless specific mention, the uncertainty of measurement has been explicitly taken into account to declare the compliance or non-compliance to the specification. Page 2 of 80 Report No. OT-202-RWD-032 EMC-003 (Rev.2) ONETECH Corp.: 43-14, Jinsaegol-gil, Chowol-eup, Gwangju-si, Gyeonggi-do, 12735, Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) Revision history Report No. Reason for Change Date Issued OT-202-RWD-032 Initial release 2020-02-14 Page 3 of 80 Report No. OT-202-RWD-032 EMC-003 (Rev.2) ONETECH Corp.: 43-14, Jinsaegol-gil, Chowol-eup, Gwangju-si, Gyeonggi-do, 12735, Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) TABLE OF CONTENTS 1. Summary of Maximum SAR Value ............................................................................ 4 2. Device Under Test ..................................................................................................... 4 3. INTRODUCTION ...................................................................................................... 8 4. DOSIMETRIC ASSESSMENT ................................................................................ 10 5. TEST CONFIGURATION POSITIONS .................................................................... 11 6. RF EXPOSURE LIMITS .......................................................................................... 12 7. FCC MEASUREMENT PROCEDURES .................................................................. 13 8. RF CONDUCTED POWERS .................................................................................. 16 9. SYSTEM VERIFICATION ....................................................................................... 19 10. SAR TEST DATA SUMMARY .................................................................................. 20 11. FCC MULTI-TX AND ANTENNA SAR CONSIDERATIONS .................................... 21 12. EQUIPMENT LIST .................................................................................................. 22 13. MEASUREMENT UNCERTAINTIES ....................................................................... 23 14. CONCLUSION ........................................................................................................ 24 15. REFERENCES ....................................................................................................... 25 APPENDIX A: SYSTEM VERIFICATION ................................................................................... 27 APPENDIX B: SAR TEST DATA ................................................................................................ 29 APPENDIX C: PROBE & DIPOLE ANTENNA CALIBRATION ................................................... 31 APPENDIX D: SAR TISSUE SPECIFICATIONS ........................................................................ 60 APPENDIX E: SAR SYSTEM VALIDATION ............................................................................... 76 APPENDIX F: DUT ANTENNA DIAGRAM & SAR TEST SETUP PHOTOGRAPHS .................. 77 Page 4 of 80 Report No. OT-202-RWD-032 EMC-003 (Rev.2) ONETECH Corp.: 43-14, Jinsaegol-gil, Chowol-eup, Gwangju-si, Gyeonggi-do, 12735, Korea (TEL: 82-31-799-9500, FAX: 82-31-799-9599) 1. Summary of Maximum SAR Value Equipment Class Band & Mode Tx Frequency SAR 1 g Body (W/kg) DSS SIGFOX 902.137 5 ~ 904.662 5 MHz 0.515 DSS 2.4 GHz WLAN 2 412 ~ 2 462 MHz N/A DTS Bluetooth LE 2 402 ~ 2 480 MHz N/A Simultaneous SAR per KDB 690783 D01v01r03: N/A This wireless portable device has been shown to be capable of compliance for localized specific absorption rate (SAR) for…
