2ATIMATFPG3Tyre Pressure Monitoring Sensor

Schrader Electronics Ltd Unit 11 Technology Park Belfast Road Antrim, Northern Ireland, BT41 1QS http://www.tpmseuroshop.com/documents/declaration_conformities User Manual Tyre Pressure Monitoring Sensor ATFPG3 The TPMS Transmitter is installed to the valve stem in each tyre of a vehicle. The unit measures tyre pressure periodically and transmits this information by RF communication to a receiver inside the vehicle. In addition, the TPMS Transmitter performs the following functions: • Determines a temperature compensated pressure value. • Determines any abnormal pressure variations in the wheel. • Monitors the state of the Transmitters’ internal battery and informs the receiver of a low battery condition. Modes Rotating Mode While the sensor/transmitter in the Rotating Mode, it shall satisfy the following requirements. The sensor/transmitter shall transmit an instantaneous measured data, if a pressure change of 2.0 psi from the last transmission or greater has occurred with respect to the following conditions. If the pressure change was a decrease of pressure, the sensor/transmitter shall transmit immediately every time it detects the 2.0-psi or greater pressure changes from the last transmission. If the pressure change of 2.0 psi or greater was an increase of pressure, the sensor shall not react to it. Stationary Mode While the sensor/transmitter in the Stationary Mode, it shall satisfy the following requirements. The sensor/transmitter shall transmit an instantaneous measured data, if a pressure change of 2.0 psi from the last transmission or greater has occurred with respect to the following conditions. If the pressure change was a decrease of pressure, the sensor/transmitter shall transmit immediately every time it detects the 2.0-psi or greater pressure changes from the last transmission. If the pressure change of 2.0 psi or greater was an increase of pressure, the silent period between the RPC transmission and the last transmission shall be 30.0 seconds, and the silent period between the RPC transmission and the next transmission (Normal scheduled transmission or another RPC transmission) shall also be 30.0 seconds, to be in compliance of FCC Part 15.231. Factory Mode The factory mode is the mode that the sensor shall transmit more often in the factory to assure the programmability of the sensor ID during the manufacturing process. Off Mode This Off Mode is only for production parts sensors that are used for the builds during the production process and not in the service environment. LF Initiation The sensor/transmitter must provide data upon the presence of an LF signal. The sensor must react (Transmit and provide data) no later than 150.0 ms after the LF data code has been detected at the sensor. The sensor/transmitter must be sensitive (As sensitivity is defined in Table 1) and able to detect the LF field. The device under test is manufactured by the grantee (Sensata Technologies) and sold as an Schrader Electronics Ltd Unit 11 Technology Park Belfast Road Antrim, Northern Ireland, BT41 1QS http://www.tpmseuroshop.com/documents/declaration_conformities OEM product. Per 47 CFR 2.909, 2.927, 2.931, 2.1033, 15.15(b) etc..., the grantee must ensure the end-user has all applicable / appropriate operating instructions. When end-user instructions are required, as in the case of this product, the grantee must notify the OEM to notify the end- user. Sensata Technologies will supply this document to the reseller/distributor dictating what must be included in the end user’s manual for the commercial product. Information to be included IN the end USER'S MANUAL The following information (in blue) must be included in the end product user’s manual to ensure continued FCC and Industry Canada regulatory compliance. The ID numbers must be included in the manual if the device label is not readily accessible to the end user. The compliance paragraphs below must be included in the user's manual. ***************************************************************************** * FCC ID:2ATIMATFPG3 IC: 25094- ATFPG3 This device complies with Part 15 of the FCC Rules and with Licence exempt RSS standards of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the users authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense. This equipment complies with FCC/ISED radiation exposure limits set forth for an uncontrolled environment. Cet équipement est conforme aux limites d’exposition aux rayonnements FCC/ISED établies pour un environnement non contrôlé. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. Schrader Electronics Ltd Unit 11 Technology Park Belfast Road Antrim, Northern Ireland, BT41 1QS http://www.tpmseuroshop.com/documents/declaration_conformities …

Text truncated - open the document above for the full version.

Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: August 14, 2023 FCC ID: 2ATIMATFPG3 RE: Attestation Statements Part 2.911(d)(5)(i) Filing Sensata Technologies (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. RE: Attestation Statements Part 2.911(d)(5)(ii) Filing Sensata Technologies (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Sincerely, Applicant : Sensata Technologies Address : Unit 11, Antrim Technology Park, Antrim BT41 1QS, United Kingdom Signature : _________________________________ Name and Job Title. : Michael Maingot, EMC & Type Approval Manager E-mail : [email protected] Te l . : +44 2894 482 181

Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: August 14, 2023 FCC ID: 2ATIMATFPG3 RE: Attestation Statements Part 2.911(d)(5)(i) Filing Sensata Technologies (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. RE: Attestation Statements Part 2.911(d)(5)(ii) Filing Sensata Technologies (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Sincerely, Applicant : Sensata Technologies Address : Unit 11, Antrim Technology Park, Antrim BT41 1QS, United Kingdom Signature : _________________________________ Name and Job Title. : Michael Maingot, EMC & Type Approval Manager E-mail : [email protected] Te l . : +44 2894 482 181

Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: August 14, 2023 Ref: Attestation Statements Part 2.911(d)(7) Filing Grantee Code: 2ATIM FRN: 0028527927 Sensata Technologies (“the applicant”) certifies that, as of the date of the filing of the application, Approve-IT, Inc. is our designated U.S. agent for service of process for the above referenced Grantee Code. Sensata Technologies accepts to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. The applicant further acknowledges their responsibility to inform the FCC whenever the designated agent information changes. Approve-IT, Inc. accepts the designation by the applicant as the U.S. agent to accept service of process includes, but is not limited to, delivery of any correspondence, notices, orders, decisions, and requirements of administrative, legal, or judicial process related to Commission proceedings. Designated U.S. Agent Information: Company Name: Approve-IT, Inc. FRN: 0027533835 Address: 8011 34th Avenue South Suite 342, Bloomington, MN 55425, USA Contact Person: Nathan Grinager Tel.: 651-247-1678 Email: [email protected] Sincerely, Applicant U.S. Agent Sensata Technologies Approve-IT, Inc. Michael Maingot Nathan Grinager Signature: Signature:

Confidentiality Request Letter Date: August 14, 2023 Federal Communications Commission Authorization and Evaluation Division Subject: Request for confidentiality FCC ID: 2ATIMATFPG3 To whom it may concern: Short-term Confidentiality Pursuant to Public Notice DA 04-1705, and in order to comply with the marketing regulations in 47 C.F.R. §2.803 and the importation rules in 47 C.F.R. §2.1204 while ensuring that business-sensitive information remains confidential until the actual marketing of newly authorized devices, we are request the Commission grant temporary confidential treatment and not release the following attachments for routine public disclosure until 180 days after the grant date. 1. Internal Photographs 2. External Photographs 3. User’s manual 4. Test Set up photos Permanent Confidentiality Pursuant to the provisions of Sections 0.457 and 0.459 of Commission’s rules (47CFR§§0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure indefinitely. 1. Block Diagram 2. Schematics 3. Operational Description It is our understanding that test measurement reports and correspondence during the certification review process cannot be granted confidential treatment, and such information will be available for public review once the grant of equipment authorization is issued. Sincerely, Applicant : Sensata Technologies Address : Unit 11, Antrim Technology Park, Antrim BT41 1QS, United Kingdom Signature : _________________________________ Name and Job Title. : Michael Maingot, EMC & Type Approval Manager E-mail : [email protected] Te l . : +44 2894 482 181

Letter of Authorization Date: August 14, 2023 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Product Certification Representative Authorization Letter FCC ID: 2ATIMATFPG3 Product Name: Tyre Pressure Monitoring Sensor To whom it may concern: We the undersigned, hereby authorize following person to act as our agent in the preparation of an application for equipment authorization to the FCC Rules and Regulations. Sporton International Inc. Address : No.52, Huaya 1st Rd., Guishan Dist., Taoyuan City 333, Taiwan Name : Leo Huang Job Title : VP e-mail : [email protected] We further certify that neither the applicant nor any party to this application, as defined in 47 CFR Ch. 1.2002(b), is subject to a denial to Federal benefits, that include FCC benefits, pursuant to section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. § 862. This appointment also includes the authority to complete FCC Form 731 on our behalf and sign the application as an authorized agent. Applicant : Sensata Technologies Address : Unit 11, Antrim Technology Park, Antrim BT41 1QS, United Kingdom Signature : _________________________________ Name and Job Title. : Michael Maingot, EMC & Type Approval Manager E-mail : [email protected] Te l . : +44 2894 482 181

Date: August 14, 2023 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Rd Columbia MD 21046-1609 Subject: Declaration of composite/rated equipment for FCC ID: 2ATIMATFPG3 To Whom it may concern, We, the undersigned, would like to declare that the composite portion catagorized as Class A digital devices, peripherals & external switching power supplies has been authorized under the Supplier's Declaration of Conformity (SDoC) procedures. Sincerely, Applicant : Sensata Technologies Address : Unit 11, Antrim Technology Park, Antrim BT41 1QS, United Kingdom Signature : _________________________________ Name and Job Title. : Michael Maingot, EMC & Type Approval Manager E-mail : [email protected] Te l . : +44 2894 482 181

PHOTOGRAPHS OF EUT EP320208 Sporton International Inc. Page No. : 1 of 6 Report Template No.: SE Ver 1.0_EP Issued Date : 12/Sep/2023 Report Version : 01

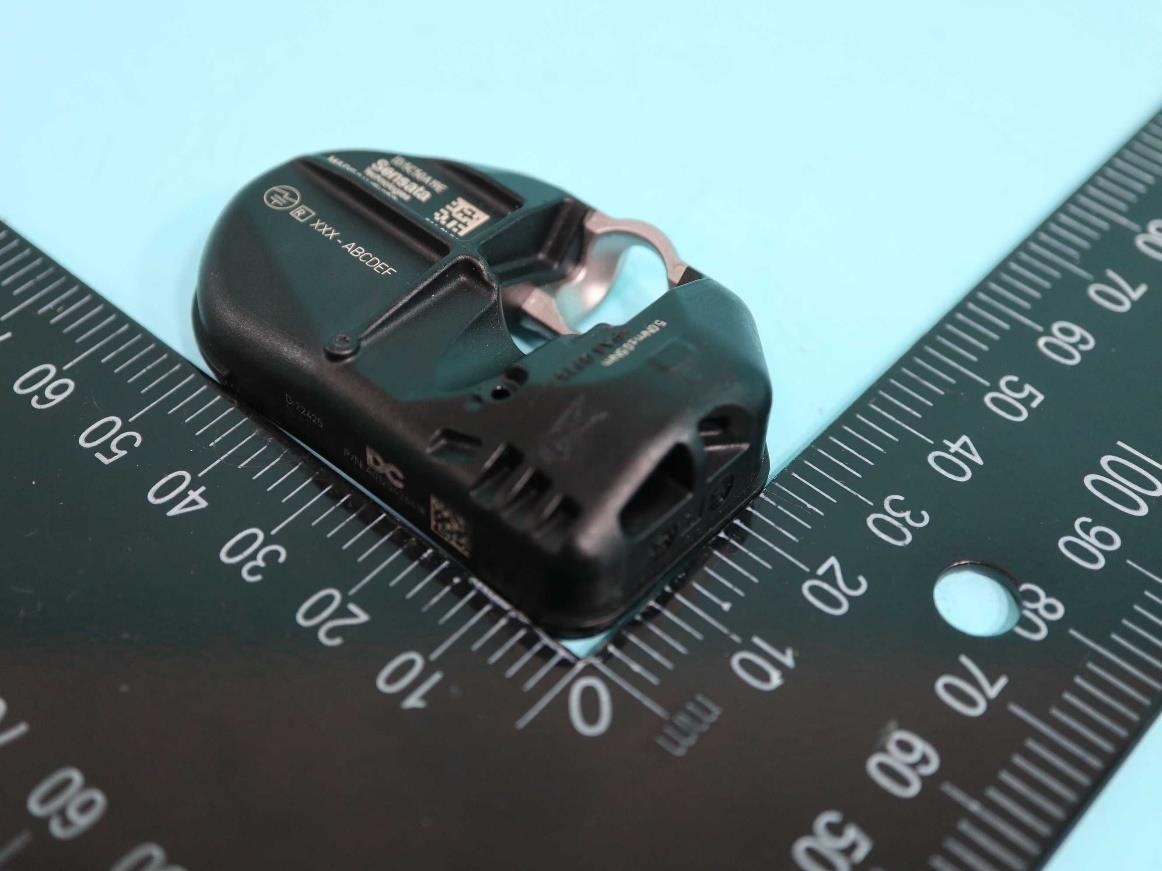

Label Location Information Label 1 (the back of device) Label 2 (the side of device) EUT (Affix to the back and side) Label 1 Location Label 2 Location

PHOTOGRAPHS OF EUT EP320208 Sporton International Inc. Page No. : 2 of 6 Report Template No.: SE Ver 1.0_EP Issued Date : 12/Sep/2023 Report Version : 01 PHOTOGRAPHS OF EUT EP320208 Sporton International Inc. Page No. : 3 of 6 Report Template No.: SE Ver 1.0_EP Issued Date : 12/Sep/2023 Report Version : 01 PHOTOGRAPHS OF EUT EP320208 Sporton International Inc. Page No. : 4 of 6 Report Template No.: SE Ver 1.0_EP Issued Date : 12/Sep/2023 Report Version : 01 PHOTOGRAPHS OF EUT EP320208 Sporton International Inc. Page No. : 5 of 6 Report Template No.: SE Ver 1.0_EP Issued Date : 12/Sep/2023 Report Version : 01 PHOTOGRAPHS OF EUT EP320208 Sporton International Inc. Page No. : 6 of 6 Report Template No.: SE Ver 1.0_EP Issued Date : 12/Sep/2023 Report Version : 01 ______________THE END______________

RF Exposure Evaluation Report Report No. : FA320208 TEL : 886-3-327-3456 Page Number : 1 of 5 FAX : 886-3-327-0973 Issued Date : Sep. 28, 2023 Report Template No.: HE1-A3 Ver5.0 Report Version : 04 FCC ID: 2ATIMATFPG3 RF Exposure Evaluation Report FCC ID : 2ATIMATFPG3 Equipment : Tyre Pressure Monitoring Sensor Brand Name : SENSATA TECHNOLOGIES LTD Model Name : ATFPG3 Applicant : Sensata Technologies Unit 11, Antrim Technology Park, Antrim, BT41 1QS, United Kingdom of Great Britain And Northern Ireland Manufacturer : Schrader Electronics Ltd. 11 Technology Park, Belfast Road, Antrim, BT41 1QS, UK Standard : 47 CFR FCC Part 2 Subpart J, section 2.1093 The product was received on Feb. 06, 2023, and testing was started from Apr. 07, 2023 and completed on May 31, 2023. We, SPORTON INTERNATIONAL INC. Hsinhua Laboratory, would like to declare that the tested sample has been evaluated in accordance with the procedures given in KDB 447498 D04 Interim General RF Exposure Guidance v01 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC. Hsinhua Laboratory, the test report shall not be reproduced except in full. ___________________________________________ Approved by: Jackson Tsai SPORTON INTERNATIONAL INC. Hsinhua Laboratory No.52, Huaya 1st Rd., Guishan Dist., Taoyuan City 333411, Taiwan (R.O.C.) RF Exposure Evaluation Report Report No. : FA320208 TEL : 886-3-327-3456 Page Number : 2 of 5 FAX : 886-3-327-0973 Issued Date : Sep. 28, 2023 Report Template No.: HE1-A3 Ver5.0 Report Version : 04 FCC ID: 2ATIMATFPG3 Table of Contents History of This Test Report ........................................................................................................................................ 3 1. General Description............................................................................................................................................... 4 1.1. EUT General Information .................................................................................................................................................................... 4 1.2. Testing Location Information ............................................................................................................................................................... 4 2. RF Exposure Evaluation ....................................................................................................................................... 5 2.1. Applicable Standard ............................................................................................................................................................................ 5 2.2. SAR evaluation ................................................................................................................................................................................... 5 Photographs of EUT V01 RF Exposure Evaluation Report Report No. : FA320208 TEL : 886-3-327-3456 Page Number : 3 of 5 FAX : 886-3-327-0973 Issued Date : Sep. 28, 2023 Report Template No.: HE1-A3 Ver5.0 Report Version : 04 FCC ID: 2ATIMATFPG3 History of This Test Report Report No. Version Description Issued Date FA320208 01 Initial issue of report Sep. 12, 2023 FA320208 02 Revise typo This report is the latest version replacing for the report issued on Sep. 12, 2023 Sep. 21, 2023 FA320208 03 Revise typo This report is the latest version replacing for the report issued on Sep. 21, 2023 Sep. 22, 2023 FA320208 04 Revise typo This report is the latest version replacing for the report issued on Sep. 22, 2023 Sep. 28, 2023 Reviewed by: Ryan Hsiao Report Producer: Debby Hung RF Exposure Evaluation Report Report No. : FA320208 TEL : 886-3-327-3456 Page Number : 4 of 5 FAX : 886-3-327-0973 Issued Date : Sep. 28, 2023 Report Template No.: HE1-A3 Ver5.0 Report Version : 04 FCC ID: 2ATIMATFPG3 1. General Description 1.1. EUT General Information RF General Information Evaluation Mode Frequency Range (MHz) Operating Frequency (MHz) Modulation Type SRD 315 314.92 FSK 1.2. Testing Location Information Test Lab.：Sporton International Inc. Hsinhua Laboratory Hsinhua ADD: No.52, Huaya 1st Rd., Guishan Dist., Taoyuan City 333411, Taiwan (R.O.C.) (TAF: 3785) TEL: 886-3-327-3456 FAX: 886-3-327-0973 Test site Designation No. TW3785 with FCC. Wen 33rd.St. ADD: No.14-1, Ln. 19, Wen 33rd St., Guishan Dist., Taoyuan City 333010, Taiwan (R.O.C.) (TAF: 3785) TEL: 886-3-318-0787 FAX: 886-3-318-0287 Test site Designation No. TW0008 with FCC. RF Exposure Evaluation Report Report No. : FA320208 TEL : 886-3-327-3456 Page Number : 5 of 5 FAX : 886-3-327-0973 Issued Date : Sep. 28, 2023 Report Template No.: HE1-A3 Ver5.0 Report Version : 04 FCC ID: 2ATIMATFPG3 2. RF Exposure Evaluation 2.1. Applicable Standard In accordance with FCC 47 CFR part 2 (2.1093) this device has been defined as a portable device which is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. Portable devices must be evaluated using the specified in FCC 47 CFR part 2 (2.1093) and ANSI/IEEE C95.1-1992, and had been tested in accordance with the measurement methods and procedures specified in IEEE 1528-2003. 2.2. SAR evaluation 1. Per KDB 447498 D04 Interim General RF Exposure Guidance v01, Option (A): §1.1307(b)(3)(i)(A): Available maximum time-averaged power is no more than 1 mW. Mode Field strength (dBuV/m) EIRP (dBm) Tolerance (dB) Tune-up ERP (mW) Distance (cm) Option TL ERP (mW) SRD 58.32 -36.91 0.50 0.0002 0.50 A 1.000 2. Per KDB 447498 D04 Interim General RF Exposure Guidance v01 exclusion thresholds is 0.0002< 1.000, RF exposure evaluation is not required. ─────THE END────

Sensata Technologies Inc. © Copyright Sensata Technologies Inc. 2015. All rights reserved. Hard copy is uncontrolled. The World Depends on Sensors and Controls ATFPG3 314.9MHZ SENSOR Issue Amendment History Name of Author Date 01 Initial release Jonathan Prétot 01-03-2023 Author: (Name) Author: (Signature) Approver: (Name) Approver: (Signature) Date: Jonathan Prétot RF Design & Development Support Technician Emmanuel Marguet RF Design & Development Support Team Manager Document #: JP20230301-1 Destination: Reference: Issue: 01 Date: 01/03/2023 ECN #: Author: Jonathan Prétot Approver: Emmanuel Marguet Contributors: ANTENNA ISOTROPIC PEAK GAIN PATTERN Antenna Isotropic Peak Gain Pattern ATFPG3 314.9MHz DOCUMENT NUMBER: JP20230301-1 ISSUE LEVEL: 01 Antenna Isotropic Peak Gain Pattern ATFPG3 314.9 01032023.docx Page 2 of 8 Table of Contents Table of Contents ......................................................................................................................................... 2 i. ABBREVIATIONS / GLOSSARY .................................................................................................................... 3 ii. SUPPORTING DOCUMENTS ...................................................................................................................... 3 iii. DOCUMENT HISTORY AND STORAGE ....................................................................................................... 3 1. Introduction ......................................................................................................................................... 4 2. Antenna gain ........................................................................................................................................ 5 Antenna Isotropic Peak Gain Pattern ATFPG3 314.9MHz DOCUMENT NUMBER: JP20230301-1 ISSUE LEVEL: 01 Antenna Isotropic Peak Gain Pattern ATFPG3 314.9 01032023.docx Page 3 of 8 i. ABBREVIATIONS / GLOSSARY TERM EXPANSION/MEANING dBi Decibel Isotropic ii. SUPPORTING DOCUMENTS REFERENCE ISSUE iii. DOCUMENT HISTORY AND STORAGE DOCUMENT NAME LOCATION Antenna Isotropic Peak Gain Pattern ATFPG3 314.9MHz DOCUMENT NUMBER: JP20230301-1 ISSUE LEVEL: 01 Antenna Isotropic Peak Gain Pattern ATFPG3 314.9 01032023.docx Page 4 of 8 1. Introduction This document shows the antenna pattern and antenna gain of ATFPG3 314.9MHz transmitter. Picture(s) of transmitter: ATFPG3 314.9MHz Description of transmitter positioning: All measurements are done in Anechoic Chamber at 3m with TX on table in 3 positions as follow: Pos. 1 Pos. 2 Pos. 3 Antenna Isotropic Peak Gain Pattern ATFPG3 314.9MHz DOCUMENT NUMBER: JP20230301-1 ISSUE LEVEL: 01 Antenna Isotropic Peak Gain Pattern ATFPG3 314.9 01032023.docx Page 5 of 8 2. Antenna gain Test equipment used: Category Mark Type Anechoic Test Site Sensata Spectrum analyser Anritsu MS2830A Coaxial cable RG214U 50 Ohm 11m Open Boundary Quad-Ridged Horns antenna ETS Lindgren 3164-06 Conditions: The test is performed in anechoic test site. The Transmitter is placed on a rotating table in continuous learn emission (EMC). Peak antenna gain: -24.6 Antenna Isotropic Peak Gain Pattern ATFPG3 314.9MHz DOCUMENT NUMBER: JP20230301-1 ISSUE LEVEL: 01 Antenna Isotropic Peak Gain Pattern ATFPG3 314.9 01032023.docx Page 6 of 8 Gain in dBi Position0 polarisations V, H and Module ATFPG3 314.9MHz Antenna Isotropic Peak Gain Pattern ATFPG3 314.9MHz DOCUMENT NUMBER: JP20230301-1 ISSUE LEVEL: 01 Antenna Isotropic Peak Gain Pattern ATFPG3 314.9 01032023.docx Page 7 of 8 Gain in dBi Position1 polarisations V, H and Module ATFPG3 314.9MHz Antenna Isotropic Peak Gain Pattern ATFPG3 314.9MHz DOCUMENT NUMBER: JP20230301-1 ISSUE LEVEL: 01 Antenna Isotropic Peak Gain Pattern ATFPG3 314.9 01032023.docx Page 8 of 8 Gain in dBi Position2 polarisations V, H and Module ATFPG3 314.9MHz

FCC TEST REPORT Report No. : FR320208AF TEL : 886-3-327-3456 Page Number : 1 of 27 FAX : 886-3-327-0973 Issued Date : Sep. 22, 2023 Report Template No.: HE1-C7 Ver3.1 Report Version : 03 FCC TEST REPORT FCC ID : 2ATIMATFPG3 Equipment : Tyre Pressure Monitoring Sensor Brand Name : SENSATA TECHNOLOGIES LTD Model Name : ATFPG3 Applicant : Sensata Technologies Unit 11, Antrim Technology Park, Antrim, BT41 1QS, United Kingdom of Great Britain And Northern Ireland Manufacturer : Schrader Electronics Ltd. 11 Technology Park, Belfast Road, Antrim, BT41 1QS, UK Standard : 47 CFR FCC Part 15.231 The product was received on Feb. 06, 2023, and testing was started from Apr. 07, 2023 and completed on May 31, 2023. We, SPORTON INTERNATIONAL INC. Hsinhua Laboratory, would like to declare that the tested sample has been evaluated in accordance with the procedures given in ANSI C63.10-2013 and shown compliance with the applicable technical standards. The test results in this report apply exclusively to the tested model / sample. Without written approval of SPORTON INTERNATIONAL INC. Hsinhua Laboratory, the test report shall not be reproduced except in full. ___________________________________________ Approved by: Jackson Tsai SPORTON INTERNATIONAL INC. Hsinhua Laboratory No.52, Huaya 1st Rd., Guishan Dist., Taoyuan City 333411, Taiwan (R.O.C.) FCC TEST REPORT Report No. : FR320208AF TEL : 886-3-327-3456 Page Number : 2 of 27 FAX : 886-3-327-0973 Issued Date : Sep. 22, 2023 Report Template No.: HE1-C7 Ver3.1 Report Version : 03 Table of Contents 1 GENERAL DESCRIPTION .................................................................................................................... 5 1.1 Information .............................................................................................................................................. 5 1.2 Testing Applied Standards ..................................................................................................................... 6 1.3 Testing Location Information .................................................................................................................. 6 1.4 Measurement Uncertainty ...................................................................................................................... 6 2 TEST CONFIGURATION OF EUT......................................................................................................... 7 2.1 Test Condition ........................................................................................................................................ 7 2.2 The Worst Case Modulation Configuration ............................................................................................ 7 2.3 The Worst Case Measurement Configuration ........................................................................................ 7 2.4 Test Setup Diagram ............................................................................................................................... 8 3 TRANSMITTER TEST RESULT ............................................................................................................ 9 3.1 Emission Bandwidth ............................................................................................................................... 9 3.2 Fundamental Emissions ....................................................................................................................... 11 3.3 Transmitter Radiated Unwanted Emissions ......................................................................................... 13 3.4 Operation Restriction ............................................................................................................................ 25 4 TEST EQUIPMENT AND CALIBRATION DATA ................................................................................ 27 APPENDIX A. TEST PHOTOS PHOTOGRAPHS OF EUT v01 FCC TEST REPORT Report No. : FR320208AF TEL : 886-3-327-3456 Page Number : 3 of 27 FAX : 886-3-327-0973 Issued Date : Sep. 22, 2023 Report Template No.: HE1-C7 Ver3.1 Report Version : 03 History of this test report Report No. Version Description Issued Date FR320208AF 01 Initial issue of report Sep. 12, 2023 FR320208AF 02 Revise typo This report is the latest version replacing for the report issued on Sep. 12, 2023 Sep. 21, 2023 FR320208AF 03 Revise typo This report is the latest version replacing for the report issued on Sep. 21, 2023 Sep. 22, 2023 FCC TEST REPORT Report No. : FR320208AF TEL : 886-3-327-3456 Page Number : 4 of 27 FAX : 886-3-327-0973 Issued Date : Sep. 22, 2023 Report Template No.: HE1-C7 Ver3.1 Report Version : 03 Summary of Test Result Report Clause Ref Std. Clause Test Items Result (PASS/FAIL) Remark 1.1.2 15.203 Antenna Requirement PASS - - 15.207 AC Power-line Conducted Emissions Not Required Only employ battery power. 3.1 15.231(c) Emission Bandwidth PASS - 3.2 15.231(b) Fundamental Emissions PASS - 3.3 15.231(b) Transmitter Radiated Unwanted Emissions PASS - 3.3.7 15.231(a)/(e) Operation Restriction PASS - Reviewed by: Ryan Hsiao Report Producer: Debby Hung Declaration of Conformity: The test results with all measurement uncertainty excluded are presented in accordance with the regulation limits or requirements declared by manufacturers. Comments and Explanations: None. FCC TEST REPORT Report No. : FR320208AF TEL : 886-3-327-3456 Page Number : 5 of 27 FAX : 886-3-327-0973 Issued Date : Sep. 22, 2023 Report Template No.: HE1-C7 Ver3.1 Report Version : 03 1 General Description 1.1 Information 1.1.1 RF General Information RF General Information Frequency Range(MHz) Modulation Ch. Frequency (MHz) Channel Number Fundamental Field Strength (dBuV/m) 315 FSK 314.92 1 58.…
