2ATIMREXRange Extender

The device under test is manufactured by the grantee (Sensata Technologies) and sold as an Aftermarket product. Per 47 CFR 2.909, 2.927, 2.931, 2.1033, 15.15(b) etc..., the grantee must ensure the end-user has all applicable / appropriate operating instructions. When end-user instructions are required, as in the case of this product, the grantee must notify the end-user. Sensata Technologies will include the contents of this document in the end user’s manual for the commercial product. INFORMATION TO BE INCLUDED IN THE END USER'S MANUAL The following information (in blue) must be included in the end product user’s manual to ensure continued FCC and Industry Canada regulatory compliance. The ID numbers must be included in the manual if the device label is not readily accessible to the end user. The compliance paragraphs below must be included in the user's manual. ****************************************************************************** FCC ID: 2ATIMREX IC: 25094-REX This device complies with Part 15 of the FCC Rules and with Licence exempt RSS standards of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Exposure to radio frequency energy. The radiated output power of this device meets the limits of FCC/ISED Canada radio frequency exposure limits. This device should be operated with a minimum separation distance of 20 cm (8 inches) between the equipment and a person’s body. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. L’exposition à l’énergie radiofréquence. La puissance de sortie rayonné de cet appareil est conforme aux limites de la FCC/ISDE Canada limites d’exposition aux fréquences radio. Cet appareil doit être utilisé avec une distance minimale de séparation de 20 cm entre l’appareil et le corps d’une personne. WARNING: Changes or modifications not expressively approved by the party responsible for compliance could void the user's authority to operate the equipment. The term “IC:” before the radio certification number only signifies that Industry Canada technical specifications were met. ******************************************************************************

Authority to Act as Agent Date: January 20, 2021 American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: _(Compliance Engineering Ireland Ltd Michael Kirby/John McAuley)_____ is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. We also declare that the information provided to the FCC is true and correct to the best of our knowledge (47 CFR 2.911(d)) and we have been informed of the grantee responsibilities (47 CFR 2.909) with regard to certified equipment. Thank you, Agency Agreement Expiration Date: _____(Typically 8 – 12 months)_____ By: __________ ____Michael Maingot____________ (Signature 1 ) (Print name) Title: _________EMC +Type approval Manager_________________ On behalf of: ________Sensata Technologies Ltd__________________ (Company Name) Telephone: _________4402894482181________________ 1 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

102920 – 13 Request for Confidentiality Date: March 22, 2021 Subject: Confidentiality Request for: ______(FCCID : 2ATIMHUBA IC ID: 25094-HUBA)______ Pursuant to FCC 47 CFR 0.457(d) and 0.459 and IC RSP-100, Section 12.4, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit ☐ Short Term ☒ Permanent Block Diagrams ☐ Short Term External Photos ☐ Short Term ☐ Permanent * 2 Internal Photos ☐ Short Term ☒ Permanent Operation Description/Theory of Operation ☐ Short Term ☒ Permanent Parts List & Placement/BOM ☐ Short Term ☐ Permanent Tune-Up Procedure ☐ Short Term ☒ Permanent Schematics ☐ Short Term Test Setup Photos ☐ Short Term ☐ Permanent * 3 User’s Manual ______(Sensata Technologies)______ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of __0_(specify number of days not to exceed 180) 3 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public before the requested period has expired. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: IC currently only distinguishes Permanent Confidentiality exhibits as shown above. Short Term confidentiality is not considered applicable to IC applications. Sincerely, 2 - The asterisked items (*) require further information to be provided to ACB before permanent confidentiality will be extended to these exhibits. Please refer to FCC KDB 726920 and the specific Document link for D01 found at: https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=41731 and review section II, 3) regarding specific information that must accompany these requests. 3 - Please refer to http://acbcert.com/documents/misc-docs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details. 2ATIMREX 25094-REX 102920 – 13 By: ______ Michael Maingot (Signature/Title 4 ) (Print name) 4 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

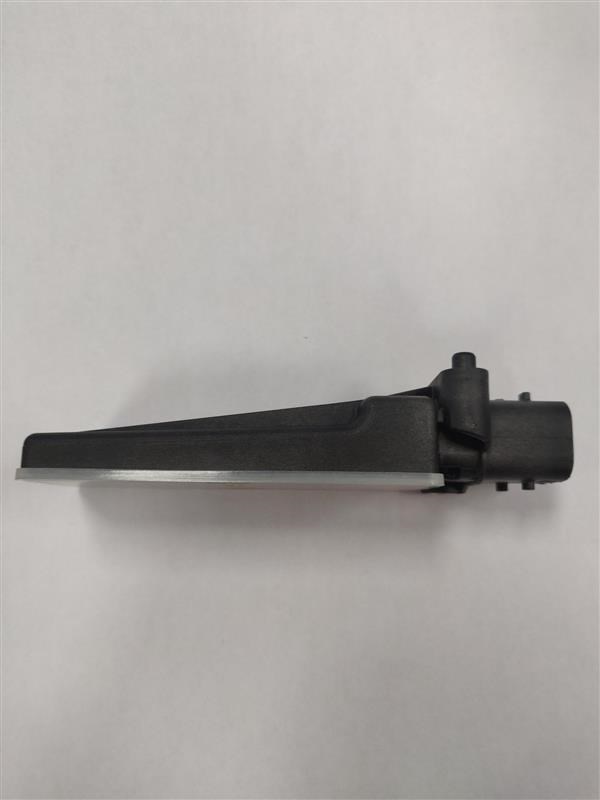

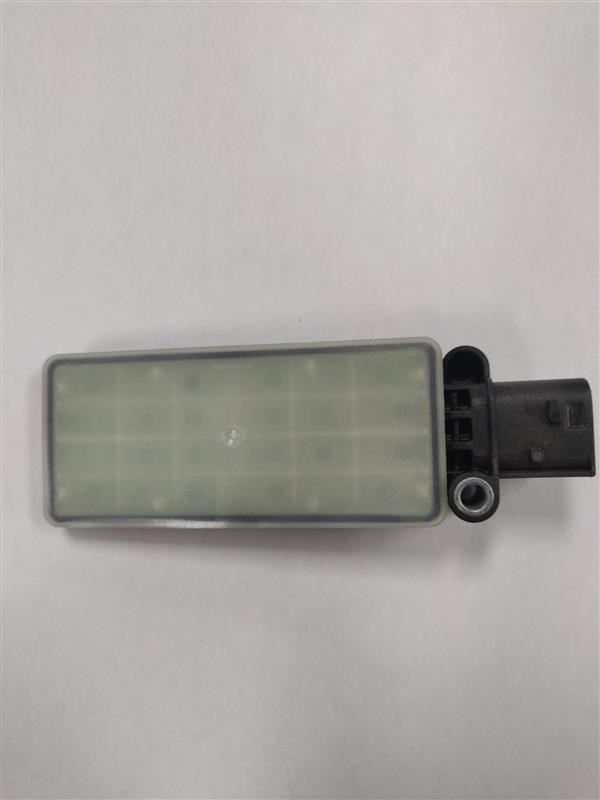

REX Photographs http://www.tpmseuroshop.com/documents/declaration_conformities http://www.tpmseuroshop.com/documents/declaration_conformities

TEXTFONTSIZE (mm) REXARIAL NARROW - BOLD3.0 PN: 70803111229ARIAL NARROW - BOLD 2.5 RF: 433 MHzARIAL NARROW - BOLD1.5 THREAD: 2.4 GHzARIAL NARROW - BOLD1.5 DATE: YYMMDDARIAL NARROW - BOLD1.5 MODEL: REXARIAL NARROW - BOLD1.5 ID: XXXXXXXXXXXXXXXXXXXXARIAL NARROW - BOLD1.5 FCC ID: 2ATIMREXARIAL NARROW - BOLD1.5 IC ID: 25094-REXARIAL NARROW - BOLD1.5 IFT: XXXXXXXXX-XXXX ARIAL NARROW - BOLD1.5 SENSATA TECHNOLOGIES LOGON/A8.0 2D MATRIXN/A6 X 6 TABLE 1: DIGITS 6-9 DAY CODE(1-366) ID:XXXXX XXXX XX XXXXX XX XX DIGITS 1-5 PRODUCT CODE DIGITS 12-16 SERIAL NUMBER (RESET DAILY) DIGITS 17-18 LINE CODE(1-99) DIGITS 10-11 YEAR CODE(0-99) DIGITS 19-20 CELL CODE MCH CODEXXXXX TABLE 2: 1 2 3 4 5 6 7 8 H G D 9 10 11 12 A B C E F A B C D E F G H 2 3 4 5 6 7 8 9 10 11 12 ENG-F-045 ISS 04 GRID REF.REVREVISION DESCRIPTIONBYECODATE XXXXXXXXXXXXXXXXXXXXXXECO-XXXXXXXX/XXX/2020 1 FOR REFERENCE ONLY, CHECK LATEST REVISION BEFORE USE. REFER TO PLM FOR CONTROLLED DATA, CHANGE HISTORY AND APPROVALS TECHNOLOGY PARK, ANTRIM, UK, BT41 1QS MATERIAL THIS DRAWING IS CONFIDENTIAL AND PROPRIETARY OF SCHRADER ELECTRONICS LIMITED. THE INFORMATION CONTAINED WITHIN IT MAY NOT BE USED, DISCLOSED OR REPRODUCED IN WHOLE OR PART, WITHOUT THE EXPRESSED WRITTEN CONSENT OF SCHRADER ELECTRONICS LIMITED. NO RIGHT IS GRANTED TO DISCLOSE OR USE ANY INFORMATION CONTAINED WITHIN THIS DRAWING. SCHRADER ELECTRONICS LIMITED IS PART OF THE SENSATA TECHNOLOGIES GROUP. PART NUMBER SEE NOTES 70803111229 MASS (g)TITLE 49 ST REX LASER MARKING DRAWING PROJECT NO. REVISION SYMBOL INTERPRET DRAWING PER ASME Y14.5-2009 SEE NOTES FOR GENERAL TOLERANCES UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN MILLIMETRES DO NOT SCALE DRAWING THIRD ANGLE PROJECTION SIZEDRAWING NO.DRAWING REV. A20001302201 SCALE 2:1CATIA V5R28SHEET 1 OF 1 XX DRAFT - FOR TECHNICAL FEEDBACK OR QUOTATION PURPOSES ONLY PART NO DRAWING VERSION 3D CAD VERSION SUPPLIERS - PLEASE NOTE WHEN IN COMMUNICATION WITH SENSATA ABOUT DRAFT ITEMS, PLEASE USE PART NUMBER TOGETHER WITH 3D CAD VERSION AS UNIQUE IDENTIFIER OF REFERENCED 3D CAD MODEL 70803111229 1 XX RF: 433.92 MHz THREAD: 2.4 GHz DATE: YYMMDD MODEL: REX ID: XXXXXXXXXXXXXXXXXXXX PN: 70803111229 INJECTION POINT DO NOT MARK ON REX FCC ID: 2ATIMREX IC: 25094-REX IFT: XXXXXXXXX-XXXX

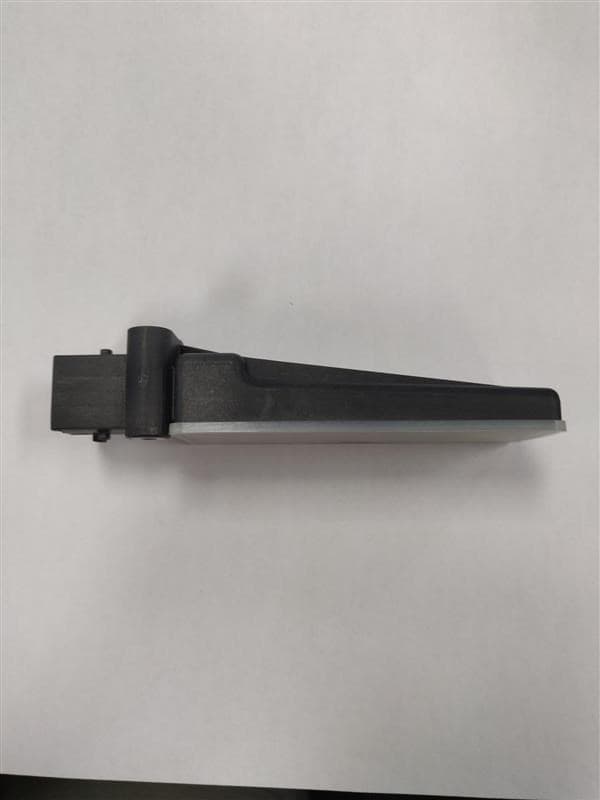

http://www.tpmseuroshop.com/documents/declaration_conformities REX Photographs

Compliance Engineering Ireland Ltd Clonross Lane, Derrockstown, Dunshaughlin Co. Meath, Ireland A85 XN59 Ph +353 1 8017000 , 8256722 www.cei.ie Project Num 20E8887-2a Quotation Q20-2505-1 Prepared For Sensata Technologies Ltd Company Address 11 Technology Park, Belfast Road, Antrim, Northern Ireland BT41 1QS Contact James Kyle Contact Email [email protected] Contact Phone +44 28 9448 3067 Prepared By Compliance Engineering Ireland Test Lab Address Clonross Lane, Derrockstown, Dunshaughlin, Co. Meath, Ireland Tested By Joy Dalayap Michael Kirby Test Report By Michael Kirby FCC Test Firm Registration 409640 IC Site Registration IE0001 Date 20 th Nov 2020 EUT Description Range Extender FCC ID 2ATIMREX IC ID 25094-REX Authorised by Paul Reilly Authorised Signature: Report Ref: 20E8887-2a Page 2 of 3 RF Exposure Exhibit– Technical Report 1.0 Overview Fixed / Mobile Application MPE for bystanders which are considered to be ≥20cm away from the front of the transmit antenna 2. Maximum Permissible Exposure FCC 2.1 Limits /guidelines 47 CFR Sections 1.1307, 1.1310, 2.1091 447498 D01 General RF Exposure Guidance v06 2.2 Results where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Note the Radiated field strength was measured at 3 metres and the conversion formula below was used to determine the EIRP in dBm EIRP (dBm) = E3m (dBuV/m) – 95.2 Prediction frequency: 2405 MHz Radiated Field Strength at 3m 110.2 dBuV/m Power Conversion factor for antenna distance 3m -95.2 dB EIRP Peak 15 dBm Time Averaging Factor 0 dB EIRP Peak 15 dBm EIRP Peak 31.62 mW Prediction distance: 20 cm MPE limit for Uncontrolled/General Population exposure at prediction frequency: 1 mW/cm^2 Power density at prediction frequency: 0.00629116 mW/cm^2 Power density at prediction frequency: 0.062912 W/m^2 Test Result: Exempt from RF exposure test Pass Notes The table above shows that for a prediction distance of 20cm, RF exposure evaluation is not required. Report Ref: 20E8887-2a Page 3 of 3 3.0 Maximum Permissible Exposure IC 3.1 Limits /guidelines Limits for Routine Evaluation — RF Exposure Evaluation Limits as per RSS 102 Issue 5 Section 2.5.2 3.2 Results where: S = power density P = power input to the antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna Note the Radiated field strength was measured at 3 metres and the conversion formula below was used to determine the EIRP in dBm EIRP (dBm) = E3m (dBuV/m) – 95.2 Prediction frequency: 2405 MHz EIRP Peak 15 dBm Time Averaging Factor 0.00 dB Tune up factor 0 dB EIRP Peak 15.000 dBm EIRP Peak 31.62 mW Exemption limit for Routine Evaluation : 2678.71 mW Exempt from RF Exposure Evaluation Notes The table above shows that for a prediction distance of 20cm, RF exposure evaluation is not required. End of Report

Report Ref: 20E8887-1b Page 1 of 38 Compliance Engineering Ireland Ltd Clonross Lane, Derrockstown, Dunshaughlin Co. Meath, Ireland A85 XN59 Ph +353 1 8017000 , 8256722 www.cei.ie Project Num 20E8887-1b Quotation Q20-2505-1 Prepared For Sensata Technologies Ltd Company Address 11 Technology Park, Belfast Road, Antrim, Northern Ireland BT41 1QS Contact James Kyle Contact Email [email protected] Contact Phone +44 28 9448 3067 Prepared By Compliance Engineering Ireland Test Lab Address Clonross Lane, Derrockstown, Dunshaughlin, Co. Meath, Ireland Tested By Joy Dalayap Michael Kirby Test Report By Michael Kirby FCC Test Firm Registration 409640 IC Site Registration IE0001 Date 4 th Jan 2021 EUT Description Range Extender FCC ID 2ATIMREX IC ID 25094-REX Authorised by Paul Reilly Authorised Signature: Report Ref: 20E8887-1b Page 2 of 38 TEST SUMMARY The equipment complies with the requirements according to the following standards. FCC 15.247 Section RSS-247 Section TEST PARAMETERS Test Result 15.247 (a)2 RSS-247 5.2a 6dB bandwidth Pass 15.247 (e) RSS-247 5.2b Power Spectral Density Pass 15.247 (b)3 RSS-247 5.4d Output power Conducted Pass 15.247 (d) RSS-247 5.5 Conducted Spurious Emissions Pass 15.205 15.209 RSS Gen 8.9 RSS Gen 8.10 Radiated Spurious Emissions Pass RSS Gen 6.7 99% bandwidth Pass RSS 247-2 (Feb 2017) RSS Gen Issue5 Amd 1 (Mar 2019) THIS REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL, WITHOUT THE WRITTEN APPROVAL OF COMPLIANCE ENGINEERING IRELAND LTD Report Ref: 20E8887-1b Page 3 of 38 Exhibit A – Technical Report Table of Contents 1.0 EUT DESCRIPTION ........................................................................................................................... 4 1.1 EUT OPERATION ............................................................................................................................... 5 1.2 MODIFICATIONS ................................................................................................................................ 5 1.3 DATE OF TEST................................................................................................................................... 5 1.4 DESCRIPTION OF TEST MODES .................................................................................................... 6 2.0 EMISSIONS MEASUREMENTS ......................................................................................................... 7 3.0 CONDUCTED EMISSIONS ON THE MAINS MEASUREMENTS .................................................... 8 4.0 CONDUCTED MEASUREMENTS ON THE ANTENNA PORT ......................................................... 9 5.0 SPURIOUS EMISSIONS .................................................................................................................. 16 6.0 LIST OF TEST EQUIPMENT ............................................................................................................ 20 7.0 MEASUREMENT UNCERTAINTY ................................................................................................... 21 APPENDIX A SCANS FOR CONDUCTED MEASUREMENTS .................................................................. 22 APPENDIX B SCANS FOR RADIATED BAND EDGE /RESTRICTED BAND .......................................... 26 APPENDIX C SCANS FOR RADIATED SPURIOUS EMISSIONS ............................................................. 33 Report Ref: 20E8887-1b Page 4 of 38 1.0 EUT Description Model: REX Type: Range Extender Type of radio: Stand-alone Transmitter Type: 802.15.4 (Thread) Operating Frequency Range(s): 2.405 GHz - 2.480GHz Number of Channels: 16 Antenna: Integral Power configuration: 12 v Battery. Ports: None Classification: DTS, CYY HVIN: REX PMN: REX Test Standards: 15.247 RSS-247 Test Methodology: Measurements performed according to the procedures in ANSI C63.10-2013 KDB 558074 V5 R02 The EUT was a Range Extender for use in automobiles. Its purpose was to relay packets received on the 433MHz band using a transmitter in the 2.4GHz band. The EUT contained a transmitter using Thread technology and a 433MHz receiver. The Thread antenna was an internal pcb antenna. This report details tests carried out on the transmitter. Report Ref: 20E8887-1b Page 5 of 38 1.1 EUT Operation Operating Conditions during Test: Conducted measurements were carried out on a sample where the antenna was replaced by cable and SMA. The EUT was operated in test mode where the channel and modulation was set via USB connection from the EUT to a laptop. The EUT was powered from a bench PSU set to 12Vdc. for all tests Radiated measurements were performed on a sample with standard internal antenna. Environmental conditions Temperature Relative Humidity Test °C % Conducted Emissions 19 47 Radiated Emissions <1GHz 18 42 Radiated Emissions >1GHz 19 47 1.2 Modifications No modifications were required in order to pass the test specifications. 1.3 Date of Test The tests were carried out on 17 th ,22 nd Aug and 22 nd Dec 2020. Report Ref: 20E8887-1b Page 6 of 38 1.4 Description of Test modes Channel List Channel Channel Freq MHz Low 11 2405 12 2410 13 2415 14 2420 15 2425 16 2430 17 2435 Mid 18 2440 19 2445 20 2450 21 2455 22 2460 23 2465 24 2470 25 2475 High 26 2480 All tests were performed with the EUT on the low mid and high channels. Report Ref: 20E8887-1b Page 7 of 38 2 Emissions Measurements 2.1 Conducted Emissions Measurements Radio Conducted measurements were carried out on the EUT as per section 1.1 above. All results were measured as conducted on the antenna except radiated spurious emissions. 2.2 Radiated Emissions Measurements Radiated Power measurements were made at the Compliance Engineering Ireland Ltd anechoic chamber located in Dunshaughlin, Co. Meath, Ireland to determine the radio noise radiated from the EUT. A "Description of Measurement Facilities" has been submitted to the FCC and approved pursuant to Section 2.948 of CFR 47 of the FCC rules. The EUT was centred on a motorized turntable, which allows 360 degre…

Text truncated - open the document above for the full version.

Test Set up Fig 1a Test setup 30MHz -300MHz Rad Emissions Fig 1b Test setup 30MHz -300MHz Rad Emissions Fig 2a Test setup 300MHz -1GHz Rad Emissions Fig 2b Test setup 300MHz -1GHz Rad Emissions Fig 3 Test setup 1GHz -18GHz Rad Emission Fig 4 Test setup 18GHz -26GHz Rad Emission 1metre Fig 5 EUT close up Fig 6 EUT close up Fig 7 EUT close up
