2ATIMHUBAWireless Gateway

The device under test is manufactured by the grantee (Sensata Technologies) and sold as an Aftermarket product. Per 47 CFR 2.909, 2.927, 2.931, 2.1033, 15.15(b) etc..., the grantee must ensure the end-user has all applicable / appropriate operating instructions. When end-user instructions are required, as in the case of this product, the grantee must notify the end-user. Sensata Technologies will include the contents of this document in the end user’s manual for the commercial product. INFORMATION TO BE INCLUDED IN THE END USER'S MANUAL The following information (in blue) must be included in the end product user’s manual to ensure continued FCC and Industry Canada regulatory compliance. The ID numbers must be included in the manual if the device label is not readily accessible to the end user. The compliance paragraphs below must be included in the user's manual. ****************************************************************************** FCC ID: 2ATIMHUBA IC: 25094-HUBA This device complies with Part 15 of the FCC Rules and with Licence exempt RSS standards of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Exposure to radio frequency energy. The radiated output power of this device meets the limits of FCC/ISED Canada radio frequency exposure limits. This device should be operated with a minimum separation distance of 20 cm (8 inches) between the equipment and a person’s body. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. L’exposition à l’énergie radiofréquence. La puissance de sortie rayonné de cet appareil est conforme aux limites de la FCC/ISDE Canada limites d’exposition aux fréquences radio. Cet appareil doit être utilisé avec une distance minimale de séparation de 20 cm entre l’appareil et le corps d’une personne. WARNING: Changes or modifications not expressively approved by the party responsible for compliance could void the user's authority to operate the equipment. The term “IC:” before the radio certification number only signifies that Industry Canada technical specifications were met. ******************************************************************************

Authority to Act as Agent Date: January 20, 2021 American Certification Body, Inc. 6731 Whittier Avenue Suite C110 McLean, VA 22101 To Whom It May Concern: _(Compliance Engineering Ireland Ltd Michael Kirby/John McAuley)_____ is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. We also declare that the information provided to the FCC is true and correct to the best of our knowledge (47 CFR 2.911(d)) and we have been informed of the grantee responsibilities (47 CFR 2.909) with regard to certified equipment. Thank you, Agency Agreement Expiration Date: _____(Typically 8 – 12 months)_____ By: __________ ____Michael Maingot____________ (Signature 1 ) (Print name) Title: _________EMC +Type approval Manager_________________ On behalf of: ________Sensata Technologies Ltd__________________ (Company Name) Telephone: _________4402894482181________________ 1 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

102920 – 13 Request for Confidentiality Date: March 22, 2021 Subject: Confidentiality Request for: ______(FCCID : 2ATIMHUBA IC ID: 25094-HUBA)______ Pursuant to FCC 47 CFR 0.457(d) and 0.459 and IC RSP-100, Section 12.4, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit ☐ Short Term ☒ Permanent Block Diagrams ☐ Short Term External Photos ☐ Short Term ☐ Permanent * 2 Internal Photos ☐ Short Term ☒ Permanent Operation Description/Theory of Operation ☐ Short Term ☒ Permanent Parts List & Placement/BOM ☐ Short Term ☐ Permanent Tune-Up Procedure ☐ Short Term ☒ Permanent Schematics ☐ Short Term Test Setup Photos ☐ Short Term ☐ Permanent * 3 User’s Manual ______(Sensata Technologies)______ has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of __0_(specify number of days not to exceed 180) 3 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public before the requested period has expired. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: IC currently only distinguishes Permanent Confidentiality exhibits as shown above. Short Term confidentiality is not considered applicable to IC applications. Sincerely, 2 - The asterisked items (*) require further information to be provided to ACB before permanent confidentiality will be extended to these exhibits. Please refer to FCC KDB 726920 and the specific Document link for D01 found at: https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=41731 and review section II, 3) regarding specific information that must accompany these requests. 3 - Please refer to http://acbcert.com/documents/misc-docs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details. 102920 – 13 By: ______ Michael Maingot (Signature/Title 4 ) (Print name) 4 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

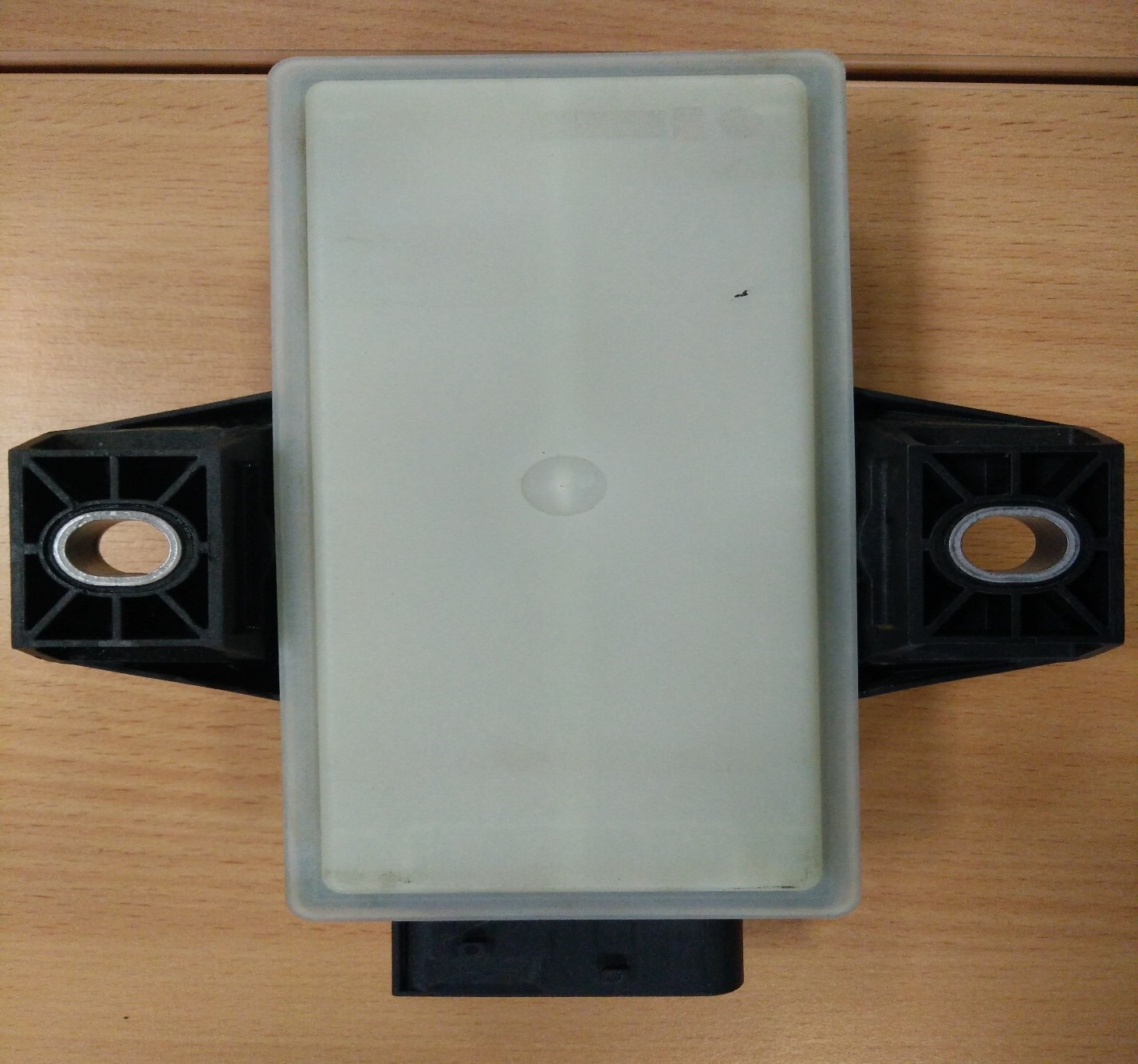

HUBA Photographs http://www.tpmseuroshop.com/documents/declaration_conformities http://www.tpmseuroshop.com/documents/declaration_conformities http://www.tpmseuroshop.com/documents/declaration_conformities http://www.tpmseuroshop.com/documents/declaration_conformities

DIGITS 6-9 DAY CODE(1-366) ID:XXXXX XXXX XX XXXXX XX XX DIGITS 1-5 PRODUCT CODE DIGITS 12-16 SERIAL NUMBER (RESET DAILY) DIGITS 17-18 LINE CODE(1-99) DIGITS 10-11 YEAR CODE(0-99) DIGITS 19-20 CELL CODE ID No. FORMAT TABLE 2: MCH CODEXXXXX TEXTFONTSIZE (mm) HUB AARIAL NARROW - BOLD5.0 PN: 70803109148ARIAL NARROW - BOLD2.0 ECUARIAL NARROW - BOLD1.5 RF: 433.92 MHz ARIAL NARROW - BOLD1.5 THREAD: 2.4 GHzARIAL NARROW - BOLD1.5 Wi-Fi: 2.4 GHzARIAL NARROW - BOLD1.5 DATE: YYMMDDARIAL NARROW - BOLD1.5 MODEL: XXXXXXXXARIAL NARROW - BOLD1.5 FCC ID: 2ATIMHUBAARIAL NARROW - BOLD1.5 IC ID: 25094-HUBAARIAL NARROW - BOLD1.5 IFT: XXXXXXXXX-XXXXARIAL NARROW - BOLD1.5 SENSATA TECHNOLOGIES LOGON/A10 ID: XXXXXXXXXXXXXXXXXXXXARIAL NARROW - BOLD1.5 2D MATRIXN/A8 X 8 TABLE 1: A B C D E F G H M L K J 89107654312111213141516 GRID REF.REVREVISION DESCRIPTIONBYECODATE XXXXXXXXXXXXXXX.X.X.ECO-XXXXXXDD/MMM/YYYY FOR REFERENCE ONLY, CHECK LATEST REVISION BEFORE USE. REFER TO PLM FOR CONTROLLED DATA, CHANGE HISTORY AND APPROVALS TECHNOLOGY PARK, ANTRIM, UK, BT41 1QS MATERIAL THIS DRAWING IS CONFIDENTIAL AND PROPRIETARY OF SCHRADER ELECTRONICS LIMITED. THE INFORMATION CONTAINED WITHIN IT MAY NOT BE USED, DISCLOSED OR REPRODUCED IN WHOLE OR PART, WITHOUT THE EXPRESSED WRITTEN CONSENT OF SCHRADER ELECTRONICS LIMITED. NO RIGHT IS GRANTED TO DISCLOSE OR USE ANY INFORMATION CONTAINED WITHIN THIS DRAWING. SCHRADER ELECTRONICS LIMITED IS PART OF THE SENSATA TECHNOLOGIES GROUP. PART NUMBER SEE TABLE 1 70803109148 MASS (g)TITLE TBC HUB LASER MARKING DRAWING (GENERIC) PROJECT NO. PRJ0007022 REVISION SYMBOL INTERPRET DRAWING PER ASME Y14.5-2009 SEE NOTES FOR GENERAL TOLERANCES UNLESS OTHERWISE SPECIFIED DIMENSIONS ARE IN MILLIMETRES DO NOT SCALE DRAWING THIRD ANGLE PROJECTION SIZEDRAWING NO.DRAWING REV. A10001244101 SCALE 2:1CATIA V5R28SHEET 1 OF 1 XX DRAFT - FOR TECHNICAL FEEDBACK OR QUOTATION PURPOSES ONLY PART NO DRAWING VERSION 3D CAD VERSION SUPPLIERS - PLEASE NOTE WHEN IN COMMUNICATION WITH SENSATA ABOUT DRAFT ITEMS, PLEASE USE PART NUMBER TOGETHER WITH 3D CAD VERSION AS UNIQUE IDENTIFIER OF REFERENCED 3D CAD MODEL 70803109148 1 XX A B C D E F G H J K L M 12345678910111213141516 ENG-F-046 ISS 04 PN: 70803109148 ECU RF: 433.92 MHz THREAD: 2.4 GHz Wi-Fi: 2.4 GHz DATE: YYMMDD MODEL: HUBA FCC ID: 2ATIMHUBA IC ID: 25094-HUBA IFT: XXXXXXXXX-XXXX CUSTOMER PART NUMBER SENSATA TECHNOLOGIES LOGO 2D MATRIX LOCATION PART ID PRODUCT APPROVAL MARKINGS LOCATION PART DETAILS ID: XXXXXXXXXXXXXXXXXXXX HUB A

HUB A PCB Photographs http://www.tpmseuroshop.com/documents/declaration_conformities

Report Ref: 20E8928-4b Page 1 of 14 Compliance Engineering Ireland Ltd Clonross Lane, Derrockstown, Dunshaughlin Co. Meath, Ireland A85 XN59 Ph +353 1 8017000 , 8256722 www.cei.ie Project Num 20E8928-4b Quotation Q20-1410-1 Prepared For Sensata Technologies Ltd Company Address 11 Technology Park, Belfast Road, Antrim, Northern Ireland BT41 1QS Contact James Kyle Contact Email [email protected] Contact Phone +44 28 9448 3067 Prepared By Compliance Engineering Ireland Test Lab Address Clonross Lane, Derrockstown, Dunshaughlin, Co. Meath, Ireland Tested By Joy Dalayap / Michael Kirby Test Report By Michael Kirby FCC Test Firm Registration 409640 IC Site Registration IE0001 Date 15 th Mar 2021 EUT Description HUBA FCC ID 2ATIMHUBA IC ID 25094-HUBA Authorised by Paul Reilly Authorised Signature: Report Ref: 20E8928-4b Page 2 of 14 TEST SUMMARY The equipment complies with the requirements according to the following standards. FCC Section RSS Section TEST PARAMETERS Test Result 15.209 RSS Gen 7.3 Radiated Spurious Emissions Pass RSS Gen Issue5 Amd 2 (Feb 2021) THIS REPORT SHALL NOT BE REPRODUCED EXCEPT IN FULL, WITHOUT THE WRITTEN APPROVAL OF COMPLIANCE ENGINEERING IRELAND LTD Report Ref: 20E8928-4b Page 3 of 14 Exhibit A – Technical Report Table of Contents 1.0 EUT DESCRIPTION ........................................................................................................................... 4 1.1 EUT OPERATION ............................................................................................................................... 5 1.2 MODIFICATIONS ................................................................................................................................ 5 1.3 DATE OF TEST................................................................................................................................... 5 1.4 DESCRIPTION OF TEST MODES .................................................................................................... 6 2.0 EMISSIONS MEASUREMENTS ......................................................................................................... 6 3.0 RADIATED EMISSIONS ..................................................................................................................... 7 4.0 LIST OF TEST EQUIPMENT .............................................................................................................. 8 APPENDIX A SCANS FOR RADIATED EMISSIONS .................................................................................. 9 APPENDIX B TEST CONFIGURATIONS ................................................................................................... 14 Report Ref: 20E8928-4b Page 4 of 14 1.0 EUT Description Model: HUBA Type: Wireless Gateway Type of radio: Stand-alone Transmitter Type: 802.15.4 (Thread), 802.11G 802.11N Wifi Operating Frequency Range(s): 2.405 GHz - 2.480GHz Thread 2.412-2.462GHz Wifi 433.92MHz receiver Number of Channels: 16 Thread 11 Wifi Antenna: Integral Power configuration: 12 v Battery. Ports: None Classification: DTS, CYY HVIN: HUBA PMN: HUBA Test Standards: 15.209, RSS Gen Test Methodology: Measurements performed according to the procedures in ANSI C63.4-2014 The EUT was a Gateway for use in the vehicles. Its purpose was to relay packets received on the 433MHz band using a transmitter in the 2.4GHz band. The EUT contained transmitters using Wifi and Thread technology and also a 433MHz receiver. For Wifi it was possible to switch between 2 internal antennas, one an internal module antenna and the other one a printed pcb antenna. The Thread radio had its own dedicated pcb antenna. This report relates to test carried out on the 433.92MHz receiver with the Thread and Wifi transmitters off. Report Ref: 20E8928-4b Page 5 of 14 1.1 EUT Operation Operating Conditions during Test: The EUT was placed into receive mode (433.92MHz) with the Wifi and Thread transmitters off. The EUT was powered from a bench PSU set to 12Vdc. for all tests There was active communication on all the wired communication lines (PLC, CAN ,RS485) Environmental conditions Temperature Relative Humidity Test °C % Radiated Emissions <1GHz 19 49 Radiated Emissions >1GHz 22 42 1.2 Modifications No modifications were required in order to pass the test specifications. 1.3 Date of Test The tests were carried out on 6 th -15 th Jan 2021. 1.4. Measurement Uncertainty The measurement uncertainty (with a 95% confidence level) for the conducted emissions test was ±3.5 dB. The measurement uncertainty (with a 95% confidence level) for the radiated emissions test was ±5.3 dB (from 30 to 100 MHz), ±4.7 dB (from 100 to 300 MHz), ±3.9 dB (from 300 to 1000 MHz) and ±3.8 dB (from 1 GHz to 40 GHz). The test data can be compared directly to the specification limit to determine compliance, as the calculated measurement uncertainty meets the requirements of the applicable specification. 1.5 Special Test Software Tests were performed manually and no special test software was used Report Ref: 20E8928-4b Page 6 of 14 2 Emissions Measurements 2.2 Radiated Emissions Measurements Emissions below 1GHz were measured in a semi anechoic chamber using a test antenna positioned at a distance of 3 metres from the EUT (as measured from the closest point of the EUT). The radiated emissions were maximised by configuring the EUT, by rotating the EUT, and by raising and lowering the antenna from 1 to 4 metres. In this case the resolution bandwidth was 100kHz. Emissions in the 1GHz-12.75GHz range were measured using a horn antenna located at 3 metres distance from the EUT in a fully anechoic chamber. The radiated emissions were maximised by configuring the EUT and by rotating the EUT, and by raising and lowering the test antenna from 1 to 4 metres. The test table height was 0.8m for all tests. A pre-scan was performed to determine the worst case EUT orientation for the radiated measurements. All tests were performed with the EUT in orientation O1 for Horizontal polari…

Text truncated - open the document above for the full version.

Test Set up Fig 1a Test setup 30MHz -300MHz Rad Emissions Fig 1b Test setup 30MHz -300MHz Rad Emissions Fig 2a Test setup 300MHz -1GHz Rad Emissions Fig 2b Test setup 300MHz -1GHz Rad Emissions Fig 3 Test setup 1GHz -18GHz Rad Emission Fig 4 Test setup 18GHz -26GHz Rad Emission 1metre Fig 5 EUT conducted test Fig 6 EUT Receiver Rad emissions test 1G-12.75GHz 3metres
