-01--02- -03- Step 7 Restore power at the circuit breaker and test the system. ♦OPERATIONS 1.Local control Notice: -After a power failure, the switch returns to OFF state. 2.Group control the nodes of association group 2 Note: Please refer to association setting for nodes group 2 setup. This requires a gateway with advanced features, and assumes the device has included in a network. 3.Inclusion to a Z-Wave network Notice: The device supports up to S2-authenticated inclusion method, based on the gateway’s feature, it is highly recommended to only select S2-authenticated or the highest inclusion method, and uncheck the rest methods. This would ensure the highest security level during Z-Wave service. During S2- authenticated inclusion, users may be asked to scan the QR code or entering 5-digit ping code attached on the device. ➢Smart Start Inclusion The feature assumes the gateway has implemented Smart Start. Users could use the APP of the gateway or the gateway camera to scan the QR code on device or on device package even before powering on the device, when the device is powered on, it shall be automatically added to the gateway. This application guide applies to the following products. SQR14101WHZ,SQR14101LAZ,SQR14101BKZ Z-WAVE SWITCH SINGLE POLE ENERGY MONITORING FCC ID: 2AUCU-14101Z IC: 25381-14101Z CAN ICES-3(B)/NMB-3(B) Add Z-wave plus logo ♦INSTALLATION Step 1 Turn off power at circuit breaker or fuse and test that power is off before wiring. Step 2 Connect the device as shown in the wiring diagram. ♦SPECIFICATIONS Voltage ........................................................................................................................ 120VAC, 60Hz Incandescent ............................................................................................................................. 1000W LED ................................................................................................................................................... 5A Standard Ballast........................................................................................................................ 1200VA Resistive ........................................................................................................................... 1800W(15A) Motor ........................................................................................................................................ 1/2 HP Operating Temperature ............................................................................ 32°F〜104°F(0°C〜40°C) Supply Connection ................................................ ...14 AWG wires rated for at least 90°C Wireless Type...................................................................Z-Wave (Support S2 and SmartStart) Wireless Frequency .......................................................................... 908.40MHz/908.42MHz/916MHz ♦FEATURES •Z-Wave technology creates a mesh network for command and control interoperability with other Z-Wave compliant controller and devices •Manual and Remote ON/OFF control of any connected lighting and other electrical load •Can be used for 3-Way (Multi-location) application together with Z-Wave auxiliary switch SQR50101**Z •Measure the energy usage of the connected loading, display the actual consumption (in W) and the accumulated power used (in kWh) in the user interface of the gateway Notice: for energy measurement feature, please refer to the gateway installation manual for energy usage display. Notice: The device is meant for non-critical automation activities and is not intended to support life safety or medical equipment being plugged into them over concerns about being unintentionally turned off with an automation routine. WARNING: CALIFORNIA PROPOSITION 65 This product can expose you to chemicals including Carbon black, which is known to the State of California to cause cancer, and Bisphenol A (BPA), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov WARNING Be sure to read the instruction carefully before installation, and the manufacturer will not be responsible for any product damage that does not follow the instruction 1.Wet hands are strictly prohibited. 2.Must work strictly according to the rated load. 3.Do not continue to work after self-disassembly of any nature and damage of external forces. HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH •This equipment must only be installed and serviced by qualified electrical personnel. • Turn off all power supplying this equipment before working on or inside equipment. • Always use a properly rated voltage sensing device to confirm power is off. •Replace all devices, doors, and covers before turning on power to this equipment. •Use with Copper wire only •Indoor use only. Failure to follow these instructions will result in death or serious injury.. DANGER DANGER Step 3 Check connections to be sure they are tight and no bare conductors are exposed. Step 4 Insert the device into the standard outlet box carefully. Make sure the device is fixed to the outlet box using the supplied screws. Step 6 Install the wall plate (not included) following below figure. -04- -05- ♦FCC COMPLIANCE STATEMENT Federal Communication Commission Interference Statement The equipment has been tested and found to comply with the limits for a class B Digital Device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment uses, generates and can radiate radio frequency energy and, if not installed and used in accordance with the instruction, may cause harmful interference to radio communication. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment…

Text truncated - open the document above for the full version.

Schneider Electric (China) Co., Ltd., Shenzhen Branch Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: 2AUCU-14101Z To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Theory of Operation Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Company Name: Schneider Electric (China) Co., Ltd., Shenzhen Branch Contact Name: Tony Huang Title of Person：Manager Address: Room 201, Building A, No. 1 Qianwanyi Road, Shengang Cooperation Zone, Qianhai, Shenzhen Date:01/21/2020

Schneider Electric (China) Co., Ltd., Shenzhen Branch Address: Room 201, Building A, No. 1 Qianwanyi Road, Shengang Cooperation Zone, Qianhai, Shenzhen, China Confirmation Letter We, Schneider Electric (China) Co., Ltd., Shenzhen Branch The product: Z-Wave Switch FCC ID: 2AUCU-14101Z IC: 25381-14101Z SQR14101LAZ, SQR14101BKZ have the same technical construction including circuit diagram, PCB Layout, components and component layout, all electrical construction and mechanical construction with SQR14101WHZ.The difference lies only model number and color. Company Name: Schneider Electric (China) Co., Ltd., Shenzhen Branch Contact Name: Tony Huang Address: Room 201, Building A, No. 1 Qianwanyi Road, Shengang Cooperation Zone, Qianhai, Shenzhen Date:06/04/2020

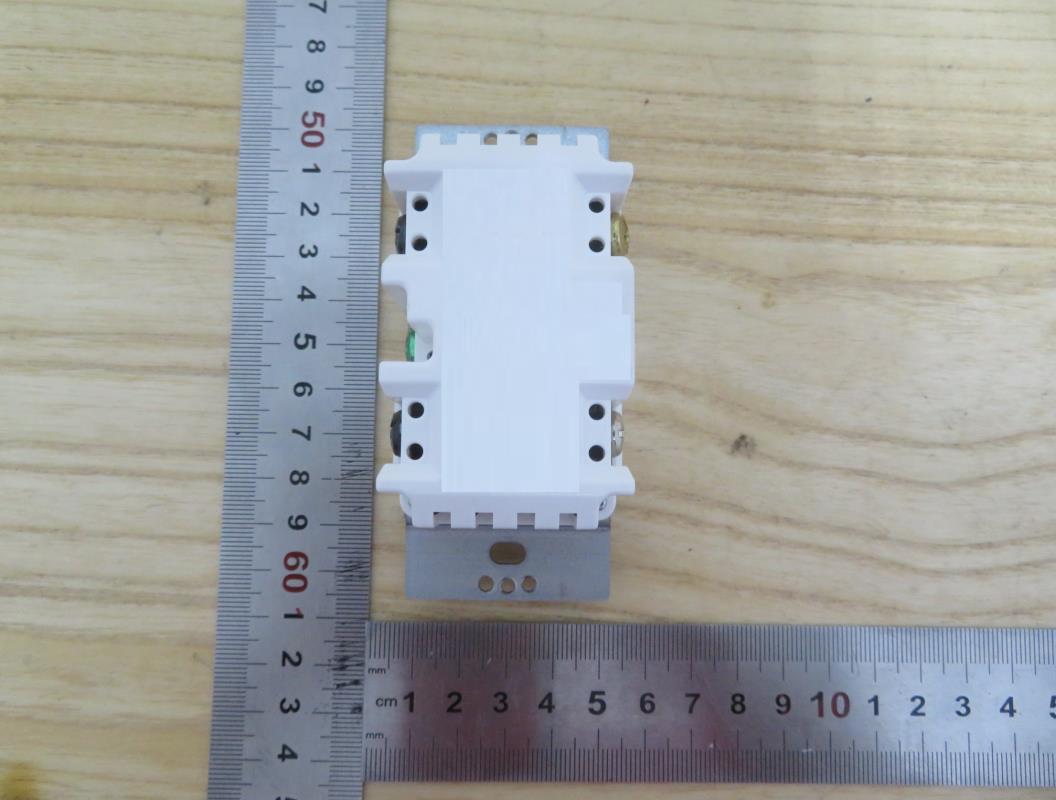

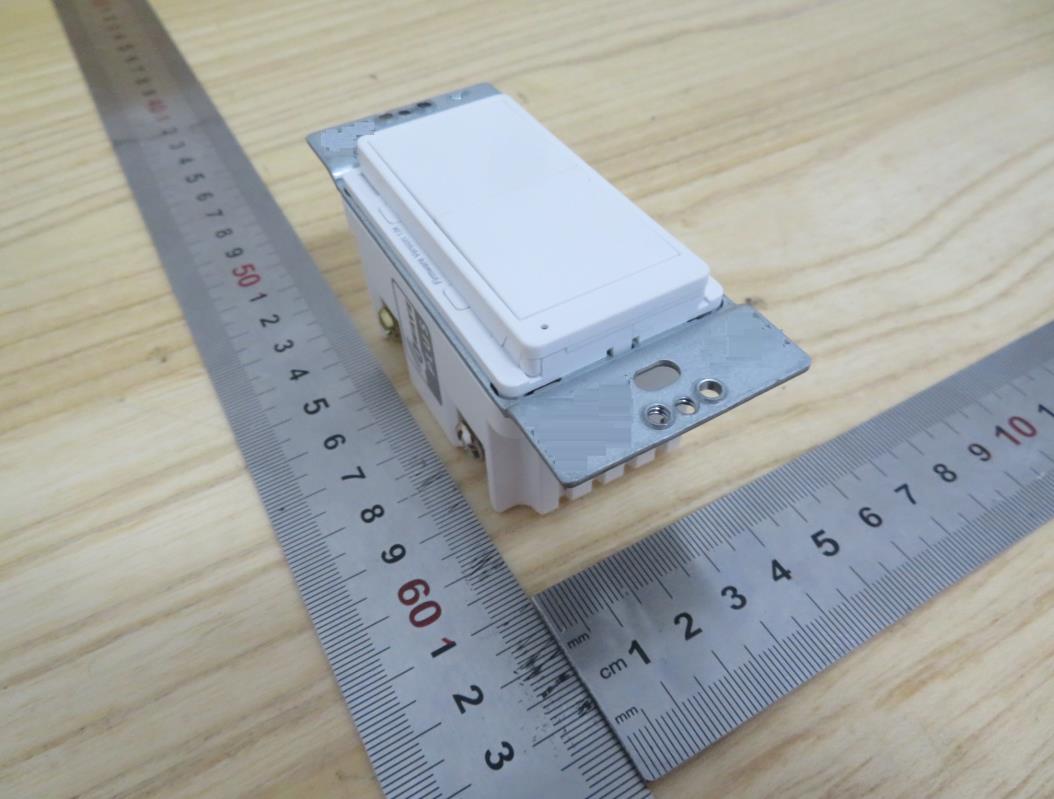

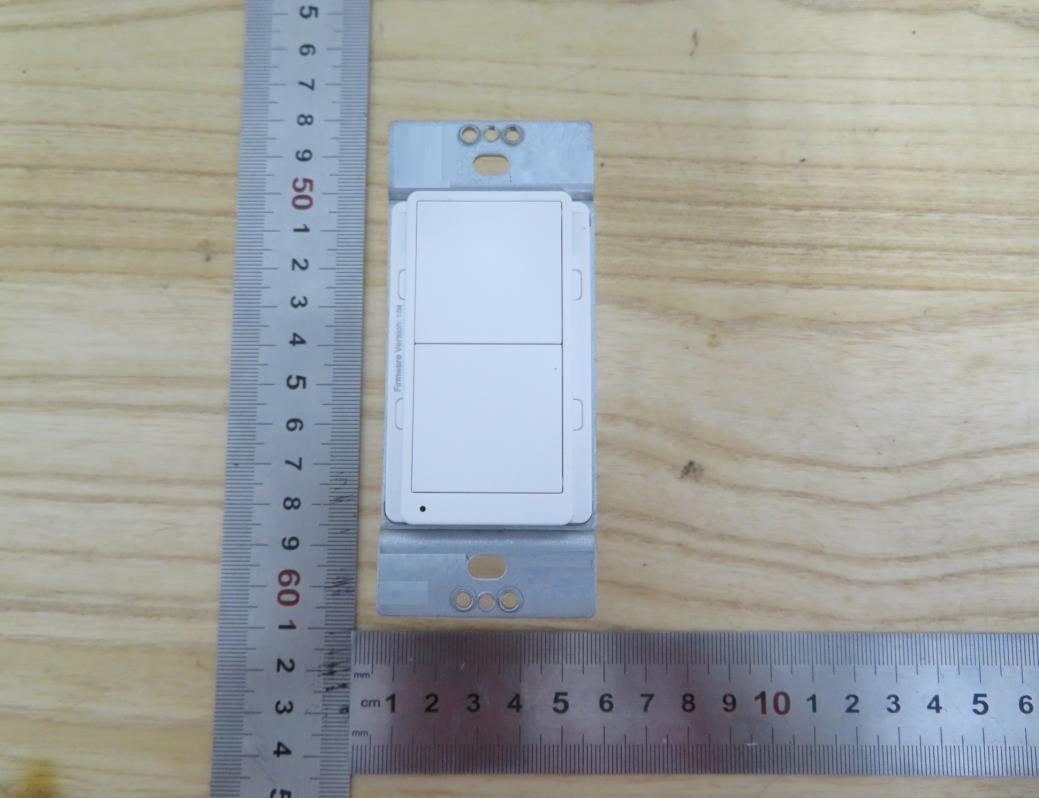

Appendix I External Photographs Page 2 of 3 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . View of EUT-1 View of EUT-2 Page 3 of 3 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . View of EUT-3 View of EUT-4

｝ UL Label Original format A4 A B C D E F A B C D E F 1 2 34 State: 00 1/1 Document Number: Doc. Rev. Sheet: 1.000 mm Scale: Technical Specification: Units of measure : The information is highly confidential and is the exclusive property of Schneider Electric copyright reserved. This drawing must not be used for any purpose other than that expressly permitted in writing by the owners and must not be disclosed or reproduced in any way without permission from the owners in writing. This drawing must be returned to the owners when the purpose has ceased. Provisional NOTES: *** ARTWORK IS THE MASTER FOR COLOUR, FONT, SIZE & LOGO'S*** 1. TEST FOR MARKINGS: REFER TO CQCS 2. LOCATION OF MARKING: POSITION AS SHOWN 3. FONT: ARIAL ROUNDED 4. TEXT HEIGHT: AS INDICATED 5. SQUARE D LOGO SIZE: 2.73MM(H)*13.79MM(L)(Pantone Cool grey 6C) 6. MINIMUM SIZE: 0.5 inch (12.7mm) (11mm) 7. MINIMUM SIZE: 1/2 inch GDE6613705 (4 mm) (2.4 mm) (Z-WAVE Logo Color: Black) 8. MINIMUM SIZE: (10 mm) Energy Monitoring SQR14101BKZ Resistive: 1800W (15A) Standard ballast: 1200VA lncandescent: 1000W LED: 5A Motor: 1/2HP 120VAC, 60Hz INDOOR USE ONLY YYYYMMDD USO SOLO EN INTERIORS XXXXX FONT SIZE: STRIP GAUGE LOAD TRAVELER HOT NEUTRAL Made in China E515069 1/2 inch FCC ID : 2AUCU-14101Z CAN ICES-3(B)/NMB-3(B) IC: 25381-14101Z For supply connections, use 12-14 AWG wires rated for at least 90°C IFETEL ID: XXXXXX Firmware Version: X.XX Z-WAVE S2 PIN Code XXXXX ｝ UL Label Original format A4 A B C D E F A B C D E F 1 2 34 State: 00 1/1 Document Number: Doc. Rev. Sheet: 1.000 mm Scale: Technical Specification: Units of measure : The information is highly confidential and is the exclusive property of Schneider Electric copyright reserved. This drawing must not be used for any purpose other than that expressly permitted in writing by the owners and must not be disclosed or reproduced in any way without permission from the owners in writing. This drawing must be returned to the owners when the purpose has ceased. Provisional NOTES: *** ARTWORK IS THE MASTER FOR COLOUR, FONT, SIZE & LOGO'S*** 1. TEST FOR MARKINGS: REFER TO CQCS 2. LOCATION OF MARKING: POSITION AS SHOWN 3. FONT: ARIAL ROUNDED 4. TEXT HEIGHT: AS INDICATED 5. SQUARE D LOGO SIZE: 2.73MM(H)*13.79MM(L)(Pantone Cool grey 6C) 6. MINIMUM SIZE: 0.5 inch (12.7mm) (11mm) 7. MINIMUM SIZE: 1/2 inch GDE6613705 (4 mm) (2.4 mm) (Z-WAVE Logo Color: Black) 8. MINIMUM SIZE: (10 mm) Energy Monitoring SQR14101LAZ Resistive: 1800W (15A) Standard ballast: 1200VA lncandescent: 1000W LED: 5A Motor: 1/2HP 120VAC, 60Hz INDOOR USE ONLY YYYYMMDD USO SOLO EN INTERIORS XXXXX FONT SIZE: STRIP GAUGE LOAD TRAVELER HOT NEUTRAL Made in China E515069 1/2 inch FCC ID : 2AUCU-14101Z CAN ICES-3(B)/NMB-3(B) IC: 25381-14101Z For supply connections, use 12-14 AWG wires rated for at least 90°C IFETEL ID: XXXXXX Firmware Version: X.XX Z-WAVE S2 PIN Code XXXXX ｝ UL Label Original format A4 A B C D E F A B C D E F 1 2 34 State: 00 1/1 Document Number: Doc. Rev. Sheet: 1.000 mm Scale: Technical Specification: Units of measure : The information is highly confidential and is the exclusive property of Schneider Electric copyright reserved. This drawing must not be used for any purpose other than that expressly permitted in writing by the owners and must not be disclosed or reproduced in any way without permission from the owners in writing. This drawing must be returned to the owners when the purpose has ceased. Provisional NOTES: *** ARTWORK IS THE MASTER FOR COLOUR, FONT, SIZE & LOGO'S*** 1. TEST FOR MARKINGS: REFER TO CQCS 2. LOCATION OF MARKING: POSITION AS SHOWN 3. FONT: ARIAL ROUNDED 4. TEXT HEIGHT: AS INDICATED 5. SQUARE D LOGO SIZE: 2.73MM(H)*13.79MM(L)(Pantone Cool grey 6C) 6. MINIMUM SIZE: 0.5 inch (12.7mm) (11mm) 7. MINIMUM SIZE: 1/2 inch GDE6613705 (4 mm) (2.4 mm) (Z-WAVE Logo Color: Black) 8. MINIMUM SIZE: (10 mm) Energy Monitoring SQR14101WHZ Resistive: 1800W (15A) Standard ballast: 1200VA lncandescent: 1000W LED: 5A Motor: 1/2HP 120VAC, 60Hz INDOOR USE ONLY YYYYMMDD USO SOLO EN INTERIORS XXXXX FONT SIZE: STRIP GAUGE LOAD TRAVELER HOT NEUTRAL Made in China E515069 1/2 inch FCC ID : 2AUCU-14101Z CAN ICES-3(B)/NMB-3(B) IC: 25381-14101Z For supply connections, use 12-14 AWG wires rated for at least 90°C IFETEL ID: XXXXXX Firmware Version: X.XX Z-WAVE S2 PIN Code XXXXX

Appendix II Internal Photographs Page 2 of 5 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . Open View of EUT Internal View of EUT-1 Page 3 of 5 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . Internal View of EUT-2 Internal View of EUT-3 Page 4 of 5 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . Internal View of EUT-4 Internal View of EUT-5 Antenna location Page 5 of 5 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . Internal View of EUT-6 Internal View of EUT-7 Antenna

The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report apply to the test sample(s) mentioned above at the time of the testing period only and are not to be used to indicate applicability to other similar products. This report does not imply that the product(s) has met the criteria for certification. FCC 47 CFR PART 15 SUBPART C ISED RSS-210 ISSUE 10 CERTIFICATION TEST REPORT For Z-Wave Switch MODEL NUMBER: SQR14101WHZ; SQR14101LAZ; SQR14101BKZ FCC ID: 2AUCU-14101Z IC: 25381-14101Z REPORT NUMBER: 4789339772-2 ISSUE DATE: June 01, 2020 Prepared for Schneider Electric (China) Co., Ltd., Shenzhen Branch Room 201, Building A, No. 1 Qianwanyi Road, Shengang Cooperation Zone, Qianhai, Shenzhen, China Prepared by UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch Room 101, Building 10, Innovation Technology Park, Song Shan Lake Hi tech Development Zone, Dongguan, 523808, China Tel: +86 769 33817100 Fax: +86 769 33244054 Website: www.ul.com REPORT NO.: 4789339772-2 Page 2 of 42 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . Revision History Rev. Issue Date Revisions Revised By V0 06/01/2020 Initial Issue REPORT NO.: 4789339772-2 Page 3 of 42 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................. 4 2. TEST METHODOLOGY ..................................................................................................... 5 3. FACILITIES AND ACCREDITATION ................................................................................. 5 4. CALIBRATION AND UNCERTAINTY ................................................................................ 6 4.1. MEASURING INSTRUMENT CALIBRATION .............................................................. 6 4.2. MEASUREMENT UNCERTAINTY ............................................................................... 6 5. EQUIPMENT UNDER TEST ............................................................................................... 7 5.1. DESCRIPTION OF EUT .............................................................................................. 7 5.2. MAXIMUM EMISSIONS FIELD STRENGTH ............................................................... 7 5.3. THE WORSE CASE POWER SETTING PARAMETER ............................................... 8 5.4. TEST ENVIRONMENT ................................................................................................ 8 5.5. TEST CHANNEL CONFIGURATION ........................................................................... 8 5.6. DESCRIPTION OF AVAILABLE ANTENNAS .............................................................. 9 5.7. DESCRIPTION OF TEST SETUP ................................................................................ 9 5.8. MEASURING INSTRUMENT AND SOFTWARE USED ..............................................10 6. SUMMARY OF TEST RESULTS .......................................................................................11 7. ANTENNA PORT TEST RESULTS ...................................................................................12 7.1. ON TIME AND DUTY CYCLE .....................................................................................12 7.2. 20 dB AND 99% BANDWIDTH ...................................................................................13 8. RADIATED TEST RESULTS .............................................................................................16 8.1. LIMITS AND PROCEDURE ........................................................................................16 8.2. FIELD STRENGTH OF INTENTIONAL EMISSIONS ..................................................22 8.3. SPURIOUS EMISSIONS BELOW 30M .......................................................................28 8.4. SPURIOUS EMISSIONS BELOW 1 GHz ....................................................................31 8.5. SPURIOUS EMISSIONS 1 ~ 10GHz ..........................................................................33 9. AC POWER LINE CONDUCTED EMISSIONS ..................................................................39 10. ANTENNA REQUIREMENTS ........................................................................................42 REPORT NO.: 4789339772-2 Page 4 of 42 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM NO: 10-SL-F0035 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. . 1. ATTESTATION OF TEST RESULTS Applicant Information Company Name: Schneider Electric (China) Co., Ltd., Shenzhen Branch Address: Room 201, Building A, No. 1 Qianwanyi Road, Shengang Cooperation Zone, Qianhai, Shenzhen, China Manufacturer Information Company Name: Schneider Electric (China) Co., Ltd., Shenzhen Branch Address: Room 201, Building A, No. 1 Qianwanyi Road, Shengang Cooperation Zone, Qianhai, Shenzhen, China EUT Information EUT Name: Z-Wave Switch Model: SQR14101WHZ Series Models: SQR14101LAZ; SQR14101BKZ Model differences: SQR14101WHZ; SQR14101LAZ; SQR14101BKZ are identical except for color Brand Name: Sample Status: Normal Sample Received Date: Jan 17, 2020 Date of Tested: Jan 17~~ June 01, 2020 APPLICABLE STANDARDS STANDARD TEST RESULTS CFR 47 Part 15 Subpart C PASS ISED RSS-210 Issue 10 PASS ISED RSS-GEN Issue 5 PASS Prepared By: Checked By: Kebo Zhang Shawn Wen P…

Text truncated - open the document above for the full version.

Appendix II Setup Photographs RADIATED RF MEASUREMENT SETUP (ABOVE 1 GHz) MEASUREMENT POSITION (X axis) MEASUREMENT POSITION (Y axis) MEASUREMENT POSITION (Z axis) RADIATED RF MEASUREMENT SETUP (30MHz~1GHz) RADIATED RF MEASUREMENT SETUP (Below 30MHz) POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP
