2AUCU-62102ZZ-WAVE+ 15A PLUG-IN OUTLET

Instruction Bulletin Boletín de instrucciones Directives d'utilisation GDE77980 Rev. 01, 05/2021 SQR62102WHZ Z-Wave ™ Plus Plug-in Spanish French Retain for future use. / Conservar para uso futuro. / À conserver pour usage ultérieur. ™ Replaces / Reemplaza / Remplace GDE77980, 09/2020 FeaturesCaracterísticasCaractéristiques • Wireless Z-Wave technology creates a mesh network for command and control interoperability with other Z-Wave compliant controllers and devices. •In duplex outlets, one outlet is always on and the other outlet is Z-Wave controlled. •Supports over-the-air (OTA) upgrade. •Z-Wave controlled outlets feature: — Manual and remote ON/OFF control of any connected lighting and other electrical connected to a Z-Wave controlled outlet. — Programmable delayed OFF time. — Three configurable power ON states. — Child lockout capability. — 3-way (multi-location) application along with Z-Wave wireless auxiliary switch, SQR50101**Z. •Measures the total energy usage of the connected loading on both outlets and displays the actual consumption (in W) and the accumulated power used (in kWh) in the user interface of the gateway. •La tecnología inalámbrica Z-Wave crea una red de malla para la interoperabilidad de comandos y controles con otros controladores y dispositivos compatibles con Z-Wave. •En tomacorrientes dobles: un tomacorriente está siempre encendido, y el otro tomacorriente está controlado por Z-Wave. • • — Control de encendido/apagado manual y remoto de todas las luminarias y otros dispositivos eléctricos conectados al tomacorriente controlado por Z-Wave. — — — — • • La technologie sans filZ-Wave crée un réseau maillé pour assurer l’interopérabilité du commandement et des commandes avec d’autres télécommandes et dispositifs compatibles avec Z-Wave. •Dans une configuration de prise duplex, une prise est toujours sous tension tandis que l’autre est commandée par Z-Wave. • • — Commande manuelle et à distance de mise sous/hors tension des éclairages connectés et des équipements électriques branchés sur une prise commandée par Z-Wave. — — — — • NOTE:NOTA: REMARQUE: •Power ON state indicates the initial status of the device when it is powered on. •Turn the device OFF to upgrade. •Please refer to the user manual for SQR50101**Z for the 3-way (multi-location) application. •Please refer to the gateway installation manual for energy usage display and energy measurement features. • • • • Consulte las funciones de indicación del uso de energía y medición de energía en el manual de instalación de la pasarela. • • • • Veuillez vous reporter au guide d’installation de la passerelle pour l’affichage de la consommation d’énergie et les fonctions de mesure de l’énergie. SQR62102WHZ Z-Wave Plus Plug-in Outlet, Energy Monitoring, 15A 125Vac Specifications / Especificaciones de monitoreo de energía, de 15 A y 125 VCA, del complemento de tomacorriente Z-Wave SQR62102WHZ / Prise pour duplex SQR62102WHZ Z-Wave – Surveillance de l’énergie, spécifications 15 A 125 Vac Voltage / Tensión / Tension125 Vac, 60 Hz / 125 Vca, 60 Hz / 125 V CA, 60 Hz Regular outlet / Tomacorriente regular / Prise régulière Current / Corriente / Courant15 A Controlled outlet / Tomacorriente controlado / Sortie commandée Incandescent lights / Luces incandescentes / Voyants à incandescence1000 W LED lights / Luces LED / Voyants DEL5 A Standard Ballast / Balasto estándar / Ballast standard1200 Va / 1200 Va / 1 200 VA Resistive load / Carga resistiva / Charge résistive15 A Motor / Motor / Moteur1/2 Hp Operating Temperature / Temperatura de operación / Température de fonctionnement32–104°F (0–40°C) / De 32 ºF a 104 ºF (de 0 ºC a 40 ºC) / 32 à 104 °F (0 à 40 °C) Wireless Type / Tipo inalámbrico / Type sans filZ-Wave (Support S2 and SmartStart) / Z-Wave (admite S2 y SmartStart) / Z-Wave (prend en charge S2 et SmartStart) Wireless Frequency / Frecuencia inalámbrica / Fréquence radio908.40 MHz / 908.42 MHz / 916 MHz PrecautionsPrecaucionesPrécautions DANGER / PELIGRO / DANGER HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH • Apply appropriate personal protective equipment (PPE) and follow safe electrical work practices. See NFPA 70E, NOM-029-STPS-2011 or CSA Z462 or local equivalent. • Do not touch metal pins during plug in or out. • Indoor use only. PELIGRO DE DESCARGA ELÉCTRICA, EXPLOSIÓN O DESTELLO POR ARQUEO • Utilice equipo de protección personal (EPP) apropiado y siga las prácticas de seguridad eléctrica establecidas por su Compañía, consulte la norma 70E de NFPA, NOM-029-STPS-2011 o CSA Z462 o la norma local equivalente. • No toque las clavijas de metal cuando enchufe o desenchufe. • Uso exclusivo en interiores. RISQUE D'ÉLECTROCUTION, D'EXPLOSION OU D'ÉCLAIR D'ARC ÉLECTRIQUE • Portez un équipement de protection individuelle (ÉPI) approprié et observez les méthodes de travail électrique sécuritaire. Voir NFPA 70E, NOM-029-STPS-2011 ou CSA Z462 ou les équivalents applicables dans votre region du monde. • Ne touchez pas aux broches métalliques pendant le branchement ou le débranchement. • Utilisation à l’intérieur uniquement. Failure to follow these instructions will result in death or serious injury. El incumplimiento de estas instrucciones podrá causar la muerte o lesiones serias.Si ces directives ne sont pas respectées, cela entraînera la mort ou des blessures graves. WARNING / ADVERTENCIA / AVERTISSEMENT HAZARD OF HEAT AND FIRE DAMAGE Read all instructions before installation. The manufacturer will not be held responsible for product damage resulting from not following the instructions. • Wet hands are strictly prohibited. • Work strictly according to the rated load. • Do not continue working after self-disassembly of any nature and damage of external forces. PELIGRO DE DAÑO POR CALENTAMIENTO E INCENDIO Lea todas las instrucciones antes de la instalación. El fabricante no será responsable por los daños causados al producto por no seguir las instrucciones. • Está estrictamente prohibido tener las manos mojadas. • Trabaje estri…

Text truncated - open the document above for the full version.

Schneider Electric (China) Co., Ltd., Shenzhen Branch Agent Authorization Company: Schneider Electric (China) Co., Ltd., Shenzhen Branch Address: Room 201, Building A, No. 1 Qianwanyi Road, Shengang Cooperation Zone, Qianhai, Shenzhen, China Product Name: Z-WAVE+ 15A PLUG-IN OUTLET Model Number(s): SQR62102WHZ Product Description: Z-WAVE+ 15A PLUG-IN OUTLET We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Dec 1 st , 2020 Name: Tony Huang Title: Manager Company: Schneider Electric (China) Co., Ltd., Shenzhen Branch

Schneider Electric (China) Co., Ltd., Shenzhen Branch Dec 1 st , 2020 Federal Communications Commission Authorization and Evaluation Division FCC ID： 2AUCU-62102Z Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information applied this application as outlined below: 1. Block Diagram 2. Circuit Diagram 3. Operational Description The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Company Name: Schneider Electric (China) Co., Ltd., Shenzhen Branch Contact Name: Tony Huang Title of Person：Manager E-mail: [email protected] Address: Room 201, Building A, No. 1 Qianwanyi Road, Shengang Cooperation Zone, Qianhai, Shenzhen

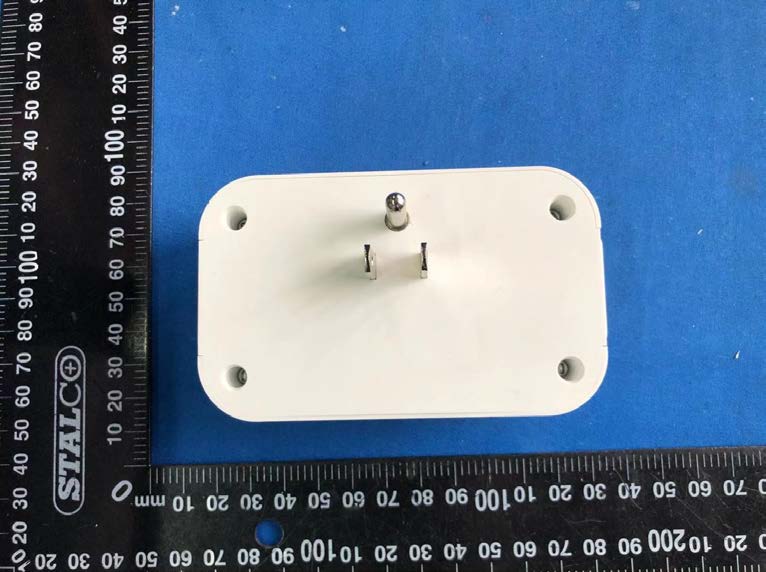

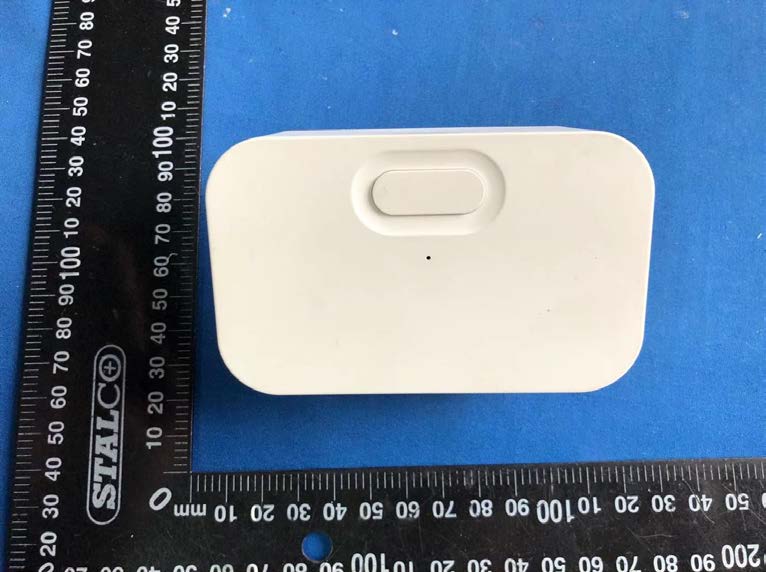

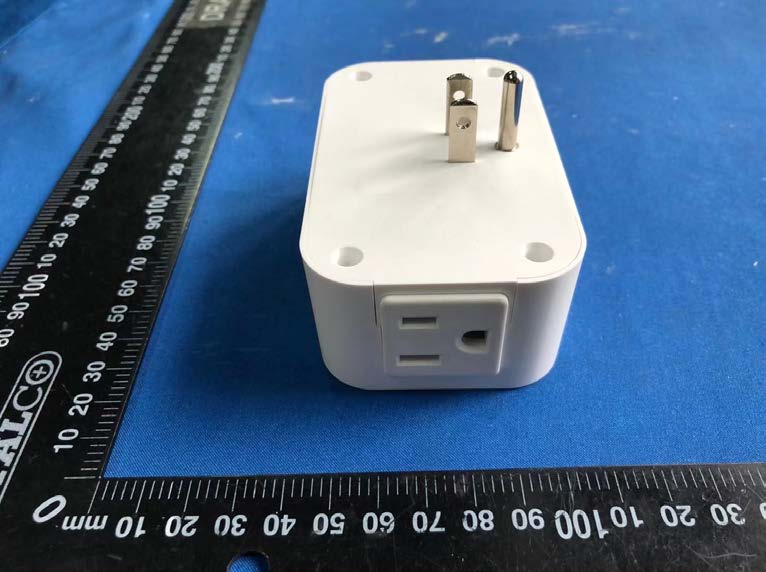

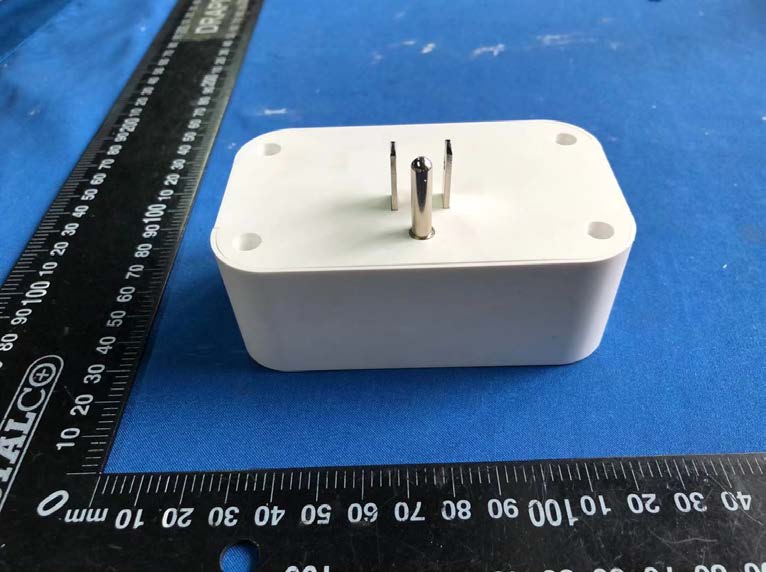

External photograph

Original format A4 A B C D E F A B C D E F 1 2 34 State: 00 1/1 Document Number: Doc. Rev. Sheet: 1.000 mm Scale: Technical Specification: Units of measure : The information is highly confidential and is the exclusive property of Schneider Electric copyright reserved. This drawing must not be used for any purpose other than that expressly permitted in writing by the owners and must not be disclosed or reproduced in any way without permission from the owners in writing. This drawing must be returned to the owners when the purpose has ceased. Provisional NOTES: *** ARTWORK IS THE MASTER FOR COLOUR, FONT, SIZE & LOGO'S*** 1. TEST FOR MARKINGS: REFER TO CQCS 2. LOCATION OF MARKING: POSITION AS SHOWN 3. FONT: ARIAL ROUNDED 4. TEXT HEIGHT: AS INDICATED 5. SQUARE D LOGO SIZE: 2.73MM(H)*13.79MM(L)(Pantone Cool grey 6C) 6. MINIMUM SIZE: (11mm) GDE3993903 E515069 YYYYMMDD SQR62102WHZ 125VAC, 60Hz LED: 5A Motor: 1/2 HP FCC ID: 2AUCU-62102Z CAN ICES-3(B)/NMB-3(B) Resistive: 15A Incandescent: 1000W Standard ballast: 1200VA IC: 25381-62102Z Made in China Indoor Use Only (WIRELESS SWITCH) Energy Monitoring UL Label ｝ (Z-WAVE Logo Color: Black) 7. MINIMUM SIZE: (10 mm) FONT SIZE: XXXXX (10 mm) Z-WAVE S2 PIN Code XXXXX

Internal photograph

TEST REPORT Applicant : Schneider Electric (China) Co., Ltd., Shenzhen Branch Product Name : Z-WAVE+ 15A PLUG-IN OUTLET Mode No. : SQR62102WHZ CVC Testing Technology Co., Ltd. 威凯检测技术有限公司 Add.: No.3, Tiantaiyi Road, Kaitai Avenue, Science City, Guangzhou, 510663, P. R. China Telephone: +86-20-32293888 Fax : +86-20-32293889 E-mail: [email protected] Test Report No.: FCC2020-0028-2(XG1) CVC Testing Technology Co., Ltd. CVC Test Report No. FCC2020-0028-2(XG1) Page 2 of 47 LTC-R-7092-RF-Part15C-A1 Applicant Name : Schneider Electric (China) Co., Ltd., Shenzhen Branch Address : Room 201, Building A, No. 1 Qianwanyi Road, Shengang Cooperation Zone, Qianhai, Shenzhen, China Manufacturer Name : Schneider Electric (China) Co., Ltd., Shenzhen Branch Address : Room 201, Building A, No. 1 Qianwanyi Road, Shengang Cooperation Zone, Qianhai, Shenzhen, China Equipment under Test Product Name : Z-WAVE+ 15A PLUG-IN OUTLET Model No. : SQR62102WHZ Trade mark : Schneider Electric,Square D Serial no. : — Sampling : — Date of Receipt. 2020.12.01 Date of Testing 2020.12.01~2021.06.08 Test Specification Test Result FCC CFR47 Part 15C (2020) Radio Frequency Devices ANSI C63.10 (2013) PASS Evaluation of Test Result The equipment under test was found to comply with the requirements of the standards applied. Issue Date: 2021.06.24 Tested by: Xu Zhenfei Reviewed by: Liu YongHai Approved by: Chen HuaWen Other Aspects: NONE. Abbreviations:OK, Pass= passed Fail = failed N/A= not applicable EUT= equipment, sample(s) under tested This test report relates only to the EUT, and shall not be reproduced except in full, without written approval of CVC. Note: The test report (No. FCC2020-0028-2 ) was issued on June 8, 2021. It was modified for the first time on June 24, 2021. The modification contents follow as: The model number changed from "SQR62102WHZ,SQR62102LAZ,SQR62102BKZ" to "SQR62102WHZ". The pages involved are: P1,P2,P4; the corresponding revised pages are marked with (XG1) after the original test report number. CVC Testing Technology Co., Ltd. CVC Test Report No. FCC2020-0028-2 Page 3 of 47 LTC-R-7092-RF-Part15C-A1 TABLE OF CONTENTS 1. GENERAL PRODUCT INFORMATION ................................................................................................... 4 1.1 GENERAL INFORMATION ............................................................................................................................. 4 2. TEST SITES................................................................................................................................................ 5 2.1 TEST FACILITIES......................................................................................................................................... 5 2.2 DESCRIPTION OF NON-STANDARD METHOD AND DEVIATIONS ................................................................. 5 2.3 LIST OF TEST AND MEASUREMENT INSTRUMENTS.................................................................................... 5 3. TEST CONFIGURATION ........................................................................................................................... 6 3.1 TEST MODE ................................................................................................................................................ 6 4. SUMMARY OF MEASUREMENT RESULTS .......................................................................................... 7 5. MEASUREMENT PROCEDURE ............................................................................................................. 8 5.1 AC POWER LINE CONDUCTED EMISSION ................................................................................................. 8 5.2 RADIATED EMISSION ................................................................................................................................ 16 5.3 OCCUPIED BANDWIDTH ........................................................................................................................... 36 5.4 ANTENNA MEASUREMENT ........................................................................................................................ 39 6. TEST SETUP PHOTOGRAPH ................................................................................................................ 40 7. EUT PHOTOGRAPH ................................................................................................................................ 42 8. APPENDIX ................................................................................................................................................ 47 CVC Testing Technology Co., Ltd. CVC Test Report No. FCC2020-0028-2(XG1) Page 4 of 47 LTC-R-7092-RF-Part15C-A1 1. General Product Information 1.1 General information Product Name Z-WAVE+ 15A PLUG-IN OUTLET Model No. SQR62102WHZ Power Supply 125 Vac,60Hz Antenna Type PCB Antenna Antenna Connector A permanently attached antenna (meet with the standard FCC Part 15.203 requirement) Antenna Gain Antenna 1:0.5dBi Wireless Frequency 908.4 MHz, 908.42 MHz, 916.00 MHz Modulation Type FSK, GFSK Data rate 9.6 kbps, 40 kbps, 100 kbps FCC ID 2AUCU-62102Z Note： 1. The information of the EUT is declared by the manufacturer. CVC Testing Technology Co., Ltd. CVC Test Report No. FCC2020-0028-2 Page 5 of 47 LTC-R-7092-RF-Part15C-A1 2. Test Sites 2.1 Test Facilities The tests and measurements refer to this report were performed by EMC testing Lab. of CVC Testing Technology Co., Ltd. Add.: No.3, Tiantaiyi Road, Kaitai Avenue, Science City, Guangzhou, 510663, P. R. China Telephone : +86-20-32293888 Fax : +86-20-32293889 FCC(Test firm designation number：CN1282) IC(Test firm CAB identifier number：CN0103) 2.2 Description of Non-standard Method and Deviations The testing and measurement methods used in this report are applied by all standard methods. Not any non-standard method or deviation from the used standards was used. 2.3 List of Test and Measurement Instruments Refer to Appendix CVC Testing…

Text truncated - open the document above for the full version.

Test Setup Photograph-Part 15C (1) Radiated spurious emission Test Setup-1(9KHz~30MHz) (2) Radiated spurious emission Test Setup-2(Below 1GHz) (3) Radiated spurious emission Test Setup-3(Above 1GHz) (4) Conducted Emission Test Setup
