2AUCU-22102ZZ-WAVE+ 600W DIMMER SINGLE POLE

Instruction Bulletin Boletín de instrucciones Directives d'utilisation GDE77979 Rev. 01, 05/2021 SQR22102WHZ, SQR22102LAZ, SQR22102BKZ Z-Wave ™ 600 W Dimmer Spanish French Retain for future use. / Conservar para uso futuro. / À conserver pour usage ultérieur. ™ Replaces / Reemplaza / Remplace GDE77979, 09/2020 FeaturesCaracterísticasCaractéristiques • Wireless Z-Wave technology creates a mesh network for command and control interoperability with other Z-Wave compliant controllers and devices. •Manual and remote on/off and dimming control of any installed incandescent or dimmable LED. •Preset light level option allows the dimmer to turn on to the light level that was adjusted previously when the light was on. •Double tap paddle adjusts light to full brightness without affecting preset levels. •Programmable rapid start feature ensures lamp start-up even at low dim levels. •Adjustable high level trim setting for additional energy savings. •Adjustable low level trim setting prevents flickering. •Programmable fade up time. •Programmable delayed OFF time. •Three configurable power ON states. •Supports over-the-air (OTA) upgrade. •Child lockout capability. •Sliding air gap switch meets UL ® requirements and allows the power to disconnect from the load locally. •Single-pole or 3-way (multi-location) use. •Measures the energy usage of the connected lighting and displays the actual consumption (in W) and the energy consumed (in kWh) in the user interface of the gateway. •La tecnología inalámbrica Z-Wave crea una red de malla para la interoperabilidad de comandos y controles con otros controladores y dispositivos compatibles con Z-Wave. • • La opción de nivel de intensidad preestablecida permite que el atenuador se encienda en el mismo nivel de intensidad que se había establecido cuando la luz estaba encendida. • • • • • • • • • El interruptor deslizable con espacio de aire cumple con los requisitos UL® y permite desconectar la alimentación de la carga localmente. • • Mide el uso de energía de la iluminación conectada, muestra el consumo real (en W) y la energía consumida (en kWh) en la interfaz de usuario de la pasarela. •La technologie sans filZ-Wave crée un réseau maillé pour assurer l’interopérabilité du commandement et des commandes avec d’autres télécommandes et dispositifs compatibles avec Z-Wave. • • L’option de niveau de lumière préréglé permet d’allumer le gradateur au dernier niveau de lumière réglé. • • • • • • • • • L’interrupteur à entrefer coulissant répond aux exigences UL® et permet de couper l’alimentation de la charge au niveau local. • • L’interface utilisateur de la passerelle permet d’afficher la consommation réelle (en W) et l’énergie consommée (en kWh) de l’éclairage connecté. NOTE: •The LED dimming performance may vary based on dimmer type, model, manufacturer, circuit wiring, and circuit loading. •Power ON state indicates the initial status of the device when it is powered on. •Turn the device OFF to upgrade. •For multi-location applications, a traditional mechanical switch or the Z-Wave wireless auxiliary switch, SQR50101**Z, could be used along with one Z-Wave master dimmer. •Please refer to the gateway installation manual for energy usage display and energy measurement features. NOTA: •El rendimiento del atenuador de LED puede variar según el tipo, el modelo, el fabricante, el cableado del circuito y la carga del circuito. • • • • Consulte las funciones de indicación del uso de energía y medición de energía en el manual de instalación de la pasarela. REMARQUE: •Les performances des DEL peuvent varier en fonction du type de gradateur, du modèle, du fabricant, du câblage du circuit et de la charge du circuit. • • • • Veuillez vous reporter au guide d’installation de la passerelle pour l’affichage de la consommation d’énergie et les fonctions de mesure de l’énergie. SQR22102**Z Z-Wave 600 W Dimmer, Single-Pole, Energy Monitoring Specifications / Especificaciones de monitoreo de energía del atenuador unipolar de 600 W Z-Wave SQR22102**Z / Gradateur 600 W SQR22102**Z Z-Wave™, unipolaire – Spécifications de commande de l’énergie 1 1 ** = color code / código de color / code de couleur : WH (white / blanco / blanc), LA (light almond / marfil / vert amande clair), BK (black / negro / noir) Voltage / Tensión / Tension120 Vac, 60 Hz / 120 Vca, 60 Hz / 120 V CA, 60 Hz Incandescent lights / Luces incandescentes / Voyants à incandescence600 W Dimmable LED lights / Luces LED regulables / Éclairages à DEL gradables1.25 A (150 W) Operating temperature / Temperatura de operación / Température de fonctionnement32–104°F (0–40°C) / De 32ºF a 104ºF (de 0ºC a 40ºC) / 32 à 104°F (0 à 40°C) Supply Connection / Conexión de alimentación / Raccordement à l'alimentation14 AWG 2 2 Suitable for at least 167°F (75°C). / Apto para al menos 167 °F (75 °C). / Convient pour au moins 167 °F (75 °C). Wireless Type / Tipo inalámbrico / Type sans filZ-Wave (Support S2 and SmartStart) / Z-Wave (admite S2 y SmartStart) / Z-Wave (prend en charge S2 et SmartStart) Wireless Frequency / Frecuencia inalámbrica / Fréquence radio908.40 MHz / 908.42 MHz / 916 MHz PrecautionsPrecaucionesPrécautions DANGER / PELIGRO / DANGER HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH • Apply appropriate personal protective equipment (PPE) and follow safe electrical work practices. See NFPA 70E, NOM-029-STPS-2011 or CSA Z462 or local equivalent. • This equipment must only be installed and serviced by qualified electrical personnel. • Turn off all power supplying this equipment before working on or inside equipment. • Always use a properly rated voltage sensing device to confirm power is off. • To reduce the risk of overheating and possible equipment damage, do not install to control a receptacle, a motor-operated appliance, a fluorescent lighting fixture, or a transformer-supplied appliance. • Use with copper wire only. • Indoor use only. • Replace all devices, doors, and covers before turning on power to this equipment. PELIGRO DE…

Text truncated - open the document above for the full version.

Schneider Electric (China) Co., Ltd., Shenzhen Branch Address: Room 201, Building A, No. 1 Qianwanyi Road, Shengang Cooperation Zone, Qianhai, Shenzhen, China Confirmation Letter We, Schneider Electric (China) Co., Ltd., Shenzhen Branch The product: Z-WAVE+ 600W DIMMER SINGLE POLE FCC ID: 2AUCU-22102Z IC: 25381-22102Z SQR22102LAZ and SQR22102BKZ have the same technical construction including circuit diagram, PCB Layout, components and component layout, all electrical construction and mechanical construction with SQR22102WHZ. The difference lies only model number and color. ______________________ Company Name: Schneider Electric (China) Co., Ltd., Shenzhen Branch Contact Name: Tony Huang Address: Room 201, Building A, No. 1 Qianwanyi Road, Shengang Cooperation Zone, Qianhai, Shenzhen Date:12/16/2020

Schneider Electric (China) Co., Ltd., Shenzhen Branch Agent Authorization Company: Schneider Electric (China) Co., Ltd., Shenzhen Branch Address: Room 201, Building A, No. 1 Qianwanyi Road, Shengang Cooperation Zone, Qianhai, Shenzhen, China Product Name: Z-WAVE+ 600W DIMMER SINGLE POLE Model Number(s): SQR22102WHZ; SQR22102LAZ; SQR22102BKZ Product Description: Z-WAVE+ 600W DIMMER SINGLE POLE We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: Dec 1 st , 2020 Name: Tony Huang Title: Manager Company: Schneider Electric (China) Co., Ltd., Shenzhen Branch

Schneider Electric (China) Co., Ltd., Shenzhen Branch Dec 1 st , 2020 Federal Communications Commission Authorization and Evaluation Division FCC ID：2AUCU-22102Z Confidentiality Request Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, the applicant hereby requests confidential treatment of information applied this application as outlined below: 1. Block Diagram 2. Circuit Diagram 3. Operational Description For 180 days pursuant to KDB 726920 D01. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the applicant and provide unjustified benefits to its competitors. The Applicant understands that pursuant to Rule 0.457, disclosure of this Application and all accompanying documentation will not be made before the date of the Grant for this application Sincerely, Company Name: Schneider Electric (China) Co., Ltd., Shenzhen Branch Contact Name: Tony Huang Title of Person：Manager E-mail: [email protected] Address: Room 201, Building A, No. 1 Qianwanyi Road, Shengang Cooperation Zone, Qianhai, Shenzhen

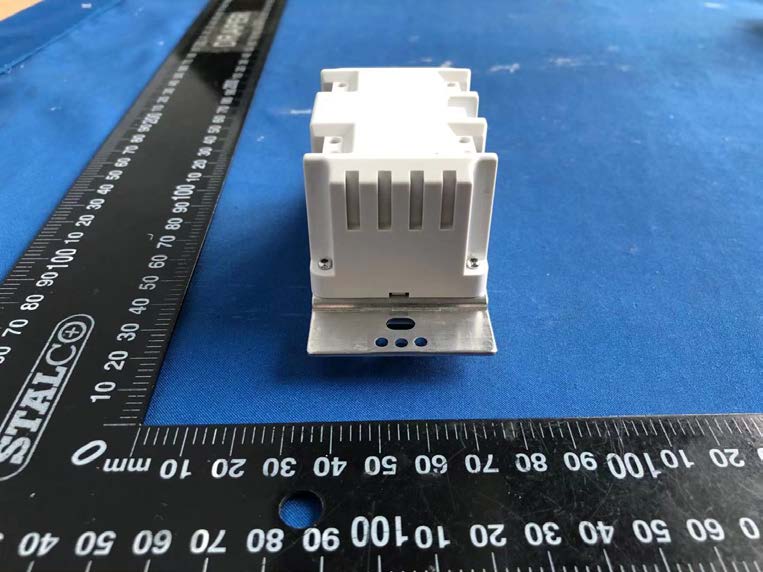

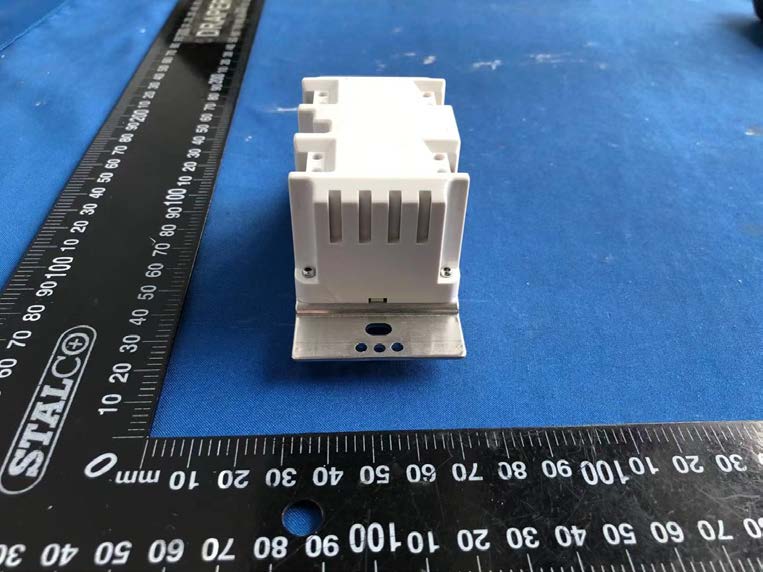

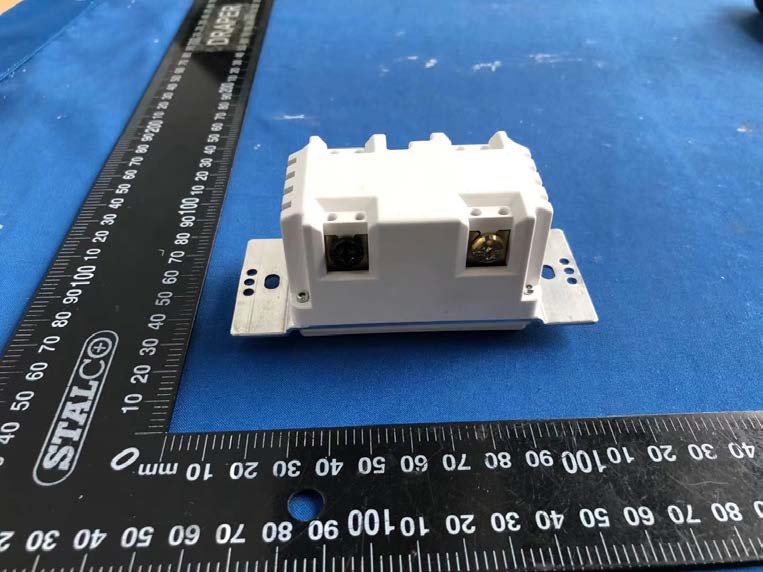

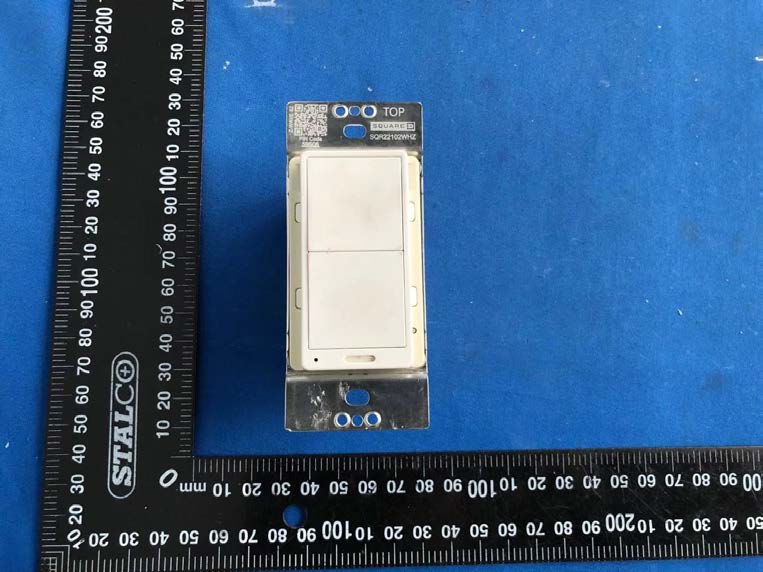

External photograph

SQR22102BKZ Z-WAVE S2 PIN Code XXXXX Reset E513233 Energy Monitoring LOAD FCC ID : 2AUCU-22102Z CAN ICES-003(B)/NMB-003(B) IC: 25381-22102Z For supply connections, use 12-14 AWG wires rated for at least 75°C TRAVELER STRIP GAUGE HOT NEUTRAL Made in China 1/2 inch 7. MINIMUM SIZE: (10 mm) (10 mm) FONT SIZE: XXXXX (10 mm) (11mm) 5. MINIMUM SIZE: (Z-WAVE Logo Color: Black)

SQR22102LAZ Z-WAVE S2 PIN Code XXXXX Reset E513233 Energy Monitoring LOAD FCC ID : 2AUCU-22102Z CAN ICES-003(B)/NMB-003(B) IC: 25381-22102Z For supply connections, use 12-14 AWG wires rated for at least 75°C TRAVELER STRIP GAUGE HOT NEUTRAL Made in China 1/2 inch 7. MINIMUM SIZE: (10 mm) (10 mm) FONT SIZE: XXXXX (10 mm) (11mm) 5. MINIMUM SIZE: (Z-WAVE Logo Color: Black)

SQR22102WHZ Z-WAVE S2 PIN Code XXXXX Reset E513233 Energy Monitoring LOAD FCC ID : 2AUCU-22102Z CAN ICES-003(B)/NMB-003(B) IC: 25381-22102Z For supply connections, use 12-14 AWG wires rated for at least 75°C TRAVELER STRIP GAUGE HOT NEUTRAL Made in China 1/2 inch 7. MINIMUM SIZE: (10 mm) (10 mm) FONT SIZE: XXXXX (10 mm) (11mm) 5. MINIMUM SIZE: (Z-WAVE Logo Color: Black)

Internal photograph

TEST REPORT Applicant : Schneider Electric (China) Co., Ltd., Shenzhen Branch Product Name : Z-WAVE+ 600W DIMMER SINGLE POLE Mode No. : SQR22102WHZ,SQR22102LAZ,SQ R22102BKZ CVC Testing Technology Co., Ltd.（ （（ （Former Vkan Certification &Testing Co., Ltd.） ）） ） 威凯检测技术有限公司 Add.: No.3, Tiantaiyi Road, Kaitai Avenue, Science City, Guangzhou, 510663, P. R. China Telephone: +86-20-32293888 Fax : +86-20-32293889 E-mail: [email protected] Test Report No.: FCC2020-0025-1(XG1) CVC Testing Technology Co., Ltd. CVC Test Report No. FCC2020-0025-1(XG1) Page 2 of 28 LTC-R-7158-Part15B-A0 Applicant Name : Schneider Electric (China) Co., Ltd., Shenzhen Branch Address : Room 201, Building A, No. 1 Qianwanyi Road, Shengang Cooperation Zone, Qianhai, Shenzhen, China Manufacturer Name : Schneider Electric (China) Co., Ltd., Shenzhen Branch Address : Room 201, Building A, No. 1 Qianwanyi Road, Shengang Cooperation Zone, Qianhai, Shenzhen, China Equipment under Test Product Name : Z-WAVE+ 600W DIMMER SINGLE POLE Model No. : SQR22102WHZ,SQR22102LAZ,SQR22102BKZ Trade mark : Schneider Electric,Square D Serial no. : — Sampling : — Date of Receipt. 2020.12.01 Date of Testing 2020.12.01~2021.03.29 Test Specification Test Result FCC CFR47 Part 15B (2020) Radio Frequency Devices ANSI C63.4 (2014) PASS Evaluation of Test Result The equipment under test was found to comply with the requirements of the standards applied. Issue Date: 2021.06.22 Tested by: Xu Zhenfei  Name Signature Reviewed by: Liu Yonghai  Name Signature Approved by: Zeng Bo  Name Signature Other Aspects: NONE. Abbreviations:OK, Pass= passed Fail = failed N/A= not applicable EUT= equipment, sample(s) under tested This test report relates only to the EUT, and shall not be reproduced except in full, without written approval of CVC. Note: The test report (No. FCC2020-0025-1) was issued on March 29, 2021. It was modified for the first time on June 22, 2021. The modification contents follow as: Modification of English name of testing institution. The pages involved are: P1~P28; the corresponding revised pages are marked with (XG1) after the original test report number. CVC Testing Technology Co., Ltd. CVC Test Report No. FCC2020-0025-1(XG1) Page 3 of 28 LTC-R-7158-Part15B-A0 TABLE OF CONTENTS 1. GENERAL PRODUCT INFORMATION ................................................................................................... 4 1.1 GENERAL INFORMATION ............................................................................................................................. 4 2. TEST SITES................................................................................................................................................ 5 2.1 TEST FACILITIES......................................................................................................................................... 5 2.2 DESCRIPTION OF NON-STANDARD METHOD AND DEVIATIONS ................................................................. 5 2.3 LIST OF TEST AND MEASUREMENT INSTRUMENTS.................................................................................... 5 3. TEST CONFIGURATION ........................................................................................................................... 6 3.1 TEST MODE ................................................................................................................................................ 6 4. SUMMARY OF MEASUREMENT RESULTS .......................................................................................... 7 5. MEASUREMENT PROCEDURE ............................................................................................................. 8 5.1 CONDUCTED EMISSION .............................................................................................................................. 8 5.2 RADIATED EMISSION ................................................................................................................................ 12 6. TEST SETUP PHOTOGRAPH ................................................................................................................ 21 7. EUT PHOTOGRAPH ................................................................................................................................ 23 8. APPENDIX ................................................................................................................................................ 28 CVC Testing Technology Co., Ltd. CVC Test Report No. FCC2020-0025-1(XG1) Page 4 of 28 LTC-R-7158-Part15B-A0 1. General Product Information The model of this application: SQR22102WHZ,SQR22102LAZ,SQR22102BKZ. SQR22102LAZ and SQR22102BKZ have the same technical construction including circuit diagram, PCB Layout, components and component layout, all electrical construction and mechanical construction with SQR22102WHZ. The difference lies only model number and color. All the tests carried out on model SQR22102WHZ. 1.1 General information Product Name Z-WAVE+ 600W DIMMER SINGLE POLE Model No. SQR22102WHZ,SQR22102LAZ,SQR22102BKZ Power Supply 120 Vac,60Hz FCC ID 2AUCU-22102Z Note： 1. The information of the EUT is declared by the manufacturer. CVC Testing Technology Co., Ltd. CVC Test Report No. FCC2020-0025-1(XG1) Page 5 of 28 LTC-R-7158-Part15B-A0 2. Test Sites 2.1 Test Facilities The tests and measurements refer to this report were performed by EMC testing Lab. of CVC Testing Technology Co., Ltd.（Former Vkan Certification &Testing Co., Ltd.） Add.: No.3, Tiantaiyi Road, Kaitai Avenue, Science City, Guangzhou, 510663, P. R. China Telephone : +86-20-32293888 Fax : +86-20-32293889 Test firm designation number：CN1282 The EMC testing laboratory has been recognized by CNAS, and authorized by Nemko of Norway since 1997, and accredited by DAkkS of Germany since 2007, and assessed and found eligible to participated in the TDAP of VDE testing and certification Institute since 2004, and registered by FCC since 2001. 2.2 Description of Non-stan…

Text truncated - open the document above for the full version.

Test Setup Photograph (1) Radiated spurious emission Test Setup(Below 1GHz) (2) Radiated spurious emission Test Setup(Above 1GHz) (3) Conducted Emission Test Setup
