2AUCU-226U1WWI-FI 600W DIMMER SINGLE POLE

™ - DANGER / PELIGRO / DANGER -- - - GDE7797500-00 SQR226U1**W Wi-Fi® 600W Dimmer Switch,, Energy Monitoring 600 W SQR226U1**W Specifications / Especificaciones / Caractéristiques 150 W 1.25 A) Wireless Type Wireless Frequency Wi-Fi®, IEEE 802.11b/g/n 2.4GHz Voltage / Tensión / Tension IntroductionIntroducciónIntroduction • Perfect Replacement for regular wall ON/OFF & Dim switch, 120VAC • Manual and Remote ON/OFF& Dim control of any permanently installed incandescent, dimmable LED fixture • Preset light level option allows the dimmer will turn on to the light level that it was adjusted to the previous time when the light was on • Can be used for single pole or 3-Way (Multi-location) with Rocker Switch (sold separately) • Air-Gap Switch feature meets UL requirement and disconnect power from load locally. • Wi-Fi® is a registered trademark of Wi-Fi Alliance R FCC ID: 2AUCU-226U1W IC:25381-226U1W WARNING / ADVERTENCIA / AVERTISSEMENT HAZARD OF HEAT AND FIRE DAMAGE Read all instructions before installation. The manufacturer will not be held responsible for product damage resulting from not following the instructions. • Wet hands are strictly prohibited. • Work strictly according to the rated load. • Do not continue working after self-disassembly of any nature and damage of external forces. PELIGRO DE DAÑO POR CALENTAMIENTO E INCENDIO Lea todas las instrucciones antes de la instalación. El fabricante no será responsable por los daños causados al producto por no seguir las instrucciones. • Está estrictamente prohibido tener las manos m ojadas. • Trabajar estrictamente de acuerdo con la carga nominal. • No siga trabajando si se produce un desmontaje de cualquier naturaleza, o daño por fuerzas externas. RISQUE DE DOMMAGE CAUSÉ PAR LA CHALEUR ET LE FEU Lisez toutes les instructions avant l’installation. Le fabricant ne pourra pas être tenu responsable des dégâts causés au produit qui peuvent survenir si ces instructions ne sont pas respectées. • Il est strictement interdit de l’utiliser avec les mains mouillées. • Travaillez en respectant strictement la charge nominale! • Arrêtez de travailler après une désintégration accidentelle de quelque natu re que ce soit et des dommages causés par des forces extérieures. Failure to follow these instructions can result in death, serious injury, or equipment damage. El incumplimiento de estas instrucciones puede causar la muerte, lesiones serias o daño al equipo. Si ces directives ne sont pas respectées, cela peut entraîner la mort, des blessures graves ou des dommages matériels. LED Bulbs / Then the maximum COMBINED wattage for the incandescent/bulbs / H = Hot (black wire) N = Neutral (white wire) T = Traveler G = Ground (green/bare wire) L = Load (black wire) H = Fase (conductor negro) N = Neutro (conductor blanco) T = Cable viajero G = Tierra (conductor verde o pelado) L = Carga (conductor negro) H = Actif (fil noir) N = Neutre (fil blanc) T = Fil de voyageur G = Terre (fil vert / nu) L = Charge (fil noir) Hot / Fase / Actif Neutral / Neutro / Neutre Load / Carga / Charge H N G L Ground / Tierra / Terre Traveler / cable viajero / fil de voyageur T ** = color code / código de color / code de couleur : WH (white / blanco / blanc) LA (light almond / marfil / vert amande claire) BK (black / negro / noir) GY (gray / gris / gris) Only for installation of XD Series cover plate. / Solo para la instalación de la placa de cubierta de la serie XD. / Uniquement pour l’installation du couvercle de la série XD. X Series / Serie X / Série XXD Series / Serie XD / Série XD XD Series Multigang / Serie XD tomas múltiples / Séries XD Multigang SQR226U1**W Wi-Fi® 600W Dimmer Switch H = Hot (black wire) N = Neutral (white wire) G = Ground (green/bare wire) L = Load (black wire) H = Fase (conductor negro) N = Neutro (conductor blanco) G = Tierra (conductor verde o pelado) L = Carga (conductor negro) H = Actif (fil noir) N = Neutre (fil blanc) G = Terre (fil vert / nu) L = Charge (fil noir) Hot / Fase / Actif Neutral / Neutro / Neutre Load / Carga / Charge H N G L Ground / Tierra / Terre Back wire / Conductor posterior / Fil arre arrière About wire connections: / Sobre conexiones del cable: / À propos de connexions de fils : 0.5 in (12.7 mm) / 0.5 pulgadas (12.7 mm) / 0,5 po (12.7 mm) LOAD / CARGA / CHARGE Outlet box / Caja de tomacorrriente / Boîte de sortie H N G L L G N Dimmer / Interruptor atenuador / Gradateur LOAD / CARGA / CHARGE H N G L T G N L Outlet box / Caja de tomacorrriente / Boîte de sortie Outlet Box Three-way switch / Interruptor de tres vías / Interrupteur à trois voies G G T N Outlet box / Caja de tomacorrriente / Boîte de sortie SQWVS22601**WSQWVM22601**W or GDE7797500-00 COM is the common terminal. For three-way control only on/off function is available. COM es el terminal común. El control de tres vías solo está disponible con la función encender/apagar. COM est la borne commune. Pour la commande à 3 voies uniquement, la fonction marche/arrêt est disponible. Air gap switch / Interruptor con espacio de aire / Interrupteur d’entrefer Off: dim down paddle / Apagado: paleta para disminuir la intensidad / Hors tension : diminution Reset Button LED indicator / Indicador LED / Voyant à DEL On: dim up paddle / Encendido: paleta para aumentar la intensidad / Sous tension : augmentation Power off / Desenergice el equipo / Coupez l’alimentation Power on / Alimentación conectada / Sous tension Brighten lighting / Iluminación más brillante / Éclairage de forte intensit Dim lighting / Iluminación tenue / Éclairage de faible intensité Press and hold. / Mantenga presionado. / Appuyez et maintenez. Lighting on / Iluminación encendida / Lampe allumée Lighting off / Iluminación apagada / Lampe éteinte Tap (short press) / Pulse (presión corta) / Appuyez (légère pression) SQR226U1**W Wi-Fi® 600W Dimmer Switch GDE7797500-00 3. SE Wiser App Control 3. 1. Download Wiser by SE app from the App Store or Google Play. QR code for iOS App download QR code for Android App download 3. 2…

Text truncated - open the document above for the full version.

Schneider Electric (China) Co., Ltd., Shenzhen Branch Date: Dec. 1 st , 2020 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 To whom it may concern: I, the undersigned, hereby authorize UL Verification Services Inc. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL Verification Services Inc. on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL Verification Services Inc. as our representative, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signed by: Company Name: Schneider Electric (China) Co., Ltd., Shenzhen Branch Contact Name: Tony Huang Title of Person：Manager Address: Room 201, Building A, No. 1 Qianwanyi Road, Shengang Cooperation Zone, Qianhai, Shenzhen

Schneider Electric (China) Co., Ltd., Shenzhen Branch Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: 2AUCU-226U1W To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Theory of Operation Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Company Name: Schneider Electric (China) Co., Ltd., Shenzhen Branch Contact Name: Tony Huang Title of Person：Manager Address: Room 201, Building A, No. 1 Qianwanyi Road, Shengang Cooperation Zone, Qianhai, Shenzhen Date: Dec. 1 st , 2020

Schneider Electric (China) Co., Ltd., Shenzhen Branch Address: Room 201, Building A, No. 1 Qianwanyi Road, Shengang Cooperation Zone, Qianhai, Shenzhen, China Confirmation Letter We, Schneider Electric (China) Co., Ltd., Shenzhen Branch The product: WI-FI 600W DIMMER SINGLE POLE FCC ID: 2AUCU-226U1W IC: 25381-226U1W SQR226U1LAW and SQR226U1BKW have the same technical construction including circuit diagram, PCB Layout, components and component layout, all electrical construction and mechanical construction with SQR226U1WHW. The difference lies only model number and color. ______________________ Company Name: Schneider Electric (China) Co., Ltd., Shenzhen Branch Contact Name: Tony Huang Address: Room 201, Building A, No. 1 Qianwanyi Road, Shengang Cooperation Zone, Qianhai, Shenzhen Date:12/16/2020

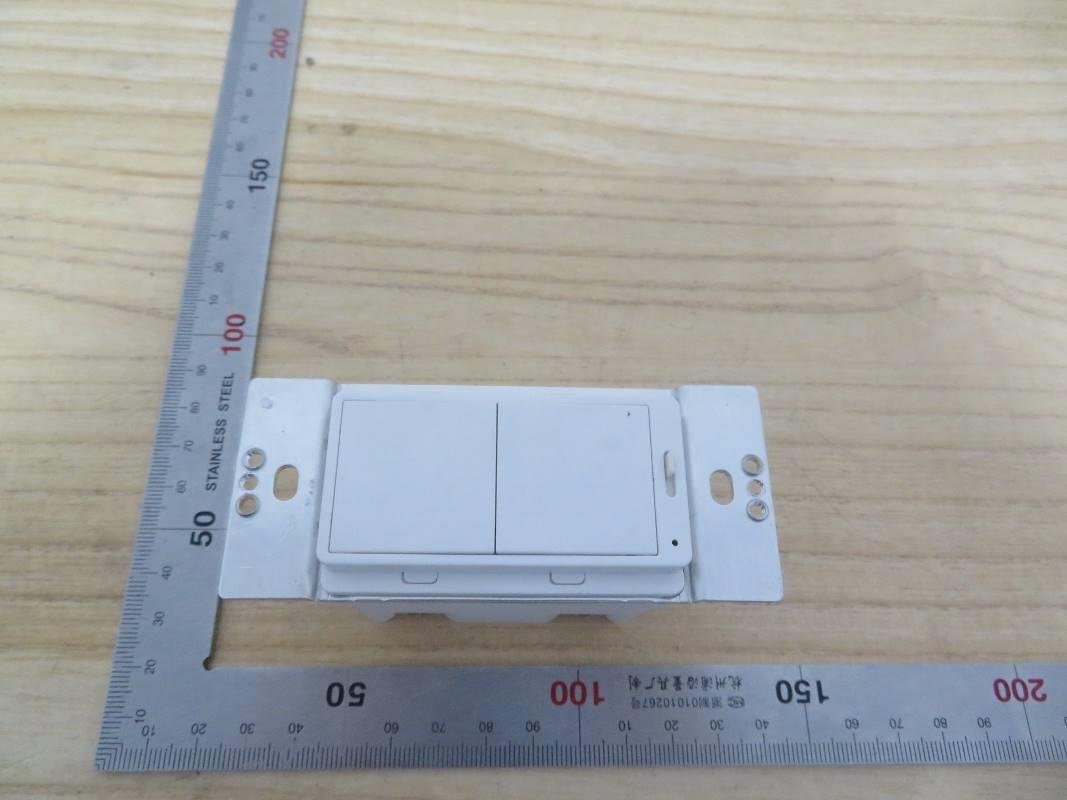

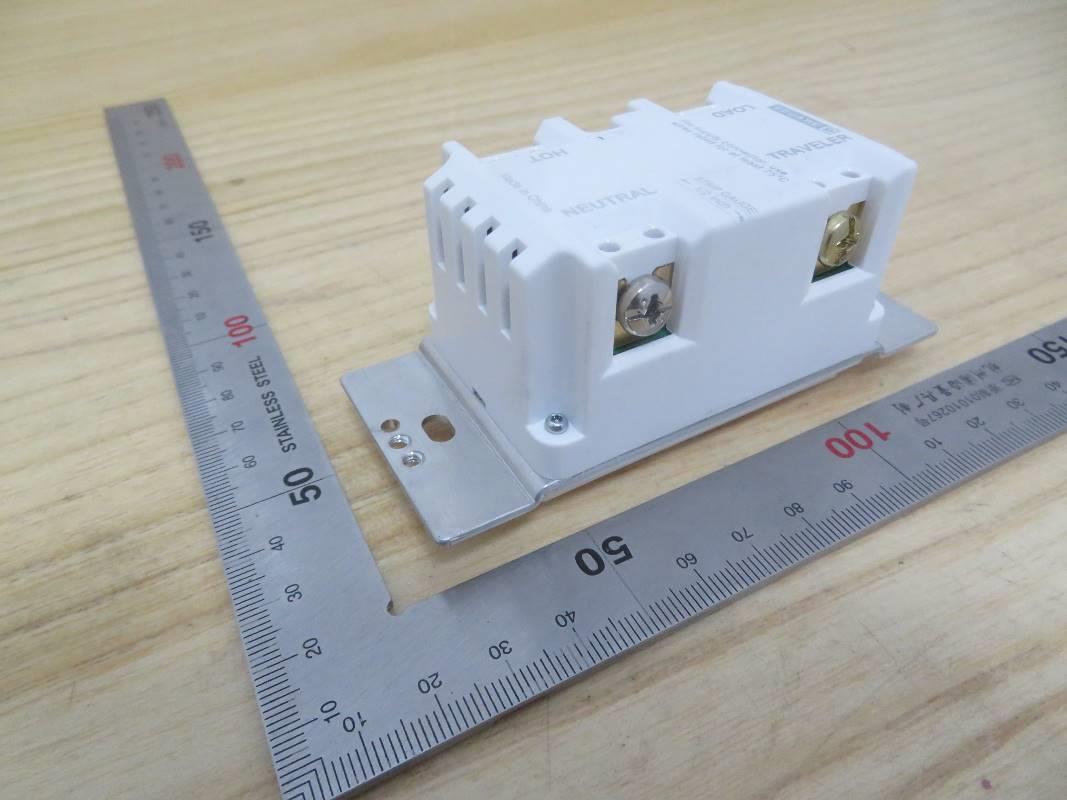

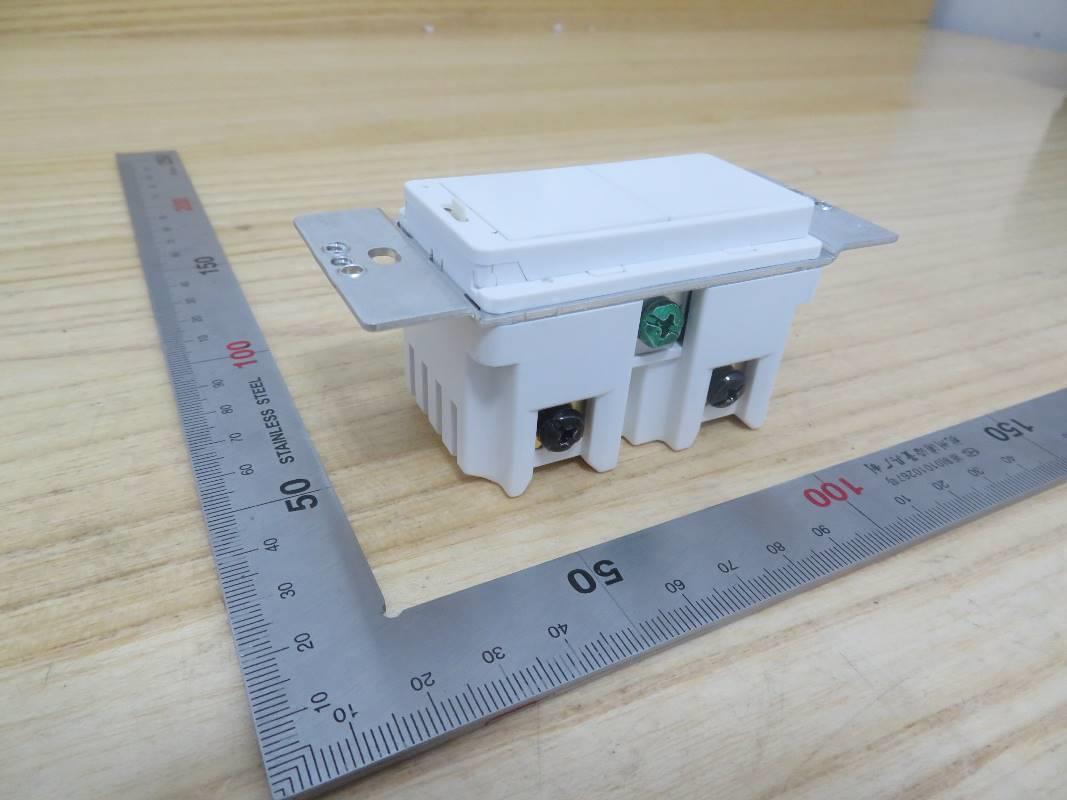

Appendix I External Photographs Page 2 of 3 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. View of EUT-1 View of EUT-2 Page 3 of 3 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. View of EUT-3 View of EUT-4

｝ Original format A4 A B C D E F A B C D E F 1 2 34 State: 00 1/1 Document Number: Doc. Rev. Sheet: 1.000 mm Scale: Technical Specification: Units of measure : The information is highly confidential and is the exclusive property of Schneider Electric copyright reserved. This drawing must not be used for any purpose other than that expressly permitted in writing by the owners and must not be disclosed or reproduced in any way without permission from the owners in writing. This drawing must be returned to the owners when the purpose has ceased. Provisional NOTES: *** ARTWORK IS THE MASTER FOR COLOUR, FONT, SIZE & LOGO'S*** 1. TEST FOR MARKINGS: REFER TO CQCS 2. LOCATION OF MARKING: POSITION AS SHOWN 3. FONT: ARIAL ROUNDED 4. TEXT HEIGHT: AS INDICATED 5. SQUARE D LOGO SIZE: 2.73MM(H)*13.79MM(L)(Pantone Cool grey 6C) 6. MINIMUM SIZE: 0.5 inch (12.7mm) 1/2 inch (4 mm) (2.4 mm) REMMID IF-IW LIATED GNIKRAM 120VAC,60Hz 600W INC 1.25A 150W LED INDOOR USE ONLY YYYYMMDD E513233 SQR226U1WHW Reset SSIDSE-XXXXXXXXXXXX KeysXXXXXXXXXXXXXXX STRIP GAUGE LOAD TRAVELER HOT NEUTRAL Made in China 1/2 inch FCC ID : 2AUCU-226U1W CAN ICES-003(B)/NMB-003(B) IC: 25381-226U1W For supply connections, for at least 75°C use 12-14 AWG wires rated Energy Monitoring

Appendix II Internal Photographs Page 2 of 6 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Internal View of EUT-1 Internal View of EUT-2 Page 3 of 6 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Internal View of EUT-3 Internal View of EUT-4 Page 4 of 6 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Internal View of EUT-5 Internal View of EUT-6 Antenna Page 5 of 6 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Internal View of EUT-7 Internal View of EUT-8 Page 6 of 6 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Internal View of EUT-9

The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report apply to the test sample(s) mentioned above at the time of the testing period only and are not to be used to indicate applicability to other similar products. This report does not imply that the product(s) has met the criteria for certification. FCC RF EXPOSURE REPORT For WI-FI 600W DIMMER SINGLE POLE MODEL NUMBER: SQR226U1WHW, SQR226U1LAW, SQR226U1BKW FCC ID: 2AUCU- 226U1W REPORT NUMBER: 4789727738-2 ISSUE DATE: February 01, 2021 Prepared for Schneider Electric (China) Co., Ltd., Shenzhen Branch Room 201, Building A, No. 1 Qianwanyi Road, Shengang Cooperation Zone, Qianhai, Shenzhen, China Prepared by UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch Building 10, Innovation Technology Park, No. 1, Li Bin Road, Song Shan Lake Hi-Tech Development Zone, Dongguan, People’s Republic of China Tel: +86 769-22038881 Fax: +86 769 33244054 Website: www.ul.com REPORT No.: 4789727738-2 Page 2 of 6 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................. 3 2. TEST METHODOLOGY ..................................................................................................... 4 3. FACILITIES AND ACCREDITATION ................................................................................. 4 4. EQUIPMENT UNDER TEST ............................................................................................... 5 4.1. DESCRIPTION OF EUT .............................................................................................. 5 5. REQUIREMENT ................................................................................................................. 6 REPORT No.: 4789727738-2 Page 3 of 6 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 1. ATTESTATION OF TEST RESULTS Applicant Information Company Name: Schneider Electric (China) Co., Ltd., Shenzhen Branch Address: Room 201, Building A, No. 1 Qianwanyi Road, Shengang Cooperation Zone, Qianhai, Shenzhen, China Manufacturer Information Company Name: Schneider Electric (China) Co., Ltd., Shenzhen Branch Address: Room 201, Building A, No. 1 Qianwanyi Road, Shengang Cooperation Zone, Qianhai, Shenzhen, China EUT Information EUT Name: WI-FI 600W DIMMER SINGLE POLE Model: SQR226U1WHW Series Model: SQR226U1LAW, SQR226U1BKW Model difference: Please refer to clause 5.1. Description of EUT Brand: Schneider Electric / Square D Sample Received Date: December 11, 2020 Sample Status: Normal Sample ID: 3522326 Date of Tested: December 11, 2020~ December 18, 2020 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC 47CFR§2.1091 KDB-447498 D01 V06 PASS Prepared By: Checked By: Kebo Zhang Shawn Wen Project Engineer Laboratory Leader Approved By: Stephen Guo Laboratory Manager REPORT No.: 4789727738-2 Page 4 of 6 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 2. TEST METHODOLOGY The tests documented in this report were performed in accordance with KDB 447498 D01 General RF Exposure Guidance v06. 3. FACILITIES AND ACCREDITATION Accreditation Certificate A2LA (Certificate No.: 4102.01) UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch. has been assessed and proved to be in compliance with A2LA. FCC (FCC Designation No.: CN1187) UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch. Has been recognized to perform compliance testing on equipment subject to the Commission's Delcaration of Conformity (DoC) and Certification rules ISED(Company No.: 21320) UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch. has been registered and fully described in a report filed with Industry Canada. The Company Number is 21320. VCCI (Registration No.: G-20019, R-20004, C-20012 and T-20011) UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch. has been assessed and proved to be in compliance with VCCI, the Membership No. is 3793. Facility Name: Chamber D, the VCCI registration No. is G-20019 and R-20004 Shielding Room B , the VCCI registration No. is C-20012 and T-20011 Note 1: All tests measurement facilities use to collect the measurement data are located at Building 10, Innovation Technology Park, Song Shan Lake Hi tech Development Zone, Dongguan, 523808, China Note 2: The test anechoic chamber in UL Verification Services (Guangzhou) Co., Ltd. Song Shan Lake Branch had been calibrated and compared to the open field sites and the test anechoic chamber is shown to be equivalent to or worst case from the open field site. Note 3: For below 30MHz, lab had performed measurements at test anechoic chamber and comparing to measurements obtained on an open field site. And these measurements below 30MHz had been correlated to measurements performed on an OFS. REPORT No.: 4789727738-2 Page 5 of 6 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. 4. EQUIPMENT UNDER TEST 4.1. DESCRIPTION OF EUT EUT Name WI-FI 600W DIMMER SINGLE POLE Model SQR226U1WHW Series Model SQR226U1LAW, SQR226U1BKW Model difference SQR226U1WHW, SQR226U1LAW, SQR226U1BKW are identical except for color Radio Techno…

Text truncated - open the document above for the full version.

The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report apply to the test sample(s) mentioned above at the time of the testing period only and are not to be used to indicate applicability to other similar products. CFR 47 FCC PART 15 SUBPART C ISED RSS-247 ISSUE 2 CERTIFICATION TEST REPORT For WI-FI 600W DIMMER SINGLE POLE MODEL NUMBER: SQR226U1WHW, SQR226U1LAW, SQR226U1BKW FCC ID: 2AUCU-226U1W IC: 25381-226U1W REPORT NUMBER: 4789727738-1 ISSUE DATE: February 01, 2021 Prepared for Schneider Electric (China) Co., Ltd., Shenzhen Branch Room 201, Building A, No. 1 Qianwanyi Road, Shengang Cooperation Zone, Qianhai, Shenzhen, China Prepared by UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch Building 10, Innovation Technology Park, No. 1, Li Bin Road, Song Shan Lake Hi- Tech Development Zone Dongguan, 523808, People’s Republic of China Tel: +86 769 22038881 Fax: +86 769 33244054 Website: www.ul.com REPORT NO.: 4789727738-1 Page 2 of 102 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No: 10-SL-F0088 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Revision History Rev. Issue Date Revisions Revised By V0 02/01/2021 Initial Issue REPORT NO.: 4789727738-1 Page 3 of 102 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No: 10-SL-F0088 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. Summary of Test Results Clause Test Items FCC/ISED Rules Test Results 1 6dB Bandwidth and 99% Occupied Bandwidth FCC Part 15.247 (a) (2) RSS-247 Clause 5.2 (a) ISED RSS-Gen Clause 6.7 Pass 2 Conducted Output Power FCC Part 15.247 (b) (3) RSS-247 Clause 5.4 (d) Pass 3 Power Spectral Density FCC Part 15.247 (e) RSS-247 Clause 5.2 (b) Pass 4 Conducted Bandedge and Spurious Emission FCC Part 15.247 (d) RSS-247 Clause 5.5 Pass 5 Radiated Bandedge and Spurious Emission FCC Part 15.247 (d) FCC Part 15.209 FCC Part 15.205 RSS-247 Clause 5.5 RSS-GEN Clause 8.9 Pass 6 Conducted Emission Test for AC Power Port FCC Part 15.207 RSS-GEN Clause 8.8 Pass 7 Antenna Requirement FCC Part 15.203 RSS-GEN Clause 6.8 Pass Note: 1. This test report is only published to and used by the applicant, and it is not for evidence purpose in China. 2. The measurement result for the sample received is <Pass> according to < CFR 47 FCC PART 15 SUBPART C >< ISED RSS-247 > when <Accuracy Method> decision rule is applied. REPORT NO.: 4789727738-1 Page 4 of 102 UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch FORM No: 10-SL-F0088 This report shall not be reproduced except in full, without the written approval of UL Verification Services (Guangzhou) Co., Ltd, Song Shan Lake Branch. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................. 6 2. TEST METHODOLOGY ..................................................................................................... 7 3. FACILITIES AND ACCREDITATION ................................................................................. 7 4. CALIBRATION AND UNCERTAINTY ................................................................................ 8 4.1. MEASURING INSTRUMENT CALIBRATION .............................................................. 8 4.2. MEASUREMENT UNCERTAINTY ............................................................................... 8 5. EQUIPMENT UNDER TEST ............................................................................................... 9 5.1. DESCRIPTION OF EUT .............................................................................................. 9 5.2. CHANNEL LIST ........................................................................................................... 9 5.3. MAXIMUM OUTPUT POWER...................................................................................... 9 5.4. TEST CHANNEL CONFIGURATION ........................................................................... 9 5.5. THE WORSE CASE POWER SETTING PARAMETER ..............................................10 5.6. THE WORSE CASE CONFIGURATIONS ..................................................................11 5.7. DESCRIPTION OF AVAILABLE ANTENNAS .............................................................12 5.8. DESCRIPTION OF TEST SETUP ...............................................................................13 6. MEASURING INSTRUMENT AND SOFTWARE USED ....................................................14 7. ANTENNA PORT TEST RESULTS ...................................................................................16 7.1. ON TIME AND DUTY CYCLE .....................................................................................16 7.2. 6 dB DTS BANDWIDTH AND 99 % OCCUPIED BANDWIDTH ..................................17 7.3. CONDUCTED OUTPUT POWER ...............................................................................19 7.4. POWER SPECTRAL DENSITY ..................................................................................20 7.5. CONDUCTED BANDEDGE AND SPURIOUS EMISSIONS ........................................22 8. RADIATED TEST RESULTS .............................................................................................24 8.1. RESTRICTED BANDEDGE ........................................................................................30 8.1.1. 802.11b SISO MODE ...........................................................................................30 8.1.2. 802.11g SISO MODE ...........................................................................................32 8.1.3. 802.11n HT20 SISO MODE ....................…

Text truncated - open the document above for the full version.

Appendix II Setup Photographs RADIATED RF MEASUREMENT SETUP (30MHz ~ 1 GHz) RADIATED RF MEASUREMENT SETUP (Below 30MHz) RADIATED RF MEASUREMENT SETUP (Above 1G – X axis) RADIATED RF MEASUREMENT SETUP (Above 1G – Y axis) RADIATED RF MEASUREMENT SETUP (Above 1G – Z axis) POWERLINE CONDUCTED EMISSIONS MEASUREMENT SETUP
