2AUTE-2DT23JPortable Label Printer

Use both hands to pry the cover apart on both sides. As shown in the following figure, install the paper roll with the thermal side facing outward. Move the paddle switch up and adjust the paper limiter according to the width of the paper roll. After adjustment, press down the paddle switch and lock the paper limiter. Pull out a small piece of paper and close the lid. Product Introduction Packing List Paper Loading Instruction Indicator Status Paper Loading Instruction Flash: Firmware upgrade in progress Slow flashing: charging Always on: Printer ready/Bluetooth connected successfully/Bluetooth disconnected /Bluetooth lost Constant brightness: abnormal (paper shortage/cover opening/TPH overheating) Slow flashing: low battery Product Introduction White Light White Light On/Off Long press the power button for 3 seconds to turn it on/off. If you need to charge, please use a USB Type-C to Type-A cable and connect the power adapter (self provided, adapter output not higher than 5V/1A) to the printer for charging. When the battery level is low, the indicator light will flash (white, flashing once per second). Please charge in a timely manner. If you continue printing, the printer may automatically shut down. Battery charging Note: You can use a power adapter or computer USB for power supply, and the adapter is not included when shipping. If consumers use a power adapter for charging, they should purchase and use a power adapter that has obtained CCC certification and meets the standard requirements. Printer Tear Bar Type-C Charging Port Reset Hole Power Button Indicator Light Abnormal State Basic State Appearance and Components The actual content inside the box shall be based on the actual object. Quick Start Guide 01 02 03 04 Edit the labels as needed, click "Next" after editing, and then print. Connect Printing Open the Hancode app and click on "My" - "Connect Device". Check the list of "Bluetooth devices", find "HM-T260L-XXXX", and click to connect. Click "New" - "New Label". Set the label width and height based on the actual size of the label paper. APP Download Scan QR code to download the app: “HereLabel” APP“HerePrint” APP Charging through PC Charging through power adapter HM-T260L Online WeChat Customer Service (Warranty/After Sales/Technical Support) FCC WARNING This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. To maintain compliance with FCC’s RF Exposure guidelines, This equipment should be installed and operated with minimum distance between 20cm the radiator your body: Use only the supplied antenna. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Xiamen Hanin Electronic Technology Co.,Ltd. Room 305A, Angye Building, Pioneering Park, Torch High-tech, Zone, Xiamen, China Date: 2023-06-20 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref:Attestation Statements Part 2.911(d) (5) (i) Filing SUBJECT: FCC Application for FCC ID: 2AUTE-2DT23J To Whom It May Concern: Xiamen Hanin Electronic Technology Co.,Ltd. certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Signatory [Jeff Wang, Certified Engineer]

Xiamen Hanin Electronic Technology Co.,Ltd. Room 305A, Angye Building, Pioneering Park, Torch High-tech, Zone, Xiamen, China Date: 2023-06-20 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AUTE-2DT23J US Agent – Attestation Statement / Part 2.911(d)(7) Xiamen Hanin Electronic Technology Co.,Ltd. certifies that, as of 2023-06-20, we have designated FCC US Agent, LLC to accept service of process on our behalf for FCC ID: 2AUTE-2DT23J. Xiamen Hanin Electronic Technology Co.,Ltd., accepts to maintain an agent of service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. FCC US Agent, LLC, accepts as of the date of the filing of this application, the obligation of being the designated agent for the purpose of accepting service of process on behalf of Xiamen Hanin Electronic Technology Co.,Ltd. for FCC ID: 2AUTE-2DT23J. Designated Agent Information: Company Name: FCC US Agent, LLC FRN: 0033402884 Address: 3722 Illinois Avenue, Saint Charles, IL, 60174, USA Contact Person: Tim Payne Phone: 708-571-3148 Email: [email protected] Sincerely, Company: Xiamen Hanin Electronic Technology Co.,Ltd. Designated Agent: FCC US Agent, LLC Company Representative: Jeff WangDesignated Agent Representative: Tim Payne Signature:Signature:

Xiamen Hanin Electronic Technology Co.,Ltd. Room 305A, Angye Building, Pioneering Park, Torch High-tech, Zone, Xiamen, China Date: 2023-06-20 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref:Attestation Statements Part 2.911(d) (5) (ii) Filing SUBJECT: FCC Application for FCC ID: 2AUTE-2DT23J To Whom It May Concern: Xiamen Hanin Electronic Technology Co.,Ltd. certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Signatory [Jeff Wang, Certified Engineer]

Xiamen Hanin Electronic Technology Co.,Ltd. Room 305A, Angye Building, Pioneering Park, Torch High-tech, Zone, Xiamen, China Date: 2023-06-20 FEDERAL COMMUNICATIONS COMMISSION AUTHORIZATION AND EVALUATION DIVISION 7435 OAKLAND MILLS ROAD COLUMBIA, MD 21046 SUBJECT: FCC Application for FCC ID: 2AUTE-2DT23J POWER OF ATTORNEY To Whom It May Concern: We, the undersigned, hereby authorize Waltek Testing Group(Shenzhen) Co., Ltd. Jandy So on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Waltek Testing Group (Shenzhen) Co., Ltd. Jandy So on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti-Drug Abuse Act. We, Xiamen Hanin Electronic Technology Co.,Ltd. are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, Signatory [Jeff Wang, Certified Engineer]

Xiamen Hanin Electronic Technology Co.,Ltd. Room 305A, Angye Building, Pioneering Park, Torch High-tech, Zone, Xiamen, China Date: 2023-06-20 FEDERAL COMMUNICATIONS COMMISSION AUTHORIZATION AND EVALUATION DIVISION 7435 OAKLAND MILLS ROAD COLUMBIA, MD 21046 SUBJECT: FCC Application for FCC ID: 2AUTE-2DT23J Confidentiality Request To whom it may concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. ☒ Block Diagram ☐ Tune-Up Information ☒ Operational Description ☐ Security Information ☒ Schematics ☐ Software Defined Radio (SDR) Information ☐ Parts List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); ☐ External Photos ☐ Test Setup Photos ☐ Internal Photos ☐ User Manual ☐For 45 days, pursuant to Public Notice DA04-1705. or ☐For 180 days pursuant to KDB 726920 D01. The applicant understands that pursuant to Section 0.457 ofthe Rules, disclosure of this application and all accompanying documentation will not be made before the dateof the Grant for this application. Sincerely, Signatory [Jeff Wang, Certified Engineer]

Xiamen Hanin Electronic Technology Co.,Ltd. Room 305A, Angye Building, Pioneering Park, Torch High-tech, Zone, Xiamen, China Date: 2023-06-20 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: FCC Application for FCC ID: 2AUTE-2DT23J To Whom It May Concern: I, the undersigned, hereby states this equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules, and will apply the Supplier's Declaration of Conformity procedure to the class B device. I understand thefollowing FCC requirements: 1. Devices subject to the SDoC procedure are required to be tested to show compliance with the FCC technical regulations by a recognized accredited testing laboratory. The testing laboratory must be accredited by a Commission approved accreditation body or designated under the terms of a government-to-government Mutual Recognition Agreement (MRA). A listing of those accredited testing laboratories that have been recognized by the Commission ispublished on the FCC Webpage: https://apps.fcc.gov/oetcf/eas/reports/TestFirmSearch.cfm (Select the "accredited" option to search for FCC recognized accredited test firms.) 2. Pt 2.1077 contains the list of information that must be included in the Supplier's Declaration of Conformity, which must be supplied with each product sold. The SDoC compliance info shall be included in the User’s Manual or as a separate sheet. The info must contain thename, address, and phone number of the responsible party, which must be located within the United States.According to 2.909(b), the responsible party is either the Manufactureror if the product is imported the Importer . Sincerely, Signatory [Jeff Wang, Certified Engineer]

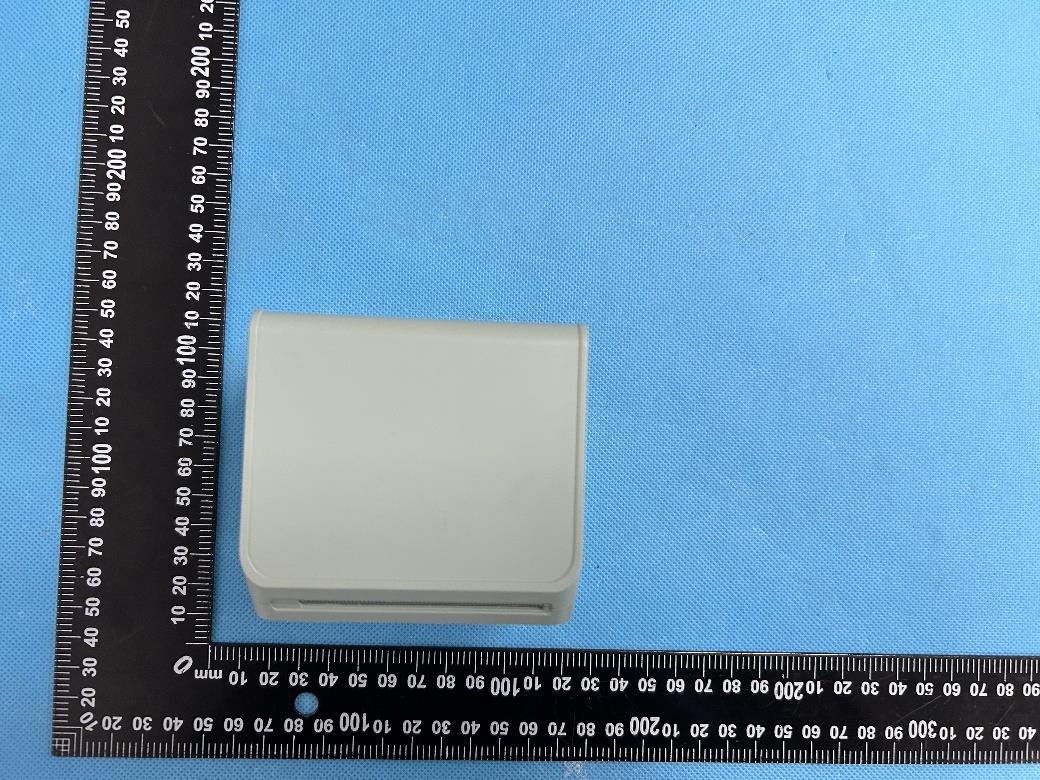

Reference No.: WTX23X05106865W001/002 Page 2 of 10 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 Reference No.: WTX23X05106865W001/002 Page 3 of 10 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EUT View 3 EUT View 4 Reference No.: WTX23X05106865W001/002 Page 4 of 10 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EUT View 5 EUT View 6

Reference No.: WTX23X05106865W001/002 Page 1 of 10 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn ANNEX EXHIBIT 1 - PRODUCT LABELING Proposed FCC ID Label Format Specifications: The label shall be securely affixed to a permanently attached part of the device, in a location where it is visible or easily accessible to the user, and shall not be readily detachable. The label shall be sufficiently durable to remain fully legible and intact on the device in all normal conditions of use throughout the device’s expected lifetime. Proposed Label Location on EUT FCC ID Label Location

Reference No.: WTX23X05106865W001/002 Page 5 of 10 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS Solder Board-Component View 1 Solder Board-Component View 2 Reference No.: WTX23X05106865W001/002 Page 6 of 10 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Solder Board-Component View 3 Solder Board-Component View 4 Reference No.: WTX23X05106865W001/002 Page 7 of 10 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Solder Board-Component View 5 Antenna View

1. RF Exposure Requirements 1.1 General Information Client Information Applicant: Xiamen Hanin Electronic Technology Co.,Ltd. Address of applicant: Room 305A, Angye Building, Pioneering Park,Torch High-tech,Zone, Xiamen, China Manufacturer: Xiamen Hanin Electronic Technology Co.,Ltd. Address of manufacturer: No.96, Rongyuan Road, Tong'an District, Xiamen, China General Description of EUT: Product Name: Portable Label Printer Trade Name / Model No.: HM-T260 Adding Model(s): HM-T260M, HM300-M26, HM26, HM26M, HM-T261, HM-T261M, HM-T262, HM-T262M, HM-T263, HM-T263M, HM-T264, HM-T264M, HM-T265, HM-T265M, HM-T266, HM-T266M, T260, T260M, BMTU26, BMTU26M, HM-T260 Pro, HCL-2DT23J, HM-T260L Rated Voltage: DC3.7V Battery Capacity: 1500mAh FCC ID: 2AUTE-2DT23J Equipment Type: Portable device Technical Characteristics of EUT: Bluetooth Bluetooth Version: V4.0 (BR/LE mode) Frequency Range: 2402-2480MHz RF Output Power: -2.62dBm (Conducted) Data Rate: 1Mbps Modulation: GFSK Quantity of Channels: 79/40 Channel Separation: 1MHz/2MHz Antenna Type: PCB Antenna Antenna Gain: 0.5dBi 1.2 RF Exposure Exemption According to §1.1307(b)(3) and KDB 447498 D04 Interim General RF Exposure Guidance v01, system operating under the provisions of this section shall be operating in a manner that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. Option A: FCC Rule Part 1.1307 (b)(3)(i)(A):The available maximum time-averaged power is no more than 1mW, regardless of separation distance. Option B: FCC Rule Part 1.1307 (b)(3)(i)(B): The available maximum time-averaged power or effective radiated power (ERP), whichever is greater, is less than or equal to the threshold P th (mW) described in the following formula. P th is given by: Option C: FCC Rule Part 1.1307 (b)(3)(i)(C): The minimum separation distance (R in meters) from the body of a nearby person for the frequency (f in MHz) at which the source operates, the ERP (watts) is no more than the calculated value prescribed for that frequency. R must be at least λ/2π, where λ is the free-space operating wavelength in meters. Single RF Sources Subject to Routine Environmental Evaluation RF Source frequency (MHz) Threshold ERP (watts) 0.3-1.34 1,920 R 2 1.34-30 3,450 R 2 /f 2 30-300 3.83 R 2 300-1,500 0.0128 R 2 f 1,500-100,000 19.2R 2 For Multiple RF sources: FCC Rule Part 1.1307(b)(3)(ii): (A) The available maximum time-averaged power of each source is no more than 1 mW and there is a separation distance of two centimeters between any portion of a radiating structure operating and the nearest portion of any other radiating structure in the same device, except if the sum of multiple sources is less than 1 mW during the time-averaging period, in which case they may be treated as a single source (separation is not required). (B) In the case of fixed RF sources operating in the same time-averaging period, or of multiple mobile or portable RF sources within a device operating in the same time averaging period, if the sum of the fractional contributions to the applicable thresholds is less than or equal to 1 as indicated in the following equation. 1.3 Calculated Result Radio Access Technology Prediction Frequency Output Power Antenna Gain Duty Cycle Tune-Up Time-Averaged Power ERP (MHz) (dBm) (dBi) (%) (dBm) (dBm) Bluetooth 2402 -2.62 0.5 100 -2.00 -3.65 Frequency Option Min. Distance Max. Power Exposure Limit Ratio Result (MHz) (cm) (dBm) (mW) (mW) Pass/Fail 2402 A -- -2.00 0.63 1 0.63 Pass Note: 1. Time-Averaged Power=Output Power * Duty Cycle; ERP= Time-Averaged Power+ Antenna gain-2.15dB 2. Option A, B and C refers as clause 1.2. 3. For option B, Max (time-averaged power, effective radiated power (ERP)) converts to Max. Power. For option C, ERP converts to Max. Power; 4. For option B, P th (mW) converts to Exposure Limit (mW); For option C, ERP (W) converts to Exposure Limit (mW). 5. Ratio= Tune-Up ERP (mW)/ Exposure Limit (mW) Mode for Simultaneous Multi-band Transmission: Radio Access Technology Ratio 1 Ratio 2 Simultaneous Ratio Limit Result Pass/Fail -- -- -- -- -- -- Result: Pass

Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 1 of 50 TEST REPORT Reference No. .................... : WTX23X05106865W001 FCC ID ................................ : 2AUTE-2DT23J Applicant ........................... : Xiamen Hanin Electronic Technology Co.,Ltd. Address ............................. : Room 305A, Angye Building, Pioneering Park,Torch High-tech,Zone, Xiamen, China Manufacturer ..................... : Xiamen Hanin Electronic Technology Co.,Ltd. Address ............................. : No.96, Rongyuan Road, Tong'an District, Xiamen, China Product Name ................... : Portable Label Printer Model No... ......................... : HM-T260 Standards .......................... : FCC Part 15.247 Date of Receipt sample .... : 2023-05-17 Date of Test........................ : 2023-05-17 to 2023-05-25 Date of Issue ..................... : 2023-05-25 Test Report Form No. ....... : WTX_Part 15_247W Test Result ......................... : Pass Remarks: The results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of approver. Prepared By: Waltek Testing Group (Shenzhen) Co., Ltd. Address: 1/F., Room 101, Building 1, Hongwei Industrial Park, Liuxian 2nd Road, Block 70 Bao'an District, Shenzhen, Guangdong, China Tel.: +86-755-33663308 Fax.: +86-755-33663309 Email: [email protected] Tested by: Approved by: Dashan Chen Silin Chen Reference No.: WTX23X05106865W001 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 2 of 50 TABLE OF CONTENTS 1. GENERAL INFORMATION .................................................................................................................................... 5 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ......................................................................... 5 1.2 TEST STANDARDS ................................................................................................................................................. 6 1.3 TEST METHODOLOGY ........................................................................................................................................... 6 1.4 TEST FACILITY ...................................................................................................................................................... 6 1.5 EUT SETUP AND TEST MODE .............................................................................................................................. 7 1.6 MEASUREMENT UNCERTAINTY ............................................................................................................................. 9 1.7 TEST EQUIPMENT LIST AND DETAILS ................................................................................................................. 10 2. SUMMARY OF TEST RESULTS ......................................................................................................................... 12 3. ANTENNA REQUIREMENT ................................................................................................................................. 13 3.1 STANDARD APPLICABLE ..................................................................................................................................... 13 3.2 EVALUATION INFORMATION ................................................................................................................................ 13 4. FREQUENCY HOPPING SYSTEM REQUIREMENTS .................................................................................... 14 4.1 STANDARD APPLICABLE ..................................................................................................................................... 14 4.2 FREQUENCY HOPPING SYSTEM ......................................................................................................................... 14 4.3 EUT PSEUDORANDOM FREQUENCY HOPPING SEQUENCE ............................................................................... 15 5. QUANTITY OF HOPPING CHANNELS AND CHANNEL SEPARATION .................................................... 16 5.1 STANDARD APPLICABLE ..................................................................................................................................... 16 5.2 TEST SETUP BLOCK DIAGRAM ........................................................................................................................... 16 5.3 TEST PROCEDURE .............................................................................................................................................. 16 5.4 SUMMARY OF TEST RESULTS/PLOTS ................................................................................................................. 17 6. DWELL TIME OF HOPPING CHANNEL ........................................................................................................... 18 6.1 STANDARD APPLICABLE ..................................................................................................................................... 18 6.2 TEST SETUP BLOCK DIAGRAM ........................................................................................................................... 18 6.3 TEST PROCEDURE .............................................................................................................................................. 18 6.4 SUMMARY OF TEST RESULTS/PLOTS ................................................................................................................. 19 7. 20DB BANDWIDTH ............................................................................................................................................... 20 7.1 STANDARD APPLICABLE ....................................................................................................................…

Text truncated - open the document above for the full version.

Antenna Describe 1： Antenna Describe No Parameter Specification 1 Antenna PCB 2 Return Loss ＜-10dB 3 Antenna Gain 0.5dBi 4 Frequency Range 2.4GHz-2.483GHz 5 Connector Type Direct 6 Location of mearement (company name) Xiamen Hanin Electronic Technology Co.,Ltd. 7 Company Adress Room 305A, Angye Building, Pioneering Park,Torch High-tech,Zone,Xiamen,China 8 Azimuth Omni-directional 9 Impedance 50 Ω 10 Operating Temperature -40~105°C 2：External View Drawing Picture of antenna Xiamen Hanin Electronic Technology Co.,Ltd. Type of Antenna: HM-T260L 3：Measurement Result 3.1Typical free space gain 3.2 Return Loss (S11 ) Frequency/MHz 2400 2410 2420 2430 2440 2450 2460 2470 2480 2490 2500 Peak Gain/dBi 0.47 0.49 0.50 0.49 0.49 0.48 0.50 0.50 0.49 0.50 0.50 3.3 Typical free space radiation pattern 3.4 Typical Free Space 3D Radiation Pattern

Reference No.: WTX23X05106865W001/002 Page 8 of 10 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Conducted Emission Test Setup Radiation Emission Test Setup (Below 30MHz) Reference No.: WTX23X05106865W001/002 Page 9 of 10 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Radiation Emission Test Setup (30MHz to 1GHz) Radiation Emission Test Setup (1GHz to 18GHz) Reference No.: WTX23X05106865W001/002 Page 10 of 10 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Radiation Emission Test Setup (Above 18GHz) ***** END OF REPORT *****
