2AUTE-4DT23SEThermal label printer, Direct Thermal Label Printer

Quick Start Guide Appearance and Components Rev：1.0 -1- Front View Rear View Inside View Parking List N43_N43BT Note: the packing materials are actually based on the order. ！ Note: the views above are for your reference. Ports vary by your choice. ！ -2- USB Cable Printer Quick Start GuidePower Cord In a residential environment, running this equipment may cause Radio jamming. Power Button Feed Button Cover Open Lever Status Indicator USB Port Printing Bracket Module Moveable Label Guides Platen FCC Warning This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. NOTE 2: Any changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. FCC ID: 2AUTE-4DT23SE -3- Rev：1.0 Loading the Paper -4- Connection Note: Please refer to the N43BT User Manual for the u�lity and driver installa�on. ！ 1.Turn the power on, adjust the paper guides to fit the width of paper. 2. Insert the paper into the entry slot. The paper will be inhaled into the path automatically. Power Connection Bluetooth Connection（Only for N43BT） Handling Paper Jams 1.Facing the front of the machine, use your right hand to toggle the top cover opening button. 2.Lift up the top cover. 3.After removing the jammed paper from the feed channel, replace it with new paper and discard the wrinkled paper. 4.Remove the stuck paper and proceed with normal operating paper loading. Note:Sharp edge, Caution ! BT Name: N43BT_****(The last four digits of the Mac address) BT Password: 1234 1. Confirm that the printer power is turned off. 2. Connect the power cord to the printer. 3. Connect the other end of the power cord to a nearby socket. 4. Power on: Press and hold the "power button" for 1 second. Power off: Long press and hold the "power button" for 3 seconds.

Xiamen Hanin Electronic Technology Co.,Ltd. Room 305A, Angye Building, Pioneering Park, Torch High-tech, Zone, Xiamen, China Date: 2023-08-14 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref:Attestation Statements Part 2.911(d) (5) (i) Filing SUBJECT: FCC Application for FCC ID: 2AUTE-4DT23SE To Whom It May Concern: Xiamen Hanin Electronic Technology Co.,Ltd. certifies that the equipmentforwhich authorization is sought is not <covered= equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Signatory [Jeff Wang, Certified Engineer]

Xiamen Hanin Electronic Technology Co.,Ltd. Room 305A, Angye Building, Pioneering Park, Torch High-tech, Zone, Xiamen, Chin Date: 2023-08-14 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref:Attestation Statements Part 2.911(d) (5) (ii) Filing SUBJECT: FCC Application for FCC ID: 2AUTE-4DT23SE To Whom It May Concern: Xiamen Hanin Electronic Technology Co.,Ltd. certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing <covered= equipment. Sincerely, Signatory [Jeff Wang, Certified Engineer]

Xiamen Hanin Electronic Technology Co.,Ltd. Room 305A, Angye Building, Pioneering Park, Torch High-tech, Zone, Xiamen, China Date: 2023-08-14 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AUTE-4DT23SE Applicant FRN: 0028895233 US Agent 3 Attestation Statement / Part 2.911(d)(7) Xiamen Hanin Electronic Technology Co.,Ltd. certifies that, as of 2023-08-14, we have designated FCC US Agent, LLC to accept service of process on our behalf for FCC ID: Xiamen Hanin Electronic Technology Co.,Ltd., accepts to maintain an agent of service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. FCC US Agent, LLC, accepts as of the date of the filing of this application, the obligation of being the designated agent for the purpose of accepting service of processon behalf of Xiamen Hanin Electronic Technology Co.,Ltd. for FCC ID: 2AUTE-4DT23SE Designated Agent Information: Company Name: FCC US Agent, LLC U.S. Agent FRN: 0033402884 Address: 3722 Illinois Avenue, Saint Charles, IL, 60174, USA Contact Person: Tim Payne Phone: 708-571-3148 Email: [email protected] Sincerely, Company:Xiamen Hanin Electronic Technology Co.,Ltd. Designated Agent: FCC US Agent, LLC Company Representative: Jeff WangDesignated Agent Representative: TimPayne Signature:Signature: 2AUTE-4DT23SE

Xiamen Hanin Electronic Technology Co.,Ltd. Room 305A, Angye Building, Pioneering Park, Torch High-tech,Zone, Xiamen, China Date: 2023-08-14 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 SUBJECT: FCC Application for FCC ID: 2AUTE-4DT23SE To Whom It May Concern: I, the undersigned, hereby states this equipment has been tested and foundto comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules,and will apply the Supplier's Declaration of Conformity procedure to the class B computer peripheral portion of this composite device. I understand the following FCC requirements: 1. Devices subject to the SDoC procedure are required to be tested to show compliance with the FCC technical regulations by a recognized accredited testing laboratory. The testing laboratory must be accredited by a Commission approved accreditation body or designated under the terms of a government-to-government Mutual Recognition Agreement (MRA). A listing of those accredited testing laboratories thathave been recognizedbytheCommissionispublishedontheFCCWebpage: https://apps.fcc.gov/oetcf/eas/reports/TestFirmSearch.cfm (Select the "accredited" option to search for FCC recognized accredited test firms.) 2. Pt 2.1077 contains the list of information that must be included in the Supplier's Declaration of Conformity, which must be supplied with each product sold.The SDoC compliance info shall be included in the User’s Manual or as a separate sheet. The info must contain thename, address, and phone number of the responsible party, which must be located within the United States.According to 2.909(b), the responsible party is either the Manufactureror if the product is imported the Importer . Sincerely, Signatory [Jeff Wang, Certified Engineer]

Xiamen Hanin Electronic Technology Co.,Ltd. Room 305A, Angye Building, Pioneering Park, Torch High-tech,Zone, Xiamen, China Date: 2023-08-14 FEDERAL COMMUNICATIONS COMMISSION AUTHORIZATION AND EVALUATION DIVISION 7435 OAKLAND MILLS ROAD COLUMBIA, MD 21046 SUBJECT: FCC Application for FCC ID: 2AUTE-4DT23SE Confidentiality Request To whom it may concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) asconfidential documents from public disclosure indefinitely. ☒ Block Diagram ☐ Tune-Up Information ☒ Operational Description ☐ Security Information ☒ Schematics ☐ Software Defined Radio (SDR) Information ☐ Parts List The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, whileensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); ☐ External Photos ☐ Test Setup Photos ☐ Internal Photos ☐ User Manual ☐For 45 days, pursuant to Public Notice DA04-1705. or ☐For 180 days pursuant to KDB 726920 D01. The applicant understands that pursuant to Section 0.457 of the Rules, disclosure of this application and all accompanying documentation will not be made before thedateoftheGrant for this application. Sincerely, Signatory [Jeff Wang, Certified Engineer]

Xiamen Hanin Electronic Technology Co.,Ltd. Room 305A, Angye Building, Pioneering Park, Torch High-tech,Zone, Xiamen, China Date: 2023-08-14 FEDERAL COMMUNICATIONS COMMISSION AUTHORIZATION AND EVALUATION DIVISION 7435 OAKLAND MILLS ROAD COLUMBIA, MD 21046 SUBJECT: FCC Application for FCC ID: 2AUTE-4DT23SE POWER OF ATTORNEY To Whom It May Concern: We, the undersigned, hereby authorize Waltek Testing Group (Shenzhen) Co., Ltd. Jandy So on our behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by Waltek Testing Group (Shenzhen) Co., Ltd. Jandy So on our behalf shall have the same effect as acts of our own. This is to advise that we are in full compliance with the Anti-Drug Abuse Act.We,Xiamen Hanin Electronic Technology Co.,Ltd. are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no party to the application is subject to a denial of federal benefits pursuant to that section. Sincerely, Signatory [Jeff Wang, Certified Engineer]

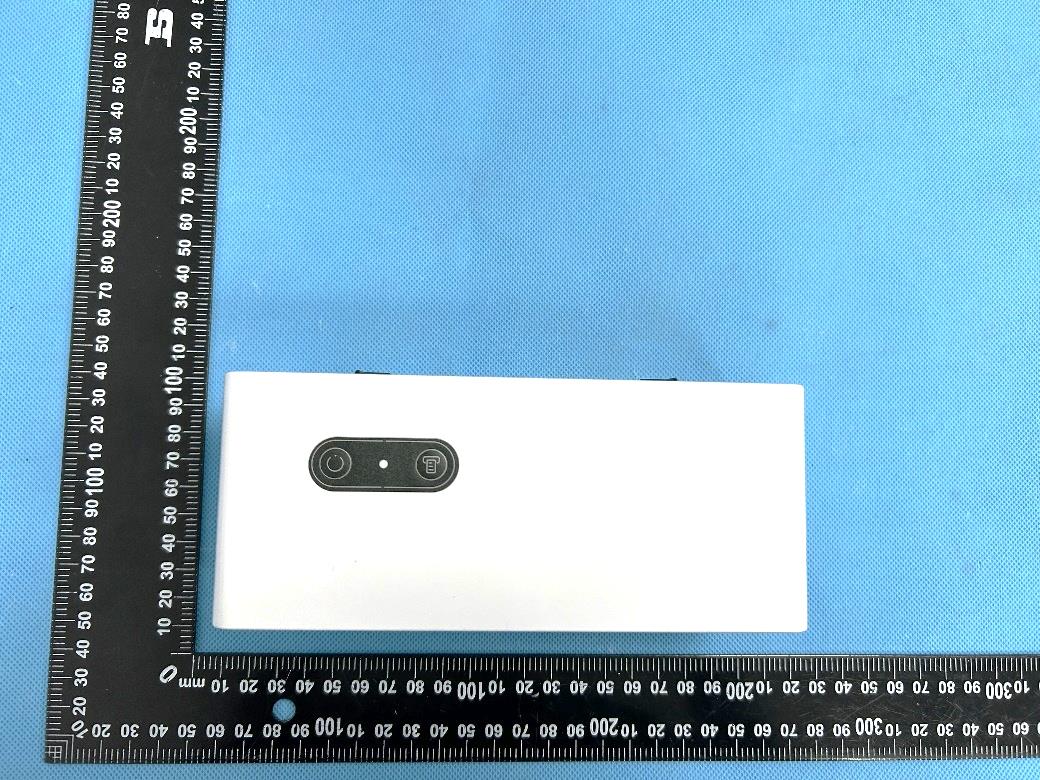

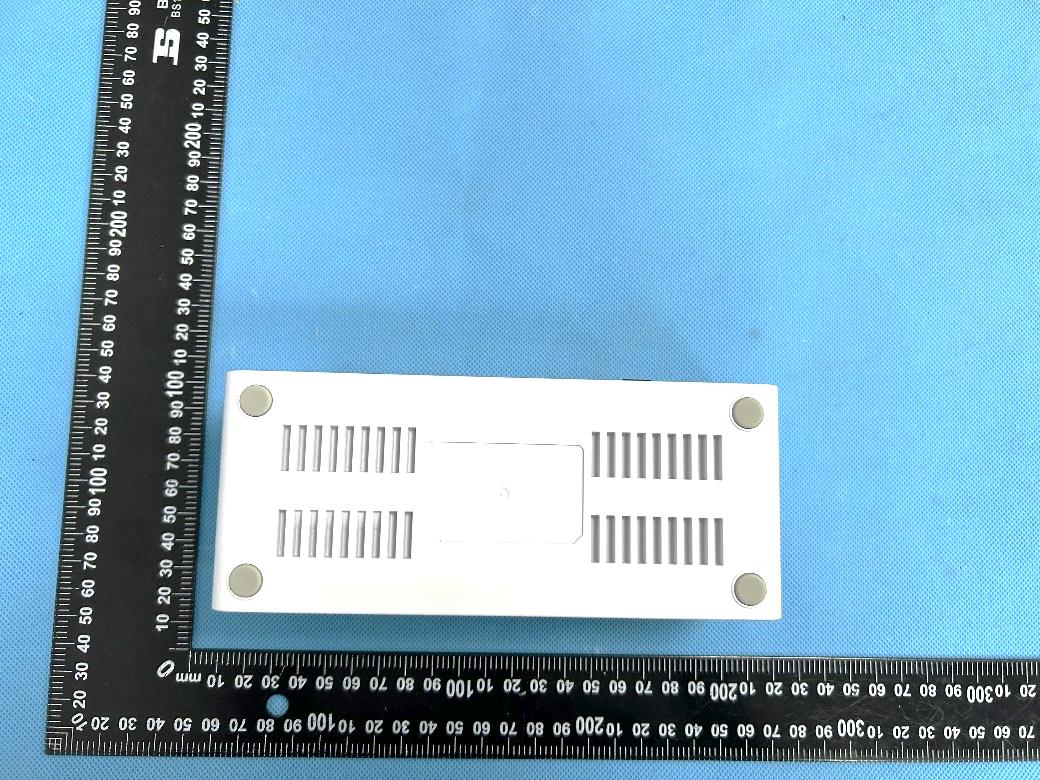

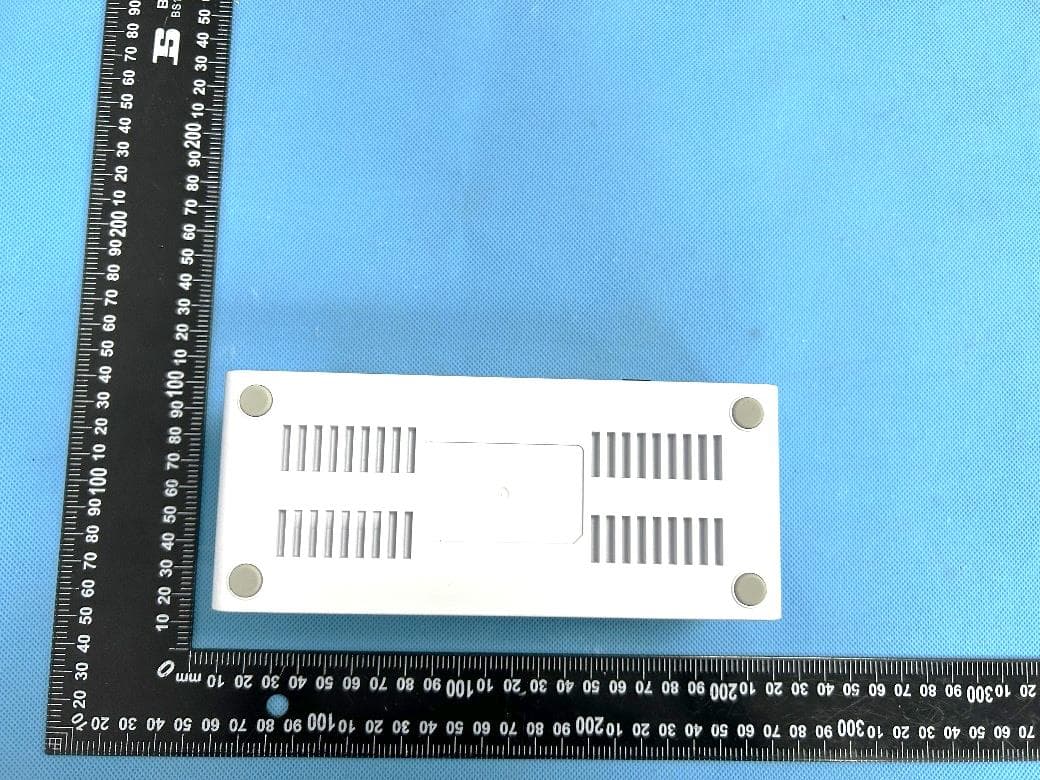

Reference No.: WTX23X07161878W001/002 Page 2 of 13 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 Reference No.: WTX23X07161878W001/002 Page 3 of 13 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EUT View 3 EUT View 4 Reference No.: WTX23X07161878W001/002 Page 4 of 13 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EUT View 5 EUT View 6 Reference No.: WTX23X07161878W001/002 Page 5 of 13 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EUT View 7

Reference No.: WTX23X07161878W001/002 Page 1 of 13 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn ANNEX EXHIBIT 1 - PRODUCT LABELING Proposed FCC ID Label Format Specifications: The label shall be securely affixed to a permanently attached part of the device, in a location where it is visible or easily accessible to the user, and shall not be readily detachable. The label shall be sufficiently durable to remain fully legible and intact on the device in all normal conditions of use throughout the device’s expected lifetime. Proposed Label Location on EUT FCC ID Label Location

Reference No.: WTX23X07161878W001/002 Page 6 of 13 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 Solder Board-Component View 1 Reference No.: WTX23X07161878W001/002 Page 7 of 13 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Solder Board-Component View 2 Solder Board-Component View 3 Reference No.: WTX23X07161878W001/002 Page 8 of 13 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Solder Board-Component View 4 Solder Board-Component View 5 Reference No.: WTX23X07161878W001/002 Page 9 of 13 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Solder Board-Component View 6 Solder Board-Component View 7 Reference No.: WTX23X07161878W001/002 Page 10 of 13 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Solder Board-Component View 8 Antenna View

1. RF Exposure Requirements 1.1 General Information Client Information Applicant: Xiamen Hanin Electronic Technology Co.,Ltd. Address of applicant: Room 305A, Angye Building, Pioneering Park,Torch High-tech,Zone, Xiamen, China Manufacturer: Xiamen Hanin Electronic Technology Co.,Ltd. Address of manufacturer: No.96, Rongyuan Road, Tong'an District, Xiamen, China General Description of EUT: Product Name: Thermal label printer, Direct Thermal Label Printer Trade Name / Model No.: HLD-4DT23SE Adding Model(s): N43, N43BT, SP460, SP460BT, PL63, PL63BT, PL65, PL65BT, J1, J1BT, T43, T43BT, H43, H43BT Rated Voltage: DC24V Battery Capacity: / Adapter Model: AP111G-240150 Input:AC100-240 50/60Hz 1.5A Output:DC24V1.5A FCC ID: 2AUTE-4DT23SE Equipment Type: Mobile device Technical Characteristics of EUT: Bluetooth Bluetooth Version: V5.0 (BR/LE mode) Frequency Range: 2402-2480MHz RF Output Power: -3.34dBm (Conducted) Data Rate: 1Mbps Modulation: GFSK Quantity of Channels: 79/40 Channel Separation: 1MHz/2MHz Type of Antenna: PCB Antenna Antenna Gain: -1.27dBi 1.2 RF Exposure Exemption According to §1.1307(b)(3) and KDB 447498 D04 Interim General RF Exposure Guidance v01, system operating under the provisions of this section shall be operating in a manner that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. Option A: FCC Rule Part 1.1307 (b)(3)(i)(A):The available maximum time-averaged power is no more than 1mW, regardless of separation distance. Option B: FCC Rule Part 1.1307 (b)(3)(i)(B): The available maximum time-averaged power or effective radiated power (ERP), whichever is greater, is less than or equal to the threshold P th (mW) described in the following formula. P th is given by: Option C: FCC Rule Part 1.1307 (b)(3)(i)(C): The minimum separation distance (R in meters) from the body of a nearby person for the frequency (f in MHz) at which the source operates, the ERP (watts) is no more than the calculated value prescribed for that frequency. R must be at least λ/2π, where λ is the free-space operating wavelength in meters. Single RF Sources Subject to Routine Environmental Evaluation RF Source frequency (MHz) Threshold ERP (watts) 0.3-1.34 1,920 R 2 1.34-30 3,450 R 2 /f 2 30-300 3.83 R 2 300-1,500 0.0128 R 2 f 1,500-100,000 19.2R 2 For Multiple RF sources: FCC Rule Part 1.1307(b)(3)(ii): (A) The available maximum time-averaged power of each source is no more than 1 mW and there is a separation distance of two centimeters between any portion of a radiating structure operating and the nearest portion of any other radiating structure in the same device, except if the sum of multiple sources is less than 1 mW during the time-averaging period, in which case they may be treated as a single source (separation is not required). (B) In the case of fixed RF sources operating in the same time-averaging period, or of multiple mobile or portable RF sources within a device operating in the same time averaging period, if the sum of the fractional contributions to the applicable thresholds is less than or equal to 1 as indicated in the following equation. 1.3 Calculated Result Radio Access Technology Prediction Frequency Output Power Antenna Gain Duty Cycle Tune-Up Time-Averaged Power ERP (MHz) (dBm) (dBi) (%) (dBm) (dBm) Bluetooth 2402 -3.34 -1.27 100 -3.00 -6.42 Frequency Option Min. Distance Max. Power Exposure Limit Ratio Result (MHz) (cm) (dBm) (mW) (mW) Pass/Fail 2402 A / -3.00 0.50 1.0 0.50 Pass Note: 1. a. Time-Averaged Power=Output Power * Duty Cycle; ERP= Time-Averaged Power+ Antenna gain-2.15dB; b. EIRP= E-104.8+20logD; Output Power=EIRP- Antenna Gain; ERP=EIRP-2.15dB 2. Option A, B and C refers as clause 1.2. 3. For option B, Max (time-averaged power, effective radiated power (ERP)) converts to Max. Power. For option C, ERP converts to Max. Power; 4. For option B, P th (mW) converts to Exposure Limit (mW); For option C, ERP (W) converts to Exposure Limit (mW). 5. Ratio= Tune-Up ERP (mW)/ Exposure Limit (mW) Mode for Simultaneous Multi-band Transmission: Radio Access Technology Ratio 1 Ratio 2 Simultaneous Ratio Limit Result Pass/Fail / / / / / / Result: Pass

ReportNo.:RFI-LAB-RF-202308-HH03 QP030-E41 Page1of10 TestingReport CustomerName:XiamenHaninElectronicTechnologyCo.,Ltd. ProductName:BTAntenna SampleModel:HLD-4DT23SE ReferenceStandard:GB/T9410-2008;ANSI/IEEEStd149-2021 IssueDate:2023.8.4 Engineer:Date: Auditor:Date: Approver:Date: ReportNo.:RFI-LAB-RF-202308-HH03 QP030-E41 Page2of10 Version VersionNo.DateDescriptionFormulateApproval A02023.8.4Forthefirsttime,formulateZkrisEason Contents 1.GeneralInformation.........................................................................................................................3 1.1Generalinformationoftestinginstitutions...........................................................................3 1.2Testingprinciple...................................................................................................................3 1.3Testequipment......................................................................................................................4 1.4Testenvironment...................................................................................................................4 1.5Statement..............................................................................................................................4 2.SampleInformation.........................................................................................................................5 2.1Clientinformation.................................................................................................................5 2.2DescriptionofEUT(S)..........................................................................................................5 2.3EUTappearance....................................................................................................................6 2.4EUTsetupphotooffreespaceOTAtesing..........................................................................6 3.TestResults......................................................................................................................................7 3.1Teststandard.........................................................................................................................7 3.2Testuncertainty.....................................................................................................................7 3.3Testdata................................................................................................................................8 3.3.1VSWRparameters.....................................................................................................8 3.3.2VSWRdata................................................................................................................8 3.3.3Typicalfreespaceefficiencyandgain......................................................................8 3.3.4Typicalfreespaceradiationpattern...........................................................................9 （Thefollowingisblank）..............................................................................................................10 ReportNo.:RFI-LAB-RF-202308-HH03 QP030-E41 Page3of10 1.GeneralInformation 1.1Generalinformationoftestinginstitutions Name ShenzhenRFI-LABCommunicationTechnologyCo.,Ltd. Address 10/FA,LingyunBld,LiufangRd,BaoanDistrict,SZ Tel / E-mail / Equipment AlltheequipmentusedinthereportisfixedinZoneB,WestSideof1/F,Building1, TingweiIndustrialPark,No.6LiufangRoad,Bao'anDistrict,Shenzhen 1.2Testingprinciple ReportNo.:RFI-LAB-RF-202308-HH03 QP030-E41 Page4of10 1.3Testequipment EquipmentModelNo.SerialNo.Manufacturer Calibration date Next calibration date OTATest System RayZone-5000 RFI-LAB-RF -D00 GTS2023.3.142025.3.13 Network Analyzer E5071C RFI-LAB-RF -D01 KEYSIGHT2023.5.112024.5.10 Network Analyzer E5071C RFI-LAB-RF -C02 KEYSIGHT2023.5.112024.5.10 1.4Testenvironment Temperature 23.6°C Humidity 58%RH Pressure 100.14kPa 1.5Statement (1)Thetestresultsinthereportareonlyapplicabletothetestedsamplesandthetestedsamples workundertheenvironmentdescribedinthereport. (2)OnlyShenzhenRFI-LABCommunicationTechnologyCo.,Ltd.havetherighttomodifythe report,andthemodificationinformationshallbeannotatedintherevisionform. (3)Anyobjectiontothisreportshallberaisedwithin30daysafterformalconfirmationofthe report. (4)Thisreportisinvalidifthereisanyevidencethatthesampleinformationprovidedisfalsified. (5)Thereportisinvalidwithoutthesignatureoftheauditorandapprover. ReportNo.:RFI-LAB-RF-202308-HH03 QP030-E41 Page5of10 2.SampleInformation 2.1Clientinformation Name XiamenHaninElectronicTechnologyCo.,Ltd. Address Room305A,AngyeBuilding,PioneeringPark,TorchHigh-tech,Zone, Xiamen Contacts / Tel / E-mail [email protected] Manufacturer / 2.2DescriptionofEUT(S) ProductName BTAntenna SampleModel HLD-4DT23SE AntennaSize / SerialNo. / AntennaType PCBAntenna TestItem VSWR;Antennagain;Efficiency;Radiationpattern FrequencyRange 2400-2500MHz ReceivedDate 2023.8.3 TestDate 2023.8.4 Remark / ReportNo.:RFI-LAB-RF-202308-HH03 QP030-E41 Page6of10 2.3EUTappearance 2.4EUTsetupphotooffreespaceOTAtesing Planform Frontview ReportNo.:RFI-LAB-RF-202308-HH03 QP030-E41 Page7of10 3.TestResults 3.1Teststandard NameParameterMethodStandardno. Mobile communication antenna Antennagain Genericspecification forantennasusedinthe mobilecommunications GB/T 9410-2008 Radiationpattern VSWR Antenna Radiationefficiency IEEEStandardTest ProceduresforAntennas ANSI/IEEEStd 149-2021 Gainanddirectivity 3.2Testuncertainty TheuncertaintywascalculatedonthebasisoftheGUMpublishedbyISO,usingthe inclusionfactorofK=2andthe95%confidenceleveltoexpresstheextended uncertainty. ItemUncertainty VSWR±0.3 Antennagain±0.72dB Radiationefficiency±0.72dB ReportNo.:RFI-LAB-RF-202308-HH03 QP030-E41 Page8of10 3.3Testdata 3.3.1VSWRparameters 3.3.2VSWRdata 3.3.3Typicalfreespaceefficiencyandgain Frequency/MHz 240024502500 VSWR 6.17915.99845.7688 Frequency/MHz 24002410242024302440245024602470248024902500 PeakGain/dBi -2.55-2.53-2.26-1.89-1.69-1.66-1.42-1.28-1.27-1.12-0.89 Efficie…

Text truncated - open the document above for the full version.

Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 1 of 38 TEST REPORT Reference No. .................... : WTX23X07161878W002 FCC ID ................................ : 2AUTE-4DT23SE Applicant ........................... : Xiamen Hanin Electronic Technology Co.,Ltd. Address ............................. : Room 305A, Angye Building, Pioneering Park,Torch High-tech,Zone, Xiamen, China Manufacturer ..................... : Xiamen Hanin Electronic Technology Co.,Ltd. Address ............................. : No.96, Rongyuan Road, Tong'an District, Xiamen, China Product Name ................... : Thermal label printer, Direct Thermal Label Printer Model No.. .......................... : HLD-4DT23SE Standards .......................... : FCC Part 15.247 Date of Receipt sample .... : 2023-07-24 Date of Test........................ : 2023-07-24 to 2023-08-04 Date of Issue ..................... : 2023-08-04 Test Report Form No. ....... : WTX_Part 15_247W Test Result ......................... : Pass Remarks: The results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of approver. Prepared By: Waltek Testing Group (Shenzhen) Co., Ltd. Address: 1/F., Room 101, Building 1, Hongwei Industrial Park, Liuxian 2nd Road, Block 70 Bao'an District, Shenzhen, Guangdong, China Tel.: +86-755-33663308 Fax.: +86-755-33663309 Email: [email protected] Tested by: Approved by: Dashan Chen Silin Chen Reference No.: WTX23X07161878W002 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 2 of 38 TABLE OF CONTENTS 1. GENERAL INFORMATION .................................................................................................................................... 4 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ......................................................................... 4 1.2 TEST STANDARDS ................................................................................................................................................. 5 1.3 TEST METHODOLOGY ........................................................................................................................................... 5 1.4 TEST FACILITY ...................................................................................................................................................... 5 1.5 EUT SETUP AND TEST MODE .............................................................................................................................. 6 1.6 MEASUREMENT UNCERTAINTY ............................................................................................................................. 7 1.7 TEST EQUIPMENT LIST AND DETAILS ................................................................................................................... 8 2. SUMMARY OF TEST RESULTS ......................................................................................................................... 11 3. ANTENNA REQUIREMENT ................................................................................................................................. 12 3.1 STANDARD APPLICABLE ..................................................................................................................................... 12 3.2 EVALUATION INFORMATION ................................................................................................................................ 12 4. POWER SPECTRAL DENSITY ........................................................................................................................... 13 4.1 STANDARD APPLICABLE ..................................................................................................................................... 13 4.2 TEST SETUP BLOCK DIAGRAM ........................................................................................................................... 13 4.3 TEST PROCEDURE .............................................................................................................................................. 13 4.4 SUMMARY OF TEST RESULTS/PLOTS ................................................................................................................. 13 5. DTS BANDWIDTH ................................................................................................................................................. 14 5.1 STANDARD APPLICABLE ..................................................................................................................................... 14 5.2 TEST SETUP BLOCK DIAGRAM ........................................................................................................................... 14 5.3 TEST PROCEDURE .............................................................................................................................................. 14 5.4 SUMMARY OF TEST RESULTS/PLOTS ................................................................................................................. 14 6. RF OUTPUT POWER ............................................................................................................................................ 15 6.1 STANDARD APPLICABLE ..................................................................................................................................... 15 6.2 TEST SETUP BLOCK DIAGRAM ........................................................................................................................... 15 6.3 TEST PROCEDURE .............................................................................................................................................. 15 6.4 SUMMARY OF TEST RESULTS/PLOTS ......................................................................................................…

Text truncated - open the document above for the full version.

Reference No.: WTX23X07161878W001/002 Page 11 of 13 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Conducted Emission Test Setup Radiation Emission Test Setup (Below 30MHz) Reference No.: WTX23X07161878W001/002 Page 12 of 13 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Radiation Emission Test Setup (30MHz to 1GHz) Radiation Emission Test Setup (1GHz to 18GHz) Reference No.: WTX23X07161878W001/002 Page 13 of 13 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Radiation Emission Test Setup (Above 18GHz) ***** END OF REPORT *****
