Xiamen Hanin Electronic Technology Co.,Ltd. Room 305A, Angye Building, Pioneering Park, Torch High-tech, Zone, Xiamen Declaration letter Dear Sir, We, _Xiamen Hanin Electronic Technology Co.,Ltd._declare product: _ Mobile Thermal Printer _with the model numbers MPT-II, M23, ML238, MLU2381, MLU2382, MLU2383, MLU2384, MLU2385, MLX2381, MLX2382, MLX2383, MLX2384, MLX2385_, there is no electrical change has been made to the equipment that alters the compliance characteristics. These models are the same except for model number. Please kindly handle on the project. FCC ID: 2AUTE-HMDR14001 Thank you! Sincerely, Signature Jeff Wang Certified Engineer Xiamen Hanin Electronic Technology Co.,Ltd.

C5266091_X8_Ed.1 1/1 Letter of Authorization Company: Xiamen Hanin Electronic Technology Co.,Ltd. Address: Room 305A, Angye Building, Pioneering Park Torch High-tech, Zone Xiamen China Product Name: Mobile Thermal Printer Model Number: MPT-II, M23, ML238, MLU2381, MLU2382, MLU2383, MLU2384, MLU2385, MLX2381, MLX2382, MLX2383, MLX2384, MLX2385 FCC Identifier: 2AUTE-HMDR14001 We authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, to act on our behalf on all matters concerning the above named equipment. Any individual within LGAI Technological Center S.A. is authorized to act on our behalf and take action on the application. We declare that authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by LGAI Technological Center S.A. on our behalf shall have the same effect as acts of our own. Name: Jeff Wang Date: 1/05/2023 Title: Certified Engineer Signature of applicant:

C5266091_X10_Ed.1 1/1 Xiamen Hanin Electronic Technology Co.,Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 1/05/2023 Subject: Request for Confidentiality FCC ID: 2AUTE-HMDR14001 To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure. Exhibits Long-Term Confidentiality Short-Term Confidentiality ID Label/Location No No Attestation Statement No No External Photos No Block Diagram Schematics Test Report No No Test Setup Photos No User’s Manual Internal Photos Parts List / Tune Up RF Exposure Info Operational Description Cover Letter(s) No No SDR Software / Security Info No Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Jeff Wang Title: Certified Engineer

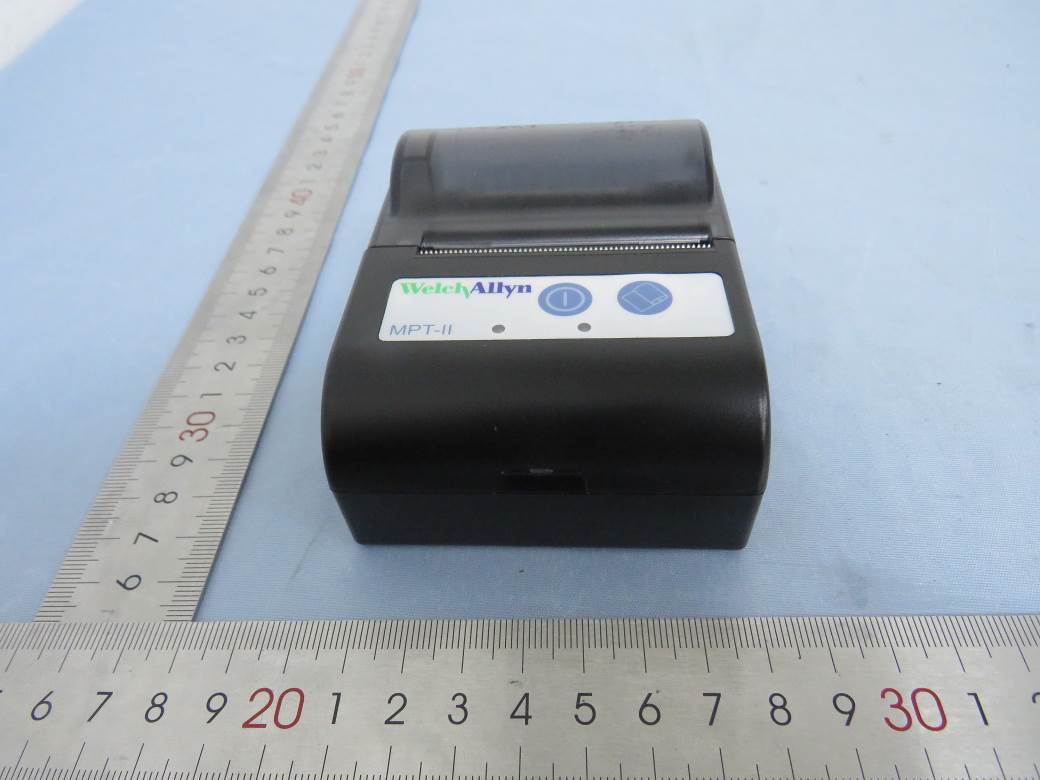

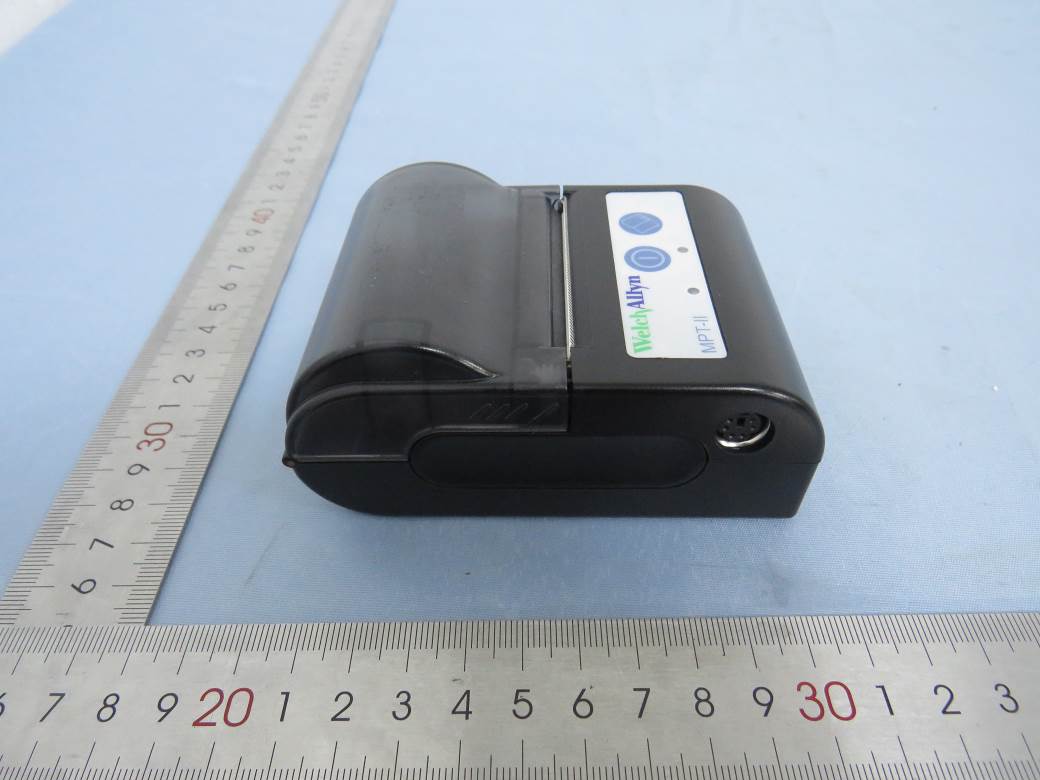

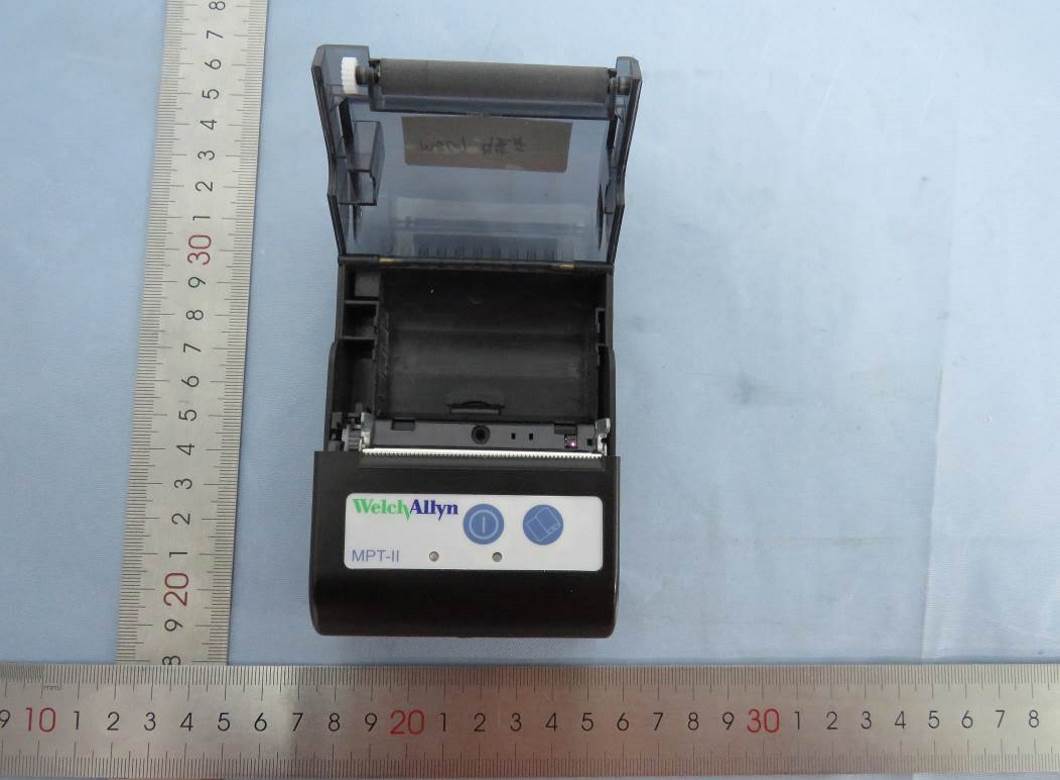

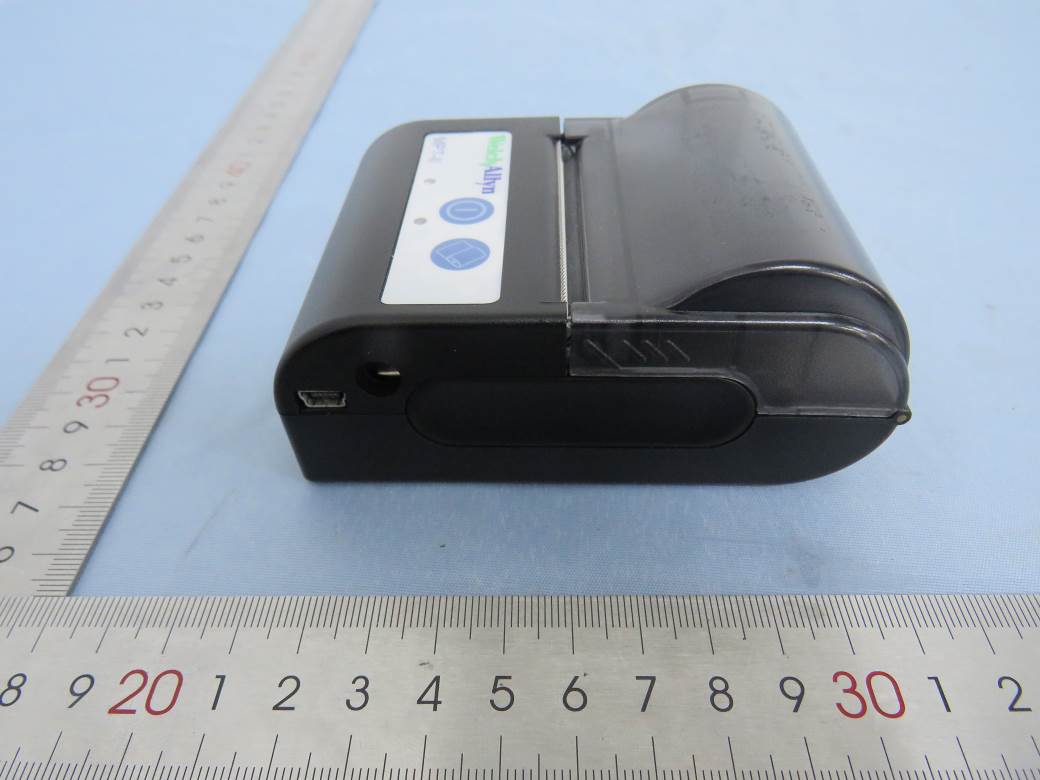

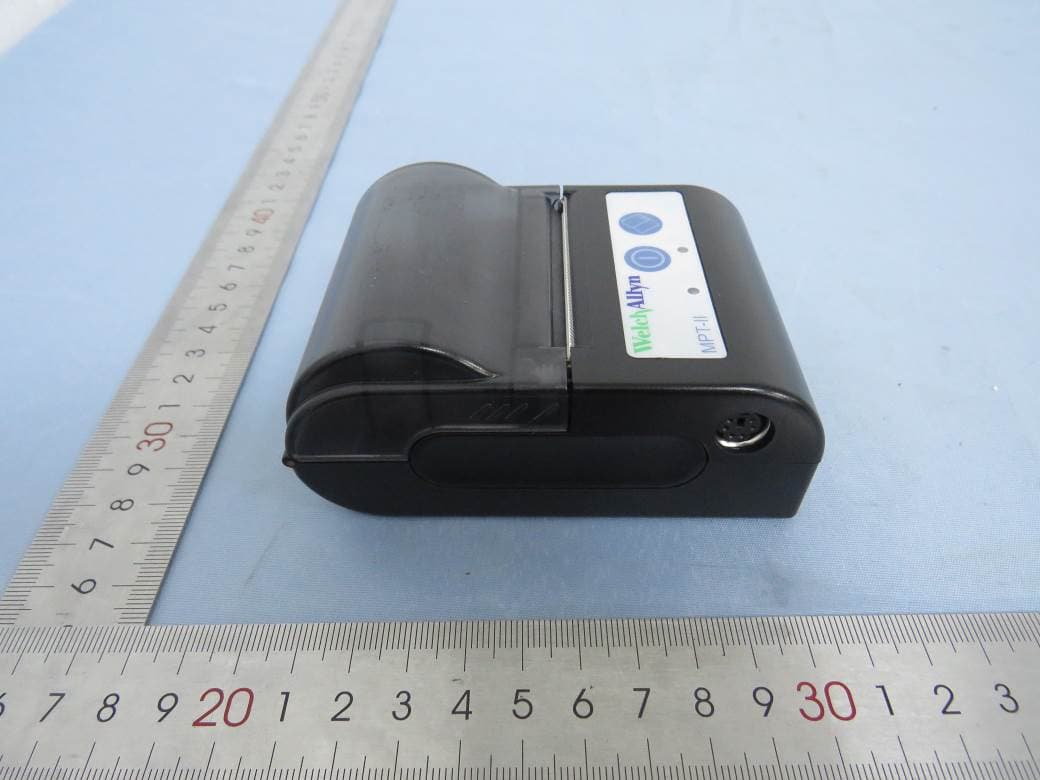

FCC ID: 2AUTE-HMDR22001 External photos FCC ID: 2AUTE-HMDR14001 FCC ID: 2AUTE-HMDR14001 FCC ID: 2AUTE-HMDR14001 FCC ID: 2AUTE-HMDR14001 FCC ID: 2AUTE-HMDR14001

Label Location

FCC ID: 2AUTE-HMDR14001 Internal photos FCC ID: 2AUTE-HMDR14001 RF Antenna RF chip FCC ID: 2AUTE-HMDR14001 FCC ID: 2AUTE-HMDR14001 FCC ID: 2AUTE-HMDR14001 FCC ID: 2AUTE-HMDR14001

Dongguan Nore Testing Center Co., Ltd. Report No.: NTC2211219F-1 FCC ID: 2AUTE-HMDR14001 RF EXPOSURE EVALUATION EUT Specification EUT Mobile Thermal Printer Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.18GHz ~ 5.32GHz / 5.50GHz ~ 5.70GHz WLAN: 5.745GHz ~ 5825GHz Others(Bluetooth: 2.402GHz ~ 2.480GHz) Device category Portable (<20cm separation) Mobile (>20cm separation) Others ___ Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power -0.519dBm (0.89mW) for BDR EDR -0.497dBm(0.89mW) for BLE Antenna gain 0dBi Evaluation applied MPE Evaluation SAR Evaluation Standard Requirement Portable Device According to §15.247(i) and §1.1307b(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. See KDB 447498 D01 General RF Exposure Guidance v06, section 4.3.1. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, 16 where ·f(GHz) is the RF channel transmit frequency in GHz ·Power and distance are rounded to the nearest mW and mm before calculation17 ·The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Dongguan Nore Testing Center Co., Ltd. Report No.: NTC2211219F-1 FCC ID: 2AUTE-HMDR14001 Measurement Result Channel Channel Frequency (MHz) Max Output power (dBm) Max Output power (mW) Calculati on Value (Note 1) Threshold Value GFSK Low 2402 -0.539 0.88 0.2728 3.0 Middle 2441 -5.057 0.31 0.0969 3.0 High 2480 -6.282 0.24 0.0756 3.0 π/4-DQPSK Low 2402 -0.553 0.88 0.2728 3.0 Middle 2441 -5.056 0.31 0.0969 3.0 High 2480 -6.323 0.23 0.0724 3.0 8DPSK Low 2402 -0.519 0.89 0.2759 3.0 Middle 2441 -5.087 0.31 0.0969 3.0 High 2480 -6.332 0.23 0.0724 3.0 BLE Low 2402 -0.497 0.89 0.2759 3.0 Middle 2440 -4.875 0.33 0.1031 3.0 High 2480 -6.245 0.24 0.0756 3.0 Note 1: Calculation Value =[(max. power of channel, mW)/(min. test separation distance, mm)] ·[√f(GHz)]. Fox example: 0.89/5*√2.402=0.2759 ≤ 3.0 According to KDB447498 D01 V06, threshold at which no SAR required is ≤3.0 for 1-g SAR, separation distance is 5mm, and no simultaneous SAR measurement is required.

Antenna Describe 1： Antenna Describe No Parameter Specification 1 Antenna PCB 2 Return Loss ＜-10dB 3 Antenna Gain 0dBi 4 Frequency Range 2400-2500MHz 5 Antenna efficiency 30-80% 6 Connector Type Direct 7 Location of mearement (company name) Xiamen Hanin Electronic Technology Co.,Ltd. 8 Azimuth Omni-directional 9 Impedance 50 Ω 10 Operating Temperature -40~105°C 2：External View Drawing Picture of antenna Xiamen Hanin Electronic Technology Co.,Ltd. Type of Antenna: PCB Antenna Size:11.35*5.8mm 3.Typical Free Space Efficiency and gain Frequency/M Hz 2400 2410 2420 2430 2450 2460 2470 2480 2490 2500 Peak Gain/dBi -0.1 -0.5 -0.4 -0.5 0.0 -0.7 -0.9 -0.9 -1.2 -1.5 Efficiency% 34.12 34.54 34.29 34.79 36.18 34.27 37.84 38.26 37.12 36.99 5.Typical Free Spaces 3D Radiation Pattern 2400MHz 2450MHz 2500MHz

Report No.: NTC2211219FV00 Page 2 of 50 Table of Contents 1. Summary of Test Result ........................................................................................................................... 4 2. General Description of EUT ...................................................................................................................... 5 3. Test Channels and Modes Detail ............................................................................................................... 8 4. Configuration of EUT ................................................................................................................................ 8 5. Modification of EUT .................................................................................................................................. 8 6. Description of Support Device ................................................................................................................... 9 7. Test Facility and Location ....................................................................................................................... 10 8. Applicable Standards and References ..................................................................................................... 11 9. Deviations and Abnormalities from Standard Conditions ........................................................................... 11 10. Test Conditions .................................................................................................................................... 12 11. Measurement Uncertainty ..................................................................................................................... 13 12. Sample Calculations ............................................................................................................................. 14 13. Test Items and Results ......................................................................................................................... 15 13.1 Conducted Emissions Measurement .................................................................................................... 15 13.2 Radiated Spurious Emissions and Restricted Bands Measurement ....................................................... 19 13.3 Channel Separation test ...................................................................................................................... 26 13.4 20dB Bandwidth ................................................................................................................................. 30 13.5 Hopping Channel Number ................................................................................................................... 34 13.6 Time of Occupancy (Dwell Time) ......................................................................................................... 36 13.7 Maximum Peak Output Power ............................................................................................................. 40 13.8 Band Edge Conducted Spurious Emission Measurement ...................................................................... 44 13.9 Antenna Requirement ......................................................................................................................... 45 14. Test Equipment List .............................................................................................................................. 50 Report No.: NTC2211219FV00 Page 3 of 50 Revision History Report Number Description Issued Date NTC2211219FV00 Initial Issue 2023-01-05 Report No.: NTC2211219FV00 Page 4 of 50 1. Summary of Test Result FCC Rules Description of Test Result Remarks §15.247(a)(1) Channel Separation test PASS --- §15.247(a)(1) 20dB Bandwidth PASS --- §15.247(a)(1)(iii) Hopping Channel Number PASS --- §15.247(a)(1)(iii) Time of Occupancy (Dwell Time) PASS --- §15.247(b) Max Peak output Power test PASS --- §15.247(d) Band edge test PASS --- §15.207 (a) AC Power Conducted Emission PASS --- §15.247(d),§15.209, §15.205 Radiated Emission PASS --- §15.203 Antenna Requirement PASS --- §15.247(d) Conducted Spurious Emission PASS --- Report No.: NTC2211219FV00 Page 5 of 50 2. General Description of EUT Product Information Product Name: Mobile Thermal Printer Main Model Name: MPT-II Additional Model Name: M23, ML238, MLU2381, MLU2382, MLU2383, MLU2384, MLU2385, MLX2381, MLX2382, MLX2383, MLX2384, MLX2385 Model Difference: These models have the same circuit schematic, construction, PCB Layout and critical components. These differences is model number and color only due to trading purpose. S/N: 2211-5978 Brand Name N/A Hardware Version: MPII-J-MB Software Version: V1.15 Rating: DC 12V, 0.5Az come from adapter DC 7.4V from Internal Lithium-ion battery Classification: Class B Typical Arrangement: Tabletop I/O Port: Refer to the user manual Accessories Information Adapter: N/A Cable: USB line: 1.5m shielded with one code Other: N/A Additional Information Note: According to these model differences, all tests were carried on model MPT-II. Remark: All the information above are provided by the manufacturer. More detailed feature of the EUT please refers to the user manual. Report No.: NTC2211219FV00 Page 6 of 50 Technical Specification Bluetooth Version: V5.0 Frequency Range: 2402-2480MHz Modulation Type: GFSK, π/4-DQPSK, 8DPSK Number of Channel: 79 (refer to following channel list for details) Channel Space: 1MHz Antenna Type: PCB Antenna Antenna Gain: 0 dBi (Declared by the manufacturer) Note: This report only replies to BDR +EDR feature of the EUT. Report No.: NTC2211219FV00 Page 7 of 50 Channel List Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) 0 2402 20 2422 40 2442 60 2462 1 2403 21 2423 41 2443 61 2463 2 2404 22 2424 42 2444 62 2464 3 2405 23 2425 43 2445 63 2465 4 2406 24 2426 44 2446 64 2466 5 2407 25 2427 45 2447 65 2467 6 2408 26 2428 46 2448 66 2468 7 2409 27 2429 47 2449 67 2469 8 …

Text truncated - open the document above for the full version.

Report No.: NTC2211219FV00 Page 31 of 50 Modulation Channel Frequency (MHz) 20dB Measurement (MHz) Limit (MHz) Remark GFSK Low 2402 0.963 N/A Reporting only Mid 2441 0.966 N/A High 2480 0.966 N/A π/4-DQPSK Low 2402 1.281 N/A Mid 2441 1.263 N/A High 2480 1.260 N/A 8DPSK Low 2402 1.296 N/A Mid 2441 1.265 N/A High 2480 1.265 N/A Report No.: NTC2211219FV00 Page 32 of 50 GFSK / Low Channel GFSK / Mid Channel GFSK / High Channel π/4-DQPSK / Low Channel π/4-DQPSK / Mid Channel π/4-DQPSK / High Channel Report No.: NTC2211219FV00 Page 33 of 50 8DPSK / Low Channel 8DPSK / Mid Channel 8DPSK / High Channel --- --- Report No.: NTC2211219FV00 Page 34 of 50 13.5 Hopping Channel Number LIMIT Frequency hopping systems in the 2400-2483.5MHz band shall use at least 15 channels. BLOCK DIAGRAM OF TEST SETUP TEST PROCEDURES a. The RF output of EUT was connected to the spectrum analyzer by RF cable and attenuator. The path loss was compensated to the results for each measurement. b. Set to the maximum power setting and enable the EUT transmit continuously. c. Enable the EUT hopping function. d. Set spectrum analyzer and perform testing according to ANSI C63.10 clause 7.8.3. TEST RESULTS PASS Please refer to the following table. EUT Spectrum Analyzer Attenuator Report No.: NTC2211219FV00 Page 35 of 50 Modulation Number of Hopping Channels Measurement Limit Test Result GFSK 79 ≥15 PASS π/4-DQPSK 79 ≥15 PASS 8DPSK 79 ≥15 PASS The worst case: 8DPSK Report No.: NTC2211219FV00 Page 36 of 50 13.6 Time of Occupancy (Dwell Time) LIMIT The average time of occupancy on any channel shall not be greater than 0.4 seconds within a period of 0.4 seconds multiplied by the number of hopping channels employed. BLOCK DIAGRAM OF TEST SETUP TEST PROCEDURES a. The RF output of EUT was connected to the spectrum analyzer by RF cable and attenuator. The path loss was compensated to the results for each measurement. b. Set to the maximum power setting and enable the EUT transmit continuously. c. Enable the EUT hopping function. d. Set spectrum analyzer and perform testing according to ANSI C63.10 clause 7.8.4. TEST RESULTS PASS Please refer to the following table. EUT Spectrum Analyzer Attenuator Report No.: NTC2211219FV00 Page 37 of 50 Modulation Packet Frequency (MHz) Dwell Time Measurement (msec) Limit (msec) Test Result GFSK DH1 2441 0.380 (ms)*(1600/(2*79))*31.6= 121.60 400 Pass DH3 2441 1.635 (ms)*(1600/(4*79))*31.6= 261.60 400 Pass DH5 2441 2.885 (ms)*(1600/(6*79))*31.6= 307.73 400 Pass π/4-DQPSK 2-DH1 2441 0.390 (ms)*(1600/(2*79))*31.6= 124.80 400 Pass 2-DH3 2441 1.645 (ms)*(1600/(4*79))*31.6= 263.20 400 Pass 2-DH5 2441 2.893 (ms)*(1600/(6*79))*31.6= 308.59 400 Pass 8DPSK 3-DH1 2441 0.393 (ms)*(1600/(2*79))*31.6= 125.76 400 Pass 3-DH3 2441 1.640 (ms)*(1600/(4*79))*31.6= 262.40 400 Pass 3-DH5 2441 2.893 (ms)*(1600/(6*79))*31.6= 308.59 400 Pass Report No.: NTC2211219FV00 Page 38 of 50 GFSK / DH1 GFSK / DH3 GFSK / DH5 π/4-DQPSK / 2-DH1 π/4-DQPSK / 2-DH3 π/4-DQPSK / 2-DH5 Report No.: NTC2211219FV00 Page 39 of 50 8DPSK / 3-DH1 8DPSK / 3-DH3 8DPSK / 3-DH5 --- Blank Report No.: NTC2211219FV00 Page 40 of 50 13.7 Maximum Peak Output Power LIMIT The maximum peak conducted output power of the intentional radiator shall not exceed the following: For frequency hopping systems operating in the 2400-2483.5 MHz band employing at least 75 non-overlapping hopping channels, and all frequency hopping systems in the 5725-5850 MHz band: 1 watt. For all other frequency hopping systems in the 2400-2483.5 MHz band 0.125 watts. BLOCK DIAGRAM OF TEST SETUP TEST PROCEDURES a. The RF output of EUT was connected to the spectrum analyzer by RF cable and attenuator. The path loss was compensated to the results for each measurement. b. Set to the maximum power setting and enable the EUT transmit continuously. c. Set spectrum analyzer and perform testing according to ANSI C63.10 clause 7.8.5. TEST RESULTS PASS Please refer to the following tables. EUT Spectrum Analyzer Attenuator Report No.: NTC2211219FV00 Page 41 of 50 Modulation Frequency (MHz) Peak Power output Measurement (dBm) Peak Power output Measurement (mW) Peak Power Limit (dBm) Test Result GFSK 2402.00 -0.539 0.88 30 Pass 2441.00 -5.057 0.31 30 Pass 2480.00 -6.282 0.24 30 Pass π/4-DQPSK 2402.00 -0.553 0.88 21 Pass 2441.00 -5.056 0.31 21 Pass 2480.00 -6.323 0.23 21 Pass 8DPSK 2402.00 -0.519 0.89 21 Pass 2441.00 -5.087 0.31 21 Pass 2480.00 -6.332 0.23 21 Pass Report No.: NTC2211219FV00 Page 42 of 50 GFSK / Low Channel GFSK / Mid Channel GFSK / High Channel π/4-DQPSK / Low Channel π/4-DQPSK / Mid Channel π/4-DQPSK / High Channel Report No.: NTC2211219FV00 Page 43 of 50 8DPSK / Low Channel 8DPSK / Mid Channel 8DPSK / High Channel --- Blank Report No.: NTC2211219FV00 Page 44 of 50 13.8 Band Edge Conducted Spurious Emission Measurement LIMIT In any 100KHz bandwidth outside the frequency band in which the spread spectrum intentional radiator is operating, the radio frequency power that is produced by the intentional radiator shall be at least 20dB below that in the 100KHz bandwidth within the band that contains the highest level of the desired power, based on either an RF conducted or a radiated measurement. BLOCK DIAGRAM OF TEST SETUP TEST PROCEDURES a. The RF output of EUT was connected to the spectrum analyzer by RF cable and attenuator. The path loss was compensated to the results for each measurement. b. Set to the maximum power setting and enable the EUT transmit continuously. c. Set spectrum analyzer and perform testing according to ANSI C63.10 clause 7.8.6 and 6.10. d. Enable hopping function of the EUT and then repeat steps above. TEST RESULTS PASS Please refer to the following test plots. EUT Spectrum Analyzer Attenuator Report No.: NTC2211219FV00 Page 45 of 50 Band Edge GFSK / Low / 2402 GFSK / Hopping GFSK / High Channel / 2480 GFSK / Hopping Report No.: NTC2211219FV00 Page 46 of 50 Band Edge π/4-DQPSK / Low / 2402 π/4-DQPSK / Hopping π/4-DQPSK / High / 2480 π/4-DQPSK / Hopping Report No.: NTC221…

Text truncated - open the document above for the full version.

FCC ID: 2AUTE-HMDR14001 Test Photo Radiated emission (Below 30MHz) Radiated emission (30-1000MHz) FCC ID: 2AUTE-HMDR14001 Radiated emission (Above 1000MHz) Conducted Emission
