快速安装指南 HPRT Poooli L1/L2 Quick Start Guide 开箱清单 -1- 注意：箱内实际内容以出货清单为准。！ HPRT Poooli L1/L2 普通热敏纸卷USB数据线 安装指南 安装指南 外观及组件 -2- ① ③ ① 电源键 ② 鹦鹉嘴配饰 ③ USB接口 ② 使用向导 电源键状态 长按三秒即可ON/OFF 常亮：待机状态/充电完成 慢闪：充电中 快闪：耗材不足，设备盖没有关紧，电量不足，打印 头过热 充电状态 购买后第一次使用时 -3- 我们建议充满电后使用 可以使用电源适配器或电脑USB口充电 （出货时不配适配器） 注意：若使用电源适配器供电，则应购买并使用获得CCC认证并满足标 准要求的电源适配器。 -4- USB数据线 除专用充电线外也可使用手机充电线 建议使用专用充电线充电 使用5V/1A充电时大约需要90分钟 下载APP 扫描下方二维码下载安装APP: -5- 连接设备 注册并登录APP，点击添加设备，通过搜索蓝牙连接设备， 或扫码连接设备。 欢迎 -6- APP设置 简单操作 APP设置 可以在设备管理中查看剩余电量、固件版本等信息 Bluetooth 5.0 蓝牙配对 当第一次连接成功后，下次启动应用时将自动连接 在连接状态下，双击电源键，即可断开连接状态 -7- 鹦鹉嘴配饰的拆装 拆卸 安装 若想把鹦鹉嘴配饰拆下，请按图示方向拿下即可。 若想把鹦鹉嘴配饰装上，请按图示方向利用磁铁的吸力将其吸附住即可。 -8- 耗材的更换 将打印机如图1放置，注意查看机身箭头指示。 参照图2所示，向下推开上盖。 更换耗材时，参照图3所示方向，放入耗材。 确认耗材放置正确后，请将上盖与下盖合上，向上推动上盖恢复 原状。 打印机更换耗材时，请勿触碰打印头以防过热烫伤。！ 图1图2 图3 放入方向 -9- 官方耗材的种类 普通纸不含双酚- A，留影最长可达22 年 三防纸 防水、 防油、防P VC，不含双酚- A，留 影最长可达 22年 有底纸不干胶 不含双酚- A，具有较黏的胶水，没有固定规格，可 自由设置打印长短 便利贴纸不含双酚- A，有背胶， 可随贴随摘 连续标签纸 不含双酚- A，具有较黏的胶水，没有固定规格，可 作各种标签标识 * 若因未使用专用打印纸而产生机器故障，则无法享受三包政策。 安全及注意事项 电池过热 电池管理及注意事项 充电完成时，我们建议拔掉充电线。 为了避免火灾，请不要在高温地点充电 (如汗蒸房、篝火附近等)。 充电器注意 打印头管理及注意事项 有可能因为充电不当而导致打印头损坏。 我们建议不要在高湿度或多灰尘地带使用啵哩。 烧伤危险 打印头过热 打印后，请勿直接触碰打印头，以防过热烫伤。 充电端口损坏现象 充电中的注意事项 请轻轻插入或拔出充电线，以防用力过猛损坏充电端口。 -10- 保修条款 一、自出厂之日起，整机保修12个月。 二、存在以下情况之一者，不属于保修范围之内： 1、未经我公司及授权维修人员许可，擅自对产品进行拆卸，或产品 序列号标贴被撕去及模糊不清，无法辨认； 2、由于固体颗粒刮伤热敏头片，引起的打印白线，则头片不属于保 修范围； 3、使用非官方原装耗材而造成的机器问题，商家不予提供保修服务。 4、其他人为引起的故障。 三、保修期内，维修时所更换的产品零配件归我公司所有。 四、用户负责将产品寄送至我公司售后服务部或我公司授权的维修站 点进行保修服务。 五、厦门汉印电子技术有限公司拥有本保修条款的最终解释权。 生产厂家：厦门汉印电子技术有限公司 返修地址：厦门市湖里区高崎南十二路艾德航空工业园2号楼4层 返修电话：400-806-9290 注意：若用户自行用错误型号电池更换会有爆炸危险， 请务必按照说明寄回维修站点处置用完的电池。 产品保修卡 尊敬的用户： 为了保障您的权益以及为您提供更优质的售后服务，请您在 购买产品时仔细填写并保留此卡，进行保修服务时请与购买发 票一同出示！ 用户名称： 联系地址： 省 市 区（县） 联系电话： 产品型号（序列号）： 经销商名称（盖章）： 联系地址： 联系电话： 购买日期： 年 月 日 （请将不干胶条码标签贴于此） Packing List -11- HPRT Poooli L1/L2 Thermal Paper RollUSB Cable Quick Start Guide ！ Note: The packing materials are actually based on the order. Appearance -12- ① Power button ② Parrot mouth accessory ③ USB Port ① ③ ② Using Guide -13- Power button status Long press 3 seconds to ON/OFF Light：Standby / charging completed Slow flash：Charging Fast flash：Supplies near end, cover open, low battery and the print head is overheated. Charging Use it for the first time after purchase Recommended to use after full charge. Can be charged using a phone adapter or connected to a computer. -14- USB Cable In addition to the dedicated charger, you can also use the charging cable of mobile device. Recommended to use a dedicated charging cable to charge. It takes about 90 minutes to charge with 5V/1A. Download APP Scan the QR code below and install the app: -15- Connection Click the “Connect Printer” button. Enter the printer search page to select the corresponding printer from the list of printers found via Bluetooth. Welcome Add Device Enter Home -16- APP Setting You can view information such as remaining power, firmware versions in device management. Simple operation APP setting When the first connection succeeds, the next time you start the application that will connect HPRT Poooli L1/L2 automatically. In the connection state, double click the power button to disconnect the connection. Bluetooth 5.0 Bluetooth pairing -17- Disassembly Dismantle Install If you want to remove the parrot mouth accessory , please according to the step take them down. If you want to attach the parrot mouth accessory, use the magnet to adsorb the parrot mouth. Replace Supplies -18- When changing supplies , do not touch the print head in case of ovweheating. ！ Place Poooli as shown in figure 1, and look at the arrow. With reference to figure 2, push down the upper cover. When replacing supplies, place the supplies in reference to the direction shown in figure 3. If the supplies are properly placed, close the upper cover to the lower cover and push the upper cover back to its original shape. Figure 1Figure 2Figure 3 Place direction -19- Offical Supplies Types * * Thermal paper of HPRT Poooli L1/L2 is a special piece of paper. If the machine failure caused by the use of other paper, you will not be able to get the three guarantees. No bisphenol-A, saves photo for up to 22 years. Three proofings Thermal paper Waterproof, oil-proof, anti-PVC, no bisphenol -A, saves photo for up to 22 years. Self-adhesive paper No bisphenol-A, with a sticky glue, no fixed specifications, free to set the print length Convenience sticker No bisphenol-A, hasback glue, can be picked as soon as affixed. Continuous paper No bisphenol-A, has more sticky glue, does not have the fixed specification, can be used as a variety of tag identification Safety Battery overheating Battery management and cautions When the charge is completed, please unplug the charging line. To avoid fire, do not charge at high temperatures(e.g. sweating rooms, bonfire accessories, etc.). Charger attention Print head management and cautions There may be damage to the print head due to improper charging. We recommend not to use HPRT Poooli L1 in high humidity or dusty areas. Combustion hazard Print head overheating After printing, do not touch the print head directly to prevent burn. Charging port damage phenomenon Charging cautions Please gently insert or unplug the chargingline to prevent excessive damage to the charging port. -20- FCC COMPLIANCE STATEMENT: This device complies with part 15 of the FCC Rules. Opera�on is subject to the following two condi�ons: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired opera�on. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protec�on against harmful interference in a residen�al installa�on. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instruc�ons, may cause harmful interference to radio communica�ons. Howev…

Text truncated - open the document above for the full version.

Xiamen Hanin Electronic Technology Co., Ltd. Room 305A, Angye Building, Pioneering Park, Torch High-tech, Zone, Xiamen Declaration letter Dear Sir, We, Xiamen Hanin Electronic Technology Co., Ltd. declare product: HPRT POOOLI SMART POCKET PRINTER, HPRT SMART POCKET PRINTER, HPRT LABEL PRINTER with the model numbers HPRT Poooli L1, HPRT L1, HPRT L1pro, L1, HPRT L1S, HPRT Poooli L2, HPRT L2, HPRT L2pro, L2, HPRT L2S, there is no electrical change has been made to the equipment that alters the compliance characteristics. These models are the same except for model number. Please kindly handle on the project. FCC ID: 2AUTE-SPP Thank you! Sincerely, Signature: Name: Jeff Wang Title: Certified Engineer

C5266091_X8_Ed.1 1/1 Letter of Authorization Company: Xiamen Hanin Electronic Technology Co., Ltd. Address: Room 305A, Angye Building, Pioneering Park, Torch High- tech, Zone, Xiamen Product Name: HPRT POOOLI SMART POCKET PRINTER, HPRT SMART POCKET PRINTER, HPRT LABEL PRINTER Model Number: HPRT Poooli L1, HPRT L1, HPRT L1pro, L1, HPRT L1S, HPRT Poooli L2, HPRT L2, HPRT L2pro, L2, HPRT L2S FCC Identifier: 2AUTE-SPP We authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, to act on our behalf on all matters concerning the above named equipment. Any individual within LGAI Technological Center S.A. is authorized to act on our behalf and take action on the application. We declare that authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by LGAI Technological Center S.A. on our behalf shall have the same effect as acts of our own. Name: Jeff Wang Date: 10/15/2022 Title: Certified Engineer Signature of applicant:

C5266091_X10_Ed.2 1/1 Xiamen Hanin Electronic Technology Co., Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 10/15/2022 Subject: Request for Confidentiality FCC ID: 2AUTE-SPP To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure. Exhibits Long-Term Confidentiality Short-Term Confidentiality NOTE 2 ID Label/Location No No Attestation Statement No No External Photos No ☐ Block Diagram ☒ ☐ Schematics ☒ ☐ Test Report No No Test Setup Photos No ☐ User’s Manual ☐ NOTE 1 ☐ Internal Photos ☐ NOTE 1 ☐ Parts List / Tune Up ☐ ☐ RF Exposure Info No No Operational Description ☒ ☐ Cover Letter(s) No No SDR Software / Security Info ☐ No NOTE 1: Long-Term Confidentiality may be permitted under special conditions (See II. LONG-TERM CONFIDENTIALITY, Section 3 of KDB 726920, use last in force) NOTE 2: Short-Term Confidentiality can be requested for a maximum of 180 days from the date of the grant. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In case of short-term Confidentiality, the applicant requests the exhibits selected above are withheld from public view for a period of ______ days from the date of the Grant of Equipment Authorization and prior to marketing. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. C5266091_X10_Ed.2 1/1 Sincerely, Signature: Name: Jeff Wang Title: Certified Engineer

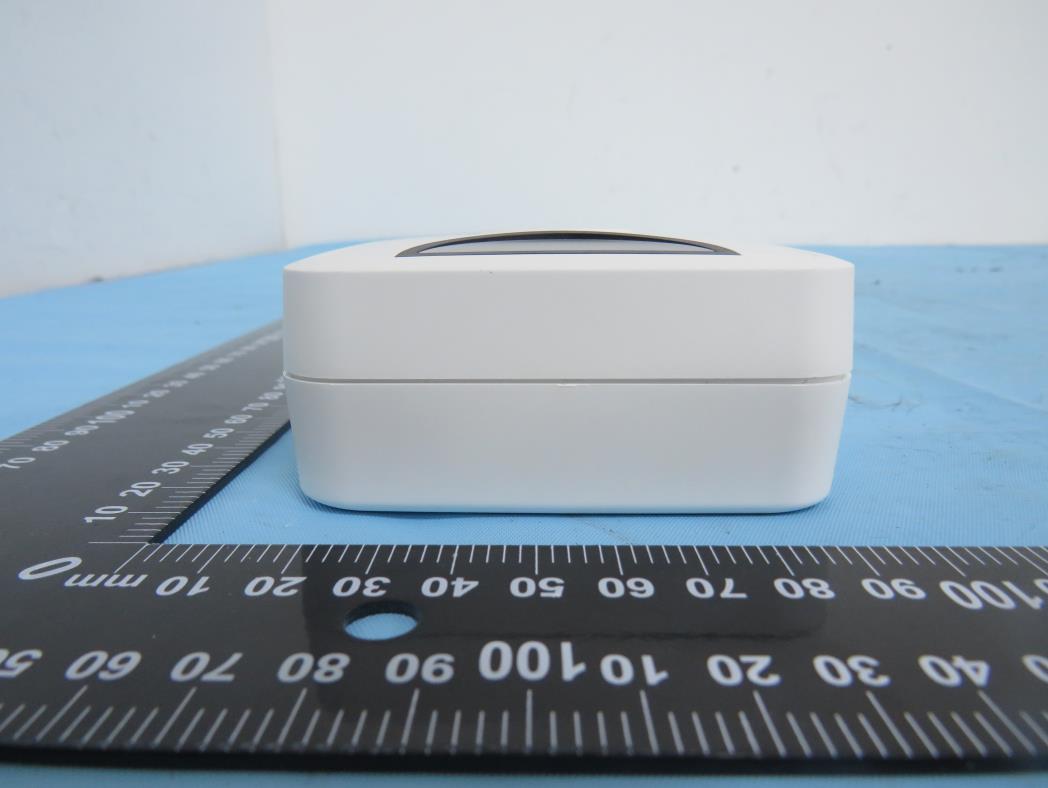

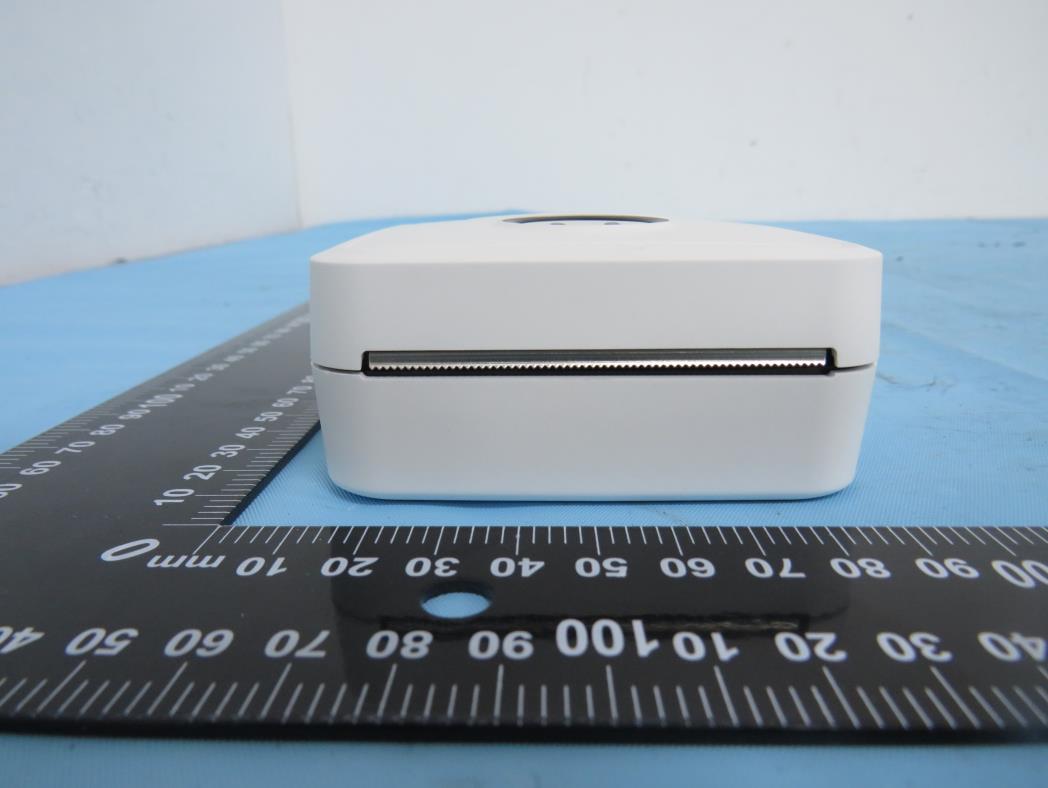

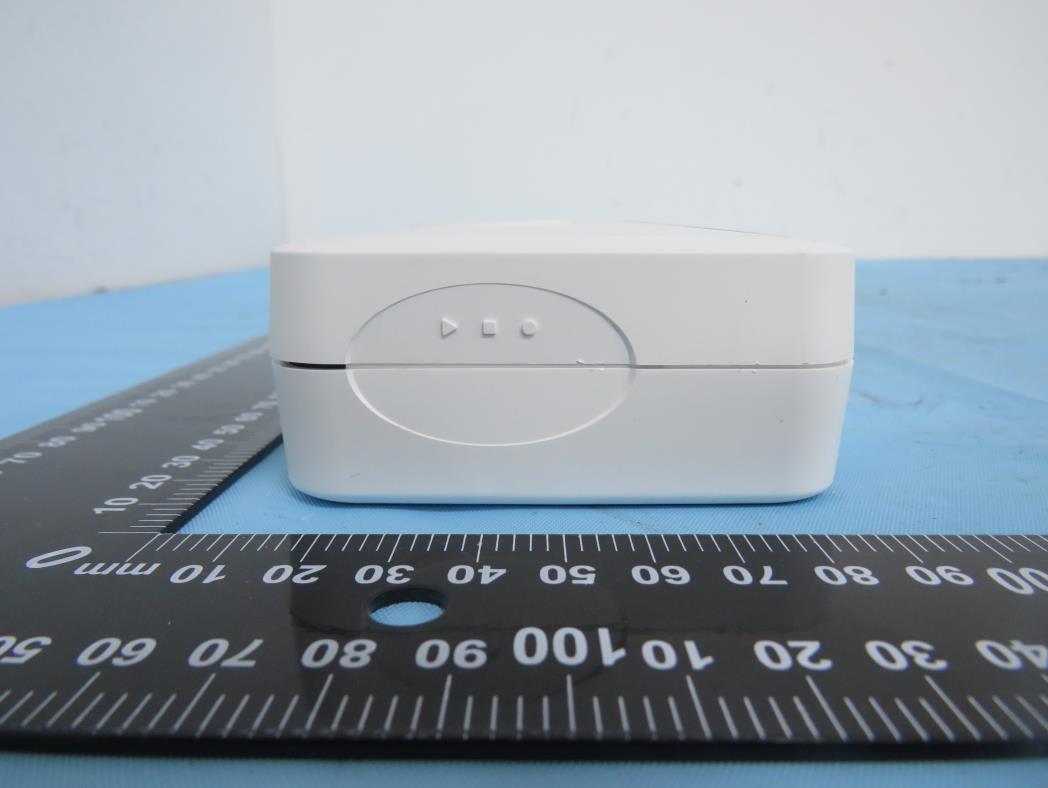

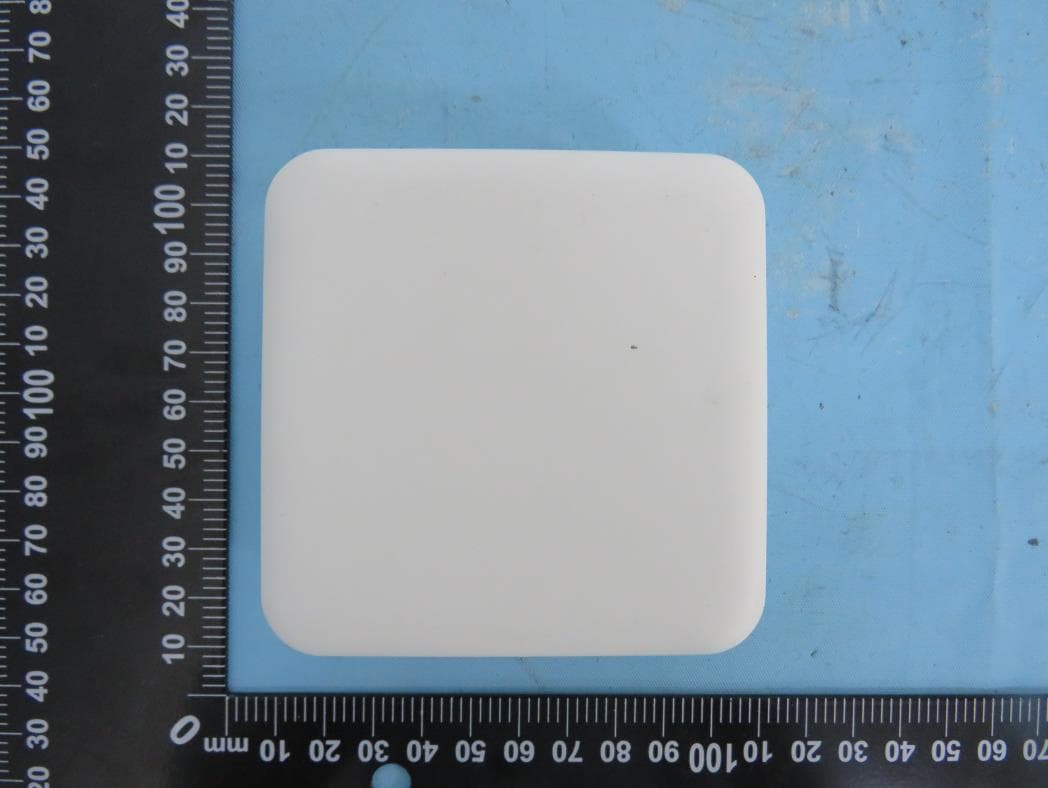

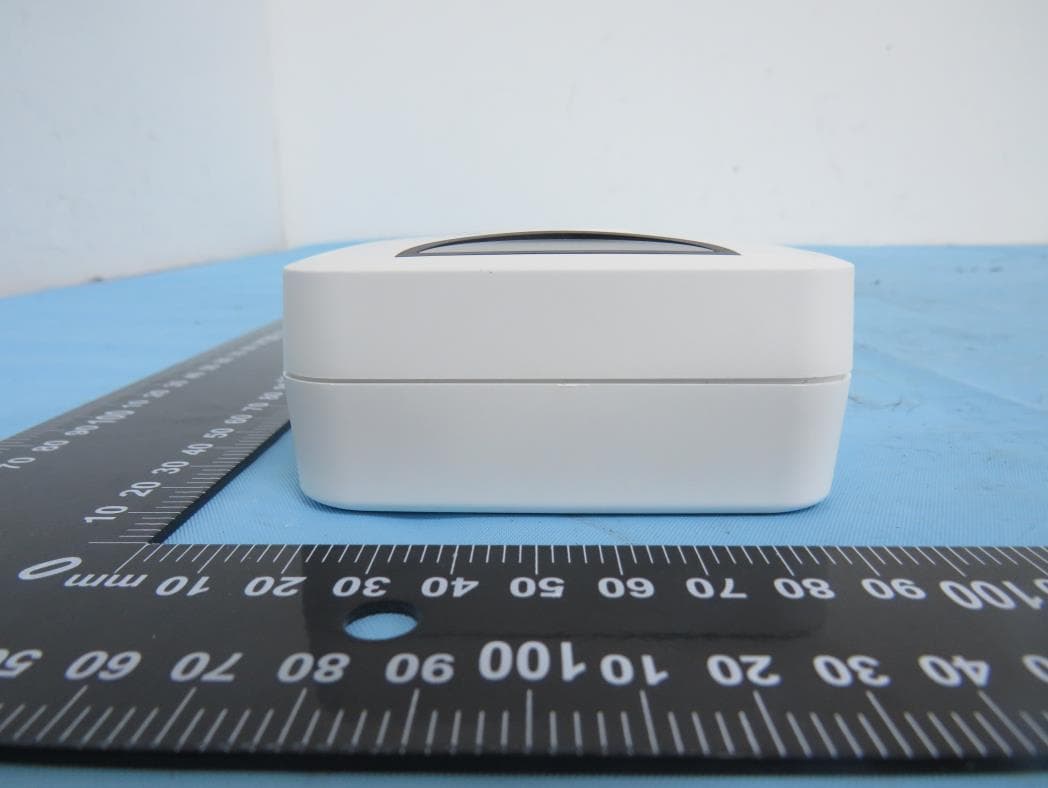

FCC ID: 2AUTE-SPP External photos FCC ID: 2AUTE-SPP FCC ID: 2AUTE-SPP

Label & location

FCC ID: 2AUTE-SPP Internal photos FCC ID: 2AUTE-SPP RF Chip RF Antenna FCC ID: 2AUTE-SPP FCC ID: 2AUTE-SPP FCC ID: 2AUTE-SPP

Dongguan Nore Testing Center Co., Ltd. Report No.: NTC2209043F-1 FCC ID: 2AUTE-SPP RF EXPOSURE EVALUATION EUT Specification EUT HPRT POOOLI SMART POCKET PRINTER, HPRT SMART POCKET PRINTER, HPRT LABEL PRINTER Frequency band (Operating) WLAN: 2.412GHz ~ 2.462GHz WLAN: 5.18GHz ~ 5.32GHz / 5.50GHz ~ 5.70GHz WLAN: 5.745GHz ~ 5825GHz Others(Bluetooth: 2.402GHz ~ 2.480GHz) Device category Portable (<20cm separation) Mobile (>20cm separation) Others ___ Antenna diversity Single antenna Multiple antennas Tx diversity Rx diversity Tx/Rx diversity Max. output power -1.914dBm (0.64mW) for BDR EDR -1.209dBm(0.76mW) for BLE Antenna gain 0dBi Evaluation applied MPE Evaluation SAR Evaluation Standard Requirement Portable Device According to §15.247(i) and §1.1307b(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy levels in excess of the Commission’s guidelines. See KDB 447498 D01 General RF Exposure Guidance v06, section 4.3.1. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] ·[√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, 16 where ·f(GHz) is the RF channel transmit frequency in GHz ·Power and distance are rounded to the nearest mW and mm before calculation17 ·The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Dongguan Nore Testing Center Co., Ltd. Report No.: NTC2209043F-1 FCC ID: 2AUTE-SPP Measurement Result Channel Channel Frequency (MHz) Max Output power (dBm) Max Output power (mW) Calculati on Value (Note 1) Threshold Value GFSK Low 2402 -1.914 0.64 0.1984 3.0 Middle 2441 -2.782 0.53 0.1656 3.0 High 2480 -2.810 0.52 0.1638 3.0 BLE Low 2402 -1.209 0.76 0.2356 3.0 Middle 2440 -2.041 0.63 0.1968 3.0 High 2480 -2.089 0.62 0.1953 3.0 Note 1: Calculation Value =[(max. power of channel, mW)/(min. test separation distance, mm)] ·[√f(GHz)]. Fox example: 0.76/5*√2.402=0.2356 ≤ 3.0 According to KDB447498 D01 V06, threshold at which no SAR required is ≤3.0 for 1-g SAR, separation distance is 5mm, and no simultaneous SAR measurement is required.

Report No.: NTC2209043FV00 Page 2 of 38 Table of Contents 1. Summary of Test Result ...................................................................................................................................... 4 2. General Description of EUT ................................................................................................................................ 5 3. Test Channels and Modes Detail ........................................................................................................................ 8 4. Configuration of EUT ........................................................................................................................................... 8 5. Modification of EUT ............................................................................................................................................. 8 6. Description of Support Device ............................................................................................................................. 9 7. Test Facility and Location ................................................................................................................................. 10 8. Applicable Standards and References .............................................................................................................. 11 9. Deviations and Abnormalities from Standard Conditions ................................................................................. 11 10. Test Conditions ............................................................................................................................................... 12 11. Measurement Uncertainty ............................................................................................................................... 12 12. Sample Calculations ....................................................................................................................................... 13 13. Test Items and Results ................................................................................................................................... 14 13.1 Conducted Emissions Measurement ............................................................................................................ 14 13.2 Maximum Conducted Output Power Measurement ...................................................................................... 18 13.3 6dB Bandwidth Measurement ....................................................................................................................... 20 13.4 Power Spectral Density Measurement ......................................................................................................... 23 13.5 Band Edge and Conducted Spurious Emissions Measurement ................................................................... 26 13.6 Radiated Spurious Emissions and Restricted Bands Measurement ............................................................ 30 13.7 Antenna Requirement ................................................................................................................................... 37 14. Test Equipment List......................................................................................................................................... 38 Report No.: NTC2209043FV00 Page 3 of 38 Revision History Report Number Description Issued Date NTC2209043FV00 Initial Issue 2022-10-15 Report No.: NTC2209043FV00 Page 4 of 38 1. Summary of Test Result FCC Rules Description of Test Result Remarks §15.207 (a) AC Power Conducted Emission PASS --- §15.247(b)(3) Maximum Conducted Output Power PASS --- §15.247(a)(2) 6dB Bandwidth PASS --- §15.247(e) Power Spectral Density PASS --- §15.247(d) Band Edge and Conducted Spurious Emissions PASS --- §15.247(d), §15.209, §15.205 Radiated Spurious Emissions and Restricted Bands PASS --- §15.203 Antenna Requirement PASS --- Report No.: NTC2209043FV00 Page 5 of 38 2. General Description of EUT Product Information Product name: HPRT POOOLI SMART POCKET PRINTER,HPRT SMART POCKET PRINTER,HPRT LABEL PRINTER Main Model Name: HPRT Poooli L1 Additional Model Name: HPRT L1, HPRT L1pro, L1, HPRT L1S, HPRT Poooli L2, HPRT L2, HPRT L2pro, L2, HPRT L2S Model Difference: These models have the same circuit schematic, construction, PCB Layout and critical components. Their difference is model number due to trading purpose. S/N: 2209-4477 Brand Name: N/A Hardware version: V01 Software version: V01 Rating: DC 5V 1A from Micro USB port or DC 3.7V from Lithium-ion battery Classification: Class B Typical arrangement: Table-top I/O Port: Refer to the user manual Accessories Information Adapter: N/A Cable: USB line: 0.25m unshielded, detachable Other: N/A Additional Information Note: According to the model difference, all tests were performed on model HPRT Poooli L1. Remark: All the information above are provided by the manufacturer. More detailed feature of the EUT please refers to the user manual. Report No.: NTC2209043FV00 Page 6 of 38 Technical Specification (BLE) Bluetooth Version: V5.0 Frequency Range: 2402-2480MHz Modulation Type: GFSK Number of Channel: 40 (refer to following channel list for details) Channel Space: 2MHz Antenna Type: PCB Antenna Antenna Gain: 0 dBi (Declared by the manufacturer) RF PHY Support: 1Mbps Note: This report only replies to BLE feature of the EUT. Report No.: NTC2209043FV00 Page 7 of 38 Channel List Channel Frequency (MHz) Channel Frequency (MHz) Channel Frequency (MHz) 0 2402 14 2430 28 2458 1 2404 15 2432 29 2460 2 2406 16 2434 30 2462 3 2408 17 2436 31 2464 4 2410 18 2438 32 2466 5 2412 19 2440 33 2468 6 2414 20 2442 34 2470 7 2416 21 2444 35 2472 8 2418 22 2446 36 2474 9 2420 23 2448 37 2476 10 2422 24 2450 38 2478 11 2424 25 2452 39 2480 12 2426 26 2454 - - 13 2428 27 2456 - - Report No.: NTC2209043FV00 Page 8 of 38 3. Test Channels and Modes Detail Mode Channel Frequency (MHz) Modulation RF PHY (Mbps) 1 TX Low 0 2402 GFSK 1 2 Mid 19…

Text truncated - open the document above for the full version.

Page 1 of 6 Xiamen Hanin Electronic Technology Co., Ltd. Specification for approval Customer: Xiamen Hanin Electronic Technology Co., Ltd. Antenna model number: ANT3121 Antenna type: PCB Antenna Date: 2020.08.03 Page 2 of 6 1. Product Overview & Dimension Page 3 of 6 2. Test Result 2.1 VSWR Frequency (MHz) 2400 2450 2500 VSWR 4.00 3.35 3.65 Page 4 of 6 2. Test Result 2.2 SMISH Frequency (MHz) 2400 2450 2500 SMISH 11.00 11.20 13.65 Page 5 of 6 2. Test Result 2.3 Gain & Efficiency Frequency (MHz) Efficiency (%) Average Gain (dB) Peak Gain (dBi) 2400 3.69 -3.65 -0.55 2450 3.65 -3.79 -0.59 2500 4.25 -3.99 0.00 Page 6 of 6 2. Test Result HorizontalVertical

FCC ID: 2AUTE-SPP Test Photo Radiated emission (Below 30MHz) Radiated emission (30-1000MHz) FCC ID: 2AUTE-SPP Radiated emission (Above 1000MHz) Conducted Emission
