2AUTE-TT4W2WIFI Dongle

USER MANUAL
Product specifications Product Name: WIFI Dongle Input: 3.3V 0.5A Frequency Range :2.4GHz-2.483GHz Operating Temperature :-40~105°C Warning:Changes or modifications to this unit not expressly approvedby the part responsible for compliance could void the user’s authority to operate the equipment. WEEE(Waste Electrical and Electronic Equipment) Directive T his information only applies to customers in the European Union,according to Directive 2012/19/EU OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL OF 04 July 2012 on waste electrical and legal systems,and to customers in countries in Europe,Middle East and Africa(EMEA) where they have implemented equivalent regulations . For other countries,please contact your local government toinvestigate the possibility of recycling your product. RF exposure statement This equipment complies with the FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and any part of your body. This equipment meets the exemption from the routine evaluation limits in section 2.5 of RSS-102. It should be installed and operated with a minimum distance of 20cm between the radiator and any part of your body. Cet équipement est conforme à l'exemption des limites d'évaluation habituelle de la section 2.5 de la norme RSS-102. Il doit être installé et utilisé à une distance minimale de 20 cm entre le radiateur et toute partie de votre corps. FCC Warning This device complies with Part 15 of the FCC Rules. Operation issubject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE 1: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interferencein a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one ormore of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician forhelp. NOTE 2: Any changes or modifications to this unit not expresslyapproved by the party responsible for compliance could void the user's authorityto operate the equipment. IC WARNING This device contains licence-exempt transmitter(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Développement économique Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes: 1. L’appareil ne doit pas produire de brouillage; 2. L’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement. FCC ID:2AUTE-TT4W2 IC:26218-TT4W2 Manufacturer:Xiamen Hanin Electronic Technology Co., Ltd. Made in China Installation Open the machine shell and locate the motherboard wireless module socket WI-FI SettingsPrinter Wi-fi factory default is Off , and it needs to be turned on through menbefore use . In AP mode , the IP address is 192.168.1.1 , SSID is TT4W Ap-xxxx( last four digits of Wi-fi Mac address ) . If you need to change the Wi-fi settings ,please set it by the Utility tool

XiamenHaninElectronicTechnologyCo.,Ltd. Room305A,AngyeBuilding,PioneeringPark,TorchHigh-tech,Zone,Xiamen,China Date:2023-05-25 FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 Ref:AttestationStatementsPart2.911(d)(5)(i)Filing SUBJECT:FCCApplicationforFCCID:2AUTE-TT4W2 ToWhomItMayConcern: XiamenHaninElectronicTechnologyCo.,Ltd.certifiesthattheequipmentforwhichauthorizationissoughtis not“covered”equipmentprohibitedfromreceivinganequipmentauthorizationpursuanttosection2.903ofthe FCCrules. Sincerely, Signatory [JeffWang,CertifiedEngineer]

XiamenHaninElectronicTechnologyCo.,Ltd. Room305A,AngyeBuilding,PioneeringPark,TorchHigh-tech,Zone,Xiamen,China Date:2023-05-25 FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 Ref:AttestationStatementsPart2.911(d)(5)(ii)Filing SUBJECT:FCCApplicationforFCCID:2AUTE-TT4W2 ToWhomItMayConcern: XiamenHaninElectronicTechnologyCo.,Ltd.certifiesthat,asofthedateofthefilingoftheapplication,the applicantisnotidentifiedontheCoveredListasanentityproducing“covered”equipment. Sincerely, Signatory [JeffWang,CertifiedEngineer]

Xiamen Hanin Electronic Technology Co.,Ltd. Room 305A, Angye Building, Pioneering Park, Torch High-tech, Zone, Xiamen, China Date: 2023-05-25 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AUTE-TT4W2 US Agent – Attestation Statement / Part 2.911(d)(7) Xiamen Hanin Electronic Technology Co.,Ltd. certifies that, as of 2023-05-25, we have designated FCC US Agent, LLC to accept service of process on our behalf for FCC ID: 2AUTE-TT4W2. Xiamen Hanin Electronic Technology Co.,Ltd., accepts to maintain an agent of service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. FCC US Agent, LLC, accepts as of the date of the filing of this application, the obligation of being the designated agent for the purpose of accepting service of process on behalf of Xiamen Hanin Electronic Technology Co.,Ltd. for FCC ID: 2AUTE-TT4W2. Designated Agent Information: Company Name: FCC US Agent, LLC FRN: 0033402884 Address: 3722 Illinois Avenue, Saint Charles, IL, 60174, USA Contact Person: Tim Payne Phone: 708-571-3148 Email: [email protected] Sincerely, Company: Xiamen Hanin Electronic Technology Designated Agent: FCC US Agent, LLC Co.,Ltd. Company Representative: Jeff Wang Designated Agent Representative: Tim Payne Signature: Signature:

XiamenHaninElectronicTechnologyCo.,Ltd. Room305A,AngyeBuilding,PioneeringPark,TorchHigh-tech,Zone,Xiamen,China Date:2023-05-25 FEDERALCOMMUNICATIONSCOMMISSION AUTHORIZATIONANDEVALUATIONDIVISION 7435OAKLANDMILLSROAD COLUMBIA,MD21046 SUBJECT:FCCApplicationforFCCID:2AUTE-TT4W2 POWEROFATTORNEY ToWhomItMayConcern: We,theundersigned,herebyauthorizeWaltekTestingGroup(Shenzhen)Co.,Ltd.JandySoonourbehalf,to applytotheFederalCommunicationsCommissiononourequipment.AnyandallactscarriedoutbyWaltek TestingGroup(Shenzhen)Co.,Ltd.JandySoonourbehalfshallhavethesameeffectasactsofourown. ThisistoadvisethatweareinfullcompliancewiththeAnti-DrugAbuseAct.We,XiamenHaninElectronic TechnologyCo.,Ltd.arenotsubjecttoadenialoffederalbenefitspursuanttoSection5301oftheAnti-Drug Actof1988,21USC853a,andnopartytotheapplicationissubjecttoadenialoffederalbenefitspursuantto thatsection. Sincerely, Signatory [JeffWang,CertifiedEngineer]

XiamenHaninElectronicTechnologyCo.,Ltd. Room305A,AngyeBuilding,PioneeringPark,TorchHigh-tech,Zone,Xiamen,China Date:2023-05-25 FederalCommunicationsCommission AuthorizationandEvaluationDivision 7435OaklandMillsRoad Columbia,MD21046 SUBJECT:FCCApplicationforFCCID:2AUTE-TT4W2 ToWhomItMayConcern: I,theundersigned,herebystatesthisequipmenthasbeentestedandfoundtocomplywiththelimitsfora ClassBdigitaldevice,pursuanttopart15oftheFCCRules,andwillapplytheSupplier'sDeclarationof ConformityproceduretotheclassBdevice.IunderstandthefollowingFCCrequirements: 1.DevicessubjecttotheSDoCprocedurearerequiredtobetestedtoshowcompliancewiththeFCC technicalregulationsbyarecognizedaccreditedtestinglaboratory.Thetestinglaboratorymustbe accreditedbyaCommissionapprovedaccreditationbodyordesignatedunderthetermsofa government-to-governmentMutualRecognitionAgreement(MRA).Alistingofthoseaccreditedtesting laboratoriesthathavebeenrecognizedbytheCommissionispublishedontheFCCWebpage: https://apps.fcc.gov/oetcf/eas/reports/TestFirmSearch.cfm(Selectthe"accredited"optiontosearchfor FCCrecognizedaccreditedtestfirms.) 2.Pt2.1077containsthelistofinformationthatmustbeincludedintheSupplier'sDeclarationof Conformity,whichmustbesuppliedwitheachproductsold.TheSDoCcomplianceinfoshallbeincluded intheUser’sManualorasaseparatesheet.Theinfomustcontainthename,address,andphone numberoftheresponsibleparty,whichmustbelocatedwithintheUnitedStates.Accordingto 2.909(b),theresponsiblepartyiseithertheManufactureroriftheproductisimportedtheImporter. Sincerely, Signatory [JeffWang,CertifiedEngineer]

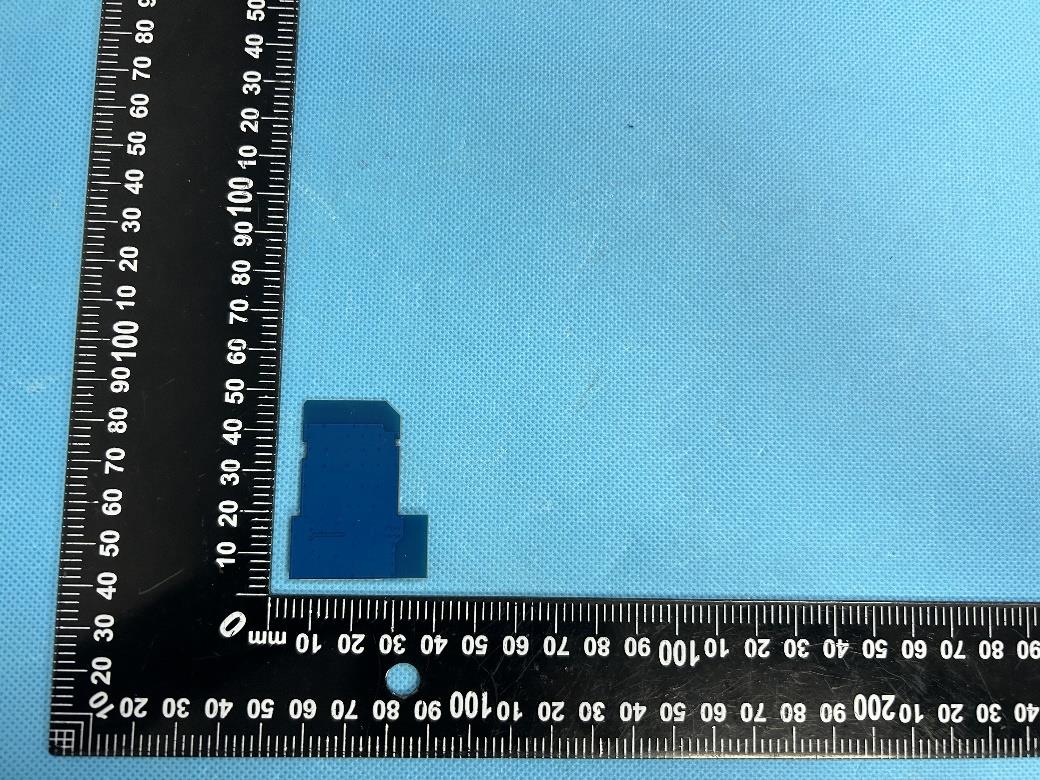

Reference No.: WTX23X04089242W001 Page 2 of 6 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EXHIBIT 2 - EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2

Reference No.: WTX23X04089242W001 Page 1 of 6 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn ANNEX EXHIBIT 1 - PRODUCT LABELING Proposed FCC ID Label Format Specifications: The label shall be securely affixed to a permanently attached part of the device, in a location where it is visible or easily accessible to the user, and shall not be readily detachable. The label shall be sufficiently durable to remain fully legible and intact on the device in all normal conditions of use throughout the device’s expected lifetime. Proposed Label Location on EUT FCC ID Label Location

Reference No.: WTX23X04089242W001 Page 3 of 7 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EXHIBIT 3 - EUT INTERNAL PHOTOGRAPHS Solder Board-Component View 1 Solder Board-Component View 2 Reference No.: WTX23X04089242W001 Page 4 of 7 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Antenna View

1. RF Exposure Requirements 1.1 General Information Client Information Applicant: Xiamen Hanin Electronic Technology Co.,Ltd. Address of applicant: Room 305A, Angye Building, Pioneering Park,Torch High-tech,Zone, Xiamen Manufacturer: Xiamen Hanin Electronic Technology Co.,Ltd. Address of manufacturer: Room 305A, Angye Building, Pioneering Park,Torch High-tech, Zone, Xiamen General Description of EUT: Product Name: WIFI Dongle Trade Name: HPRT, iDPRT Model No.: TT4W Adding Model(s): / Rated Voltage: DC 3.3V Power Adapter Model: / FCC ID: 2AUTE-TT4W2 Equipment Type: Mobile device Technical Characteristics of EUT: Wi-Fi Support Standards: 802.11b, 802.11g, 802.11n-HT20/40 Frequency Range: 2412-2462MHz for 802.11b/g/n(HT20) 2422-2452MHz for 802.11n(HT40) RF Output Power: 13.19dBm (Conducted) Type of Modulation: CCK, OFDM, QPSK, BPSK, 16QAM, 64QAM Quantity of Channels: 11 for 802.11b/g/n(HT20); 7 for 802.11n(HT40) Channel Separation: 5MHz Type of Antenna: PCB Antenna Antenna Gain: -1.08dBi 1.2 RF Exposure Exemption According to §1.1307(b)(3) and KDB 447498 D04 Interim General RF Exposure Guidance v01, system operating under the provisions of this section shall be operating in a manner that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. Option A: FCC Rule Part 1.1307 (b)(3)(i)(A):The available maximum time-averaged power is no more than 1mW, regardless of separation distance. Option B: FCC Rule Part 1.1307 (b)(3)(i)(B): The available maximum time-averaged power or effective radiated power (ERP), whichever is greater, is less than or equal to the threshold P th (mW) described in the following formula. P th is given by: Option C: FCC Rule Part 1.1307 (b)(3)(i)(C): The minimum separation distance (R in meters) from the body of a nearby person for the frequency (f in MHz) at which the source operates, the ERP (watts) is no more than the calculated value prescribed for that frequency. R must be at least λ/2π, where λ is the free-space operating wavelength in meters. Single RF Sources Subject to Routine Environmental Evaluation RF Source frequency (MHz) Threshold ERP (watts) 0.3-1.34 1,920 R 2 1.34-30 3,450 R 2 /f 2 30-300 3.83 R 2 300-1,500 0.0128 R 2 f 1,500-100,000 19.2R 2 For Multiple RF sources: FCC Rule Part 1.1307(b)(3)(ii): (A) The available maximum time-averaged power of each source is no more than 1 mW and there is a separation distance of two centimeters between any portion of a radiating structure operating and the nearest portion of any other radiating structure in the same device, except if the sum of multiple sources is less than 1 mW during the time-averaging period, in which case they may be treated as a single source (separation is not required). (B) In the case of fixed RF sources operating in the same time-averaging period, or of multiple mobile or portable RF sources within a device operating in the same time averaging period, if the sum of the fractional contributions to the applicable thresholds is less than or equal to 1 as indicated in the following equation. 1.3 Calculated Result Radio Access Technology Prediction Frequency Output Power Antenna Gain Duty Cycle Tune-Up Time- Averaged Power ERP (MHz) (dBm) (dBi) (%) (dBm) (dBm) Wi-Fi 2412 13.19 -1.08 100 14.00 10.77 Frequency Option Min. Distance Max. Power Exposure Limit Ratio Result (MHz) (cm) (dBm) (mW) (mW) Pass/Fail 2412 C 20.00 10.77 11.94 768.00 0.02 Pass Note: 1. Time-Averaged Power=Output Power * Duty Cycle; ERP= Time-Averaged Power+ Antenna gain- 2.15dB 2. Option A, B and C refers as clause 1.2. 3. For option B, Max (time-averaged power, effective radiated power (ERP)) converts to Max. Power. For option C, ERP converts to Max. Power; 4. For option B, P th (mW) converts to Exposure Limit (mW); For option C, ERP (W) converts to Exposure Limit (mW). 5. Ratio= Tune-Up ERP (mW)/ Exposure Limit (mW) Mode for Simultaneous Multi-band Transmission: Radio Access Technology Ratio 1 Ratio 2 Simultaneous Ratio Limit Result Pass/Fail -- -- -- -- -- -- Result: Pass

Antenna Describe 1： Antenna Describe No Parameter Specification 1 Antenna PCB 2 Return Loss ＜-10dB 3 Antenna Gain -1.08dBi 4 Frequency Range 2.4GHz-2.483GHz 5 Connector Type Direct 6 Location of mearement Company name:Xiamen Hanin Electronic Technology Co.,Ltd ADD:Room 305A, Angye Building, Pioneering Park,Torch High-tech,Zone,Xiamen d. 7 Azimuth Omni-directional 8 Impedance 50 Ω 9 Operating Temperature -40~105°C 2：External View Drawing Picture of antenna Unit:mm Xiamen Hanin Electronic Technology Co.,Ltd. Type of Antenna: TT4W 3：Measurement Result 3.1Typical free space gain 3.2 Typical free space radiation pattern 3.3Typical Free Space 3D Radiation Pattern

Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 1 of 58 TEST REPORT Reference No. .................... : WTX23X04089242W001 FCC ID ................................ : 2AUTE-TT4W2 Applicant ........................... : Xiamen Hanin Electronic Technology Co.,Ltd. Address ............................. : Room 305A, Angye Building, Pioneering Park,Torch High-tech,Zone,Xiamen Manufacturer ..................... : The same as Applicant Address ............................. : The same as Applicant Product Name ................... : WIFI Dongle Model No... ......................... : TT4W Standards .......................... : FCC Part 15.247 Date of Receipt sample .... : 2023-04-24 Date of Test........................ : 2023-04-24 to 2023-05-19 Date of Issue ..................... : 2023-05-19 Test Report Form No. ....... : WTX_Part 15_247W Test Result ......................... : Pass Remarks: The results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of approver. Prepared By: Waltek Testing Group (Shenzhen) Co., Ltd. Address: 1/F., Room 101, Building 1, Hongwei Industrial Park, Liuxian 2nd Road, Block 70 Bao'an District, Shenzhen, Guangdong, China Tel.: +86-755-33663308 Fax.: +86-755-33663309 Email: [email protected] Tested by: Approved by: Dashan Chen Silin Chen Reference No.: WTX23X04089242W001 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Page 2 of 58 TABLE OF CONTENTS 1. GENERAL INFORMATION .................................................................................................................................... 4 1.1 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ......................................................................... 4 1.2 TEST STANDARDS ................................................................................................................................................. 5 1.3 TEST METHODOLOGY ........................................................................................................................................... 5 1.4 TEST FACILITY ...................................................................................................................................................... 5 1.5 EUT SETUP AND TEST MODE .............................................................................................................................. 6 1.6 MEASUREMENT UNCERTAINTY ............................................................................................................................. 7 1.7 TEST EQUIPMENT LIST AND DETAILS ................................................................................................................... 8 2. SUMMARY OF TEST RESULTS ......................................................................................................................... 10 3. ANTENNA REQUIREMENT ................................................................................................................................. 11 3.1 STANDARD APPLICABLE ..................................................................................................................................... 11 3.2 EVALUATION INFORMATION ................................................................................................................................ 11 4. POWER SPECTRAL DENSITY ........................................................................................................................... 12 4.1 STANDARD APPLICABLE ..................................................................................................................................... 12 4.2 TEST SETUP BLOCK DIAGRAM ........................................................................................................................... 12 4.3 TEST PROCEDURE .............................................................................................................................................. 12 4.4 SUMMARY OF TEST RESULTS/PLOTS ................................................................................................................. 12 5. DTS BANDWIDTH ................................................................................................................................................. 13 5.1 STANDARD APPLICABLE ..................................................................................................................................... 13 5.2 TEST SETUP BLOCK DIAGRAM ........................................................................................................................... 13 5.3 TEST PROCEDURE .............................................................................................................................................. 13 5.4 SUMMARY OF TEST RESULTS/PLOTS ................................................................................................................. 13 6. RF OUTPUT POWER ............................................................................................................................................ 14 6.1 STANDARD APPLICABLE ..................................................................................................................................... 14 6.2 TEST SETUP BLOCK DIAGRAM ........................................................................................................................... 14 6.3 TEST PROCEDURE .............................................................................................................................................. 14 6.4 SUMMARY OF TEST RESULTS/PLOTS ................................................................................................................. 14 7. FIELD STRENGTH OF SPURIOUS EMISSIONS ........................................................…

Text truncated - open the document above for the full version.

Reference No.: WTX23X04089242W001 Page 4 of 6 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn EXHIBIT 4 - TEST SETUP PHOTOGRAPHS Conducted Emission Test Setup Radiation Emission Test Setup (Below 30MHz) Reference No.: WTX23X04089242W001 Page 5 of 6 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Radiation Emission Test Setup (30MHz to 1GHz) Radiation Emission Test Setup (1GHz to 18GHz) Reference No.: WTX23X04089242W001 Page 6 of 6 Waltek Testing Group (Shenzhen) Co., Ltd. Http://www.waltek.com.cn Radiation Emission Test Setup (Above 18GHz) ***** END OF REPORT *****
