FLOOR ONE S5 SERIES Smart Cordless Vacuum & Washer Instruction Manual Manual De Uso Mode D’emploi *Actual product may differ from illustration. TINECO IS HERE TO HELP. We’ll get back to you within 1 business day. www.tineco.com 1-855-292-8864 EN 1 CONTENTS Important Safety Instructions ............................................................... 2 Specifications ........................................................................................ 6 Overview ................................................................................................ 7 Accessories ............................................................................................ 9 Assembly ............................................................................................. 10 Operation ............................................................................................ 11 Maintenance ....................................................................................... 17 Troubleshooting .................................................................................. 21 Warranty .............................................................................................. 22 TINECO IS HERE TO HELP. We’ll get back to you within 1 business day. www.tineco.com 1-855-292-8864 EN 2 Important Safety Instructions SAVE THESE INSTRUCTIONS Household use only. When using an electrical appliance, basic precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING (THIS APPLIANCE). Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. WARNING – To reduce the risk of fire, electric shock, or injury: 1.This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children should not play with the appliance. Cleaning and user maintenance shall not be performed by children without supervision. 2. The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction. 3.Use only indoors, on non-carpeted floor surfaces such as vinyl, tile, sealed wood, etc. Be careful not to run over loose objects or edges of area rugs. Stalling the brush may result in premature belt failure. 4. Do not allow to be used as a toy. Close attention is necessary when used by or near children, pets or plants. 5.Use only as described in this manual. Use only manufacturer’s recommended attachments. 6. Do not use with a damaged cord or plug. If appliance has been dr opped, damaged, left outdoors, dropped into water, or is not working as it should, return it to a service center. 7.Do not handle charger, including charger plug, and charger terminals with wet hands. 8. Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may r educe air flow. 9.Keep hair, loose clothing, fingers, and all parts of your body away fr om openings and moving parts. 10. Use extra care when cleaning on stairs. 11. Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas wher e they may be present. 12. Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes. 13.Do not use without filter. 14. Prevent unintentional activation. Ensur e the switch is in the off-position before picking up or carrying the appliance. Carrying the appliance with your finger on the switch or energizing appliance that have the switch on invites accidents. 15. Always switch off the appliance before making any adjustments, changing accessories, or storing the appliance. Such preventive safety measures reduce the risk of starting the appliance accidentally. EN 3 16.Recharge only with the charger specified by Tineco. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. 17. Use appliances only with specifically designated Tineco battery packs. Use of any other battery packs may create a risk of injury and fire. 18.Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid comes into eye contact, seek medical help. Liquid ejected from the battery may cause irritation or burns. 19. Do not use a battery pack or appliance that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury. 20. Do not expose a battery pack or appliance to fire or excessive temperature. Exposure to fire or temperature above 266°F (130°C) may cause an explosion. 21.Follow all charging instructions and do not char ge the battery pack or appliance outside of the temperature range specified in the instructions. Charging improperly or at temperatures outside of the specified range may damage the battery and increase the risk of fire. 22.Have servicing performed by a qualified repair person using only identical r eplacement parts. This will ensure that the safety of the product is maintained. 23.This appliance contains battery cells that are non-r eplaceable. Do not modify or attempt to repair the appliance or the battery pack except as indicated in the instructions for use and care. 24.Always turn off this appliance befor e connecting or disconnecting the motorized nozzle. 25.Do not charge or store the appliance outdoors or inside the car. Only charge, store or use the battery in a dry indoor area where the temperature is higher than 39.2°F (4°C) but lower than 104°F (40°C). The charger is for indoor use only. 26.Do not use to pick up ultrafine particles, such as lime, cement, sawdust, gypsum powde…

Text truncated - open the document above for the full version.

FR 60 Remplissage du réservoir d’eau propre MAX Appuyez sur le bouton de déverrouillage du réservoir d’eau propre pour le retirer de l’appareil. Ouvrez le bouchon du réservoir et remplissez- le d’eau du robinet jusqu’à la ligne Max. Si un nettoyage en profondeur est nécessaire, ajoutez un bouchon de flacon de solution dans le REP et fermez fermement le bouchon. ② ① clic Remarque : Utilisez uniquement de l’eau dont la température est inférieure à 60 °C. N’UTILISEZ PAS D’EAU CHAUDE. Replacez le réservoir dans l’appareil. Vous entendrez un « clic » lorsque le réservoir est bien en place. Instructions de chargement Pour charger l’appareil, placez-le sur la base de recharge et branchez l’adaptateur sur une prise secteur. 1. Pour char ger l’appareil, branchez le cordon de charge externe à la base de recharge et branchez-le sur la prise murale. 2. Pour éviter tout risque de trébuchement, placez l’appareil sur la base de recharge à proximité d’un mur pendant la charge. Remarque : • Le système de refroidissement a été activé pour optimiser la charge de la batterie en émettant un léger son. • Pendant la charge, appuyez longuement sur le bouton pendant 10 secondes pour allumer/éteindre le système de refroidissement. Avertissement : • Chargez l’appareil uniquement avec l’adaptateur fourni par Tineco. • Pendant de longues périodes de non-utilisation, l’appar eil doit être chargé une fois tous les 3 mois pour des performances optimales. Une charge complète nécessite environ 4 à 5 heures. • Rangez l’appareil en intérieur, à l’abri de l’humidité. N’exposez pas l’appareil à la lumière du soleil ni au gel. Plage de température recommandée : 4 °C à 40 °C. FR 61 Sélection du mode de nettoyage Mode AUTO • En mode AUTO, le capteur iLoop™ détecte automatiquement le degré de salissure du sol et applique la quantité appropriée de détergent et la puissance d’aspiration adaptée. • Une boucle rouge de surveillance de la saleté indique qu’une plus grande quantité de saleté est détectée et une boucle bleue indique qu’une moins grande quantité de saleté est détectée. Ce mode fournit automatiquement la meilleure solution de nettoyage. Mode MAX • En mode AUTO, appuyez sur le bouton pour entrer en mode MAX. Le témoin AUTO s’éteint sur l’écran. • En mode MAX, l’appareil applique une puissance d’aspiration maximale et pulvérise de l’eau/de la solution pour un nettoyage en profondeur. Mode ASPIRATION (disponible uniquement sur une sélection de modèles) • En mode MAX, appuyez sur le bouton pour entrer en mode ASPIRATION. • En mode ASPIRATION, l’appareil ne fera qu’absorber l’eau sans pulvériser. Nous recommandons d’utiliser ce mode sur la surface mouillée. Remarque : Éloignez les objets pointus de l’écran numérique pour éviter les rayures et les éraflures. FR 62 Autonomie • En mode AUTO, l’autonomie est d’environ 35 minutes. Lorsque la puissance MAX est utilisée, l’autonomie est d’environ 28 minutes. • Les estimations de l’autonomie ont été obtenues par un laboratoire Tineco. Durée de la recharge • Il faut environ 4 à 5 h pour recharger complètement la batterie. • Les données estimées ont été obtenues par un laboratoire Tineco à des températures ambiantes comprises entre 4 °C et 40 °C. Voyant En cours d’utilisation Niveau de batterie ≥ 10 % : l’indicateur de batterie s’allume. Niveau de batterie < 10 % : l’indicateur de batterie clignote. Éteint : absence d’alimentation détectée ou dysfonctionnement possible de la batterie. Voyant rouge fixe : dysfonctionnement ou blocage du capteur de saleté. Voyant clignotant : le REP est vide. Voyant clignotant : le RES est plein ou le canal est bloqué. Voyant clignotant : le rouleau brosse n’est pas installé ou est bloqué. Allumé : connexion Wi-Fi réussie. FR 63 Voyant clignotant : connexion Wi-Fi en cours. Éteint : le Wi-Fi n’est pas connecté, veuillez-vous connecter au réseau. Voyant clignotant : l’appareil a besoin d’un nettoyage automatique. Durant la recharge Voyant Tineco : pulsant. Rechargé à 100 % Pendant 5 minutes : voyant Tineco allumé. Après 5 minutes : tous les voyants s’éteignent. Application Toutes les fonctions peuvent être activées à l’aide de l’appli Tineco. Téléchargez l’appli Tineco depuis l’App Store, Google Play ou le site officiel de Tineco. TinecoTineco www.tineco.com Support Téléchargement de l’appli TÉLÉCHARGEZ SUR Google Play Téléchargez sur l’App Store Téléchargement de l’appli Remarque : Le paramètre par défaut pour l’invite vocale est l’anglais, vous pouvez définir d’autres langues à l’aide de l’application. FR 64 Invite vocale (le contenu peut varier, veuillez noter que l’invite vocale réelle prévaut.) ÉtatRappel Invites vocales activéesInvites vocales activées Invites vocales désactivéesInvites vocales désactivées Mode Auto par défautMode Auto Passer en mode Max Mode Max Nettoyez à l’eau uniquementNettoyez à l’eau uniquement Nettoyer avec la solution de nettoyage par défaut Nettoyez avec une solution de nettoyage Niveau de la batterie : 10 à 20%Batterie faible Niveau de la batterie : 0 à 10%Batterie faible, veuillez charger l’appareil Le réservoir d’eau propre est vide Réservoir d’eau propre vide, veuillez le remplir d’eau et de solution de nettoyage Nettoyage automatique nécessaireCommencez le cycle de nettoyage automatique L’appareil ne se trouve pas sur la base de recharge Placez l’appareil sur la base de recharge Le réservoir d’eau sale est pleinLe réservoir d’eau sale est plein, veuillez le vider Réservoir d’eau sale non installéInstallez le réservoir d’eau sale Rouleau brosse bloquéNettoyez le rouleau brosse. Rouleau brosse non installéVeuillez installer le rouleau brosse correctement L’appareil est hors tensionMettre l’appareil hors tension Commencer la chargeLa charge a commencé Commencez le cycle de nettoyage automatique. Détection automatique de l’exécution du cycle de nettoyage automatique, commencez le cycle de nettoyage automatique Batterie insuffisante pour le nettoyage automatique Batterie faible, commencer la charge Batterie suffisante pour …

Text truncated - open the document above for the full version.

Tineco Intelligent Technology Co.,Ltd. Date: 2022.9.5 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 To whom it may concern: I, the undersigned, hereby authorize UL-CCIC COMPANY LIMITED to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL-CCIC COMPANY LIMITED on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL-CCIC COMPANY LIMITED as our representative, we still recognize that we are responsible to: a)comply with the relevant provisions of the certification program; b)make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c)make claims regarding certification only in respect of the scope for which certification has been granted; d)do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e)upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f)use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signed by: Company Name: Tineco Intelligent Technology Co.,Ltd. Contact Name: Yonghua Huang Title of Person：Engineer Address: 108 Shihu Road West, Wuzhong Zone,Suzhou, 215168 P.R.China

Tineco Intelligent Technology Co.,Ltd. Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: 2AV7A-FS11 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Theory of Operation Bom list Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Company Name: Tineco Intelligent Technology Co.,Ltd. Contact Name: Yonghua Huang Title of Person：Engineer Address: No. 108 Shihu Road West, Wuzhong Zone, Suzhou, 215168 P.R.China Date:2022/10/21

Tineco Intelligent Technology Co.,Ltd. Address: No. 108 Shihu Road West, Wuzhong Zone, Suzhou, 215168 P.R.China Confirmation Letter We, Tineco Intelligent Technology Co.,Ltd. The product: Smart Cordless Vacuum & Washer And model No.: FW103000US, FW103700US FCC ID：2AV7A-FS11 IC : 26039-FS11 Only the main model FW103000US was tested and only the data of this model is shown in this test report. Since Their material, types of encloser, antenna location, electrical circuit design, layout, components used and internal wiring are identical, only the model number is different. Contact Name: Yonghua Huang Title of Person：Engineer Date： 11/21/2022

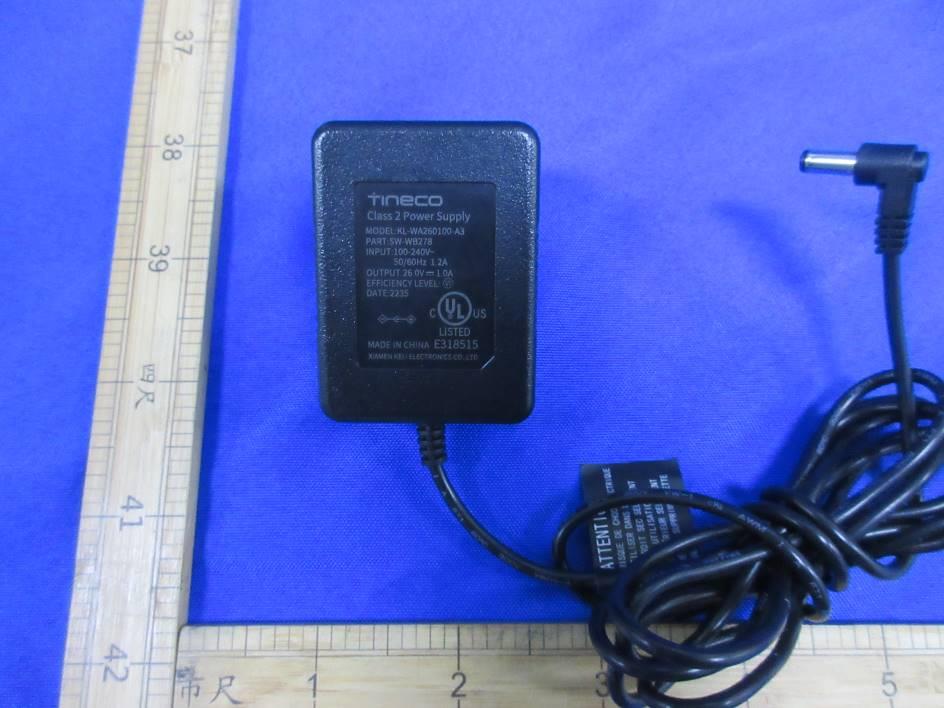

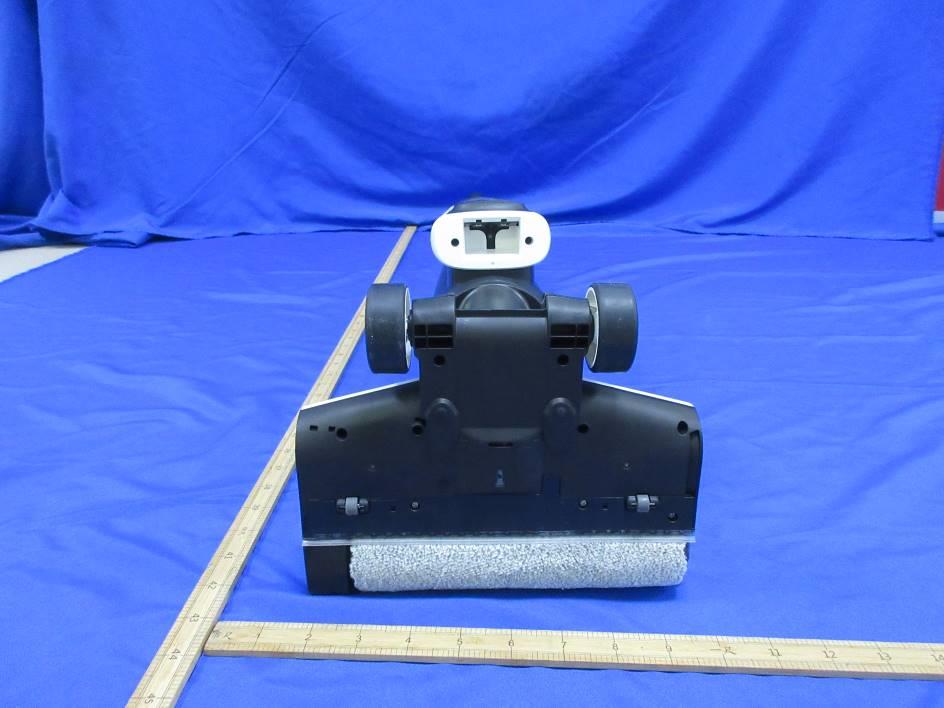

Appendix I External Photographs Page 2 of 6 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. All View of EUT Page 3 of 6 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Top View of EUT Bottom View of EUT Page 4 of 6 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Front View of EUT Back View of EUT Page 5 of 6 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Left View of EUT Right View of EUT Page 6 of 6 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. View of adapter-1 View of adapter-2

Note: 1. This would be a plastic label with a permanent adhesive. 2. The label is placed behind the water tank and the end user will always see the label when they remove the water tank by normal operation.

Appendix II Internal Photographs Page 2 of 9 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Open View of EUT Internal View of EUT-1 Page 3 of 9 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Internal View of EUT-2 Internal View of EUT-3 Page 4 of 9 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Internal View of EUT-4 Internal View of EUT-5 Page 5 of 9 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Internal View of EUT-6 Internal View of EUT-7 Page 6 of 9 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Internal View of EUT-8 Internal View of EUT-9 ` Page 7 of 9 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Internal View of EUT-10 Page 8 of 9 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. View of RF Module and Antenna location-1 View of RF Module and Antenna location-2 Page 9 of 9 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. View of RF Module and Antenna location-3 View of RF Module and Antenna location-2

Form-ULID-008536-12 V2.0 The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report apply to the test sample(s) mentioned above at the time of the testing period only and are not to be used to indicate applicability to other similar products. FCC RF EXPOSURE REPORT For For Smart Cordless Vacuum & Washer MODEL NUMBER: FW103000US ADDITIONAL MODEL NUMBER: FW103700US PROJECT NUMBER: 4790554902 REPORT NUMBER: 4790554902-2 FCC ID: 2AV7A-FS11 IC: 26039- FS11 ISSUE DATE: Nov. 10, 2022 Prepared for Tineco Intelligent Technology Co., Ltd. Prepared by UL-CCIC COMPANY LIMITED No. 2, Chengwan Road, Suzhou Industrial Park, People’s Republic of China Tel: +86 512-6808 6400 Fax: +86 512-6808 4099 Website: www.ul.com REPORT No.: 4790554902-2 Page 2 of 8 Form-ULID-008536-12 V2.0 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Revision History Rev. Issue Date Revisions Revised By V0 11/10/2022 Initial Issue REPORT No.: 4790554902-2 Page 3 of 8 Form-ULID-008536-12 V2.0 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................. 4 2. TEST METHODOLOGY ..................................................................................................... 5 3. FACILITIES AND ACCREDITATION ................................................................................. 5 4. MEASUREMENT UNCERTAINTY ...................................................................................... 6 5. REQUIREMENT ................................................................................................................. 7 REPORT No.: 4790554902-2 Page 4 of 8 Form-ULID-008536-12 V2.0 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. 1. ATTESTATION OF TEST RESULTS Company Name: Tineco Intelligent Technology Co., Ltd. Address: NO 108 SHI HU RD (W) WU ZHONG ZONE SUZHOU JIANGSU 215128, CHINA. Factory Information Company Name: Tineco Intelligent Technology Co., Ltd. Address: NO 108 SHI HU RD (W) WU ZHONG ZONE SUZHOU JIANGSU 215128, CHINA. EUT Description Product Name: Smart Cordless Vacuum & Washer Model Number: FW103000US Additional Model Number: FW103700US Model Difference Only the main model FW103000US was tested and only the data of this model is shown in this test report. Since Their material, types of encloser, antenna location, electrical circuit design, layout, components used and internal wiring are identical, only the model number is different. Sample Number: 5487085 Data of Receipt Sample: Nov.01, 2022 Date Tested: Nov.01, 2022 –Nov.10, 2022 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC Guidelines for Human Exposure IEEE C95.1 Complies Prepared By: Reviewed By: Tom Tang Leon Wu Authorized By: Chris Zhong EMC&RF Lab Operations Manager REPORT No.: 4790554902-2 Page 5 of 8 Form-ULID-008536-12 V2.0 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. 2. TEST METHODOLOGY The tests documented in this report were performed in accordance with KDB 447498 D01 General RF Exposure Guidance v06 and FCC Guidelines for Human Exposure IEEE C95.1. 3. FACILITIES AND ACCREDITATION Test Location UL-CCIC Company Limited, EMC&RF Lab Address No. 2, Chengwan Road, Suzhou Industrial Park, Suzhou 215122 ,China Accreditation Certificate A2LA (Certificate No.: 4829.01) UL-CCIC COMPANY LIMITED has been assessed and proved to be in compliance with A2LA. FCC (FCC Designation No.: CN1247) UL-CCIC COMPANY LIMITED has been recognized to perform compliance testing on equipment subject to the Commission's Declaration of Conformity (DoC) and Certification rules. IC (IC Designation No.: 25056; CAB No.:CN0073) UL-CCIC COMPANY LIMITED has been recognized to perform compliance testing on equipment subject to the Commission's Declaration of Conformity (DoC) and Certification rules. Note 1: All tests measurement facilities use to collect the measurement data are located at No. 2, Chengwan Road, Suzhou Industrial Park, Suzhou 215122, People’s Republic of China Note 2: For below 30MHz, lab had performed measurements at test anechoic chamber and comparing to measurements obtained on an open field site. These measurements below 30MHz had been correlated to measurements performed on an OFS. Note 3: The test anechoic chamber in UL-CCIC COMPANY LIMITED had been calibrated and compared to the open field sites and the test anechoic chamber is shown to be equivalent to or worst case from the open field site. REPORT No.: 4790554902-2 Page 6 of 8 Form-ULID-008536-12 V2.0 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. 4. MEASUREMENT UNCERTAINTY Where relevant, the following measurement uncertainty levels have been estimated for tests performed on the apparatus: Test Item Uncertainty Output Power to Antenna 0.69 dB Note: This uncertainty represents an expanded uncertainty expressed at approximately the 95% confidence level using a coverage factor of k=2. REPORT No.: 4790554902-2 Page 7 of 8 Form-ULID-008536-12 V2.0 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. 5. REQUIREMENT LIMIT Limits for General Population/Uncontrolled Exposure Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Time |E| 2 , |H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.1…
