2AV7A-FS22Smart Cordless Floor Washer

FLOOR ONE S7 SERIES Smart Cordless Floor Washer Instruction Manual Manual De Uso Mode D’emploi *Actual product may differ from illustration. TINECO IS HERE TO HELP. We’ll get back to you within 24 hours. www.tineco.com 1-855-292-8864 1 EN CONTENTS Important Safety Instructions ............................................................... 2 Specifications ........................................................................................ 7 Overview ................................................................................................ 8 Accessories .......................................................................................... 10 Assembly ............................................................................................. 11 Operation ............................................................................................ 12 Maintenance ....................................................................................... 19 Troubleshooting .................................................................................. 24 Warranty .............................................................................................. 25 TINECO IS HERE TO HELP. We’ll get back to you within 24 hours. www.tineco.com 1-855-292-8864 2 EN Important Safety Instructions SAVE THESE INSTRUCTIONS Household use only. For indoor use only. When using an electrical appliance, basic precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING (THIS APPLIANCE). Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. WARNING – To reduce the risk of fire, electric shock, or injury: 1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children should not play with the appliance. Cleaning and user maintenance shall not be performed by children without supervision. 2. The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction. 3. Use only indoors, on non-carpeted floor surfaces such as vinyl, tile, sealed wood, etc. Be careful not to run over loose objects or edges of area rugs. Stalling the brush may result in premature belt failure. 4. Do not allow to be used as a toy. Close attention is necessary when used by or near children, pets or plants. 5. Use only as described in this manual. Use only manufacturer’s recommended accessories. 6. Do not use with a damaged cord or plug. If appliance has been dropped, damaged, left outdoors, dropped into water, or is not working as it should, return it to a service center. 7. Do not handle charger, including charger plug, and charger terminals with wet hands. 8. Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow. 9. Keep hair, loose clothing, fingers, and all parts of your body away from openings and moving parts. 10. Use extra care when cleaning on stairs. 11. Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present. 12. Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes. 13. Do not use without filter. 14. Prevent unintentional activation. Ensure the switch is in the off-position before picking up or carrying the appliance. Carrying the appliance with your finger on the switch or energizing appliance that have the switch on invites accidents. 3 EN 15. Always switch off the appliance before making any adjustments, changing accessories, or storing the appliance. Such preventive safety measures reduce the risk of starting the appliance accidentally. 16. Charging only with the charging dock specified by Tineco. A charging dock that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. 17. Use appliances only with specifically designated Tineco battery packs. Use of any other battery packs may create a risk of injury and fire. 18. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid comes into eye contact, seek medical help. Liquid ejected from the battery may cause irritation or burns. 19. Do not use a battery pack or appliance that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury. 20. Do not expose a battery pack or appliance to fire or excessive temperature. Exposure to fire or temperature above 266°F (130°C) may cause an explosion. 21. Follow all charging instructions and do not charge the battery pack or appliance outside of the temperature range specified in the instructions. Charging improperly or at temperatures outside of the specified range may damage the battery and increase the risk of fire. 22. Have servicing performed by a qualified repair person using only identical replacement parts. This will ensure that the safety of the product is maintained. 23. This appliance contains battery cells that are non-replaceable. Do not modify or attempt to repair the appliance or the battery pack except as indicated in the instructions for use and care. 24. Always turn off this appliance before connecting or disconnecting the motorized nozzle. 25. Do not charge or store the appliance outdoors or inside the car. Only charge, store or use the battery in a dry indoor area where the temperature is higher than 39.2°F (4°C) but lower than 104°F (40°C). The charger is for indoor use only. 26. Do not use to pick up ultrafine particles, such as lime, cement,…

Text truncated - open the document above for the full version.

41 ES Llenado del depósito de agua limpia MAX Pulse el botón de liberación del depósito de agua limpia para sacarlo del aparato. Abra el tapón del depósito y llénelo con agua del grifo hasta la línea de nivel máximo. Cuando sea necesario realizar una limpieza a fondo, añada un tapón de solución al DAL y cierre bien el tapón. clic Nota: Utilice únicamente agua a menos de 60 °C. NO UTILICE AGUA CALIENTE. Vuelva a colocar el depósito en el aparato. Cuando lo haga correctamente, escuchará un chasquido. Instrucciones de carga • Para cargar el aparato, enchufe la base de secado y carga y coloque el aparato sobre ella. • Para evitar tropiezos, durante la carga, coloque el aparato en la base de carga cerca de una pared. Advertencia: • Cargue el aparato únicamente con el cargador suministrado por Tineco. • Si el aparato va a estar mucho tiempo sin ser utilizado, cárguelo una vez cada 3 meses para un rendimiento óptimo. La carga completa puede tardar 4-5 horas (media hora por encima o por debajo). • Guarde el aparato en un lugar seco y en interiores. No exponga el aparato a la luz directa del sol ni a temperaturas por debajo de cero grados. Rango de temperaturas recomendado: 4 °C-40 °C. 42 ES Selección del modo de limpieza Modo AUTO • En el modo AUTO, el sensor iLoop detecta automáticamente la suciedad del suelo y aplica la cantidad de detergente y la potencia de succión adecuadas. • Si el bucle de control de suciedad es de color rojo, indica que se detecta más suciedad y, si es azul, se detecta menos suciedad. Este modo proporciona automáticamente la mejor solución de limpieza. Modo MAX • En modo AUTO, pulse una vez el botón para acceder al modo MAX. • En el modo MAX, el aparato aplicará la máxima potencia de succión y pulverizará agua/solución para acabar con las manchas persistentes. Modo SUCTION • En modo AUTO, pulse dos veces el botón para acceder al modo SUCTION. • En modo SUCTION, el aparato absorberá agua. Se recomienda usar este modo en superficies húmedas. Modo CUSTOM • Este modo permite a los usuarios configurar libremente los parámetros del aparato en la aplicación para disfrutar de una experiencia de limpieza de muebles totalmente personalizada. Nota: Mantenga los objetos afilados alejados de la pantalla digital para evitar arañazos y rasguños. 43 ES Indicador Durante el uso Apagado: mal funcionamiento del motor, mal funcionamiento de la batería, anomalía de carga. Luz azul fija: el sensor de suciedad está averiado o bloqueado. Indicador parpadeante: el depósito de agua sucia está lleno o el canal está bloqueado. Indicador parpadeante: DAL vacío. Indicador parpadeante: el cepillo de rodillo tiene una obstrucción. Iluminado: la conexión Wi-Fi se ha realizado correctamente. Parpadea: la Wi-Fi se está conectando. Apagado: la Wi-Fi no está conectada. Conéctese a la red. Indicador parpadeante: el aparato necesita autolimpieza. Nivel de batería 20 %: icono de batería verde fijo. Nivel de batería 10 %-20 %: icono de batería rojo fijo. 44 ES Nivel de batería < 10 %: icono de batería rojo parpadeante. Durante la carga Indicador del nivel de batería parpadeante: mal funcionamiento de la carga. Indicador Tineco: respirando. Completamente cargado En 5 minutos: el indicador Tineco se ilumina. Después de 5 minutos: todos los indicadores luminosos se apagan. Tiempo de carga • Una carga completa tarda unas 4-5 horas. • Los datos estimados se han obtenido en un laboratorio Tineco con temperaturas ambiente de entre 4 °C y 40 °C. Aplicación Todas las funciones se pueden realizar con la aplicación Tineco. Descargue la aplicación Tineco desde App Store, Google Play y la Página Oficial de Tineco. TinecoTineco www.tineco.com Asistencia Descargas de aplicaciones DESCÁRGUELA DE Google Play Bájela de App Store Descargas de aplicaciones Nota: El idioma predeterminado de las indicaciones es inglés, puede establecer otros idiomas utilizando la aplicación. 45 ES Indicación de voz (el contenido puede variar, el modelo real prevalecerá) EstadoRecordatorio Indicaciones de voz activadasIndicaciones de voz activadas. Indicaciones de voz desactivadasIndicaciones de voz desactivadas. Modo Auto de forma predeterminadaModo Auto. Cambia al modo SuctionModo Suction. Cambie al modo Max Modo Max. Nivel de batería: 10-20 %Batería baja. Nivel de batería: 0-10 %Batería baja. Cargue el aparato. El depósito de agua limpia está vacío Agua insuficiente en el depósito de agua limpia. Añada agua. Necesita autolimpieza Realice el ciclo de autolimpieza para optimizar el rendimiento de la limpieza. No se puede realizar la autolimpieza Coloque el aparato en la base de carga para iniciar la autolimpieza. El depósito de agua sucia está llenoEl depósito de agua sucia está lleno. Vacíelo. Cepillo de rodillo enredadoLimpie el cepillo de rodillo. ApagadoApagado en proceso. Batería insuficiente para autolimpieza Batería baja. Cárguela antes de iniciar la autolimpieza. Limpieza del cepillo de rodillo en procesoLimpieza del cepillo de rodillo en proceso. Limpieza de la tubería en procesoLimpieza de la tubería en proceso. Secado del cepillo de rodillo en procesoSecar el cepillo de rodillo en proceso. Limpieza a fondo en procesoLimpieza a fondo en proceso. Autolimpieza finalizada Autolimpieza completa. Vacíe y limpie el depósito de agua sucia para prevenir la aparición de olores. Inicie la cargaCarga en proceso. Agua insuficiente para la autolimpieza Añada agua e inicie la autolimpieza. 46 ES Mantenimiento Nota: • Para un rendimiento óptimo y evitar olores, limpie y seque siempre el DAS, los filtros, el cepillo de rodillo y la cubierta del rodillo de cepillo completamente después de cada uso. • Asegúrese de que todas las piezas están colocadas correctamente, ya que de lo contrario es posible que el aparato no funcione correctamente. • No empape el aparato ni lo lavo bajo agua. • Podría quedar agua en el aparato debido a la inspección de fábrica. • Después del mantenimiento, coloque el aparato en la base de carga y en posición vertical. No exponga el …

Text truncated - open the document above for the full version.

76 FR Nettoyage automatique du rouleau brosse 1. Placez l’appareil sur la station de recharge après l’utilisation, le capteur détecte automatiquement le niveau de saleté. 2. Lorsque vous entendez l’invite vocale « Veuillez commencer le cycle de nettoyage automatique », appuyez sur le bouton de nettoyage automatique et démarrez le processus. 3. Une fois le processus terminé, vous entendrez l’invite vocale « Nettoyage automatique terminé. Veuillez nettoyer le réservoir d’eau sale ». L’appareil commence alors à se charger. Remarque : • Assurez-vous que la station de recharge est branchée et que le niveau de batterie est supérieur à 30 %. • Avant le cycle de nettoyage automatique, veuillez nettoyer le RES et vous assurer que le niveau d’eau dans le REP dépasse 40 %. • Pendant le processus de séchage, si vous appuyez sur le bouton de nettoyage automatique, le processus de séchage sera interrompu. Vous pouvez appuyer à nouveau sur ce bouton pour relancer le nettoyage automatique. Couvercle du rouleau brosse Appuyez sur les loquets du couvercle et soulevez-le pour le retirer. Essuyez avec un chiffon humide. clic Lorsque vous le remettez en place, verrouillez toujours le couvercle de la brosse pour éviter toute fuite. 77 FR Rouleau brosse Retirez le rouleau brosse en saisissant la languette et en la sortant. Utilisez l’outil de nettoyage pour retirer les cheveux et les débris enroulés autour du rouleau, puis rincez le rouleau à l’eau et laissez-le sécher complètement avant de le réinstaller. Retirez les cheveux et les débris du compartiment du rouleau brosse et de l’ouverture à l’aide de l’outil de nettoyage. Remettez le rouleau brosse en place en insérant son extrémité dans le côté gauche du support, puis fixez la languette du rouleau à la boucle magnétique à droite pour la verrouiller en place. Remplacement du rouleau brosse Tirez la poignée du rouleau vers le haut pour l’enlever. Une fois retirée, installez la poignée dans le nouveau rouleau brosse. Lors du démontage, ne tirez pas directement sur l’anneau de traction du rouleau brosse. Remarque : • Un rouleau brosse de rechange est fourni avec votre appareil pour faciliter le remplacement. • Pour maintenir des performances optimales, remplacez le rouleau-brosse tous les 6 mois. DésinstallerInstaller 78 FR Plateau transparent Déverrouiller Soulever Déplacez le loquet de verrouillage vers la droite, puis soulevez le plateau transparent pour le retirer. Nettoyez-le avec de l’eau ou une serviette, et séchez-le soigneusement avant de le réinstaller. Remarque : • Ne rincez pas directement la station de recharge et de séchage avec de l’eau. Retirez le plateau transparent séparément pour le nettoyer. 5ECPPG\NGEQFG|34EKFGUUQWU pour accéder à des vidéos sur l’entretien des produits. 79 FR Guide de dépannage ProblèmeCause possibleSolution L’appareil ne s’allume pas 1. Pas d’alimentation 2. Protection automatique contre la surchauffe 1. Chargez l’appareil 2. Redémarrez après refroidissement de l’appareil Aspiration faible Le filtre sel n’est pas installé ou est sale Installez le filtre sec ou nettoyez-le et laissez-le sécher complètement Animation du rouleau- brosse obstrué Invite vocale : Nettoyer le rouleau brosse Le rouleau brosse est bloqué Éliminez les obstructions L’indicateur Wi-Fi est éteint Le Wi-Fi n’est pas connecté Suivez les étapes pour connecter l’appareil au Wi-Fi Animation du réservoir d’eau propre Invite vocale : Quantité d’eau insuffisante dans le réservoir d’eau propre. Veuillez le remplir d’eau Le REP est videRemplissez le REP Animation du réservoir d’eau sale Invite vocale : Le réservoir d’eau sale est plein. Il faut le vider L’eau sale du RES a atteint la ligne MAX Videz l’eau sale, puis réinstallez le RES Niveau de la batterie < 10 % Invite vocale : Charge faible. Chargez l'appareil Charge faible Chargez l’appareil ou redémarrez-le Tous les voyants s’éteignent lors du fonctionnement Dysfonctionnement du moteur, dysfonctionnement de la batterie, anomalie de charge 1.Laissez l’appareil refroidir et redémarrez-le 2.Utilisez l’adaptateur d’origine Voyant bleu fixe Dysfonctionnement ou obstruction du capteur de saleté Éliminez les obstructions, nettoyez le canal anti-résidus ou redémarrez l’appareil Icône de nettoyage automatique clignotante Le rouleau brosse est saleDém. nettoyage auto 80 FR Mauvais fonctionnement du séchage La fiche n’est pas correctement insérée Vérifiez si la fiche est correctement insérée ou si la prise est alimentée Le rouleau brosse est couvert de débris difficiles à nettoyer Nettoyer le rouleau brosse Le plateau transparent est placé dans une zone basse remplie d’eau, bloquant l’entrée d’air Vérifiez si des objets ou de l’eau au fond du bac ne bloquent pas l’entrée d’air Le plateau transparent se détache Le plateau transparent n’est pas installé correctement Pour installer le plateau transparent, appuyez sur son extrémité avant pour le mettre en place, puis appuyez sur son extrémité arrière vers le bas Remarque : Si le guide de dépannage ci-dessus ne fournit pas de solution, veuillez consulter notre site Web www.tineco.com pour plus d’aide. 81 FR Garantie GARANTIE LIMITÉE DE 3 ANS • Elle s’applique uniquement aux achats effectués auprès des détaillants autorisés de Tineco. • Elle est soumise au respect des exigences décrites dans ce manuel d’instructions, et est soumise à d’autres conditions décrites ci-dessous. • Cette garantie est régie et interprétée en vertu des lois du pays dans lequel a eu lieu l’achat. Nous fournissons une garantie de 3 ans ou une période de garantie comme stipulée par le droit local applicable, la période la plus longue étant retenue. CE QUI EST COUVERT • Votre appareil Tineco bénéficie d’une garantie de 3 ans contre les défauts d’origine du matériel et de fabrication, lorsqu’il est utilisé à des fins domestiques conformément au manuel d’utilisation de Tineco. Les accessoires motorisés et la batterie achetés séparément sont livrés avec une garantie de 1 an. • Cette garantie fournit,…

Text truncated - open the document above for the full version.

CFR 47 §2.911 (d)(5) Attestation Date: 01-08-2024 FCC ID: 2AV7A-FS22 Grantee FRN: 0029465440 To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA 1. Tineco Intelligent Technology Co.,Ltd. (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. 2. Tineco Intelligent Technology Co.,Ltd. (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment and is not an affiliate or subsidiary of an entity identified on the Covered List. Sincerely yours, Name: Yonghua Huang Job Title: Engineer Company Name:Tineco Intelligent Technology Co.,Ltd.

Attestation Statements (2024/1/11) TO: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046, USA RE: Attestation Statements Part 2.911(d)(7) request for (FCC ID:2AV7A-FS22) (Tineco Intelligent Technology Co.,Ltd.), the undersigned, hereby authorize Lucky Cowboy Global Services, LLC to act as our designated U.S. agent for service of process, (Tineco Intelligent Technology Co.,Ltd.) accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Lucky Cowboy Global Services, LLC accepts the responsibility to act as designated U.S. agent for service of process. Applicant Information： Company Name: Tineco Intelligent Technology Co.,Ltd. Contact Name: Yonghua Huang Address: No. 108 Shihu Road West, Wuzhong Zone,Suzhou, 215168 P.R.China FRN: 0029465440 Telephone No: 051265653127 Email: [email protected] Signature [Yonghua Huang] U.S. Agent Information: Company Name: Lucky Cowboy Global Services, LLC Address: 2213 S. Braeswood Blvd. #12E Houston, TX 77030 USA FRN: 0033510934 Contact Name: Louie Liu Telephone No: +1 (713) 992-3369 Email: [email protected] Signature [Louie Liu]

CFR 47 §2.911 (d)(7) Agent Designation Attestation Date: 01-08-2024 FCC ID: 2AV7A-FS22 Grantee FRN: 0029465440 To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Tineco Intelligent Technology Co.,Ltd. (“the applicant”) as required by section 2.911(d)(7), designates the following agent, located in the United States, for purposes of acting as the applicant’s agent for service of process. The applicant acknowledges that they will maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. The applicant further acknowledges their responsibility to inform the FCC whenever the agent information changes. U. S. Agent Information: Company Name: Lucky Cowboy Global Services, LLC Address: 2213 S. Braeswood Blvd. #12E Houston, TX 77030 USA FRN: 0033510934 Contact Name: Louie Liu Telephone No: +1 (713) 992-3369 Email: [email protected] Sincerely yours, Name: Yonghua Huang Job Title: Engineer Company Name: Tineco Intelligent Technology Co.,Ltd.

Tineco Intelligent Technology Co.,Ltd. Date: 2023/06/05 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 To whom it may concern: I, the undersigned, hereby authorize UL-CCIC COMPANY LIMITED to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL-CCIC COMPANY LIMITED on our behalf shall have the same effect as act s of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL-CCIC COMPANY LIMITED as our representative, we still recognize that we are responsible to: a)comply with the relevant provisions of the certification program; b)make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c)make claims regarding certification only in respect of the scope for which certification has been granted; d)do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e)upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f)use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signed by: Company Name: Tineco Intelligent Technology Co.,Ltd. Contact Name: Yonghua Huang Title of Person：Engineer Address: No. 108 Shihu Road West, Wuzhong Zone,Suzhou, 215168 P.R.China

Tineco Intelligent Technology Co.,Ltd. DATE : 2024-01-08 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Request for Short-Term Confidentiality Company name: FCC ID: 2AV7A-FS22 FCC Part 15 Certification Pursuant to Sections 0.457 and 0.459 of the commission rules, and in accordance with the FCC Public notice dated June 15, 2004 (DA 04-1705), we hereby request short-term confidentiality for the following items prior to marketing the device.: (1) Test Setup Photos (2) External Photos (3) Internal Photos (4) User Manual The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of 180 days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Sincerely, Company Name: Tineco Intelligent Technology Co.,Ltd. Contact Name: Yonghua Huang Title of Person：Engineer Address: No. 108 Shihu Road West, Wuzhong Zone,Suzhou, 215168 P.R.China Date:01/08/2024

Tineco Intelligent Technology Co.,Ltd. Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: 2AV7A-FS22 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Theory of Operation Bom list Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Company Name: Tineco Intelligent Technology Co.,Ltd. Contact Name: Yonghua Huang Title of Person：Engineer Address: No. 108 Shihu Road West, Wuzhong Zone,Suzhou, 215168 P.R.China Date:2024/01/08

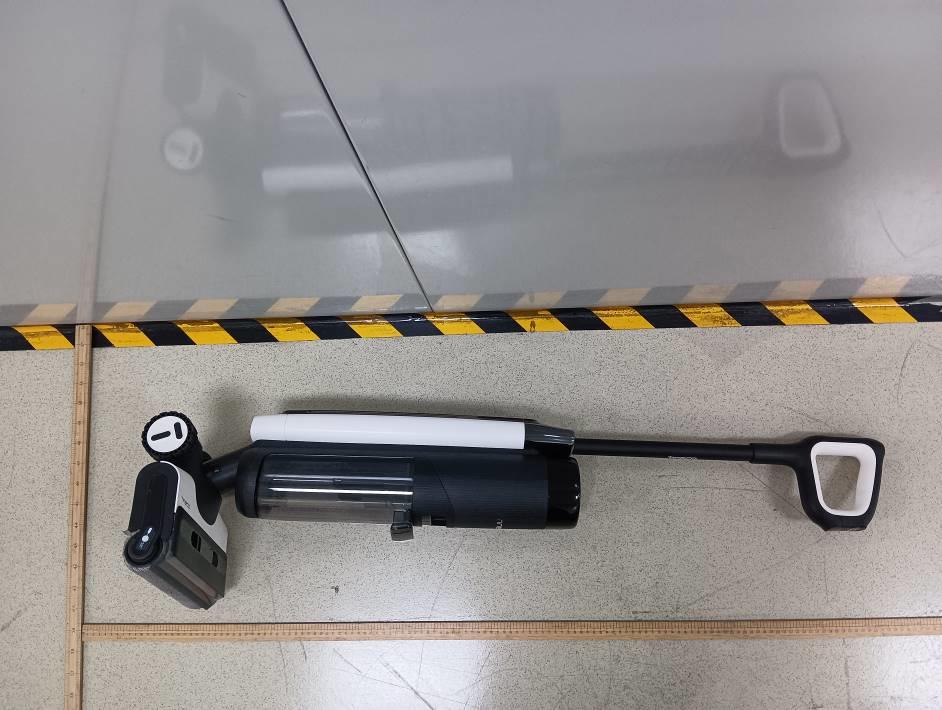

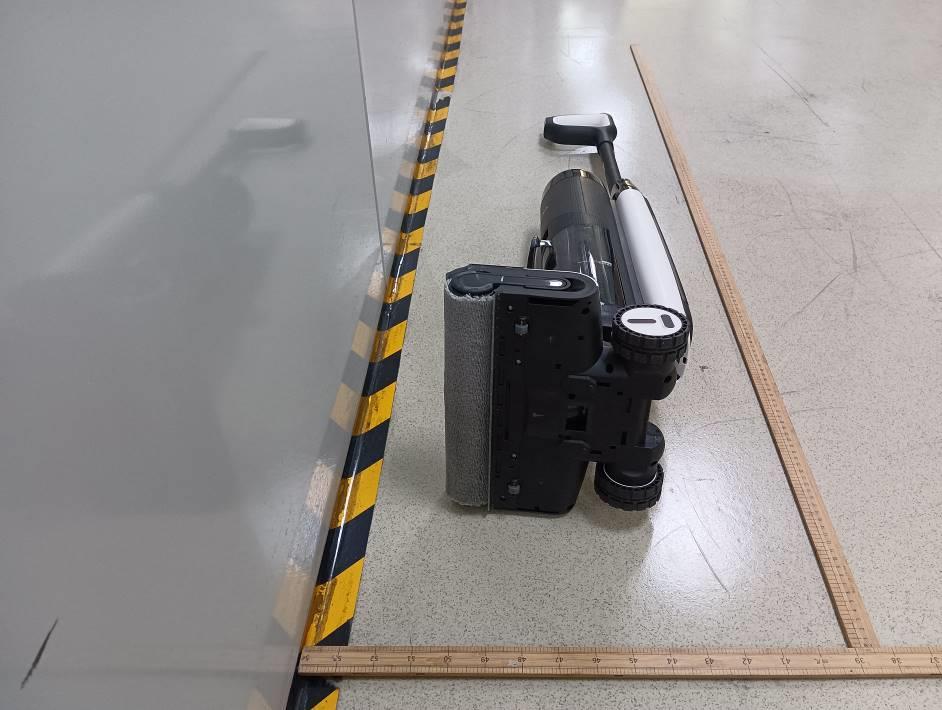

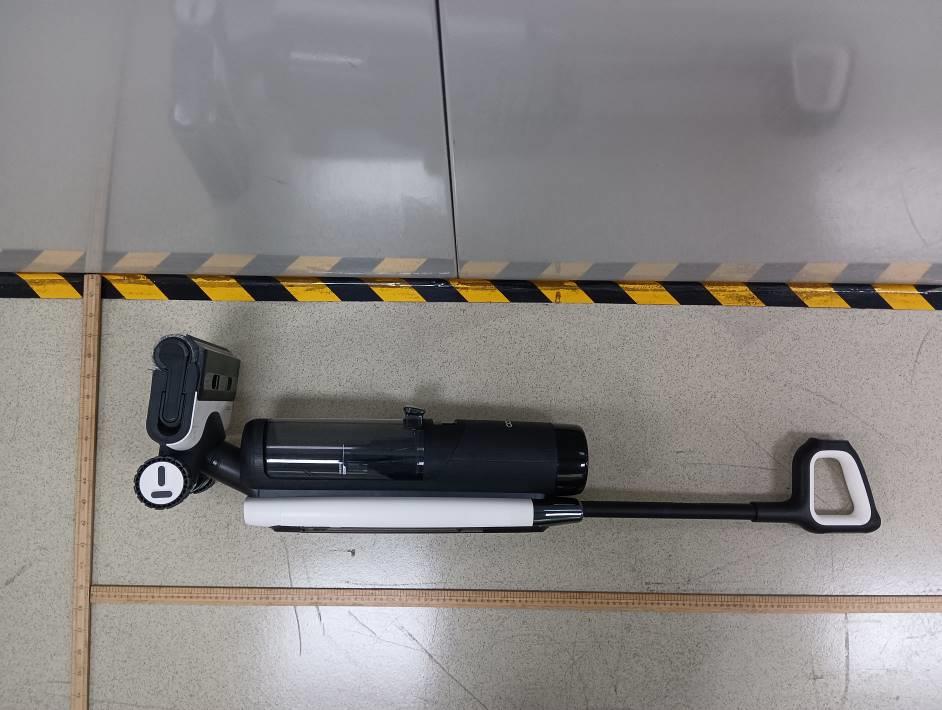

Appendix I External Photographs FW221500US & FW221100US Page 2 of 5 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. All View of EUT Top View of EUT Page 3 of 5 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Bottom View of EUT Front View of EUT Page 4 of 5 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Back View of EUT Left View of EUT Page 5 of 5 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Right View of EUT

Label : Note: The label will be permanent paste to the back of the device. Label location The label will be permanent paste to the back of the device

Appendix II Internal Photographs FW221500US & FW221100US Page 2 of 15 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Open View of EUT Internal View of EUT-1 Page 3 of 15 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Internal View of EUT-2 Internal View of EUT-3 Page 4 of 15 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Internal View of EUT-4 Internal View of EUT-5 Page 5 of 15 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Internal View of EUT-6 Internal View of EUT-7 Page 6 of 15 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Internal View of EUT-8 Internal View of EUT-9 Page 7 of 15 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Internal View of EUT-10 Internal View of EUT-11 Page 8 of 15 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Internal View of EUT-12 Internal View of EUT-13 Page 9 of 15 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Internal View of EUT-14 Internal View of EUT-15 Page 10 of 15 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Adapter-1 Internal View of Dock-1 Page 11 of 15 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Internal View of Dock-2 Internal View of Dock-3 Page 12 of 15 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Internal View of Dock-4 Internal View of Dock-5 Page 13 of 15 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Internal View of Dock-6 Internal View of Dock-7 Page 14 of 15 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. RF Module & Antenna Location-1 Page 15 of 15 UL-CCIC COMPANY LIMITED This report shall not be …
