2AV7A-FS12Smart Cordless Vacuum & Washer

FLOOR ONE S5 PRO 2 SERIES Smart Cordless Vacuum & Washer Instruction Manual Manual De Uso Mode D’emploi *Actual product may differ from illustration. TINECO IS HERE TO HELP. We’ll get back to you within 1 business day. www.tineco.com 1-855-292-8864 EN 1 CONTENTS Important Safety Instructions ............................................................... 2 Specifications ........................................................................................ 6 Overview ................................................................................................ 7 Accessories ............................................................................................ 8 Assembly ............................................................................................... 9 Operation ............................................................................................ 10 Maintenance ....................................................................................... 15 Troubleshooting .................................................................................. 19 Warranty .............................................................................................. 20 TINECO IS HERE TO HELP. We’ll get back to you within 1 business day. www.tineco.com 1-855-292-8864 EN 2 Important Safety Instructions SAVE THESE INSTRUCTIONS Household use only. When using an electrical appliance, basic precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING (THIS APPLIANCE). Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. WARNING – To reduce the risk of fire, electric shock, or injury: 1.This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children should not play with the appliance. Cleaning and user maintenance shall not be performed by children without supervision. 2. The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction. 3.Use only indoors, on non-carpeted floor surfaces such as vinyl, tile, sealed wood, etc. Be careful not to run over loose objects or edges of area rugs. Stalling the brush may result in premature belt failure. 4. Do not allow to be used as a toy. Close attention is necessary when used by or near children, pets or plants. 5.Use only as described in this manual. Use only manufacturer’s recommended attachments. 6. Do not use with a damaged cor d or plug. If appliance has been dropped, damaged, left outdoors, dropped into water, or is not working as it should, return it to a service center. 7.Do not handle charger, including charger plug, and charger terminals with wet hands. 8. Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair , and anything that may reduce air flow. 9.Keep hair , loose clothing, fingers, and all parts of your body away from openings and moving parts. 10. Use extra care when cleaning on stairs. 11. Do not use to pick up flammable or combustible liquids, such as gasoline, or use in ar eas where they may be present. 12. Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes. 13.Do not use without filter . 14. Pr event unintentional activation. Ensure the switch is in the off-position before picking up or carrying the appliance. Carrying the appliance with your finger on the switch or energizing appliance that have the switch on invites accidents. 15. Always switch off the appliance before making any adjustments, changing accessories, or storing the appliance. Such preventive safety measures reduce the risk of starting the appliance accidentally. EN 3 16.Recharge only with the charger specified by Tineco. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. 17. Use appliances only with specifically designated Tineco battery packs. Use of any other battery packs may create a risk of injury and fire. 18.Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid comes into eye contact, seek medical help. Liquid ejected fr om the battery may cause irritation or burns. 19.Do not use a battery pack or appliance that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury. 20. Do not expose a battery pack or appliance to fire or excessive temperature. Exposure to fire or temperature above 266°F (130°C) may cause an explosion. 21.Follow all char ging instructions and do not charge the battery pack or appliance outside of the temperature range specified in the instructions. Charging improperly or at temperatures outside of the specified range may damage the battery and increase the risk of fire. 22.Have servicing performed by a qualified r epair person using only identical replacement parts. This will ensure that the safety of the product is maintained. 23.This appliance contains battery cells that ar e non-replaceable. Do not modify or attempt to repair the appliance or the battery pack except as indicated in the instructions for use and care. 24.Always turn of f this appliance before connecting or disconnecting the motorized nozzle. 25.Do not charge or store the appliance outdoors or inside the car. Only charge, store or use the battery in a dry indoor area where the temperature is higher than 39.2°F (4°C) but lower than 104°F (40°C). The charger is for indoor use only. 26.Do not use to pick up ultrafine particles, such as lime, cement, sawdust, gyps…

Text truncated - open the document above for the full version.

Tineco Intelligent Technology Co.,Ltd. Date: 2022.9.5 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 To whom it may concern: I, the undersigned, hereby authorize UL-CCIC COMPANY LIMITED to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL-CCIC COMPANY LIMITED on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL-CCIC COMPANY LIMITED as our representative, we still recognize that we are responsible to: a)comply with the relevant provisions of the certification program; b)make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c)make claims regarding certification only in respect of the scope for which certification has been granted; d)do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e)upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f)use certification only to indicate the products are certified as being in conformity with specified standards; g)endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h)ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i)keep a record of all complaints made known to us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the when requested; j)take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k)document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signed by: Company Name: Tineco Intelligent Technology Co.,Ltd. Contact Name: Yonghua Huang Title of Person：Engineer Address: No. 108 Shihu Road West, Wuzhong Zone, Suzhou, 215168 P.R.China

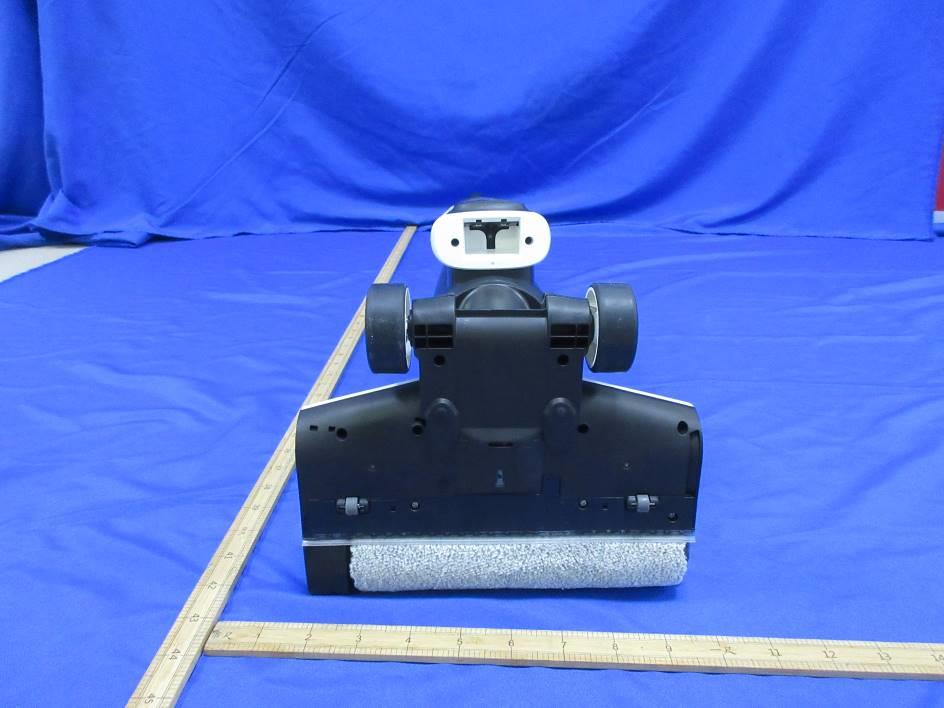

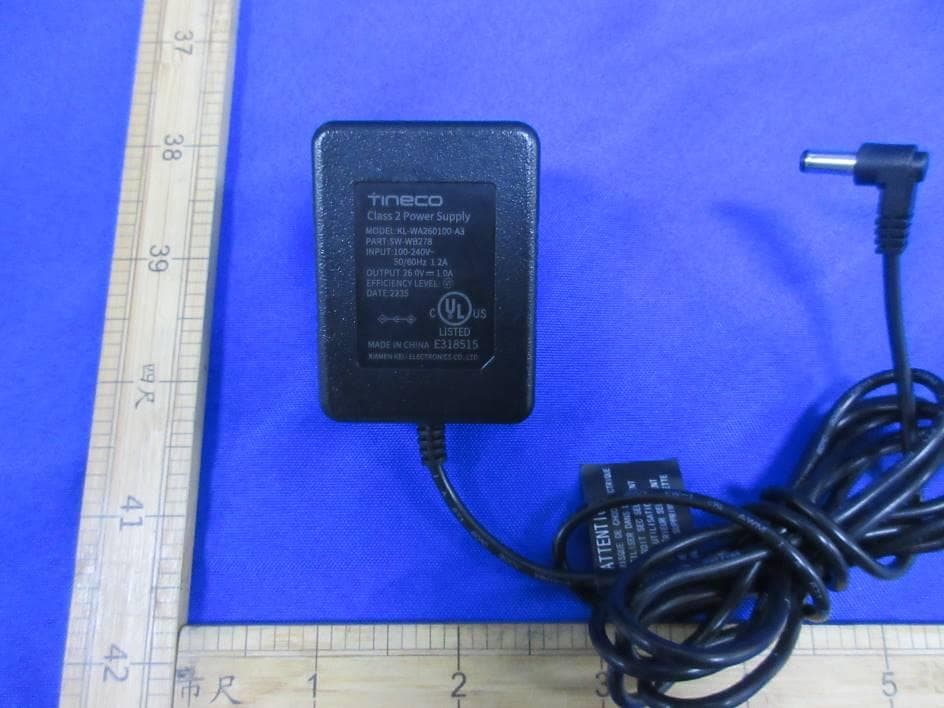

Appendix I External Photographs Page 2 of 6 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. All View of EUT Page 3 of 6 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Top View of EUT Bottom View of EUT Page 4 of 6 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Front View of EUT Back View of EUT Page 5 of 6 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Left View of EUT Right View of EUT Page 6 of 6 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. View of adapter-1 View of adapter-2

Note: 1. This would be a plastic label with a permanent adhesive. 2. The label is placed behind the water tank and the end user will always see the label when they remove the water tank by normal operation. 3. The FCC label statement will include in the user manual which will print on a paper insert and sell with the device.

Appendix II Internal Photographs Page 2 of 10 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Open View of EUT Internal View of EUT-1 Page 3 of 10 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Internal View of EUT-2 Internal View of EUT-3 Page 4 of 10 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Internal View of EUT-4 Internal View of EUT-5 Page 5 of 10 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Internal View of EUT-6 Internal View of EUT-7 Page 6 of 10 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Internal View of EUT-8 Internal View of EUT-9 ` Page 7 of 10 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Internal View of EUT-10 Internal View of EUT-11 Page 8 of 10 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Internal View of EUT-12 Internal View of EUT-13 Page 9 of 10 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. View of RF Module and Antenna location-1 View of RF Module and Antenna location-2 Page 10 of 10 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. View of RF Module and Antenna location-3 View of RF Module and Antenna location-2

Form-ULID-008536-12 V2.0 The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report apply to the test sample(s) mentioned above at the time of the testing period only and are not to be used to indicate applicability to other similar products. FCC RF EXPOSURE REPORT For Smart Cordless Vacuum & Washer MODEL NUMBER: FW103200US PROJECT NUMBER: 4790554902 REPORT NUMBER: 4790554902-5 FCC ID: 2AV7A-FS12 IC: 26039- FS12 ISSUE DATE: Dec. 07, 2022 Prepared for Tineco Intelligent Technology Co., Ltd. Prepared by UL-CCIC COMPANY LIMITED No. 2, Chengwan Road, Suzhou Industrial Park, People’s Republic of China Tel: +86 512-6808 6400 Fax: +86 512-6808 4099 Website: www.ul.com REPORT No.: 4790554902-5 Page 2 of 8 Form-ULID-008536-12 V2.0 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Revision History Rev. Issue Date Revisions Revised By V0 12/07/2022 Initial Issue REPORT No.: 4790554902-5 Page 3 of 8 Form-ULID-008536-12 V2.0 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................. 4 2. TEST METHODOLOGY ..................................................................................................... 5 3. FACILITIES AND ACCREDITATION ................................................................................. 5 4. MEASUREMENT UNCERTAINTY ...................................................................................... 6 5. REQUIREMENT ................................................................................................................. 7 REPORT No.: 4790554902-5 Page 4 of 8 Form-ULID-008536-12 V2.0 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. 1. ATTESTATION OF TEST RESULTS Company Name: Tineco Intelligent Technology Co., Ltd. Address: No. 108 Shihu Road West, Wuzhong Zone, Suzhou, 215168 P.R.China Factory Information Company Name: Tineco Intelligent Technology Co., Ltd. Address: No. 108 Shihu Road West, Wuzhong Zone, Suzhou, 215168 P.R.China EUT Description Product Name: Smart Cordless Vacuum & Washer Model Number: FW103200US Sample Number: 5487085 Data of Receipt Sample: Dec.01, 2022 Date Tested: Dec.01, 2022 –Dec.06, 2022 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC Guidelines for Human Exposure IEEE C95.1 Complies Prepared By: Reviewed By: Tom Tang Leon Wu Authorized By: Chris Zhong EMC&RF Lab Operations Manager REPORT No.: 4790554902-5 Page 5 of 8 Form-ULID-008536-12 V2.0 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. 2. TEST METHODOLOGY The tests documented in this report were performed in accordance with KDB 447498 D01 General RF Exposure Guidance v06 and FCC Guidelines for Human Exposure IEEE C95.1. 3. FACILITIES AND ACCREDITATION Test Location UL-CCIC Company Limited, EMC&RF Lab Address No. 2, Chengwan Road, Suzhou Industrial Park, Suzhou 215122 ,China Accreditation Certificate A2LA (Certificate No.: 4829.01) UL-CCIC COMPANY LIMITED has been assessed and proved to be in compliance with A2LA. FCC (FCC Designation No.: CN1247) UL-CCIC COMPANY LIMITED has been recognized to perform compliance testing on equipment subject to the Commission's Declaration of Conformity (DoC) and Certification rules. IC (IC Designation No.: 25056; CAB No.:CN0073) UL-CCIC COMPANY LIMITED has been recognized to perform compliance testing on equipment subject to the Commission's Declaration of Conformity (DoC) and Certification rules. Note 1: All tests measurement facilities use to collect the measurement data are located at No. 2, Chengwan Road, Suzhou Industrial Park, Suzhou 215122, People’s Republic of China Note 2: For below 30MHz, lab had performed measurements at test anechoic chamber and comparing to measurements obtained on an open field site. These measurements below 30MHz had been correlated to measurements performed on an OFS. Note 3: The test anechoic chamber in UL-CCIC COMPANY LIMITED had been calibrated and compared to the open field sites and the test anechoic chamber is shown to be equivalent to or worst case from the open field site. REPORT No.: 4790554902-5 Page 6 of 8 Form-ULID-008536-12 V2.0 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. 4. MEASUREMENT UNCERTAINTY Where relevant, the following measurement uncertainty levels have been estimated for tests performed on the apparatus: Test Item Uncertainty Output Power to Antenna 0.69 dB Note: This uncertainty represents an expanded uncertainty expressed at approximately the 95% confidence level using a coverage factor of k=2. REPORT No.: 4790554902-5 Page 7 of 8 Form-ULID-008536-12 V2.0 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. 5. REQUIREMENT LIMIT Limits for General Population/Uncontrolled Exposure Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Time |E| 2 , |H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f2)* 30 30-300 27.5 0.073 0.2 30 300-1500 -- -- f/150 30 1500-100,000 -- -- 1.0 30 Note 1: f = frequency in MHz, * means Plane-wave equivalent power density Note 2: General population/uncontrolled exposures apply in situations in which the general public may be exposed, or in which persons that are exposed as a consequence of their employment may not be fully aware of …

Text truncated - open the document above for the full version.

Form-ULID-008536-9 V2.0 The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report apply to the test sample(s) mentioned above at the time of the testing period only and are not to be used to indicate applicability to other similar products. This report does not imply that the product(s) has met the criteria for certification. CFR 47 FCC PART 15 SUBPART C ISED RSS-247 Issue 2 CERTIFICATION TEST REPORT For Smart Cordless Vacuum & Washer MODEL NUMBER: FW103200US PROJECT NUMBER: 4790554902 REPORT NUMBER: 4790554902-4 FCC ID: 2AV7A-FS12 IC: 26039- FS12 ISSUE DATE: Dec. 07, 2022 Prepared for Tineco Intelligent Technology Co., Ltd. Prepared by UL-CCIC COMPANY LIMITED No. 2, Chengwan Road, Suzhou Industrial Park, People’s Republic of China Tel: + 86-512-6808 6400 Fax: + 86-512-6808 4099 Website: www.ul.com REPORT No.: 4790554902-4 ` Page 2 of 136 Form-ULID-008536-9 V2.0 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Revision History Rev. Issue Date Revisions Revised By V0 12/07/2022 Initial Issue REPORT No.: 4790554902-4 ` Page 3 of 136 Form-ULID-008536-9 V2.0 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................. 4 2. TEST METHODOLOGY ..................................................................................................... 6 3. FACILITIES AND ACCREDITATION ................................................................................. 6 4. CALIBRATION AND UNCERTAINTY ................................................................................ 7 4.1. MEASURING INSTRUMENT CALIBRATION ............................................................... 7 4.2. MEASUREMENT UNCERTAINTY................................................................................ 7 5. EQUIPMENT UNDER TEST ............................................................................................... 8 5.1. DESCRIPTION OF EUT ............................................................................................... 8 5.2. MAXIMUM OUTPUT POWER ...................................................................................... 9 5.3. CHANNEL LIST ............................................................................................................ 9 5.4. TEST CHANNEL CONFIGURATION ...........................................................................10 5.5. THE WORSE CASE POWER SETTING PARAMETER ...............................................10 5.6. DESCRIPTION OF AVAILABLE ANTENNAS ..............................................................11 5.7. THE WORSE CASE CONFIGURATIONS ...................................................................11 5.8. DESCRIPTION OF TEST SETUP ...............................................................................12 5.9. MEASURING INSTRUMENT AND SOFTWARE USED ..............................................13 6. MEASUREMENT METHODS ............................................................................................14 7. ANTENNA PORT TEST RESULTS ...................................................................................15 7.1. TEST ENVIRONMENT ................................................................................................15 7.2. ON TIME AND DUTY CYCLE ......................................................................................16 7.3. 6 dB BANDWIDTH AND 99% BANDWIDTH ................................................................19 7.4. CONDUCTED POWER ...............................................................................................30 7.5. POWER SPECTRAL DENSITY ...................................................................................37 7.6. CONDUCTED BANDEDGE AND SPURIOUS EMISSIONS ........................................44 7.7. RADIATED TEST RESULTS .......................................................................................68 7.7.1. LIMITS AND PROCEDURE ..................................................................................68 7.7.2. RESTRICTED BANDEDGE ..................................................................................74 7.7.3. SPURIOUS EMISSIONS ......................................................................................87 8. AC POWER LINE CONDUCTED EMISSIONS ................................................................ 132 9. ANTENNA REQUIREMENTS .......................................................................................... 136 REPORT No.: 4790554902-4 ` Page 4 of 136 Form-ULID-008536-9 V2.0 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. 1. ATTESTATION OF TEST RESULTS Company Name: Tineco Intelligent Technology Co., Ltd. Address: No. 108 Shihu Road West, Wuzhong Zone, Suzhou, 215168 P.R.China Factory Information Company Name: Tineco Intelligent Technology Co., Ltd. Address: No. 108 Shihu Road West, Wuzhong Zone, Suzhou, 215168 P.R.China EUT Description Product Name: Smart Cordless Vacuum & Washer Model Number: FW103200US Sample Number: 5487085 Data of Receipt Sample: Dec.01, 2022 Date Tested: Dec.01, 2022 –Dec.06, 2022 APPLICABLE STANDARDS STANDARD TEST RESULTS CFR 47 Part 15 Subpart C PASS ISED RSS-247 Issue 2 ISED RSS-GEN Issue 5 PASS PASS REPORT No.: 4790554902-4 ` Page 5 of 136 Form-ULID-008536-9 V2.0 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Summary of Test Results Clause Test Items FCC Rules Test Results 1 6db DTS Bandwidth and 99% Bandwidth FCC 15.247 (a) (2) RSS-247 Clau…

Text truncated - open the document above for the full version.

REPORT No.: 4790554902-4 ` Page 51 of 136 Form-ULID-008536-9 V2.0 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Puw test Plot LCH SPURIOUS EMISSION_30MHz~1GHz LCH SPURIOUS EMISSION_1GHz~26GHz REPORT No.: 4790554902-4 ` Page 52 of 136 Form-ULID-008536-9 V2.0 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Channel Verdict 11B MCH PASS Pref test Plot MCH SPURIOUS EMISSION REPORT No.: 4790554902-4 ` Page 53 of 136 Form-ULID-008536-9 V2.0 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Puw test Plot MCH SPURIOUS EMISSION_30MHz~1GHz MCH SPURIOUS EMISSION_1GHz~26GHz REPORT No.: 4790554902-4 ` Page 54 of 136 Form-ULID-008536-9 V2.0 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Channel Verdict 11B HCH PASS Pref test Plot HCH SPURIOUS EMISSION REPORT No.: 4790554902-4 ` Page 55 of 136 Form-ULID-008536-9 V2.0 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Puw test Plot HCH SPURIOUS EMISSION_30MHz~1GHz HCH SPURIOUS EMISSION_1GHz~26GHz REPORT No.: 4790554902-4 ` Page 56 of 136 Form-ULID-008536-9 V2.0 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Channel Verdict 11G LCH PASS Pref test Plot LCH SPURIOUS EMISSION REPORT No.: 4790554902-4 ` Page 57 of 136 Form-ULID-008536-9 V2.0 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Puw test Plot LCH SPURIOUS EMISSION_30MHz~1GHz LCH SPURIOUS EMISSION_1GHz~26GHz REPORT No.: 4790554902-4 ` Page 58 of 136 Form-ULID-008536-9 V2.0 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Channel Verdict 11G MCH PASS Pref test Plot MCH SPURIOUS EMISSION REPORT No.: 4790554902-4 ` Page 59 of 136 Form-ULID-008536-9 V2.0 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Puw test Plot MCH SPURIOUS EMISSION_30MHz~1GHz MCH SPURIOUS EMISSION_1GHz~26GHz REPORT No.: 4790554902-4 ` Page 60 of 136 Form-ULID-008536-9 V2.0 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Channel Verdict 11G HCH PASS Pref test Plot HCH SPURIOUS EMISSION REPORT No.: 4790554902-4 ` Page 61 of 136 Form-ULID-008536-9 V2.0 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Puw test Plot HCH SPURIOUS EMISSION_30MHz~1GHz HCH SPURIOUS EMISSION_1GHz~26GHz REPORT No.: 4790554902-4 ` Page 62 of 136 Form-ULID-008536-9 V2.0 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Channel Verdict 11N HT20 LCH PASS Pref test Plot LCH SPURIOUS EMISSION REPORT No.: 4790554902-4 ` Page 63 of 136 Form-ULID-008536-9 V2.0 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Puw test Plot LCH SPURIOUS EMISSION_30MHz~1GHz LCH SPURIOUS EMISSION_1GHz~26GHz REPORT No.: 4790554902-4 ` Page 64 of 136 Form-ULID-008536-9 V2.0 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Channel Verdict 11N HT20 MCH PASS Pref test Plot MCH SPURIOUS EMISSION REPORT No.: 4790554902-4 ` Page 65 of 136 Form-ULID-008536-9 V2.0 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Puw test Plot MCH SPURIOUS EMISSION_30MHz~1GHz MCH SPURIOUS EMISSION_1GHz~26GHz REPORT No.: 4790554902-4 ` Page 66 of 136 Form-ULID-008536-9 V2.0 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Channel Verdict 11N HT20 HCH PASS Pref test Plot HCH SPURIOUS EMISSION REPORT No.: 4790554902-4 ` Page 67 of 136 Form-ULID-008536-9 V2.0 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Puw test Plot HCH SPURIOUS EMISSION_30MHz~1GHz HCH SPURIOUS EMISSION_1GHz~26GHz REPORT No.: 4790554902-4 ` Page 68 of 136 Form-ULID-008536-9 V2.0 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. 7.7. RADIATED TEST RESULTS 7.7.1. LIMITS AND PROCEDURE LIMITS Please refer to FCC §15.205 and §15.209, ISED RSS-247 Clause 5.5, ISED RSS-GEN Clause 8.9&6.13 (Transmitter) Radiation Disturbance Test Limit for ISED(9KHz-1GHz) REPORT No.: 4790554902-4 ` Page 69 of 136 Form-ULID-008536-9 V2.0 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Please refer to FCC KDB 558074 Radiation Disturbance Test Limit for FCC (9KHz-1GHz) Frequency (MHz) Field Strength (microvolts/meter) Measurement Distance (meters) 0.009~0.490 2400/F(KHz) 300 0.490~1.705 24000/F(KHz) 30 1.705~30.0 30 30 30~88 100 3 88~216 150 3 216~960 200 3 960~1000 500 3 Note: 1) At frequencies at or above 30 MHz, measurements may be performed at a distance other than what is specified provided: measurements are not made in the near field except where it can be shown that near field measurements are appropriate due to the characteristics of the device; and it can be demonstrated that the signal levels needed to be measured at…

Text truncated - open the document above for the full version.

REPORT No.: 4790554902-4 ` Page 104 of 136 Form-ULID-008536-9 V2.0 UL-CCIC COMPANY LIMITED Thi…
