2AV7A-S16SMART VACUUM CLEANER

PURE ONE AIR PRO SERIES Smart Vacuum Cleaner Instruction Manual Manual De Uso Mode D’emploi *Actual product may differ from illustration. TINECO IS HERE TO HELP. We’ll get back to you within 1 business day. www.tineco.com 1-855-292-8864 EN 1 CONTENTS Important Safety Instructions ............................................................... 2 Specifications ........................................................................................ 5 Overview ................................................................................................ 6 Accessories ............................................................................................ 8 Assembly ............................................................................................. 10 Operation ............................................................................................ 12 Maintenance ....................................................................................... 18 Troubleshooting .................................................................................. 21 Warranty .............................................................................................. 22 TINECO IS HERE TO HELP. We’ll get back to you within 1 business day. www.tineco.com 1-855-292-8864 EN 2 SAVE THESE INSTRUCTIONS Household use only. When using an electrical appliance, basic precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING (THIS APPLIANCE). Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. WARNING – To reduce the risk of fire, electric shock, or injury: 1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children should not play with the appliance. Cleaning and user maintenance shall not be performed by children without supervision. 2. The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction. 3. For INDOOR use ONLY. Do not use the appliance outdoors, nor in commercial or industrial environments. Do not use the appliance on wet surfaces or surfaces with standing water. 4. Do not allow to be used as a toy. Close attention is necessary when used by or near children, pets or plants. 5. Use only as described in this manual. Use only manufacturer’s recommended attachments. 6. Do not use with a damaged cord or plug. If appliance has been dropped, damaged, left outdoors, dropped into water, or is not working as it should, return it to a service center. 7. Do not handle charger, including charger plug, and charger terminals with wet hands. 8. Do not block openings. Stop use if openings become blocked. Clean and remove any blocked objects according to the manual instructions. 9. Keep hair, loose clothing, fingers, and all parts of your body away from openings and moving parts. 10. Use extra care when cleaning on stairs. 11. Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present. 12. Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes. 13. Do not use without a filter. 14. Prevent unintentional activation. Ensure the switch is in the off position before connecting to the battery pack, picking up or carrying the appliance. Carrying the appliance with your finger on the switch or powering on the appliance with the switch on may cause accidents. Important Safety Instructions EN 3 15. Disconnect the battery pack from the appliance before making any adjustments, changing accessories, storing the appliance. Such preventive safety measures reduce the risk of starting the appliance accidentally. 16. For the purposes of recharging the battery, only use the detachable supply unit provided with this appliance. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. 17. Use appliances only with specifically designated Tineco battery packs. Use of any other battery packs may create a risk of injury and fire. 18. When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire. 19. Under improper usage, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid comes into eye contact, seek medical help. Liquid ejected from the battery may cause irritation or burns. 20. Do not use a battery pack or appliance that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury. 21. Do not expose a battery pack or appliance to fire or excessive heat. Exposure to fire or temperatures above 266°F (130°C) may cause an explosion. 22. Follow all charging instructions and do not charge the battery pack or appliance outside of the temperature range specified in the instructions. Charging improperly or at temperatures outside of the specified range may damage the battery and increase the risk of fire. 23. Have servicing performed by a qualified repair person using only identical replacement parts. This will ensure that the safety of the product is maintained. 24. This appliance contains battery cells that are non-replaceable. Do not modify or attempt to repair the appliance or the battery pack except as indicated in the instructions for use and care. 25. Always turn off this appliance before connecting or disconnecting the motorized nozzle. 26. D…

Text truncated - open the document above for the full version.

FR 60 Appli • Toutes les fonctions peuvent être activées à l’aide de l’application Tineco. Téléchargez l’application Tineco depuis l’App Store, Google Play ou le site officiel de Tineco. Activer/Désactiver le Wi-Fi • Activer le Wi-Fi : Pendant le fonctionnement, appuyez longuement sur le bouton pendant 3 secondes pour accéder au centre d’aide puis à Connexion au réseau. • Désactiver le Wi-Fi : appuyez longuement sur le bouton pendant 20 secondes pour désactiver. Téléchargement de l’appli Support Téléchargement de l’appli Tineco Téléchargez sur l’App Store TÉLÉCHARGEZ SUR Google Play www.tineco.com FR 61 Vidage du bac à poussière Appuyez sur le bouton de déverrouillage situé sur le côté du bac à poussière et videz le contenu. Fermez et remettez en place le clapet du bac à poussière. Recharge de la batterie Branchez l’adaptateur dans le port de charge au bas de la station de recharge. Placez l’appareil sur la station de recharge et branchez l’adaptateur dans une prise murale. Avertissement : • Utilisez uniquement l’adaptateur fourni par Tineco pour recharger l’appareil. • Pour éviter tout risque de trébuchement, placez fermement l’appareil sur la base de recharge à proximité d’un mur pendant la charge. • Pendant de longues périodes d’inutilisation, rangez l’appareil dans un endroit frais et sec. Assurez- vous de recharger entièrement la batterie tous les 3 mois. • N’exposez pas l’appareil à la lumière du soleil ni au gel. Plage de température recommandée : 4 °C à 40 °C. FR 62 Autonomie • En mode AUTO, l’autonomie est d’environ 30 minutes. Lorsque la puissance MAX est utilisée, l’autonomie est d’environ 10 minutes. • Les données de l’autonomie estimée sont obtenues par le laboratoire Tineco avec une batterie et des accessoires non motorisés. Durée de la recharge • Il faut environ 3 à 3,5 heures pour recharger complètement la batterie. • Les données estimées ont été obtenues par un laboratoire Tineco à des températures ambiantes comprises entre 4 °C et 40 °C. Voyant En cours d’utilisation Voyant Max allumé: mode Max. Voyant AUTO allumé: mode Auto. Cinq voyants verts fixes restent allumés : pleine charge. Trois voyants verts fixes : charge moyenne. Un voyant vert fixe : charge faible. Voyant vert clignotant : niveau de la batterie < 5 %. Boucle LED clignotant avec un bip : impossible de charger, consultez les instructions de dépannage. FR 63 Clignotement : le rouleau brosse est obstrué. Clignotement : soit le filtre, soit le bac à poussières de l’appareil est obstrué. Clignotement : le capteur à l’intérieur du bac à poussière est obstrué. Allumé : connexion Wi-Fi réussie. Voyant clignotant : connexion Wi-Fi en cours. Éteint : le Wi-Fi n’est pas connecté, veuillez vous connecter. Durant la recharge Clignotement en succession : charge en cours. Rechargé à 100 % Niveau de la batterie : 100 %. FR 64 Entretien Remarque : • Nettoyez le bac à poussière et les filtres après chaque utilisation. • Lavez et séchez le filtre HEPA tous les 3 mois et remplacez-le tous les 12 mois. Bac à poussières et filtre à mailles Tournez le filtre à mailles dans le sens antihoraire pour le retirer. Ne retournez pas l’appareil lorsque vous retirez ou installez le filtre à mailles pour empêcher la poussière de pénétrer dans le moteur. Le filtre à mailles peut être lavé à l’eau courante froide et doit être séché complètement avant d’être réinstallé. Après le nettoyage, réinstallez le filtre propre dans le corps principal, puis replacez le couvercle du bac à poussière. FR 65 Filtre HEPA Retirez le filtre HEPA (de conception magnétique) pour le nettoyage. N’utilisez pas l’appareil sans avoir préalablement installé le filtre HEPA. Le filtre HEPA peut être lavé à l’eau courante et doit être séché complètement avant d’être réinstallé. Capteur à poussière Pour éviter l’accumulation de poussière qui pourrait nuire aux performances de nettoyage, essuyer la bouche d’aspiration avec un chiffon humide. Mini brosse turbo Faites glisser vers le bas le couvercle d’extrémité du rouleau. Retirez le rouleau brosse. FR 66 Enlevez les débris enroulés autour du rouleau avec l’outil de nettoyage des poils/cheveux Tineco. Réinsérez complètement le rouleau brosse en l’inclinant. Poussez-le vers le haut jusqu’à ce qu’il se remette fermement en place (vous entendrez un déclic). Rouleau brosse Lorsque l’aspirateur, faites glisser le bouton pour ouvrir le couvercle d’extrémité du rouleau brosse, et faites-le tourner dans le sens antihoraire pour retirer le rouleau brosse. Après avoir retiré le rouleau brosse, nettoyez délicatement la fenêtre de la brosse, la bouche d’aspiration et la rangée des dents en plastique. Réinsérez complètement le rouleau brosse dans la fenêtre de brosse et le couvercle d’extrémité peut être tourné dans le sens antihoraire jusqu’à ce qu’il se fermement remette en place. Avertissement : • La brosse motorisée contient des composants électriques qui ne peuvent pas être trempés ou lavés à l’eau. • Pour réduire les risques de blessure, ne touchez pas le rouleau brosse lorsque l’appareil fonctionne. clic FR 67 ProblèmeCause possibleSolution L’appareil ne s’allume pas Pas d’alimentationRechargez la batterie Protection automatique contre la surchauffe Redémarrez après refroidissement de l’appareil L’appareil est bloqué (par ex., le tube, la bouche d’aspiration ou d’autres pièces) Vérifiez et éliminez les obstructions Faible puissance d’aspiration Le bac à poussière et les filtres sont remplis Nettoyez le bac à poussière et les filtres L’appareil est bloqué (par ex., le tube, la bouche d’aspiration ou d’autres pièces) Éliminez les obstructions Le rouleau brosse est entouré de cheveux/poils ou de fibres Nettoyez le rouleau brosse La batterie ne peut pas être rechargée L’adaptateur n’est pas correctement branché Branchez correctement l’adaptateur L’adaptateur n’est pas conçu pour cet appareil Utilisez l’adaptateur d’origine Le rouleau brosse est obstrué et l’indicateur clignote Le rouleau brosse est bloquéÉliminez les obstructions Vo…

Text truncated - open the document above for the full version.

Tineco Intelligent Technology Co.,Ltd. Date: 2022.7.4 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 To whom it may concern: I, the undersigned, hereby authorize UL-CCIC COMPANY LIMITED to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL-CCIC COMPANY LIMITED on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL-CCIC COMPANY LIMITED as our representative, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signed by: Company Name: Tineco Intelligent Technology Co.,Ltd. Contact Name: Yonghua Huang Title of Person：Engineer Address: No. 108 Shihu Road West, Wuzhong Zone,Suzhou, 215168 P.R.China

Tineco Intelligent Technology Co.,Ltd. Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: 2AV7A-S16 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Theory of Operation Bom list Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Company Name: Tineco Intelligent Technology Co.,Ltd. Contact Name: Yonghua Huang Title of Person：Engineer Address: No. 108 Shihu Road West, Wuzhong Zone,Suzhou, 215168 P.R.China Date:2022/9/6

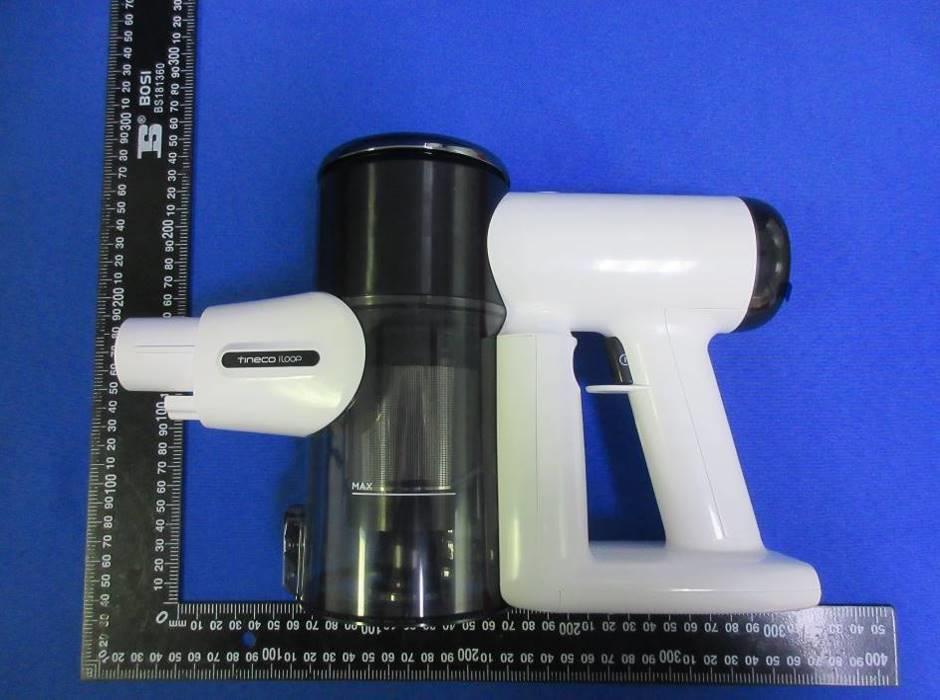

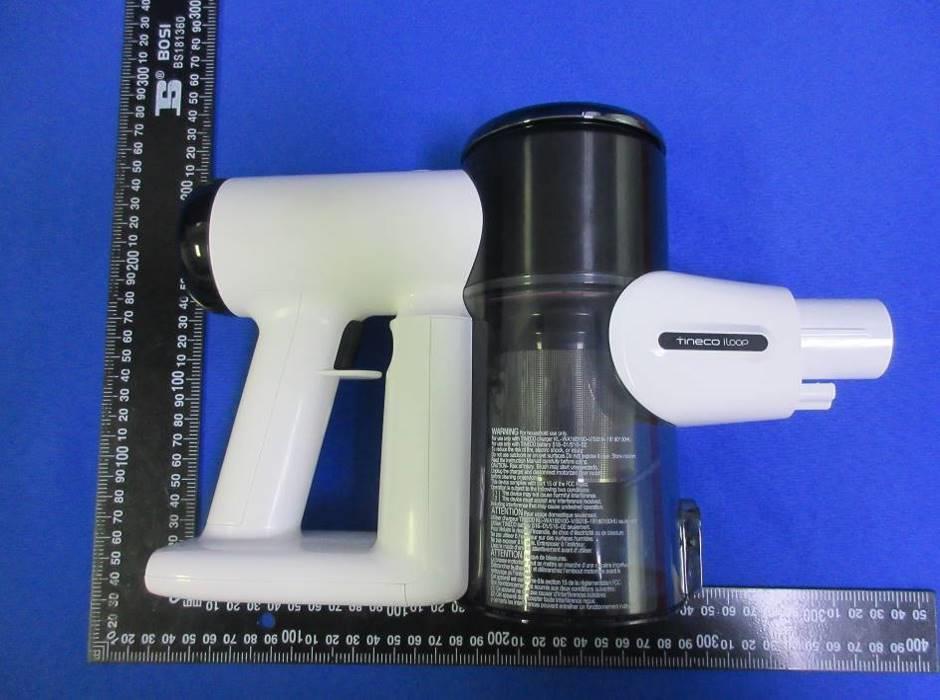

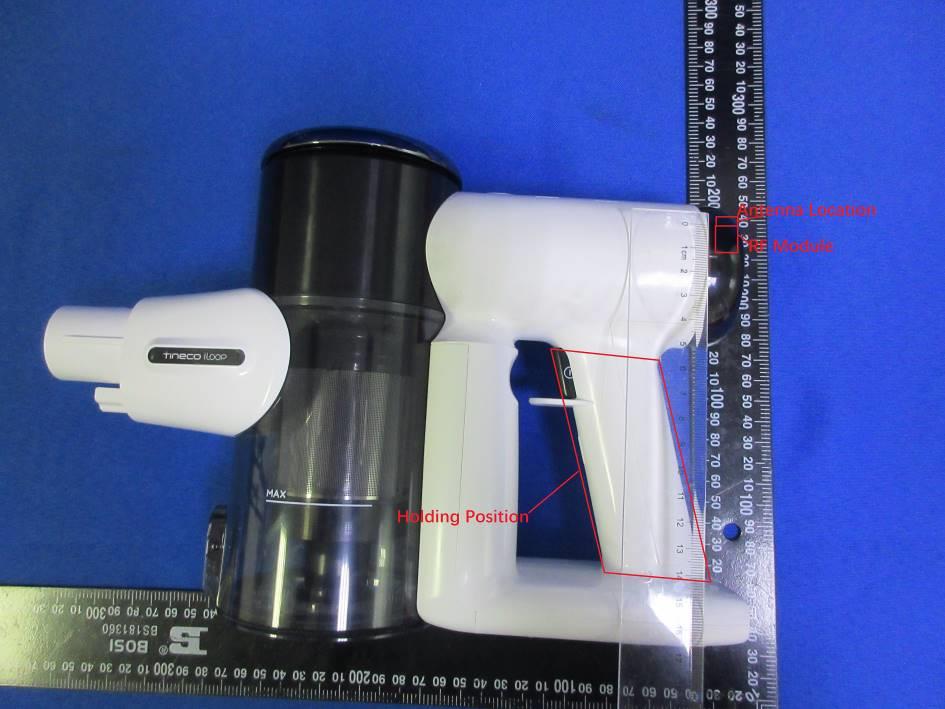

Appendix I External Photographs Page 2 of 6 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. All View of EUT Page 3 of 6 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Top View of EUT Bottom View of EUT Page 4 of 6 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Front View of EUT Back View of EUT Page 5 of 6 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Left View of EUT Right View of EUT Page 6 of 6 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. View of adapter View of RF Module& Antenna location

⌨जᮧ㘪⻾ឭᰶ䭽ڙथhttp://www.tineco.com/ 3DQWRQH&RRO*UD\&  PP 3DQWRQH&RRO*UD\&  5   & SMART VACUUM CLEANER ⃼ࢂअᰡᎡ ক Model: VS171100USVoltage: 14.4 DC Rated Power: 230WFCC ID: 2AV7A-S16 IC: 26039-S16For Household Use OnlyPour usage domestique seulementDRY ONLY Made in China 2022.40 Note: This would be a plastic label with a permanent adhesive.

Appendix II Internal Photographs Page 2 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Open View of EUT Internal View of EUT-1 Page 3 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Internal View of EUT-2 Internal View of EUT-3 Page 4 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Internal View of EUT-4 Internal View of EUT-5 Page 5 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Internal View of EUT-6 Internal View of EUT-7 Page 6 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Internal View of EUT-8 ` Internal View of EUT-9 ` Page 7 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Internal View of RF Module& Antenna location

FCC ID: 2AV7A-S16 According to KDB 447498 D01 General RF Exposure Guidance v06, section 4.3.1 At 100 MHz to 6 GHz and for test separation distances ≤ 50 mm, the SAR test exclusion threshold is determined according to the following [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] x [√f(GHz)] ≤ 3.0 1. SAR test exclusion threshold Frequency: 2462MHz (min. separation distances = 50 mm) SAR test exclusion thresholds (50 mm) = 3 x 50 / (√ 2.462) = 95.60 mW So: 1) For 1-g SAR: standalone SAR exclusion-(1-g SAR)——separation distance ≤ 50mm 100MHz~6GHz Position Frequency (MHz) Power (dBm) Power (mW) Separation Distance (mm) Calculation Result Threshold SAR Test Front surface 2462 13.00 20 50.00 0.63 3.0 Excluded 2) For 10-g SAR: standalone SAR exclusion-(10-g SAR)——separation distance ≤ 50mm 100MHz~6GHz Position Frequency (MHz) Power (dBm) Power (mW) Separation Distance (mm) Calculation Result Threshold SAR Test Front surface 2462 13.00 20 50.00 0.63 7.5 Excluded Remark: -Calculation Result : 20 (㎽) / 50 (㎜) x √ 2.462 = 0.63 -When the minimum test separation distance is < 50 mm, a distance of 50 mm is applied to determine SAR test exclusion. -For Max. conducted power is 19.95 (㎽) closet 20 (㎽), so 20 (㎽) was calculated. 2. Conclusion: No SAR is required.

Form-ULID-008536-9 V2.0 The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report apply to the test sample(s) mentioned above at the time of the testing period only and are not to be used to indicate applicability to other similar products. This report does not imply that the product(s) has met the criteria for certification. CFR 47 FCC PART 15 SUBPART C ISED RSS-247 Issue 2 CERTIFICATION TEST REPORT For SMART VACUUM CLEANER MODEL NUMBER: VS171100US PROJECT NUMBER: 4790528203 REPORT NUMBER: 4790528203-2 FCC ID: 2AV7A-S16 IC: 26039-S16 ISSUE DATE: Sep. 07, 2022 Prepared for Tineco Intelligent Technology Co., Ltd. Prepared by UL-CCIC COMPANY LIMITED No. 2, Chengwan Road, Suzhou Industrial Park, People’s Republic of China Tel: + 86-512-6808 6400 Fax: + 86-512-6808 4099 Website: www.ul.com REPORT No.: 4790528203-2 ` Page 2 of 131 Form-ULID-008536-9 V2.0 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Revision History Rev. Issue Date Revisions Revised By V0 09/07/2022 Initial Issue REPORT No.: 4790528203-2 ` Page 3 of 131 Form-ULID-008536-9 V2.0 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS .................................................................................... 4 2. TEST METHODOLOGY ........................................................................................................ 6 3. FACILITIES AND ACCREDITATION .................................................................................... 6 4. CALIBRATION AND UNCERTAINTY .................................................................................. 7 4.1. MEASURING INSTRUMENT CALIBRATION ................................................................. 7 4.2. MEASUREMENT UNCERTAINTY .................................................................................. 7 5. EQUIPMENT UNDER TEST ................................................................................................. 8 5.1. DESCRIPTION OF EUT.................................................................................................. 8 5.2. MAXIMUM OUTPUT POWER ......................................................................................... 9 5.3. CHANNEL LIST .............................................................................................................. 9 5.4. TEST CHANNEL CONFIGURATION ............................................................................ 10 5.5. THE WORSE CASE POWER SETTING PARAMETER ............................................... 10 5.6. DESCRIPTION OF AVAILABLE ANTENNAS ............................................................... 11 5.7. THE WORSE CASE CONFIGURATIONS .................................................................... 11 5.8. DESCRIPTION OF TEST SETUP ................................................................................. 12 5.9. MEASURING INSTRUMENT AND SOFTWARE USED ............................................... 13 6. MEASUREMENT METHODS .............................................................................................. 14 7. ANTENNA PORT TEST RESULTS .................................................................................... 15 7.1. TEST ENVIRONMENT.................................................................................................. 15 7.2. ON TIME AND DUTY CYCLE ....................................................................................... 16 7.3. 6 dB BANDWIDTH AND 99% BANDWIDTH ................................................................. 19 7.4. CONDUCTED POWER ................................................................................................. 30 7.5. POWER SPECTRAL DENSITY .................................................................................... 32 7.6. CONDUCTED BANDEDGE AND SPURIOUS EMISSIONS ......................................... 39 7.7. RADIATED TEST RESULTS ........................................................................................ 63 7.7.1. LIMITS AND PROCEDURE ................................................................................... 63 7.7.2. RESTRICTED BANDEDGE ................................................................................... 69 7.7.3. SPURIOUS EMISSIONS ........................................................................................ 82 8. AC POWER LINE CONDUCTED EMISSIONS ................................................................. 127 9. ANTENNA REQUIREMENTS ........................................................................................... 131 REPORT No.: 4790528203-2 ` Page 4 of 131 Form-ULID-008536-9 V2.0 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. 1. ATTESTATION OF TEST RESULTS Company Name: Tineco Intelligent Technology Co., Ltd. Address: No. 108 Shihu Road West, Wuzhong Zone,Suzhou, 215168 P.R.China Factory Information Company Name: Tineco Intelligent Technology Co., Ltd. Address: No. 108 Shihu Road West, Wuzhong Zone,Suzhou, 215168 P.R.China EUT Description Product Name: SMART VACUUM CLEANER Model Number: VS171100US Sample Number: 5264557 Data of Receipt Sample: Aug.20, 2022 Date Tested: Aug.20, 2022 – Sep. 06, 2022 APPLICABLE STANDARDS STANDARD TEST RESULTS CFR 47 Part 15 Subpart C PASS ISED RSS-247 Issue 2 ISED RSS-GEN Issue 5 PASS PASS REPORT No.: 4790528203-2 ` Page 5 of 131 Form-ULID-008536-9 V2.0 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Summary of Test Results Clause Test Items FCC Rules Test Results 1 6db DTS Bandwidth and 99…

Text truncated - open the document above for the full version.

REPORT No.: 4790528203-2 ` Page 52 of 131 Form-ULID-008536-9 V2.0 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Puw test Plot LCH SPURIOUS EMISSION_30MHz~1GHz LCH SPURIOUS EMISSION_1GHz~26GHz REPORT No.: 4790528203-2 ` Page 53 of 131 Form-ULID-008536-9 V2.0 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Channel Verdict 11G MCH PASS Pref test Plot MCH SPURIOUS EMISSION REPORT No.: 4790528203-2 ` Page 54 of 131 Form-ULID-008536-9 V2.0 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Puw test Plot MCH SPURIOUS EMISSION_30MHz~1GHz MCH SPURIOUS EMISSION_1GHz~26GHz REPORT No.: 4790528203-2 ` Page 55 of 131 Form-ULID-008536-9 V2.0 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Channel Verdict 11G HCH PASS Pref test Plot HCH SPURIOUS EMISSION REPORT No.: 4790528203-2 ` Page 56 of 131 Form-ULID-008536-9 V2.0 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Puw test Plot HCH SPURIOUS EMISSION_30MHz~1GHz HCH SPURIOUS EMISSION_1GHz~26GHz REPORT No.: 4790528203-2 ` Page 57 of 131 Form-ULID-008536-9 V2.0 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Channel Verdict 11N HT20 LCH PASS Pref test Plot LCH SPURIOUS EMISSION REPORT No.: 4790528203-2 ` Page 58 of 131 Form-ULID-008536-9 V2.0 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Puw test Plot LCH SPURIOUS EMISSION_30MHz~1GHz LCH SPURIOUS EMISSION_1GHz~26GHz REPORT No.: 4790528203-2 ` Page 59 of 131 Form-ULID-008536-9 V2.0 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Channel Verdict 11N HT20 MCH PASS Pref test Plot MCH SPURIOUS EMISSION REPORT No.: 4790528203-2 ` Page 60 of 131 Form-ULID-008536-9 V2.0 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Puw test Plot MCH SPURIOUS EMISSION_30MHz~1GHz MCH SPURIOUS EMISSION_1GHz~26GHz REPORT No.: 4790528203-2 ` Page 61 of 131 Form-ULID-008536-9 V2.0 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Test Mode Channel Verdict 11N HT20 HCH PASS Pref test Plot HCH SPURIOUS EMISSION REPORT No.: 4790528203-2 ` Page 62 of 131 Form-ULID-008536-9 V2.0 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Puw test Plot HCH SPURIOUS EMISSION_30MHz~1GHz HCH SPURIOUS EMISSION_1GHz~26GHz REPORT No.: 4790528203-2 ` Page 63 of 131 Form-ULID-008536-9 V2.0 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. 7.7. RADIATED TEST RESULTS 7.7.1. LIMITS AND PROCEDURE LIMITS Please refer to FCC §15.205 and §15.209, ISED RSS-247 Clause 5.5, ISED RSS-GEN Clause 8.9&6.13 (Transmitter) Radiation Disturbance Test Limit for ISED(9KHz-1GHz) REPORT No.: 4790528203-2 ` Page 64 of 131 Form-ULID-008536-9 V2.0 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Please refer to FCC KDB 558074 Radiation Disturbance Test Limit for FCC (9KHz-1GHz) Frequency (MHz) Field Strength (microvolts/meter) Measurement Distance (meters) 0.009~0.490 2400/F(KHz) 300 0.490~1.705 24000/F(KHz) 30 1.705~30.0 30 30 30~88 100 3 88~216 150 3 216~960 200 3 960~1000 500 3 Note: 1) At frequencies at or above 30 MHz, measurements may be performed at a distance other than what is specified provided: measureme…
