2AV7A-FS15Smart Cordless Vacuum&Washer

FLOOR ONE S5 COMBO SERIES Smart Cordless Vacuum & Washer Instruction Manual Manual De Uso Mode D’emploi *Actual product may differ from illustration. ES TINECO IS HERE TO HELP. We’ll get back to you within 1 business day. www.tineco.com 1-855-292-8864 Mon. - Fri. 9am - 6pm (CST) EN 1 CONTENTS Important Safety Instructions ............................................................... 2 Overview ................................................................................................ 6 Accessories ............................................................................................ 8 Assembly ............................................................................................... 9 Operation ............................................................................................ 10 Maintenance ....................................................................................... 17 Specifications ...................................................................................... 21 Troubleshooting .................................................................................. 22 Warranty .............................................................................................. 23 TINECO IS HERE TO HELP. We’ll get back to you within 1 business day. www.tineco.com 1-855-292-8864 Mon. - Fri. 9am - 6pm (CST) EN 2 Important Safety Instructions SAVE THESE INSTRUCTIONS Household use only. When using an electrical appliance, basic precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING (THIS APPLIANCE). Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. WARNING – To reduce the risk of fire, electric shock, or injury: 1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children should not play with the appliance. Cleaning and user maintenance shall not be performed by children without supervision. 2. The appliance is not to be used by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction. 3. Use only indoors, on non-carpeted floor surfaces such as vinyl, tile, sealed wood, etc. Be careful not to run over loose objects or edges of area rugs. Stalling the brush may result in premature belt failure. 4. Do not allow to be used as a toy. Close attention is necessary when used by or near children, pets or plants. 5. Use only as described in this manual. Use only manufacturer’s recommended attachments. 6. Do not use with a damaged cord or plug. If appliance has been dropped, damaged, left outdoors, dropped into water, or is not working as it should, return it to a service center. 7. Do not handle charger, including charger plug, and charger terminals with wet hands. 8. Do not put any object into openings. Do not use with any opening blocked; keep free of dust, lint, hair, and anything that may reduce air flow. 9. Keep hair, loose clothing, fingers, and all parts of your body away from openings and moving parts. 10. Use extra care when cleaning on stairs. 11. Do not use to pick up flammable or combustible liquids, such as gasoline, or use in areas where they may be present. 12. Do not pick up anything that is burning or smoking, such as cigarettes, matches, or hot ashes. 13. Do not use without filter. 14. Prevent unintentional activation. Ensure the switch is in the off-position before picking up or carrying the appliance. Carrying the appliance with your finger on the switch or energizing appliance that have the switch on invites accidents. 15. Always switch off the appliance before making any adjustments, changing accessories, or storing the appliance. Such preventive safety measures reduce the risk of starting the appliance accidentally. EN 3 16. Recharge only with the charger specified by Tineco. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. 17. Use appliances only with specifically designated Tineco battery packs. Use of any other battery packs may create a risk of injury and fire. 18. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid comes into eye contact, seek medical help. Liquid ejected from the battery may cause irritation or burns. 19. Do not use a battery pack or appliance that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behavior resulting in fire, explosion or risk of injury. 20. Do not expose a battery pack or appliance to fire or excessive temperature. Exposure to fire or temperature above 266°F (130°C) may cause an explosion. 21. Follow all charging instructions and do not charge the battery pack or appliance outside of the temperature range specified in the instructions. Charging improperly or at temperatures outside of the specified range may damage the battery and increase the risk of fire. 22. Have servicing performed by a qualified repair person using only identical replacement parts. This will ensure that the safety of the product is maintained. 23. This appliance contains battery cells that are non-replaceable. Do not modify or attempt to repair the appliance or the battery pack except as indicated in the instructions for use and care. 24. Always turn off this appliance before connecting or disconnecting the motorized nozzle. 25. Do not charge or store the appliance outdoors or inside the car. Only charge, store or use the battery in a dry indoor area where the temperature is higher than 39.2°F (4°C) but lower than 104°F (40°C). The charger is for indoor use only. 26. Do not use to pi…

Text truncated - open the document above for the full version.

FR 62 Sélection du mode de nettoyage Mode AUTO • En mode AUTO, le capteur iLoop™ détecte automatiquement le degré de salissure du sol et applique la quantité appropriée de détergent et la puissance d’aspiration adaptée. • Une boucle rouge de surveillance de la saleté indique qu’une plus grande quantité de saleté est détectée et une boucle bleue indique qu’une moins grande quantité de saleté est détectée. Ce mode fournit automatiquement la meilleure solution de nettoyage. Mode MAX • En mode AUTO, appuyez sur le bouton pour entrer en mode MAX. • En mode MAX, l’appareil applique une puissance d’aspiration maximale et pulvérise de l’eau/de la solution pour un nettoyage en profondeur. Mode ECO (aspirateur à main) • Lorsque le corps principal est utilisé comme aspirateur à main, l’appareil démarre en mode ECO par défaut. Mode MAX (aspirateur à main) • Appuyez sur le bouton pour passer en mode MAX quand vous utilisez l’aspirateur à main. Remarque : Éloignez les objets pointus de l’écran numérique pour éviter les rayures et les éraflures. FR 63 Utilisation de l’aspirateur à main ou Installez correctement le bac à poussières sur le corps principal de manière à ce qu’il s’enclenche. Fixez l’accessoire sur le bac à poussières, il s’enclenchera en position lorsqu’il sera correctement installé. • Appuyez sur le bouton de déverrouillage pour retirer le bac à poussières, retirez le filtre à mailles comme ci-dessus et videz le contenu. • Appuyez sur le bouton de verrouillage HEPA pour retirer le filtre HEPA et à éponge, nettoyez les deux pièces avec l’outil de nettoyage. Remarque : • Nettoyez le bac à poussière et les filtres après chaque utilisation. • Pour maintenir des performances élevées, lavez et séchez le filtre à éponge tous les mois et remplacez-le tous les 6 mois. Lavez et séchez le filtre HEPA tous les 3 mois et remplacez-le tous les 12 mois. • Séchez complètement à l’air libre avant de remettre en place. FR 64 Autonomie • La durée de fonctionnement de la laveuse de parquet est d’environ 15 à 20 minutes. • L’autonomie de l’aspirateur à main est d’environ 25 à 50 minutes. • Les estimations de l’autonomie ont été obtenues par un laboratoire Tineco. Durée de la recharge • Il faut environ 3 à 4 heures pour recharger complètement la batterie. • Les données estimées ont été obtenues par un laboratoire Tineco à des températures ambiantes comprises entre 4 °C et 40 °C. Voyant En cours d’utilisation Niveau de batterie 10 % : l’indicateur de batterie s’allume. Niveau de batterie ≤ 10 % : l’indicateur de batterie clignote. Éteint : absence d’alimentation détectée ou dysfonctionnement possible de la batterie. Voyant clignotant : dysfonctionnement ou blocage du capteur de saleté. Voyant clignotant : le REP est vide. Voyant clignotant : le RES est plein ou le canal est bloqué. Voyant clignotant : le rouleau brosse n’est pas installé ou est bloqué. Allumé : connexion Wi-Fi réussie. FR 65 Voyant clignotant : connexion Wi-Fi en cours. Éteint : le Wi-Fi n’est pas connecté, veuillez-vous connecter au réseau. Voyant clignotant : l’appareil a besoin d’un nettoyage automatique. Durant la recharge Voyant Tineco : pulsant. Rechargé à 100 % Pendant 5 minutes : voyant Tineco allumé. Après 5 minutes : tous les voyants s’éteignent. Application Toutes les fonctions peuvent être activées à l’aide de l’appli Tineco. Téléchargez l’appli Tineco depuis l’App Store, Google Play ou le site officiel de Tineco. TinecoTineco www.tineco.com Support Téléchargement de l’appli TÉLÉCHARGEZ SUR Google Play Téléchargez sur l’App Store Téléchargement de l’appli Remarque : Le paramètre par défaut pour l’invite vocale est l’anglais, vous pouvez définir d’autres langues à l’aide de l’application. FR 66 Invite vocale (le contenu peut varier, veuillez noter que l’invite vocale réelle prévaut.) ÉtatRappel Invites vocales activéesInvites vocales activées Invites vocales désactivéesInvites vocales désactivées Mode AUTO par défautMode AUTO Passer en mode MAXMode MAX Nettoyez à l’eau uniquementNettoyez à l’eau uniquement Nettoyer avec la solution de nettoyage par défaut Nettoyez avec une solution de nettoyage Niveau de la batterie : 10 à 20%Batterie faible Niveau de la batterie : 0 à 10%Batterie faible, veuillez charger l’appareil Le réservoir d’eau propre est vide Réservoir d’eau propre vide, veuillez le remplir d’eau et de solution de nettoyage Nettoyage automatique nécessaireCommencez le cycle de nettoyage automatique L’appareil ne se trouve pas sur la base de recharge Placez l’appareil sur la base de recharge Le réservoir d’eau sale est pleinLe réservoir d’eau sale est plein, veuillez le vider Réservoir d’eau sale non installéInstallez le réservoir d’eau sale Rouleau brosse bloquéNettoyez le rouleau brosse. Rouleau brosse non installéVeuillez installer le rouleau brosse correctement L’appareil est hors tensionMettre l’appareil hors tension Commencer la chargeLa charge a commencé Commencez le cycle de nettoyage automatique Détection automatique de l’exécution du cycle de nettoyage automatique, commencez le cycle de nettoyage automatique Batterie insuffisante pour le nettoyage automatique Batterie faible, commencer la charge Batterie suffisante pour démarrer le nettoyage automatique Démarrer le nettoyage automatique Nettoyage du rouleau brosseNettoyage du rouleau brosse Nettoyage du canal de débrisNettoyage du canal de débris Détection automatique Détection automatique Nettoyage en profondeurNettoyage en profondeur Nettoyage automatique arrêté Cyvle de nettoyage automatique arrêté. Veuillez nettoyer le réservoir d’eau sale Nettoyage automatique terminé Cycle de nettoyage automatique terminé, veuillez nettoyer le réservoir d’eau sale Corps principal désinstallé pendant le nettoyage automatique Installez le corps principal FR 67 Entretien Remarque : • Pour obtenir des performances optimales et éviter les odeurs, nettoyez et séchez toujours complètement le RES, le flotteur, les filtres, le rouleau brosse et le couvercle du rouleau brosse après chaqu…

Text truncated - open the document above for the full version.

Tineco Intelligent Technology Co.,Ltd. Address: 108 Shihu Road West, Wuzhong Zone,Suzhou, 215168 P.R.China Confirmation Letter We, Tineco Intelligent Technology Co.,Ltd. The product: Smart Cordless Vacuum &Washer And model No.: FW150100US FCC ID: 2AV7A-FS15 IC: 26039-FS15 FW150100US have the same technical construction including circuit diagram, PCB Layout, components and component layout, all electrical construction and mechanical construction with FW150100CA.The difference lies only model number . all these changes do not degrade the unwanted emissions of the certified product. ______________________ Company Name: Tineco Intelligent Technology Co.,Ltd. Contact Name: Yonghua Huang Address: 108 Shihu Road West, Wuzhong Zone,Suzhou, 215168 P.R.China Date：5.13.2021

Tineco Intelligent Technology Co.,Ltd. Date: 2021.4.21 Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 To whom it may concern: I, the undersigned, hereby authorize UL-CCIC COMPANY LIMITED to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by UL-CCIC COMPANY LIMITED on our behalf shall have the same effect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a). In authorizing UL-CCIC COMPANY LIMITED as our representative, we still recognize that we are responsible to: a) comply with the relevant provisions of the certification program; b) make all necessary arrangements for the conduct of the evaluation, including provision for examining documentation and access to all areas, records (including internal audit reports) and personnel for the purposes of evaluation (e.g. testing, inspection, assessment, surveillance, reassessment) and resolution of complaints; c) make claims regarding certification only in respect of the scope for which certification has been granted; d) do not use our product certification in such a manner as to bring the Certification Division into disrepute and not make any statement regarding our product certification which the Certification Division may consider misleading or unauthorized; e) upon suspension or cancellation of certification, discontinue use of all advertising matter that contains any reference thereto and return any certification documents as required by the Certification Division; f) use certification only to indicate the products are certified as being in conformity with specified standards; g) endeavor to ensure that no certificate or report nor any part thereof is used in a misleading manner; h) ensure that any reference to our product certification in communication media such as documents, brochures or advertising, complies with the requirements of the Certification Division; i) keep a record of all complaints made known to us relating to the product’s compliance with requirements of the relevant standard and to make these records available to the when requested; j) take appropriate action with respect to such complaints and any deficiencies found in products or services that affect compliance with the requirements for certification; k) document the actions taken. This authorization is valid until further written notice from the applicant. Sincerely Yours, Signed by: Company Name: Tineco Intelligent Technology Co.,Ltd. Contact Name: Yonghua Huang Title of Person：Engineer Address: 108 Shihu Road West, Wuzhong Zone,Suzhou, 215168 P.R.China

Tineco Intelligent Technology Co.,Ltd. Federal Communications Commission 7435 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: 2AV7A-FS15 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Theory of Operation Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards Company Name: Tineco Intelligent Technology Co.,Ltd. Contact Name: Yonghua Huang Title of Person：Engineer Address: 108 Shihu Road West, Wuzhong Zone,Suzhou, 215168 P.R.China Date:2021.4.21

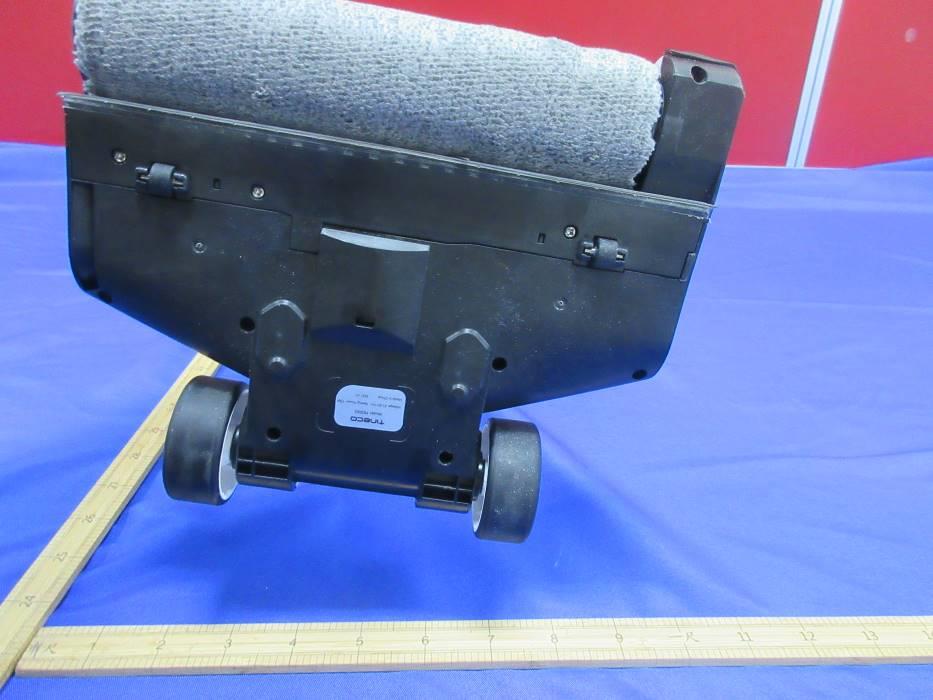

Appendix I External Photographs Page 2 of 6 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. All View of EUT Page 3 of 6 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Top View of EUT Bottom View of EUT Page 4 of 6 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Front View of EUT Back View of EUT Page 5 of 6 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Left View of EUT Right View of EUT Page 6 of 6 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. View of adapter

YYYY.MM Smart Cordless Vacuum & Washer Model: FW150100US Rating Power: 190W FCC ID: 2AV7A-FS15 Voltage: 21.6V IC: 26039-FS15 Made in China 2021.01 IPX4 33mm 4R*1 2R*3 25mm Label location YYYY.MM Smart Cordless Vacuum & Washer Model: FW150100CA IPX4 Voltage: 21.6V Rating Power: 190W FCC ID: 2AV7A-FS15 IC: 26039-FS15 Made in China 2021.01 33mm 4R*1 2R*3 25mm Label location

Appendix II Internal Photographs Page 2 of 10 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Open View of EUT Internal View of EUT-1 Page 3 of 10 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Internal View of EUT-2 Internal View of EUT-3 Page 4 of 10 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Internal View of EUT-4 Internal View of EUT-5 Page 5 of 10 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Internal View of EUT-6 Internal View of EUT-7 Page 6 of 10 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Internal View of EUT-8 Internal View of EUT-9 Page 7 of 10 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Internal View of EUT-10 Internal View of EUT-11 Page 8 of 10 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Internal View of EUT-12 Internal View of EUT-13 Page 9 of 10 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Internal View of EUT-14 Page 10 of 10 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. RF Model location ` Antenna location

The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report apply to the test sample(s) mentioned above at the time of the testing period only and are not to be used to indicate applicability to other similar products. This report does not imply that the product(s) has met the criteria for certification. RF EXPOSURE REPORT For Smart Cordless Vacuum&Washer MODEL NUMBER: FW150100CA ADDTIONAL MODEL NUMBER: FW150100US PROJECT NUMBER: 4789884561 REPORT NUMBER: 4789884651-2 FCC ID: 2AV7A-FS15 IC: 26039-FS15 ISSUE DATE: Apr. 27, 2021 Prepared for Tineco Intelligent Technology Co.,Ltd. Prepared by UL-CCIC COMPANY LIMITED No. 2, Chengwan Road, Suzhou Industrial Park, People’s Republic of China Tel: +86 769 22038881 Fax: +86 769 33244054 Website: www.ul.com REPORT No.: 4789884651-2 Page 2 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED.. Rev. Issue Date Revisions Revised By V0 04/27/2021 Initial Issue REPORT No.: 4789884651-2 Page 3 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED.. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................. 4 2. TEST METHODOLOGY ..................................................................................................... 5 3. FACILITIES AND ACCREDITATION ................................................................................. 5 4. REQUIREMENT ................................................................................................................. 6 REPORT No.: 4789884651-2 Page 4 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED.. 1. ATTESTATION OF TEST RESULTS Applicant Information Company Name: Tineco Intelligent Technology Co.,Ltd. Address: No. 108 Shihu Road West, Wuzhong Zone,Suzhou, 215168 P.R.China EUT Description Product Name: Smart Cordless Vacuum&Washer Model Name: FW150100CA Additional No. : FW150100US Sample Number: 3776641 Data of Receipt Sample: 2021-04-02 Date Tested: 2021-04-02~ 2021-04-26 APPLICABLE STANDARDS STANDARD TEST RESULTS FCC Guidelines for Human Exposure IEEE C95.1 Complies Prepared By: Reviewed By: Tom Tang Leon Wu Project Engineer Senior Project Engineer Authorized By: Chris Zhong Laboratory Leader REPORT No.: 4789884651-2 Page 5 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED.. 2. TEST METHODOLOGY The tests documented in this report were performed in accordance with KDB 447498 D01 General RF Exposure Guidance v06 and FCC Guidelines for Human Exposure IEEE C95.1. 3. FACILITIES AND ACCREDITATION Accreditation Certificate A2LA (Certificate No.: 4829.01) UL-CCIC COMPANY LIMITED has been assessed and proved to be in compliance with A2LA. FCC (FCC Designation No.: CN1247) UL-CCIC COMPANY LIMITED has been recognized to perform compliance testing on equipment subject to the Commission's Declaration of Conformity (DoC) and Certification rules. IC (IC Designation No.: 25056) UL-CCIC COMPANY LIMITED has been recognized to perform compliance testing on equipment subject to the Commission's Declaration of Conformity (DoC) and Certification rules. Note 1: All tests measurement facilities use to collect the measurement data are located at No. 2, Chengwan Road, Suzhou Industrial Park, Suzhou 215122, People’s Republic of China Note 2: For below 30MHz, lab had performed measurements at test anechoic chamber and comparing to measurements obtained on an open field site. These measurements below 30MHz had been correlated to measurements performed on an OFS. Note 3: The test anechoic chamber in UL-CCIC COMPANY LIMITED had been calibrated and compared to the open field sites and the test anechoic chamber is shown to be equivalent to or worst case from the open field site. REPORT No.: 4789884651-2 Page 6 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED.. 4. REQUIREMENT LIMIT Limits for General Population/Uncontrolled Exposure Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/cm 2 ) Averaging Time |E| 2 , |H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f2)* 30 30-300 27.5 0.073 0.2 30 300-1500 -- -- f/150 30 1500-100,000 -- -- 1.0 30 Note 1: f = frequency in MHz, * means Plane-wave equivalent power density Note 2: General population/uncontrolled exposures apply in situations in which the general public may be exposed, or in which persons that are exposed as a consequence of their employment may not be fully aware of the potential for exposure or cannot exercise control over their exposure. Note 3: The limit value 1.0mW/cm 2 is available for this EUT. MPE CALCULATION METHOD S =PG/(4πR 2 ) where: S = power density (in appropriate units, e.g. mW/ cm2) P = power input to the antenna (in appropriate units, e.g., mW) (the measured power value refer to the tune-up document) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (appropriate units, e.g., cm) REPORT No.: 4789884651-2 Page 7 of 7 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED.. CALCULATED RESULTS Radio Frequency Radiation Exposure Evaluation: WIFI (Worst case) Mode Tune-up Power(P) Antenna Gain Power Density Limit Test Result 11B (dBm) (mW) (dBi) (Numeric) (mW/cm2) (mW/cm2) -- 16.5 44.67 2.0…

Text truncated - open the document above for the full version.

The results reported herein have been performed in accordance with the laboratory’s terms of accreditation. This report shall not be reproduced except in full without the written approval of the Laboratory. The results in this report apply to the test sample(s) mentioned above at the time of the testing period only and are not to be used to indicate applicability to other similar products. This report does not imply that the product(s) has met the criteria for certification. FCC 47 CFR PART 15 SUBPART C ISED RSS-247 Issue 2 CERTIFICATION TEST REPORT For Smart Cordless Vacuum&Washer MODEL NUMBER: FW150100CA ADDTIONAL MODEL NUMBER: FW150100US PROJECT NUMBER: 4789884561 REPORT NUMBER: 4789884651-1 FCC ID: 2AV7A-FS15 IC: 26039-FS15 ISSUE DATE: May. 26, 2021 Prepared for Tineco Intelligent Technology Co.,Ltd. Prepared by UL-CCIC COMPANY LIMITED No. 2, Chengwan Road, Suzhou Industrial Park, People’s Republic of China Tel: + 86-512-6808 6400 Fax: + 86-512-6808 4099 Website: www.ul.com REPORT No.: 4789884561-1 ` Page 2 of 131 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. Revision History Rev. Issue Date Revisions Revised By V0 05/26/2021 Initial Issue REPORT No.: 4789884561-1 ` Page 3 of 131 UL-CCIC COMPANY LIMITED This report shall not be reproduced except in full, without the written approval of UL-CCIC COMPANY LIMITED. TABLE OF CONTENTS 1. ATTESTATION OF TEST RESULTS ................................................................................. 4 2. TEST METHODOLOGY ..................................................................................................... 6 3. FACILITIES AND ACCREDITATION ................................................................................. 6 4. CALIBRATION AND UNCERTAINTY ................................................................................ 7 4.1. MEASURING INSTRUMENT CALIBRATION .............................................................. 7 4.2. MEASUREMENT UNCERTAINTY ............................................................................... 7 5. EQUIPMENT UNDER TEST ............................................................................................... 8 5.1. DESCRIPTION OF EUT .............................................................................................. 8 5.2. MAXIMUM OUTPUT POWER...................................................................................... 9 5.3. CHANNEL LIST ........................................................................................................... 9 5.4. TEST CHANNEL CONFIGURATION ..........................................................................10 5.5. THE WORSE CASE POWER SETTING PARAMETER ..............................................10 5.6. DESCRIPTION OF AVAILABLE ANTENNAS .............................................................11 5.7. THE WORSE CASE CONFIGURATIONS ..................................................................11 5.8. TEST ENVIRONMENT ...............................................................................................12 5.9. DESCRIPTION OF TEST SETUP ...............................................................................13 5.10. MEASURING INSTRUMENT AND SOFTWARE USED ..........................................14 6. MEASUREMENT METHODS ............................................................................................15 7. ANTENNA PORT TEST RESULTS ...................................................................................16 7.1. ON TIME AND DUTY CYCLE .....................................................................................16 7.2. 6 dB BANDWIDTH AND 99% BANDWIDTH ...............................................................19 7.3. CONDUCTED POWER...............................................................................................30 7.4. POWER SPECTRAL DENSITY ..................................................................................32 7.5. CONDUCTED BANDEDGE AND SPURIOUS EMISSIONS ........................................39 7.6. RADIATED TEST…

Text truncated - open the document above for the full version.
