2AV9UGTVIPTV RECEIVER

FCC Warning This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any inte rference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interferenceto radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.

ALOYSINC. AgentAuthorization Company:ALOYSINC. Address:#6F,MARCUSBldg.,4-5,Yanghyeon-ro405beon-gil,jungwon-gu, Seongnam-si,Gyeonggi-do,SouthKorea ProductName:IPTVRECEIVER TradeMark:Formuler ModelNumber(s):GTV FCCID:2AV9UGTV WeauthorizeMiCOMLabsInc.,575BoulderCourt,Pleasanton,California94566,USA, toactonourbehalfonallmattersconcerningthecertificationofabovenamed equipment. WedeclarethatMiCOMLabsInc.isallowedtoforwardallinformationrelatedtothe approvalandcertificationofequipmenttotheregulatoryagenciesasrequiredandto discussanyissuesconcerningtheapprovalapplication.Anyandallactscarriedoutby MiCOMLabsonourbehalfshallhavethesameeffectasactsofourown. Signature:Date:2020-06-19 Name:martin Title:Manager Company:ALOYSINC.

ALOYSINC. OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 USA Date:2020-06-19 Subject;RequestforConfidentiality FCCID:2AV9UGTV ToWhomItMayConcern, PursuanttotheprovisionsoftheCommission’srulesTitle47Sections§0.457and§0.459,we arerequestingtheCommissiontowithholdthefollowingattachment(s)asconfidential documentsfrompublicdisclosureindefinitely. Thesedocumentscontaindetailedsystemandequipmentdescriptionsandareconsideredas proprietaryinformationinoperationoftheequipment.Thepublicdisclosureofthesedocuments mightbeharmfultoourcompanyandwouldgivecompetitorsanunfairadvantageinthemarket. SchematicDiagram BlockDiagram SoftwareSecurityRequirementsForU-NIIDevices OperationalDescription Inadditionaltoabovementioneddocuments,inordertocomplywiththemarketingregulations inTitle47CFR§2.803andtheimportationrulesinTitle47CFR§2.1204,whileensuringthat businesssensitiveinformationremainsconfidentialuntiltheactualmarketingofnewly authorizeddevices,werequestShortTermConfidentialityofthefollowingattachment(s); ExternalPhotos TestSetupPhotos InternalPhotos UserManual For45days,pursuanttoPublicNoticeDA04-1705. OR For180dayspursuanttoKDB726920D01. Itisourunderstandingthatallmeasurementtestreports,FCCIDlabelformatand correspondenceduringthecertificationreviewprocesscannotbegrantedasconfidential documentsandthisinformationwillbeavailableforpublicreviewoncethegrantofequipment authorizationisissued. Sincerely, Signature: Name:martin Title:Manager

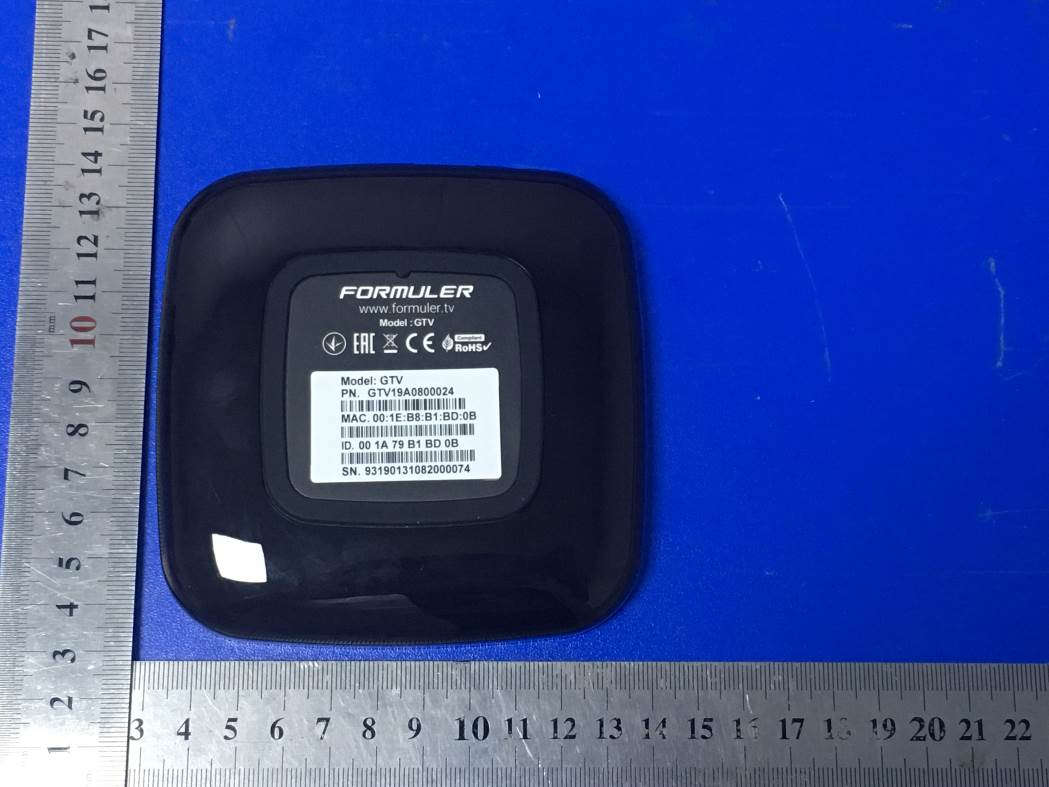

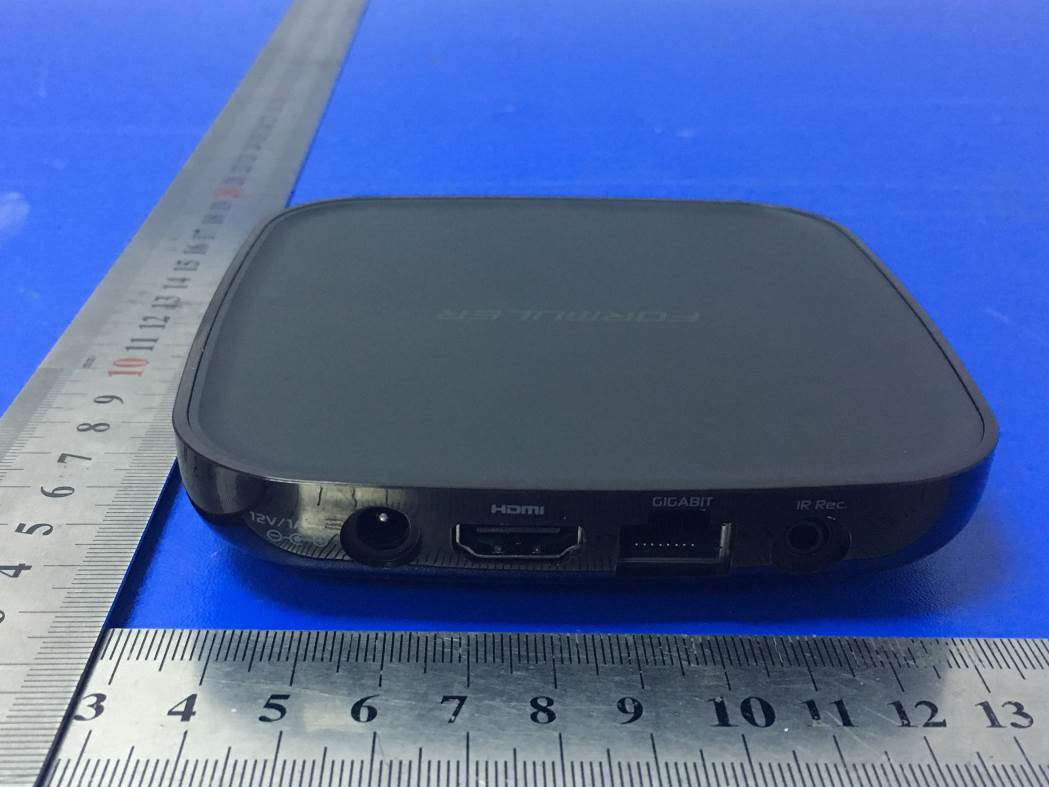

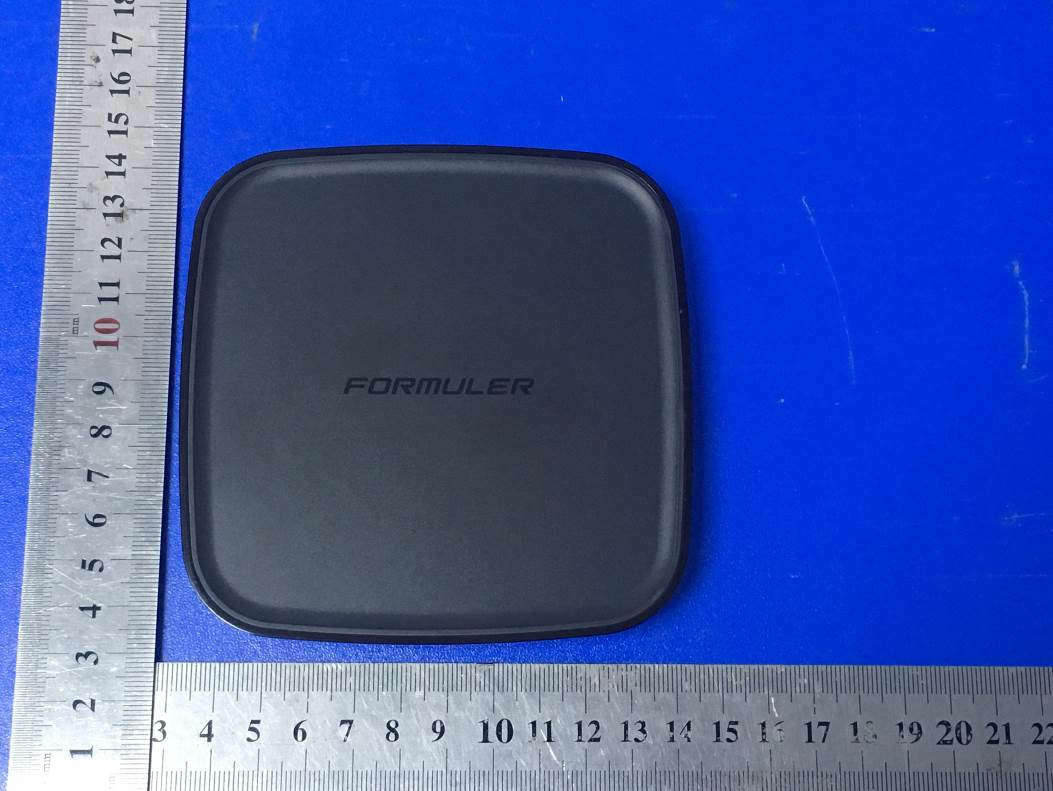

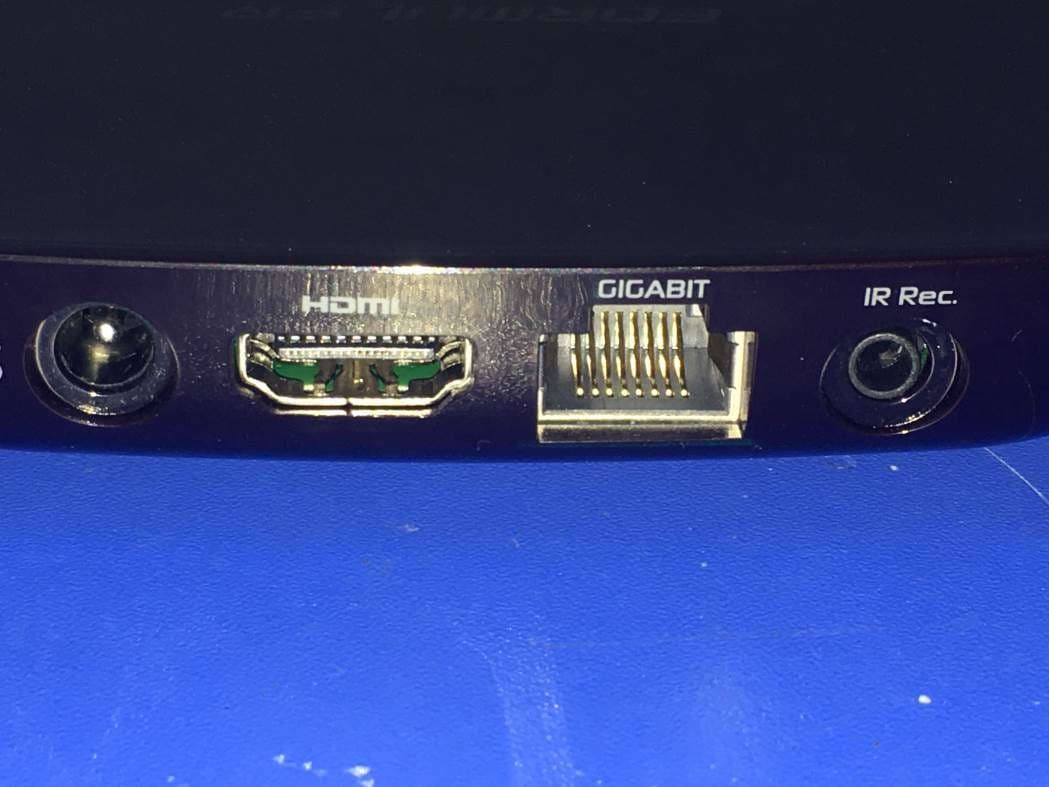

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV9UGTV 1. EXTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV9UGTV Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV9UGTV Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV9UGTV Fig.7 Fig.8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV9UGTV Fig.9 Fig.10 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV9UGTV Fig.11

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV9UGTV This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Label and Location Size: L2.0cm*W1.5cm Label Location IPTV RECEIVER Model No.: GTV FCC ID: 2AV9UGTV

SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AV9UGTV 1.INTERIORPHOTOGRAPHS Fig.1 Fig.2 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AV9UGTV Fig.3 Fig.4 BT/BLE ANT0 WiFi ANT1 WiFi ANT2 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AV9UGTV Fig.5 Fig.6

SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AV9UGTV Fig.7 Fig.8 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AV9UGTV Fig.9 Fig.10 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AV9UGTV Fig.11

SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AV9UGTV Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page 1 of 11 MaximumPermissibleExposureReport 1.ProductInformation FCCID:2AV9UGTV Productname IPTV TestModelGTV Powersupply Adapter:TEKA012-1201000UK Input:100-240V~,50/60Hz,0.35AMAX Output:12V1A Operationfrequency 2402MHz~2480MHz 2412MHz~2462MHz 5180MHz-5240MHz 5745-5825MHz AntennaTypeInternalAntenna AntennaGainBT/BLE/2.4GWIFI/5GWIF2dBi(Max.) Hardwareversion / Softwareversion / ChannelNumber 79channelsforBluetoothV5.0(BDR/EDR) 40channelsforBluetoothV5.0(BTLE) 11Channelsfor20MHzbandwidth(2412~2462MHz) 7Channelsfor40MHzbandwidth(2422~2452MHz) 4channelsfor20MHzbandwidth(5180-5240MHz) 2channelsfor40MHzbandwidth(5190~5230MHz) 1channelsfor80MHzbandwidth(5210MHz) 5channelsfor20MHzbandwidth(5745-5825MHz) 2channelsfor40MHzbandwidth(5755~5795MHz) 1channelsfor80MHzbandwidth(5775MHz) ChannelSpacing5MHz ExposurecategoryGeneralpopulation/uncontrolledenvironment EUTTypeProductionUnit DeviceTypemobiledevice 2.EvaluationMethod SystemsoperatingundertheprovisionsofFCC47CFRsectionshallbeoperatedinamannerthatensuresthatthepublic isnotexposedtoradiofrequencyenergylevelinexcessoftheCommission’sguidelines. Inaccordancewith47CFRFCCPart2SubpartJ,section2.1091thisdevicehasbeendefinedasmobiledevicewhereby adistanceof0.2mnormallycanbemaintainedbetweentheuserandthedevice,andbelowRFPermissibleExposure limitshallcomplywith. InaccordancewithKDB447498D01forSimultaneoustransmissionMPEtestexclusionapplieswhenthesumofthe MPEratiosforallsimultaneoustransmittingantennasincorporatedinahostdevice,basedonthecalculated/estimated, numericallymodelledormeasuredfieldstrengthsorpowerdensity,is≤1.0.TheMPEratioofeachantennais determinedattheminimumtestseparationdistancerequiredbytheoperatingconfigurationsandexposureconditionsof thehostdevice,accordingtotheratiooffieldstrengthsorpowerdensitytoMPElimit,atthetestfrequency.Eitherthe maximumpeakorspatiallyaveragedresultsfrommeasurementsornumericalsimulationsmaybeusedtodeterminethe MPEratios.SpatialaveragingdoesnotapplywhenMPEisestimatedusingsimplecalculationsbasedonfar-field plane-waveequivalentconditions.Theantennainstallationandoperatingrequirementsforthehostdevicemustmeetthe minimumtestseparationdistancesrequiredbyallantennas,inbothstandaloneandsimultaneoustransmissionoperations, tosatisfycompliance. SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AV9UGTV Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page 2 of 11 3.Limit 3.1ReferEvaluationMethod ANSIC95.1–1999:IEEEStandardforSafetyLevelswithRespecttoHumanExposuretoRadioFrequency ElectromagneticFields,3kHzto300GHz. FCCKDBpublication447498D01General1RFExposureGuidancev06:MobileandPortableDevicesRFExposure ProceduresandEquipmentAuthorizationPolicies. FCCCFR47part11.1310:Radiofrequencyradiationexposurelimits. FCCCFR47part22.1091:Radiofrequencyradiationexposureevaluation:mobiledevices 3.2Limit LimitsforMaximumPermissibleExposure(MPE)/ControlledExposure Frequency Range(MHz) ElectricField Strength(V/m) MagneticField Strength(A/m) PowerDensity (mW/cm²) AveragingTime (minute) LimitsforOccupational/ControlledExposure 0.3–3.0 3.0–30 30–300 300–1500 1500–100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100)* (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 LimitsforMaximumPermissibleExposure(MPE)/UncontrolledExposure Frequency Range(MHz) ElectricField Strength(V/m) MagneticField Strength(A/m) PowerDensity (mW/cm²) AveragingTime (minute) LimitsforOccupational/ControlledExposure 0.3–3.0 3.0–30 30–300 300–1500 1500–100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100)* (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequencyinMHz *=Plane-waveequivalentpowerdensity 4.MPECalculationMethod PredicationofMPElimitatagivendistance Equationfrompage18ofOETBulletin65,Edition97-01 S=PG/4πR² Where:S=powerdensity P=powerinputtoantenna G=powergainoftheantennainthedirectionofinterestrelativetoanisotropicradiator R=distancetothecenterofradiationoftheantenna 5.AntennaInformation GTVcanonlyuseantennascertificatedasfollowsprovidedbymanufacturer; Antennatypeand antennanumber Operatefrequencyband Maximumantenna gain Notes InternalAntenna02000MHz–2500MHz2dBiBT/WiFiAntenna InternalAntenna12000MHz–2500MHz2dBiWiFiAntenna InternalAntenna22000MHz–2500MHz2dBiWiFiAntenna InternalAntenna15000MHz–5800MHz2dBiWiFiAntenna InternalAntenna25000MHz–5800MHz2dBiWiFiAntenna SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AV9UGTV Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page 3 of 11 6.ConductedPower [BTMaxConductedPower] ModeChannelFrequency(MHz) PeakConductedOutput Power(dBm) GFSK 024022.685 3924411.767 7824800.457 π/4DQPSK 024021.081 3924410.100 782480-1.268 8DPSK 024021.531 1924400.624 392480-0.705 [BLEMaxConductedPower] ModeChannelFrequency(MHz) PeakConductedOutput Power(dBm) BTLE 02402-0.649 192440-1.585 392480-3.081 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AV9UGTV Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page 4 of 11 [2.4GWIFIMaxConductedPower] ModeChannel Frequency (MHz) ANT1 MaxConducted Power(dBm) ANT2 MaxConducted Power(dBm) 11B 1241215.4711.75 6243715.55 11.55 11246215.3311.98 11G 1241218.47 10.76 6243718.6210.44 11246218.58 10.41 11N20SISO 1241217.810.75 6243718.03 10.94 11246217.7810.84 11N40SISO 3242217.19 10.57 6243717.0911.99 9245217.13 10.92 [2.4GWIFIMaxConductedPower]ANT0+ANT1 ModeChannel Frequency (MHz) MaxConductedPower(dBm) 11N20SISO 1241219.15 6243719.23 11246219.20 11N40SISO 3242218.58 6243718.81 9245218.58 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AV9UGTV Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page 5 of 11 [5.2GWIFIMaxConductedPower] ModeChannel Frequency (MHz) ANT1 MaxConducted Power(dBm) ANT2 MaxConducted Power(dBm) 1…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV9UGTV Report No.: LCS200428067AEA Appendix A RF Test Data for BT V5.0(BDR/EDR) (Conducted Measurement) Product Name: IPTV Trade Mark: Formuler Test Model: GTV Environmental Conditions Temperature: 25.1 ° C Relative Humidity: 53.8% ATM Pressure: 100.0 kPa Test Engineer: David.Luo Supervised by: Li Huan A.1 Maxmum Conducted Peak Output Power Mode Channel. Maximum Peak Output Power [dBm] Limit [dBm] Verdict GFSK LCH 2.685 21 PASS MCH 1.767 21 PASS HCH 0.457 21 PASS π/4DQPSK LCH 1.081 21 PASS MCH 0.100 21 PASS HCH -1.268 21 PASS 8DPSK LCH 1.531 21 PASS MCH 0.624 21 PASS HCH -0.705 21 PASS Page 1 of 47 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV9UGTV Report No.: LCS200428067AEA Test Graphs GFSK/LCH GFSK/MCH Page 2 of 47 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV9UGTV Report No.: LCS200428067AEA GFSK/HCH π/4DQPSK/LCH Page 3 of 47 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV9UGTV Report No.: LCS200428067AEA π/4DQPSK/MCH π/4DQPSK/HCH Page 4 of 47 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV9UGTV Report No.: LCS200428067AEA 8DPSK/LCH 8DPSK/MCH Page 5 of 47 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV9UGTV Report No.: LCS200428067AEA 8DPSK/HCH Page 6 of 47 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV9UGTV Report No.: LCS200428067AEA A.2 20dB Bandwidth Mode Channel. 20dB Bandwidth [MHz] Limit [MHz] Verdict GFSK LCH 0.9601 Not Specified PASS MCH 0.9629 Not Specified PASS HCH 0.9633 Not Specified PASS π/4DQPSK LCH 1.282 Not Specified PASS MCH 1.283 Not Specified PASS HCH 1.282 Not Specified PASS 8DPSK LCH 1.302 Not Specified PASS MCH 1.302 Not Specified PASS HCH 1.302 Not Specified PASS Test Graphs GFSK/LCH Page 7 of 47 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV9UGTV Report No.: LCS200428067AEA GFSK/MCH GFSK/HCH Page 8 of 47 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV9UGTV Report No.: LCS200428067AEA π/4DQPSK/LCH π/4DQPSK/MCH Page 9 of 47 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV9UGTV Report No.: LCS200428067AEA π/4DQPSK/HCH 8DPSK/LCH Page 10 of 47 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV9UGTV Report No.: LCS200428067AEA 8DPSK/MCH 8DPSK/HCH Page 11 of 47 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV9UGTV Report No.: LCS200428067AEA A.3 Carrier Frequency Separation Mode Channel. Carrier Frequency Separation [MHz] Limit [MHz] Verdict GFSK LCH 1.082 0.567 PASS MCH 0.816 0.567 PASS HCH 0.822 0.567 PASS π/4DQPSK LCH 0.890 0.849 PASS MCH 1.308 0.849 PASS HCH 1.058 0.849 PASS 8DPSK LCH 1.036 0.845 PASS MCH 1.270 0.845 PASS HCH 0.924 0.845 PASS Test Graphs GFSK/LCH Page 12 of 47 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV9UGTV Report No.: LCS200428067AEA GFSK/MCH GFSK/HCH Page 13 of 47 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV9UGTV Report No.: LCS200428067AEA π/4DQPSK/LCH π/4DQPSK/MCH Page 14 of 47 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV9UGTV Report No.: LCS200428067AEA π/4DQPSK/HCH 8DPSK/LCH Page 15 of 47 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV9UGTV Report No.: LCS200428067AEA 8DPSK/MCH 8DPSK/HCH Page 16 of 47 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV9UGTV Report No.: LCS200428067AEA A.4 Hopping Channel Number Mode Channel. Number of Hopping Channel [N] Limit [N] Verdict GFSK Hop 79 >=15 PASS π/4DQPSK Hop 79 >=15 PASS 8DPSK Hop 79 >=15 PASS Test Graphs GFSK/Hop π/4DQPSK/Hop Page 17 of 47 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV9UGTV Report No.: LCS200428067AEA 8DPSK/Hop Page 18 of 47 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV9UGTV Report No.: LCS200428067AEA A.5 Dwell Time Mode Packet Channel Burst Width [ms/hop/ch] Total Hops[hop*ch] Dwell Time[s] Limit [s] Verdict GFSK DH5 LCH 2.88 106.7 0.307 0.4 PASS DH5 MCH 2.88 106.7 0.307 0.4 PASS DH5 HCH 2.88 106.7 0.307 0.4 PASS π/4DQPSK 2DH5 LCH 2.88 106.7 0.308 0.4 PASS 2DH5 MCH 2.88 106.7 0.308 0.4 PASS 2DH5 HCH 2.88 106.7 0.308 0.4 PASS 8DPSK 3DH5 LCH 2.88 106.7 0.308 0.4 PASS 3DH5 MCH 2.88 106.7 0.308 0.4 PASS 3DH5 HCH 2.88 106.7 0.308 0.4 PASS Test Graphs GFSK_DH5/LCH Page 19 of 47 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV9UGTV Report No.: LCS200428067AEA GFSK_DH5/MCH GFSK_DH5/HCH Page 20 of 47 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV9UGTV Report No.: LCS200428067AEA π/4DQPSK _2DH5/LCH π/4DQPSK _2DH5/MCH Page 21 of 47 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV9UGTV Report No.: LCS200428067AEA π/4DQPSK _2DH5/HCH 8DPSK _3DH5/LCH Page 22 of 47 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV9UGTV Report No.: LCS200428067AEA 8DPSK _3DH5/MCH 8DPSK _3DH5/HCH Page 23 of 47 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV9UGTV Report No.: LCS200428067AEA A.6 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdict GFSK LCH 2.513 -37.335 -17.487 PASS MCH 1.558 -38.204 -18.442 PASS HCH 0.238 -37.862 -19.762 PASS π/4DQPSK LCH -0.527 -37.457 -20.527 PASS MCH -1.549 -38.006 -21.549 PASS HCH -3.143 -38.343 -23.143 PASS 8DPSK LCH -0.508 -37.609 -20.508 PASS MCH -1.509 -37.825 -21.509 PASS HCH -2.973 -38.008 -22.973 PASS GFSK_LCH_Graphs Pref Page 24 of 47 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV9UGTV Report No.: LCS200428067AEA Puw Page 25 of 47 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV9UGTV Report No.: LCS200428067AEA GFSK_MCH_Graphs Pref Puw Page 26 of 47 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV9UGTV Report No.: LCS200428067AEA GFSK_HCH_Graphs Pref Puw Page 27 of 47 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV9UGTV Report No.: LCS200428067AEA π/4DQPSK_LCH_Graphs Pref Puw Page 28 of 47 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV9UGTV Report No.: LCS200428067AEA π/4DQPSK_MCH_Graphs Pref Puw Page 29 of 47 SHENZHEN LCS COMPL…

Text truncated - open the document above for the full version.

SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AV9UGTVReportNo.:LCS200428067AEA Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page 1 of 37 FCCTESTREPORT For ALOYSINC. IPTVRECEIVER TestModel:GTV Preparedfor:ALOYSINC. Address: #6F,MARCUSBldg.,4-5,Yanghyeon-ro405beon-gil,jungwon-gu, Seongnam-si,Gyeonggi-do,SouthKorea Preparedby:ShenzhenLCSComplianceTestingLaboratoryLtd. Address: 101,201BldgA&301BldgC,JujiIndustrialParkShajingStreet, BaoanDistrict,Shenzhen,China Tel:(+86)755-82591330 Fax:(+86)755-82591332 Web:www.LCS-cert.com Mail:[email protected] Dateofreceiptoftestsample:May07,2020 Numberoftestedsamples:2 Serialnumber:Prototype DateofTest:May07,2020~May19,2020 DateofReport:May22,2020 SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AV9UGTVReportNo.:LCS200428067AEA Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page 2 of 37 FCCTESTREPORT FCCCFR47PART15C(15.247) ReportReferenceNo......................:LCS200428067AEA DateofIssue.......................................:May22,2020 TestingLaboratoryName..............:ShenzhenLCSComplianceTestingLaboratoryLtd. Address................................................: 101,201BldgA&301BldgC,JujiIndustrialParkShajingStreet, BaoanDistrict,Shenzhen,China TestingLocation/Procedure............ : FullapplicationofHarmonisedstandards■ PartialapplicationofHarmonisedstandards□ Otherstandardtestingmethod□ Applicant’sName.............................:ALOYSINC. Address................................................: #6F,MARCUSBldg.,4-5,Yanghyeon-ro405beon-gil,jungwon-gu, Seongnam-si,Gyeonggi-do,SouthKorea TestSpecification Standard..............................................: FCCCFR47PART15C(15.247) TestReportFormNo......................:LCSEMC-1.0 TRFOriginator....................................:ShenzhenLCSComplianceTestingLaboratoryLtd. MasterTRF.........................................:Dated2011-03 ShenzhenLCSComplianceTestingLaboratoryLtd.Allrightsreserved. Thispublicationmaybereproducedinwholeorinpartfornon-commercialpurposesaslongasthe ShenzhenLCSComplianceTestingLaboratoryLtd.isacknowledgedascopyrightownerandsourceofthe material.ShenzhenLCSComplianceTestingLaboratoryLtd.takesnoresponsibilityforandwillnot assumeliabilityfordamagesresultingfromthereader'sinterpretationofthereproducedmaterialduetoits placementandcontext. EUTDescription...............................:IPTVRECEIVER TradeMark..........................................: Formuler TestModel...........................................:GTV Ratings.................................................: Adapter:TEKA012-1201000UK Input:100-240V~,50/60Hz,0.35AMAX Output:12V1A Result...................................................:Positive Compiledby:Supervisedby:Approvedby: RayYang/FileadministratorsJinWang/TechniqueprincipalGavinLiang/Manager SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AV9UGTVReportNo.:LCS200428067AEA Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page3of37 FCC--TESTREPORT TestModel...............................:GTV EUT.........................................:IPTVRECEIVER Applicant...............................:ALOYSINC. Address..................................: #6F,MARCUSBldg.,4-5,Yanghyeon-ro405beon-gil,jungwon-gu, Seongnam-si,Gyeonggi-do,SouthKorea Telephone...............................: Fax..........................................: Manufacturer........................:ALOYSINC. Address...................................: #6F,MARCUSBldg.,4-5,Yanghyeon-ro405beon-gil,jungwon-gu, Seongnam-si,Gyeonggi-do,SouthKorea Telephone...............................: Fax..........................................: Factory...................................:SichuanChanghongNetworkTechnologiesCo.,Ltd. Address...................................: G05FactoryPremises,ChanghongIntelligentDisplayTerminal IndustrialPark,38,XinpingAvenue,High-techDistrict,Mianyang 621000,P.R.China Telephone...............................: Fax..........................................: TestResultPositive Thetestreportmerelycorrespondstothetestsample. Itisnotpermittedtocopyextractsofthesetestresultwithoutthewrittenpermissionofthetestlaboratory. TestReportNo.:LCS200428067AEA May22,2020 Dateofissue SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AV9UGTVReportNo.:LCS200428067AEA Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page4of37 RevisionHistory RevisionIssueDateRevisionsRevisedBy 000May22,2020InitialIssueGavinLiang SHENZHENLCSCOMPLIANCETESTINGLABORATORYLTD.FCCID:2AV9UGTVReportNo.:LCS200428067AEA Thisreportshallnotbereproducedexceptinfull,withoutthewrittenapprovalofShenzhenLCSComplianceTestingLaboratoryLtd. Page5of37 TABLEOFCONTENTS Description ................................................................................................................................................ Page 1.GENERALINFORMATION.....................................................................................................................................6 1.1.DESCRIPTIONOFDEVICE(EUT).........................................................................................................................6 1.2.HOSTSYSTEMCONFIGURATIONLISTANDDETAILS..........................................................................................7 1.3.EXTERNALI/OCABLE..........................................................................................................................................7 1.4.DESCRIPTIONOFTESTFACILITY.........................................................................................................................7 1.5.STATEMENTOFTHEMEASUREMENTUNCERTAINTY..........................................................................................7 1.6.MEASUREMENTUNCERTAINTY..............................................................…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV9UGTV _______________________________________________________________________________________________ 1. TEST SETUP PHOTOGRAPHS 1.1. Photo of Radiated Emissions Measurement Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AV9UGTV _______________________________________________________________________________________________ 1.2. Photo of Conducted Emissions Measurement Fig. 3
