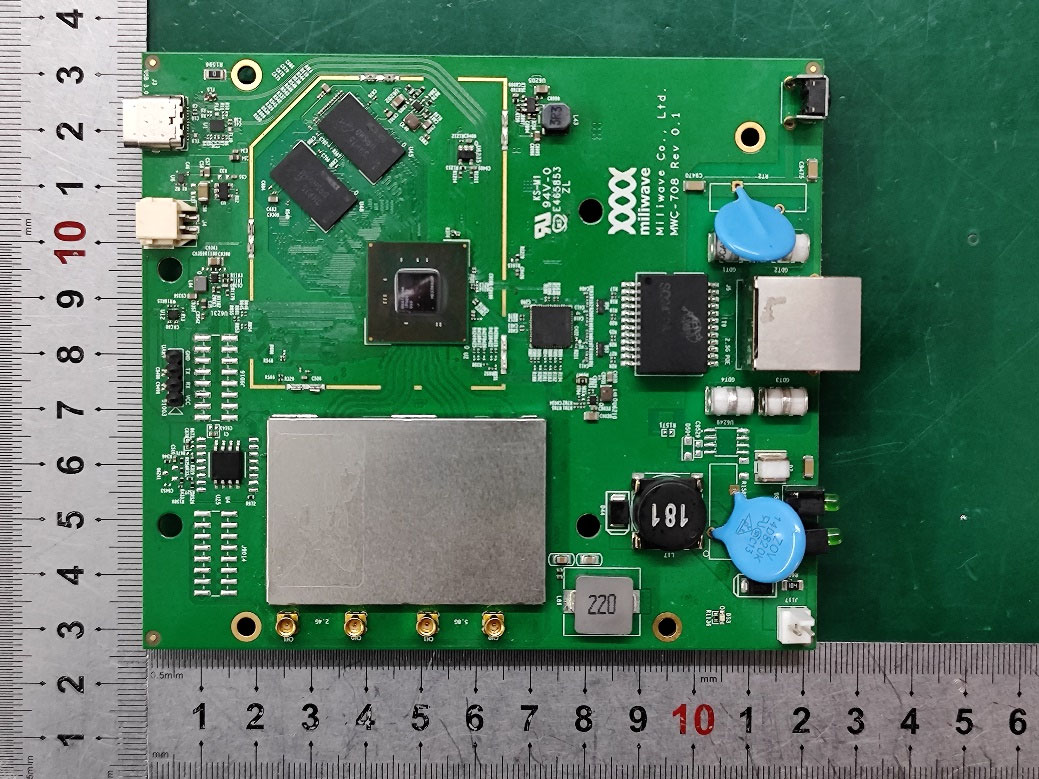

1 http://www.miliwave.net/ MWC-708 11AX MU-MIMO OFDMA Dual Band Embedded Board Features Quad-core ARM 64bit [email protected] Processor 1GB DDRL3L System Memory 8MB NOR Flash, 256MB NAND Flash Supports Dynamic Frequency Selection (DFS) 2x2 On-board 2.4GHz radio, up to 573Mbps physical Data Rate 2x2 On-board 5GHz radio, up to 1201Mbps physical Data Rate A pplications 802.11ax MU-MIMO OFDMA Access Point Smart AP TWT Industrial environment data transmission Pr oduct Description MWC-708 based on Quad-core ARM 64bit [email protected] chipset is an enterprise wireless module integrated with 2x2 5G high power Radio module and 2x2 2.4G high power Radio module designed specifically to provide users with mobile access to high-bandwidth video streaming, voice, and data transmission for office and challenging RF environment in factories, warehouses establishment. A bsolute Maximum Rating Parameter Rating Unit Supply Voltage 24V~48V(DC Jack) V Operating Temperature Range -40 to +70 °C Storage Temperature Range -45 to +105 °C Operating Humidity Range 5 to +95 (non-condensing) % Storage Humidity Range 0 to +90 (non-condensing) % 2 http://www.miliwave.net/ Hardware Specifications Symbol Parameter CPU Qualcomm-Atheros IPQ6010 CPU Frequency Quad-core ARM 64 bit A53 @1.8 GHz processor System Memory 1GB (2x 512MB) DDR3L 16-bit interface with 32-bit memory bus design Ethernet Port 1 x 2.5Gbps Ethernet Ports & POE USB 1x USB 3.0 Type-C Port PoE 24V~56V passive PoE 48V~56V passive/Active PoE(Suport 802.3bt) DC Jack 24V~48V power supply LED 2 x LEDs Serial Port 1x Serial Port 4 Pin Connector Wireless On-board 2x2, 2.4GHz MU-MIMO OFDMA 802.11b/g/n/ax,support DSSS, OFDM, OFDMA On-board 2x2 , 5GHz MU-MIMO OFDMA 802.11a/n/ac/ax,max 20dBm per chain,support OFDM, OFDMA 4x MMCX Connectors Antenna 2.4G, 5G Wi-Fi rod antenna-1: ALX19X-221050-00 2.4G, 5G Wi-Fi rod antenna-2: DRA2G5GD002 5G Wi-Fi patch antenna-1: OLX23P-097100-A 5G Wi-Fi patch antenna-2: OLX23P-097100-B 2.4G Wi-Fi PCB antenna: ALX19P-051AA2-02 Nor Flash 8MB Nand Flash 256MB DDR 2 x 512MB Dimension 120mm x 105mm x 20mm 3 http://www.miliwave.net/ 2.4G WIFI Maximum Output Power: 802.11b: 22.92 dBm 802.11g: 21.42 dBm 802.11n20: 22.34 dBm 802.11n40: 18.72 dBm 802.11ax20: 22.65 dBm 802.11ax40: 18.35 dBm Operating Band/Frequency: 2412~2462 MHz(802.11b/g/n20/ax20), 2422~2452 MHz(802.11n40/ax40) Channel Number: 11(802.11b/g/n20/ax20), 7(802.11n40/ax40) 5G WIFI Maximum Output Power: 5G Wi-Fi B1: 5G Wi-Fi B4: 802.11a:16.82 dBm 21.39 dBm 802.11ac20:18.39 dBm 23.84 dBm 802.11n-HT20:18.39 dBm 23.85 dBm 802.11ac40:20.33 dBm 802.11n-HT40:20.33 dBm 24.80 dBm 24.81 dBm 802.11ac80:10.06 dBm 22.10 dBm 802.11ax20:18.08 dBm 23.59 dBm 802.11ax40:19.80 dBm 24.24 dBm 802.11ax80:9.52 dBm 22.10 dBm Operating Frequency 5G Wi-Fi B1: 5180-5240 MHz, B4: 5745-5825 MHz Channel Number 5G Wi-Fi B1: 7, B4: 8 Channel Separation 5G Wi-Fi: a/ac20/n20/ax20: 20 MHz, ac40/n40/ax40: 40 MHz, ac80/ax80: 80 MHz 4 http://www.miliwave.net/ Interface MAP Any Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the intinterference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Co—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment .This equipment should be installed and operated with minimum distance 20cm between the radiator& y our body. For 5150-5250MHz used indoor only
Company: Miliwave Co., Ltd. Add: 504, 106-40 Gwahakdanji-ro, Gangneung-si, Gangwon-do, South Korea Tel: +82-10-4101-5453 Fax: N /A E-mail: [email protected] CFR 47 §2.911(d)(5)(i) Attestation Letter QA-FR-1006-A RC 02-08-2023 Attestation Letter Date: 12/22/2023 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(5)(i) Filing FCC ID: 2AVCWMWC-708 Miliwave Co., Ltd. (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, Signature Contact Person: Ken Jung Title: CTO (Chief Technology Officer) Company Name & Address: Miliwave Co., Ltd. /Add.: 504, 106-40 Gwahakdanji-ro,Gangneung-si, Gangwon-do,South Korea
Company: Miliwave Co., Ltd. Add: 504, 106-40 Gwahakdanji-ro, Gangneung-si, Gangwon-do, South Korea Tel: +82-10-4101-5453 Fax: N /A E-mail: [email protected] CFR 47 §2.911 (d)(5)(ii) Attestation Letter QA-FR-1007-A RC 02-08-2023 Attestation Letter Date: 12/22/2023 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(5)(ii) Filing FCC ID: 2AVCWMWC-708 Miliwave Co., Ltd. (“the applicant”) certifies that as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, Signature Contact Person: Ken Jung Title: CTO (Chief Technology Officer) Company Name & Address: Miliwave Co., Ltd. / Add.: 504, 106-40 Gwahakdanji-ro, Gangneung-si, Gangwon-do, South Korea
Company: Miliwave Co., Ltd. Add: 504, 106-40 Gwahakdanji-ro, Gangneung-si, Gangwon-do, South Korea Tel: +82-10-4101-5453 Fax: N/A E-mail: [email protected] CFR 47 §2.911(d)(7) U.S Agent QA-FR-1005 -A RC 02-08-2023 CFR 47 §2.911(d)(7) Agent Designation Attestation 2023-12-06 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Ref: Attestation Statements CFR 47 §2.911(d)(7) Filing FCC ID: 2AVCWMWC-708 Miliwave Co., Ltd. (“the applicant”) as required by section 2.911(d)(7), designates the following agent, located in the United States, for purposes of acting as the applicant’s agent for service of process. The applicant acknowledges the applicant’s acceptance to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission- related proceeding involving the equipment. U.S. Agent Information: Company Name: Iconsigh Inc. Address: 2310 Homestead Road, Suite C1, Los Altos, CA, 94024, USA FRN: 0033398652 Tel.: +1 (408) 320-9867 Email: [email protected] Sincerely yours, Signature Contact Person: Benjamin Kaur Title: Manager Applicant: Miliwave Co., Ltd. Address: 504, 106-40 Gwahakdanji-ro, Gangneung-si, Gangwon-do, South Korea FRN: 0029041902 Tel: +82-10-4101-5453 Email: [email protected] Signed by (printed name): Ken Jung Title: CTO (Chief Technology Officer) Signature:
QA-FR-170-B Company: Miliwave Co., Ltd. Add: 504, 106-40 Gwahakdanji-ro, Gangneung-si, Gangwon-do, South Korea Tel: +82-10-4101-5453 Fax: N/A E-mail: [email protected] FCC Authorization Date: 2023/12/22 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We, Miliwave Co., Ltd., Hereby authorizes Bay Area Compliance Laboratories Corp. (Kunshan) to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratory Corp. (Kunshan) on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely, Signature: Print Name: Ken Jung Title: CTO (Chief Technology Officer)
QA-FR-171-A Company: Miliwave Co., Ltd. Add: 504, 106-40 Gwahakdanji-ro, Gangneung-si, Gangwon-do, South Korea Tel: +82-10-4101-5453 Fax: N/A E-mail: [email protected] FCC Confidential Authorization Date: 2023/12/22 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Confidentiality Request regarding application for certification of FCC ID: 2AVCWMWC-708 In accordance with Sections 0.457 and 0.459 of the Commission’s Rules, Miliwave Co., Ltd. hereby requests long-term confidential treatment of information accompanying this application as outlined below: •Block Diagram •Schematics •Operation Description •U-NII Device Security Declaration The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Signature: Printer Name: Ken Jung Title: CTO (Chief Technology Officer)
Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RKSA231222003 Page 1 of 4 EXHIBIT A - EUT EXTERNAL PHOTOGRAPHS 2.4G Wi-Fi Chain 1 2.4G Wi-Fi Chain 0 5G Wi-Fi Chain 0 5G Wi-Fi Chain 1 Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RKSA231222003 Page 2 of 4 Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RKSA231222003 Page 3 of 4 Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RKSA231222003 Page 4 of 4
Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RKSA231222003 EXHIBIT B - EUT INTERNAL PHOTOGRAPHS Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RKSA231222003 2 2.4G, 5G Wi-Fi rod antenna-1 Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RKSA231222003 3 2.4G, 5G Wi-Fi rod antenna-2 Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RKSA231222003 4 5G Wi-Fi patch antenna-1 5G Wi-Fi Chain 0 5G Wi-Fi Chain 1 Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RKSA231222003 5 5G Wi-Fi patch antenna-2 Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RKSA231222003 6 5G Wi-Fi Chain 0 5G Wi-Fi Chain 1 Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RKSA231222003 7 2.4G Wi-Fi PCB antenna
Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA231222003-00B FCC Part 15.247 Page 21 of 175 FCC §1.1310 & §2.1091 –MAXIMUM PERMISSIBLE EXPOSURE (MPE) Applicable Standard According to subpart §2.1091 and subpart §1.1310, systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Maximum Permissible Exposure (MPE) (§1.1310, §2.1091) (B) Limits for General Population/Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (V/m) Magnetic Field Strength (A/m) Power Density (mW/cm 2 ) Averaging Time (minutes) 0.3-1.34 614 1.63 *(100) 30 1.34-30 824/f 2.19/f *(180/f²) 30 30-300 27.5 0.073 0.2 30 300-1500 / / f/1500 30 1500-100,000 / / 1.0 30 f = frequency in MHz; * = Plane-wave equivalent power density; According to §1.1310 and §2.1091 RF exposure is calculated. Calculated Formulary Predication of MPE limit at a given distance S = PG/4πR² = power density (in appropriate units, e.g. mW/cm 2 ); P = power input to the antenna (in appropriate units, e.g., mW); G = power gain of the antenna in the direction of interest relative to an isotropic radiator, the power gain factor, is normally numeric gain; R = distance to the center of radiation of the antenna (appropriate units, e.g., cm); Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA231222003-00B FCC Part 15.247 Page 22 of 175 Calculated Data: Mode Frequency Range (MHz) Antenna Gain Tune-up Output Power Evaluation Distance (cm) Power Density (mW/cm 2 ) MPE Limit (mW/cm 2 ) (dBi) (numeric) (dBm) (mW) 2.4G WIFI 2412~2462 4.9 3.09 23.0 199.53 20 0.1227 1.0 5G WIFI 5150~5250 10.1 10.23 20.50 112.20 20 0.2284 1.0 5725~5850 10.6 11.48 25.00 316.23 20 0.7222 1.0 Note: 1. For the above tune up power were declared by the manufacturer. 2. 2.4G Wi-Fi and 5G WIFI cannot transmit simultaneously. Result: The device meet FCC MPE at 20 cm distance.
Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA231222003-00B FCC Part 15.247 Page 115 of 175 Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA231222003-00B FCC Part 15.247 Page 116 of 175 802.11ax-HE40 Mode: Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA231222003-00B FCC Part 15.247 Page 117 of 175 Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA231222003-00B FCC Part 15.247 Page 118 of 175 FCC §15.247(A) (2) - 6 DB EMISSION BANDWIDTH Applicable Standard Systems using digital modulation techniques may operate in the 902–928 MHz, 2400–2483.5 MHz, and 5725–5850 MHz bands. The minimum 6 dB bandwidth shall be at least 500 kHz. Test Procedure According to ANSI C63.10-2013 sub-clause 11.8.1 1. Set RBW = 100 kHz. 2. Set the video bandwidth (VBW) ≥ 3 * RBW. 3. Detector = Peak. 4. Trace mode = max hold. 5. Sweep = auto couple. 6. Allow the trace to stabilize. 7. Measure the maximum width of the emission that is constrained by the frequencies associated with the two outermost amplitude points (upper and lower frequencies) that are attenuated by 6 dB relative to the maximum level measured in the fundamental emission. Test Data Environmental Conditions & Test Information Temperature: 16.8-17.2 °C Relative Humidity: 41-45 % ATM Pressure: 102.5-102.7 kPa Test Date: 2024-01-22 to 2024-01-31 Test Engineer: Jay Liu EUT operation mode: Transmitting Test Result: Pass Spectrum Analyzer EUT Attenuator Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA231222003-00B FCC Part 15.247 Page 119 of 175 Test Mode Channel (MHz) DTS Bandwidth (MHz) Limit (MHz) Verdict Chain 0 Chain 1 802.11b 2412 8.02 7.54 0.5 PASS 2437 7.37 7.45 0.5 PASS 2462 7.94 7.62 0.5 PASS 802.11g 2412 15.87 15.87 0.5 PASS 2437 15.79 16.27 0.5 PASS 2462 16.27 16.03 0.5 PASS 802.11n-HT20 2412 17.23 16.67 0.5 PASS 2437 17.07 17.56 0.5 PASS 2462 16.51 17.15 0.5 PASS 802.11n-HT40 2422 35.92 35.91 0.5 PASS 2437 35.91 36.23 0.5 PASS 2452 36.23 35.91 0.5 PASS 802.11ax-HE20 2412 18.44 18.84 0.5 PASS 2437 18.44 18.36 0.5 PASS 2462 18.76 18.68 0.5 PASS 802.11ax-HE40 2422 37.68 38.16 0.5 PASS 2437 38 37.68 0.5 PASS 2452 37.52 37.84 0.5 PASS Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA231222003-00B FCC Part 15.247 Page 120 of 175 Chain 0: 802.11b Mode Low Channel S W T 1 0 m s 1 M A A U n i t d B m R B W 1 0 0 k H z V B W 3 0 0 k H z 2 0 . 5 d B O f f s e t 4 M H z / C e n t e r 2 . 4 1 2 G H z S p a n 4 0 M H z P r o j e c t : R K S A 2 3 1 2 2 2 0 0 3 T e s t e r : J a y L i u R F A t t 1 0 d B R e f L v l 2 0 d B m R e f L v l 2 0 d B m 1 M A X - 7 0 - 6 0 - 5 0 - 4 0 - 3 0 - 2 0 - 1 0 0 1 0 - 8 0 2 0 1 1 D e l t a 1 [ T 1 ] 0 . 0 4 d B 8 . 0 1 6 0 3 2 0 6 M H z 1 [ T 1 ] 4 . 4 1 d B m 2 . 4 0 8 1 1 2 2 2 G H z 1 [ T 1 ] 0 . 0 4 d B 8 . 0 1 6 0 3 2 0 6 M H z D 1 1 1 . 1 2 d B m D 2 5 . 1 2 d B m D a t e : 2 2 . J A N . 2 0 2 4 1 6 : 2 1 : 2 5 802.11b Mode Middle Channel A UnitdBm 1MA RBW 100 kHz VBW 300 kHz SWT 10 ms 20.5 dB Offset 4 MHz/Center2.437 GHzSpan40 MHz Project : RKSA231222003 Tester : Jay Liu RF Att 10 dB Ref Lvl 20 dBm Ref Lvl 20 dBm 1MAX -70 -60 -50 -40 -30 -20 -10 0 10 -80 20 1 1 Delta 1 [T1] -0.93 dB 7.37474950 MHz 1 [T1] 5.77 dBm 2.43359319 GHz 1 [T1] -0.93 dB 7.37474950 MHz D1 11.48 dBm D2 5.48 dBm Date: 22.JAN.2024 16:24:01 Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA231222003-00B FCC Part 15.247 Page 121 of 175 802.11b Mode High Channel A UnitdBm 1MA RBW 100 kHz VBW 300 kHz SWT 10 ms 20.5 dB Offset 4 MHz/Center2.462 GHzSpan40 MHz Project : RKSA231222003 Tester : Jay Liu RF Att 10 dB Ref Lvl 20 dBm Ref Lvl 20 dBm 1MAX -70 -60 -50 -40 -30 -20 -10 0 10 -80 20 1 1 Delta 1 [T1] 0.73 dB 7.93587174 MHz 1 [T1] 3.01 dBm 2.45811222 GHz 1 [T1] 0.73 dB 7.93587174 MHz D1 9.31 dBm D2 3.31 dBm Date: 22.JAN.2024 16:26:49 802.11g Mode Low Channel S W T 1 0 m s 1 M A A U n i t d B m R B W 1 0 0 k H z V B W 3 0 0 k H z 2 0 . 5 d B O f f s e t 4 M H z / C e n t e r 2 . 4 1 2 G H z S p a n 4 0 M H z P r o j e c t : R K S A 2 3 1 2 2 2 0 0 3 T e s t e r : J a y L i u R F A t t 1 0 d B R e f L v l 2 0 d B m R e f L v l 2 0 d B m 1 M A X - 7 0 - 6 0 - 5 0 - 4 0 - 3 0 - 2 0 - 1 0 0 1 0 - 8 0 2 0 1 1 D e l t a 1 [ T 1 ] 0 . 3 8 d B 1 5 . 8 7 1 7 4 3 4 9 M H z 1 [ T 1 ] - 0 . 7 9 d B m 2 . 4 0 4 1 0 4 2 1 G H z 1 [ T 1 ] 0 . 3 8 d B 1 5 . 8 7 1 7 4 3 4 9 M H z D 1 4 . 8 5 d B m D 2 - 1 . 1 5 d B m D a t e : 2 2 . J A N . 2 0 2 4 1 6 : 3 4 : 1 9 Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA231222003-00B FCC Part 15.247 Page 122 of 175 802.11g Mode Middle Channel A U n i t d B m 1 M A R B W 1 0 0 k H z V B W 3 0 0 k H z S W T 1 0 m s 2 0 . 5 d B O f f s e t 4 M H z / C e n t e r 2 . 4 3 7 G H z S p a n 4 0 M H z P r o j e c t : R K S A 2 3 1 2 2 2 0 0 3 T e s t e r : J a y L i u R F A t t 1 0 d B R e f L v l 2 0 d B m R e f L v l 2 0 d B m 1 M A X - 7 0 - 6 0 - 5 0 - 4 0 - 3 0 - 2 0 - 1 0 0 1 0 - 8 0 2 0 1 1 D e l t a 1 [ T 1 ] 0 . 4 8 d B 1 5 . 7 9 1 5 8 3 1 7 M H z 1 [ T 1 ] - 0 . 8 6 d B m 2 . 4 2 9 1 8 4 3 7 G H z 1 [ T 1 ] 0 . 4 8 d B 1 5 . 7 9 1 5 8 3 1 7 M H z D 1 5 . 0 5 d B m D 2 - 0 . 9 5 d B m D a t e : 2 2 . J A N . 2 0 2 4 1 6 : 3 6 : 5 4 802.11g Mode High Channel A U n i t d B m 1 M A R B W 1 0 0 k H z V B W 3 0 0 k H z S W T 1 0 m s 2 0 . 5 d B O f f s e t 4 M H z / C e n t e r 2 . 4 6 2 G H z S p a n 4 0 M H z P r o j e c t : R K S A 2 3 1 2 2 2 0 0 3 T e s t e r : J a y L i u R F A t t 1 0 d B R e f L v l 2 0 d B m R e f L v l 2 0 d B m 1 M A X - 7 0 - 6 0 - 5 0 - 4 0 - 3 0 - 2 0 - 1 0 0 1 0 - 8 0 2 0 1 1 D e l t a 1 [ T 1 ] - 0 . 0 6 d B 1 6 . 2 7 2 5 4 5 0 9 M H z 1 [ T 1 ] - 3 . 2 5 d B m 2 . 4 5 3 8 6 3 7 3 G H z 1 [ T 1 ] - 0 . 0 6 d B 1 6 . 2 7 2 5 4 5 0 9 M H z D 1 2 . 7 1 d B m D 2 - 3 . 2 9 d B m D a t e : 2 2 . J A N . 2 0 2 4 1 6 : 3 9 : 2 3 Bay Area Compliance Laboratories Corp. (Kunshan) Report No.: RKSA231222003-00B FCC Part 15.247 Page 123 of 175 802.11n-HT20 Mode Low Channel A UnitdBm 1M…
Text truncated - open the document above for the full version.
LYNwave Technology 2024 www.lynwave.com Antenna & Thermal solution provider Copyright © 2021 LynwaveTechnology Ltd. All rights reserved. 5F., No. 655, XuechengRd., ShulinDist., New Taipei City 23854, Taiwan www.lynwave.com +886 2 3501 8700 DateOwnerRevision 2024/02/21Zino1.S3-1,Field test Antenna Field Test Report Company: Project Name: Model Name: Feature: Miliwave 2G Antenna ALX19P-051AA2-02 WiFi 2G Application: Copyright © 2021 LynwaveTechnology Ltd. All rights reserved. 5F., No. 655, XuechengRd., ShulinDist., New Taipei City 23854, Taiwan www.lynwave.com +886 2 3501 8700 Table of Contents A.Antenna RF Characteristics 1.Antenna Placement 2.S-parameters 3.Gain Table 4.Equipment 5.Radiation Pattern Copyright © 2021 LynwaveTechnology Ltd. All rights reserved. 5F., No. 655, XuechengRd., ShulinDist., New Taipei City 23854, Taiwan www.lynwave.com +886 2 3501 8700 Antenna Placement Front View AntennaDescriptionFrequency Cable Length (mm) Cable ColorMaterial Ant.12G2400~2500MHz 130BlackFR-4PCB Copyright © 2021 LynwaveTechnology Ltd. All rights reserved. 5F., No. 655, XuechengRd., ShulinDist., New Taipei City 23854, Taiwan www.lynwave.com +886 2 3501 8700 S-parameters Ant.1 (Single 2G) Copyright © 2021 LynwaveTechnology Ltd. All rights reserved. 5F., No. 655, XuechengRd., ShulinDist., New Taipei City 23854, Taiwan www.lynwave.com +886 2 3501 8700 Gain Table VSWR < 2 Gain : 2.2 ~ 2.9dBi Efficiency>70% The antenna characteristics Frequency(MHz)240024502500 Ant.1 Peak Gain(dBi) 2.22.52.9 Efficiency(%) 757982 Copyright © 2021 LynwaveTechnology Ltd. All rights reserved. 5F., No. 655, XuechengRd., ShulinDist., New Taipei City 23854, Taiwan www.lynwave.com +886 2 3501 8700 Equipment: Satimo Y Z X x Copyright © 2021 LynwaveTechnology Ltd. All rights reserved. 5F., No. 655, XuechengRd., ShulinDist., New Taipei City 23854, Taiwan www.lynwave.com +886 2 3501 8700 AzimuthPlane Theta = 90 ElevationPlane phi =0 Ant.3_5GHz 2D Radiation Pattern Frequency(MHz) : 2400~2500 Radiation Pattern: ElevationPlane phi =90 Setup: Z X X Y Z Y Copyright © 2021 LynwaveTechnology Ltd. All rights reserved. 5F., No. 655, XuechengRd., ShulinDist., New Taipei City 23854, Taiwan www.lynwave.com +886 2 3501 8700 www.lynwave.com https://www.facebook.com/LYNwaveTechnology/ https://lynwave.en.alibaba.com/ https://www.linkedin.com/company/lynwave-technology-ltd./
Dipole Antenna Test Report ALX19X-221050-00 Table of Contents A.Antenna Testing Conditions 1.Test System 2.Antenna Under Test 3.Antenna Placement B.Antenna RF Characteristics 1.S-Parameter & VSWR & Smith Chart 2.Gain Table 3.3D Radiation / 2D Pattern Antenna Test System Antenna Under Test X Y Z Antenna Placement S-Parameter & VSWR & Smith Chart Gain Table Ant.1 Frequency (MHz)240024502500515055005825 Peak Gain(dBi) 4.74.94.84.85.44.7 Efficiency(%) 818482748774 Ant.1 2.4G Radiation Pattern X-Y Z-XZ-Y 3D X X Y Y ZZ Ant.1 5G Radiation Pattern X-Y Z-XZ-Y 3D X X Y Y ZZ
WallysAntenna DRA2G5G5D002 Highperformanceproductforyou 1 of8 1.Feature DRA2G5GD002Specification 5dBiDualbandDipoleAntenna * Externaltypedipoleantenna *2.4GHz/5GHzoffrequency *SMAPluginterface *Plasticrodofblack *RoHScompliance 2.Application *2.4GHz/5GHzWirelessCommunication *WLANdevice,WLANRouter,e.g.,AP,PICWirelessCard 3.Description Thisminiatureantennaisdesignedfor2.4GHz/5GHzapplicationsandcanbeeasilybuilt‐inportable deviceswithMHFprocesses.Ithasexcellentstabilityandsensitivitytoconsistentlyprovidehighsignal receptionefficiency. 4.GeneralData ProductName5dBi DualbandDipole Antenna PartNo. DRA2G5GD002 Frequency2.4~2.5GHz&5.15~5.85GHz V.S.W.R ≤2.0 Gain(dBi) [email protected]@5.0dBi PolarizationLinear,Vertical StorageTemp ‐10°C~+70°C OperatingTemperature ‐10 °C~ +60 °C ImpedancewithMatching50Ω Weight21.5g AntennaTypeSMAPLUG Dimension L218.5Xφ13(mm) WallysAntenna DRA2G5G5D002 Highperformanceproductforyou 2 of8 5.TypicalElectricalCharacteristics RecommendMatchingCircuit Returnloss、VSWR&Smithchart Reference: 001=(N/A) 002=0Ω 003=(N/A) WallysAntenna DRA2G5G5D002 Highperformanceproductforyou 3 of8 Gain(dBi) Frequency=2400MHz WallysAntenna DRA2G5G5D002 Highperformanceproductforyou 4 of8 Gain(dBi) Frequency=2450MHz WallysAntenna DRA2G5G5D002 Highperformanceproductforyou 5 of8 Gain(dBi) Frequency=2500MHz WallysAntenna DRA2G5G5D002 Highperformanceproductforyou 6 of8 Gain(dBi) Frequency=5150MHz WallysAntenna DRA2G5G5D002 Highperformanceproductforyou 7 of8 Gain(dBi) Frequency=5800MHz WallysAntenna DRA2G5G5D002 Highperformanceproductfor you 8 of 8 Efficiency(%) 6. Dimension
Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RKSA231222003 EXHIBIT C - TEST SETUP PHOTOGRAPHS Conducted Emissions - Front View Conducted Emissions - Left View Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RKSA231222003 Radiated Emissions-Ground-parallel view (Below 30 MHz) Radiated Emissions-perpendicular view (Below 30 MHz) Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RKSA231222003 Radiated Emissions-parallel view (Below 30 MHz) Radiated Emissions (30 MHz – 1 GHz) Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RKSA231222003 Radiated Emissions (1-18GHz) directional patch antenna Radiated Emissions (1-18GHz) PCB antenna Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RKSA231222003 Radiated Emissions (1-18GHz) rod antenna Radiated Emissions (18-25GHz) directional patch antenna Bay Area Compliance Laboratories Corp. (Kunshan) Project No.: RKSA231222003 Radiated Emissions (18-25GHz) PCB antenna Radiated Emissions (18-25GHz) rod antenna
