MWC-720 User Manual Miliwave 1 / 6 MWC-720 User Manual 60GHz RF/BB Module with USB3.0 interface Rev. 1.1 2021-07-20 MWC-720 User Manual Miliwave 2 / 6  Revision History Date Written by Rev. Description 21.06.22 Ken. Jung 1.0 MWC-720 User manual .1.0 Release 21.07.20 Ken. Jung 1.1 1.Include Typical Host Device Use Case 2.FCC Statement are modified -Minimum Distance between the radiator (antenna) and all persons from 20cm to 25.15 cm Address: 423 R&DB Center, 105 YoungTong-Gu, SuWon-Si, GyeongGi-Do, 16229 Korea http://www.miliwave.co.kr/ Tel. 070-8825-0630 Fax. Email: [email protected] Copyright © Miliwave Inc. 2020. All rights reserved. No part of this document may be reproduced or transmitted in any form or by any means without prior written consent of Miliwave Co., Ltd. All specification supplied herein are subject to change without notice at any time. MWC-720 User Manual Miliwave 3 / 6 1.Introduction 1.1 Overview Miliwave’s MWC-720 module operates in the 60GHz unlicensed frequency band, IEEE802.11ad compliant, and is designed for Point to Multi-Pont (PTMP) or Point to Point (PTP) bridge wireless communication, primarily for Line-of Sight (LOS) operation.The MWC-720 module connects to a Linux based Host Communication Processor board via an available USB 3.0 port . All required drivers and firmware is pre-installed on the MWC-720 module as a self-contained device . However, the MWC-720 module would not be operational unless it is connected to the Linux-based Host Communication Processor board for PTP or PTMP bridge wireless communication. 1. 2 Abbreviations and Acronym Definitions 1. 3 MWC-720 Module Description The Miliwave's MWC-720 module in conjunction with the Host Communication Processor board can function as a PTP or PTMP bridge communication . Main chracteristics of the MWC-720 module include: AcronymDefinition GbpsGiga bits per second GHzGiga Hertz IEEEInstitute of Electrical and Electronics Engineers LEDLight Emitting Diode LoSline-of-sight MbpsMega bits per second MCSModulation and Coding Scheme MHzMega Hertz PTMPPoint-to-multipoint Communication QAMQuadrature amplitude modulation <Figure 1. MWC-720 Module> MWC-720 User Manual Miliwave 4 / 6 - Adaptive Modulation and Link Adaptation: Up to 16QAM and MCS1-12 support - Air Gap Phased Array Planar Antena: EIRP 39dBm, - Beam sweep range : Elevation 60°, Azimuth 60° - Advanced Security: AES-128 - Compact Form Factor: 52mm x 55 mm x14mm - Connectivity: USB 3.0 Type C, 60GHz wireless 2. Technical Specifications - Aggregate capacity: 1.4 Gbps uni-directional, 2.8 Gbps bi-directional - Latency : less than 1 millisecond round-trip - Security: AES-128 - I/O interface: USB 3.0(Type-C) - Other Interface: LEDs indicators for connection status 3.0 Radio Specifications - Access Technlogy: Single Carrier beam-forming physical layer - Time Division Duplex - Frequencies: 57.24GHz ~ 70.20GHz(CH1~CH6) - Channel Bandwidth: 2.16 GHz - Antenna:4x8 Air gap Phased Array Planar Antena beamforming with 40 degree horizontal and 40 degree vertical - EIRP: 39 dBm (Typical) 4.0 Mechanical, Power and Environmental Specification - Dimension: 96.7mm x 52 mm x22 m - Weight: 270g(with Heatsink) - Power Consumption: 14W(Max) - Operating Temperature: -40ºC ~ +85ºC - Humidity: 5%~95% 5.0 Module Throughput - MCS Index : 1-12, - Modulation: BPSK,QPSK,16QAM - Data Rate : Max PHY rate 4620 Mbit/s 6.0 Installation The MWC-720 could only be installed with Host Communication Processor board at the factory level. There is no user serviceable parts in the MWC-720 module MWC-720 User Manual Miliwave 5 / 6 7.0 FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate this equipment. The antenna(s) must be installed such that a minimum separation distance of at least 25.15 cm is maintained between the radiator (antenna) and all persons at all times. 8.0 INTEGRATION INSTRUCTIONS List of applicable FCC rules This module complies with part 15.255 of the FCC rules. Summarize the specific operational use conditions 15.255(a) Operation under the provisions of this section is not permitted for the following products: (1) Equipment used on satellites. (2) Field disturbance sensors, including vehicle radar systems, unless the field disturbance sensors are employed for fixed operation, or used as short-range devices for interactive motion sensing. For the purposes of this section, the reference to fixed operation includes field disturbance sensors installed in fixed equipment, even if the sensor itself moves within the equipment. Typical Host Device Use cases MWC-720 Module is designed for outdoor/indoor fixied wireless host device such as Point to Point Broadband, Broadband Mesh,and WiGig to the Home. For more information, please contact your Miliwave ([email protected]) Limited module procedures Not applicable Trace antenna designs Not applicable MWC-720 User Manual Miliwave 6 / 6 RF exposure considerations This module complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. The module is limited to installation in mobile or fixed applications. At least 25.15 Cm of separation distance between the transmitting antenna and the user’s body must be maintained at all times. The host manual shall include the RF exposure statements. If RF exposure statements and use conditions are not provided, then the host product manufacturer is required to take responsibility of the module through a change in FCC ID (new application). Antennas The module itself has antenna. (Broad band array antenna) Label and compliance information The module is labeled with its own FCC. If the FCC ID is not …

Text truncated - open the document above for the full version.

Miliwave Co., Ltd. 423, 105, Gwanggyo-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do South Korea Date: 07/28/2021 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Letter of Authorization We, the undersigned, hereby authorize Geunki Son of DT&C C o., Ltd. to act on our behalf in all manners relating to application for equipment authorization for FCC ID: 2AVCWMWC-720 including signing of all documents relating to these matters. Any and all acts carried out by Geunki Son of DT&C C o., Ltd. on our behalf shall have the same affect as acts of our own. This authorization is valid until further written notice from Miliwave Co., Ltd.. “I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 853(a).” Sincerely, Contact Name: Sean Rha Title: VP of Business Development

Miliwave Co., Ltd. 423, 105, Gwanggyo-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do South Korea Date: 07/28/2021 Federal Communications Commission Authorization and Evaluation Division 1435 Oakland Mills Road Columbia, MD 21046 Request of Confidentiality FCC ID: 2AVCWMWC-720 To Whom It may Concern: Pursuant to Sections 0.457 and 0.459 of the Commission`s Rules(CFR 47), and Section 552 (b) (4) of the Freedom of Information Act, Miliwave Co., Ltd.. hereby requests confidentiality and treatment of certain information accompanying this application. The materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these matters might be harmful to the Applicant and provide unjustified benefits to its competitors. We are also hereby request Short-Term Confidentiality for 180 days after the grant as outlined in Public Notice DA 04-1705. This provision will give Miliwave Co., Ltd.. temporary confidentiality of commercially sensitive information prior to product release. The requested permanent and Short-Term Confidential exhibits are listed as follows: PERMANENT & SHORT-TERM CONFIDENTIAL LIST Exhibit Description PERMANENT 1 Block Diagram 2 Schematics 3 Part Lists 4 Operation Description 5 NA SHORT-TERM 6 Internal Photos 7 External Photos 8 Test-Setup Photos 9 User Manual The Applicant understands that pursuant to Rule 0.457, disclosure of this application and all accompanying documentations, where applicable, will not be public before the date of the Grant for this application. Sincerely, Contact Name: Sean Rha Title: VP of Business Development

Miliwave Co., Ltd. 423, 105, Gwanggyo-ro, Yeongtong-gu, Suwon-si, Gyeonggi-do South Korea FCC ID: 2AVCWMWC-720 MODULAR APPROVAL LETTER Modular Approval Requirement Answers (i) The radio elements of the modular transmitter must have their own shielding. The physical crystal and tuning capacitors may be located external to the shielded radio elements. yes (ii) The modular transmitter must have buffered modulation/data inputs (if such inputs are provided) to ensure that the module will comply with part 15 requirements under conditions of excessive data rates or over- modulation. yes (iii) The modular transmitter must have its own power supply regulation. yes (iv) The modular transmitter must comply with the antenna and transmission system requirements of §§15.203, 15.204(b) and 15.204(c). The antenna must either be permanently attached or employ a “unique” antenna coupler (at all connections between the module and the antenna, including the cable). The “professional installation” provision of §15.203 is not applicable to modules but can apply to limited modular approvals under paragraph (b) of this section. yes (v) The modular transmitter must be tested in a stand-alone configuration, i.e., the module must not be inside another device during testing for compliance with part 15 requirements. Unless the transmitter module will be battery powered, it must comply with the AC line conducted requirements found in §15.207. AC or DC power lines and data input/output lines connected to the module must not contain ferrites, unless they will be marketed with the module (see §15.27(a)). The length of these lines shall be the length typical of actual use or, if that length is unknown, at least 10 centimeters to insure that there is no coupling between the case of the module and supporting equipment. Any accessories, peripherals, or support equipment connected to the module during testing shall be unmodified and commercially available (see §15.31(i)). yes (vi) The modular transmitter must be equipped with either a permanently affixed label or must be capable of electronically displaying its FCC identification number. yes (vii) The modular transmitter must comply with any specific rules or operating requirements that ordinarily apply to a complete transmitter and the manufacturer must provide adequate instructions along with the module to explain any such requirements. A copy of these instructions must be included in the application for equipment authorization. yes (viii) Radio frequency devices operating under the provisions of this part are subject to the radio frequency radiation exposure requirements specified in §§1.1307(b), 1.1310, 2.1091, and 2.1093 of this chapter, as appropriate. Applications for equipment authorization of modular transmitters under this section must contain a statement confirming compliance with these requirements. The modular transmitter must comply with any applicable RF exposure requirements in its final configuration. Technical information showing the basis for this statement must be submitted to the Commission upon request. yes Sincerely, Sean Rha VP of Business Development

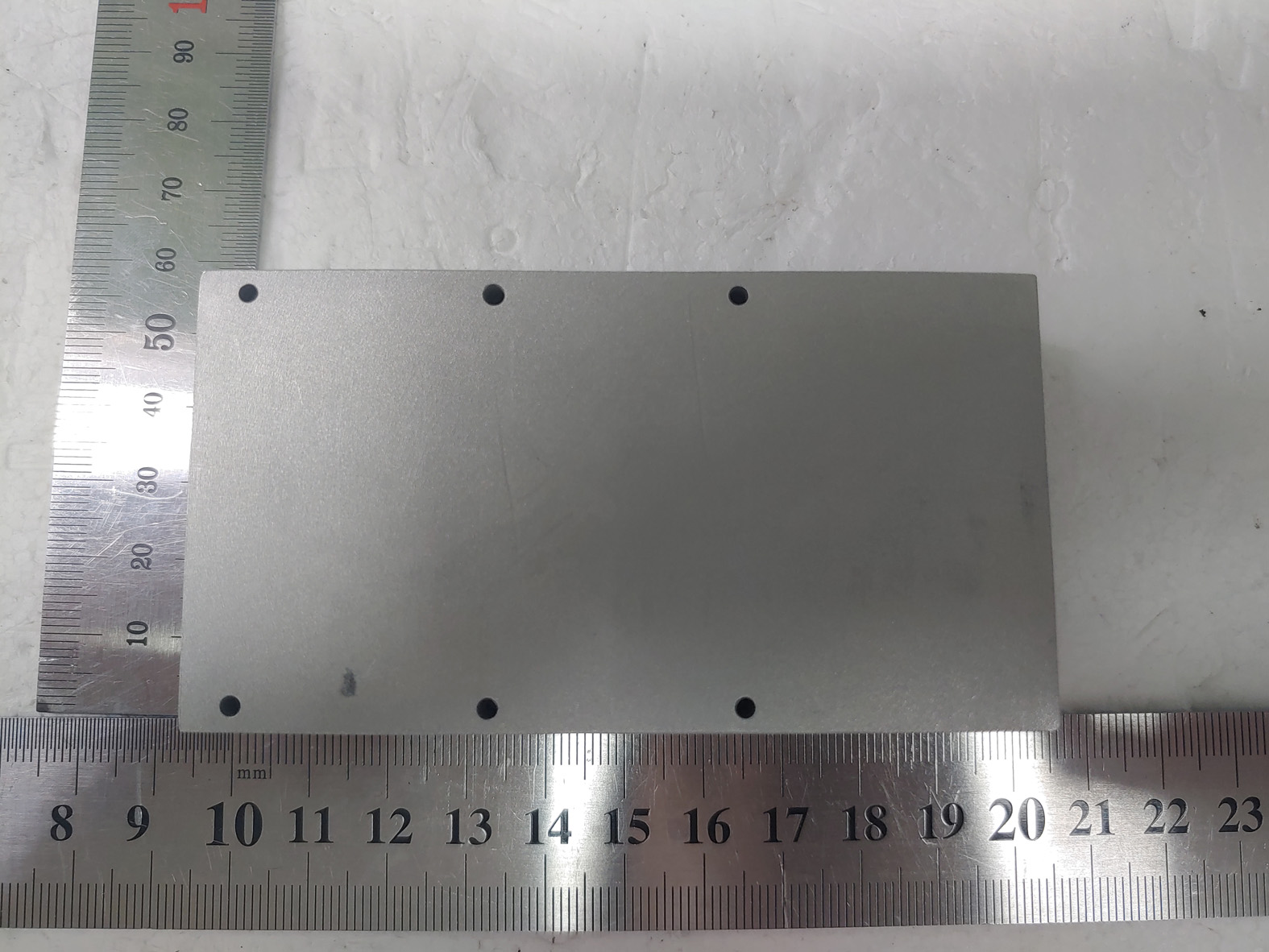

FCC ID: 2AVCWMWC-720 Copyright Ⓒ 2021, DT&C Co., Ltd. View 1 FCC ID: 2AVCWMWC-720 Copyright Ⓒ 2021, DT&C Co., Ltd. View 2 FCC ID: 2AVCWMWC-720 Copyright Ⓒ 2021, DT&C Co., Ltd. View 3

FCC ID: 2AVCWMWC-720 Copyright Ⓒ 2021, DT&C Co., Ltd. View 1 FCC ID: 2AVCWMWC-720 Copyright Ⓒ 2021, DT&C Co., Ltd. View 2 FCC ID: 2AVCWMWC-720 Copyright Ⓒ 2021, DT&C Co., Ltd. View 3 <Antenna>

FCC ID: 2AVCWMWC-720 RF feature Separation distance(cm) Max. tune-up EIRP (dBm) Note1 Maximum EIRP (mW) Maximum power density(mW/cm 2 ) Requirement (mW/cm 2 ) 802.11ad 58 320.0 ~ 69 120.0 25.15 39.00 7 943.283 0.999 4 1.000 ~~~~~~~ ▪ S = - Note = / ( 4 X R 2 X π ) = mW/cm 2 Electric Field strength (V/m) Magnetic field strength (A/m) Power Density (mW/cm 2 ) Averageing time (minutes) 0.3 ~ 1.34 614 1.63 *100 30 1.34 ~ 30 824/f 2.19 / f *180 / f 2 30 30 ~ 300 27.5 0.073 0.2 30 300 ~ 1,500 f / 1500 30 1,500 ~ 100,000 1.0 30 Conclusion : ▪ Limits for Maximum Permissible Exposure (MPE) Frequency range (MHz) The exposure condition of this device is compliant with FCC EIRP / ( 4 R 2 π ) 7943.283 S= Maximum power density(mW/cm 2 ) 0.9994 EIRP= Equivalent Isot ropic Radiated Power(mW) R= Distance to the center of the radiation of the antenna Frequency range (MHz) The MPE sample calculation for this exposure is shown below. Note1: Please refer to the operation description for Max tune-u p power. MPE Calculation Note2: To comply with RF exposure requirements, a minimum separ ation distance of 25.15cm must be maintained between the antenna and the body of the use r.

Report No.: DRTFCC2107-0077 FCC ID: 2AVCWMWC-720 This test report is prohibited to copy or reissue in whole or in part without the approval of DT&C Co., Ltd. TRF-RF-245(01)210316 Pages: 2 / 28 Test Report Version Test Report No. Date Description Revised By Reviewed By DRTFCC2107-0077 Jul. 28, 2021 Initial issue Seungmin Gil JaeJin Lee Report No.: DRTFCC2107-0077 FCC ID: 2AVCWMWC-720 This test report is prohibited to copy or reissue in whole or in part without the approval of DT&C Co., Ltd. TRF-RF-245(01)210316 Pages: 3 / 28 Table of Contents 1 EUT DESCRIPTION .................................................................................... 4 2 INFORMATION ABOUT TESTING .............................................................. 5 2.1 Transmitting configuration of EUT .................................................................................... 5 2.2 Auxiliary equipment ............................................................................................................ 5 2.3 Tested environment ............................................................................................................ 6 2.4 EMI suppression Device(s) / Modifications ....................................................................... 6 2.5 Measurement Uncertainty .................................................................................................. 6 3 SUMMARY OF TEST RESULTS ................................................................. 7 4 TEST METHODOLOGY .............................................................................. 8 4.1 EUT configuration ............................................................................................................... 8 4.2 EUT exercise ....................................................................................................................... 8 4.3 General test procedures ..................................................................................................... 8 4.4 Description of test modes .................................................................................................. 8 5 INSTRUMENT CALIBRATION .................................................................... 9 6 FACILITIES AND ACCREDITATIONS ........................................................ 9 6.1 Facilities .............................................................................................................................. 9 6.2 Equipment ........................................................................................................................... 9 7 ANTENNA REQUIREMENTS ..................................................................... 9 8 TEST RESULTS ........................................................................................ 10 8.1 Emission Bandwidth ......................................................................................................... 10 8.2 Equivalent Isotropic Radiated Power & Peak Conducted Output Power ...................... 15 8.3 Unwanted emissions ........................................................................................................ 17 8.4 Frequency stability ........................................................................................................... 22 8.5 AC line conducted emissions .......................................................................................... 24 9 LIST OF TEST EQUIPMENT .................................................................... 27 APPENDIX I ................................................................................................. 28 Report No.: DRTFCC2107-0077 FCC ID: 2AVCWMWC-720 This test report is prohibited to copy or reissue in whole or in part without the approval of DT&C Co., Ltd. TRF-RF-245(01)210316 Pages: 4 / 28 1 EUT DESCRIPTION FCC Equipment Class DXX - Part 15 Low Power Communication Device Transmitter Product 60GHz RF/BB Module with USB3.0 interface Model Name MWC-720 Add Model Name - Power Supply DC 5 V Frequency Range 802.11ad: 58.32 ~ 69.12 GHz Max. RF Output Power (EIRP) 802.11ad : 38.69 dBm Modulation Type Single carrier modulation Data Rate MCS 1 ~ 12 (Max data rate: 4 620 Mbps) Antenna Specification Antenna type: PCB array Antenna gain(Max): 23 dBi Report No.: DRTFCC2107-0077 FCC ID: 2AVCWMWC-720 This test report is prohibited to copy or reissue in whole or in part without the approval of DT&C Co., Ltd. TRF-RF-245(01)210316 Pages: 5 / 28 2 INFORMATION ABOUT TESTING 2.1 Transmitting configuration of EUT Test Mode Worst case data rate Test Frequency(GHz) 802.11ad MCS 6 (1 540 Mbps) 58.32 GHz (ch.1) 62.64 GHz (ch.3) 69.12 GHz (ch.6) Note 1: The worst case data rate is determined as above test mode according to the power measurements. Operation test setup for EUT - Software: Tera term 2.2 Auxiliary equipment Equipment Model No. Serial No. Manufacturer Note - - - - - - - - - - Report No.: DRTFCC2107-0077 FCC ID: 2AVCWMWC-720 This test report is prohibited to copy or reissue in whole or in part without the approval of DT&C Co., Ltd. TRF-RF-245(01)210316 Pages: 6 / 28 2.3 Tested environment Temperature : 20 o C ~ 25 o C Relative humidity content : 35 % ~ 43 % 2.4 EMI suppression Device(s) / Modifications EMI suppression device(s) added and/or modifications made during testing → None 2.5 Measurement Uncertainty The measurement uncertainties shown below were calculated in accordance with requirements of ANSI C 63.4- 2014 and ANSI C 63.10-2013. All measurement uncertainty values are shown with a coverage factor of k = 2 to indicate a 95 % level of confidence. Test items Measurement uncertainty AC power-line conducted emission 3.4 dB (The confidence level is about 95 %, k = 2) Radiated emission (1 GHz Below) 4.9 dB (The confidence level is about 95 %, k = 2) Radiated emission (1 GHz ~ 18 GHz) 5.0 dB (The confidence level is about 95 %, k = 2) Radiated emission (18 GHz Above) 5.3 dB (The confidence level is about 95 %, k = 2) Report No.: DRTFCC2107-0077 F…

Text truncated - open the document above for the full version.

FCC ID: 2AVCWMWC-720 Copyright Ⓒ 2021, DT&C Co., Ltd. Test Setup photographs EUT Position: X-axis EUT Position: Y-axis EUT Position: Z-axis FCC ID: 2AVCWMWC-720 Copyright Ⓒ 2021, DT&C Co., Ltd. Test Setup Photo of Radiated Measurement (0.009 ~ 30MHz) FCC ID: 2AVCWMWC-720 Copyright Ⓒ 2021, DT&C Co., Ltd. Test Setup Photo of Radiated Measurement (Below 1GHz) FCC ID: 2AVCWMWC-720 Copyright Ⓒ 2021, DT&C Co., Ltd. Test Setup Photo of Radiated Measurement (Above 1GHz) FCC ID: 2AVCWMWC-720 Copyright Ⓒ 2021, DT&C Co., Ltd. Test Setup Photo of AC Line Conducted Measurement
