2AVEM-A80Intelligent Diagnosis System

A80 BT Intelligent Diagnosis System 1 A80 user manual 1. This manual is designed for the usage of A80, applying to A80 automotive diagnosis platform. No part of this manual can be reproduced, stored in a retrieval system or transmitted, in any form or by any means (electronic, mechanical, photocopying, recording, or otherwise), without the prior written permission of Xtool. 2. This electronic control system diagnostic unit is designed for professional vehicle maintenance technicians. It has a certain reliability, however, it can not exclude vehicle damage and loss caused by customer technical problems, vehicle problems or other factors, so users need to take risks. 3. Use the device only as described in this manual. The user will be responsible solely for the after-effects of violating the laws and regulations caused by using the product or its data information, Xtool will not bear any legal responsibility for that. 4. Xtool shall not be liable for any incidental or consequential damages or for any economic consequential damages arising from the accidents of individual users and the third parties, misuse or abuse of the device, unauthorized change or repair of the device, or the failure made by the user not to use the product according to the manual. 5. All information, specifications and illustrations in this manual are based on the latest configurations and functions available at the time of printing. Xtool reserves the right to make changes at any time without notice. 6. is the registered trademark of Shenzhen Xtooltech Co., Ltd. 7.In countries that the trademarks, service marks, domain names, logos and the name of the company are not registered, Xtool claims that it still reserves the ownership of the unregistered trademarks, service marks, domain names, logos and the company name. All A80 BT Intelligent Diagnosis System 2 other marks for the other products and the company’s name mentioned in the manual still belong to the original registered company. You may not use the trademarks, service marks, domain names, logos and company name of Xtool or other companies mentioned without written permission from the trademark holder. 8. Please visit http://www.xtooltech.com for more information about A80 BT. 9. Xtool reserves the right for the final interpretation of this manual content. Contents ChapterI About A80 BT .................................................................................................................... 3 1. Appearance ............................................................................................................................ 3 2. Layout of A80 BT Tablet ...................................................................................................... 5 2.1 Top View of A80 BT Tablet ..................................................................................... 5 2.2 Side View of A80 BT Tablet ....................................................................................... 5 2.3 Outline diagram of VCI diagnostic kit ........................................................................ 6 2.4 A80 BT technical parameters ...................................................................................... 7 Chapter II How to use A80 BT ......................................................................................................... 8 1. A80 BT activation ................................................................................................................. 8 2. A80 BT main interface and function buttons description .................................................... 10 2.1 Main interface ........................................................................................................... 10 2.2 Sub-menu and function buttons................................................................................. 10 2.3 Toolbar functional buttons ........................................................................................ 13 3. Connection diagnosis .......................................................................................................... 14 3.1 Vehicle Connection test ............................................................................................. 14 3.2 Precautions Before Use ............................................................................................. 15 4. Diagnosis ............................................................................................................................. 16 4.1 Menu selection： ...................................................................................................... 17 A80 BT Intelligent Diagnosis System 3 4.2 Test function： .......................................................................................................... 18 4.3 Read ECU： ............................................................................................................. 21 4.4 Read DTCs： ............................................................................................................ 22 4.5 Clear DTCs： ........................................................................................................... 23 4.6 Read live Data: .......................................................................................................... 24 4.7 Special function： ..................................................................................................... 25 4.8 Actuating components test： .................................................................................... 25 5. Setting: ................................................................................................................................ 26 6. Diagnose report ................................................................................................................... 30 6.1 Diagnose report: ........................................................................................................ 30 6.2 Data playback ..............…

Text truncated - open the document above for the full version.

Shenzhen XTOOLTECH CO., LTD 2nd Floor, Building No.2, Block 1, Excellence City, Shangmeilin, Futian District, Shenzhen 518000, China Tel: 86-755-21670995 E-mail: [email protected] Series Models Description Date: 2020/03/18 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD FCC ID: 2AVEM-A80 Dear Sir/Madam, We, Shenzhen XTOOLTECH CO., LTD Hereby declares the following statement for Federal Communications Commission, PCB board, circuit, structure and internal of these model(s) are the same, Only color and model number is different for these model: Product name: Intelligent Diagnosis System Model no.: A80, A80 Pro, A80 Pro Master Sincerely, Name: Darby Tan / General Manager Company: Shenzhen XTOOLTECH CO., LTD Address: 2nd Floor, Building No.2, Block 1, Excellence City, Shangmeilin, Futian District, Shenzhen 518000, China Phone: 86-755-21670995 Fax: 86-755-83461644 E-Mail: [email protected]

Shenzhen XTOOLTECH CO., LTD 2nd Floor, Building No.2, Block 1, Excellence City, Shangmeilin, Futian District, Shenzhen 518000, China UNII Device Declaration Letter To whom it may concern: We have declared below featured for FCC equipment authorization, Device FCC ID: 2AVEM-A80 (1) DFS Device: Master Client with Radar detection capability N/A Client without radar detection capability, (2) Active / Passive Scanning , adhoc mode access point capability Frequency Band (MHz) Active Scanning (the device can transmit a probe (beacon)) passive scanning (where the device is can listen only with no probes) Ad Hoc Mode capability Access point capability 5180-5240 Yes No Yes No Yes No Yes No 5190-5230 Yes No Yes No Yes No Yes No 5210-5210 Yes No Yes No Yes No Yes No 5745-5825 Yes No Yes No Yes No Yes No 5755-5795 Yes No Yes No Yes No Yes No 5775-5775 Yes No Yes No Yes No Yes No (3) Country code selection ability Yes No If yes, pls explain how it was implemented: (4) Meet 15.202 requirement Yes No pls check below : A master device is defined as a device operating in a mode in which it has the capability to transmit without receiving an enabling signal. In this mode it is able to select a channel and initiate a network by sending enabling signals to other devices A client device is defined as a device operating in a mode in which the transmissions of the device are under control of the master. A device in client mode is not able to initiate a network. (5) For client devices that have software configuration control to operate in different modes (active scanning in some and passive scanning in others) in different bands (devices with multiple equipment classes or those that operate on non-DFS frequencies) or modular devices which configure the modes of operations through software, the application must provide software and operations description on how the software and / or hardware is implemented to ensure that proper operations modes cannot be modified by end user or an installer. Apply Does not apply (If apply, pls help to provide explanation on it was implement, and how software was controlled) Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, (Signed) Name: Darby Tan Title: General Manager Company: Shenzhen XTOOLTECH CO., LTD Address: 2nd Floor, Building No.2, Block 1, Excellence City, Shangmeilin, Futian District, Shenzhen 518000, China Phone: 86-755-21670995 Fax : 86-755-83461644 Email: [email protected]

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 <2020-03-18> TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2AVEM-A80 A80, A80 Pro, A80 Pro Master For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name: Darby Tan / General Manager Company: Shenzhen XTOOLTECH CO., LTD Address: 2nd Floor, Building No.2, Block 1, Excellence City, Shangmeilin, Futian District, Shenzhen 518000, China Phone: 86-755-21670995 Fax: 86-755-83461644 E-Mail: [email protected]

Shenzhen XTOOLTECH CO., LTD Add: 2nd Floor, Building No.2, Block 1, Excellence City, Shangmeilin, Futian District, Shenzhen 518000, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2020/03/18 To whom it may concern: We, Shenzhen XTOOLTECH CO., LTD the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2AVEM-A80 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name: Darby Tan / General Manager Company: Shenzhen XTOOLTECH CO., LTD Address: 2nd Floor, Building No.2, Block 1, Excellence City, Shangmeilin, Futian District, Shenzhen 518000, China Phone: 86-755-21670995 Fax: 86-755-83461644 E-Mail: [email protected]

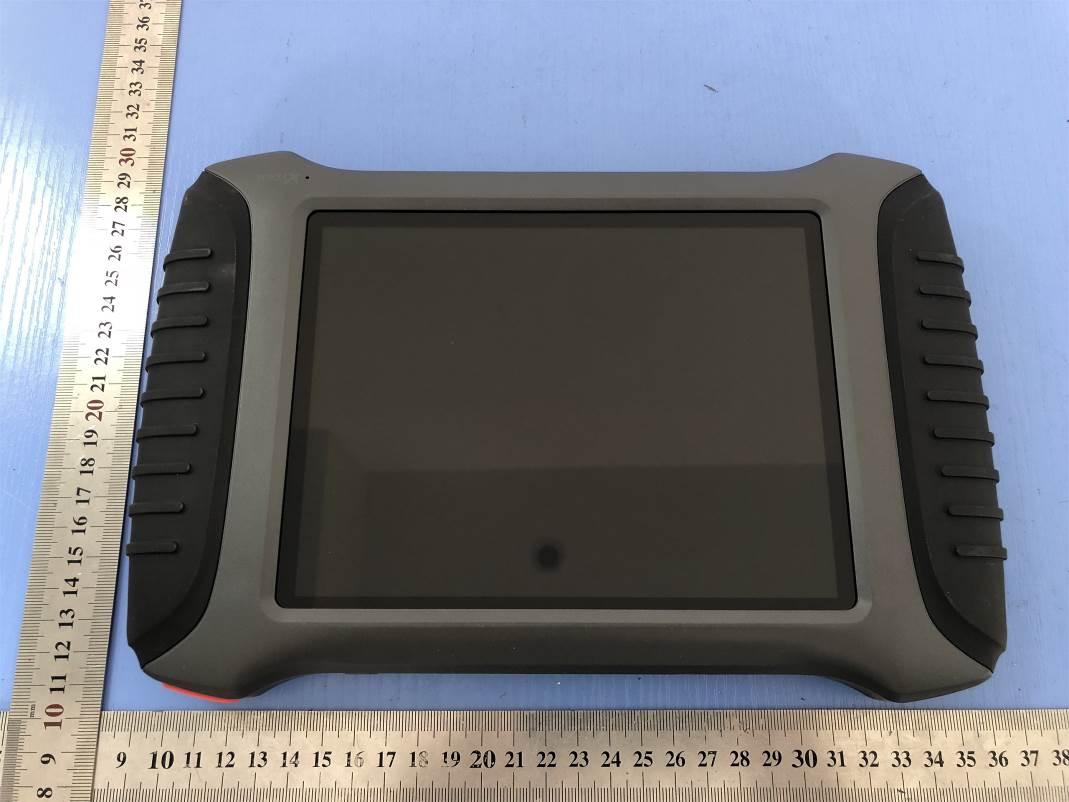

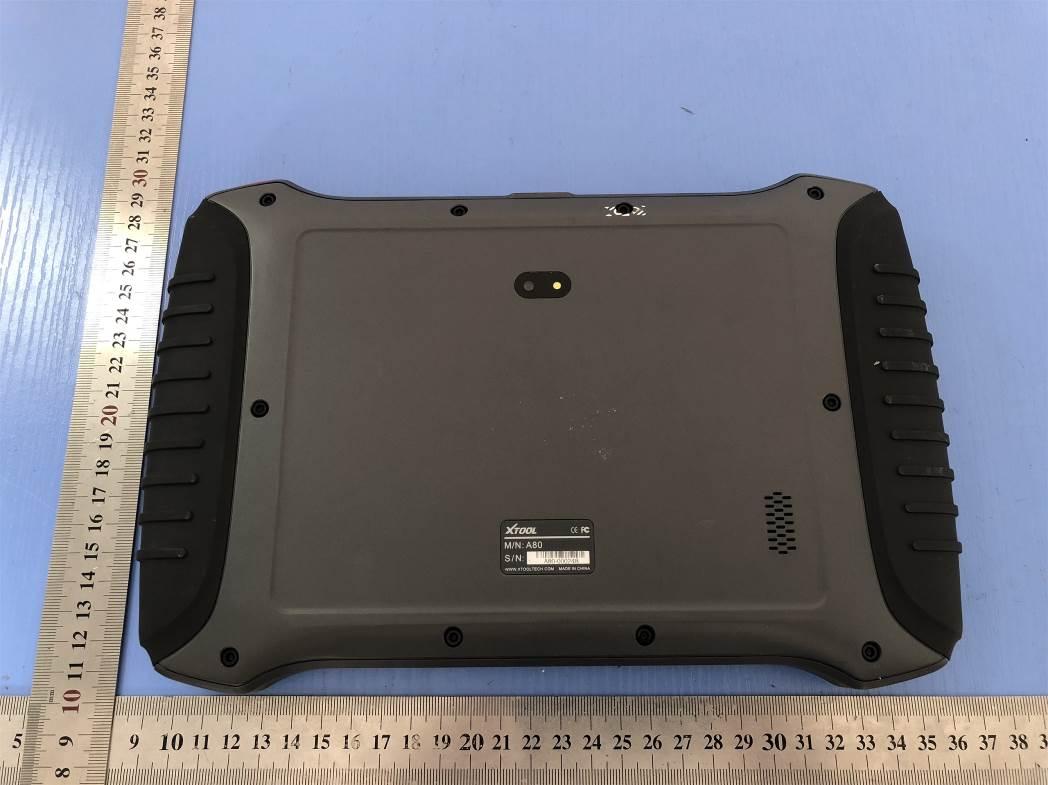

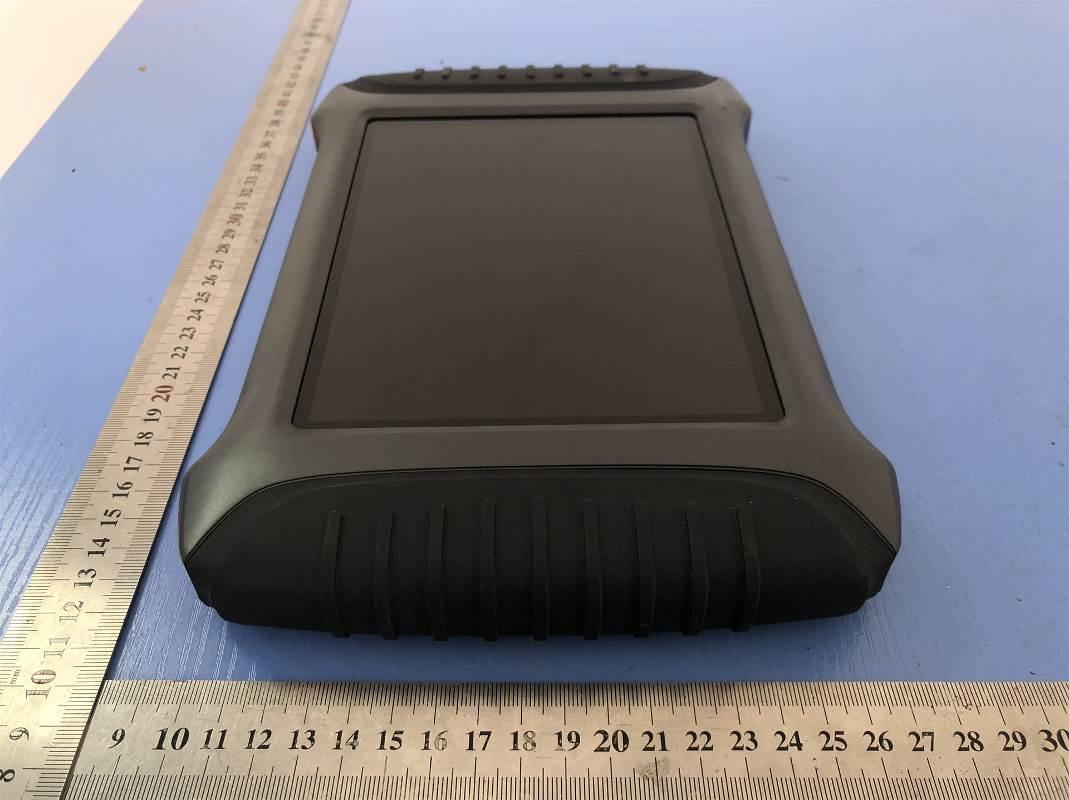

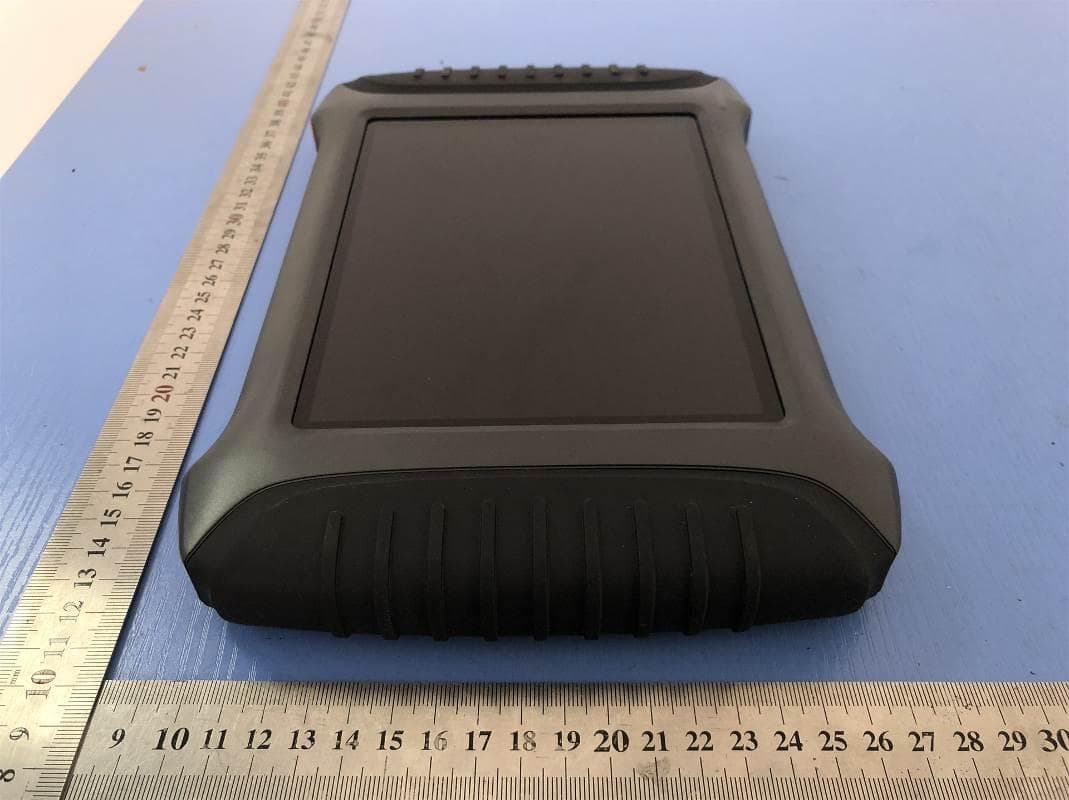

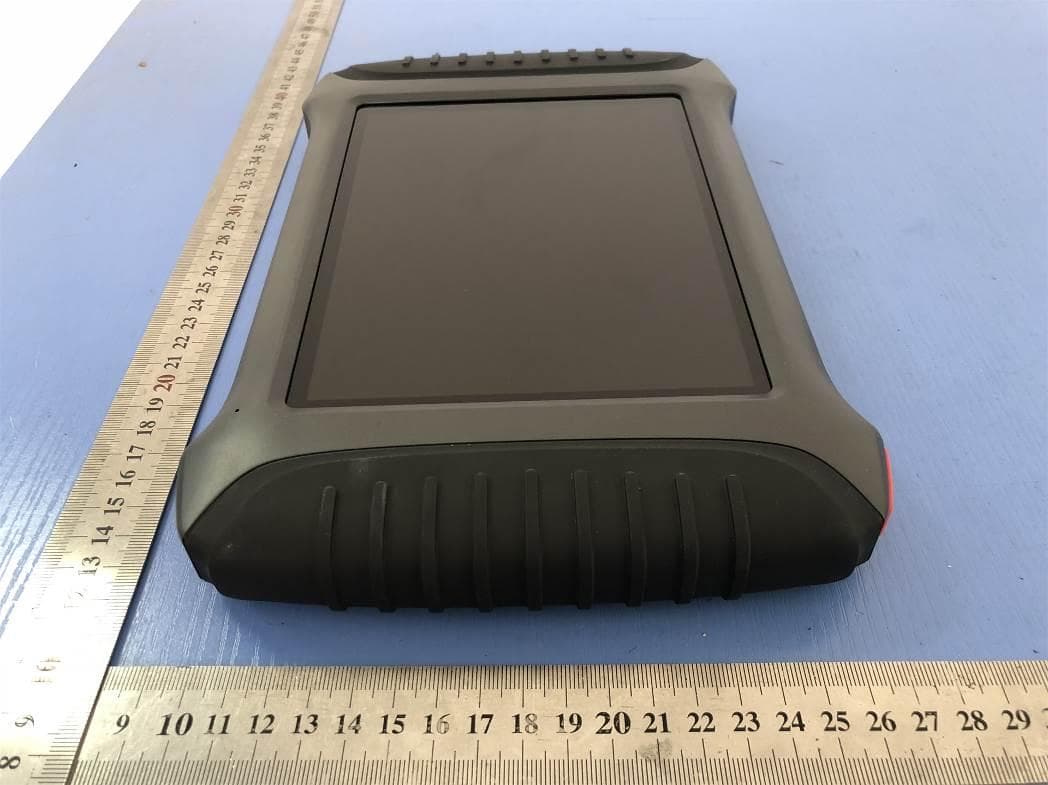

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-A80 1. EXTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-A80 Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-A80 Fig. 5 Fig. 6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-A80 Fig. 7 Fig. 8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-A80 Fig. 9 Fig. 10

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-A80 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Label and Location Size: L4.0cm*W3.0cm Label Location Intelligent Diagnosis System Model No.: A80 FCC ID: 2AVEM-A80 Caution:This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-A80 1. INTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 BT/WLAN Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-A80 Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-A80 Fig. 5 Fig. 6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-A80 Fig. 7 Fig. 8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-A80 Fig. 9 Fig. 10 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-A80 Fig. 11 Fig. 12

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AVEM-A80 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 7 FCC RF Exposure Evaluation 1. Product Information FCC ID: 2AVEM-A80 Product name Intelligent Diagnosis System Model number A80, A80 Pro, A80 Pro Master Model Declaration PCB board, structure and internal of these model(s) are the same, So no additional models were tested. Power supply DC 3.7V By lithium ion polymer battery(10000mAh)For AC Adapter: Input: AC 100-240V, 50/60Hz, Max. 1A Output: DC 12V, 3A Operation frequency 2402MHz-2480MHz 2412MHz-2462MHz 5180MHz-5240MHz 5745MHz-5825MHz Modulation Type GFSK, π/4-DQPSK, 8-DPSK for Bluetooth V4.2 (DSS) IEEE 802.11b: DSSS(CCK, DQPSK, DBPSK) IEEE 802.11g: OFDM(64QAM, 16QAM, QPSK, BPSK) IEEE 802.11n: OFDM (64QAM, 16QAM,QPSK,BPSK) IEEE 802.11a/n/ac: OFDM Channel Number 79 Channels for Bluetooth V4.2 (DSS) 11 Channels for 20MHz bandwidth(2412~2462MHz) 7 Channels for 40MHz bandwidth(2422~2452MHz) 4 Channels for 802.11a, 802.11n(HT20), 802.11ac(VHT20) 2 Channels for 802.11n(HT40), 802.11ac(VHT40) 1 Channels for 802.11ac(VHT80) 5 channels for 20MHz bandwidth(5745-5825MHz) 2 channels for 40MHz bandwidth(5755~5795MHz) 1 channels for 80MHz bandwidth(5775MHz) Antenna Type PIFA Antenna Antenna Gain 2dBi(Max.) Hardware version V1.03 Software version V1.0 Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Protable Device SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AVEM-A80 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 7 2. Evaluation method and Limit According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.23 “ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to f) in section 4.1 is applied to determine SAR test exclusion. 3. Refer evaluation method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1093: Radiofrequency radiation exposure evaluation: portable devices SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AVEM-A80 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 7 4. Conducted Power Results [BT Max Conducted Power] Mode Channel Frequency(MHz) Maximum Peak Output Power [dBm] GFSK 0 2402 -0.029 39 2441 -1.807 78 2480 -0.630 π/4DQPSK 0 2402 -0.752 39 2441 -2.472 78 2480 -1.396 8DPSK 0 2402 -0.569 39 2441 -2.324 78 2480 -1.214 [2.4GWLAN Max Conducted Power] Mode Channel Frequency(MHz) Max Peak Conducted Power (dBm) IEEE 802.11b 1 2412 8.38 6 2437 8.36 11 2462 8.72 IEEE 802.11g 1 2412 8.34 6 2437 8.55 11 2462 8.64 IEEE 802.11n HT20 1 2412 8.24 6 2437 8.47 11 2462 8.62 IEEE 802.11n HT40 3 2422 8.68 6 2437 8.69 9 2452 8.75 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AVEM-A80 ________________________________________________________________________ ___ This report shall not be reprodu…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-A80 Report No.: LCS190823114AEC Page 1 of 34 Appendix C RF Test Data for 5.2G WLAN (Conducted Measurement) Product Name: Intelligent Diagnosis System Trade Mark: XTOOL Test Model: A80 Environmental Conditions Temperature: 23.2 C Relative Humidity: 54.3% ATM Pressure: 100.0 kPa Test Engineer: Diamond Lu Supervised by: Wang Chuang C.1 Duty Cycle Test Mode Test Frequency (MHz) Duty Cycle (%) 10log(1/x) Factor (dB) 1/B Minimum VBW(KHz) 11A 5200 100 0.00 0.01 11N20 SISO 5200 100 0.00 0.01 11N40 SISO 5190 100 0.00 0.01 11AC20 SISO 5200 100 0.00 0.01 11AC40 SISO 5190 100 0.00 0.01 11AC80 SISO 5210 100 0.00 0.01 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-A80 Report No.: LCS190823114AEC Page 2 of 34 On Time and Duty Cycle IEEE 802.11a IEEE 802.11n HT20 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-A80 Report No.: LCS190823114AEC Page 3 of 34 IEEE 802.11n HT40 IEEE 802.11AC20 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-A80 Report No.: LCS190823114AEC Page 4 of 34 IEEE 802.11 AC40 IEEE 802.11AC80 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-A80 Report No.: LCS190823114AEC Page 5 of 34 C.2 Maximum Conduct Output Power Test Mode Channel Frequency (MHz) AVG Conducted Power (dBm) Duty Cycle Factor( dB) Report Conducted Power(dBm) Limit (dBm) Verdict 11A 36 5180 7.64 0 7.64 24 Pass 40 5200 7.79 0 7.79 Pass 48 5240 7.57 0 7.57 Pass 11N20 SISO 36 5180 7.66 0 7.66 24 Pass 40 5200 7.97 0 7.97 Pass 48 5240 7.67 0 7.67 Pass 11N40 SISO 38 5190 7.53 0 7.53 24 Pass 46 5230 7.05 0 7.05 Pass 11AC20 SISO 36 5180 7.85 0 7.85 24 Pass 40 5200 7.09 0 7.09 Pass 48 5240 7.83 0 7.83 Pass 11AC40 SISO 38 5190 7.53 0 7.53 24 Pass 46 5230 7.06 0 7.06 Pass 11AC80 SISO 42 5210 7.01 0 7.01 24 Pass SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-A80 Report No.: LCS190823114AEC Page 6 of 34 C.3 Power Spectral Density Test Mode Channe l Frequenc y (MHz) Power Density (dBm/MHz) Duty Cycle Factor(d B) Report Power Density (dBm/MHz) Limit (dBm/MH z) Verdic t 11A 36 5180 1.69 0 1.69 11 Pass 40 5200 0.87 0 0.87 Pass 48 5240 0.64 0 0.64 Pass 11N2 0 SISO 36 5180 0.66 0 0.66 11 Pass 40 5200 0.08 0 0.08 Pass 48 5240 -0.54 0 -0.54 Pass 11N4 0 SISO 38 5190 -3.07 0 -3.07 11 Pass 46 5230 -5.91 0 -5.91 Pass 11AC 20 SISO 36 5180 -1.27 0 -1.27 11 Pass 40 5200 -1.49 0 -1.49 Pass 48 5240 -2.28 0 -2.28 Pass 11AC 40 SISO 38 5190 -4.49 0 -4.49 11 Pass 46 5230 -5.78 0 -5.78 Pass 11AC 80 SISO 42 5210 -7.67 0 -7.67 11 Pass Power Spectral Density IEEE 802.11a / Channel 36 / 5180MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-A80 Report No.: LCS190823114AEC Page 7 of 34 IEEE 802.11na / Channel 40 / 5200MHz IEEE 802.11na / Channel 48 / 5240MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-A80 Report No.: LCS190823114AEC Page 8 of 34 Power Spectral Density IEEE 802.11n20 / Channel 36 / 5180MHz IEEE 802.11n20 / Channel 40 / 5200MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-A80 Report No.: LCS190823114AEC Page 9 of 34 IEEE 802.11n20 / Channel 48 / 5240MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-A80 Report No.: LCS190823114AEC Page 10 of 34 Power Spectral Density IEEE 802.11n40 / Channel 38 / 5190MHz IEEE 802.11n40 / Channel 46 / 5230MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-A80 Report No.: LCS190823114AEC Page 11 of 34 IEEE 802.11ac20 / Channel 36 / 5180MHz IEEE 802.11ac20 / Channel 40 / 5200MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-A80 Report No.: LCS190823114AEC Page 12 of 34 IEEE 802.11ac20 / Channel 48 / 5240MHz IEEE 802.11ac40 / Channel 38 / 5190MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-A80 Report No.: LCS190823114AEC Page 13 of 34 IEEE 802.11ac40 / Channel 46 / 5230MHz IEEE 802.11ac80 / Channel 42 / 5210MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-A80 Report No.: LCS190823114AEC Page 14 of 34 C.4 Emission Bandwidth Test Mode Channel Frequency (MHz) 26dB Bandwidth (MHz) Limit (MHz) Verdict 11A 36 5180 21.65 No Limit Pass 40 5200 19.90 Pass 48 5240 19.73 Pass 11N20 SISO 36 5180 20.40 No Limit Pass 40 5200 20.31 Pass 48 5240 20.30 Pass 11N40 SISO 38 5190 40.30 No Limit Pass 46 5230 39.91 Pass 11AC20 SISO 36 5180 20.44 No Limi Pass 40 5200 20.28 Pass 48 5240 20.22 Pass 11AC40 SISO 38 5190 40.63 No Limi Pass 46 5230 39.99 Pass 11AC80 SISO 42 5210 80.47 No Limi Pass 26dB Bandwidth IEEE 802.11a / Channel 36 / 5180MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-A80 Report No.: LCS190823114AEC Page 15 of 34 IEEE 802.11a / Channel 40 / 5200MHz IEEE 802.11a / Channel 48 / 5240MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-A80 Report No.: LCS190823114AEC Page 16 of 34 26dB Bandwidth IEEE 802.11n20 / Channel 36 / 5180MHz IEEE 802.11n20 / Channel 40 / 5200MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-A80 Report No.: LCS190823114AEC Page 17 of 34 IEEE 802.11n20 / Channel 48 / 5240MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-A80 Report No.: LCS190823114AEC Page 18 of 34 26dB Bandwidth IEEE 802.11n40 / Channel 38 / 5190MHz IEEE 802.11n40 / Channel 46 / 5230MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-A80 Report No.: LCS190823114AEC Page 19 of 34 IEEE 802.11ac20 / Channel 36 / 5180MHz IEEE 802.11ac20 / Channel 40 / 5200MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-A80 Report No.: LCS190823114AEC Page 20 of 34 IEEE 802.11ac20 / Channel 48 / 5240MHz IEEE 802.11ac40 / Channel 38 / 5190MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-A80 Report No.: LCS190823114AEC Page 21 of 34 IEEE 802.11ac40 / Channel 46 / 5230MHz IEEE 802.11ac80 / Channel 42 / 5210MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-A80 Report No.: LCS190823114AEC Page 22 of 34 C.5 Undesirable Emissions Measurement Test Mode Channel Frequency (MHz) C…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-A80 Report No.: LCS190823114AED Page 1 of 35 Appendix D RF Test Data for 5.8G WLAN (Conducted Measurement) Product Name: Intelligent Diagnosis System Trade Mark: XTOOL Test Model: A80 Environmental Conditions Temperature: 23.2 C Relative Humidity: 54.3% ATM Pressure: 100.0 kPa Test Engineer: Diamond Lu Supervised by: Wang Chuang D.1 Duty Cycle Test Mode Test Frequency (MHz) Duty Cycle (%) 10log(1/x) Factor (dB) 1/B Minimum VBW(KHz) 11A 5785 100 0.00 0.01 11N20 SISO 5785 100 0.00 0.01 11N40 SISO 5755 100 0.00 0.01 11AC20 SISO 5785 100 0.00 0.01 11AC40 SISO 5755 100 0.00 0.01 11AC80 SISO 5775 100 0.00 0.01 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-A80 Report No.: LCS190823114AED Page 2 of 35 On Time and Duty Cycle IEEE 802.11a IEEE 802.11n HT20 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-A80 Report No.: LCS190823114AED Page 3 of 35 IEEE 802.11n HT40 IEEE 802.11AC20 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-A80 Report No.: LCS190823114AED Page 4 of 35 IEEE 802.11AC40 IEEE 802.11AC80 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-A80 Report No.: LCS190823114AED Page 5 of 35 D.2 Maximum Conduct Output Power Test Mode Channe l Frequency (MHz) AVG Conducted Power (dBm) Duty Cycle Factor(dB) Report Conducted Power(dBm) Limit (dBm) Verdict 11A 149 5745 6.47 0 6.47 30 Pass 157 5785 6.46 0 6.46 Pass 165 5825 6.29 0 6.29 Pass 11N20 SISO 149 5745 6.28 0 6.28 30 Pass 157 5785 6.19 0 6.19 Pass 165 5825 6.11 0 6.11 Pass 11N40 SISO 151 5755 6.33 0 6.33 30 Pass 159 5795 6.16 0 6.16 Pass 11AC20 SISO 149 5745 6.85 0 6.85 30 Pass 157 5785 6.09 0 6.09 Pass 165 5825 6.83 0 6.83 Pass 11AC40 SISO 151 5755 6.53 0 6.53 30 Pass 159 5795 6.06 0 6.06 Pass 11AC80 SISO 155 5775 6.52 0 6.52 30 Pass SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-A80 Report No.: LCS190823114AED Page 6 of 35 D.3 Power Spectral Density Test Mode Channel Frequency (MHz) Power Density (dBm/300KHz) Duty Cycle Factor (dB) RBW Factor (dB) Report Power Density (dBm/500KHz) Limit (dBm/500KHz) Verdict 11A 149 5745 -3.32 0 2.218 -1.10 30 Pass 157 5785 -3.17 0 2.218 -0.95 Pass 165 5825 -4.31 0 2.218 -2.09 Pass 11N20 SISO 149 5745 -3.93 0 2.218 -1.71 30 Pass 157 5785 -3.47 0 2.218 -1.26 Pass 165 5825 -4.34 0 2.218 -2.12 Pass 11N40 SISO 151 5755 -6.18 0 2.218 -3.96 30 Pass 159 5795 -6.95 0 2.218 -4.73 Pass 11AC20 SISO 149 5745 -3.71 0 2.218 -1.50 30 Pass 157 5785 -3.76 0 2.218 -1.55 Pass 165 5825 -4.07 0 2.218 -1.85 Pass 11AC40 SISO 151 5755 -6.43 0 2.218 -4.21 30 Pass 159 5795 -6.60 0 2.218 -4.38 Pass 11AC80 SISO 155 5775 -9.92 0 2.218 -7.70 30 Pass Power Spectral Density IEEE 802.11a / Channel 149 / 5745MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-A80 Report No.: LCS190823114AED Page 7 of 35 IEEE 802.11na / Channel 157 / 5785MHz IEEE 802.11na / Channel 165 / 5825MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-A80 Report No.: LCS190823114AED Page 8 of 35 Power Spectral Density IEEE 802.11n20 / Channel 149 / 5745MHz IEEE 802.11n20 / Channel 157 / 5785MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-A80 Report No.: LCS190823114AED Page 9 of 35 IEEE 802.11n20 / Channel 165 / 5825MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-A80 Report No.: LCS190823114AED Page 10 of 35 Power Spectral Density IEEE 802.11n40 / Channel 151 / 5755MHz IEEE 802.11n40 / Channel 159 / 5795MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-A80 Report No.: LCS190823114AED Page 11 of 35 IEEE 802.11ac20 / Channel 149 / 5745MHz IEEE 802.11ac20 / Channel 157 / 5785MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-A80 Report No.: LCS190823114AED Page 12 of 35 IEEE 802.11ac20 / Channel 165 / 5825MHz IEEE 802.11ac40 / Channel 151 / 5755MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-A80 Report No.: LCS190823114AED Page 13 of 35 IEEE 802.11ac40 / Channel 159 / 5795MHz IEEE 802.11ac80 / Channel 155/ 5775MHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-A80 Report No.: LCS190823114AED Page 14 of 35 D.4 Emission Bandwidth Test Mode Channel Frequency (MHz) 6dB Bandwidth (MHz) Limit (MHz) Verdict 11A 149 5745 16.38 >=0.5 Pass 157 5785 16.33 Pass 165 5825 16.36 Pass 11N20 SISO 149 5745 17.60 >=0.5 Pa…

Text truncated - open the document above for the full version.
