2AVEM-PS80Diagnosis System

PS80 Diagnosis System User Manual PS80 Diagnosis System Declaration 1. This manual is designed for the usage of PS80, applying to PS80 automotive diagnosis platform. No part of this manual can be reproduced, stored in a retrieval system or transmitted, in any form or by any means (electronic, mechanical, photocopying, recording, or otherwise), without the prior written permission of Xtool. 2. Use the device only as described in this manual. The user will be responsible solely for the after-effects of violating the laws and regulations caused by using the product or its data information; in this case Xtool will not bear any legal responsibility. 3. Xtool shall not be liable for any incidental or consequential damages or for any economic consequential damages arising from the accidents of individual users and the third parties, misuse or abuse of the device, unauthorized change or repair of the device, or the failure made by the user not to use the product according to the manual. 4. All information, specifications and illustrations in this manual are based on the latest configurations and functions available at the time of printing. Xtool reserves the right to make changes at any time without notice. 5. is the registered trademark of SHENZHEN XTOOLTECH CO.,LTD. 6. In countries that the trademarks, service marks, domain names, logos and the name of the company are not registered, Xtool claims that it still reserves the ownership of the unregistered trademarks, service marks, domain names, logos and the company name. All other marks for the other products and the company’s name mentioned in the manual still belong to the original registered company. You may not use the trademarks, service marks, domain names, logos and company name of Xtool or other companies mentioned without written permission from the trademark holder. 7. Please visit www.xtooltech.com for more information on the PS80. 8. Xtool reserves the right for the final interpretation of this manual content. Xtool PS80 User Manual Instructions Please read this user manual carefully before using the scanner. When reading the manual, please pay special attention to the words “Note”, “Caution” or “Warning”, read them carefully for appropriate operation. PS80 Diagnosis System Xtool PS80 Diagnosis System Main Unit Maintenance Avoid shaking or dismantling the unit as it may damage the internal components. Do not use hard or sharp objects to touch the LCD screen; do not use excessive force; do not expose the screen to strong sunlight for a long period. Caution: keep it away from water, moisture, high temperature or very low temperature. If necessary, calibrate the screen before testing to ensure the accuracy of LCD performance. Keep the main unit away from strong magnetic fields. Operation Instructions For safe operation please follow the instructions below: Keep the scanner away from heat or fumes when using it. If the vehicle battery contains acid, please keep your hands and skin or fire sources away from the battery during testing. Exhaust gas of vehicle contains harmful chemicals, please ensure adequate ventilation. Do not touch the cooling system components or exhaust manifolds when engine is running due to the high temperatures reached. Make sure the car is securely parked, Neutral is selected or the selector is at P or N position to prevent the vehicle from moving when engine starts. Make sure the (DLC) diagnostic link connector is functioning properly before starting the test to avoid damage to the Diagnostic Computer. Do not switch off the power or unplug the connectors during testing, otherwise you may damage the ECU and/or the Diagnostic Computer. PS80 Diagnosis System Contents CHAPTER I About PS80 ............................................................................................... 1 1. Appearance ................................................................................................................ 1 1.1. Front View ............................................................................................................... 1 1.2. Back View ................................................................................................................ 1 2. Layout of PS80 Tablet ................................................................................................. 2 2.1. Top View of PS80 Tablet .......................................................................................... 2 2.2. Side View of PS80 Tablet ......................................................................................... 2 3. PS80 Technical Parameters......................................................................................... 2 CHAPTER II How to Use PS80 .................................................................................... 3 1. PS80 Activation .......................................................................................................... 3 2. PS80 Main Interface and Functional Buttons Descriptions ....................................... 4 2.1. Main Interface ......................................................................................................... 4 2.2. Sub-menu and Functional Buttons ....................................................................... 5 2.3. Toolbar Functional Buttons ..................................................................................... 5 3. Vehicle Connection Diagnosis .................................................................................... 6 3.1. Vehicle Connection Test .......................................................................................... 6 3.2. Precautions Before Use ........................................................................................... 6 4. Diagnosis .................................................................................................................... 7 4.1. Menu Options .................................................................................…

Text truncated - open the document above for the full version.

Shenzhen XTOOLTECH CO., LTD 2nd Floor, Building No.2, Block 1, Excellence City, Shangmeilin, Futian District, Shenzhen 518000, China Tel: 86-755-21670995 E-mail: [email protected] Series Models Description Date: 2020/03/23 To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD FCC ID: 2AVEM-PS80 Dear Sir/Madam, We, Shenzhen XTOOLTECH CO., LTD Hereby declares the following statement for Federal Communications Commission, PCB board, circuit, structure and internal of these model(s) are the same, Only color and model number is different for these model: Product name: Diagnosis System Model no.: PS80, X100 PAD2, X100 PAD2 Pro, AutoProPAD Sincerely, Name: Darby Tan / General Manager Company: Shenzhen XTOOLTECH CO., LTD Address: 2nd Floor, Building No.2, Block 1, Excellence City, Shangmeilin, Futian District, Shenzhen 518000, China Phone: 86-755-21670995 Fax: 86-755-83461644 E-Mail: [email protected]

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 <2020-03-23> TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2AVEM-PS80 PS80, X100 PAD2, X100 PAD2 Pro, AutoProPAD For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name: Darby Tan / General Manager Company: Shenzhen XTOOLTECH CO., LTD Address: 2nd Floor, Building No.2, Block 1, Excellence City, Shangmeilin, Futian District, Shenzhen 518000, China Phone: 86-755-21670995 Fax: 86-755-83461644 E-Mail: [email protected]

Shenzhen XTOOLTECH CO., LTD Add: 2nd Floor, Building No.2, Block 1, Excellence City, Shangmeilin, Futian District, Shenzhen 518000, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2020/03/23 To whom it may concern: We, Shenzhen XTOOLTECH CO., LTD the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2AVEM-PS80 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name: Darby Tan / General Manager Company: Shenzhen XTOOLTECH CO., LTD Address: 2nd Floor, Building No.2, Block 1, Excellence City, Shangmeilin, Futian District, Shenzhen 518000, China Phone: 86-755-21670995 Fax: 86-755-83461644 E-Mail: [email protected]

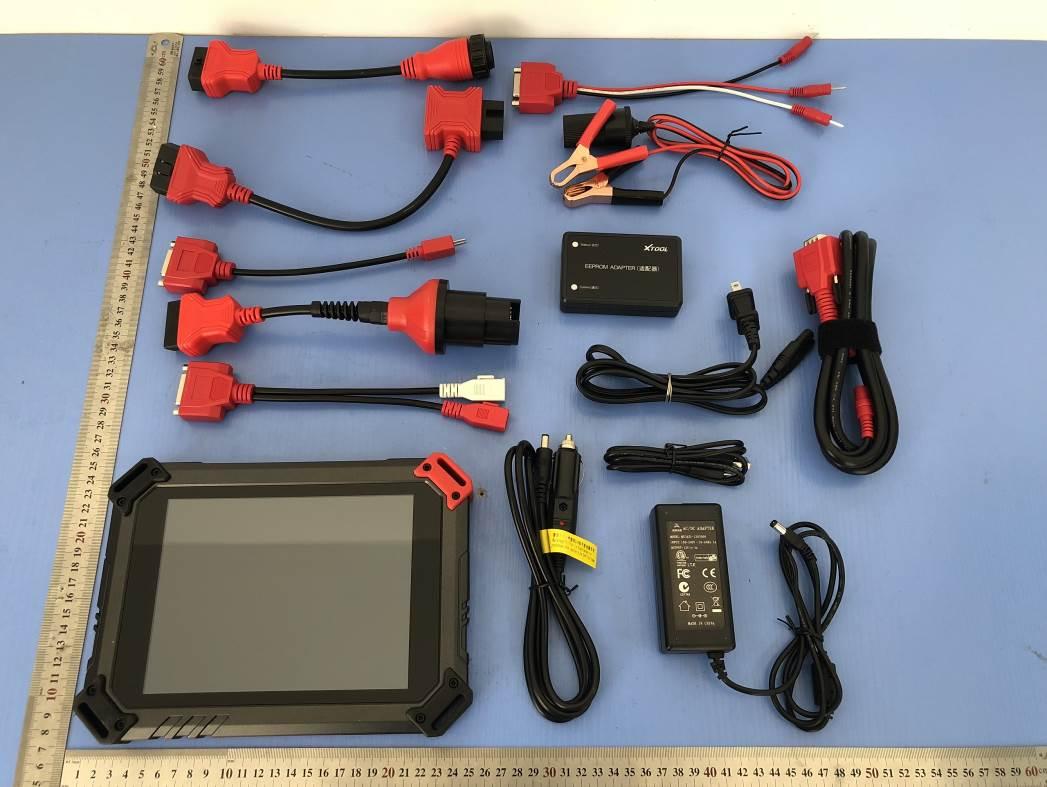

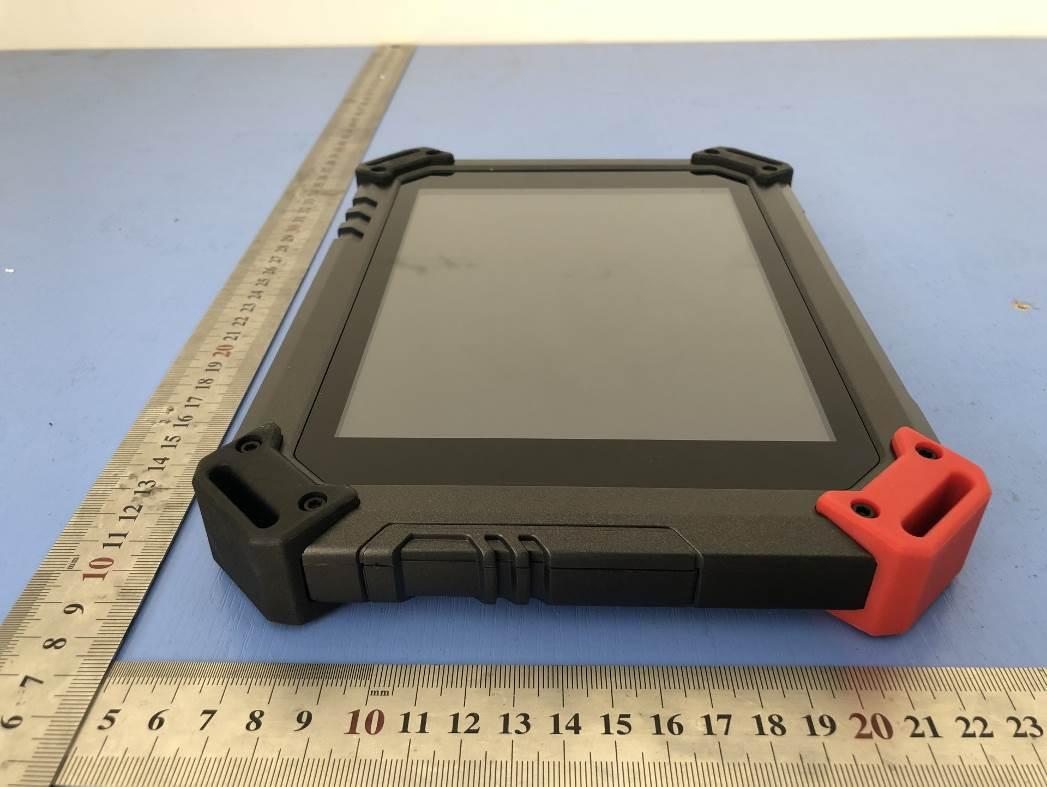

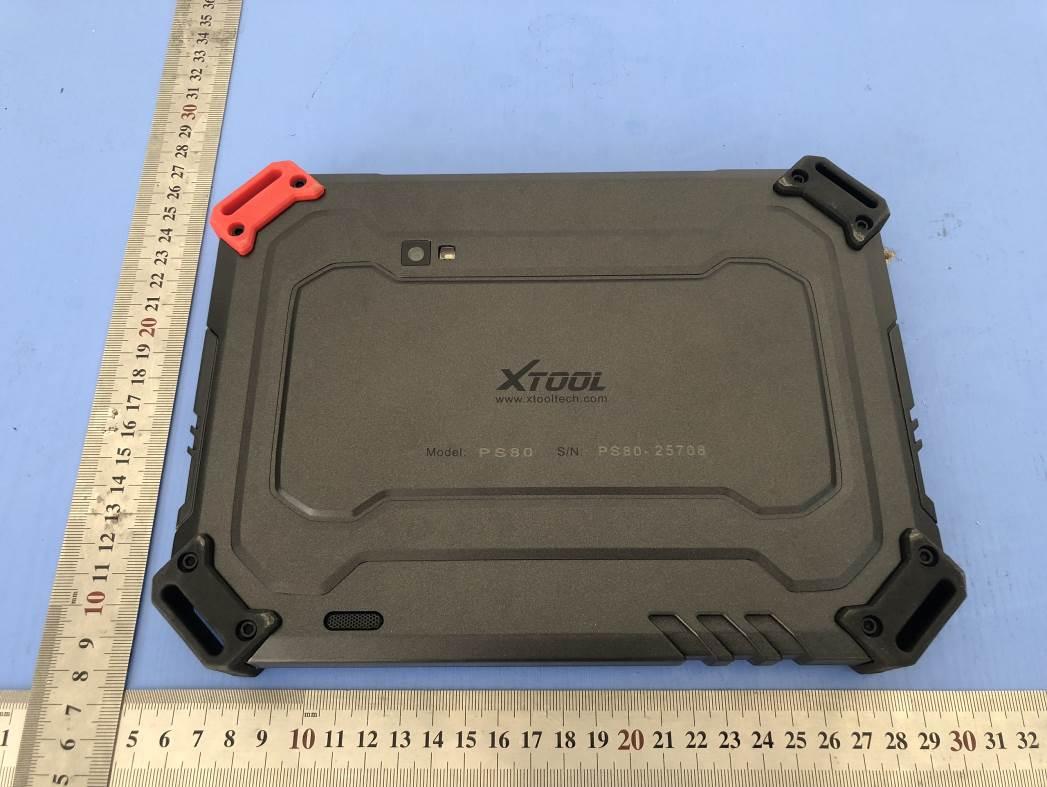

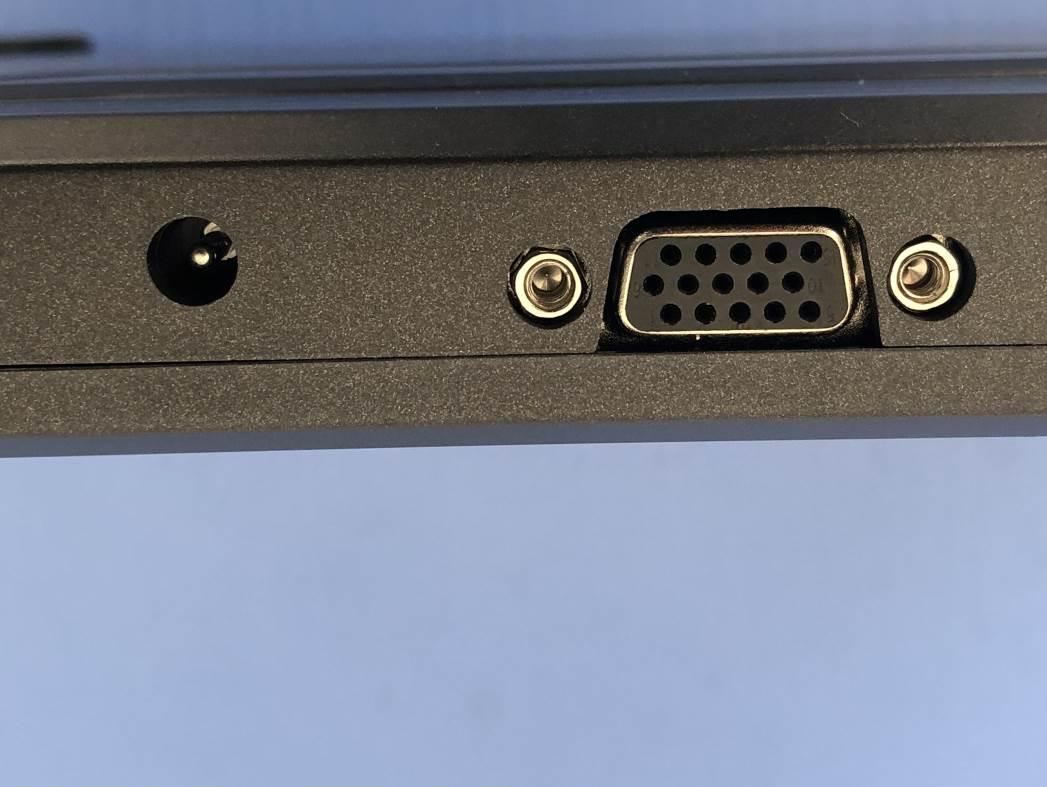

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-PS80 1. EXTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-PS80 Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-PS80 Fig. 5 Fig. 6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-PS80 Fig. 7 Fig. 8

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-PS80 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Label and Location Size: L4.0cm*W3.0cm Label Location Diagnosis System Model No.: PS80 FCC ID: 2AVEM-PS80 Caution:This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-PS80 1. INTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-PS80 Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-PS80 Fig. 5 Fig. 6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-PS80 Fig. 7 Fig. 8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-PS80 Fig. 9 Fig. 10 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-PS80 Fig. 11 Fig. 12 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-PS80 Fig. 13 Fig. 14

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AVEM-PS80 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 5 FCC RF Exposure Evaluation 1. Product Information FCC ID: 2AVEM-PS80 Product name Diagnosis System Model number PS80, X100 PAD2, X100 PAD2 Pro, AutoProPAD Model Declaration PCB board, structure and internal of these model(s) are the same, So no additional models were tested. Power supply DC 7.4V By lithium ion polymer battery(4000mAh) Recharged by DC 12V/3A adapter Operation frequency 2402MHz-2480MHz 2412MHz-2462MHz Modulation Type GFSK, π/4-DQPSK, 8-DPSK for Bluetooth V4.0 (DSS) IEEE 802.11b: DSSS(CCK, DQPSK, DBPSK) IEEE 802.11g: OFDM(64QAM, 16QAM, QPSK, BPSK) IEEE 802.11n: OFDM (64QAM, 16QAM,QPSK,BPSK) Channel Number 79 Channels for Bluetooth V4.0(DSS) 11 Channels for 20MHz bandwidth(2412~2462MHz) 7 Channels for 40MHz bandwidth(2422~2452MHz) Antenna Type PIFA Antenna Antenna Gain 1dBi(Max.) Hardware version PS80_V21 Software version PS80_V19.08 Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Protable Device SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AVEM-PS80 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 5 2. Evaluation method and Limit According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.23 “ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to f) in section 4.1 is applied to determine SAR test exclusion. 3. Refer evaluation method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1093: Radiofrequency radiation exposure evaluation: portable devices SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AVEM-PS80 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 5 4. Conducted Power Results [BT Max Conducted Power] Mode Channel Frequency(MHz) Maximum Peak Output Power [dBm] GFSK 0 2402 2.849 39 2441 0.464 78 2480 1.222 π/4DQPSK 0 2402 1.679 39 2441 -0.397 78 2480 0.367 8DPSK 0 2402 1.641 39 2441 -0.362 78 2480 0.352 [2.4GWLAN Max Conducted Power] Mode Channel Frequency(MHz) Max Peak Conducted Power (dBm) IEEE 802.11b 1 2412 8.42 6 2437 8.59 11 2462 8.76 IEEE 802.11g 1 2412 8.81 6 2437 8.57 11 2462 8.64 IEEE 802.11n HT20 1 2412 8.57 6 2437 8.70 11 2462 8.57 IEEE 802.11n HT40 3 2422 8.66 6 2437 8.82 9 2452 8.72 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AVEM-PS80 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 5 5. Manufacturing tolerance GFSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 2.0 0.0 1.0 Tolerance ±(dB) 1.0 1.0 1.0 π/4DQPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 1.0 -1.0 0.0 Tolerance ±(dB) 1.0 1.0 …

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-PS80 Report No.: LCS190823115AEA Page 1 of 47 Appendix A RF Test Data for BT V4.0(BDR/EDR) (Conducted Measurement) Product Name: Diagnosis System Trade Mark: XTOOL Test Model: PS80 Environmental Conditions Temperature: 23.5  C Relative Humidity: 53.6% ATM Pressure: 100.0 kPa Test Engineer: Diamond.Lu Supervised by: Wang.Chuang A.1 Maxmum Conducted Peak Output Power Mode Channel. Maximum Peak Output Power [dBm] Limit [dBm] Verdict GFSK LCH 2.849 30 PASS MCH 0.464 30 PASS HCH 1.222 30 PASS π/4DQPSK LCH 1.679 21 PASS MCH -0.397 21 PASS HCH 0.367 21 PASS 8DPSK LCH 1.641 21 PASS MCH -0.362 21 PASS HCH 0.352 21 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-PS80 Report No.: LCS190823115AEA Page 2 of 47 Test Graphs GFSK/LCH GFSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-PS80 Report No.: LCS190823115AEA Page 3 of 47 GFSK/HCH π/4DQPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-PS80 Report No.: LCS190823115AEA Page 4 of 47 π/4DQPSK/MCH π/4DQPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-PS80 Report No.: LCS190823115AEA Page 5 of 47 8DPSK/LCH 8DPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-PS80 Report No.: LCS190823115AEA Page 6 of 47 8DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-PS80 Report No.: LCS190823115AEA Page 7 of 47 A.2 20dB Bandwidth Mode Channel. 20dB Bandwidth [MHz] Limit [MHz] Verdict GFSK LCH 0.8447 Not Specified PASS MCH 0.8424 Not Specified PASS HCH 0.8491 Not Specified PASS π/4DQPSK LCH 1.267 Not Specified PASS MCH 1.265 Not Specified PASS HCH 1.265 Not Specified PASS 8DPSK LCH 1.269 Not Specified PASS MCH 1.261 Not Specified PASS HCH 1.271 Not Specified PASS Test Graphs GFSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-PS80 Report No.: LCS190823115AEA Page 8 of 47 GFSK/MCH GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-PS80 Report No.: LCS190823115AEA Page 9 of 47 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-PS80 Report No.: LCS190823115AEA Page 10 of 47 π/4DQPSK/HCH 8DPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-PS80 Report No.: LCS190823115AEA Page 11 of 47 8DPSK/MCH 8DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-PS80 Report No.: LCS190823115AEA Page 12 of 47 A.3 Carrier Frequency Separation Mode Channel. Carrier Frequency Separation [MHz] Limit [MHz] Verdict GFSK LCH 0.998 0.566 PASS MCH 1.020 0.566 PASS HCH 1.062 0.566 PASS π/4DQPSK LCH 1.068 0.845 PASS MCH 1.160 0.845 PASS HCH 1.314 0.845 PASS 8DPSK LCH 0.852 0.847 PASS MCH 1.030 0.847 PASS HCH 1.116 0.847 PASS Test Graphs GFSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-PS80 Report No.: LCS190823115AEA Page 13 of 47 GFSK/MCH GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-PS80 Report No.: LCS190823115AEA Page 14 of 47 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-PS80 Report No.: LCS190823115AEA Page 15 of 47 π/4DQPSK/HCH 8DPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-PS80 Report No.: LCS190823115AEA Page 16 of 47 8DPSK/MCH 8DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-PS80 Report No.: LCS190823115AEA Page 17 of 47 A.4 Hopping Channel Number Mode Channel. Number of Hopping Channel [N] Limit [N] Verdict GFSK Hop 79 >=15 PASS π/4DQPSK Hop 79 >=15 PASS 8DPSK Hop 79 >=15 PASS Test Graphs GFSK/Hop π/4DQPSK/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-PS80 Report No.: LCS190823115AEA Page 18 of 47 8DPSK/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-PS80 Report No.: LCS190823115AEA Page 19 of 47 A.5 Dwell Time Mode Packet Channel Burst Width [ms/hop/ch] Total Hops[hop*ch] Dwell Time[s] Limit [s] Verdict GFSK DH5 LCH 2.88 106.7 0.307 0.4 PASS DH5 MCH 2.88 106.7 0.307 0.4 PASS DH5 HCH 2.88 106.7 0.307 0.4 PASS π/4DQPSK 2DH5 LCH 2.88 106.7 0.316 0.4 PASS 2DH5 MCH 2.88 106.7 0.316 0.4 PASS 2DH5 HCH 2.88 106.7 0.316 0.4 PASS 8DPSK 3DH5 LCH 2.88 106.7 0.308 0.4 PASS 3DH5 MCH 2.88 106.7 0.308 0.4 PASS 3DH5 HCH 2.88 106.7 0.308 0.4 PASS Test Graphs GFSK_DH5/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-PS80 Report No.: LCS190823115AEA Page 20 of 47 GFSK_DH5/MCH GFSK_DH5/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-PS80 Report No.: LCS190823115AEA Page 21 of 47 π/4DQPSK _2DH5/LCH π/4DQPSK _2DH5/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-PS80 Report No.: LCS190823115AEA Page 22 of 47 π/4DQPSK _2DH5/HCH 8DPSK _3DH5/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-PS80 Report No.: LCS190823115AEA Page 23 of 47 8DPSK _3DH5/MCH 8DPSK _3DH5/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-PS80 Report No.: LCS190823115AEA Page 24 of 47 A.6 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdict GFSK LCH 2.253 -37.093 -17.747 PASS MCH -0.117 -37.448 -20.117 PASS HCH 0.518 -36.130 -19.482 PASS π/4DQPSK LCH 1.206 -37.043 -18.794 PASS MCH -0.875 -37.273 -20.875 PASS HCH -0.08 -37.120 -20.080 PASS 8DPSK LCH 1.223 -37.506 -18.777 PASS MCH -0.714 -37.996 -20.714 PASS HCH -0.21 -37.100 -20.210 PASS GFSK_LCH_Graphs Pref SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-PS80 Report No.: LCS190823115AEA Page 25 of 47 Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-PS80 Report No.: LCS190823115AEA Page 26 of 47 GFSK_MCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-PS80 Report No.: LCS190823115AEA Page 27 of 47 GFSK_HCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-PS80 Report No.: LCS190823115AEA Page 28 of 47 π/4DQPSK_LCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-PS80 Report No.: LCS1908…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-PS80 Report No.: LCS190823115AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 35 FCC TEST REPORT FOR Shenzhen XTOOLTECH CO., LTD Diagnosis System Test Model: PS80 Additional Model No.: Please Refer to Page 6 Prepared for : Shenzhen XTOOLTECH CO., LTD Address : 2nd Floor, Building No.2, Block 1, Excellence City, Shangmeilin, Futian District, Shenzhen 518000, China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 1/F., Xingyuan Industrial Park, Tongda Road, Bao’an Avenue, Bao’an District, Shenzhen, Guangdong, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : September 06, 2019 Number of tested samples : 1 Serial number : Prototype Date of Test : September 06, 2019 ~ September 30, 2019 Date of Report : November 19, 2019 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-PS80 Report No.: LCS190823115AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 35 FCC TEST REPORT FCC CFR 47 PART 15 C(15.247) Report Reference No. ................. : LCS190823115AEA Date of Issue ................................... : November 19, 2019 Testing Laboratory Name ............ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ........................................... : 1/F., Xingyuan Industrial Park, Tongda Road, Bao’an Avenue, Bao’an District, Shenzhen, Guangdong, China Testing Location/ Procedure ........... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name .......................... : Shenzhen XTOOLTECH CO., LTD Address ........................................... : 2nd Floor, Building No.2, Block 1, Excellence City, Shangmeilin, Futian District, Shenzhen 518000, China Test Specification Standard.......................................... : FCC CFR 47 PART 15 C(15.247) Test Report Form No. ..................... : LCSEMC-1.0 TRF Originator ................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ..................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. .................. : Diagnosis System Trade Mark ...................................... : XTOOL Test Model ...................................... : PS80 Ratings ............................................ : DC 7.4V By lithium ion polymer battery(4000mAh) Recharged by DC 12V/3A adapter Result ........................................... : Positive Compiled by: Supervised by: Approved by: Linda He/ Administrators Jin Wang/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-PS80 Report No.: LCS190823115AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 35 FCC -- TEST REPORT Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS190823115AEA November 19, 2019 Date of issue Test Model........................... : PS80 EUT......................................... : Diagnosis System Applicant............................... : Shenzhen XTOOLTECH CO., LTD Address.................................. : 2nd Floor, Building No.2, Block 1, Excellence City, Shangmeilin, Futian District, Shenzhen 518000, China Telephone............................... : / Fax.......................................... : / Manufacturer........................ : Shenzhen XTOOLTECH CO., LTD Address................................... : 2nd Floor, Building No.2, Block 1, Excellence City, Shangmeilin, Futian District, Shenzhen 518000, China Telephone............................... : / Fax.......................................... : / Factory................................... : Shenzhen XTOOLTECH CO., LTD Address................................... : 2nd Floor, Building No.2, Block 1, Excellence City, Shangmeilin, Futian District, Shenzhen 518000, China Telephone............................... : / Fax.......................................... : / SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-PS80 Report No.: LCS190823115AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 35 Revision History Revision Issue Date Revisions Revised By 000 November 19, 2019 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-PS80 Report No.: LCS190823115AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 35 TABLE OF CONTENTS Description Page 1.GENERAL INFORMATION ..................................................................................................... 6 1.1 Description of Device (EUT) ......................................................................................................... 6 1.2 Support equipment List ................................................................................................................. 6 1.3 External I/O Cable ..................…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-PS80 Report No.: LCS190823115AEA _______________________________________________________________________________________________ 1. TEST SETUP PHOTOGRAPHS 1.1. Photo of Radiated Emissions Measurement Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-PS80 Report No.: LCS190823115AEA _______________________________________________________________________________________________ 1.2. Photo of Conducted Emissions Measurement Fig. 3
