2AVEM-VCIVCI diagnostic box

H6 PRO Car Intelligent Diagnosis Platform U s e r M a n u a l Efficient Intelligent Portable Please read this manual carefully before use. H6 PRO Intelligent Diagnosis 1 Trademark： is the registered trademark of Shenzhen Xtooltech Co., Ltd. In countries that the trademarks, service marks, domain names, logos and the name of the company are not registered, Xtool claims that it still reserves the ownership of the unregistered trademarks, service marks, domain names, logos and the company name. All other marks for the other products and the company’s name mentioned in the manual still belong to the original registered company. Copyright： You may not use the trademarks, service marks, domain names, logos and company name of Xtool or other companies mentioned without written permission from the trademark holder. Responsibility： Use the device only as described in this manual. The user will be responsible solely for the after-effects of violating the laws and regulations caused by using the product or its data information, Xtool will not bear any legal responsibility for that. Xtool shall not be liable for any incidental or consequential damages or for any economic consequential damages arising from the accidents of individual users and the third parties, misuse or abuse of the device, unauthorized change or repair of the device, or the failure made by the user not to use the product according to the manual. All information, specifications and illustrations in this manual are based on the latest configurations and functions available at the time of printing. Xtool reserves the right to make changes at any time without notice. After sale： After-Sale Service Hotline(400-880-3086/ 0755-21670995) Email: [email protected] Official website:http://www.xtooltech.com Safety： ⚫ This product is intended for use by automotive technicians only. ⚫ When the engine is running, please keep the maintenance area well ventilated, H6 PRO Intelligent Diagnosis 2 properly connect the engine and the building's exhaust system. The carbon monoxide generated by the engine will cause the body to be unresponsive and even cause serious personal injury or death. ⚫ Wear ANSI-compliant goggles and keep clothing, hair, hands, tools, diagnostics, etc. away from running or hot engine parts. H6 PRO Intelligent Diagnosis 1 Contents Chapter I About H6 PRO ...........................................................................................................1 1.1 Appearance ...................................................................................................................1 1.2 Interface of H6 PRO Tablet ..........................................................................................2 1.2.1 Top View of H6 PRO Tablet .........................................................................................2 1.2.2 Bottom View of H6 PRO Tablet ...................................................................................2 1.3 VCI diagnostic box appearance ....................................................................................3 1.4 VCI diagnostic box technical parameters .....................................................................3 1.5 H6 PRO technical parameters .......................................................................................3 Chapter II How to Use H6 PRO ................................................................................................5 2.1 Machine interface .........................................................................................................5 2.1.1 Main interface ...............................................................................................................5 2.1.2 Interface icon ................................................................................................................5 2.1.3 Interface Task-bar .........................................................................................................6 2.2 Connecting vehicle .......................................................................................................7 2.2.1 Connecting vehicle .......................................................................................................7 2.2.2 Car diagnostics precautions ..........................................................................................7 2.3 Diagnosis ......................................................................................................................8 2.3.1 Menu selection ..............................................................................................................8 2.3.2 Diagnostic function .......................................................................................................9 2.3.3 Function menu ..............................................................................................................9 2.4 Setting .........................................................................................................................12 2.4.1 [Language] ..................................................................................................................12 2.4.2 [Unit]. .........................................................................................................................13 2.4.3 [Bluetooth] ..................................................................................................................13 2.5 Xtool Cloud (Coming Soon) .......................................................................................15 2.6 One-click upgrade .......................................................................................................15 2.7 Diagnose report ...........................................................................................................15 2.7.1 View report .................................................................................................................16 2.7.2 Data playback ......................…

Text truncated - open the document above for the full version.

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 <2020-03-28> TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2AVEM-VCI VCI+ For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name: Darby Tan / General Manager Company: Shenzhen XTOOLTECH CO., LTD Address: 2nd Floor, Building No.2, Block 1, Excellence City, Shangmeilin, Futian District, Shenzhen 518000, China Phone: 86-755-21670995 Fax: 86-755-83461644 E-Mail: [email protected]

Shenzhen XTOOLTECH CO., LTD Add: 2nd Floor, Building No.2, Block 1, Excellence City, Shangmeilin, Futian District, Shenzhen 518000, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2020/03/28 To whom it may concern: We, Shenzhen XTOOLTECH CO., LTD the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2AVEM-VCI including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name: Darby Tan / General Manager Company: Shenzhen XTOOLTECH CO., LTD Address: 2nd Floor, Building No.2, Block 1, Excellence City, Shangmeilin, Futian District, Shenzhen 518000, China Phone: 86-755-21670995 Fax: 86-755-83461644 E-Mail: [email protected]

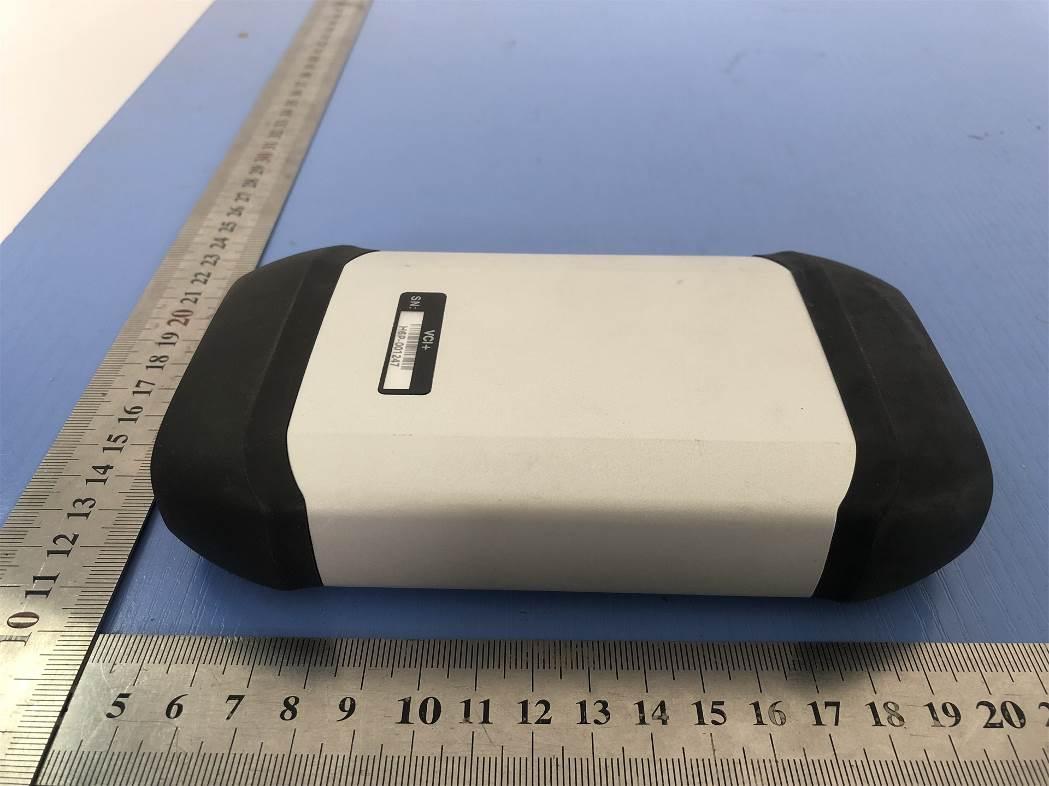

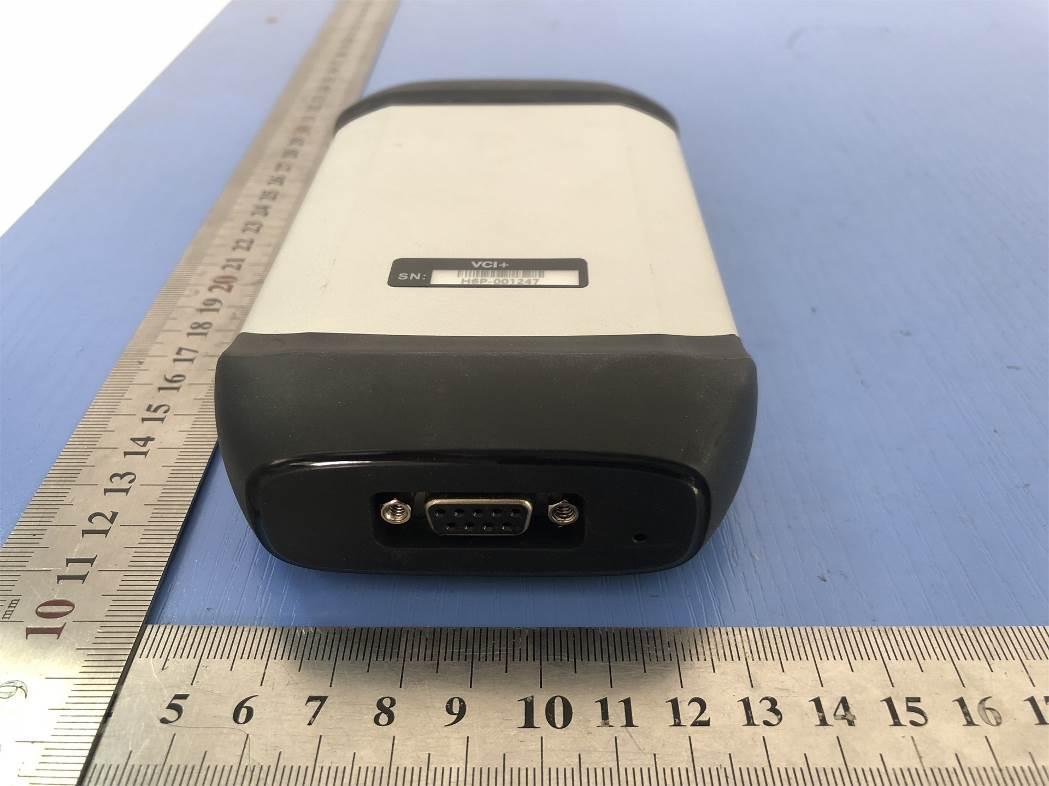

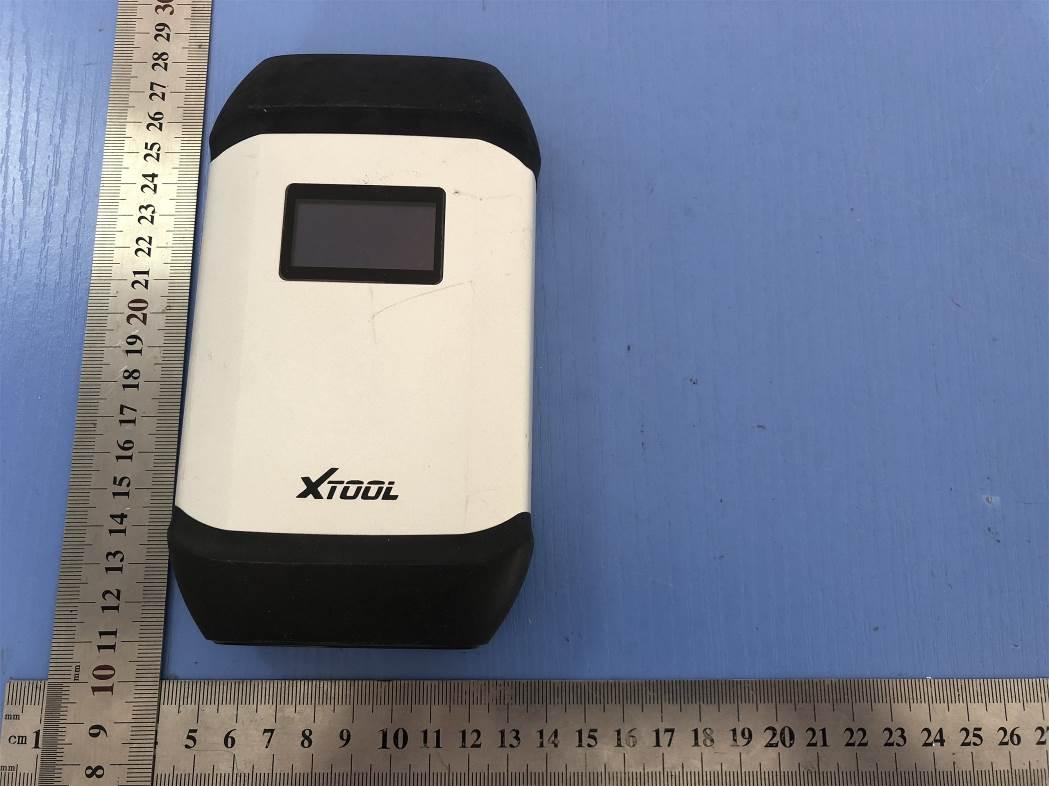

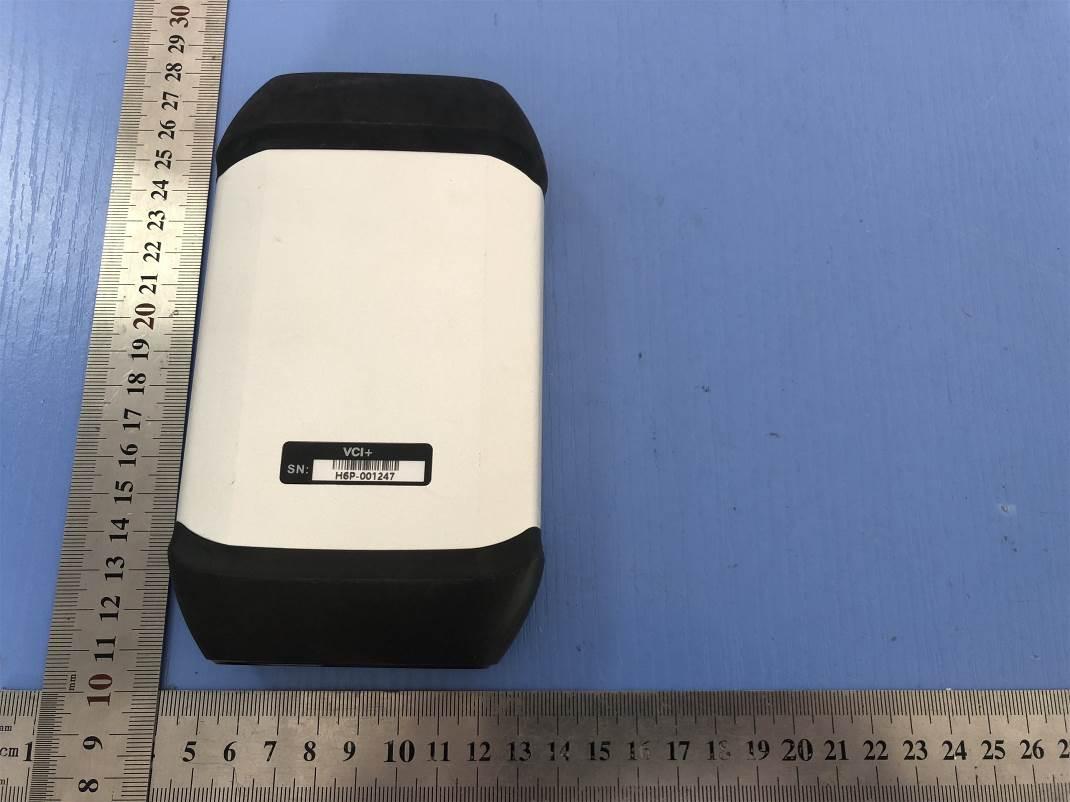

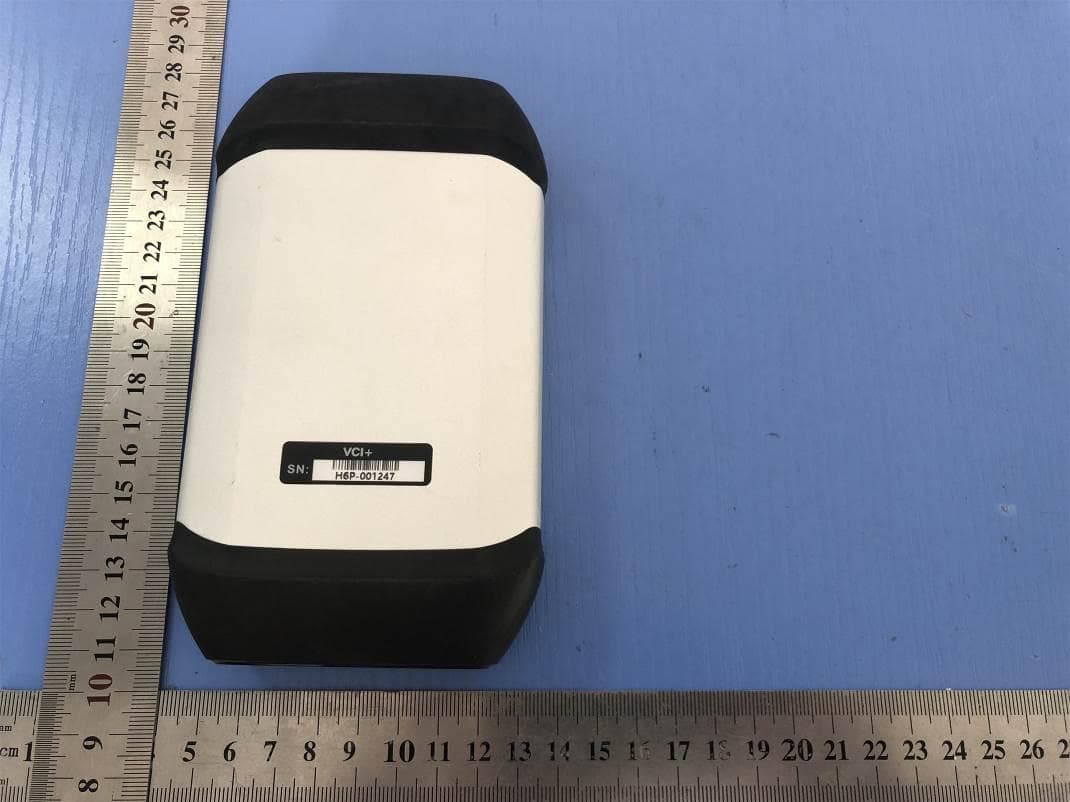

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-VCI 1. EXTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-VCI Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-VCI Fig. 5 Fig. 6

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-VCI This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Label and Location Size: L4.0cm*W3.0cm Label Location VCI diagnostic box Model No.: VCI+ FCC ID: 2AVEM-VCI Caution:This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-VCI 1. INTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-VCI Fig. 3 Fig. 4 Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-VCI Fig. 5

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AVEM-VCI This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 4 Maximum Permissible Exposure Report 1. Product Information FCC ID: 2AVEM-VCI Product name VCI diagnostic box Model number VCI+ Model Declaration / Power supply Input: DC 12V, 200mA Operation frequency 2402MHz-2480MHz Modulation Type GFSK, π/4-DQPSK, 8-DPSK for Bluetooth V4.0 (DSS) Channel Number 79 Channels for Bluetooth V4.0(DSS) Antenna Type PCB Antenna Antenna Gain 2dBi(Max.) Hardware version V1.0 Software version V1.0 Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Mobile Device 2. Evaluation Method Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. In accordance with KDB447498D01 for Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modelled or measured field strengths or power density, is ≤ 1.0. The MPE ratio of each antenna is determined at the minimum test separation distance required by the operating configurations and exposure conditions of the host device, according to the ratio of field strengths or power density to MPE limit, at the test frequency. Either the maximum peak or spatially averaged results from measurements or numerical simulations may be used to determine the MPE ratios. Spatial averaging does not apply when MPE is estimated using simple calculations based on far-field plane-wave equivalent conditions. The antenna installation and operating requirements for the host device must meet the minimum test separation distances required by all antennas, in both standalone and simultaneous transmission operations, to satisfy compliance. 3. Limit 3. 1 Refer evaluation method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General 1 RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices. SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AVEM-VCI This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 4 3. 2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AVEM-VCI This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 4 4. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 5. Antenna Information VBOX7 can only use antennas certificated as follows provided by manufacturer; Internal Identification Antenna Identification in Internal photos Antenna type and antenna number Operate frequency band Maximum antenna gain Antenna Bluetooth PCB Antenna 2.4GHz – 2.5 GHz 2.00 dBi 6. Conducted Power 6.1 Test Setup Block Diagram 6.2 Test Procedure 1) The EUT was directly connected to the power meter and antenna output port as show in the Block diagram; 2) Reading average power in RMS detector. 6.3 Measurement Equipment Item Equipment Manufacturer Model No. Serial No. Last Cal. Next Cal. 1 Power Meter R&S NRVS 100444 2019-06-11 2020-06-10 2 Power Sensor R&S NRV-Z32 10057 2019-06-11 2020-06-10 [BT Max Conducted Power] Mode Channel Frequency(MHz) Maximum Peak Output Power [dBm] GFSK 0 2402 0.020 39 2441 -2.026 78 2480 -0.835 π/4DQPSK 0 2402 -0.774 39 2441 -2.688 78 2480 -1.533 8DPSK 0 2402 -0.598 39 2441 -2.457 78 2480 -1.351 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD FCC ID: 2AVEM-VCI This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 4 7. Manufacturing Tolerance GFSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 0 -2.0 -1.0 Tolerance ±(dB) 1.0 1.0 1.0 π/4DQPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -1.0 -2.0 -1.0 Tolerance ±(dB) 1.0 1.0 1.0 8DPSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) -1.0 -2.0 -1.0 Tolerance ±(dB) 1.0 1.0 1.0 8. Measurement Results 8.1 Standalone MPE As declared by the Applicant, the EUT is a wireless device used in a fix app…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-VCI Report No.: LCS190823116AEA Page 1 of 47 Appendix A RF Test Data for BT V4.0(BDR/EDR) (Conducted Measurement) Product Name: VCI diagnostic box Trade Mark: XTOOL Test Model: VCI+ Environmental Conditions Temperature: 23.2 C Relative Humidity: 54.3% ATM Pressure: 100.0 kPa Test Engineer: Diamond Lu Supervised by: Jayden.Zhuo A.1 Maxmum Conducted Peak Output Power Mode Channel. Maximum Peak Output Power [dBm] Limit [dBm] Verdict GFSK LCH 0.020 21 PASS MCH -2.026 21 PASS HCH -0.835 21 PASS π/4DQPSK LCH -0.774 21 PASS MCH -2.688 21 PASS HCH -1.533 21 PASS 8DPSK LCH -0.598 21 PASS MCH -2.457 21 PASS HCH -1.351 21 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-VCI Report No.: LCS190823116AEA Page 2 of 47 Test Graphs GFSK/LCH GFSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-VCI Report No.: LCS190823116AEA Page 3 of 47 GFSK/HCH π/4DQPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-VCI Report No.: LCS190823116AEA Page 4 of 47 π/4DQPSK/MCH π/4DQPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-VCI Report No.: LCS190823116AEA Page 5 of 47 8DPSK/LCH 8DPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-VCI Report No.: LCS190823116AEA Page 6 of 47 8DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-VCI Report No.: LCS190823116AEA Page 7 of 47 A.2 20dB Bandwidth Mode Channel. 20dB Bandwidth [MHz] Limit [MHz] Verdict GFSK LCH 0.9649 Not Specified PASS MCH 1.022 Not Specified PASS HCH 1.025 Not Specified PASS π/4DQPSK LCH 1.288 Not Specified PASS MCH 1.320 Not Specified PASS HCH 1.291 Not Specified PASS 8DPSK LCH 1.293 Not Specified PASS MCH 1.298 Not Specified PASS HCH 1.294 Not Specified PASS Test Graphs GFSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-VCI Report No.: LCS190823116AEA Page 8 of 47 GFSK/MCH GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-VCI Report No.: LCS190823116AEA Page 9 of 47 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-VCI Report No.: LCS190823116AEA Page 10 of 47 π/4DQPSK/HCH 8DPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-VCI Report No.: LCS190823116AEA Page 11 of 47 8DPSK/MCH 8DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-VCI Report No.: LCS190823116AEA Page 12 of 47 A.3 Carrier Frequency Separation Mode Channel. Carrier Frequency Separation [MHz] Limit [MHz] Verdict GFSK LCH 1.024 0.683 PASS MCH 1.016 0.683 PASS HCH 0.998 0.683 PASS π/4DQPSK LCH 1.136 0.880 PASS MCH 1.310 0.880 PASS HCH 0.662 0.880 PASS 8DPSK LCH 1.076 0.865 PASS MCH 0.874 0.865 PASS HCH 1.060 0.865 PASS Test Graphs GFSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-VCI Report No.: LCS190823116AEA Page 13 of 47 GFSK/MCH GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-VCI Report No.: LCS190823116AEA Page 14 of 47 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-VCI Report No.: LCS190823116AEA Page 15 of 47 π/4DQPSK/HCH 8DPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-VCI Report No.: LCS190823116AEA Page 16 of 47 8DPSK/MCH 8DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-VCI Report No.: LCS190823116AEA Page 17 of 47 A.4 Hopping Channel Number Mode Channel. Number of Hopping Channel [N] Limit [N] Verdict GFSK Hop 79 >=15 PASS π/4DQPSK Hop 79 >=15 PASS 8DPSK Hop 79 >=15 PASS Test Graphs GFSK/Hop π/4DQPSK/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-VCI Report No.: LCS190823116AEA Page 18 of 47 8DPSK/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-VCI Report No.: LCS190823116AEA Page 19 of 47 A.5 Dwell Time Mode Packet Channel Burst Width [ms/hop/ch] Total Hops[hop*ch] Dwell Time[s] Limit [s] Verdict GFSK DH5 LCH 2.88 106.7 0.307 0.4 PASS DH5 MCH 2.88 106.7 0.307 0.4 PASS DH5 HCH 2.88 106.7 0.307 0.4 PASS π/4DQPSK 2DH5 LCH 2.88 106.7 0.307 0.4 PASS 2DH5 MCH 2.88 106.7 0.307 0.4 PASS 2DH5 HCH 2.88 106.7 0.307 0.4 PASS 8DPSK 3DH5 LCH 2.88 106.7 0.308 0.4 PASS 3DH5 MCH 2.88 106.7 0.308 0.4 PASS 3DH5 HCH 2.88 106.7 0.308 0.4 PASS Test Graphs GFSK_DH5/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-VCI Report No.: LCS190823116AEA Page 20 of 47 GFSK_DH5/MCH GFSK_DH5/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-VCI Report No.: LCS190823116AEA Page 21 of 47 π/4DQPSK _2DH5/LCH π/4DQPSK _2DH5/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-VCI Report No.: LCS190823116AEA Page 22 of 47 π/4DQPSK _2DH5/HCH 8DPSK _3DH5/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-VCI Report No.: LCS190823116AEA Page 23 of 47 8DPSK _3DH5/MCH 8DPSK _3DH5/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-VCI Report No.: LCS190823116AEA Page 24 of 47 A.6 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdict GFSK LCH -0.337 -37.469 -20.337 PASS MCH -2.319 -37.254 -22.319 PASS HCH -1.147 -37.783 -21.147 PASS π/4DQPSK LCH -1.768 -36.427 -21.768 PASS MCH -3.574 -36.911 -23.574 PASS HCH -2.376 -37.145 -22.376 PASS 8DPSK LCH -1.657 -37.548 -21.657 PASS MCH -3.534 -37.647 -23.534 PASS HCH -2.492 -37.974 -22.492 PASS GFSK_LCH_Graphs Pref SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-VCI Report No.: LCS190823116AEA Page 25 of 47 Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-VCI Report No.: LCS190823116AEA Page 26 of 47 GFSK_MCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-VCI Report No.: LCS190823116AEA Page 27 of 47 GFSK_HCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-VCI Report No.: LCS190823116AEA Page 28 of 47 π/4DQPSK_LCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-VCI Report No.: LCS190823116AEA Page 29 o…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-VCI Report No.: LCS190823116AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 34 FCC TEST REPORT FOR Shenzhen XTOOLTECH CO., LTD VCI diagnostic box Test Model: VCI+ Prepared for : Shenzhen XTOOLTECH CO., LTD Address : 2nd Floor, Building No.2, Block 1, Excellence City, Shangmeilin, Futian District, Shenzhen 518000, China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 1/F., Xingyuan Industrial Park, Tongda Road, Bao’an Avenue, Bao’an District, Shenzhen, Guangdong, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : September 06, 2019 Number of tested samples : 1 Serial number : Prototype Date of Test : September 06, 2019 ~ December 30, 2019 Date of Report : January 03, 2020 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-VCI Report No.: LCS190823116AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 34 FCC TEST REPORT FCC CFR 47 PART 15 C(15.247) Report Reference No. ................. : LCS190823116AEA Date of Issue ................................... : January 03, 2020 Testing Laboratory Name ............ : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ........................................... : 1/F., Xingyuan Industrial Park, Tongda Road, Bao’an Avenue, Bao’an District, Shenzhen, Guangdong, China Testing Location/ Procedure ........... : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name .......................... : Shenzhen XTOOLTECH CO., LTD Address ........................................... : 2nd Floor, Building No.2, Block 1, Excellence City, Shangmeilin, Futian District, Shenzhen 518000, China Test Specification Standard.......................................... : FCC CFR 47 PART 15 C(15.247) Test Report Form No. ..................... : LCSEMC-1.0 TRF Originator ................................ : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ..................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. .................. : VCI diagnostic box Trade Mark ...................................... : XTOOL Test Model ...................................... : VCI+ Ratings ............................................ : Input: DC 12V, 200mA Result ........................................... : Positive Compiled by: Supervised by: Approved by: Linda He/ Administrators Jin Wang/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-VCI Report No.: LCS190823116AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 34 FCC -- TEST REPORT Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS190823116AEA January 03, 2020 Date of issue Test Model........................... : VCI+ EUT......................................... : VCI diagnostic box Applicant............................... : Shenzhen XTOOLTECH CO., LTD Address.................................. : 2nd Floor, Building No.2, Block 1, Excellence City, Shangmeilin, Futian District, Shenzhen 518000, China Telephone............................... : / Fax.......................................... : / Manufacturer........................ : Shenzhen XTOOLTECH CO., LTD Address................................... : 2nd Floor, Building No.2, Block 1, Excellence City, Shangmeilin, Futian District, Shenzhen 518000, China Telephone............................... : / Fax.......................................... : / Factory................................... : Shenzhen XTOOLTECH CO., LTD Address................................... : 2nd Floor, Building No.2, Block 1, Excellence City, Shangmeilin, Futian District, Shenzhen 518000, China Telephone............................... : / Fax.......................................... : / SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-VCI Report No.: LCS190823116AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 34 Revision History Revision Issue Date Revisions Revised By 000 January 03, 2020 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-VCI Report No.: LCS190823116AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 34 TABLE OF CONTENTS Description Page 1.GENERAL INFORMATION ....................................................................................................... 6 1.1 Description of Device (EUT) ............................................................................................................ 6 1.2 Support equipment List .................................................................................................................... 6 1.3 External I/O Cable .....................................................................................................................…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-VCI _______________________________________________________________________________________________ 1. TEST SETUP PHOTOGRAPHS 1.1. Photo of Radiated Emissions Measurement Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-VCI _______________________________________________________________________________________________ 1.2. Photo of Conducted Emissions Measurement Fig. 3
