2AVEM-ANYSCANA30Auto Diagnostic TOOL

User Manual Product Name: Auto Diagnostic TOOL Trade Mark: XTOOL Model: Anyscan A30 Chapter I About Anyscan A30 1. Appearance Front View Back View 2.Layout ①LCD display: display the car voltage ②OBD 16pin connector ③Light button ④Power Indicator: It turns green when power is on ⑤Bluetooth Indicator: It turns red when Bluetooth is not connected; it turns blue when Bluetooth is connected successfully ⑥Vehicle Indicator: When VCI Dongle III is connected with vehicle successfully, it turns green. 3．Technical parameter Product Information Brand XTOOL Model Anyscan A30 Color Hardware blue + plastic black On-sale date 2018 Hardware support CPU STM32 RAM 512KByte Bluetooth V3.0+EDR Display 0.96 inch Buzzer Less than 12.2V or more than 15V will trigger the alert Power dissipation Normal working voltage +12V Working Temperature Working Temperature -20~+40 °C Working Humidity 10%-90% Storage Temperature -40-+85 °C Others Overall Dimensions 87.00*50.00*25.00mm Battery 100mAh OBD OBD standard interface LED Quantity 4 (power indicator, bluetooth indicator, vehicle diagnostic indicator, lighting indicator) Chapter II How to use Anyscan A30 1. App download instructions 1.1 Support iOS and Android system. OS Device Mode Apple iOS (Requires iOS4.3 or later) IPod touch iPod Touch 1 st generation, 2 nd generation, 3 rd generation, 4 th generation iPhone iPhone, iPhone 3, iPhone 3GS, iPhone 4, iPhone4s, iPhone 5, iPhone 6, iPhone 6 Plus, iPhone 6s, iPhone 6s Plus, iphone 7, iphone 7 plus iPad iPad, iPad 2, ipad 3, iPad air, iPad Mini 1, iPad Mini 2, iPad Pro Android (Requires OS2.3 or later) All android smart phone and tablet 1.2. Download the 【Diagnostic】 App from Google play or App store. 2.App activation 2.1. Please activate the App before you use it to test vehicles. 2.2. Input activation code, product serial number (each device will have a serial number and activation code), user name, email address, cell phone number, workshop name and password, the system will then save it. Activation is a one time process. The diagnostic application will start after activation. 3. Anyscan A30 Main Interface and Functional Buttons Descriptions 3.1. Main Interface Tap on Diagnostic application icon, the main interface and sub-menus will be shown as below.▼ 3.2. Sub-menus and Function Buttons 4.Precautions Before Use 4.1. The vehicle power supply has to meet the normal voltage limits DC 9-12V 4.2. Users should check the position of the DLC port and ensure the OBD 16 connector and the DLC port are correctly aligned before attempting to connect. 4.3. When carrying out some special functions tests, users are required to operate the device according to operating instructions. For some tests the vehicle has to meet certain requirements, for example: engine temperature 80°C/105°C, turn off loads (such as headlights, air-conditioner, etc.), put accelerator pedal in released position, etc. 4.4. If users can not find the tested vehicle model or electronic control system in the VCI Dongle III test menu, they may need to update the software or consult Xtool technical service department. 4.5. Before powering off the unit, please ensure that you cancel or complete the current task or function and return to the main interface, then power off. 4.6. Do not excessive force to operate the touch screen. Function Buttons Descriptions Opens the Diagnostic application. It can read diagnostic information, view live data, perform actuation tests and special functions etc. By selecting “Settings”, users can access the language setting and other system related settings. Click UPDATE after connecting to the internet, you can then download the latest diagnostic software directly. Users can view all the diagnostic reports and diagnostic data generated in the diagnosis process. More software packages for users to further purchase. Online Communication Platform for users. Job sheet. 5.Diagnosis 5.1. Menu Options 5.1.1. After the VCI Dongle III is connected to the vehicle and paired with Diagnostic App via Bluetooth connection, diagnosis can be performed. The diagnostic interface is as shown below: 5.1.2. Users can choose the relevant menu for the vehicle being tested: selection for Europe will enter the European cars menu, selection for Asia will enter the Asian cars menu, selection for America will enter the American cars menu. Users also can input the vehicle model to search. 5.1.3. Besides the usual system diagnostic functions, XTOOL have also developed a series of special diagnostic functions for certain vehicles. 6.Settings By selecting Settings users can set the language, unit and other system related options: Languages: select the language. Please tick the required option from the multi-language options on the right. Units: Select unit of measurement. Users can select Metric or British Unit. CHAPTER III Examples of Diagnostic Link Connector Locations. 1.Diagnostic Link Connectors Locations of Various Vehicle Models *AUDI A6: the OBD plug is on the lower left side of the dashboard, use SMART OBDII-16 connector. *VW Bollywood 1.8: the OBD plug is below the console, use SMART OBDII-16 connector. *Benz S320,220 Chassis: the OBD plug is below the dashboard, use SMART OBDII-16 connector. *Benz C180: the OBD plug is on the left hand side of the engine bay, use Benz-38 connector. *Benz 300SEL 140 chassis: the OBD plug is on the left hand side of the engine bay, use Benz-38 connector. *GM Buick: the OBD plug is below the dashboard, use SMART OBDII-16 connector. *GM Buick GL8 : the OBD plug is below the dashboard, use SMART OBDII-16 connector. *VW POLO: the OBD plug is below the dashboard, use SMART OBDII-16 connector. *BMW 735I: the OBD plug is in the right hands side of the engine bay, use BMW-20 connector. *VW Passat B5: the OBD plug is behind the gearlever and beside the parking brake lever. Lift the cover to access it. Use SMART OBDII-16 connector. 2.Location Diagram of Vehicle Diagnostic Link Connectors Location diagram of pick-up truck diagnostic…

Text truncated - open the document above for the full version.

Shenzhen XTOOLTECH CO., LTD Add: Floor, Building No.2, Block 1, Excellence City, Shangmeilin, Futian District, Shenzhen 518000, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2020/03/19 To whom it may concern: We, Shenzhen XTOOLTECH CO., LTD the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2AVEM-ANYSCANA30 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name: Darby Tan/General Manager Company: Shenzhen XTOOLTECH CO., LTD Address: 2nd Floor, Building No.2, Block 1, Excellence City, Shangmeilin, Futian District, Shenzhen 518000, China Phone: 86-755-21670995 Fax: 86-755-83461644 E-Mail: [email protected]

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 <2020-03-19> TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2AVEM-ANYSCANA30 Anyscan A30, VCI Dongle III, FleX For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name: Darby Tan/General Manager Company: Shenzhen XTOOLTECH CO., LTD Address: 2nd Floor, Building No.2, Block 1, Excellence City, Shangmeilin, Futian District, Shenzhen 518000, China Phone: 86-755-21670995 Fax: 86-755-83461644 E-Mail: [email protected]

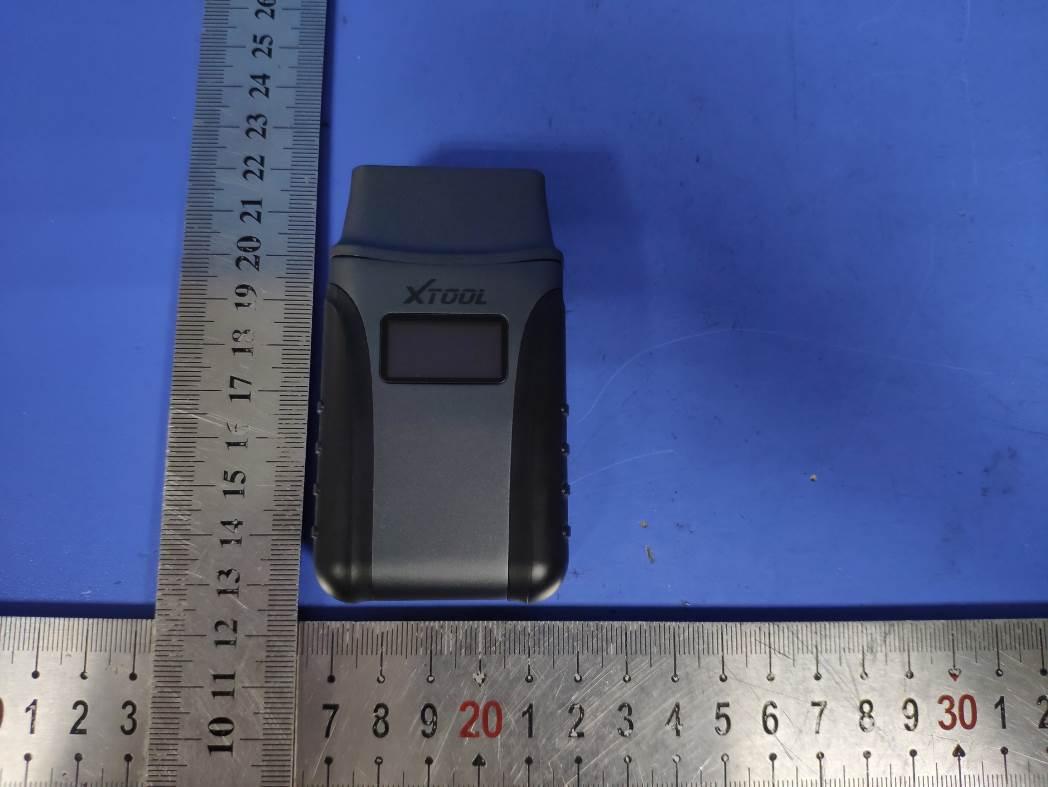

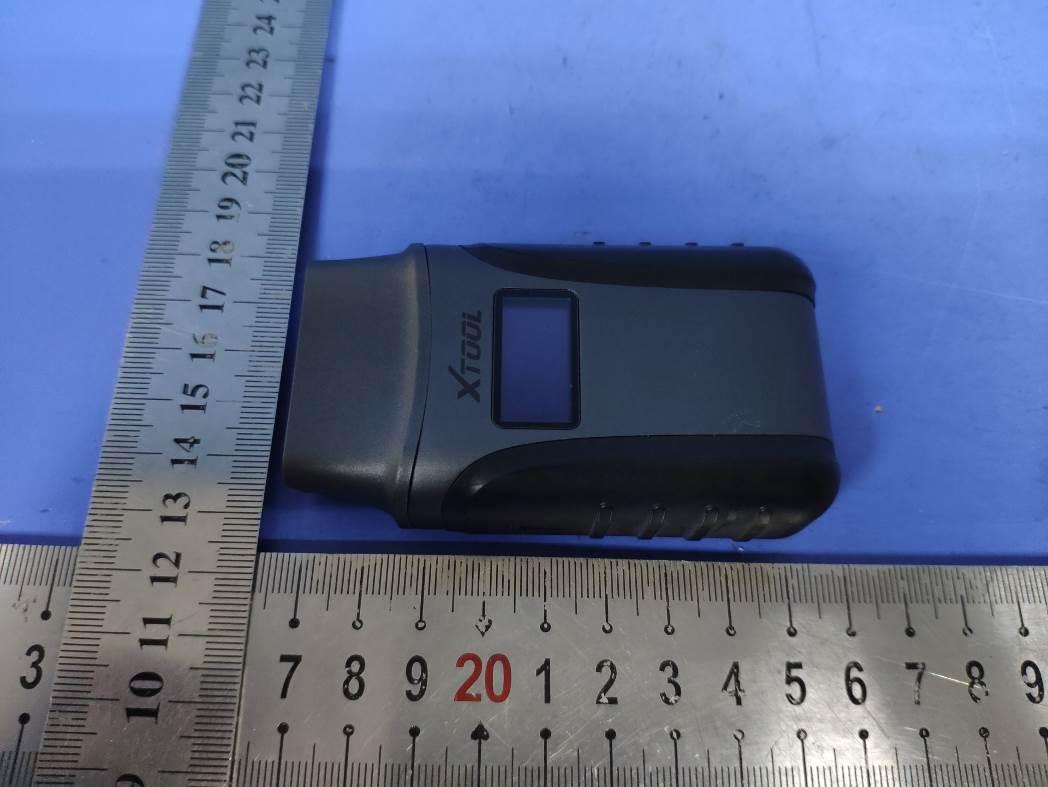

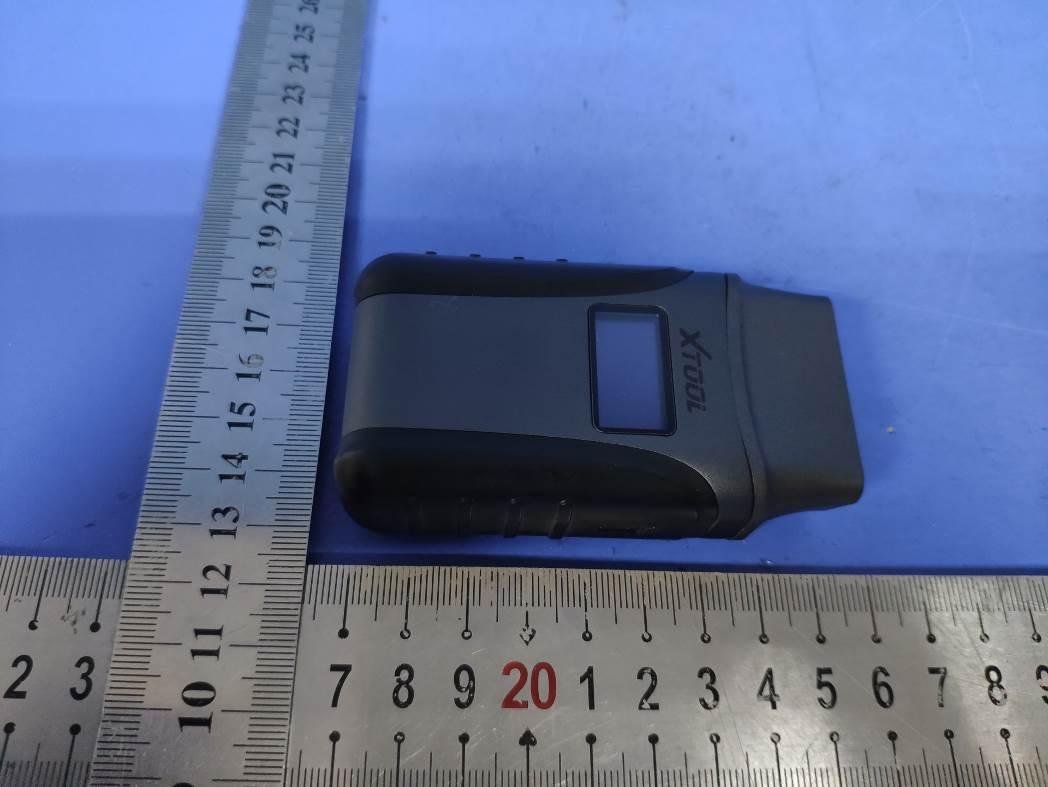

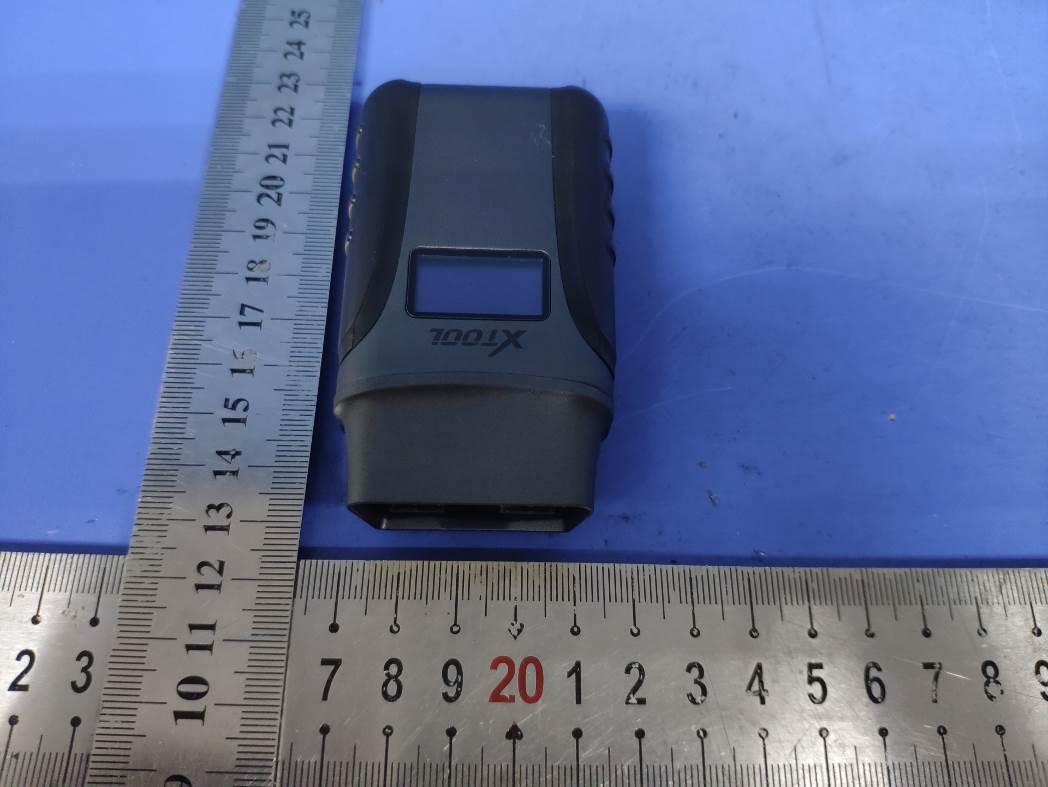

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-ANYSCANA30 8.EXTERIOR PHOTOGRAPHS Fig.1 Fig.2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-ANYSCANA30 Fig.3 Fig.4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-ANYSCANA30 Fig.5 Fig.6 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-ANYSCANA30 Fig.7

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-ANYSCANA30 This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 1 Label and Location Size: L2.0cm*W1.5cm Label Location Auto Diagnostic TOOL Model No.: Anyscan A30 FCC ID: 2AVEM-ANYSCANA30

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-ANYSCANA30 9.INTERIOR PHOTOGRAPHS Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-ANYSCANA30 Fig. 3 Fig. 4 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-ANYSCANA30 Fig. 5 Fig. 6 Antenna SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-ANYSCANA30 Fig. 7 Fig. 8 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-ANYSCANA30 Fig. 9 Fig. 10 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-ANYSCANA30 Fig. 11

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-ANYSCANA30 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 3 FCC RF Exposure Evaluation 1. Product Information FCC ID : 2AVEM-ANYSCANA30 Product name : Auto Diagnostic TOOL Test Model : Anyscan A30 Additional Model : VCI Dongle III, FleX Model Declaration : PCB board, structure and internal of these model(s) are the same, So no additional models were tested Power supply : Power Input: DC 12V/200mA DC 3.7V Built-in Li-ion Polymer Battery(100mAh) Operation frequency : 2402MHz-2480MHz Channel Number : 79 Channels Channel Spacing : 1MHz Modulation Type : GFSK, π/4-DQPSK, 8-DPSK Bluetooth Version : V3.0+EDR Antenna Type : PCB Antenna Antenna Gain : 2.0dBi(Max) Hardware version : V1.2 Software version : V1.0 Exposure category : General population/uncontrolled environment EUT Type : Production Unit Device Type : Portable Device 2. Evaluation method and Limit According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.“ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-ANYSCANA30 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 3 • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to f) in section 4.1 is applied to determine SAR test exclusion. When one of the following test exclusion conditions is satisfied for all combinations of simultaneous transmission configurations, further equipment approval is not required to incorporate transmitter modules in host devices that operate in the mixed mobile and portable host platform exposure conditions. The grantee is responsible for documenting this according to Class I permissive change requirements. Antennas that qualify for standalone SAR test exclusion must apply the estimated standalone SAR to determine simultaneous transmission test exclusion. a) The [∑ of (the highest measured or estimated SAR for each standalone antenna configuration, adjusted for maximum tune-up tolerance) / 1.6 W/kg] + [∑ of MPE ratios] is ≤ 1.0. b)The SAR to peak location separation ratios of all simultaneously transmitting antenna pairs operating in portable device exposure conditions are all ≤ 0.04, and the [∑ of MPE ratios] is ≤ 1.0. 3. Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1093: Radiofrequency radiation exposure evaluation: portable devices 4. Conducted Power Results <BT> Mode Channel Frequency (MHz) Peak Conducted Output Power (dBm) GFSK 0 2402 0.597 39 2441 -0.838 78 2480 -2.494 π/4DQPSK 0 2402 2.964 39 2441 1.426 78 2480 -0.280 8DPSK 0 2402 3.391 39 2441 1.868 78 2480 0.149 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-ANYSCANA30 ________________________________________________________________________ ___ This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 3 5. Manufacturing Tolerance GFSK (Peak) Channel Channel 0 Channel 39 Channel 78 Target (dBm) 0 …

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-ANYSCANA30 Report No.: LCS190823109AEA Page 1 of 47 Appendix A RF Test Data for BT V3.0(BDR/EDR) (Conducted Measurement) Product Name: Auto Diagnostic TOOL Trade Mark: XTOOL Test Model: Anyscan A30 Environmental Conditions Temperature: 23.7C Relative Humidity: 52.4% ATM Pressure: 100.0 kPa Test Engineer: Scout Wu Supervised by: Tom.Liu A.1 Maximum Conducted Peak Output Power Mode Channel. Maximum Peak Output Power [dBm] Limit [dBm] Verdict GFSK LCH 0.597 21 PASS MCH -0.838 21 PASS HCH -2.494 21 PASS π/4DQPSK LCH 2.964 21 PASS MCH 1.426 21 PASS HCH -0.280 21 PASS 8DPSK LCH 3.391 21 PASS MCH 1.868 21 PASS HCH 0.149 21 PASS SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-ANYSCANA30 Report No.: LCS190823109AEA Page 2 of 47 Test Graphs GFSK/LCH GFSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-ANYSCANA30 Report No.: LCS190823109AEA Page 3 of 47 GFSK/HCH π/4DQPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-ANYSCANA30 Report No.: LCS190823109AEA Page 4 of 47 π/4DQPSK/MCH π/4DQPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-ANYSCANA30 Report No.: LCS190823109AEA Page 5 of 47 8DPSK/LCH 8DPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-ANYSCANA30 Report No.: LCS190823109AEA Page 6 of 47 8DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-ANYSCANA30 Report No.: LCS190823109AEA Page 7 of 47 A.2 20dB Bandwidth Mode Channel. 20dB Bandwidth [MHz] Limit [MHz] Verdict GFSK LCH 0.9474 Not Specified PASS MCH 0.9503 Not Specified PASS HCH 0.9471 Not Specified PASS π/4DQPSK LCH 1.322 Not Specified PASS MCH 1.324 Not Specified PASS HCH 1.323 Not Specified PASS 8DPSK LCH 1.297 Not Specified PASS MCH 1.298 Not Specified PASS HCH 1.298 Not Specified PASS Test Graphs GFSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-ANYSCANA30 Report No.: LCS190823109AEA Page 8 of 47 GFSK/MCH GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-ANYSCANA30 Report No.: LCS190823109AEA Page 9 of 47 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-ANYSCANA30 Report No.: LCS190823109AEA Page 10 of 47 π/4DQPSK/HCH 8DPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-ANYSCANA30 Report No.: LCS190823109AEA Page 11 of 47 8DPSK/MCH 8DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-ANYSCANA30 Report No.: LCS190823109AEA Page 12 of 47 A.3 Carrier Frequency Separation Mode Channel. Carrier Frequency Separation [MHz] Limit [MHz] Verdict GFSK LCH 0.833 0.634 PASS MCH 1.082 0.634 PASS HCH 1.010 0.634 PASS π/4DQPSK LCH 1.214 0.883 PASS MCH 1.008 0.883 PASS HCH 1.102 0.883 PASS 8DPSK LCH 0.988 0.865 PASS MCH 1.168 0.865 PASS HCH 1.024 0.865 PASS Test Graphs GFSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-ANYSCANA30 Report No.: LCS190823109AEA Page 13 of 47 GFSK/MCH GFSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-ANYSCANA30 Report No.: LCS190823109AEA Page 14 of 47 π/4DQPSK/LCH π/4DQPSK/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-ANYSCANA30 Report No.: LCS190823109AEA Page 15 of 47 π/4DQPSK/HCH 8DPSK/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-ANYSCANA30 Report No.: LCS190823109AEA Page 16 of 47 8DPSK/MCH 8DPSK/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-ANYSCANA30 Report No.: LCS190823109AEA Page 17 of 47 A.4 Hopping Channel Number Mode Channel. Number of Hopping Channel [N] Limit [N] Verdict GFSK Hop 79 >=15 PASS π/4DQPSK Hop 79 >=15 PASS 8DPSK Hop 79 >=15 PASS Test Graphs GFSK/Hop π/4DQPSK/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-ANYSCANA30 Report No.: LCS190823109AEA Page 18 of 47 8DPSK/Hop SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-ANYSCANA30 Report No.: LCS190823109AEA Page 19 of 47 A.5 Dwell Time Mode Packet Channel Burst Width [ms/hop/ch] Total Hops[hop*ch] Dwell Time[s] Limit [s] Verdict GFSK DH5 LCH 2.9 106.7 0.309 0.4 PASS DH5 MCH 2.9 106.7 0.309 0.4 PASS DH5 HCH 2.9 106.7 0.309 0.4 PASS π/4DQPSK 2DH5 LCH 2.9 106.7 0.309 0.4 PASS 2DH5 MCH 2.9 106.7 0.309 0.4 PASS 2DH5 HCH 2.9 106.7 0.309 0.4 PASS 8DPSK 3DH5 LCH 2.9 106.7 0.309 0.4 PASS 3DH5 MCH 2.9 106.7 0.309 0.4 PASS 3DH5 HCH 2.9 106.7 0.309 0.4 PASS Test Graphs GFSK_DH5/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-ANYSCANA30 Report No.: LCS190823109AEA Page 20 of 47 GFSK_DH5/MCH GFSK_DH5/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-ANYSCANA30 Report No.: LCS190823109AEA Page 21 of 47 π/4DQPSK _2DH5/LCH π/4DQPSK _2DH5/MCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-ANYSCANA30 Report No.: LCS190823109AEA Page 22 of 47 π/4DQPSK _2DH5/HCH 8DPSK _3DH5/LCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-ANYSCANA30 Report No.: LCS190823109AEA Page 23 of 47 8DPSK _3DH5/MCH 8DPSK _3DH5/HCH SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-ANYSCANA30 Report No.: LCS190823109AEA Page 24 of 47 A.6 RF Conducted Spurious Emissions Mode Channel Pref [dBm] Max. Level [dBm] Limit [dBm] Verdict GFSK LCH 0.061 -36.815 -19.939 PASS MCH -1.436 -37.253 -21.436 PASS HCH -3.026 -37.556 -23.026 PASS π/4DQPSK LCH -0.076 -37.895 -20.076 PASS MCH -1.553 -38.320 -21.553 PASS HCH -3.197 -36.984 -23.197 PASS 8DPSK LCH -0.012 -37.544 -20.012 PASS MCH -1.441 -37.895 -21.441 PASS HCH -3.084 -37.317 -23.084 PASS GFSK_LCH_Graphs Pref SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-ANYSCANA30 Report No.: LCS190823109AEA Page 25 of 47 Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-ANYSCANA30 Report No.: LCS190823109AEA Page 26 of 47 GFSK_MCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-ANYSCANA30 Report No.: LCS190823109AEA Page 27 of 47 GFSK_HCH_Graphs Pref Puw SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-ANYSCANA30 Report No.: LCS190823109AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 1 of 36 FCC TEST REPORT FOR Shenzhen XTOOLTECH CO., LTD Auto Diagnostic TOOL Test Model: Anyscan A30 Additional Model No.: VCI Dongle III, FleX Prepared for : Shenzhen XTOOLTECH CO., LTD Address : 2nd Floor, Building No.2, Block 1, Excellence City, Shangmeilin, Futian District, Shenzhen 518000, China Prepared by : Shenzhen LCS Compliance Testing Laboratory Ltd. Address : 1/F., Xingyuan Industrial Park, Tongda Road, Bao’an Avenue, Bao’an District, Shenzhen, Guangdong, China Tel : (+86)755-82591330 Fax : (+86)755-82591332 Web : www.LCS-cert.com Mail : [email protected] Date of receipt of test sample : September 02, 2019 Number of tested samples : 1 Serial number : Prototype Date of Test : September 02, 2019 ~ March 04, 2020 Date of Report : March 17, 2020 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-ANYSCANA30 Report No.: LCS190823109AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 2 of 36 FCC TEST REPORT FCC CFR 47 PART 15 C(15.247) Report Reference No. ............... : LCS190823109AEA Date of Issue ................................. : March 17, 2020 Testing Laboratory Name .......... : Shenzhen LCS Compliance Testing Laboratory Ltd. Address ......................................... : 1/F., Xingyuan Industrial Park, Tongda Road, Bao’an Avenue, Bao’an District, Shenzhen, Guangdong, China Testing Location/ Procedure ........ : Full application of Harmonised standards ■ Partial application of Harmonised standards □ Other standard testing method □ Applicant’s Name ........................ : Shenzhen XTOOLTECH CO., LTD Address ......................................... : 2nd Floor, Building No.2, Block 1, Excellence City, Shangmeilin, Futian District, Shenzhen 518000, China Test Specification Standard ....................................... : FCC CFR 47 PART 15 C(15.247) Test Report Form No. ................... : LCSEMC-1.0 TRF Originator .............................. : Shenzhen LCS Compliance Testing Laboratory Ltd. Master TRF ................................... : Dated 2011-03 Shenzhen LCS Compliance Testing Laboratory Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen LCS Compliance Testing Laboratory Ltd. is acknowledged as copyright owner and source of the material. Shenzhen LCS Compliance Testing Laboratory Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test Item Description. ................ : Auto Diagnostic TOOL Trade Mark .................................... : XTOOL Test Model .................................... : Anyscan A30 Ratings .......................................... : Power Input: DC 12V/200mA DC 3.7V Built-in Li-ion Polymer Battery(100mAh) Result ......................................... : Positive Compiled by: Supervised by: Approved by: Vera Deng/ Administrators Jin Wang/ Technique principal Gavin Liang/ Manager SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-ANYSCANA30 Report No.: LCS190823109AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 3 of 36 FCC -- TEST REPORT Test Result Positive The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Test Report No. : LCS190823109AEA March 17, 2020 Date of issue Test Model........................... : Anyscan A30 EUT......................................... : Auto Diagnostic TOOL Applicant............................... : Shenzhen XTOOLTECH CO., LTD Address.................................. : 2nd Floor, Building No.2, Block 1, Excellence City, Shangmeilin, Futian District, Shenzhen 518000, China Telephone............................... : / Fax.......................................... : / Manufacturer........................ : Shenzhen XTOOLTECH CO., LTD Address................................... : 2nd Floor, Building No.2, Block 1, Excellence City, Shangmeilin, Futian District, Shenzhen 518000, China Telephone............................... : / Fax.......................................... : / Factory................................... : Shenzhen XTOOLTECH CO., LTD Address................................... : 2nd Floor, Building No.2, Block 1, Excellence City, Shangmeilin, Futian District, Shenzhen 518000, China Telephone............................... : / Fax.......................................... : / SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-ANYSCANA30 Report No.: LCS190823109AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 4 of 36 Revision History Revision Issue Date Revisions Revised By 000 March 17, 2020 Initial Issue Gavin Liang SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-ANYSCANA30 Report No.: LCS190823109AEA This report shall not be reproduced except in full, without the written approval of Shenzhen LCS Compliance Testing Laboratory Ltd. Page 5 of 36 TABLE OF CONTENTS Description Page 1.GENERAL INFORMATION ....................................................................................................... 6 1.1 Description of Device (EUT) ............................................................................................................ 6 1.2 Support equipment List .................................................................................................................... 6 1.3 External I/O Cable ..…

Text truncated - open the document above for the full version.

SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-ANYSCANA30 _______________________________________________________________________________________________ 9. TEST SETUP PHOTOGRAPHS 1.1. Photo of Radiated Emissions Measurement Fig. 1 Fig. 2 SHENZHEN LCS COMPLIANCE TESTING LABORATORY LTD. FCC ID: 2AVEM-ANYSCANA30 _______________________________________________________________________________________________ 1.2. Photo of Conducted Emissions Measurement Fig. 3
