2AWAA-T12MThermal Imaging Camera

T12-M User's manual Copyright © 2023 DALI TECHNOLOGY 2 ! WARNING, CAUTION AND ATTENTION Definition ! A warning represents a dangerous situation or action that could result in personal injury or death. ! Caution represents a condition or action that may result in damage to the camera or permanent loss of data. ! Attention represents useful information for the user. Important – Read before using the instrument ! WARNING – This instrument has a built-in laser transmitter. Do not stare at the laser beam. The laser specification is 635 nm, 0.9 mW, second order. ! CAUTION – As the camera uses a very sensitive thermal sensor, under no circumstances (power on or off) should the lens be aimed directly at a strong radiation source (such as the sun, direct or reflected laser beam, etc.), otherwise the camera will be permanently damaged! ! Caution-The original packing box must be used during transportation. Do not shake or hit the thermal imager strongly during use and transportation. ! CAUTION – It is recommended that the camera be stored in the original container in a cool, dry, ventilated environment free of strong electromagnetic fields. ! CAUTION-Avoid staining and damaging the lens surface with oil and various chemicals. After use, close the lens cap. ! Caution-To prevent potential data loss, copy (back) the data to your computer frequently. ! Note-The camera may require a 3-5 minute warm-up period before accurate readings can be taken. ! Note-Temperature calibration is performed on each thermal imager when it leaves the factory. It is recommended to perform temperature calibration every year. ! CAUTION-Do not open or modify the enclosure without authorization. Only authorized personnel of the company can carry out maintenance. 3 Table of contents Catalog ! WARNING, CAUTION AND ATTENTION ....................................................................................... 2 Table of contents ............................................................................... 3 1 Introduction ........................................................................................ 6 1.1 Standard configuration ........................................................................................................... 8 1.2 Optional configuration ........................................................................................................... 8 2 Introduction to thermal imagers ................................................................. 9 2.1 Function key ............................................................................................................................ 9 2.2 Interface ................................................................................................................................ 11 3 Basic operation .................................................................................. 12 3.1 Battery installation and replacement .................................................................................... 12 3.1.1 Battery handling ............................................................................................................ 12 3.1.2 Replace the battery ........................................................................................................ 12 3.2 Common sense of safe use of battery ................................................................................... 13 3.3 Lens loading and unloading ................................................................................................. 14 3.4 Quick start ............................................................................................................................ 15 3.4.1 Get a thermal image ...................................................................................................... 15 3.4.2 Temperature Measure ................................................................................................... 15 3.4.3 Store the image.............................................................................................................. 17 3.4.4 Play back the image ...................................................................................................... 17 3.4.5 ExportImage .................................................................................................................. 17 4 3.4.6 LCD screen settings ...................................................................................................... 17 3.4.7 Menu operating instructions .......................................................................................... 18 4 Operating instructions .......................................................................... 19 4.1 Description of operation interface ........................................................................................ 19 4.1.1 User interface of thermal imager working status .......................................................... 19 4.1.2 Drop-down menu .......................................................................................................... 21 4.1.3 Main menu interface ..................................................................................................... 21 4.2 Laser ...................................................................................................................................... 22 This function is used to turn on/off the laser, and laser ranging can be performed when it is turned on ..................................................................................................................................... 22 4.3 Image mode switching ......................................................................................................... 22 4.4 Image adjustment ................................................................................................................. 23 4.5 Temperature measurement mode ........................................................................................…

Text truncated - open the document above for the full version.

ZHEJIANG DALI TECHNOLOGY CO., LTD * the applicant must designate a contact located in the United States for purposes of acting as the applicant’s agent for service of process, regardless of whether the applicant is a domestic or foreign entity. An applicant located in the United States may designate itself as the agent for service of process. U.S. Agent Designation for Service of Process - Certification Attestation Letter January 5, 2024 Nemko North America, Inc. 303 River Road Ottawa K1V 1H2 Canada ATTN.: Reviewing Engineer FCC ID: 2AWAA-T12M Per section 2.911(d)(7) of the FCC rules, ZHEJIANG DALI TECHNOLOGY CO.,LTD (“the applicant”) , FRN: 0029512258 certifies that the equipment for which authorization is sought is designated to the following U.S. Designated agent* for service of process: Company Name: EMCTEK Physical U.S. Company Address: 11788 Big Canyon Ln, San Diego, CA 92131 USA Agent name: Fang Liu Agent Email Address: [email protected] FRN: 0033401829 The above contact person accepts the obligation for service of process. The applicant accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Applicant Signed: Designated Agent Signed: (Required, if different to Applicant): Signed: Signed: Printed name: Shi changbing Printed name: Fang Liu Title: Manager Title: / Company Name: ZHEJIANG DALI TECHNOLOGY CO., LTD Company Name: EMCTEK Date: January 5, 2024 Date: January 5, 2024 FRN Code: 0029512258 FRN Code: 0033401829

ZHEJIANG DALI TECHNOLOGY CO., LTD Covered Equipment Certification Attestation Letter 12/20/2023 Nemko North America, Inc. 303 River Road Ottawa K1V 1H2 Canada ATTN.: Reviewing Engineer FCC ID: 2AWAA-T12M ZHEJIANG DALI TECHNOLOGY CO., LTD (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Note: If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List , the applicant should include an explanation on why the equipment is not “covered” equipment. ZHEJIANG DALI TECHNOLOGY CO., LTD (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Signature: Name: Shi changbing Company: ZHEJIANG DALI TECHNOLOGY CO., LTD Address: NO639 Binkang Road, Hangzhou, P.R.CHINA 310053 Phone: 8657186483758 Fax: 8657186483758 E-Mail: [email protected]

ZHEJIANG DALI TECHNOLOGY CO., LTD Date: 2023.12.20 FCC ID: 2AWAA-T12M Dear Sir/Madam, We, ZHEJIANG DALI TECHNOLOGY CO., LTD Hereby declares the following statement for Federal Communications Commission, All these models are identical in the same in structure/host enclosure, internal circuitry/PCB components, hardware/software, The only difference is sales channels. Product name: Thermal Imaging Camera Model no.: T12-M, T12, IR12, IR12-M Sincerely, Signature: Name: Shi changbing Company: ZHEJIANG DALI TECHNOLOGY CO., LTD Address: NO639 Binkang Road, Hangzhou, P.R.CHINA 310053 Phone: 8657186483758 Fax: 8657186483758 E-Mail: [email protected]

ZHEJIANG DALI TECHNOLOGY CO., LTD Date: 2023.12.20 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID:_ 2AWAA-T12M ___ Product Name:__ Thermal Imaging Camera ________ Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential: (List here the documents for which you are seeking confidentiality – for example ...) • Schematics • Block Diagram • Operation Description • Tune-up power table These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. Signature: Name: Shi changbing Company: ZHEJIANG DALI TECHNOLOGY CO., LTD Address: NO639 Binkang Road, Hangzhou, P.R.CHINA 310053 Phone: 8657186483758 Fax: 8657186483758 E-Mail: [email protected]

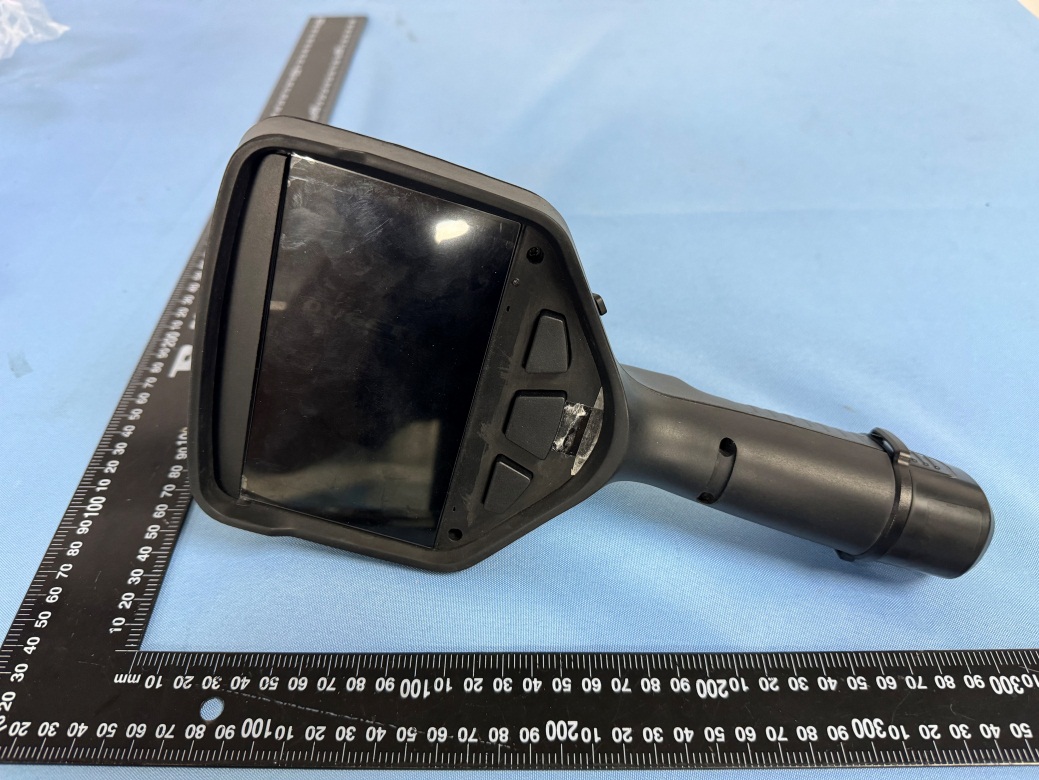

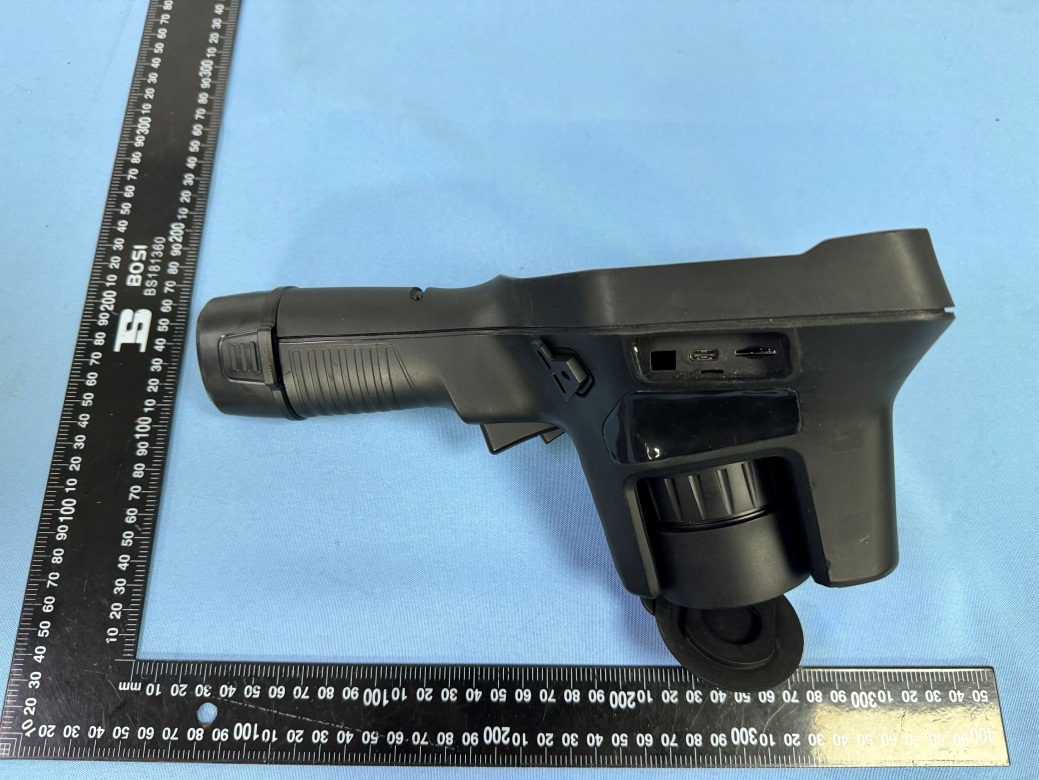

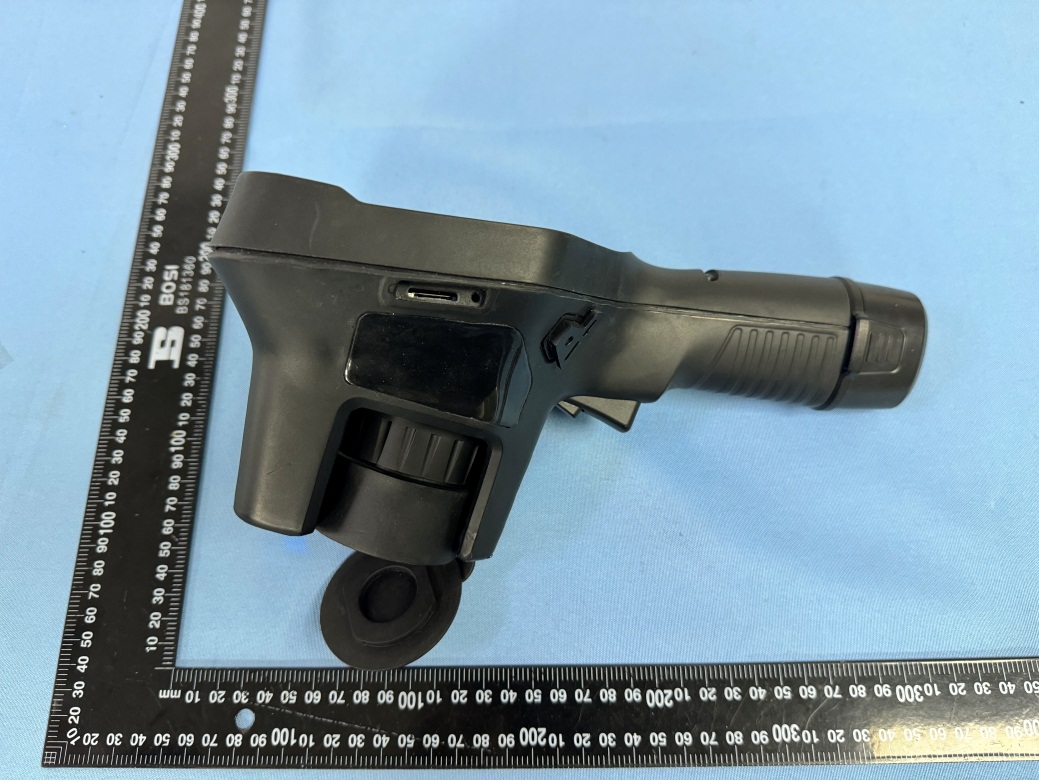

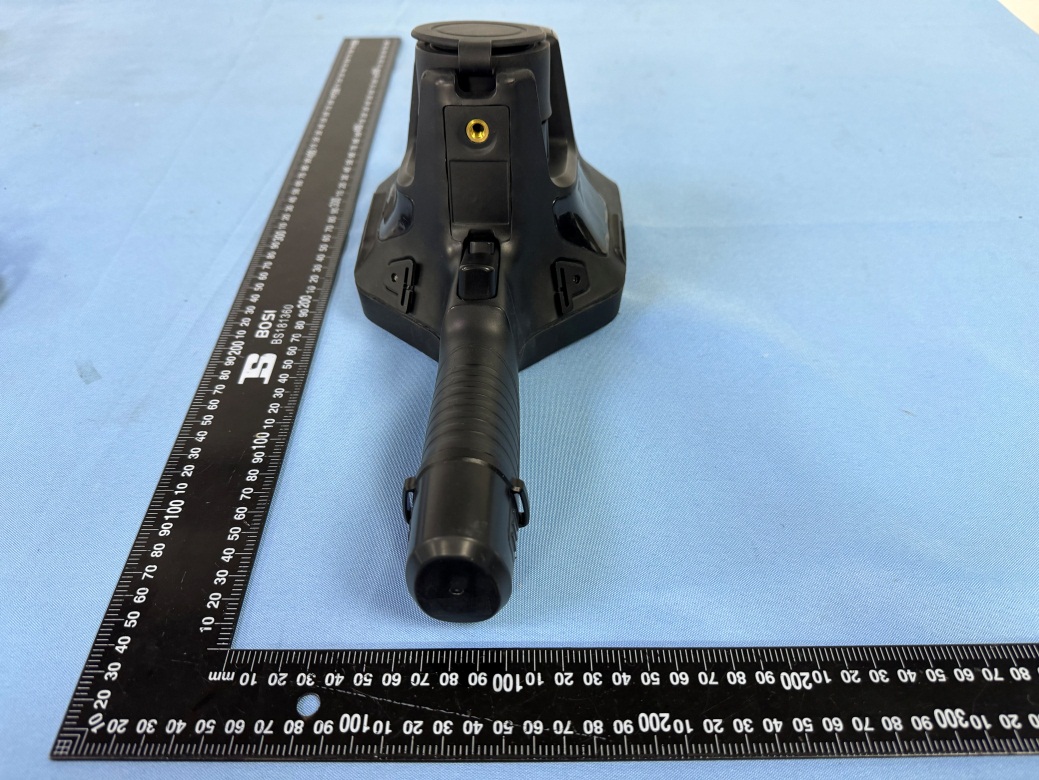

CTC Laboratories, Inc. 1- 2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel: +86-755- 27521059 Fax: +86-755- 27521011 Http://www.sz-ctc.org.cn Page 1 of 4 External Photographs Page 2 of 4 Page 3 of 4 Page 4 of 4

CTC Laboratories, Inc. 1-2/F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel: +86-755- 27521059 Fax: +86-755- 27521011 Http://www.sz-ctc.org.cn Page 1 of 1 Label Label Location 1.

CTC Laboratories, Inc. 1- 2/ F., Building 2, Jiaquan Building, Guanlan High-Tech Park, Shenzhen, Guangdong, China Tel: +86-755- 27521059 Fax: +86-755- 27521011 Http://www.sz-ctc.org.cn Page 1 of 13 Internal Photographs Page 2 of 13 BT/ WIFI 1 Ant WIFI 2 Ant Page 3 of 13 Page 4 of 13 Page 5 of 13 Page 6 of 13 Page 7 of 13 Page 8 of 13 Page 9 of 13 Page 10 of 13 Page 11 of 13 Page 12 of 13 Page 13 of 13

Page 1 of 57 Report No.: S23110201002001 FCC SAR EVALUATION REPORT In accordance with the requirements of FCC 47 CFR Part 2(2.1093), ANSI/IEEE C95.1-1992 and IEEE Std 1528-2013 Product Name： Thermal Imaging Camera Trademark： N/A Model Name： T12-M Family Model： T12, IR12, IR12-M Report No.： S23110201002001 FCC ID： 2AWAA-T12M Prepared for ZHEJIANG DALI TECHNOLOGY CO.,LTD No.639 Binkang Road, Binjiang District, 310053 Hangzhou, P.R.CHINA Prepared by Shenzhen NTEK Testing Technology Co., Ltd. 1&5/F, Building C, 1&2/F, Building E, Fenda Science Park, Sanwei Community, Hangcheng Street, Baoan District, Shenzhen ,Guangdong, China Tel. 400-800-6106, 0755-2320 0050, 0755-2320 0090 Website: http://www.ntek.org.cn Page 2 of 57 Report No.: S23110201002001 TEST RESULT CERTIFICATION Applicant’s name .................. : ZHEJIANG DALI TECHNOLOGY CO.,LTD Address .................................. : No.639 Binkang Road, Binjiang District, 310053 Hangzhou, P.R.CHINA Manufacturer's Name ........... : ZHEJIANG DALI TECHNOLOGY CO.,LTD Address .................................. : No.639 Binkang Road, Binjiang District, 310053 Hangzhou, P.R.CHINA Product description Product name ......................... : Thermal Imaging Camera Trademark ............................ : N/A Model Name ......................... : T12-M Family Model .......................... : T12, IR12, IR12-M Standards .............................. : FCC 47 CFR Part 2(2.1093) ANSI/IEEE C95.1-1992 IEEE Std 1528-2013 Published RF exposure KDB procedures This device described above has been tested by Shenzhen NTEK. In accordance with the measurement methods and procedures specified in IEEE Std 1528-2013 and KDB 865664 D01. Testing has shown that this device is capable of compliance with localized specific absorption rate (SAR) specified in FCC 47 CFR Part 2(2.1093) and ANSI/IEEE C95.1-1992. The test results in this report apply only to the tested sample of the stated device/equipment. Other similar device/equipment will not necessarily produce the same results due to production tolerance and measurement uncertainties. This report shall not be reproduced except in full, without the written approval of Shenzhen NTEK, this document may be altered or revised by Shenzhen NTEK, personal only, and shall be noted in the revision of the document. Test Sample Number .............................. : S231102010001 Date of Test Date (s) of performance of tests ............. : Nov. 10, 2023 Date of Issue ........................................... : Nov. 10, 2023 Test Result............................................... : Pass Prepared By : Reviewed By : Approved By : Jack Li (Project Engineer) Aaron Cheng (Supervisor) Alex Li (Manager) Page 3 of 57 Report No.: S23110201002001 ※ ※ Revision History ※ ※ REV. DESCRIPTION ISSUED DATE REMARK Rev.1.0 Initial Test Report Release Nov. 10, 2023 Jack Li Page 4 of 57 Report No.: S23110201002001 TABLE OF CONTENTS 1. General Information ............................................................................................ 6 1.1. RF exposure limits .................................................................................... 6 1.2. Statement of Compliance ........................................................................ 7 1.3. EUT Description ....................................................................................... 7 1.4. Test specification(s) .................................................................................. 8 1.5. Ambient Condition ................................................................................... 8 2. SAR Measurement System ................................................................................... 9 2.1. SATIMO SAR Measurement Set-up Diagram ............................................ 9 2.2. Robot ..................................................................................................... 10 2.3. E-Field Probe .......................................................................................... 11 2.3.1. E-Field Probe Calibration ................................................................. 11 2.4. SAM phantoms ...................................................................................... 12 2.4.1. Technical Data .................................................................................. 13 2.5. Device Holder ........................................................................................ 14 2.6. Test Equipment List ................................................................................ 15 3. SAR Measurement Procedures .......................................................................... 17 3.1. Power Reference ................................................................................... 17 3.2. Area scan & Zoom scan .......................................................................... 17 3.3. Description of interpolation/extrapolation scheme .............................. 19 3.4. Volumetric Scan ..................................................................................... 19 3.5. Power Drift ............................................................................................ 19 4. System Verification Procedure .......................................................................... 20 4.1. Tissue Verification ................................................................................. 20 4.1.1. Tissue Dielectric Parameter Check Results ...................................... 21 4.2. System Verification Procedure .............................................................. 22 4.2.1. System Verification Results .............................................................. 23 5. SAR Measurement variability and uncertainty .................................................. 24 5.1. SAR measurement variability ................................................................. 24 5.2. SAR measurement uncertainty .................................................…
