2AWHY-B0110WUUK Chime

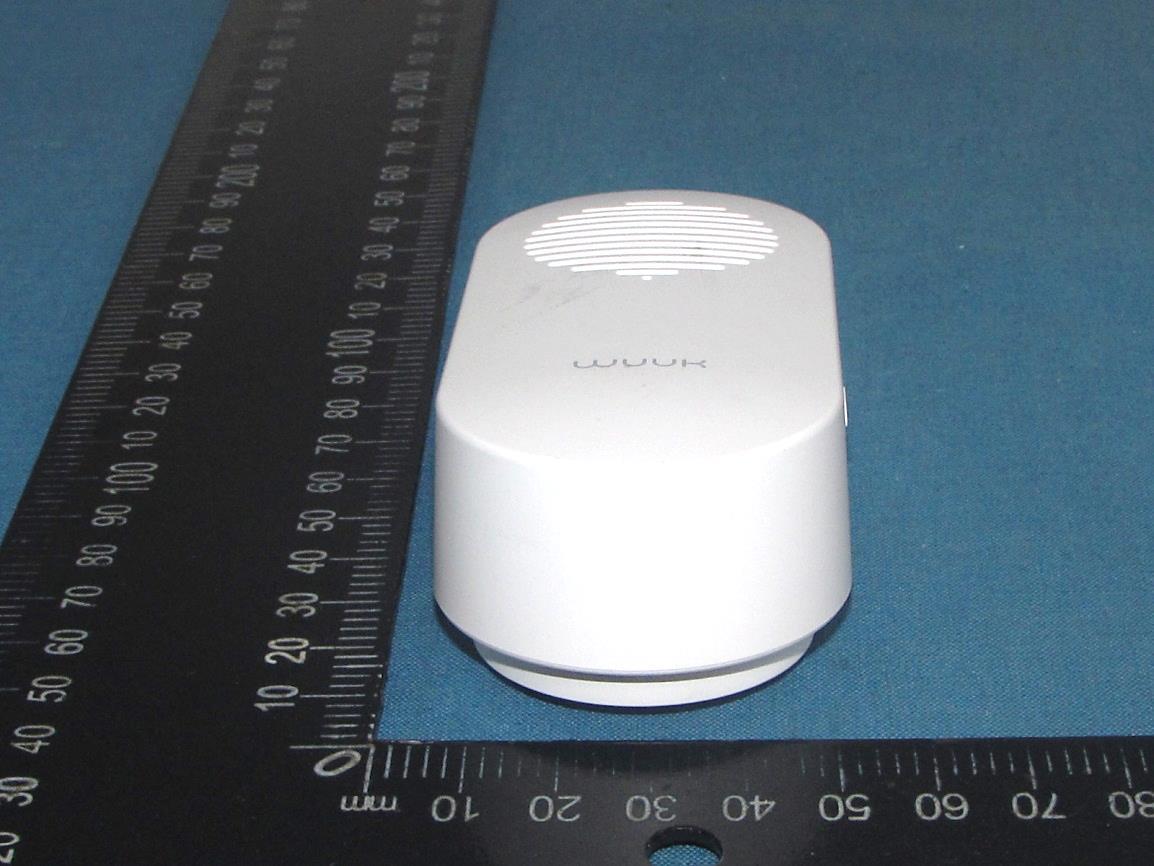

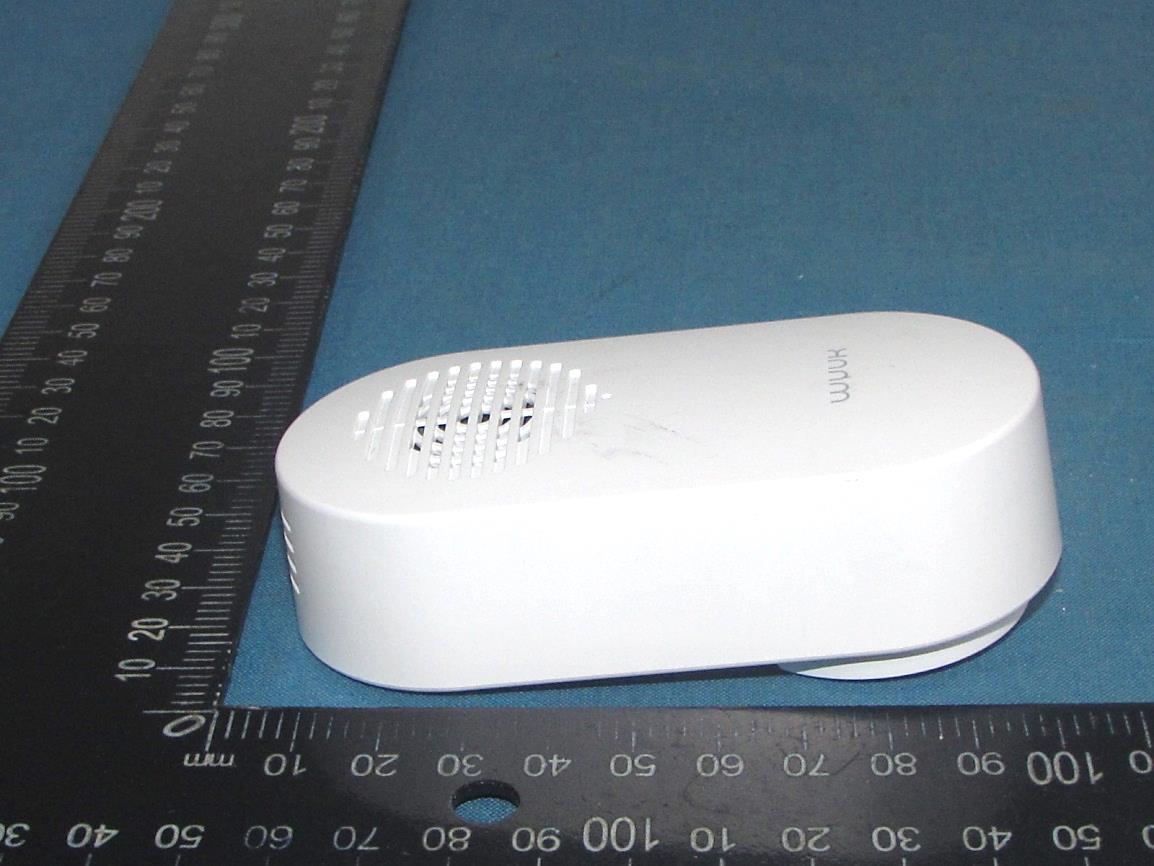

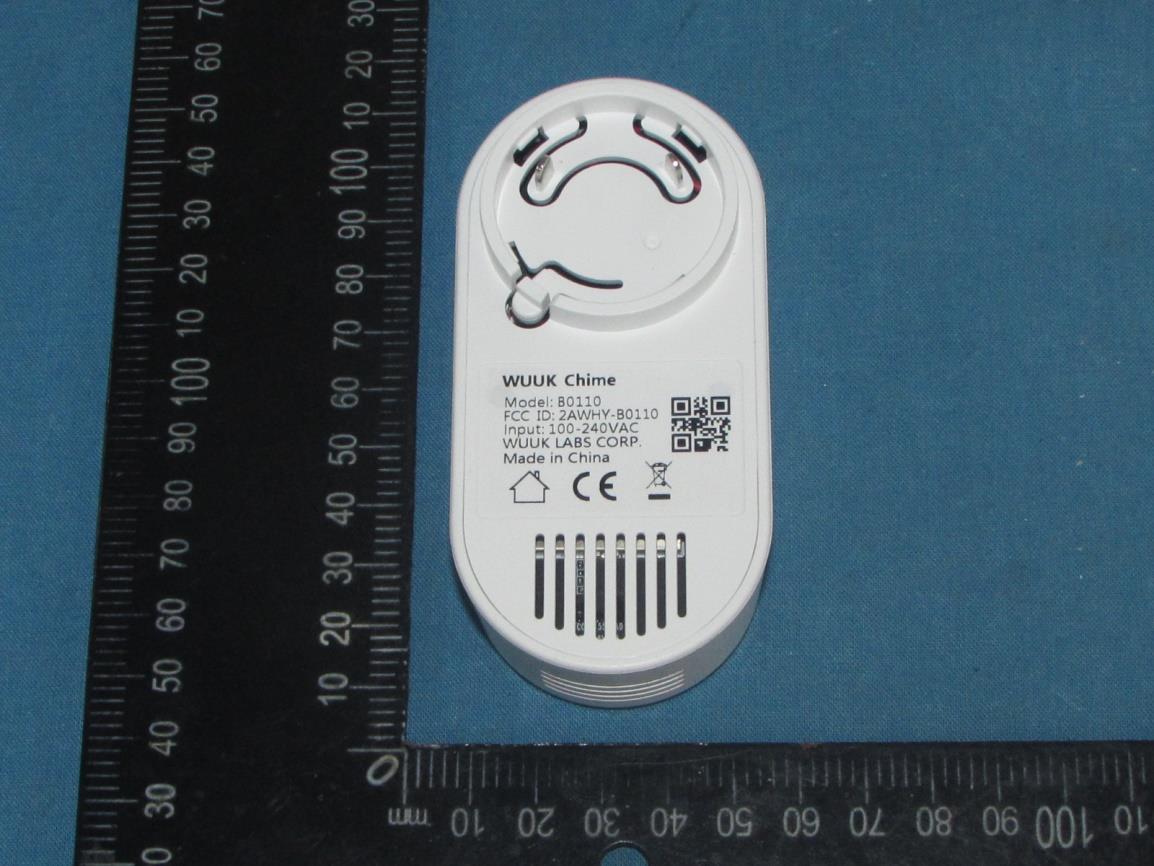

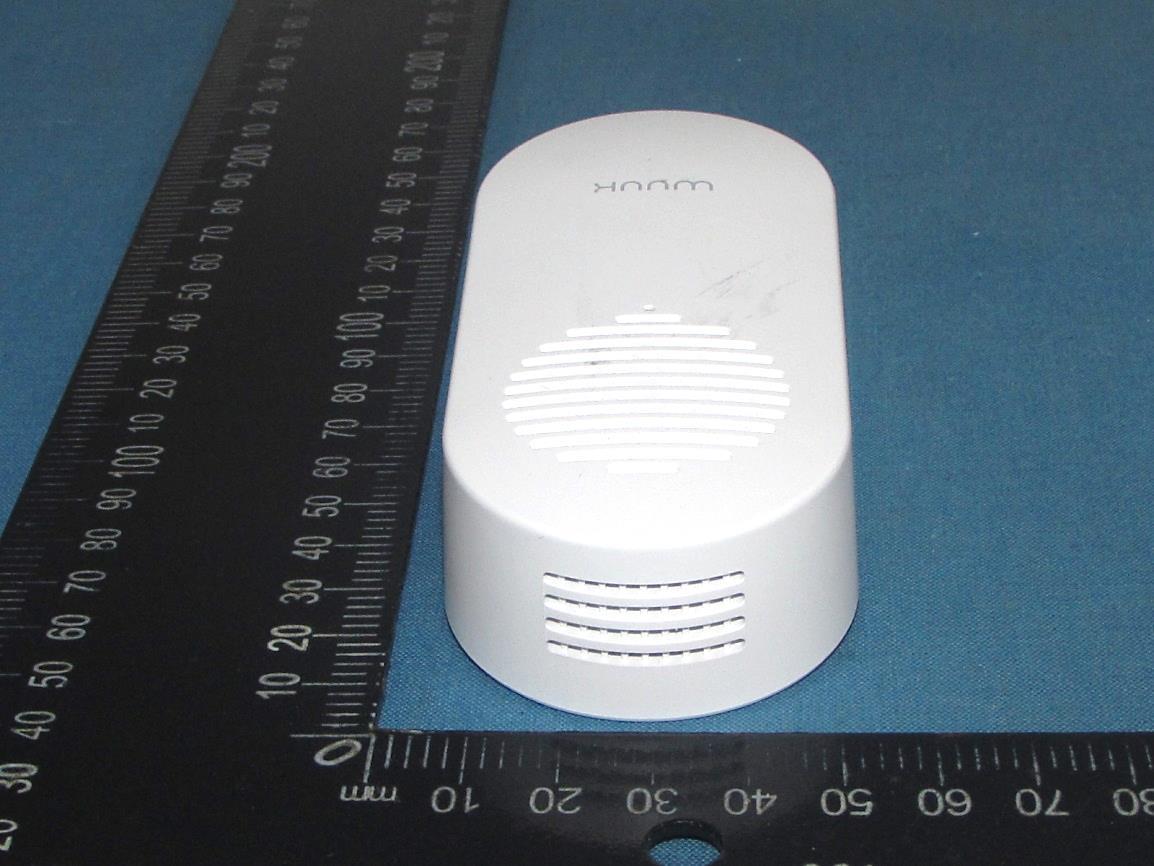

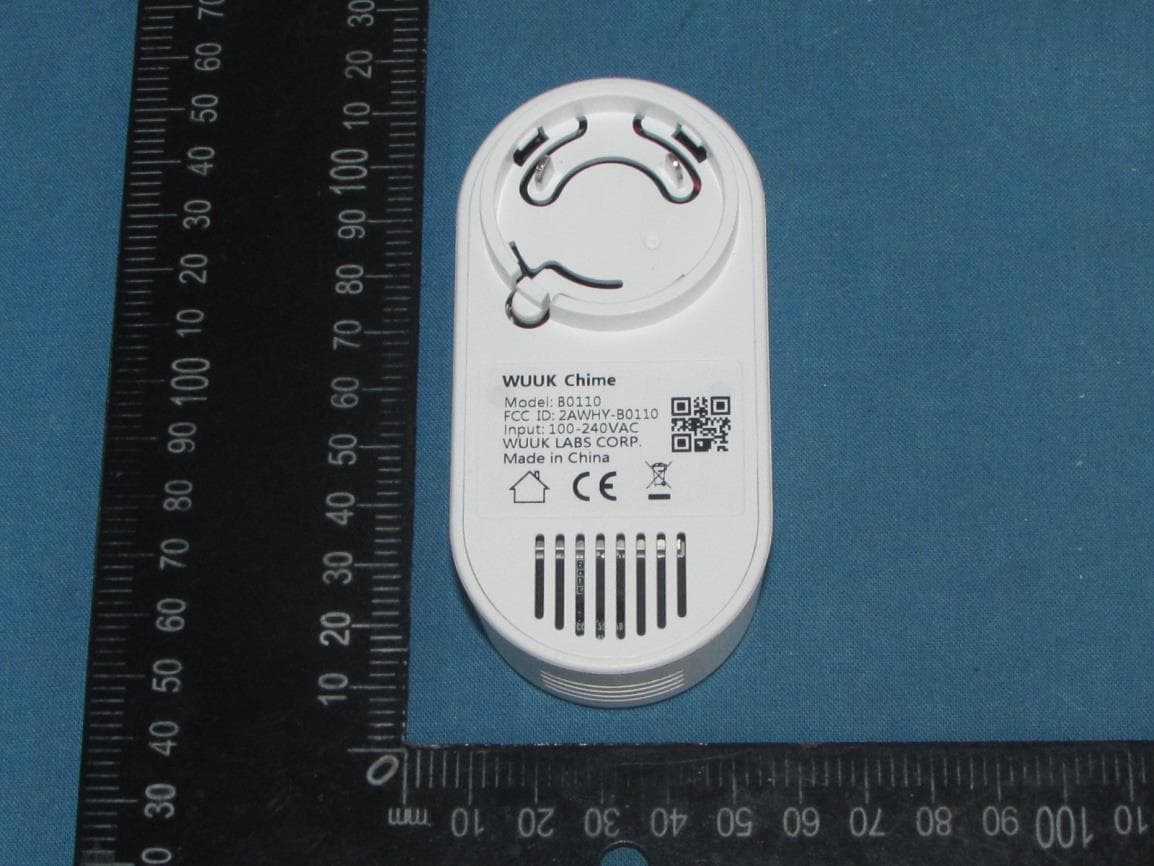

Shenzhen Tongzhou Testing Co.,Ltd. FCC ID: 2AWHY-B0110 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd. Page 1 of 4 EXTERIOR PHOTOGRAPHS OF EUT External Photos Shenzhen Tongzhou Testing Co.,Ltd. FCC ID: 2AWHY-B0110 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd. Page 2 of 4 Shenzhen Tongzhou Testing Co.,Ltd. FCC ID: 2AWHY-B0110 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd. Page 3 of 4 Shenzhen Tongzhou Testing Co.,Ltd. FCC ID: 2AWHY-B0110 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd. Page 4 of 4

Unit: mm

Shenzhen Tongzhou Testing Co.,Ltd FCC ID:2AWHY-B0110 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 4 INTERIOR PHOTOGRAPHS OF EUT Internal Photos Shenzhen Tongzhou Testing Co.,Ltd FCC ID:2AWHY-B0110 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 4 Shenzhen Tongzhou Testing Co.,Ltd FCC ID:2AWHY-B0110 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 4 WiFi Antenna Shenzhen Tongzhou Testing Co.,Ltd FCC ID:2AWHY-B0110 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 4 of 4

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AWHY-B0110 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 5 Maximum Permissible Exposure Report Product Information EUT : WUUK Chime Model Number : B0110 Model Declaration : N/A Test Model : B0110 Power Supply : 100-240V~ 50/60Hz 0.3A Hardware version : BX-B0110_V1.1 Software version : V1.0 Sample ID : TZ230604472–2#&TZ230604472–4# WiFi WLAN : Supported IEEE 802.11b/g/n WLAN FCC Operation Frequency : IEEE 802.11b:2412-2462MHz IEEE 802.11g:2412-2462MHz IEEE 802.11n HT20:2412-2462MHz IEEE 802.11n HT40: 2422-2452MHz WLAN Channel Number : 11 Channels for 2412-2462MHz(IEEE 802.11b/g/n HT20) 7 Channels for 2422-2452MHz(IEEE 802.11n HT40) WLAN Modulation Technology : IEEE 802.11b: DSSS(CCK,DQPSK,DBPSK) IEEE 802.11g: OFDM (64QAM, 16QAM, QPSK, BPSK) IEEE 802.11n: OFDM (64QAM, 16QAM, QPSK, BPSK) Antenna Type And Gain : Antenna 1:3.52dBi (Max.), for TX/RX (WLAN 2.4G Band) Note 1: Antenna position refer to EUT Photos. Note 2: the above information was supplied by the applicant. 2. Evaluation Method Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. In accordance with KDB447498D01 for Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modelled or measured field strengths or power density, is ≤ 1.0. The MPE ratio of each antenna is determined at the minimum test separation distance required by the operating configurations and exposure conditions of the host device, according to the ratio of field strengths or power density to MPE limit, at the test frequency. Either the maximum peak or spatially averaged results from measurements or numerical simulations may be used to determine the MPE ratios. Spatial averaging does not apply when MPE is estimated using simple calculations based on far-field plane-wave equivalent conditions. The antenna installation and operating requirements for the host device must meet the minimum test separation distances required by all antennas, in both standalone and simultaneous transmission operations, to satisfy compliance. Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AWHY-B0110 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 5 3. Limit 3. 1 Refer evaluation method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General 1 RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices 3. 2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 4. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 5. Antenna Information This Product can only use antennas certificated as follows provided by manufacturer; Antenna Gain and type refer to Product information Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AWHY-B0110 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 5 6. Conducted Power WiFi 2.4GHz Band TestMode Antenna Channel Result[dBm] 11B Ant1 2412 13.41 2437 14.46 2462 13.24 11G Ant1 2412 7.50 2437 8.33 2462 7.43 11N20SISO Ant1 2412 6.33 2437 7.05 2462 6.20 11N40SISO Ant1 2422 4.39 2437 1.88 2452 4.27 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AWHY-B0110 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 4 of 5 7. Manufacturing Tolerance WiFi 2.4GHz Band – Antenna 1 IEEE 802.11b(Average) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 13.0 14.0 12.5 Tolerance ±(dB) 1.0 1.0 1.0 IEEE 802.11g (Average) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 7.0 8.0 7.0 Tolerance ±(dB) 1.0 1.0 1.0 IEEE 802.11n HT20 (Average) Channel Channel 1 Channel 6 Channel 11 Target (dBm) 6.0 6.5 5.5 Tolerance ±(dB) 1.0 1.0 1.0 IEEE 802.11n HT40 (Average) Channel Channel 3 Channel 6 Channel 9 Target (dBm) 4.0 1.5 4.0 Tolerance ±(dB) 1.0 1.0 1.0 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AWHY-B0110 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 5 of 5 8. Measurement Results 8.1 St…

Text truncated - open the document above for the full version.

SPECIFICATION ShenZhen TianDa Communication CO., LTD B0110 antenna Product Recognition Letter Customer WUUK Frequency band 2400-2500MHz Project name B0110 Version A Project item number BX-B1-10-WI-A 02.06.0024 Color natural colour R F design Xinchuang Wang Structure Design Luhong Zhou Date 2023.06.28 Customer confirmation: Does the assembly meet your company's requirements：□OK □NG ShenZhen TianDa Communication CO., LTD. 302 Building A, JinGang science and Technology Park, Qiaotou community, Fuhai Street, Bao'an District, Shenzhen Confidential Information Page 2 Catalogue 一、WIFI antenna.........................................................................................................................3 1、specifications........................................................................................................................3 1.1 Electrical specifications........................................................................................................3 1.1.1 Electrical performance index..............................................................................................3 1.1.2 Matching circuit diagrams..................................................................................................3 1.2、Test....................................................................................................................................4 1.2.1、Passive test data.............................................................................................................4 1.2.1.1、Antenna in wave diagram...........................................................................................4 1.2.1.2、Antenna gain, and efficiency......................................................................................4 1.2.1.3、antenna pattern ..........................................................................................................5 1.2.2、Active test data of the whole machine.......................................................................6 二、Structural specifications.................................................................................................6 2.1、Antenna composition....................................................................................................6 2. 2、engineering drawing....................................................................................................7 2.3、dimensional measurement............................................................................................7 三、Conclusion........................................................................................................................7 四、package...............................................................................................................................7 Confidential Information Page 3 1、WIFI antenna 1. Specifications This admission letter mainly provides the test status of the electrical and structural performance parameters of the WIFI antenna in the B0110 project. Below is a picture of the WIFI antenna. 1.1、Electrical specifications 1.1.1. Electrical performance index The antenna working frequency band of the project is 2400-2500 MHz, and below are the electrical performance indicators of the antenna design and trial production. WIFI frequency range frequency（MHz） VSWR WIFI 2400~2500 ≤2.0 1.1.2、Matching circuit diagrams The matching circuit of WIFI antenna is 0.5 pF capacitor in parallel from the antenna end, and 3.9 nH inductance in series。 Confidential Information Page 4 1.2. Test 1.2.1. Passive test 1.2.1.1. Antenna standing wave test (VSWR) 1.2.1.2、Antenna gain, and efficiency 1.2.1.3、antenna pattern Confidential Information Page 5 Confidential Information Page 6 1.2.2、Active test data of the whole machine Above is the WIFI active test antenna data of the whole machine. 2、Structural specifications 2.1. Composition of the antenna The WIFI antenna is mainly composed of foreign white copper. 2.2、engineering drawing

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AWHY-B0110 Report No.: TZ230604472-E Page 1 of 38 Appendix Test Data for WLAN(2.4G) (Conducted Measurement) Product Name: WUUK Chime Trade Mark: WUUK Test Model: B0110 FCC ID: 2AWHY-B0110 Environmental Conditions Temperature: 25.5C Relative Humidity: 55% ATM Pressure: 100.0 kPa Test Engineer: Anna Hu Supervised by: Hugo Chen NOTE N/A Appendix A: DTS Bandwidth Test Result TestMode Antenna Channel DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 8.560 2407.960 2416.520 0.5 PASS 2437 9.560 2431.960 2441.520 0.5 PASS 2462 8.600 2457.920 2466.520 0.5 PASS 11G Ant1 2412 16.040 2404.080 2420.120 0.5 PASS 2437 16.320 2428.840 2445.160 0.5 PASS 2462 16.320 2453.840 2470.160 0.5 PASS 11N20SISO Ant1 2412 16.680 2404.080 2420.760 0.5 PASS 2437 17.480 2428.240 2445.720 0.5 PASS 2462 17.400 2453.360 2470.760 0.5 PASS 11N40SISO Ant1 2422 33.600 2405.680 2439.280 0.5 PASS 2437 35.040 2419.480 2454.520 0.5 PASS 2452 36.080 2434.080 2470.160 0.5 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AWHY-B0110 Report No.: TZ230604472-E Page 2 of 38 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 11G_Ant1_2412 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AWHY-B0110 Report No.: TZ230604472-E Page 3 of 38 11G_Ant1_2437 11G_Ant1_2462 11N20SISO_Ant1_2412 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AWHY-B0110 Report No.: TZ230604472-E Page 4 of 38 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AWHY-B0110 Report No.: TZ230604472-E Page 5 of 38 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AWHY-B0110 Report No.: TZ230604472-E Page 6 of 38 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Channel OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 12.945 2405.6197 2418.5647 --- --- 2437 12.891 2430.5275 2443.4185 --- --- 2462 12.942 2455.5684 2468.5104 --- --- 11G Ant1 2412 17.578 2403.4065 2420.9845 --- --- 2437 17.315 2428.3713 2445.6863 --- --- 2462 17.413 2453.3861 2470.7991 --- --- 11N20SISO Ant1 2412 18.309 2402.9473 2421.2563 --- --- 2437 18.252 2427.8259 2446.0779 --- --- 2462 18.379 2452.8355 2471.2145 --- --- 11N40SISO Ant1 2422 36.618 2403.9480 2440.5660 --- --- 2437 36.472 2418.7663 2455.2383 --- --- 2452 36.918 2433.6777 2470.5957 --- --- Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AWHY-B0110 Report No.: TZ230604472-E Page 7 of 38 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 11G_Ant1_2412 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AWHY-B0110 Report No.: TZ230604472-E Page 8 of 38 11G_Ant1_2437 11G_Ant1_2462 11N20SISO_Ant1_2412 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AWHY-B0110 Report No.: TZ230604472-E Page 9 of 38 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AWHY-B0110 Report No.: TZ230604472-E Page 10 of 38 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AWHY-B0110 Report No.: TZ230604472-E Page 11 of 38 Appendix C: Maximum conducted output power Test Result TestMode Antenna Channel Result[dBm] Limit[dBm] Verdict 11B Ant1 2412 13.41 ≤30.00 PASS 2437 14.46 ≤30.00 PASS 2462 13.24 ≤30.00 PASS 11G Ant1 2412 7.50 ≤30.00 PASS 2437 8.33 ≤30.00 PASS 2462 7.43 ≤30.00 PASS 11N20SISO Ant1 2412 6.33 ≤30.00 PASS 2437 7.05 ≤30.00 PASS 2462 6.20 ≤30.00 PASS 11N40SISO Ant1 2422 4.39 ≤30.00 PASS 2437 1.88 ≤30.00 PASS 2452 4.27 ≤30.00 PASS Note：The Duty Cycle Factor is compensated in the test result. Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AWHY-B0110 Report No.: TZ230604472-E Page 12 of 38 Appendix D: Maximum power spectral density Test Result TestMode Antenna Channel Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict 11B Ant1 2412 -14.48 ≤8.00 PASS 2437 -13.09 ≤8.00 PASS 2462 -14.55 ≤8.00 PASS 11G Ant1 2412 -21.72 ≤8.00 PASS 2437 -20.61 ≤8.00 PASS 2462 -21.34 ≤8.00 PASS 11N20SISO Ant1 2412 -22.27 ≤8.00 PASS 2437 -21.47 ≤8.00 PASS 2462 -22.04 ≤8.00 PASS 11N40SISO Ant1 2422 -27.54 ≤8.00 PASS 2437 -24.99 ≤8.00 PASS 2452 -24.9 ≤8.00 PASS Note：The Duty Cycle Factor is compensated in the test result. Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AWHY-B0110 Report No.: TZ230604472-E Page 13 of 38 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AWHY-B0110 Report No.: TZ230604472-E Page 14 of 38 11G_Ant1_2412 11G_Ant1_2437 11G_Ant1_2462 11N20SISO_Ant1_2412 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AWHY-B0110 Report No.: TZ230604472-E Page 15 of 38 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AWHY-B0110 Report No.: TZ230604472-E Page 16 of 38 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AWHY-B0110 Report No.: TZ230604472-E Page 17 of 38 Appendix E: Band edge measurements Test Result TestMode Antenna ChName Channel RefLevel[dBm] Result[dBm] Limit[dBm] Verdict 11B Ant1 Low 2412 4.55 -32.62 ≤-25.46 PASS High 2462 3.90 -48.26 ≤-26.1 PASS 11G Ant1 Low 2412 -3.52 -36.37 ≤-33.52 PASS High 2462 -3.77 -47.52 ≤-33.77 PASS 11N20SISO Ant1 Low 2412 -4.80 -38.49 ≤-34.8 PASS High 2462 -5.13 -47.14 ≤-35.13 PASS 11N40SISO Ant1 Low 2422 -9.11 -43.64 ≤-39.11 PASS High 2452 -9.54 -45.08 ≤-39.54 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AWHY-B0110 Report No.: TZ230604472-E Page 18 of 38 Test Graphs 11B_Ant1_Low_2412 11B_Ant1_High_2462 11G_Ant1_Low_2412 11G_Ant1_High_2462 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AWHY-B0110 Report No.: TZ230604472-E Page 19 of 38 11N20SISO_Ant1_Low_2412 11N20SISO_Ant1_High_2462 11N40SISO_Ant1_Low_2422 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AWHY-B0110 Report No.: TZ230604472-E Page 20 of 38 11N40SISO_Ant1_High_2452 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AWHY-B0110 Report No.: TZ230604472-E Page 21 of 38 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Channel FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 Reference 4.15 4.15 --- PASS 30~1000 4…

Text truncated - open the document above for the full version.

Report No.: TZ230604472-E Page 1 of 40 FCC TEST REPORT Test report On Behalf of WUUK LABS CORP. For WUUK Chime Model No.: B0110 FCC ID: 2AWHY-B0110 Prepared for : WUUK LABS CORP. 16192 COASTAL HWY, LEWES, DE 19958, US Prepared By : Shenzhen Tongzhou Testing Co.,Ltd 1th Floor, Building 1, Haomai High-tech Park, Huating Road 387, Dalang Street, Longhua, Shenzhen, China Date of Test: 2023/6/13~2023/6/29 Date of Report: 2023/7/14 Report Number: TZ230604472-E The test report apply only to the specific sample(s) tested under stated test conditions It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: TZ230604472-E Page 2 of 40 TEST RESULT CERTIFICATION Applicant’s name ................. : WUUK LABS CORP. Address .................................. : 16192 COASTAL HWY, LEWES, DE 19958, US Manufacture's Name ............ : WUUK LABS CORP. Address .................................. : 16192 COASTAL HWY, LEWES, DE 19958, US Product description Trade Mark: WUUK Product name ............................ : WUUK Chime Model and/or type reference : B0110 Standards.............................. : FCC Rules and Regulations Part 15 Subpart C Section 15.247 ANSI C63.10: 2013 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Tongzhou Testing Co.,Ltd is acknowledged as copyright owner and source of the material. Shenzhen Tongzhou Testing Co.,Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test ........................................... : Date (s) of performance of tests ............. : 2023/6/13~2023/6/29 Date of Issue .......................................... : 2023/7/14 Test Result .............................................. : Pass Testing Engineer : (Anna Hu) Technical Manager : (Hugo Chen) Authorized Signatory : (Andy Zhang) Report No.: TZ230604472-E Page 3 of 40 Revision History Revision Issue Date Revisions Revised By 00 2023/7/14 Initial Issue Andy Zhang Report No.: TZ230604472-E Page 4 of 40 TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 5 1.1. DESCRIPTION OF DEVICE (EUT) ........................................................................................................................ 5 1.2 EUT CONFIGURATION .......................................................................................................................................... 6 1.3. EXTERNAL I/O CABLE ......................................................................................................................................... 6 1.4. DESCRIPTION OF TEST FACILITY ........................................................................................................................ 6 1.5. STATEMENT OF THE MEASUREMENT UNCERTAINTY .......................................................................................... 7 1.6. MEASUREMENT UNCERTAINTY ........................................................................................................................... 7 1.7. DESCRIPTION OF TEST MODES .......................................................................................................................... 8 2. TEST METHODOLOGY ......................................................................................................................................... 9 2.1. EUT CONFIGURATION......................................................................................................................................... 9 2.2. EUT EXERCISE ................................................................................................................................................... 9 2.3. GENERAL TEST PROCEDURES ........................................................................................................................... 9 2.4. TEST SAMPLE ...................................................................................................................................................... 9 3. SYSTEM TEST CONFIGURATION .................................................................................................................... 10 3.1. JUSTIFICATION................................................................................................................................................... 10 3.2. EUT EXERCISE SOFTWARE .............................................................................................................................. 10 3.3. SPECIAL ACCESSORIES .................................................................................................................................... 10 3.4. BLOCK DIAGRAM/SCHEMATICS......................................................................................................................... 10 3.5. EQUIPMENT MODIFICATIONS ............................................................................................................................ 10 3.6. TEST SETUP ...................................................................................................................................................... 10 4. SUMMARY OF TEST RESULTS ........................................................................................................................ 11 5. TEST RESULT ....................................................................................................................................................... 12 5.1. ON TIME AND DUTY CYCLE .............................................................................................................................. 12 5.2. MAXIMUM CONDUCTED OUTPUT POWER MEASUREMENT ............................................................................... 13 5.3. POWER S…

Text truncated - open the document above for the full version.

Shenzhen Tongzhou Testing Co.,Ltd FCC ID:2AWHY-B0110 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 2 TEST SETUP PHOTOS OF THE EUT Conducted Emission Radiated Emission Below 1GHz Shenzhen Tongzhou Testing Co.,Ltd FCC ID:2AWHY-B0110 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 2 Radiated Emission Above 1GHz
