2AWHY-W0001WUUK Video Doorbell

FCC Warning Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ‐‐ Reorient or relocate the receiving antenna. ‐‐ Increase the separation between the equipment and receiver. ‐‐ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ‐‐ Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co‐located for operating in conjunction with any other antenna or transmitter. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. Having troubles? Connect with us and join the WUUK online community [email protected] www.facebook.com/WUUK- Labs/twitter.com/DoorbellWuuk support.wuuklabs.com

<WUUKLABSCORP.> OfficeofEngineeringTechnology FederalCommunicationsCommission 7435OaklandMillsRoad Columbia,MD21046 Date:May.25,2020 Subject;RequestforLongTermConfidentiality FCCID:2AWHY-W0001 ToWhomItMayConcern, PursuanttotheprovisionsoftheCommission’srulesTitle47Sections§0.457and§0.459,weare requestingtheCommissiontowithholdthefollowingattachment(s)asconfidentialdocumentsfrom publicdisclosureindefinitely. Thesedocumentscontaindetailedsystemandequipmentdescriptionsandareconsideredasproprietary informationinoperationoftheequipment.Thepublicdisclosureofthesedocumentsmightbeharmfulto ourcompanyandwouldgivecompetitorsanunfairadvantageinthemarket. SchematicDiagram BlockDiagram PartsList OperationalDescription Tune-upProcedure Itisourunderstandingthatallmeasurementtestreports,FCCIDlabelformatandcorrespondenceduring thecertificationreviewprocesscannotbegrantedasconfidentialdocumentsandthisinformationwillbe availableforpublicreviewoncethegrantofequipmentauthorizationisissued. Sincerely, Signature: Name:YangXie Title:Manager

WUUKLABSCORP. LetterofAuthorization Company:WUUKLABSCORP. Address:16192COASTALHWY,LEWES,DE19958,UnitedStates ProductName:WUUKVideoDoorbell ModelNumber:W0001 FCCIdentifier:2AWHY-W0001 WeauthorizeMiCOMLabsInc,575BoulderCourt,Pleasanton,California94566, USA,toactonourbehalfonallmattersconcerningtheabovenamedequipment. AnyindividualwithinMiCOMLabsisauthorizedtoactonourbehalfandtake actionontheapplication. WedeclarethatMiCOMLabsInc,575BoulderCourt,Pleasanton,California 94566,USA,isallowedtoforwardallinformationrelatedtotheapprovalproject totheFederalCommunicationCommissionandtodiscussanyissues concerningtheapprovalapplication.AnyandallactscarriedoutbyMiCOMLabs onourbehalfshallhavethesameeffectasactsofourown. Name:YangXieDate:May.25,2020 Title:Manager Signatureofapplicant:

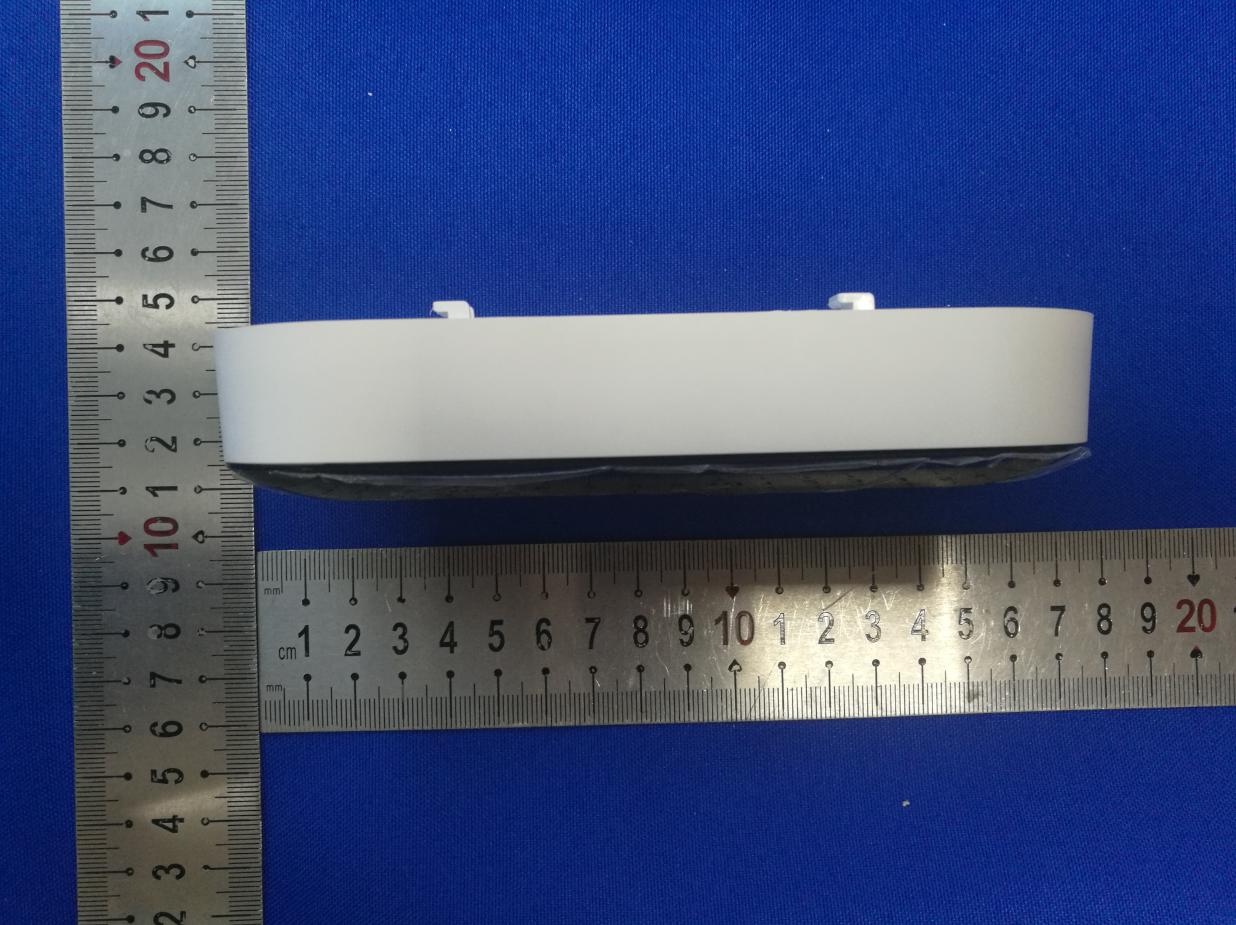

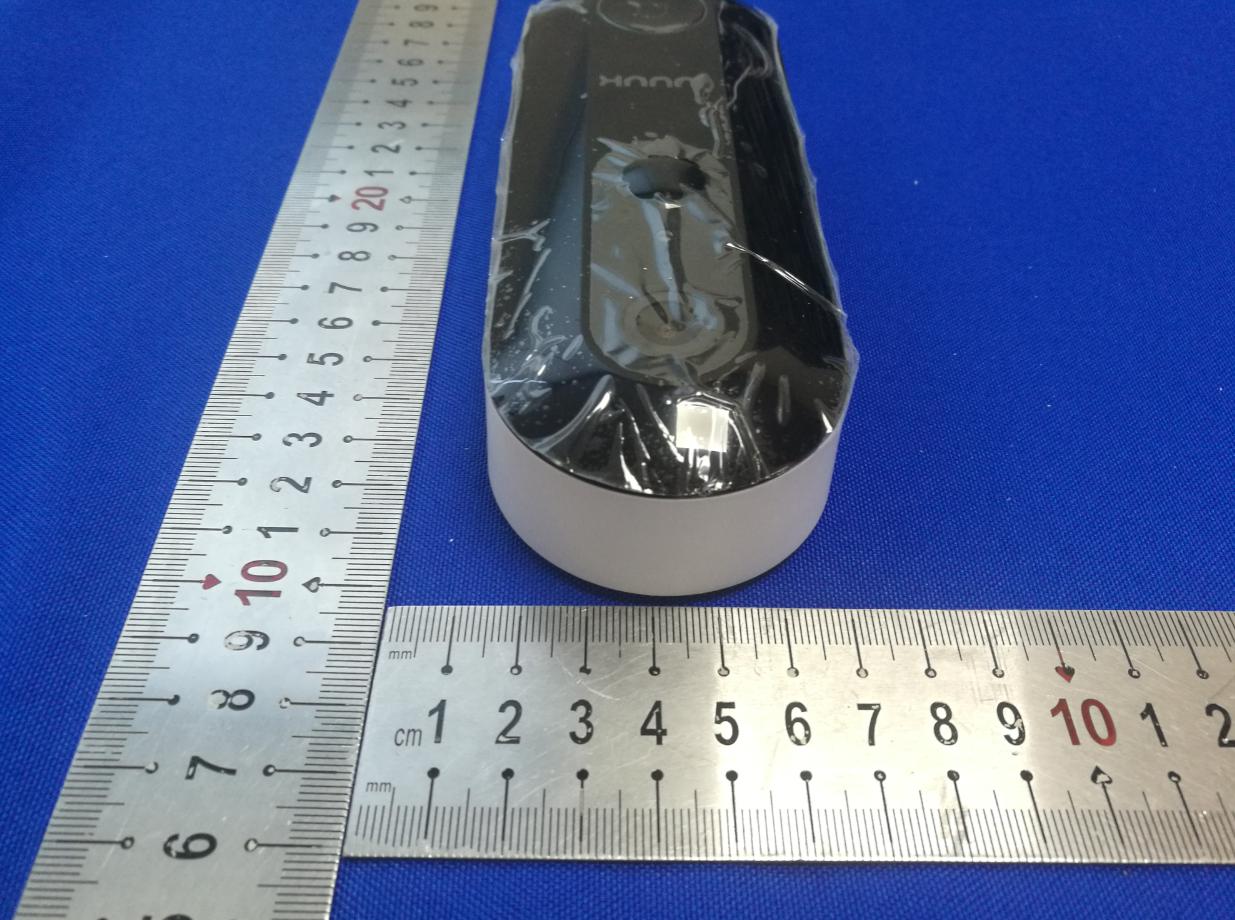

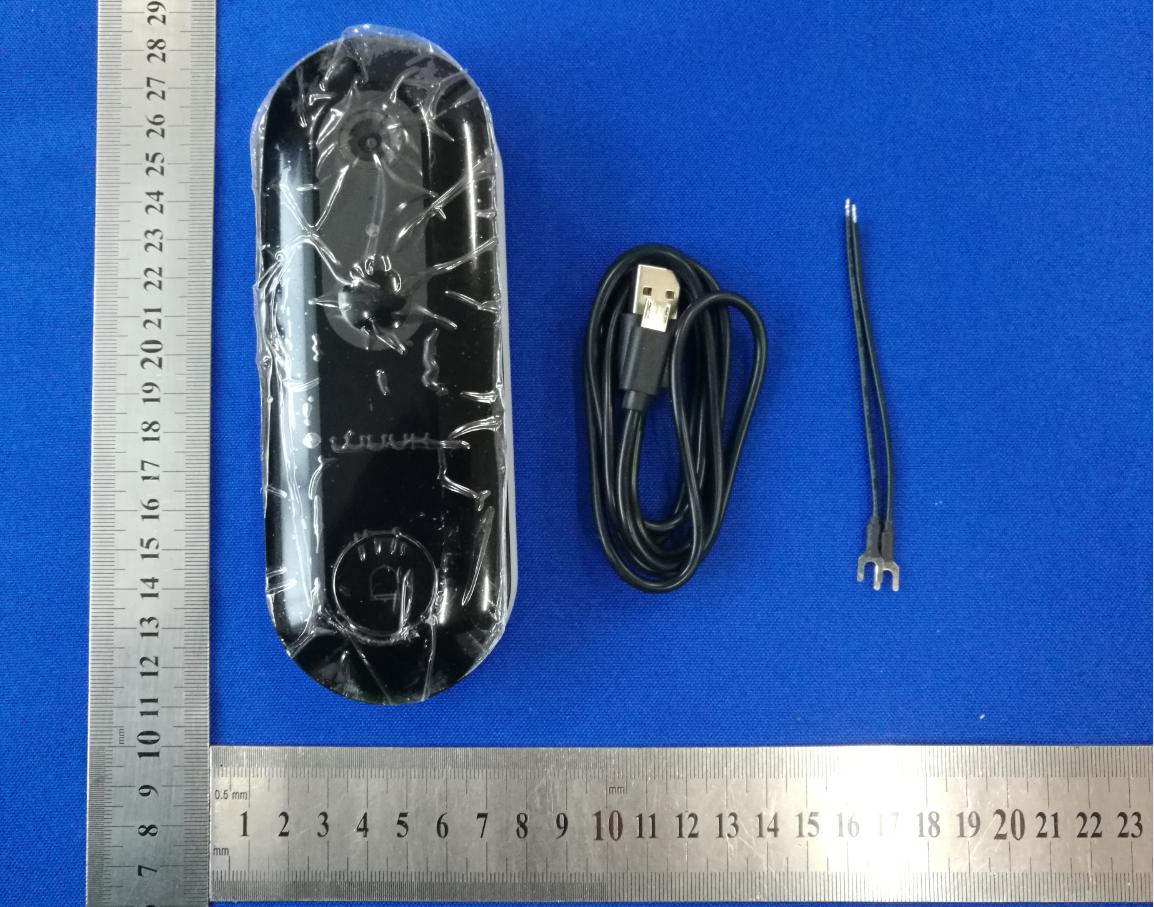

Model:W0001 Model:W0001 Model:W0001 Model:W0001

FCCIDLABEL: LabelLocation: FCCID:2AWHY-W0001 Productname:WUUKVideoDoorbell ModelNo.:W0001 ThisdevicecomplieswithPart15oftheFCCRules.Operationissubjecttothe followingtwoconditions: (1)Thisdevicemaynotcauseharmfulinterference (2)Thisdevicemustacceptanyinterferencereceived,includinginterferencethatmay causeundesiredoperation. Long:3cm Width:2cm

Model:W0001 Model:W0001 Model:W0001 Model:W0001 Model:W0001 Model:W0001 Model:W0001 Model:W0001 Antenna

MPEESTIMATION FCCID:2AWHY-W0001 1.LimitforGeneralPopulation/UncontrolledExposures FrequencyPowerdensity(mW/cm2)Averagingtime(minutes) 300MHz---1.5GHzF/150030 1.5GHz---100GHz1.030 Note:F=FrequencyinMHz 2.EstimationResult Mode MaxPKOutput power(dBm) TuneUp Power(dBm) MaxTuneUp power(mW) Antenna Gain(dBi) AntennaGain (linear) MPE (mW/cm²) 11b12.9612±1(13)19.9521.58490.006294 11g 12.31 12±1(13)19.9521.58490.006294 11n/HT2012.2412±1(13)19.9521.58490.006294 Note: Note:Theestimationdistanceis20cm. Note:PKOutputpower=conductedpower. ConductedpowerseethetestreportUNIA20041502ER-01,antennagain=2dBi. Conclusion:ComplianceRFExposurerequirement. ------TheEnd----

Page 1 of 67Report No.: UNIA20041502ER-01 FCC RADIO TEST REPORT FCC ID: 2AWHY-W0001 Product Name ： WUUK Video Doorbell Trade Mark ： WUUK Model Name： W0001 Serial Model： N/A Report No.： UNIA20041502ER-01 Prepared for WUUK LABS CORP. 16192 COASTAL HWY, LEWES, DE 19958, United States Prepared by Shenzhen United Testing Technology Co., Ltd. 2F, Annex Bldg, Jiahuangyuan Tech Park, #365 Baotian 1 Rd, Tiegang Community, Xixiang Str, Bao'an District, Shenzhen, China Page 2 of 67Report No.: UNIA20041502ER-01 TEST RESULT CERTIFICATION Applicant’s name....................: WUUK LABS CORP. Address ...................................... : 16192 COASTAL HWY, LEWES, DE 19958, United States Manufacture's Name .............. : WUUK LABS CORP. Address ...................................... : Ste 916, No. 258 GuoXia Rd, Yangpu Dist, Shanghai, China Product description Product Name.............................. : WUUK Video Doorbell Trade Mark.................................: WUUK Model Name ............................ : W0001 Standards..................................: FCC Rules and Regulations Part 15 Subpart C Section 15.247 ANSI C63.10: 2013 This device described above has been tested by Shenzhen United Testing Technology Co., Ltd., and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of UNI, this document may be altered or revised by Shenzhen United Testing Technology Co., Ltd., personnel only, and shall be noted in the revision of the document. Date of Test...............................................: Date (s) of performance of tests...............: Apr. 15, 2020 ~ May. 19, 2020 Date of Issue .............................................. : May. 19, 2020 Test Result..................................................:Pass Prepared by: Bob liao/Editor Reviewer: Kahn yang/Supervisor Approved & Authorized Signer: Liuze/Manager Page 3 of 67Report No.: UNIA20041502ER-01 Table of ContentsPage 1 TEST SUMMARY....................................................................................................................5 2 GENERAL INFORMATION....................................................................................................7 2.1 GENERAL DESCRIPTION OF EUT.........................................................................................7 2.2 CARRIER FREQUENCY OF CHANNELS..............................................................................8 2.3 TEST MODE.................................................................................................................................8 2.4 TEST SETUP................................................................................................................................8 2.5 DESCRIPTION TEST PERIPHERAL AND EUT PERIPHERAL..........................................9 2.6 MEASUREMENT INSTRUMENTS LIST...............................................................................10 3 CONDUCTED EMISSION .................................................................................................... 11 3.1 TEST LIMIT.................................................................................................................................11 3.2 TEST SETUP..............................................................................................................................11 3.3 TEST PROCEDURE.................................................................................................................12 3.4 TEST RESULT...........................................................................................................................12 4 RADIATED EMISSION.........................................................................................................15 4.1 TEST LIMIT ................................................................................................................................. 15 4.2 TEST SETUP ............................................................................................................................. 16 4.3 TEST PROCEDURE ................................................................................................................. 17 4.4 TEST RESULT ........................................................................................................................... 17 5 OCCUPIED BANDWIDTH...................................................................................................35 5.1 TEST LIMIT.................................................................................................................................35 5.2 TEST PROCEDURE.................................................................................................................35 5.3 EQUIPMENT USED..................................................................................................................35 5.4 TEST RESULT...........................................................................................................................35 6 POWER SPECTRAL DENSITY .......................................................................................... 42 6.1 TEST LIMIT.................................................................................................................................42 6.2 TEST PROCEDURE.................................................................................................................42 6.3 EQUIPMENT USED..................................................................................................................42 6.4 TEST RESULT...........................................................................................................................42 7 PEAK OUTPUT POWER.....................................................................................................49 7.1 TEST LIMIT ....................…

Text truncated - open the document above for the full version.

Model:W0001 Model:W0001
