2AWHY-BAS10WUUK Smart Sock

WUUK LABS CORP. 16192 COASTAL HWY, LEWES, DE 19958, United States 2.911 (d)(7)USA Agent v1.5 Section 2.911(d)(7) USA Agent for Service of Process Company name: WUUK LABS CORP. Address: 16192 COASTAL HWY, LEWES, DE 19958, United States Product Name: WUUK Smart Sock FCC ID: 2AWHY-BAS10 2.911(d)(7) USA Designated Agent for Service of Process We, [WUUK LABS CORP. ] (“the applicant”) designate [WUUK LABS CORP.] NOTE1 for the purpose of acc epting service of process on behalf of the applicant. Applicant consent: We acknowledge our consent to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address of the designated agent and acknowledge our acceptance of our obligation to maintain an agent for service of process in the United States for no less than one year after either we the grantee have permanently terminated all marketing and importation of the applicable equipment within the U.S., or at the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. Agent obligation: We acknowledge our obligation to accept service of process in the United States for matters related to the applicable equipment at our physical U.S. address and email address for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or at the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. USA Agent Company name: WUUK LABS CORP. USA Address: 16192 COASTAL HWY, LEWES, DE 19958, United States FRN Number: 0029606514 Contact Name: Yang xie Telephone No: (628) 280-8975 Email: [email protected] Applicant Company name: WUUK LABS CORP. Address: 16192 COASTAL HWY, LEWES, DE 19958, United States Grantee FRN Number: 0029606514 FCC Grantee Code: 2AWHY Contact Name: Yang xie Telephone No: (628) 280-8975 Email: [email protected] WUUK LABS CORP. 16192 COASTAL HWY, LEWES, DE 19958, United States 2.911 (d)(7)USA Agent v1.5 Signature: Title: Manager Date: 2026-5-12 Signature: Title: Manager Date: 2026-5-12 NOTE 1: An applicant located in the United States may designate itself as the agent for service of process. Reference; Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-nation al-security-threats-to-the-communications-supply-chain-through-the

WUUK LABS CORP. 16192 COASTAL HWY, LEWES, Delaware, 19958 United States Attestation Statements Not Covered Entity Applicant & Not Covered Equipment To: Federal Communications Commission Date: May. 12, 26 7435 Oakland Mills Road, Columbia, MD 21046, USA Ref: Information Required by Section 2.911(d)(5)(i) & (ii) FCC ID: 2AWHY-BAS10 WUUK LABS CORP. (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List, established pursuant to § 1.50002 of reference chapter, as an entity producing “covered” communication equipment. The equipment for which authorization is sought is not “covered” telecommunications equipment and video surveillance equipment produced by entities identified on the Commission’s Covered List that prohibited from receiving an equipment authorization pursuant to section § 2.903 of the FCC rules. Sincerely yours, Applicant Signature Printed Name: Yang xie Title: Manager Address: 16192 COASTAL HWY, LEWES, Delaware, 19958 United States Tel.: (628) 280-8975 Email: [email protected]

WUUK LABS CORP. 16192 COASTAL HWY, LEWES, Delaware, 19958 United States 1 | P a g e Attestation Statements To: Federal Communications Commission Date: May. 12, 2026 7435 Oakland Mills Road, Columbia, MD 21046, USA Subject: Attestation of Compliance with FCC Covered List Software Requirements FCC ID: 2AWHY-BAS10 Product Name: WUUK Smart Sock This letter serves as an attestation that the equipment identified above ☐ is / ☒ is not (select one) "covered" software as defined under the Federal Communications Commission (FCC) Covered List requirements, as outlined in FCC 22-84 and KDB 986446. Specifically, the undersigned certifies that the equipment for which authorization is sought: 1.Does not contain cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors, assignees, parents, subsidiaries, affiliates, or any entity that has rebranded or relabeled software produced by the aforementioned entities. 2.Does not have the capability to store, run, or deliver any software identified on the FCC Covered List, including but not limited to cybersecurity and anti-virus software. To support this attestation, the appendix evaluation documentation has been prepared and is included in the certification filing. This attestation is based on a thorough evaluation of the device's design, functionality, and software environment. The undersigned affirms that the information provided is accurate and complete to the best of their knowledge. Sincerely yours, Applicant Signature Printed Name: Yang xie Title: Manager Address: 16192 COASTAL HWY, LEWES, Delaware, 19958 United States Tel.: (628) 280-8975 Email: [email protected] WUUK LABS CORP. 16192 COASTAL HWY, LEWES, Delaware, 19958 United States 2 | P a g e Evaluation regarding to the Covered List Software: Compliance Methodology Evaluation Process Results Device is Inherent compliance ☒ The Chipset(s) used is limited to run the Cybersecurity or anti-virus software. Compliance ☒ The Memory used is limited to run the Cybersecurity or anti-virus software. Compliance ☒ There is storage capacity limitation for store or install the Cybersecurity or anti-virus software. Compliance ☒ Operating system used is limited to run, install or deliver the Cybersecurity or anti-virus software. Compliance Device is not Inherent compliance ☐ Evaluation Based on Software Bill of Materials (SBoM) See attached “SBoM“ Note:The SBoM content is limited to the scope of covered list software (e.g. antivirus and cybersecurity software). ☐ Evaluation Based on Scan for Software on the device ☐ Evaluation Based on Filesystem scan ☐ Evaluation Based on Running software check

TCB CALL página 1 File FCC ID: 2AWHY-BAS10 Please upload an exhibit that explains how does the TCB verify the new agent information: 1- Is the address of the agent a valid physical US mailing address (not a US post office box, not a virtual mailbox, not P.O. Boxes, not a vacant lot, not a public building, etc.) ○ We have checked if the address exists in a real and potential building (Google maps) + official US register, after this verification and the evidence below we can guarantee the following: not a US post office box not a virtual mailbox not P.O. Boxes not a vacant lot not a public building(note) ► We checked the FCC FRN Search based on the information provided by the grantee. On the official register from : https://icis.corp.delaware.gov/Ecorp/EntitySearch/NameSearch.aspx In google: TCB CALL página 2 TCB CALL página 3 Real scene photos TCB CALL página 4 ► CONCLUSION by TCB: The ASOP defined and provided by grantee is VALID and confirmed. Therefore the exhibit "US Agent_2AWHY-BAS10" included in the file is ok. 2- Is the agent physically located at that valid US address such that the agent can be legally served at that address? Yes , check above 3- Has the listed agent clearly agreed in writing to serve as the agent for the grantee at that address? Yes, it is included in the exhibit "US Agent_2AWHY-BAS10 " >

C5266091_X10_Ed.2 1/1 WUUK LABS CORP. Office of Managering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: May. 12, 26 Subject: Request for Confidentiality FCC ID: 2AWHY-BAS10 To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure. Exhibits Long-Term Confidentiality Short-Term Confidentiality NOTE 2 ID Label/Location No No Attestation Statement No No External Photos No No Block Diagram ☒ ☐ Schematics ☒ ☐ Test Report No No Test Setup Photos No No User’s Manual ☐ NOTE 1 ☒ Internal Photos ☐ NOTE 1 ☒ Parts List / Tune Up No No RF Exposure Info No No Operational Description ☒ ☐ Cover Letter(s) No No SDR Software / Security Info No No NOTE 1: Long-Term Confidentiality may be permitted under special conditions (See II. LONG-TERM CONFIDENTIALITY, Section 3 of KDB 726920, use last in force) NOTE 2: Short-Term Confidentiality can be requested for a maximum of 180 days from the date of the grant. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. In case of short-term Confidentiality, the applicant requests the exhibits selected above are withheld from public view for a period of 45 days from the date of the Grant of Equipment Authorization and prior to marketing. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. C5266091_X10_Ed.2 1/1 Sincerely, Signature: Name: Yang xie Title: Manager

C5266091_X8_Ed.1 1/1 Letter of Authorization WUUK LABS CORP. Company: WUUK LABS CORP. Address: 16192 COASTAL HWY, LEWES, Delaware, 19958 United States Product Name: WUUK Smart Sock Model Number: BAS10 FCC Identifier: 2AWHY-BAS10 We authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, to act on our behalf on all matters concerning the above named equipment. Any individual within LGAI Technological Center S.A. is authorized to act on our behalf and take action on the application. We declare that authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by LGAI Technological Center S.A. on our behalf shall have the same effect as acts of our own. Name: Yang xie Date: May. 12, 26 Title: Manager Signature of applicant:

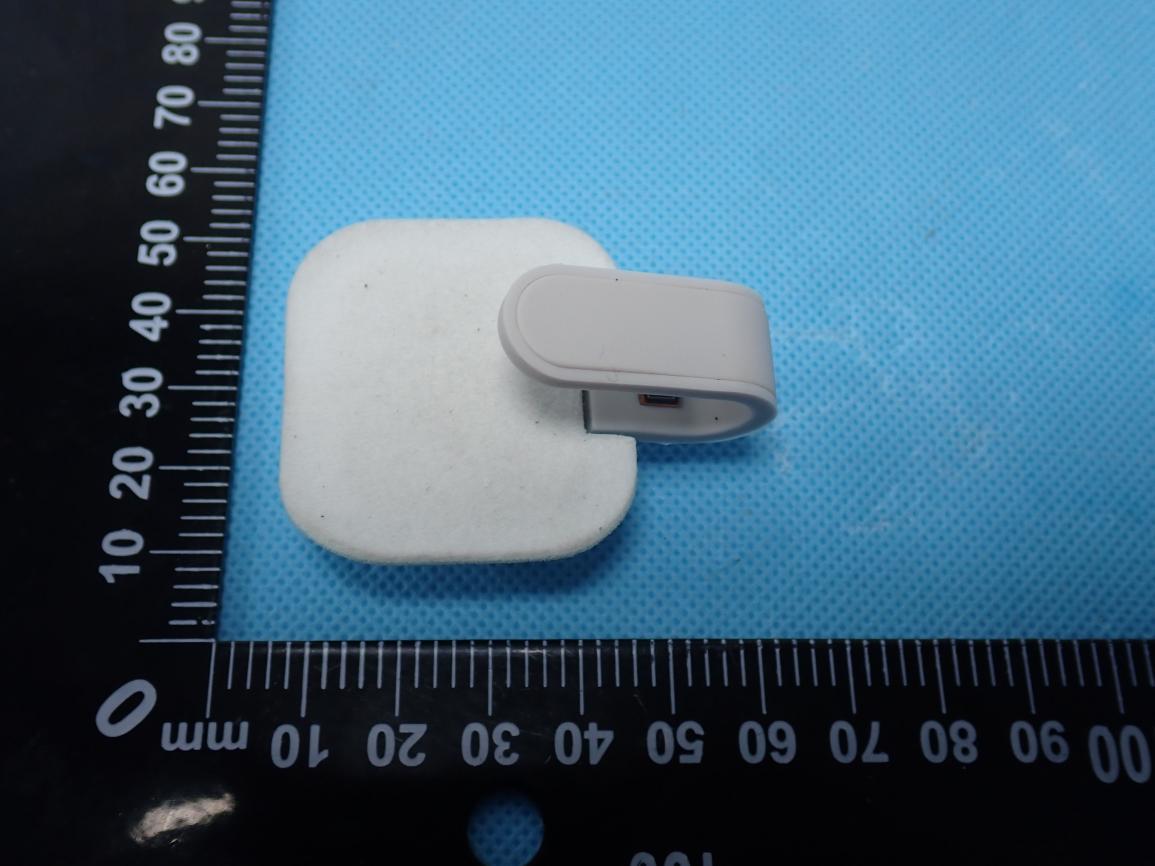

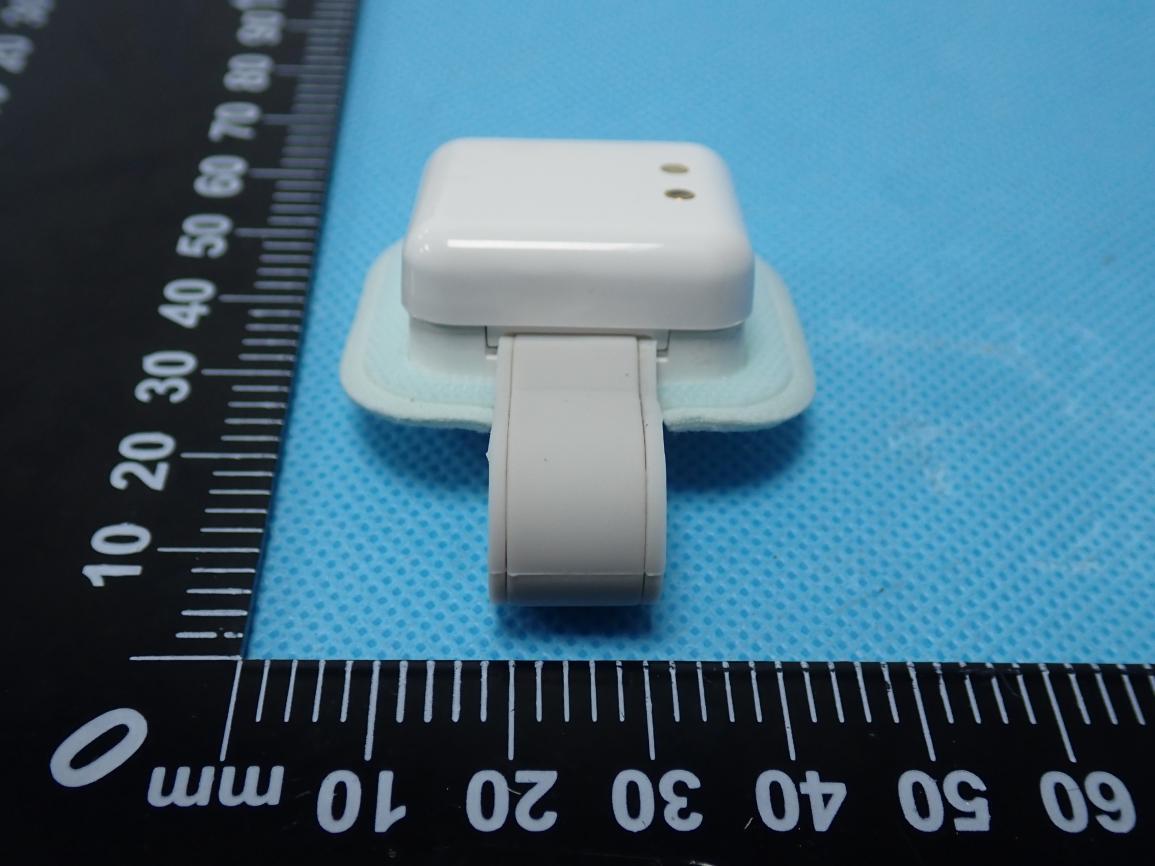

Report No.: TZ0037260406PH02 Page 1 of 3 Exterior Photographs of EUT External Photo 1 External Photo 2 Report No.: TZ0037260406PH02 Page 2 of 3 External Photo 3 External Photo 4 Report No.: TZ0037260406PH02 Page 3 of 3 External Photo 5 External Photo 6

Label Location The size of the logo is 5mm*5mm. FCC ID: 2AWHY-BAS10

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AWHY-BAS10 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 2 RADIO FREQUENCY EXPOSURE Rules FCC Part 2.1093 and KDB 447498 D01 General RF Exposure Guidance v06 Limit According to section 4.3.1 of KDB 447498 D01 General RF Exposure Guidance v06, SAR evaluation is required if the separation distance between the user and/or bystander and the antenna and/or radiating element of the device is less than or equal to 20 cm, except when the device operates at or below the applicable output power level (adjusted for tune-up tolerance) for the specified separation distance defined in Appendix A. Appendix A SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm MHz 5 10 15 20 25 mm 150 39 77 116 155 194 SAR Test Exclusion Threshold (mW) 300 27 55 82 110 137 450 22 45 67 89 112 835 16 33 49 66 82 900 16 32 47 63 79 1500 12 24 37 49 61 1900 11 22 33 44 54 2450 10 19 29 38 48 3600 8 16 24 32 40 5200 7 13 20 26 33 5400 6 13 19 26 32 5800 6 12 19 25 31 MHz 30 35 40 45 50 mm 150 232 271 310 349 387 SAR Test Exclusion Threshold (mW) 300 164 192 219 246 274 450 134 157 179 201 224 835 98 115 131 148 164 900 95 111 126 142 158 1500 73 86 98 110 122 1900 65 76 87 98 109 2450 57 67 77 86 96 3600 47 55 63 71 79 5200 39 46 53 59 66 5400 39 45 52 58 65 5800 37 44 50 56 62 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AWHY-BAS10 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 2 Results RF Exposure at Separation distance (cm): 0.5 Mode Antenna Frequency [MHz] Conducted Power [dBm] Manufacturing tolerance Conducted Power including Tune Up Calculation Value for 1g SAR Exemption Limit for 1g SAR Target Power [dBm] Tolerance ±[dB] [dBm] [mW] BLE_1M Ant1 2402 3.59 3 1 4 2.51 0.78 3 BLE_1M Ant1 2440 3.95 3.5 1 4.5 2.82 0.88 3 BLE_1M Ant1 2480 4.16 3.5 1 4.5 2.82 0.89 3 BLE_2M Ant1 2402 3.48 3 1 4 2.51 0.78 3 BLE_2M Ant1 2440 3.85 3.5 1 4.5 2.82 0.88 3 BLE_2M Ant1 2480 4.18 3.5 1 4.5 2.82 0.89 3 Note: 1. Calculation Value = [(max. power of channel, mW) / (min. test separation distance, mm)] ·[√f(GHz)]. Conclusion: The SAR evaluation is not required.

Report No.: TZ0037260406FRF02 Page 1 of 45 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Tongzhou Testing Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Tongzhou Testing Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. The test report apply only to the specific sample(s) tested under stated test conditions. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. TEST REPORT Report Number : TZ0037260406FRF02 Product Name : WUUK Smart Sock Model/Type reference : BAS10 FCC ID : 2AWHY-BAS10 Prepared for : WUUK LABS CORP. 16192 COASTAL HWY, LEWES, Delaware, 19958 United States Prepared By : Shenzhen Tongzhou Testing Co.,Ltd. 1st Floor, Building 1, Haomai High-tech Park, Huating Road 387, Dalang Street, Longhua, Shenzhen, China Standards : FCC CFR Title 47 Part 15C, ANSI C63.10-2020+Cor. 1-2023 Date of Test : 2026-04-23 ~ 2026-04-28 Date of Issue : 2026-04-28 Prepared by : Nancy Li Reviewed by : Allen Lai Approved by : Max Zhang (Authorized Officer) Report No.: TZ0037260406FRF02 Page 2 of 45 ** Report Revise Record ** Report Version Revise Time Issued Date Valid Version Notes V1.0 / 2026-04-28 Valid Initial release Report No.: TZ0037260406FRF02 Page 3 of 45 TABLE OF CONTENTS 1. G E N E R A L I N F O R M A T I O N ........................................................ 4 1.1. Client Information ................................................................................................................... 4 1.2. Description of Device (EUT) ................................................................................................... 4 1.3. Wireless Function Tested in this Report .............................................................................. 4 1.4. EUT configuration ................................................................................................................... 5 1.5. Description of Test Facility .................................................................................................... 5 1.6. Statement of the Measurement Uncertainty ......................................................................... 6 1.7. Measurement Uncertainty ...................................................................................................... 6 1.8. Description of Test Modes ..................................................................................................... 6 1.9. Frequency of Channels .......................................................................................................... 6 2. T E S T M E T H O D O L O G Y ............................................................ 7 2.1. EUT Configuration .................................................................................................................. 7 2.2. EUT Exercise ........................................................................................................................... 7 2.3. Test Sample ............................................................................................................................. 7 3. S Y S T E M T E S T C O N F I G U R A T I O N .............................................. 8 3.1. Justification ............................................................................................................................. 8 3.2. EUT Exercise Software ........................................................................................................... 8 3.3. Special Accessories ............................................................................................................... 8 3.4. Block Diagram/Schematics .................................................................................................... 8 3.5. Equipment Modifications ....................................................................................................... 8 3.6. Test Setup ................................................................................................................................ 8 4. S U M M A R Y O F T E S T R E S U L T S ................................................. 9 5. T E S T R E S U L T ..................................................................... 10 5.1. Maximum Peak Conducted Output Power Measurement ................................................. 10 5.2. Power Spectral Density Measurement ................................................................................ 11 5.3. 6 dB Spectrum Bandwidth and Occupied Channel Bandwidth Measurement ............... 12 5.4. Radiated Emissions Measurement ...................................................................................... 13 5.5. Conducted Spurious Emissions and Band Edges Test .................................................... 32 5.6. AC Power line conducted emissions .................................................................................. 33 5.7. Band-edge measurements for radiated emissions ........................................................... 36 5.8. Antenna Requirements ......................................................................................................... 43 6. L I S T O F M E A S U R I N G E Q U I P M E N T .......................................... 44 7. T E S T S E T U P P H O T O G R A P H S O F E U T ...................................... 45 8. E X T E R I O R P H O T O G R A P H S O F E U T ......................................... 45 9. I N T E R I O R P H O T O G R A P H S O F E U T .......................................... 45 Report No.: TZ0037260406FRF02 Page 4 of 45 1. G E N E R A L I N F O R M A T I O N 1.1. Client Information Applicant : WUUK LABS CORP. Address : 16192 COASTAL HWY, LEWES, Delaware, 19958 United States Manufacturer : WUUK LABS CORP. Address : 16192 COAST…

Text truncated - open the document above for the full version.

BAS10Antenna debugging report Person in charge:Wang Xinchuang Phone: 15914002533 Date: 2025.12.12 Test equipment Amway MT8820C Agilent 8960 Agilent E5071C source ‐ free testing Active testing Test environment Test system 600MHZ——6G support 2G/3G/4G Temperature： 22°C±3°C Humidity： 50%±15% Guangping ETS Project Overview Model dimensions Antenna implementation method Model Item Name Customer Name / FPC BAS10 WUUK Frequency band / GPS Second ary antenn a / 2G Main anten na 2400--2500MHz BT / 3G / diversity antenna FDD: / 4G / 433MHz TDD: / Plastic Shell material Test version record Content Overview Date Version Sample antenna test report 2025.07.22 V1 Trial production machine antenna test report 2025.09.11 V2 Test report of antenna debugging after support mold modification 2025.12.22 V3 Matching circuit RF Module E1 E2 E3 Antenna E4 BT Value Element E1(0201)E2(0201)E3(0201)E4(0201) The antenna matching circuit for this debugging is the original matching circuit of the motherboard, without any changes 。 Passive test data BT antenna S11 Passive test data Bluetooth antenna gain and efficiency: Passive Test For 2.4G-2.5G AttV AttH DHIS UHIS Gain Gain Effi Freq (dB) (dB) (%) (%) (dBd) (dBi) (%) (MHz) 45.61 45.62 27.932 25.751 -1.19 0.96 53.68 2400 45.65 45.73 27.791 25.724 -1.3 0.85 53.51 2410 45.82 45.78 26.882 25.096 -1.5 0.65 5.98 2420 46.04 45.98 27.377 25.575 -1.42 0.73 52.95 2430 46.36 46.27 26.764 25.093 -1.54 0.61 51.86 2440 46.45 46.36 26.504 24.931 -1.51 0.64 51.43 2450 46.51 46.49 27.918 26.556 -1.33 0.82 54.47 2460 46.77 46.77 28.22 27.313 -1.22 0.93 55.53 2470 46.76 46.75 29.046 28.36 -1.05 1.1 57.41 2480 47.24 47.24 31.443 30.924 -0.63 1.52 62.37 2490 46.78 46.81 26.126 25.659 -1.37 0.78 51.79 2500 antenna pattern

Appendix Test Data of the Report No.: TZ0037260406FRF02 Page 1 of 29 Appendix Test Data for BLE (Conducted Measurement) Product Name: WUUK Smart Sock Trade Mark: WUUK Test Model: BAS10 FCC ID: 2AWHY-BAS10 Environmental Conditions Temperature: 23.5°C Relative Humidity: 58% ATM Pressure: 100.0 kPa Test Engineer: Allen Lai Supervised by: Max Zhang NOTE N/A Appendix A: DTS Bandwidth Test Result Test Mode Antenna Frequency [MHz] DTS BW [MHz] FL [MHz] FH [MHz] Limit [MHz] Verdict BLE_1M Ant1 2402 0.652 2401.680 2402.332 0.5 PASS BLE_1M Ant1 2440 0.672 2439.668 2440.340 0.5 PASS BLE_1M Ant1 2480 0.660 2479.672 2480.332 0.5 PASS BLE_2M Ant1 2402 1.000 2401.484 2402.484 0.5 PASS BLE_2M Ant1 2440 1.012 2439.488 2440.500 0.5 PASS BLE_2M Ant1 2480 1.032 2479.476 2480.508 0.5 PASS Note: offset(dB) = cable loss(dB) + attenuator factor(dB) Appendix Test Data of the Report No.: TZ0037260406FRF02 Page 2 of 29 Test Graphs BLE_1M-Ant1-2402-PASS BLE_1M-Ant1-2440-PASS Appendix Test Data of the Report No.: TZ0037260406FRF02 Page 3 of 29 BLE_1M-Ant1-2480-PASS BLE_2M-Ant1-2402-PASS Appendix Test Data of the Report No.: TZ0037260406FRF02 Page 4 of 29 BLE_2M-Ant1-2440-PASS BLE_2M-Ant1-2480-PASS Appendix Test Data of the Report No.: TZ0037260406FRF02 Page 5 of 29 Appendix B: Occupied Channel Bandwidth Test Result Test Mode Antenna Frequency [MHz] OCB [MHz] FL [MHz] FH [MHz] Limit [MHz] Verdict BLE_1M Ant1 2402 1.0864 2401.4346 2402.5210 --- --- BLE_1M Ant1 2440 1.1671 2439.3540 2440.5211 --- --- BLE_1M Ant1 2480 1.2384 2479.2919 2480.5303 --- --- BLE_2M Ant1 2402 2.0649 2400.9802 2403.0451 --- --- BLE_2M Ant1 2440 2.0322 2438.9969 2441.0291 --- --- BLE_2M Ant1 2480 2.0289 2478.9923 2481.0212 --- --- Note: offset(dB) = cable loss(dB) + attenuator factor(dB) Appendix Test Data of the Report No.: TZ0037260406FRF02 Page 6 of 29 Test Graphs BLE_1M-Ant1-2402 BLE_1M-Ant1-2440 Appendix Test Data of the Report No.: TZ0037260406FRF02 Page 7 of 29 BLE_1M-Ant1-2480 BLE_2M-Ant1-2402 Appendix Test Data of the Report No.: TZ0037260406FRF02 Page 8 of 29 BLE_2M-Ant1-2440 BLE_2M-Ant1-2480 Appendix Test Data of the Report No.: TZ0037260406FRF02 Page 9 of 29 Appendix C: Maximum peak conducted output power Test Result Peak Test Mode Antenna Frequency [MHz] Conducted Peak Power [dBm] Conducted Limit [dBm] Verdict BLE_1M Ant1 2402 3.59 ≤30 PASS BLE_1M Ant1 2440 3.95 ≤30 PASS BLE_1M Ant1 2480 4.16 ≤30 PASS BLE_2M Ant1 2402 3.48 ≤30 PASS BLE_2M Ant1 2440 3.85 ≤30 PASS BLE_2M Ant1 2480 4.18 ≤30 PASS Note: offset(dB) = cable loss(dB) + attenuator factor(dB) Appendix Test Data of the Report No.: TZ0037260406FRF02 Page 10 of 29 Test Graphs Peak BLE_1M-Ant1-2402-PASS BLE_1M-Ant1-2440-PASS Appendix Test Data of the Report No.: TZ0037260406FRF02 Page 11 of 29 BLE_1M-Ant1-2480-PASS BLE_2M-Ant1-2402-PASS Appendix Test Data of the Report No.: TZ0037260406FRF02 Page 12 of 29 BLE_2M-Ant1-2440-PASS BLE_2M-Ant1-2480-PASS Appendix Test Data of the Report No.: TZ0037260406FRF02 Page 13 of 29 Appendix D: Maximum peak power spectral density Test Result Test Mode Antenna Frequency [MHz] Result [dBm/3kHz] Limit [dBm/3kHz] Verdict BLE_1M Ant1 2402 -8.01 ≤8.00 PASS BLE_1M Ant1 2440 -7.96 ≤8.00 PASS BLE_1M Ant1 2480 -7.69 ≤8.00 PASS BLE_2M Ant1 2402 -8.43 ≤8.00 PASS BLE_2M Ant1 2440 -8.37 ≤8.00 PASS BLE_2M Ant1 2480 -8.64 ≤8.00 PASS Note: offset(dB) = cable loss(dB) + attenuator factor(dB) Appendix Test Data of the Report No.: TZ0037260406FRF02 Page 14 of 29 Test Graphs BLE_1M-Ant1-2402-PASS BLE_1M-Ant1-2440-PASS Appendix Test Data of the Report No.: TZ0037260406FRF02 Page 15 of 29 BLE_1M-Ant1-2480-PASS BLE_2M-Ant1-2402-PASS Appendix Test Data of the Report No.: TZ0037260406FRF02 Page 16 of 29 BLE_2M-Ant1-2440-PASS BLE_2M-Ant1-2480-PASS Appendix Test Data of the Report No.: TZ0037260406FRF02 Page 17 of 29 Appendix E: Band edge measurements Test Result Test Mode Antenna Ch. Name Frequency [MHz] Ref. Level [dBm] Result [dBm] Limit [dBm] Verdict BLE_1M Ant1 Low 2402 3.51 -31.31 ≤-16.49 PASS BLE_1M Ant1 High 2480 4.01 -39.63 ≤-15.99 PASS BLE_2M Ant1 Low 2402 3.29 -31.77 ≤-16.71 PASS BLE_2M Ant1 High 2480 4.13 -40.42 ≤-15.87 PASS Note: offset(dB) = cable loss(dB) + attenuator factor(dB) Appendix Test Data of the Report No.: TZ0037260406FRF02 Page 18 of 29 Test Graphs BLE_1M-Ant1-2402-PASS BLE_1M-Ant1-2480-PASS Appendix Test Data of the Report No.: TZ0037260406FRF02 Page 19 of 29 BLE_2M-Ant1-2402-PASS BLE_2M-Ant1-2480-PASS Appendix Test Data of the Report No.: TZ0037260406FRF02 Page 20 of 29 Appendix F: Conducted Spurious Emission Test Result Test Mode Antenna Frequency [MHz] Freq. Range [MHz] Ref. Level [dBm] Result [dBm] Limit [dBm] Verdict BLE_1M Ant1 2402 0~Reference 3.38 3.38 --- PASS BLE_1M Ant1 2402 30~1000 3.38 -53.73 ≤-16.62 PASS BLE_1M Ant1 2402 1000~26500 3.38 -40.08 ≤-16.62 PASS BLE_1M Ant1 2440 0~Reference 3.71 3.71 --- PASS BLE_1M Ant1 2440 30~1000 3.71 -53.19 ≤-16.29 PASS BLE_1M Ant1 2440 1000~26500 3.71 -39.25 ≤-16.29 PASS BLE_1M Ant1 2480 0~Reference 4.01 4.01 --- PASS BLE_1M Ant1 2480 30~1000 4.01 -53.41 ≤-15.99 PASS BLE_1M Ant1 2480 1000~26500 4.01 -39.07 ≤-15.99 PASS BLE_2M Ant1 2402 0~Reference 3.29 3.29 --- PASS BLE_2M Ant1 2402 30~1000 3.29 -53.81 ≤-16.71 PASS BLE_2M Ant1 2402 1000~26500 3.29 -40.24 ≤-16.71 PASS BLE_2M Ant1 2440 0~Reference 3.61 3.61 --- PASS BLE_2M Ant1 2440 30~1000 3.61 -53.81 ≤-16.39 PASS BLE_2M Ant1 2440 1000~26500 3.61 -39.45 ≤-16.39 PASS BLE_2M Ant1 2480 0~Reference 4.03 4.03 --- PASS BLE_2M Ant1 2480 30~1000 4.03 -54.05 ≤-15.97 PASS BLE_2M Ant1 2480 1000~26500 4.03 -39.73 ≤-15.97 PASS Note: offset(dB) in Reference test plots = cable loss(dB) + attenuator factor(dB); For spurious emissions plots from 30MHz to 26.5GHz, the cable loss and attenuator factors have been set in the 'Input Correction' of the Spectrum Analyzer during the test. Appendix Test Data of the Report No.: TZ0037260406FRF02 Page 21 of 29 Test Graphs BLE_1M-Ant1-2402-0~Reference-PASS BLE_1M-Ant1-2402-30~1000-PASS Appendix Test Data of the Report No.: TZ003…

Text truncated - open the document above for the full version.

Report No.: TZ0037250904PH01 Page 1 of 2 Test Setup Photos of the EUT Radiated Emission Below 1GHz Radiated Emission Above 1GHz Report No.: TZ0037250904PH01 Page 2 of 2 Conducted Emission
