2AWHY-Y0110WUUK Wired Smart Doorbell Pro

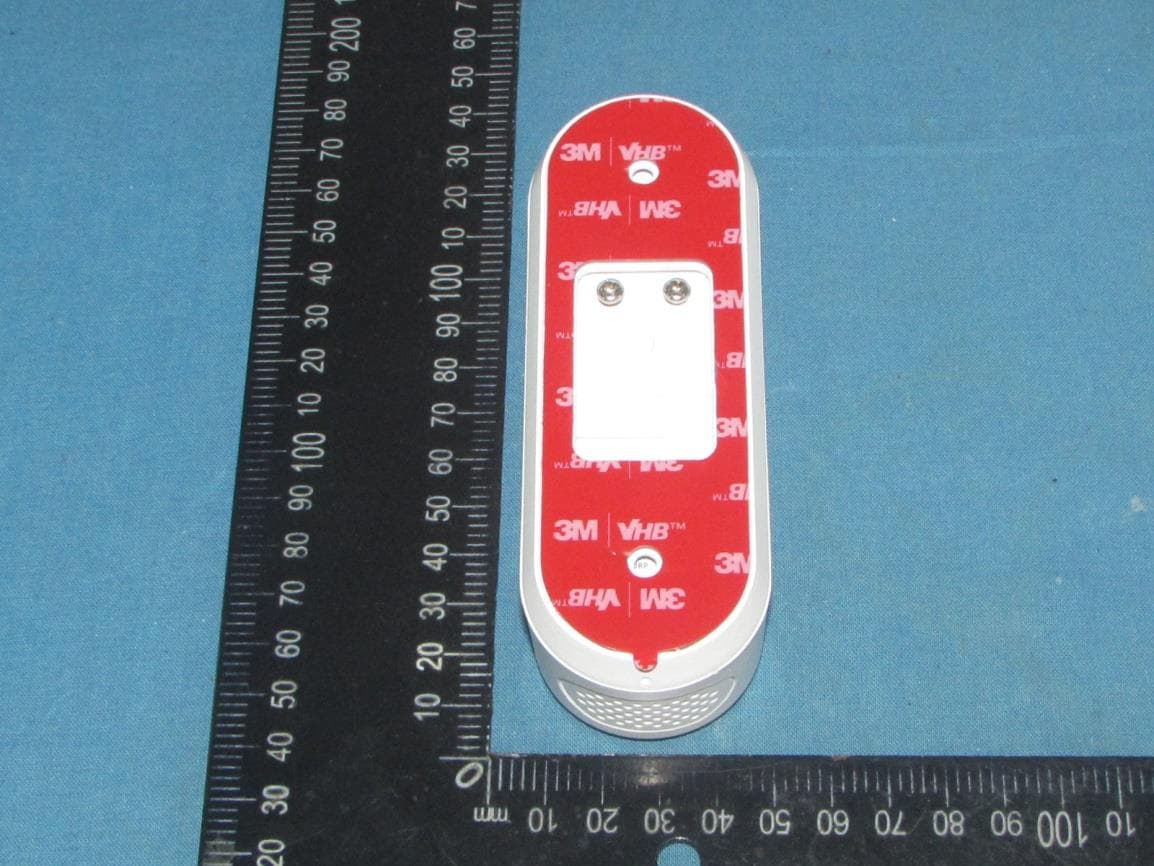

Shenzhen Tongzhou Testing Co.,Ltd. FCC ID:2AWHY-Y0110 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd. Page 1 of 3 EXTERIOR PHOTOGRAPHS OF EUT External Photos Shenzhen Tongzhou Testing Co.,Ltd. FCC ID:2AWHY-Y0110 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd. Page 2 of 3 Shenzhen Tongzhou Testing Co.,Ltd. FCC ID:2AWHY-Y0110 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd. Page 3 of 3

Unit: mm

Shenzhen Tongzhou Testing Co.,Ltd FCC ID:2AWHY-Y0110 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 6 INTERIOR PHOTOGRAPHS OF EUT Internal Photos Shenzhen Tongzhou Testing Co.,Ltd FCC ID:2AWHY-Y0110 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 6 Shenzhen Tongzhou Testing Co.,Ltd FCC ID:2AWHY-Y0110 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 6 Shenzhen Tongzhou Testing Co.,Ltd FCC ID:2AWHY-Y0110 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 4 of 6 Shenzhen Tongzhou Testing Co.,Ltd FCC ID:2AWHY-Y0110 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 5 of 6 Shenzhen Tongzhou Testing Co.,Ltd FCC ID:2AWHY-Y0110 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 6 of 6 Bluetooth &WiFi Antenna

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AWHY-Y0110 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 1 of 6 Maximum Permissible Exposure Report Product Information EUT : WUUK Wired Smart Doorbell Pro Model Number : Y0110 Model Declaration : N/A Test Model : Y0110 Power Supply : 1,DC 5V by adapter;2,Input: AC 16-24V Hardware version : BX-Y0110Q-MAIN-V1.1 Software version : V1.0 Sample ID : TZ230604489–1#&TZ230604489–2# Bluetooth Bluetooth Version : 5.0 Operation Frenquency : 2402- 2480 MHz Channel Number : 40 Channels for BLE (DTS) Modulation Technology : GFSK for BLE (DTS) Data Rates : BLE (DTS): 1Mbps Antenna Type And Gain : Internal Antenna 1: 2.36dBi WiFi WLAN : Supported IEEE 802.11b/g/n WLAN FCC Operation Frequency : IEEE 802.11b:2412-2462MHz IEEE 802.11g:2412-2462MHz IEEE 802.11n HT20:2412-2462MHz IEEE 802.11n HT40: 2422-2452MHz WLAN Channel Number : 11 Channels for 2412-2462MHz(IEEE 802.11b/g/n HT20) 7 Channels for 2422-2452MHz(IEEE 802.11n HT40) WLAN Modulation Technology : IEEE 802.11b: DSSS(CCK,DQPSK,DBPSK) IEEE 802.11g: OFDM (64QAM, 16QAM, QPSK, BPSK) IEEE 802.11n: OFDM (64QAM, 16QAM, QPSK, BPSK) Antenna Type And Gain : Antenna 1:2.36dBi (Max.), for TX/RX (WLAN 2.4G Band) Note 1: Antenna position refer to EUT Photos. Note 2: the above information was supplied by the applicant. 2. Evaluation Method Systems operating under the provisions of FCC 47 CFR section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as mobile device whereby a distance of 0.2m normally can be maintained between the user and the device, and below RF Permissible Exposure limit shall comply with. In accordance with KDB447498D01 for Simultaneous transmission MPE test exclusion applies when the sum of the MPE ratios for all simultaneous transmitting antennas incorporated in a host device, based on the calculated/estimated, numerically modelled or measured field strengths or power density, is ≤ 1.0. The MPE ratio of each antenna is determined at the minimum test separation distance required by the operating Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AWHY-Y0110 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 2 of 6 configurations and exposure conditions of the host device, according to the ratio of field strengths or power density to MPE limit, at the test frequency. Either the maximum peak or spatially averaged results from measurements or numerical simulations may be used to determine the MPE ratios. Spatial averaging does not apply when MPE is estimated using simple calculations based on far-field plane-wave equivalent conditions. The antenna installation and operating requirements for the host device must meet the minimum test separation distances required by all antennas, in both standalone and simultaneous transmission operations, to satisfy compliance. Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AWHY-Y0110 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 3 of 6 3. Limit 3. 1 Refer evaluation method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General 1 RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1091: Radiofrequency radiation exposure evaluation: mobile devices 3. 2 Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 4. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 5. Antenna Information This Product can only use antennas certificated as follows provided by manufacturer; Antenna Gain and type refer to Product information Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AWHY-Y0110 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 4 of 6 6. Conducted Power 2.4G Band: Bluetooth(BLE) TestMode Antenna Channel Result[dBm] BLE_1M Ant1 2402 -4.23 2440 -3.58 2480 -6.3 WiFi 2.4GHz Band TestMode Antenna Channel Result[dBm] 11B Ant1 2412 12.98 2437 13.68 2462 13.11 11G Ant1 2412 13.55 2437 14.03 2462 13.13 11N20SISO Ant1 2412 11.18 2437 12.07 2462 10.92 11N40SISO Ant1 2422 12.65 2437 12.25 2452 11.80 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AWHY-Y0110 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Page 5 of 6 7. Manufacturing Tolerance Bluetooth(BLE) GFSK(1Mbps) (Peak) Channel Channel 0 Channel 19 Channel 39 Target (dBm) -4.5 -4.0 -7.0 Tolerance ±(dB) 1.0 1.0 1.0 WiF…

Text truncated - open the document above for the full version.

SPECIFICATION ShenZhen TianDa Communication CO., LTD Y0110 antenna Product Recognition Letter Customer WUUK Frequency band 2400-2500MHz Project nam e Y0110 Version A Project item number WK-Y0-11-WI-A 02.06.0025 Color Black R F design Xinchuang Wang Structure Design Luhong Zhou Date 2023.06.28 Customer confirmation: Does the assembly meet your company's requirements：□OK □NG ShenZhen TianDa Communication CO., LTD. 302 Building A, JinGang science and Technology Park, Qiaotou community, Fuhai Street, Bao'an District, Shenzhen Confidential Information Page 2 Catalogue 一、WIFI antenna.........................................................................................................................3 1、specifications........................................................................................................................3 1.1 Electrical specifications........................................................................................................3 1.1.1 Electrical performance index..............................................................................................3 1.1.2 Matching circuit diagrams..................................................................................................3 1.2、Test....................................................................................................................................4 1.2.1、Passive test data.............................................................................................................4 1.2.1.1、Antenna in wave diagram...........................................................................................4 1.2.1.2、Antenna gain, and efficiency......................................................................................4 1.2.1.3、antenna pattern ..........................................................................................................5 1.2.2、Active test data of the whole machine.......................................................................6 二、Structural specifications.................................................................................................6 2.1、Antenna composition....................................................................................................6 2. 2、engineering drawing....................................................................................................7 2.3、dimensional measurement............................................................................................7 三、Conclusion........................................................................................................................7 四、package...............................................................................................................................7 Confidential Information Page 3 1. WIFI antenna 1. Specifications This admission letter mainly provides the test status of the electrical and structural performance parameters of the WIFI antenna in the Y0110 project. Below is a picture of the WIFI antenna. 1.1、Electrical specifications 1.1.1. Electrical performance index The antenna working frequency band of the project is 2400-2500 MHz, and below are the electrical performance indicators of the antenna design and trial production. WIFI frequency range frequency（MHz） VSWR WIFI 2400~2500 ≤2.0 1.1.2、Matching circuit diagrams The matching circuit of WIFI antenna matches the main board with no changes. Confidential Information Page 4 1.2. Test 1.2.1. Passive test 1.2.1.1. Antenna standing wave test (VSWR) 1.2.1.2、Antenna gain, and efficiency 1.2.1.2、antenna pattern Confidential Information Page 5 Confidential Information Page 6 1.2.2、Active test data of the whole machine Above is the WIFI active test antenna data of the whole machine. 2. Structural specifications 2.1、Antenna composition WIFI antenna is mainly composed of cable + FPC line. 2.2、engineering drawing Confidential Information Page 7 2.3、dimensional measurement Quantity Size 1 2 3 4 32.60±0.2 32.58 32.60 32.59 32.61 11.0±0.2 11.00 11.01 10.99 11.01 28.0±2.0 28.10 28.03 28.00 27.98 3. conclusion This antenna is designed on the prototype currently provided by the customer. The electrical parameters and structural dimensions have met the technical requirements. Please confirm! 4. pack Package in PE bags.

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AWHY-Y0110 Report No.:TZ230604489-E2 Page 1 of 19 Appendix Test Data for BT(BLE) (Conducted Measurement) Product Name: WUUK Wired Smart Doorbell Pro Trade Mark: WUUK Test Model: Y0110 FCC ID: 2AWHY-Y0110 Environmental Conditions Temperature: 25.5C Relative Humidity: 55% ATM Pressure: 100.0 kPa Test Engineer: Anna Hu Supervised by: Hugo Chen NOTE N/A Appendix A: DTS Bandwidth Test Result TestMode Antenna Channel DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 0.696 2401.660 2402.356 0.5 PASS 2440 0.604 2439.676 2440.280 0.5 PASS 2480 0.652 2479.652 2480.304 0.5 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AWHY-Y0110 Report No.:TZ230604489-E2 Page 2 of 19 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AWHY-Y0110 Report No.:TZ230604489-E2 Page 3 of 19 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Channel OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 1.0258 2401.4918 2402.5176 --- --- 2440 1.0093 2439.5039 2440.5132 --- --- 2480 1.0357 2479.4892 2480.5249 --- --- Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AWHY-Y0110 Report No.:TZ230604489-E2 Page 4 of 19 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AWHY-Y0110 Report No.:TZ230604489-E2 Page 5 of 19 Appendix C: Maximum Peak conducted output power Test Result TestMode Antenna Channel Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 2402 -4.23 ≤30 PASS 2440 -3.58 ≤30 PASS 2480 -6.3 ≤30 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AWHY-Y0110 Report No.:TZ230604489-E2 Page 6 of 19 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AWHY-Y0110 Report No.:TZ230604489-E2 Page 7 of 19 Appendix D: Maximum power spectral density Test Result TestMode Antenna Channel Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict BLE_1M Ant1 2402 -20.09 ≤8.00 PASS 2440 -19.12 ≤8.00 PASS 2480 -21.88 ≤8.00 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AWHY-Y0110 Report No.:TZ230604489-E2 Page 8 of 19 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AWHY-Y0110 Report No.:TZ230604489-E2 Page 9 of 19 Appendix E: Band edge measurements Test Result TestMode Antenna ChName Channel RefLevel[dBm] Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 Low 2402 -4.93 -50.26 ≤-24.93 PASS High 2480 -6.91 -49.71 ≤-26.91 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AWHY-Y0110 Report No.:TZ230604489-E2 Page 10 of 19 Test Graphs BLE_1M_Ant1_Low_2402 BLE_1M_Ant1_High_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AWHY-Y0110 Report No.:TZ230604489-E2 Page 11 of 19 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Channel FreqRange [MHz] RefLevel [dBm] Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 2402 Reference -5.37 -5.37 --- PASS 30~1000 -5.37 -55.64 ≤-25.37 PASS 1000~26500 -5.37 -49.73 ≤-25.37 PASS 2440 Reference -5.40 -5.40 --- PASS 30~1000 -5.40 -62.22 ≤-25.4 PASS 1000~26500 -5.40 -50.28 ≤-25.4 PASS 2480 Reference -6.92 -6.92 --- PASS 30~1000 -6.92 -62.7 ≤-26.92 PASS 1000~26500 -6.92 -49.62 ≤-26.92 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AWHY-Y0110 Report No.:TZ230604489-E2 Page 12 of 19 Test Graphs BLE_1M_Ant1_2402_0~Reference BLE_1M_Ant1_2402_30~1000 BLE_1M_Ant1_2402_1000~26500 BLE_1M_Ant1_2440_0~Reference Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AWHY-Y0110 Report No.:TZ230604489-E2 Page 13 of 19 BLE_1M_Ant1_2440_30~1000 BLE_1M_Ant1_2440_1000~26500 BLE_1M_Ant1_2480_0~Reference Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AWHY-Y0110 Report No.:TZ230604489-E2 Page 14 of 19 BLE_1M_Ant1_2480_30~1000 BLE_1M_Ant1_2480_1000~26500 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AWHY-Y0110 Report No.:TZ230604489-E2 Page 15 of 19 Appendix G: Duty Cycle Test Result TestMode Antenna Channel Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] 1/T[kHz] BLE_1M Ant1 2402 0.40 1.25 32.00 2.50 2440 0.40 1.25 32.00 2.50 2480 0.40 1.25 32.00 2.50 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AWHY-Y0110 Report No.:TZ230604489-E2 Page 16 of 19 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AWHY-Y0110 Report No.:TZ230604489-E2 Page 17 of 19 Appendix H: Emissions in Restricted Bands Test Result TestMode Antenna ChName Channel Detector Freq. [MHz] Result [dBm] Limit [dBm] Verdict BLE_1M Ant1 Low 2402 AV 2310.000 -48.62 ≤-41.20 PASS AV 2372.660 -47.94 ≤-41.20 PASS AV 2390.000 -48.26 ≤-41.20 PASS Peak 2310.000 -42.9 ≤-21.20 PASS Peak 2335.490 -38.58 ≤-21.20 PASS Peak 2390.000 -41.62 ≤-21.20 PASS High 2480 AV 2483.500 -48.83 ≤-41.20 PASS AV 2499.920 -48.59 ≤-41.20 PASS AV 2500.000 -48.6 ≤-41.20 PASS Peak 2483.500 -44.2 ≤-21.20 PASS Peak 2489.840 -38.98 ≤-21.20 PASS Peak 2500.000 -42.11 ≤-21.20 PASS Note： 1. The Antenna Gain is compensated in the graph with 2dBi and Antenna Gain which is Higher. 2. The limit in dBm for average detector is conversion from 54dBuV/m, according to 15.209(a). The limit in dBm for peak detector is 20dB above the limit of average detector in dBm. Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AWHY-Y0110 Report No.:TZ230604489-E2 Page 18 of 19 Test Graphs BLE_1M_Ant1_Low_2402_AV BLE_1M_Ant1_Low_2402_Peak BLE_1M_Ant1_High_2480_AV BLE_1M_Ant1_High_2480_Peak Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AWHY-Y0110 Report No.:TZ230604489-E2 Page 19 of 19

Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AWHY-Y0110 Report No.: TZ230604489-E1 Page 1 of 38 Appendix Test Data for WLAN(2.4G) (Conducted Measurement) Product Name: WUUK Wired Smart Doorbell Pro Trade Mark: WUUK Test Model: Y0110 FCC ID: 2AWHY-Y0110 Environmental Conditions Temperature: 25.5C Relative Humidity: 55% ATM Pressure: 100.0 kPa Test Engineer: Anna Hu Supervised by: Hugo Chen NOTE N/A Appendix A: DTS Bandwidth Test Result TestMode Antenna Channel DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 10.120 2406.960 2417.080 0.5 PASS 2437 10.080 2431.960 2442.040 0.5 PASS 2462 10.040 2457.040 2467.080 0.5 PASS 11G Ant1 2412 15.440 2404.720 2420.160 0.5 PASS 2437 16.000 2428.880 2444.880 0.5 PASS 2462 16.240 2453.880 2470.120 0.5 PASS 11N20SISO Ant1 2412 16.320 2403.920 2420.240 0.5 PASS 2437 16.000 2428.560 2444.560 0.5 PASS 2462 16.000 2453.800 2469.800 0.5 PASS 11N40SISO Ant1 2422 35.280 2404.480 2439.760 0.5 PASS 2437 35.120 2419.480 2454.600 0.5 PASS 2452 35.200 2434.400 2469.600 0.5 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AWHY-Y0110 Report No.: TZ230604489-E1 Page 2 of 38 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 11G_Ant1_2412 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AWHY-Y0110 Report No.: TZ230604489-E1 Page 3 of 38 11G_Ant1_2437 11G_Ant1_2462 11N20SISO_Ant1_2412 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AWHY-Y0110 Report No.: TZ230604489-E1 Page 4 of 38 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AWHY-Y0110 Report No.: TZ230604489-E1 Page 5 of 38 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AWHY-Y0110 Report No.: TZ230604489-E1 Page 6 of 38 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Channel OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 14.839 2404.6967 2419.5357 --- --- 2437 14.705 2429.6034 2444.3084 --- --- 2462 14.857 2454.6457 2469.5027 --- --- 11G Ant1 2412 16.725 2403.7198 2420.4448 --- --- 2437 16.728 2428.6406 2445.3686 --- --- 2462 16.846 2453.6086 2470.4546 --- --- 11N20SISO Ant1 2412 17.782 2403.1840 2420.9660 --- --- 2437 17.725 2428.1925 2445.9175 --- --- 2462 17.857 2453.1526 2471.0096 --- --- 11N40SISO Ant1 2422 36.030 2404.1381 2440.1681 --- --- 2437 36.003 2419.0345 2455.0375 --- --- 2452 36.336 2433.8514 2470.1874 --- --- Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AWHY-Y0110 Report No.: TZ230604489-E1 Page 7 of 38 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 11G_Ant1_2412 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AWHY-Y0110 Report No.: TZ230604489-E1 Page 8 of 38 11G_Ant1_2437 11G_Ant1_2462 11N20SISO_Ant1_2412 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AWHY-Y0110 Report No.: TZ230604489-E1 Page 9 of 38 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AWHY-Y0110 Report No.: TZ230604489-E1 Page 10 of 38 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AWHY-Y0110 Report No.: TZ230604489-E1 Page 11 of 38 Appendix C: Maximum conducted output power Test Result TestMode Antenna Channel Result[dBm] Limit[dBm] Verdict 11B Ant1 2412 12.98 ≤30.00 PASS 2437 13.68 ≤30.00 PASS 2462 13.11 ≤30.00 PASS 11G Ant1 2412 13.55 ≤30.00 PASS 2437 14.03 ≤30.00 PASS 2462 13.13 ≤30.00 PASS 11N20SISO Ant1 2412 11.18 ≤30.00 PASS 2437 12.07 ≤30.00 PASS 2462 10.92 ≤30.00 PASS 11N40SISO Ant1 2422 12.65 ≤30.00 PASS 2437 12.25 ≤30.00 PASS 2452 11.80 ≤30.00 PASS Note：The Duty Cycle Factor is compensated in the test result. Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AWHY-Y0110 Report No.: TZ230604489-E1 Page 12 of 38 Appendix D: Maximum power spectral density Test Result TestMode Antenna Channel Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict 11B Ant1 2412 -16.99 ≤8.00 PASS 2437 -15.84 ≤8.00 PASS 2462 -17.18 ≤8.00 PASS 11G Ant1 2412 -16.26 ≤8.00 PASS 2437 -16.22 ≤8.00 PASS 2462 -17.68 ≤8.00 PASS 11N20SISO Ant1 2412 -16.14 ≤8.00 PASS 2437 -15.08 ≤8.00 PASS 2462 -15.88 ≤8.00 PASS 11N40SISO Ant1 2422 -16.72 ≤8.00 PASS 2437 -16.58 ≤8.00 PASS 2452 -16.98 ≤8.00 PASS Note：The Duty Cycle Factor is compensated in the test result. Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AWHY-Y0110 Report No.: TZ230604489-E1 Page 13 of 38 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AWHY-Y0110 Report No.: TZ230604489-E1 Page 14 of 38 11G_Ant1_2412 11G_Ant1_2437 11G_Ant1_2462 11N20SISO_Ant1_2412 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AWHY-Y0110 Report No.: TZ230604489-E1 Page 15 of 38 11N20SISO_Ant1_2437 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AWHY-Y0110 Report No.: TZ230604489-E1 Page 16 of 38 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AWHY-Y0110 Report No.: TZ230604489-E1 Page 17 of 38 Appendix E: Band edge measurements Test Result TestMode Antenna ChName Channel RefLevel[dBm] Result[dBm] Limit[dBm] Verdict 11B Ant1 Low 2412 3.61 -39.43 ≤-26.39 PASS High 2462 3.36 -48.96 ≤-26.64 PASS 11G Ant1 Low 2412 2.55 -37.45 ≤-27.45 PASS High 2462 2.44 -48.02 ≤-27.57 PASS 11N20SISO Ant1 Low 2412 0.22 -38.15 ≤-29.78 PASS High 2462 -0.01 -49.26 ≤-30.01 PASS 11N40SISO Ant1 Low 2422 -1.67 -41.39 ≤-31.67 PASS High 2452 -2.66 -48.74 ≤-32.66 PASS Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AWHY-Y0110 Report No.: TZ230604489-E1 Page 18 of 38 Test Graphs 11B_Ant1_Low_2412 11B_Ant1_High_2462 11G_Ant1_Low_2412 11G_Ant1_High_2462 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AWHY-Y0110 Report No.: TZ230604489-E1 Page 19 of 38 11N20SISO_Ant1_Low_2412 11N20SISO_Ant1_High_2462 11N40SISO_Ant1_Low_2422 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AWHY-Y0110 Report No.: TZ230604489-E1 Page 20 of 38 11N40SISO_Ant1_High_2452 Shenzhen Tongzhou Testing Co.,Ltd FCC ID: 2AWHY-Y0110 Report No.: TZ230604489-E1 Page 21 of 38 Appendix F: Conducted Spurious Emission Test Result TestMode Antenna Channel FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict …

Text truncated - open the document above for the full version.

Report No.: TZ230604489-E1 Page 1 of 40 FCC TEST REPORT Test report On Behalf of WUUK LABS CORP. For WUUK Wired Smart Doorbell Pro Model No.: Y0110 FCC ID: 2AWHY-Y0110 Prepared for : WUUK LABS CORP. 16192 COASTAL HWY, LEWES, DE 19958, US Prepared By : Shenzhen Tongzhou Testing Co.,Ltd 1th Floor, Building 1, Haomai High-tech Park, Huating Road 387, Dalang Street, Longhua, Shenzhen, China Date of Test: 2023/6/17~2023/6/30 Date of Report: 2023/7/14 Report Number: TZ230604489-E1 The test report apply only to the specific sample(s) tested under stated test conditions It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: TZ230604489-E1 Page 2 of 40 TEST RESULT CERTIFICATION Applicant’s name ................. : WUUK LABS CORP. Address .................................. : 16192 COASTAL HWY, LEWES, DE 19958, US Manufacture's Name ............ : WUUK LABS CORP. Address .................................. : 16192 COASTAL HWY, LEWES, DE 19958, US Product description Trade Mark: WUUK Product name ............................ : WUUK Wired Smart Doorbell Pro Model and/or type reference : Y0110 Standards.............................. : FCC Rules and Regulations Part 15 Subpart C Section 15.247 ANSI C63.10: 2013 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Tongzhou Testing Co.,Ltd is acknowledged as copyright owner and source of the material. Shenzhen Tongzhou Testing Co.,Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Date of Test ........................................... : Date (s) of performance of tests ............. : 2023/6/17~2023/6/30 Date of Issue .......................................... : 2023/7/14 Test Result .............................................. : Pass Testing Engineer : (Anna Hu) Technical Manager : (Hugo Chen) Authorized Signatory : (Andy Zhang) Report No.: TZ230604489-E1 Page 3 of 40 Revision History Revision Issue Date Revisions Revised By 00 2023/7/14 Initial Issue Andy Zhang Report No.: TZ230604489-E1 Page 4 of 40 TABLE OF CONTENTS 1. GENERAL INFORMATION ................................................................................................................................... 5 1.1. DESCRIPTION OF DEVICE (EUT) ........................................................................................................................ 5 1.2 EUT CONFIGURATION .......................................................................................................................................... 5 1.3. EXTERNAL I/O CABLE ......................................................................................................................................... 6 1.4. DESCRIPTION OF TEST FACILITY ........................................................................................................................ 6 1.5. STATEMENT OF THE MEASUREMENT UNCERTAINTY .......................................................................................... 7 1.6. MEASUREMENT UNCERTAINTY ........................................................................................................................... 7 1.7. DESCRIPTION OF TEST MODES .......................................................................................................................... 8 2. TEST METHODOLOGY ......................................................................................................................................... 9 2.1. EUT CONFIGURATION......................................................................................................................................... 9 2.2. EUT EXERCISE ................................................................................................................................................... 9 2.3. GENERAL TEST PROCEDURES ........................................................................................................................... 9 2.4. TEST SAMPLE ...................................................................................................................................................... 9 3. SYSTEM TEST CONFIGURATION .................................................................................................................... 10 3.1. JUSTIFICATION................................................................................................................................................... 10 3.2. EUT EXERCISE SOFTWARE .............................................................................................................................. 10 3.3. SPECIAL ACCESSORIES .................................................................................................................................... 10 3.4. BLOCK DIAGRAM/SCHEMATICS......................................................................................................................... 10 3.5. EQUIPMENT MODIFICATIONS ............................................................................................................................ 10 3.6. TEST SETUP ...................................................................................................................................................... 10 4. SUMMARY OF TEST RESULTS ........................................................................................................................ 11 5. TEST RESULT ....................................................................................................................................................... 12 5.1. ON TIME AND DUTY CYCLE .............................................................................................................................. 12 5.2. MAXIMUM CONDUCTED OUTPUT POWER MEASUREMENT ....................................................…

Text truncated - open the document above for the full version.

Report No.: TZ230604489-E2 Page 1 of 34 FCC TEST REPORT Test report On Behalf of WUUK LABS CORP. For WUUK Wired Smart Doorbell Pro Model No.: Y0110 FCC ID: 2AWHY-Y0110 Prepared for : WUUK LABS CORP. 16192 COASTAL HWY, LEWES, DE 19958, US Prepared By : Shenzhen Tongzhou Testing Co.,Ltd 1th Floor, Building 1, Haomai High-tech Park, Huating Road 387, Dalang Street, Longhua, Shenzhen, China Date of Test: 2023/6/17~2023/6/30 Date of Report: 2023/7/14 Report Number:…
