2AXUI-M1Mini PC

CHITECH SHENZHEN TECHNOLOGY CO.,LTD

Click to zoom

Application Details

Equipment Class: NII - Unlicensed National Information Infrastructure TX
Date of Grant: Apr 08, 2023
Application Purpose: Original Equipment
Date of Application: Apr 08, 2023
Equipment Note: Mini PC
Frequency Range: 5745.00000000 - 5825.00000000
Company: CHITECH SHENZHEN TECHNOLOGY CO.,LTD
Country: China

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

ManufacturerCHITECH SHENZHEN TECHNOLOGY CO.,LTD Address:101,NO.48,Xiashijia Road,Gongming Town,Guangming Dist.,Shenzhen,China 0RGHO0 3URGXFW1DPH0,1,3&0$'(,1&+,1$ /DQJXDJHGLUHFWRU\ English ... .......................................01 German ... .......................................07 Japanese .......................................13 Spanish ... .......................................18 Italian ...... .......................................24 French ...... .......................................30 M1 MINI PC English ¡ ¡ ¢ ¢ ¡ £ ¡ ¢ ¤ ¡¢ …

Text truncated - open the document above for the full version.

Attestation Statements

CHITECH SHENZHEN TECHNOLOGY CO.,LTD 2.911 (d)(5)(ii) Applicant Attestation v1.2 Section 2.911(d)(5)(ii) Certification – Applicant (Covered List ) Company name: CHITECH SHENZHEN TECHNOLOGY CO.,LTD Address: 101, NO.48, Xiashijia Road, Gongming Town, Guangming Dist., Shenzhen, China Product Name: Mini PC FCC ID: 2AXUI-M1 Model(s): M1, minis,T100, GT mini, M100, M200, Z2, Z1 2.911(d)(5)(ii) Applicant filing We, [CHITECH SHENZHEN TECHNOLOGY CO.,LTD] certify that, as of the date of the filing of the application, the applicant is not identified NOTE 1 on the “Covered List” NOTE 2 , established pursuant to § 1.50002 of this chapter, as an entity producing covered communications equipment. Yours sincerely, Name: Lydia Deng Date: 2023.03.29 Title and Company name: Manager / CHITECH SHENZHEN TECHNOLOGY CO.,LTD NOTE 1 Delete option not applicable to this application. NOTE 2 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

Attestation Statements

Lydia Deng

Cover Letter(s)

FCC Software Configuration Control Declaration Rev1.1 CHITECH SHENZHEN TECHNOLOGY CO.,LTD FCC Software Configuration Control Declaration Date: March 29, 2023 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Attn: OET Dept. Product/ Model Number: Mini PC / M1, minis,T100, GT mini, M100, M200, Z2, Z1 Regarding FCC Country Code Selection guidelines identified in KDB 594280. “All applications for equipment authorization for transmitters that can have radio parameters, or other technical parameters, reported to the Commission set by software must have an attestation indicating that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified.” We declare that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified. Date: 2023/03/29 Name: Title: Manager Signature of applicant

Cover Letter(s)

CHITECH SHENZHEN TECHNOLOGY CO.,LTD 101, NO.48, Xiashijia Road, Gongming Town, Guangming Dist., Shenzhen, China Series Models Description Date: 2023/03/29 Dear Sir/Madam, We, CHITECH SHENZHEN TECHNOLOGY CO.,LTD Hereby declares the following statement for EU/US/MIC certificate, PCB board, structure and internal of these model(s) are the same, Only the model name different , So no additional models were tested. Product name: Mini PC Model no.: M1, minis,T100, GT mini, M100, M200, Z2, Z1 Signature: Name / Title: Lydia Deng / Manager Company: CHITECH SHENZHEN TECHNOLOGY CO.,LTD Address: 101, NO.48, Xiashijia Road, Gongming Town, Guangming Dist., Shenzhen, China Phone: 86-0755-21380496 Fax: 86-0755-21380496 E-Mail: [email protected] Lydia Deng

Cover Letter(s)

CHITECH SHENZHEN TECHNOLOGY CO.,LTD Agent Authorization Company: CHITECH SHENZHEN TECHNOLOGY CO.,LTD Address: 101, NO.48, Xiashijia Road, Gongming Town, Guangming Dist., Shenzhen, China Product Name: Mini PC Trade Mark: TIBUTA Model Number(s): M1, minis,T100, GT mini, M100, M200, Z2, Z1 FCC ID: 2AXUI-M1 We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2023-03-28 Name: Lydia Deng Title: Manager Company: CHITECH SHENZHEN TECHNOLOGY CO.,LTD

Cover Letter(s)

CHITECH SHENZHEN TECHNOLOGY CO.,LTD Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2023-03-29 Subject; Request for Confidentiality FCC ID: 2AXUI-M1 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description BOM Software Security Requirements Tune up In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name / Title: Lydia Deng / Manager Company: CHITECH SHENZHEN TECHNOLOGY CO.,LTD Address: 101, NO.48, Xiashijia Road, Gongming Town, Guangming Dist., Shenzhen, China Phone: 86-0755-21380496 Fax: 86-0755-21380496 E-Mail: [email protected]

External Photos

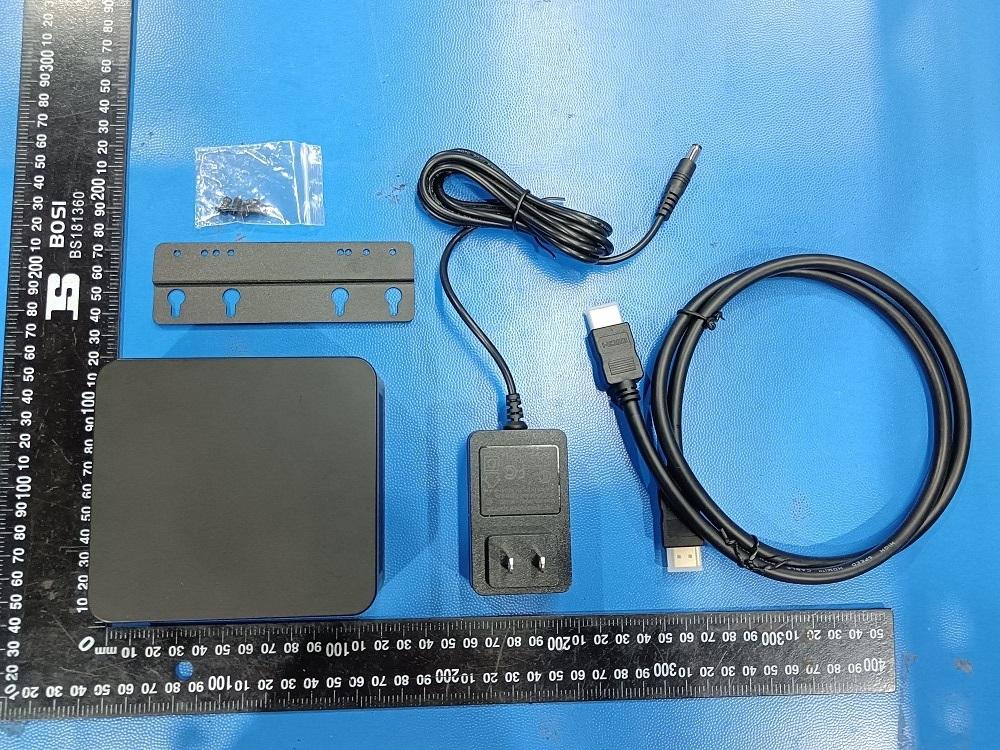

FCC ID: 2AXUI-M1 Fig. 1 Fig. 2 FCC ID: 2AXUI-M1 Fig. 3 Fig. 4 FCC ID: 2AXUI-M1 Fig. 5 Fig. 6 FCC ID: 2AXUI-M1 Fig. 7 Fig. 8

ID Label/Location Info

_____________________________________________________________________________________________________ LABEL AND LOCATION (Size: L3.45cm x 2.95cm) Label Location

Internal Photos

FCC ID: 2AXUI-M1 Fig. 1 Fig. 2 BT&WLAN ANT 1 WLAN ANT 2 FCC ID: 2AXUI-M1 Fig. 3 Fig. 4 FCC ID: 2AXUI-M1 Fig. 5 Fig. 6 FCC ID: 2AXUI-M1 Fig. 7 Fig. 8 FCC ID: 2AXUI-M1 Fig. 9 Fig. 10 FCC ID: 2AXUI-M1 Fig. 11 Fig. 12 FCC ID: 2AXUI-M1 Fig. 13 Fig. 14

RF Exposure Info

Shenzhen Global Test Service Co.,Ltd. No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong RF Exposure evaluation Report Reference No...................... : FCC ID. ............................................ : GTS20230105004-1-5 2AXUI-M1 Compiled by ( position+printed name+signature) . : File administrators Peter Xiao Supervised by ( position+printed name+signature) . : Test Engineer Jenny Zeng Approved by ( position+printed name+signature) . : Manager Jason Hu Date of issue .................................... : Feb. 14, 2023 Representative Laboratory Name . : Shenzhen Global Test Service Co.,Ltd. Address ............................................ : No.7-101 and 8A-104, Building 7 and 8, DCC Cultural and Creative Garden, No.98, Pingxin North Road, Shangmugu Community, Pinghu Street, Longgang District, Shenzhen, Guangdong Applicant’s name ............................ : CHITECH SHENZHEN TECHNOLOGY CO.,LTD Address ............................................ : 101, NO.48, Xiashijia Road, Gongming Town, Guangming Dist., Shenzhen, China Test specification ........................... : Standard ........................................... : 47CFR §1.1310 Basis and purpose 47CFR §2.1091 Radiofrequency radiation exposure evaluation: mobile devices KDB447498 D01 General RF Exposure Guidance v06 TRF Originator .................................. : Shenzhen Global Test Service Co.,Ltd. Master TRF ...................................... : Dated 2014-12 Shenzhen Global Test Service Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Global Test Service Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Global Test Service Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Mini PC Trade Mark ....................................... : TIBUTA Manufacturer .................................... : CHITECH SHENZHEN TECHNOLOGY CO.,LTD Model/Type reference ...................... : M1 Listed Models .................................. : minis,T100, GT mini, M100, M200, Z2, Z1 Modulation Type ............................... : IEEE 802.11a /802.11b/802.11g/802.11n/802.11ac GFSK, π/4-DQPSK, 8-DPSK Operation Frequency........................ : From 2412MHz to 2462MHz, 5180MHz to 5240MHz, 5745MHz to 5825MHz, 2402MHz to 2480MHz Hardware Version ............................ : MX-ANB03_MB_V200 Software Version .............................. : 10.0.22621 Build 22621 Rating ............................................... : DC 12.0V/3.0A by Adapter Result ............................................... : PASS Report No.: GTS20230105004-1-5 Page 2 of 22 T E S T R E P O R T Test Report No. : GTS20230105004-1-5 Feb. 14, 2023 ______________________________________________________________________________________________ Date of issue Equipment under Test : Mini PC Model /Type : M1 Listed model : minis,T100, GT mini, M100, M200, Z2, Z1 Applicant : CHITECH SHENZHEN TECHNOLOGY CO.,LTD Address : 101, NO.48, Xiashijia Road, Gongming Town, Guangming Dist., Shenzhen, China Manufacturer : CHITECH SHENZHEN TECHNOLOGY CO.,LTD Address : 101, NO.48, Xiashijia Road, Gongming Town, Guangming Dist., Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: GTS20230105004-1-5 Page 3 of 22 Contents 1. SUMMARY .................................................................................................................................................... 4 1.1 EUT CONFIGURATION .................................................................................................................................... 4 1.2 PRODUCT DESCRIPTION ................................................................................................................................ 4 2. TEST ENVIRONMENT .................................................................................................................................. 4 2.1 ADDRESS OF THE TEST LABORATORY .............................................................................................................. 5 2.2 TEST FACILITY ............................................................................................................................................... 5 2.3 ENVIRONMENTAL CONDITIONS ........................................................................................................................ 5 2.4 STATEMENT OF THE MEASUREMENT UNCERTAINTY .......................................................................................... 5 3. METHOD OF MEASUREMENT ................................................................................................................... 6 3.1 APPLICABLE STANDARD ................................................................................................................................. 6 3.2 REQUIREMENT .............................................................................................................................................. 6 3.3 LIMIT ............................................................................................................................................................. 6 3.4 MPE CALCULATION METHOD ......................................................................................................................... 7 3.5 ANTENNA INFORMATION ................................................................................................................................. 7 4. CONDUCTED POWER RESULTS ...................................…

Text truncated - open the document above for the full version.

Test Report

Case No. : GTS20230105004-1-4 Ambient Condition: 25 °C, 45 %RH, Atmos100.1Kpa, Test Date: 2023.2.2 Test Engineer: Jenny zeng Appendix D.1: Emission Bandwidth Test Result TestMode Antenna Frequency[MHz] 26db EBW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant1 5180 24.040 5168.640 5192.680 --- --- 5200 26.480 5186.480 5212.960 --- --- 5240 25.880 5227.360 5253.240 --- --- 11N20SISO Ant1 5180 26.440 5167.120 5193.560 --- --- 5200 26.000 5187.960 5213.960 --- --- 5240 29.400 5225.440 5254.840 --- --- 11N40SISO Ant1 5190 47.680 5167.680 5215.360 --- --- 5230 51.360 5205.040 5256.400 --- --- 11AC20SISO Ant1 5180 24.000 5168.400 5192.400 --- --- 5200 26.800 5186.800 5213.600 --- --- 5240 26.680 5226.800 5253.480 --- --- 11AC40SISO Ant1 5190 47.680 5167.040 5214.720 --- --- 5230 48.160 5206.720 5254.880 --- --- 11AC80SISO Ant1 5210 117.920 5162.640 5280.560 --- --- Test Graphs 11A_Ant1_5180 11A_Ant1_5200 11A_Ant1_5240 11N20SISO_Ant1_5180 11N20SISO_Ant1_5200 11N20SISO_Ant1_5240 11N40SISO_Ant1_5190 11N40SISO_Ant1_5230 11AC20SISO_Ant1_5180 11AC20SISO_Ant1_5200 11AC20SISO_Ant1_5240 11AC40SISO_Ant1_5190 11AC40SISO_Ant1_5230 11AC80SISO_Ant1_5210 Appendix D.2: Occupied channel bandwidth Test Result TestMode Antenna Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant1 5180 16.942 5171.542 5188.484 --- --- 5200 17.345 5191.353 5208.698 --- --- 5240 17.417 5231.283 5248.700 --- --- 11N20SISO Ant1 5180 18.273 5170.902 5189.175 --- --- 5200 18.382 5190.827 5209.209 --- --- 5240 18.562 5230.725 5249.287 --- --- 11N40SISO Ant1 5190 36.531 5171.822 5208.353 --- --- 5230 36.687 5211.713 5248.400 --- --- 11AC20SISO Ant1 5180 18.174 5170.909 5189.083 --- --- 5200 18.317 5190.855 5209.172 --- --- 5240 18.458 5230.766 5249.224 --- --- 11AC40SISO Ant1 5190 36.510 5171.818 5208.328 --- --- 5230 36.564 5211.760 5248.324 --- --- 11AC80SISO Ant1 5210 75.657 5172.259 5247.916 --- --- Test Graphs 11A_Ant1_5180 11A_Ant1_5200 11A_Ant1_5240 11N20SISO_Ant1_5180 11N20SISO_Ant1_5200 11N20SISO_Ant1_5240 11N40SISO_Ant1_5190 11N40SISO_Ant1_5230 11AC20SISO_Ant1_5180 11AC20SISO_Ant1_5200 11AC20SISO_Ant1_5240 11AC40SISO_Ant1_5190 11AC40SISO_Ant1_5230 11AC80SISO_Ant1_5210 Appendix D.3: Duty Cycle Test Result TestMode Antenna Frequency[MHz] Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] 11A Ant1 5180 2.05 2.07 99.03 5200 2.04 2.07 98.55 5240 2.05 2.07 99.03 11N20SISO Ant1 5180 1.90 1.93 98.45 5200 1.91 1.93 98.96 5240 1.91 1.93 98.96 11N40SISO Ant1 5190 0.94 1.11 84.68 5230 0.93 1.10 84.55 11AC20SISO Ant1 5180 1.92 1.94 98.97 5200 1.92 1.94 98.97 5240 1.91 1.94 98.45 11AC40SISO Ant1 5190 0.94 1.11 84.68 5230 0.95 1.12 84.82 11AC80SISO Ant1 5210 0.46 0.54 85.19 Test Graphs 11A_Ant1_5180 11A_Ant1_5200 11A_Ant1_5240 11N20SISO_Ant1_5180 11N20SISO_Ant1_5200 11N20SISO_Ant1_5240 11N40SISO_Ant1_5190 11N40SISO_Ant1_5230 11AC20SISO_Ant1_5180 11AC20SISO_Ant1_5200 11AC20SISO_Ant1_5240 11AC40SISO_Ant1_5190 11AC40SISO_Ant1_5230 11AC80SISO_Ant1_5210 Appendix D.4: Maximum conducted output power Test Result Channel Power Test Mode Antenna Frequency[M Hz] Channel Powert [dBm] Duty Cycle [%] DC Factor [dBm] Result [dBm] Limit [dBm] Verdict 11A Ant1 5180 11.82 99.03 0.04 11.86 ≤23.98 PASS 5200 12.18 98.55 0.06 12.24 ≤23.98 PASS 5240 12.06 99.03 0.04 12.10 ≤23.98 PASS 11N20SISO Ant1 5180 11.92 98.45 0.07 11.99 ≤23.98 PASS 5200 12.09 98.96 0.05 12.14 ≤23.98 PASS 5240 12.05 98.96 0.05 12.10 ≤23.98 PASS 11N40SISO Ant1 5190 11.42 84.68 0.72 12.14 ≤23.98 PASS 5230 11.53 84.55 0.73 12.26 ≤23.98 PASS 11AC20SISO Ant1 5180 11.52 98.97 0.04 11.56 ≤23.98 PASS 5200 11.90 98.97 0.04 11.94 ≤23.98 PASS 5240 11.85 98.45 0.07 11.92 ≤23.98 PASS 11AC40SISO Ant1 5190 11.10 84.68 0.72 11.82 ≤23.98 PASS 5230 11.16 84.82 0.72 11.88 ≤23.98 PASS 11AC80SISO Ant1 5210 10.69 85.19 0.70 11.39 ≤23.98 PASS Note：The Duty Cycle Factor is compensated in the graph. Appendix D.5: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result [dBm/MHz] Limit[dBm/MHz] Verdict 11A Ant1 5180 0.75 ≤11.00 PASS 5200 1.17 ≤11.00 PASS 5240 1.14 ≤11.00 PASS 11N20SISO Ant1 5180 0.76 ≤11.00 PASS 5200 0.96 ≤11.00 PASS 5240 1.22 ≤11.00 PASS 11N40SISO Ant1 5190 -1.87 ≤11.00 PASS 5230 -1.78 ≤11.00 PASS 11AC20SISO Ant1 5180 0.39 ≤11.00 PASS 5200 0.77 ≤11.00 PASS 5240 0.85 ≤11.00 PASS 11AC40SISO Ant1 5190 -2.02 ≤11.00 PASS 5230 -1.96 ≤11.00 PASS 11AC80SISO Ant1 5210 -5.65 ≤11.00 PASS Note：1.The Result and Limit Unit is dBm/500 kHz in the band 5.7255.85 GHz. 2.The Duty Cycle Factor and RBW Factor is compensated in the graph. Test Graphs 11A_Ant1_5180 11A_Ant1_5200 11A_Ant1_5240 11N20SISO_Ant1_5180 11N20SISO_Ant1_5200 11N20SISO_Ant1_5240 11N40SISO_Ant1_5190 11N40SISO_Ant1_5230 11AC20SISO_Ant1_5180 11AC20SISO_Ant1_5200 11AC20SISO_Ant1_5240 11AC40SISO_Ant1_5190 11AC40SISO_Ant1_5230 11AC80SISO_Ant1_5210 Appendix D.6: Band edge measurements Test Result B1 TestMode Antenna ChName Frequency[MHz] Result[dBm] Limit[dBm] Verdict 11A Ant1 Low 5180 -31.66 ≤-27 PASS High 5240 -37.61 ≤-27 PASS 11N20SISO Ant1 Low 5180 -33.13 ≤-27 PASS High 5240 -36.99 ≤-27 PASS 11N40SISO Ant1 Low 5190 -30.47 ≤-27 PASS High 5230 -37.11 ≤-27 PASS 11AC20SISO Ant1 Low 5180 -34.3 ≤-27 PASS High 5240 -37.92 ≤-27 PASS 11AC40SISO Ant1 Low 5190 -31.13 ≤-27 PASS High 5230 -37.64 ≤-27 PASS 11AC80SISO Ant1 Low 5210 -27.36 ≤-27 PASS High 5210 -38.23 ≤-27 PASS Test Graphs B1 11A_Ant1_Low_5180 11A_Ant1_High_5240 11N20SISO_Ant1_Low_5180 11N20SISO_Ant1_High_5240 11N40SISO_Ant1_Low_5190 11N40SISO_Ant1_High_5230 11AC20SISO_Ant1_Low_5180 11AC20SISO_Ant1_High_5240 11AC40SISO_Ant1_Low_5190 11AC40SISO_Ant1_High_5230 11AC80SISO_Ant1_Low_5210 11AC80SISO_Ant1_High_5210 Appendix D.7: Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [MHz] Max. Fre [MHz] Max. Level [dBm] Limit [dBm] Verdict 11A Ant1 5180 30~5140 5139.49 -41.86 ≤-27 PASS 5360~40000 26993.51 -37.52 ≤-27 PASS 5200 30~5140 1747.98 -39.16 ≤-27 PASS 5360~40000 24310.15 -37.55 ≤-27 PASS 5240 30~5140 5078.68 -45.1 ≤-27 PA…

Text truncated - open the document above for the full version.

Test Report

Case No. : GTS20230105004-1-4 Ambient Condition: 25 °C, 45 %RH, Atmos100.1Kpa, Test Date: 2023.2.3 Test Engineer: Jenny zeng Appendix D.1: Emission Bandwidth Test Result TestMode Antenna Frequency[MHz] 26db EBW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant2 5180 22.920 5168.720 5191.640 --- --- 5200 23.040 5188.720 5211.760 --- --- 5240 25.720 5227.680 5253.400 --- --- 11N20SISO Ant2 5180 23.800 5168.280 5192.080 --- --- 5200 23.920 5188.320 5212.240 --- --- 5240 24.560 5228.520 5253.080 --- --- 11N40SISO Ant2 5190 42.320 5168.880 5211.200 --- --- 5230 41.920 5208.960 5250.880 --- --- 11AC20SISO Ant2 5180 22.680 5168.680 5191.360 --- --- 5200 22.440 5188.600 5211.040 --- --- 5240 23.320 5228.240 5251.560 --- --- 11AC40SISO Ant2 5190 42.960 5168.240 5211.200 --- --- 5230 43.760 5208.720 5252.480 --- --- 11AC80SISO Ant2 5210 82.240 5169.200 5251.440 --- --- Test Graphs 11A_Ant2_5180 11A_Ant2_5200 11A_Ant2_5240 11N20SISO_Ant2_5180 11N20SISO_Ant2_5200 11N20SISO_Ant2_5240 11N40SISO_Ant2_5190 11N40SISO_Ant2_5230 11AC20SISO_Ant2_5180 11AC20SISO_Ant2_5200 11AC20SISO_Ant2_5240 11AC40SISO_Ant2_5190 11AC40SISO_Ant2_5230 11AC80SISO_Ant2_5210 Appendix D.2: Occupied channel bandwidth Test Result TestMode Antenna Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant2 5180 16.888 5171.552 5188.440 --- --- 5200 16.962 5191.541 5208.503 --- --- 5240 17.225 5231.440 5248.665 --- --- 11N20SISO Ant2 5180 18.096 5170.960 5189.056 --- --- 5200 18.084 5190.991 5209.075 --- --- 5240 18.177 5230.923 5249.100 --- --- 11N40SISO Ant2 5190 36.271 5171.932 5208.203 --- --- 5230 36.327 5211.802 5248.129 --- --- 11AC20SISO Ant2 5180 18.025 5170.971 5188.996 --- --- 5200 18.020 5190.969 5208.989 --- --- 5240 18.029 5230.993 5249.022 --- --- 11AC40SISO Ant2 5190 36.265 5171.907 5208.172 --- --- 5230 36.278 5211.919 5248.197 --- --- 11AC80SISO Ant2 5210 75.412 5172.393 5247.805 --- --- Test Graphs 11A_Ant2_5180 11A_Ant2_5200 11A_Ant2_5240 11N20SISO_Ant2_5180 11N20SISO_Ant2_5200 11N20SISO_Ant2_5240 11N40SISO_Ant2_5190 11N40SISO_Ant2_5230 11AC20SISO_Ant2_5180 11AC20SISO_Ant2_5200 11AC20SISO_Ant2_5240 11AC40SISO_Ant2_5190 11AC40SISO_Ant2_5230 11AC80SISO_Ant2_5210 Appendix D.3: Duty Cycle Test Result TestMode Antenna Frequency[MHz] Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] 11A Ant2 5180 2.05 2.07 99.03 5200 2.05 2.07 99.03 5240 2.05 2.07 99.03 11N20SISO Ant2 5180 1.91 1.93 98.96 5200 1.91 1.93 98.96 5240 1.91 1.94 98.45 11N40SISO Ant2 5190 0.94 1.11 84.68 5230 0.94 1.11 84.68 11AC20SISO Ant2 5180 1.92 2.00 96.00 5200 1.92 2.00 96.00 5240 1.91 2.00 95.50 11AC40SISO Ant2 5190 0.95 1.12 84.82 5230 0.94 1.11 84.68 11AC80SISO Ant2 5210 0.46 0.55 83.64 Test Graphs 11A_Ant2_5180 11A_Ant2_5200 11A_Ant2_5240 11N20SISO_Ant2_5180 11N20SISO_Ant2_5200 11N20SISO_Ant2_5240 11N40SISO_Ant2_5190 11N40SISO_Ant2_5230 11AC20SISO_Ant2_5180 11AC20SISO_Ant2_5200 11AC20SISO_Ant2_5240 11AC40SISO_Ant2_5190 11AC40SISO_Ant2_5230 11AC80SISO_Ant2_5210 Appendix D.4: Maximum conducted output power Test Result Channel Power Test Mode Antenna Frequency[M Hz] Channel Powert [dBm] Duty Cycle [%] DC Factor [dBm] Result [dBm] Limit [dBm] Verdict 11A Ant2 5180 11.10 99.03 0.04 11.14 ≤23.98 PASS 5200 12.77 99.03 0.04 12.81 ≤23.98 PASS 5240 13.22 99.03 0.04 13.26 ≤23.98 PASS 11N20SISO Ant2 5180 12.05 98.96 0.05 12.10 ≤23.98 PASS 5200 12.74 98.96 0.05 12.79 ≤23.98 PASS 5240 12.85 98.45 0.07 12.92 ≤23.98 PASS 11N40SISO Ant2 5190 11.35 84.68 0.72 12.07 ≤23.98 PASS 5230 8.80 84.68 0.72 9.52 ≤23.98 PASS 11AC20SISO Ant2 5180 9.04 96.00 0.18 9.22 ≤23.98 PASS 5200 9.28 96.00 0.18 9.46 ≤23.98 PASS 5240 9.82 95.50 0.20 10.02 ≤23.98 PASS 11AC40SISO Ant2 5190 8.59 84.82 0.72 9.31 ≤23.98 PASS 5230 9.16 84.68 0.72 9.88 ≤23.98 PASS 11AC80SISO Ant2 5210 8.98 83.64 0.78 9.76 ≤23.98 PASS Note：The Duty Cycle Factor is compensated in the graph. Appendix D.5: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result [dBm/MHz] Limit[dBm/MHz] Verdict 11A Ant2 5180 1.18 ≤11.00 PASS 5200 1.9 ≤11.00 PASS 5240 2.25 ≤11.00 PASS 11N20SISO Ant2 5180 0.91 ≤11.00 PASS 5200 1.56 ≤11.00 PASS 5240 1.67 ≤11.00 PASS 11N40SISO Ant2 5190 -1.82 ≤11.00 PASS 5230 -4.39 ≤11.00 PASS 11AC20SISO Ant2 5180 -1.94 ≤11.00 PASS 5200 -1.62 ≤11.00 PASS 5240 -0.92 ≤11.00 PASS 11AC40SISO Ant2 5190 -4.53 ≤11.00 PASS 5230 -4.06 ≤11.00 PASS 11AC80SISO Ant2 5210 -7.07 ≤11.00 PASS Note：1.The Result and Limit Unit is dBm/500 kHz in the band 5.7255.85 GHz. 2.The Duty Cycle Factor and RBW Factor is compensated in the graph. Test Graphs 11A_Ant2_5180 11A_Ant2_5200 11A_Ant2_5240 11N20SISO_Ant2_5180 11N20SISO_Ant2_5200 11N20SISO_Ant2_5240 11N40SISO_Ant2_5190 11N40SISO_Ant2_5230 11AC20SISO_Ant2_5180 11AC20SISO_Ant2_5200 11AC20SISO_Ant2_5240 11AC40SISO_Ant2_5190 11AC40SISO_Ant2_5230 11AC80SISO_Ant2_5210 Appendix D.6: Band edge measurements Test Result B1 TestMode Antenna ChName Frequency[MHz] Result[dBm] Limit[dBm] Verdict 11A Ant2 Low 5180 -36.28 ≤-27 PASS High 5240 -37.64 ≤-27 PASS 11N20SISO Ant2 Low 5180 -35.71 ≤-27 PASS High 5240 -37.31 ≤-27 PASS 11N40SISO Ant2 Low 5190 -31.59 ≤-27 PASS High 5230 -37.9 ≤-27 PASS 11AC20SISO Ant2 Low 5180 -37.39 ≤-27 PASS High 5240 -37.45 ≤-27 PASS 11AC40SISO Ant2 Low 5190 -34.44 ≤-27 PASS High 5230 -37.99 ≤-27 PASS 11AC80SISO Ant2 Low 5210 -31.38 ≤-27 PASS High 5210 -38.16 ≤-27 PASS Test Graphs B1 11A_Ant2_Low_5180 11A_Ant2_High_5240 11N20SISO_Ant2_Low_5180 11N20SISO_Ant2_High_5240 11N40SISO_Ant2_Low_5190 11N…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Lydia Deng(Manager)

[email protected]86-0755-21380496Fax: 86-0755-21380496

Technical Contact

CHITECH SHENZHEN TECHNOLOGY CO.,LTD

[email protected]

China

Test Firm

Shenzhen Global Test Service Co., Ltd.Simon Hu

[email protected]86-137-286-828-40

Technical Specifications

#	Rule Parts	Frequency Range	Power Output
2	15E	5.75 GHz - 5.83 GHz	33.80 mW

Confidentiality

Long Term

Grant Notes

Output power listed is maximum combined conducted power. This device contains 20, 40 and 80 MHz signal bandwidth. Device is a 2x2 MIMO as is described in the filing. The antennas used with this transmitter must be installed to provide a minimum separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter, except in accordance with FCC multi- transmitter product procedures. End-users must be provided with operating procedures for satisfying RF exposure compliance.
