SB2149 OWNER’S MANUAL Master Blaster Bluetooth Boombox with CD Player , AM/FM Stereo Radio, CD/USB MP3 Playback, 10 Watts RMS output B 1 WARNING The Caution Marking is located at the back enclosure of the apparatus. The Rating plate is located at the back enclosure of the apparatus. IMPORTANT SAFETY INSTRUCTIONS TO PREVENT FIRE OF SHOCK HAZARD, DO NOT USE THIS PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. 1. Read these instructions. 2. Keep these instructions. 3. Heed all warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. 9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet. 10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 11. Only use attachments/accessories specified by the manufacturer. 12. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the product. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. 13. Unplug this apparatus during lightning storms or when unused for a long period of time. 14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 15. This appliance shall not be exposed to dripping or splashing water and no object filled with liquids such as vases shall be placed on the apparatus 2 SAVE THESE INSTRUCTIONS 16. Do not overload wall outlet. Use only power source as indicated. 17. Use replacement part as specified by the manufacturer. 18. Upon completion of any service or repairs to this product, ask the service technician to perform safety checks. 19. Power Sources - This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supply to your home, consult your product dealer or local power company. For products intended to operate from battery power, or other sources, refer to the operating instruction. 20. Object and Liquid Entry - Never push objects of any kind into this product through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the product. 21. Damage Requiring Service - Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions: a) When the power-supply cord or plug is damaged, b) If liquid has been spilled, or objects have fallen into the product, c) If the product has been exposed to rain or water, d) If the product does not operate normally by following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the product to its normal operation. e) If the product has been dropped or damaged in any way, and f) When the product exhibits a distinct change in performance - this indicates a need for service. 22. Mains plug is used as disconnect device and it should remain readily operable during intended use. To disconnect the apparatus from the mains completely, the mains plug should be disconnected from the mains socket outlet completely. 23. Battery shall not be exposed to excessive heat such as sunshine, fire or the like. 24. Excessive sound pressure from earphones and headphones can cause hearing loss. 25. Minimum distances of 4 inches around the apparatus for sufficient ventilation. 26. The ventilation should not be impeded by covering the ventilation openings with items, such as newspapers, table-cloths, curtains, etc. 27. No naked flame sources, such as lighted candles, should be placed on the apparatus. 28. The use of apparatus in moderate climates. 29. Attention should be drawn to the environmental aspects of battery disposal. 3 COMPLIANCE WITH FCC REGULATIONS FCC ID: 2BABY6361401USB WARNING Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. CAUTION Follow the advice below for safe operations. ON PROTECTION AGAINST LASER ENERGY EXPOSURE This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B Digital Device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, th…

Text truncated - open the document above for the full version.

Rev 1/26/2023 GuangXi BeiLiu JinBao Electronic Co., Ltd. Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2024-03-20 Ref: Attestation Statements Part 2.911(d)(5)(i) Filing FCC ID: 2BABY6361401USB GuangXi BeiLiu JinBao Electronic Co., Ltd. ("the applicant")certifies that the equipment for which authorization is sought is not“covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, (Applicantsignature) (Applicant printed name) Jim Wong Rev 1/26/2023 GuangXi BeiLiu JinBao Electronic Co., Ltd. Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2024-03-20 Ref: Attestation Statements Part 2.911(d)(5)(ii) Filing FCC ID: 2BABY6361401USB GuangXi BeiLiu JinBao Electronic Co., Ltd. (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List(as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) Jim Wong

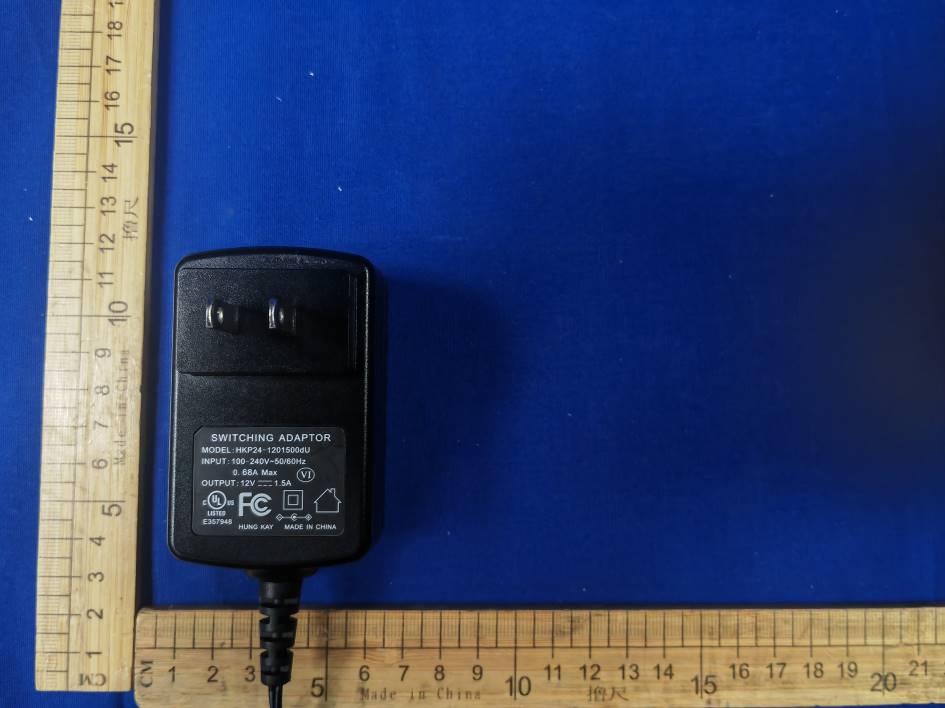

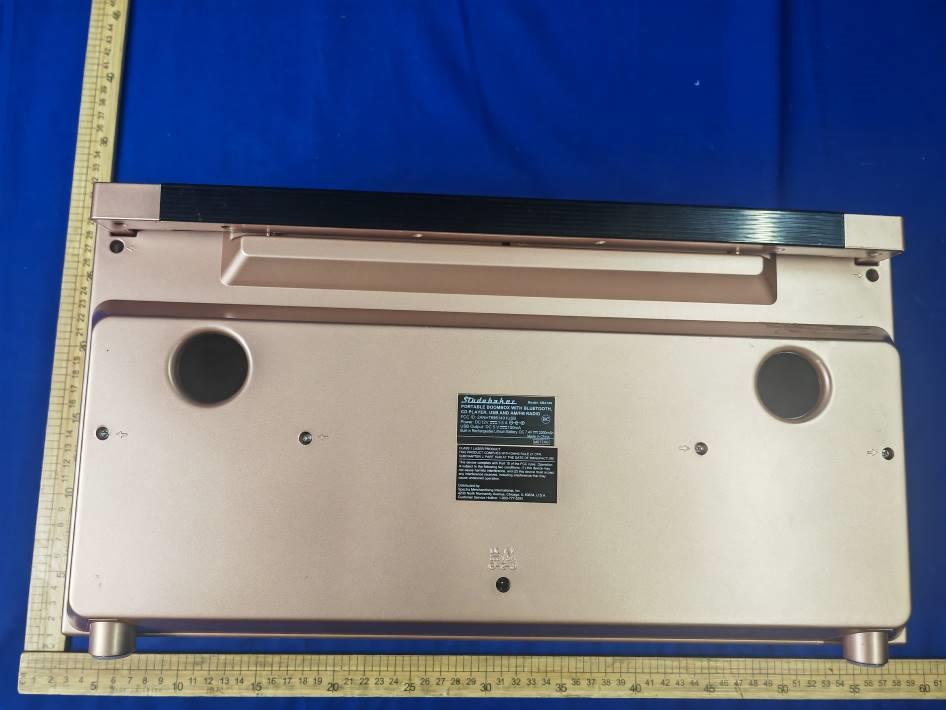

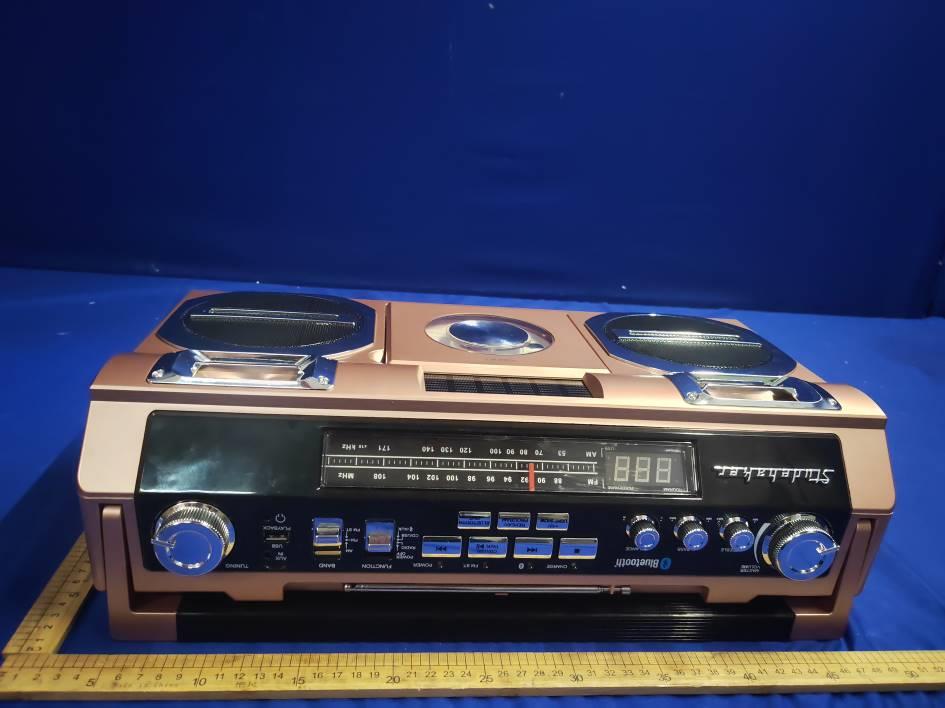

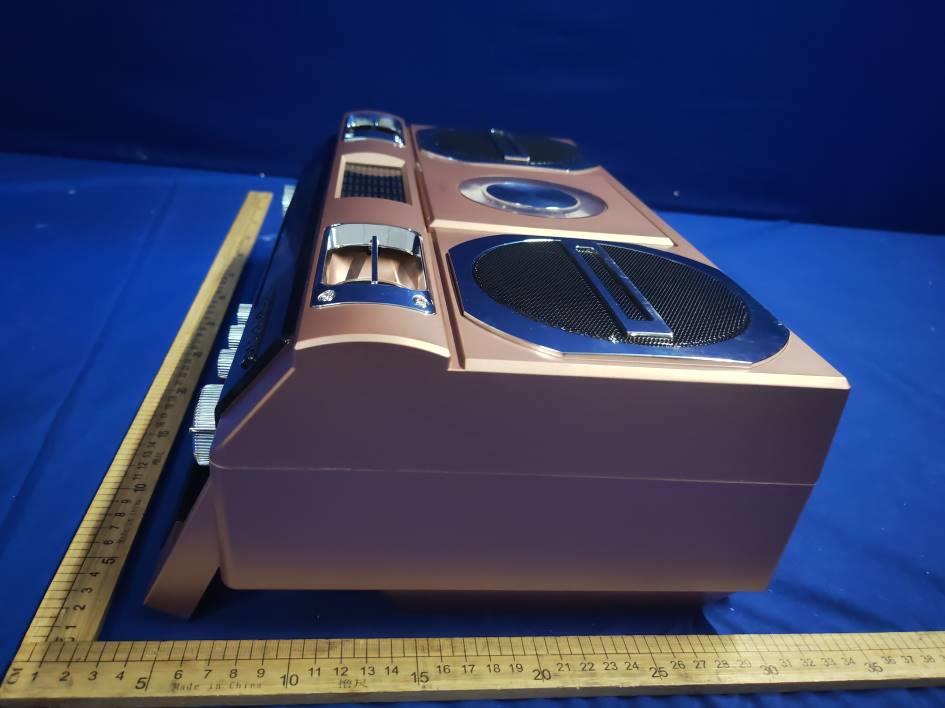

EUT EXTERNAL PHOTOGRAPHS ----------------The end----------------

Label Location

EUT INTERNAL PHOTOGRAPHS ANTENNA BT MODULE ----------------The end----------------

FCC ID: 2BABY6361401USB According to § 15.247(i) and § 1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB447498 D01 General RF Exposure Guidance V06 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] * [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz； Power and distance are rounded to the nearest mW and mm before calculation； The result is rounded to one decimal place for comparison； The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. We use 5mm as separation distance to calculate. Maximum measured transmitter power: Antenna Gain: 3.24 dBi Test Mode Antenna Frequency[MHz] Conducted Peak Powert[dBm] tune up maximum power(dBm) Result calculation 1-g SAR DH5 Ant1 2402 -4.42 0 0.310 3 2441 -3.25 0 0.312 3 2480 -2.27 0 0.315 3 2DH5 Ant1 2402 -4.35 0 0.310 3 2441 -2.86 0 0.312 3 2480 -1.75 0 0.315 3 3DH5 Ant1 2402 -4.25 0 0.310 3 2441 -2.72 0 0.312 3 2480 -1.54 0 0.315 3 Conclusion: For the max result : 0.315≤ 3.0 for 1-g SAR extremity SAR, No SAR is required. Signature: Date: 2024.3.27 NAM E AND TITLE (Ple ase print or type ): Lisa Wang/Manager COM PANY (Ple ase print or type ): Shenzhen EMTEK Co.,Ltd./Building 69, Majialong Industry Zone, Nanshan District, Shenzhen, Guangdong, China

1 Shenzhen Xuhang Communication Technology Co., Ltd Antenna Report No.: BTAUD1211266 Date: Dec. 21, 2023 CUSTOMER GuangXi BeiLiu JinBao Electronic Co., Ltd. CUSTOMER NO. MET1401USB PART NAME BT Antenna SUPPLIER NO. On board BT antenna _ Prepared by: ________________ Reviewed by: ________________ Approved by: ________________ Luo Yongshi, Raime Zeng Xingji, Tommy Shang wei, Cindy Report Engineer Supervisor Authorized signatory 2 DIRECTORY Contents 1 . General Information ..............................................................................................3 1.1 General information of testing institutions ................................................................................ 3 1.2 Testing principle ......................................................................................................................... 3 1.3 Test equipment ........................................................................................................................... 4 1.4 Test environment ........................................................................................................................ 4 1.5 Statement.................................................................................................................................... 4 2. Sample Information ................................................................................................5 2.1 Client information ...................................................................................................................... 5 2.2 Description of EUT(S) .............................................................................................................. 5 2.3 Antenna Photo & Length (mm) .................................................................................................... 6 3. Test Results .........................................................................................................6 3.1 Test standard .............................................................................................................................. 6 3.2 Test uncertainty ......................................................................................................................... 7 3.3 Test data .................................................................................................................................. 7 3.3.1 Typical free space efficiency and gain ........................................................................... 7 3.3.2 Typical free space radiation pattern ............................................................................... 7 3 1. General Information 1.1 General information of testing institutions Name Shenzhen Xuhang Communication Technology Co., Ltd. Address Room 213, 2nd Floor, Building 1, Huiyixin Maker Center, Longhua District, Shenzhen Tel 18588291966 E‐mail [email protected] Equipment All equipment in this report is installed in Room 213, 2 nd Floor, Building 1, Huiyixin Maker Center, Longhua District, 1.2 Testing principle Xuhang Multi Probe Testing System 4 1.3 Test equipment Equipment Model No. Serial No. Manufactur er Calibration date Next calibration date 16 probe microwave chamber 5*3*3 XH-LAB-RF-001 Outhali Technology 2023.2.27 2024.2.27 Network Analyzer PROTEK A338 XH-LAB-RF-003 Outhali Technology 2023.2.27 2024.2.27 Network Analyzer 8753D XH-LAB-RF-004 Outhali Technology 2023.2.27 2024.2.27 1.4 Test environment Temperature 23.1°C Humidity 57%RH Pressure 100.22kPa 1.5 Statement (1) The test results in the report are only applicable to the tested samples and the tested samples work under the environment described in the report. （2）Only Shenzhen Xuhang Communication Technology Co., Ltd. have the right to modify the report, and the modification information shall be annotated in the revision form. （3）Any objection to this report shall be raised within 30 days after formal confirmation of the report. （4）This report is invalid if there is any evidence that the sample information provided is falsified. （5）The report is invalid without the signature of the auditor and approver. 5 2. Sample Information 2.1 Client information Name GuangXi BeiLiu JinBao Electronic Co., Ltd. Address Xinshan Industrial Zone, Xiliang Town, Beiliu City, Yulin City, Guangxi, China Contacts Jim Wong Tel 13686493273 E-mail [email protected] 2.2 Description of EUT(S) Product Name Projector Sample Model MET1401USB Size Bluetooth Serial No. / Test Item Antenna gain; Efficiency; Radiation pattern Frequency Range 2400-2500MHz Received Date 2023.12.14 Test Date 2023.12.20 Remark Location of onboard antenna 6 2.3 Antenna Photo & Length (mm) 3. Test Results 3.1 Test standard Name Parameter Method Standard no. Mobile communication antenna Antenna gain Generic specification for antennas used in the mobile communications GB/T 9410-2008 Radiation pattern Antenna Radiation efficiency IEEE Standard Test Procedures for Antennas ANSI/IEEE Std 149-1979 Gain and directivity 7 Item Uncertainty Antenna gain ±1dB Radiation efficiency ±10% 3.2 Test uncertainty The uncertainty was calculated on the basis of the GUM published by ISO, using the inclusion factor of K=2 and the 95% confidence level to express the extended uncertainty. 3.3 Test data 3.3.1 Typical free space efficiency and gain Frequency (MHz) 24002410 242024302440245024602470 2480 24902500 Efficiency (%) 62.2754.73 58.9554.8455.6347.8741.8941.13 41.65 39.8135.6 Peak Gain (dBi) 3.24 2.77 3.082.842.932.351.831.75 1.86 1.681.27 3.3.2 Typical free space radiation pattern 8

Report No. ENS2401180130W00201R Page 1 of 70 Ver.1.0 TEST REPORT Product Name : PORTABLE BOOMBOX WITH BLUETOOTH, CD PLAYER, USB AND AM/FM RADIO Model Number : MET1401USB, SB2149, SB2149B, SB2149S, SB2149BA, SB2149SA, SB2149R, SB2149RG, SB2149TE, SB2149BB, SB2149SB, SB2149RB, SB2149RGB, SB2149TEB, SB2149XXXXX (Where XXXXX denote any printable characters in the ASCII Standard Character Table to represent variances in cosmetics or buyers), MD1401USB FCC ID : 2BABY6361401USB Prepared for : GuangXi BeiLiu JinBao Electronic Co., Ltd. Address : XinShan Industrial Zone, XiLiang Town, Beiliu City, Guangxi, China. Prepared by : EMTEK (SHENZHEN) CO., LTD. Address : Building 69, Majialong Industry Zone,Nanshan District, Shenzhen, Guangdong, China Tel: (0755) 26954280 Fax: (0755) 26954282 Report Number : ENS2401180130W00201R Date(s) of Tests : January 19, 2024 to February 26, 2024 Date of issue : February 28, 2024 $二维码$ Report No. ENS2401180130W00201R Page 2 of 70 Ver.1.0 Table of Contents 1 TES T RES ULT CE RTIFICATION ...................................................................................................... 3 2 EUT TE CHNICAL DES CRIP TION ..................................................................................................... 5 3 SUMMARY OF TEST RESULT ......................................................................................................... 6 4 TES T ME THODOLOGY ................................................................................................................... 7 4.1 GENERAL DESCRIP TION OF APPLIE D S TANDARDS ...........................................................7 4.2 MEASUREME NT EQUIPME NT USE D ...................................................................................7 4.3 DESCRIP TION OF TEST M ODES..........................................................................................8 5 FACILITIES AND ACCRE DITATIONS ................................................................................................ 9 5.1 FACILITIES ..........................................................................................................................9 5.2 EQUIPMENT ........................................................................................................................9 5.3 LABORATORY ACCREDITATIONS A ND LIS TINGS ................................................................9 6 TES T SYSTEM UNCERTA INTY ......................................................................................................10 7 SETUP OF EQUIPMENT UNDER TES T .......................................................................................... 11 7.1 RADIO FREQUENCY TEST SE TUP 1 .................................................................................. 11 7.2 RADIO FREQUENCY TEST SE TUP 2 .................................................................................. 11 7.3 CONDUCTED EM ISSION TES T SE TUP............................................................................... 13 7.4 BLOCK DIAGRAM CONFIGURATION OF TEST SYS TEM ..................................................... 14 7.5 SUPPORT EQUIPMENT ..................................................................................................... 14 8 FREQUENCY HOPP ING SYS TEM REQUIREME NTS ......................................................................15 8.1 STA NDA RD APPLICABLE ................................................................................................... 15 8.2 EUT PSE UDORA NDOM FREQUENCY HOPP ING SEQUENCE ............................................ 15 8.3 EQUAL HOPPING FREQUENCY USE ................................................................................. 16 8.4 FREQUENCY HOPP ING SYS TEM ...................................................................................... 16 9 TES T RE QUIREMENTS..................................................................................................................17 9.1 20DB& 99%BANDWIDTH .................................................................................................... 17 9.2 CARRIER FREQUENCY SEPARATION................................................................................ 23 9.3 NUMBE R OF HOPP ING FREQUE NCIES ............................................................................. 27 9.4 AVERAGE TIME OF OCCUPANCY (DWELL TIME ) ............................................................... 31 9.5 MA XIMUM PEAK CONDUCTED OUTP UT POWER .............................................................. 33 9.6 CONDUCTED S UPRIOUS EM ISSION ................................................................................. 38 9.7 RADIATED SP URIOUS EM ISSION ...................................................................................... 48 9.8 CONDUCTED EM ISSION TES T .......................................................................................... 67 9.9 ANTENNA APPLICATION.................................................................................................... 70 Report No. ENS2401180130W00201R Page 3 of 70 Ver.1.0 1 TEST RESULT CERTIFICATION Applicant : GuangXi BeiLiu JinBao Electronic Co., Ltd. Address : XinShan Industrial Zone, XiLiang Town, Beiliu City, Guangxi, China. Manufacturer : GuangXi BeiLiu JinBao Electronic Co., Ltd. Address : XinShan Industrial Zone, XiLiang Town, Beiliu City, Guangxi, China. EUT : PORTABLE BOOMBOX WITH BLUETOOTH, CD PLAYER, USB AND AM/FM RADIO Model Name : MET1401USB, SB2149, SB2149B, SB2149S, SB2149BA, SB2149SA, SB2149R, SB2149RG, SB2149TE, SB2149BB, SB2149SB, SB2149RB, SB2149RGB, SB2149TEB, SB2149XXXXX(Where XXXXX denote any printable characters in the ASCII Standard Character Table to represent variances in cosmetics or buyers), MD1401USB Trade Mark : MET, Studebaker, Modern Measurement Procedure Used: APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 2, Subpart J FCC 47 CFR Part 15, Subpart C PASS IC RSS-GEN, Issue 5(04-2018)+A1(03-2019)+A2(02-2021) IC R…

Text truncated - open the document above for the full version.

Report No. ENS2401180130W00201R Page 38 of 70 Ver.1.0 9.6 CONDUCTED SUPRIOUS EMISSION 9.6.1 Applicable Standard According to FCC Part 15.247(d) and KDB 558074 D01 15.247 MEAS GUIDANCE v05r02 According to IC RSS-247.5.5 9.6.2 Conformance Limit In any 100 kHz bandwidth outside the frequency band in which the spread spectrum intentional radiator is operating, the radi o frequency power that is produced by the intentional radiator shall be at least 20 dB below that in the 100 kHz bandwidth within the band that contains the highest level of the desired power, based on either an RF conducted, provided the transmitter demonstrates compliance with the peak conducted power limits. 9.6.3 Test Configuration Test according to clause 7.1 radio frequency test setup 1 9.6.4 Test Procedure The transmitter output (antenna port) was connected to the spectrum analyzer  Reference level measurement Establish a reference level by using the following procedure: Set instrument center frequency to DSS channel center frequency. Set Span = approximately 5 times the 20 dB bandwidth, centered on a hopping channel. Set the RBW = 100 kHz. Set the VBW ≥ 3 x RBW. Set Detector = peak. Set Sweep time = auto couple. Set Trace mode = max hold. Allow trace to fully stabilize. Use the peak marker function to determine the maximum Maximumconducetedlevel. Note that the channel found to contain the maximum conduceted level can be used to establish the reference level.  Band-edge measurement Use the following spectrum analyzer settings: Span = wide enough to capture the peak level of the emission operati ng on the channel closest to the band-edge, as well as any modulation products which fall outside of the authorized band of operation Set RBW  1% of the span=100kHzSet VBW 3 x RBW Set Sweep = autoSet Detector function = peakSet Trace = max hold Allow the trace to stabilize. Set the marker on the emission at the bandedge, or on the highest modulation product outside of the band, if this level is greater than that at the bandedge. Enable the marker-delta function, then use the marker-to-peak function to move the marker to the peak of the in-band emission. The marker-delta value now displayed must comply with the limit specified in this Section. Now, using the same instrument settings, enable the hopping function of the EUT. Allow the trace to stabilize. Follow the same procedure listed above to determine if any spurious emissions caused by the hopping function also comply with the specified limit.  Emission level measurement Use the following spectrum analyzer settings: Span = wide enough to capture the peak level of the in-band emission and all spurious emissions (e.g., harmonics) from the lowest frequency generated in the EUT up through the 10th harmonic.(30MHz to 25GHz).Set RBW = 100 kHzSet VBW  RBW Set Sweep = autoSet Detector function = peakSet Trace = max hold Allow the trace to stabilize. Set the marker on the peak of any spuri ous emission recorded. The level displayed must comply with the limit specified in this Section. Report No. ENS2401180130W00201R Page 39 of 70 Ver.1.0 9.6.5 Test Results Temperature: 25 ̊C Relative Humidity: 45% ATM Pressure: 1011 mbar Note: N/A All the antenna(Antenna 1) and modes(GFSK, π/4-DQPSK, 8DPSK, Hopping) mode have been tested, and the worst(Antenna 1,GFSK, Hopping) resultrecorded was report as below: Reference level measurement TestMode Antenna Freq(MHz) Max.Point[MHz] Result[dBm] DH5 Ant1 2402 2401.84 -5.03 2441 2440.84 -3.62 2480 2479.84 -2.65 2DH5 Ant1 2402 2402.16 -5.13 2441 2441.16 -3.65 2480 2480.16 -2.72 3DH5 Ant1 2402 2401.84 -5.16 2441 2440.84 -3.74 2480 2479.84 -2.76 Band edge measurements TestMode Antenna ChName Frequency[MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 Low 2402 -5.03 -48.56 ≤-25.03 PASS High 2480 -2.65 -44.75 ≤-22.65 PASS Low Hop_2402 -5.53 -49.48 ≤-25.53 PASS High Hop_2480 -3.05 -44.82 ≤-23.05 PASS 2DH5 Ant1 Low 2402 -5.13 -50.27 ≤-25.13 PASS High 2480 -2.72 -47.47 ≤-22.72 PASS Low Hop_2402 -5.11 -48.39 ≤-25.11 PASS High Hop_2480 -2.87 -41.06 ≤-22.87 PASS 3DH5 Ant1 Low 2402 -5.16 -50.28 ≤-25.16 PASS High 2480 -2.76 -46.49 ≤-22.76 PASS Low Hop_2402 -5.49 -48.84 ≤-25.49 PASS High Hop_2480 -2.82 -44.06 ≤-22.82 PASS Conducte d Spurious Emission TestMode Antenna Frequency[MHz] FreqRange [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5 Ant1 2402 30~1000 -5.03 -54.24 ≤-25.03 PASS 1000~26500 -5.03 -40.89 ≤-25.03 PASS 2441 30~1000 -3.62 -53.61 ≤-23.62 PASS 1000~26500 -3.62 -48.47 ≤-23.62 PASS 2480 30~1000 -2.65 -54.3 ≤-22.65 PASS 1000~26500 -2.65 -46.13 ≤-22.65 PASS 2DH5 Ant1 2402 30~1000 -5.13 -54.28 ≤-25.13 PASS 1000~26500 -5.13 -48.47 ≤-25.13 PASS 2441 30~1000 -3.65 -53.82 ≤-23.65 PASS 1000~26500 -3.65 -41.58 ≤-23.65 PASS 2480 30~1000 -2.72 -53.76 ≤-22.72 PASS 1000~26500 -2.72 -44.65 ≤-22.72 PASS Report No. ENS2401180130W00201R Page 40 of 70 Ver.1.0 3DH5 Ant1 2402 30~1000 -5.16 -53.85 ≤-25.16 PASS 1000~26500 -5.16 -47.03 ≤-25.16 PASS 2441 30~1000 -3.74 -53.31 ≤-23.74 PASS 1000~26500 -3.74 -42.09 ≤-23.74 PASS 2480 30~1000 -2.76 -53.39 ≤-22.76 PASS 1000~26500 -2.76 -46.17 ≤-22.76 PASS Report No. ENS2401180130W00201R Page 41 of 70 Ver.1.0 Reference level measurement DH5_Ant1_2402 DH5_Ant1_2441 DH5_Ant1_2480 Report No. ENS2401180130W00201R Page 42 of 70 Ver.1.0 2DH5_Ant1_2402 2DH5_Ant1_2441 2DH5_Ant1_2480 Report No. ENS2401180130W00201R Page 43 of 70 Ver.1.0 3DH5_Ant1_2402 3DH5_Ant1_2441 3DH5_Ant1_2480 Report No. ENS2401180130W00201R Page 44 of 70 Ver.1.0 Band edge measurements DH5_Ant1_Low_2402 DH5_Ant1_High_2480 DH5_Ant1_Low_Hop_2402 Report No. ENS2401180130W00201R Page 45 of 70 Ver.1.0 DH5_Ant1_High_Hop_2480 2DH5_Ant1_Low_2402 2DH5_Ant1_High_2480 Report No. ENS2401180130W00201R Page 46 of 70 Ver.1.0 2DH5_Ant1_Low_Hop_2402 2DH5_Ant1_High_Hop_2480 3DH5_Ant1_Low_2402 Report No. ENS2401180130W00201R Page 47 of 70 Ver.1.0 3DH5_Ant1_High_2480 3DH5_Ant1_Low_Hop_2402 3DH5_Ant1_High_Hop_2480 Report No. ENS2401180130W00201R Page 48 of 70 Ver.1.0 Condu…
