2BABY696PJ1575HOME THEATER PROJECTOR & BLUETOOTH KARAOKE

1 2 3 4 5 6 7 8 9 MODEL NO. RPJ602 2 IN 1 BLUETOOTH KARAOKE & 480P HOME THEATER PLEASE READ BEFORE OPERATING THIS EQUIPMENT Ideal for dark viewing environments for optimal performance.Please note:Projector brightness is measured in ANSI lumens.Your viewing environment is the deciding factor on how many lumens your projector needs. This product has been manufactured and sold under the responsibility of CURTIS INTERNATIONAL LTD.RCA, the RCA logo and the two dogs (Nipper and Chipper) logo are trademarks used under license by CURTIS INTERNATIONAL LTD. – further information at www.rca-brand.com. All other products, services, companies, trademarks, trade or product names and logos referenced herein are the property of their respective owners. Important Safety Instruc Ɵ ons 1. Read these Instruc Ɵ ons. 2. Keep these Instruc Ɵ ons. 3. Heed all Warnings. 4. Follow all instruc Ɵ ons. 5. Do not use this apparatus near water. 6. Clean only with a dry cloth. 7. Do not block any ven Ɵ la Ɵ on openings. Install in accordance with the manufacturer’s instruc Ɵ ons. 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampli Į er) that product heat. 9. Protect the power cord from being walked on or pinched par Ɵ cularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 10. Only use a Ʃ achments/accessories speci Į ed by the manufacturer. 11. Unplug this apparatus during lightning storms or when unused for long periods of Ɵ me. 12. Refer all servicing to quali Į ed service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 13. Use only with a cart, stand, tripod, bracket, or table speci Į ed by the manufacturer or sold with the apparatus. When a cart is used, use cau Ɵ on when moving the cart/ apparatus combina Ɵ on to avoid injury from Ɵ p-over. Addi Ɵ onal Warnings and Precau Ɵ ons 1. Do not look directly into the projector light. 2. Don’t touch the project lens 3. Mains adapter is used as disconnect device and it should remain readily operable during intended use. In order to disconnect the apparatus from the mains completely, the mains plug should be disconnected from the mains socket outlet completely. 4. CAUTION: Use of controls or adjustments or performance of procedures other than those specified may result in hazardous radiation exposure. 5. WARNING: Changes or modified to this unit not express ly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 6. WARNING: Use of this unit near fluorescent lighting may cause interference regarding use of the remote. If the unit is displaying erratic behavior move away from any fluorescent lighting, as it may be the cause. 7. WARNING: Shock hazard - Do Not Open. 8. Caution and marking information is located at the rear or bottom of the apparatus. 9. WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain, moisture, dripping, or splashing. 10. Objects filled with liquids, such as vases, shall not be placed on the apparatus. FCC Warning In The Box Main Unit Troubleshooting Tips Lens Cover Microphone x 2 Remote AC Power Adapter User Manual OK F L I P E X I T S O U R C E M U T E M E N U L I G H T P R O J P A I R TOP 5 Troubleshooting TipsYour Projector 1. Trouble: Nothing is appearing on the projection screen. Check all your cable connections between your projector andcomputer to ensure that they’re properly connected.l Make sure that the power cord is properly connected to the DCJack. 2. Trouble: The projector’s remote is not working correctly. Replace the remote’s batteries if necessary and make sure that you’reusing it within its standard operating range (around 4 meters). 3. Trouble: There’s no sound coming from the projector. This problem can also possibly be solved by checking your audio inputconnection and adjusting your audio source. 4. Trouble: The image being displayed by the projector is out of focus. Turn the projection lens until the image comes into focus andensure that the projection screen is at least 1.2 meters from theprojector. If these two steps don’t work then check your projectionlens to see if it needs cleaning. 5. Trouble: The projector shuts down automatically. Canada C.I. Service Dept. 7045 Beckett Drive, Unit 15 Mississauga, ON, L5S, 2A3 For service assistance and product information, please go to https://www.curtisint.com/product-support/ or email [email protected] Turn off the projector and let it completely cools down beforerestart again. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsiblefor compliance could void the user's authority to operate the equipment.NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmf ul interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radiocommunications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of th…

Text truncated - open the document above for the full version.

GuangXi BeiLiu JinBao Electronic Co.乡 Ltd. Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia 乡 MD 21046 Date: 2023-9-1 SUBJECT: FCC Application for FCC ID: 2BABY696PJ1575 To Whom It May Concern: We, the undersigned, hereby authorize Lisa Wammt EMTEK (SHENZHEN) CO.电LTD.on o ur behalf, to apply to the Federal Communications Commission on our equipment. Any and all acts carried out by EMTEK (SHENZHEN) CO...LTD.on our behalf shall have the same effect as ac臼of our own. This is to advise that we are in full compliance with the Anti- Drug Abuse Act. We, the applicant, are not subject to a denial of federal benefits pursuant to Section 5301 of the Anti-Drug Act of 1988, 21 USC853a, and no pa町to the application is subject to a denial of federal benefits pursuant to that section. Regards, Client ’ s name I title : Jim飞Nong Contact information I address: GuangXi BeiLiu JinBao Electronic Co., Ltd. /XinShan Industrial Zone 乡 XiLiang Town, Beiliu City, Guangxi, China.

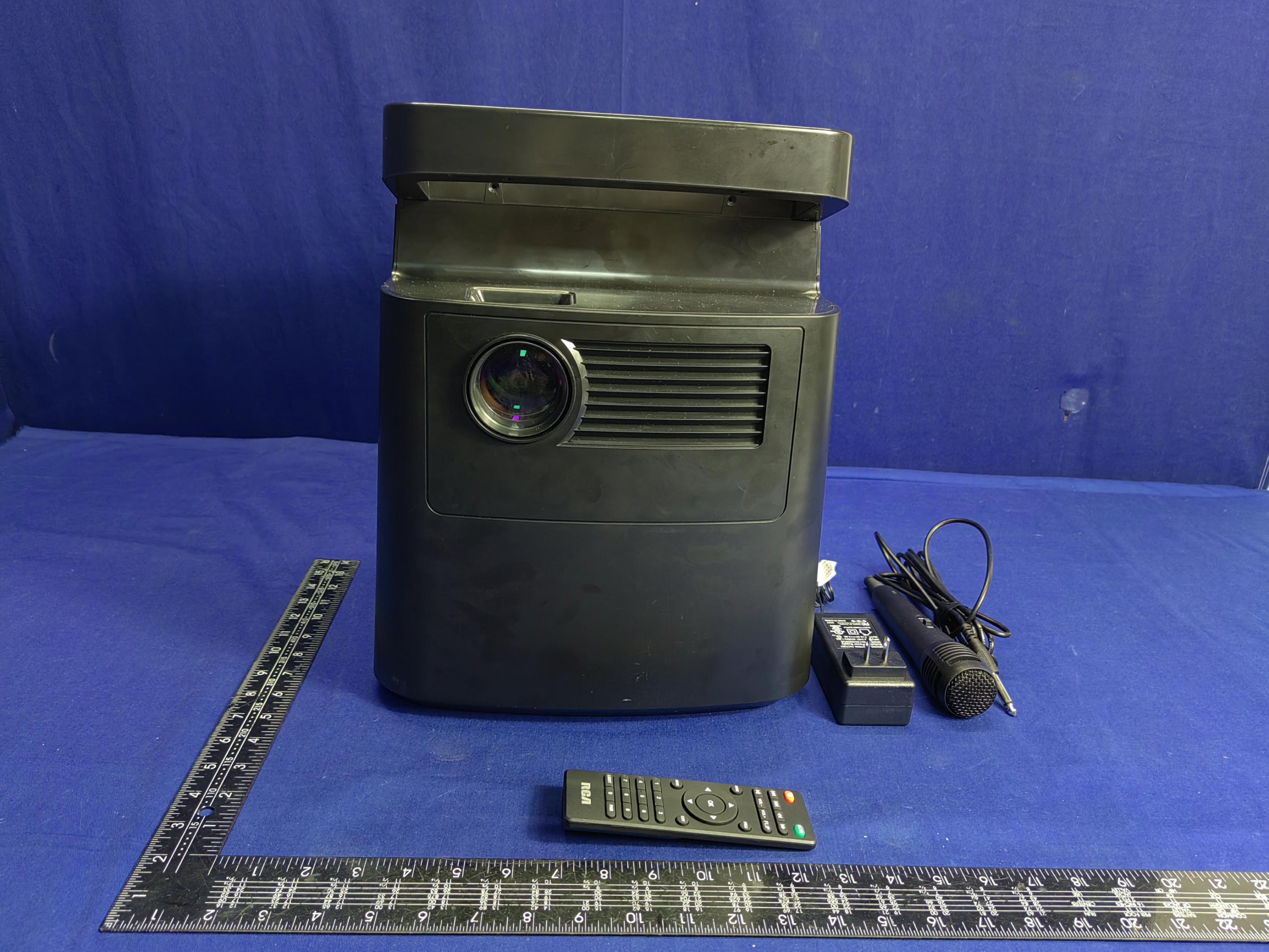

EUTEXTERNALPHOTOGRAPHS ----------------Theend----------------

EUT INTERNAL PHOTOGRAPHS PCB antenna

. ----------------The end----------------

FCCID:2BABY696PJ1575 RFEXPOSUREEVALUATION AccordingtoFCC1.1310,FCC1.1307andKDB447498D04InterimGeneralRF ExposureGuidancev01 1.WithrespecttothelimitsonhumanexposuretoRFprovidedin§1.1310ofthischapter, applicantstotheCommissionforthegrantormodificationofconstructionpermits,licenses orrenewalsthereof,temporaryauthorities,equipmentauthorizations,oranyother authorizationsforradiofrequencysourcesmusteither: (A)Determinethattheyqualifyforanexemptionpursuantto§1.1307(b)(3); (B)PrepareanevaluationofthehumanexposuretoRFradiationpursuantto§1.1310 andincludeintheapplicationastatementconfirmingcompliancewiththelimitsin§ 1.1310;or (C)PrepareanEnvironmentalAssessmentifthoseRFsourceswouldcausehuman exposuretolevelsofRFradiationinexcessofthelimitsin§1.1310. 2.RFExposureInformation:Theradiatedoutputpowerofthisdevicemeetsthelimitsof FCC/ICradiofrequencyexposurelimits.Thisdeviceshouldbeoperatedwithaminimum separationdistanceof20cm(8inches)betweentheequipmentandaperson'sbody. §1.1307(b)(3)(i)(A)forRFevaluationlimit: Theavailablemaximumtime-averagedpowerisnomorethan1mW,regardlessofseparationdistance.This exemptionmaynotbeusedinconjunctionwithotherexemptioncriteriaotherthanthoseinparagraph (b)(3)(ii)(A)ofthissection.Medicalimplantdevicesmayonlyusethisexemptionandthatinparagraph (b)(3)(ii)(A); §1.1307(b)(3)(i)(b)forRFevaluationlimit: Ortheavailablemaximumtime-averagedpoweroreffectiveradiatedpower(ERP),whicheverisgreater,is lessthanorequaltothethresholdP th (mW)describedinthefollowingformula.Thismethodshallonlybe usedatseparationdistances(cm)from0.5centimetersto40centimetersandatfrequenciesfrom0.3GHzto 6GHz(inclusive).P th isgivenby: §1.1307(b)(3)(i)(C)forRFevaluationlimit: RFSourcefrequency(MHz)ThresholdERP(watts) 0.3-1.341,920R2. 1.34-303,450R2/f2. 30-3003.83R2 300-15000.0128R2f. 1500-10000019.2R*R(0.768W) 3.MeasurementofRFconductedPower theavailablemaximumtime-averagedpoweroreffectiveradiatedpower(ERP),whicheverisgreater: Antennagain:-2.34dBi Mode Tune-upAV power(dBm) Maxtune-upAV power(dBm) Maxtune-up AVPower(mw) Maxtune-upERP Power(mw) BT-4.5701 N/A (EPRislessthan0) Note:ERP=EIRP–2.15dB, Generally,thesequencetoapplyforsingleRFsourcesincludesthefollowingsteps: Q1:determinationof1mWblanketexemptionunder§1.1307(b)(3)(i)(A) A1:YES,Itisnolargerthan1mw. Q2:determinationofexemptionundertheMPE-based§1.1307(b)(3)(i)(C)if1)isnotmet A2:NO,Itislessthan19.2R*RmW,sohavebeenexemption. Q3:determinationofexemptionundertheSAR-based§1.1307(b)(3)(i)(B)ifboth1)and2)arenotmet A3:NO;Theexemptionhasbeensatisfied. Q4: streamlinedtestreductionproceduresforevaluationbytheFCCLaboratorywhichmayreference currentresearchbasedonbandwidth,etc.if1),2),and3)arenotmet A4:NO;Theexemptionhasbeensatisfied. Q5:evaluationbySARmeasurementorcomputationif1),2),3),and4)arenotmet A5:NO;Theexemptionhasbeensatisfied. Q6: EnvironmentalAssessment(EA)ifnoneofthepreviousaremet(i.e.,exposurelimitswouldbe exceeded) A6:NO;Theexemptionhasbeensatisfied. 4.AccordingtoFCC1.1310:Thecriterialistedinthefollowingtableshallbeusedto evaluatetheenvironmentimpactofhumanexposuretoradiofrequency(RF)Radiationas specifiedin§1.1307(b) LimitsforMaximumPermissibleExposure(MPE) Frequency Range(MHz) ElectricField Strength(V/m) MagneticField Strength(A/m) Power Density(mW/cm 2 ) AverageTime (A)LimitsforOccupational/ControlExposures 300-1500----F/3006 1500-100000----56 (B)LimitsforGeneralPopulation/UncontrolExposures 300-1500----F/15006 1500-100000----130 1.1Friistransmissionformula:Pd=(Pout*G)\(4*pi*R 2 ) Where Pd=PowerdensityinmW/cm 2 Pout=outputpowertoantennainmW G=Numericgainoftheantennarelativetoisotropicantenna Pi=3.1416 R=distancebetweenobservationpointandcenteroftheradiatorin20cm PdthelimitofMPE,1mW/cm 2 .Ifweknowthemaximumgainofthendtotalpowerinput totheantenna,throughthecalculation,wewillknowthedistancewheretheMPElimitis reached. RFExposureInformation:Theradiatedoutputpowerofthisdevicemeetsthelimitsof FCC/ICradiofrequencyexposurelimits.Thisdeviceshouldbeoperatedwithaminimum separationdistanceof20cm(8inches)betweentheequipmentandaperson'sbody. 1.2MeasurementResult NotApplicable ----------------THEENDOFREPORT---------------

1 Shenzhen Xuhang Communication Technology Co., Ltd Antenna Report No.: EDG23082100286 Date: Sept.12, 2023 CUSTOMER GuangXi BeiLiu JinBao Electronic Co., Ltd. CUSTOMER NO. PJ1575 PART NAME BT Antenna SUPPLIER NO. On board BT antenna _ Prepared by: ________________ Reviewed by: ________________ Approved by: ________________ Luo Yongshi, Raime Zeng Xingji, Tommy Shang wei, Cindy Report Engineer Supervisor Authorized signatory 2 DIRECTORY Contents 1 . General Information ..............................................................................................3 1.1 General information of testing institutions ................................................................................ 3 1.2 Testing principle ......................................................................................................................... 3 1.3 Test equipment ........................................................................................................................... 4 1.4 Test environment ........................................................................................................................ 4 1.5 Statement.................................................................................................................................... 4 2. Sample Information ................................................................................................5 2.1 Client information ...................................................................................................................... 5 2.2 Description of EUT(S) .............................................................................................................. 5 2.3 Antenna Photo & Length (mm) .................................................................................................... 6 2.4 DUT setup photo of free space OTA testing ............................................................................. 6 3. Test Results .........................................................................................................7 3.1 Test standard .............................................................................................................................. 7 3.2 Test uncertainty ......................................................................................................................... 7 3.3 Test data .................................................................................................................................. 8 3.3.1 Typical free space efficiency and gain ........................................................................... 8 3.3.2 Typical free space radiation pattern ............................................................................... 8 3 1. General Information 1.1 General information of testing institutions Name Shenzhen Xuhang Communication Technology Co., Ltd. Address Room 213, 2nd Floor, Building 1, Huiyixin Maker Center, Longhua District, Shenzhen Tel 18588291966 E‐mail [email protected] Equipment All equipment in this report is installed in Room 213, 2 nd Floor, Building 1, Huiyixin Maker Center, Longhua District, 1.2 Testing principle Xuhang Multi Probe Testing System 4 1.3 Test equipment Equipment Model No. Serial No. Manufactur er Calibration date Next calibration date 16 probe microwave chamber 5*3*3 XH-LAB-RF-001 Outhali Technology 2023.2.27 2024.2.27 Network Analyzer PROTEK A338 XH-LAB-RF-003 Outhali Technology 2023.2.27 2024.2.27 Network Analyzer 8753D XH-LAB-RF-004 Outhali Technology 2023.2.27 2024.2.27 1.4 Test environment Temperature 24.4°C Humidity 59%RH Pressure 100.21kPa 1.5 Statement (1) The test results in the report are only applicable to the tested samples and the tested samples work under the environment described in the report. （2）Only Shenzhen Xuhang Communication Technology Co., Ltd. have the right to modify the report, and the modification information shall be annotated in the revision form. （3）Any objection to this report shall be raised within 30 days after formal confirmation of the report. （4）This report is invalid if there is any evidence that the sample infonnation provided is falsified. （5）The report is invalid without the signature of the auditor and approver. 5 2. Sample Information 2.1 Client information Name GuangXi BeiLiu JinBao Electronic Co., Ltd. Address Xinshan Industrial Zone, Xiliang Town, Beiliu City, Yulin City, Guangxi, China Contacts Jim Wong Tel 13686493273 E-mail [email protected] 2.2 Description of EUT(S) Product Name Projector Sample Model PJ1575 Size Bluetooth Serial No. / Test Item Antenna gain; Efficiency; Radiation pattern Frequency Range 2400-2500MHz Received Date 2023.9.8 Test Date 2023.9.12 Remark Location of onboard antenna 6 2.3 Antenna Photo & Length (mm) 2.4 DUT setup photo of free space OTA testing 7 Item Uncertainty Antenna gain ±1dB Radiation efficiency ±10% 3. Test Results 3.1 Test standard Name Parameter Method Standard no. Mobile communication antenna Antenna gain Generic specification for antennas used in the mobile communications GB/T 9410-2008 Radiation pattern Antenna Radiation efficiency IEEE Standard Test Procedures for Antennas ANSI/IEEE Std 149-1979 Gain and directivity 3.2 Test uncertainty The uncertainty was calculated on the basis of the GUM published by ISO, using the inclusion factor of K=2 and the 95% confidence level to express the extended uncertainty. 8 3.3 Test data 3.3.1 Typical free space efficiency and gain Frequency/MHz 2400 2410 242024302440245024602470 2480 24902500 Peak Gain/dBi ‐4.54 ‐4.98 ‐4.59‐4.07‐3.4‐3.46‐2.37‐2.34 ‐3.68 ‐3.54‐4.77 Efficiency/% 14.56 12.7 12.3812.3714.6317.5521.6521.41 15.78 15.8911.94 3.3.2 Typical free space radiation pattern 9

ReportNo.ENS2308090008W00201RPage1of71Ver.1.0 TESTREPORT ProductName:HOMETHEATERPROJECTOR&BLUETOOTH KARAOKE ModelNumber:MET1575,RPJ602,PJ602,CPJ602,PPJ602, PJ1575 FCCID:2BABY696PJ1575 Preparedfor:GuangXiBeiLiuJinBaoElectronicCo.,Ltd. Address:XinShanIndustrialZone,XiLiangTown,BeiliuCity, Guangxi,China. Preparedby:EMTEK(SHENZHEN)CO.,LTD. Address:Building69,MajialongIndustryZone,NanshanDistrict, Shenzhen,Guangdong,China Tel:(0755)26954280 Fax:(0755)26954282 ReportNumber:ENS2308090008W00201R Date(s)ofTests:August10,2023toAugust22,2023 Dateofissue:August31,2023 $ 二维码 $ ReportNo.ENS2308090008W00201RPage2of71Ver.1.0 TableofContents 1TESTRESULTCERTIFICATION................................................................................................................3 2EUTTECHNICALDESCRIPTION..............................................................................................................5 3SUMMARYOFTESTRESULT...................................................................................................................6 4TESTMETHODOLOGY..............................................................................................................................7 4.1GENERALDESCRIPTIONOFAPPLIEDSTANDARDS...............................................................7 4.2MEASUREMENTEQUIPMENTUSED..........................................................................................7 4.3DESCRIPTIONOFTESTMODES................................................................................................8 5FACILITIESANDACCREDITATIONS.........................................................................................................9 5.1FACILITIES.....................................................................................................................................9 5.2EQUIPMENT..................................................................................................................................9 5.3LABORATORYACCREDITATIONSANDLISTINGS.....................................................................9 6TESTSYSTEMUNCERTAINTY...............................................................................................................10 7SETUPOFEQUIPMENTUNDERTEST..................................................................................................11 7.1RADIOFREQUENCYTESTSETUP1.........................................................................................11 7.2RADIOFREQUENCYTESTSETUP2.........................................................................................11 7.3CONDUCTEDEMISSIONTESTSETUP....................................................................................13 7.4BLOCKDIAGRAMCONFIGURATIONOFTESTSYSTEM........................................................14 7.5SUPPORTEQUIPMENT..............................................................................................................14 8FREQUENCYHOPPINGSYSTEMREQUIREMENTS............................................................................15 8.1STANDARDAPPLICABLE...................................................................................................................15 8.2EUTPSEUDORANDOMFREQUENCYHOPPINGSEQUENCE...............................................................15 8.3EQUALHOPPINGFREQUENCYUSE.................................................................................................16 8.4FREQUENCYHOPPINGSYSTEM.......................................................................................................16 9TESTREQUIREMENTS...........................................................................................................................17 9.120DB&99%BANDWIDTH.............................................................................................................17 9.2CARRIERFREQUENCYSEPARATION......................................................................................23 9.3NUMBEROFHOPPINGFREQUENCIES...................................................................................27 9.4AVERAGETIMEOFOCCUPANCY(DWELLTIME)...................................................................31 9.5MAXIMUMPEAKCONDUCTEDOUTPUTPOWER...................................................................33 9.6CONDUCTEDSUPRIOUSEMISSION........................................................................................35 9.7RADIATEDSPURIOUSEMISSION.............................................................................................55 9.8CONDUCTEDEMISSIONTEST..................................................................................................68 9.9ANTENNAAPPLICATION............................................................................................................71 ReportNo.ENS2308090008W00201RPage3of71Ver.1.0 1TESTRESULTCERTIFICATION Applicant:GuangXiBeiLiuJinBaoElectronicCo.,Ltd. Address:XinShanIndustrialZone,XiLiangTown,BeiliuCity,Guangxi,China. Manufacturer:GuangXiBeiLiuJinBaoElectronicCo.,Ltd. Address:XinShanIndustrialZone,XiLiangTown,BeiliuCity,Guangxi,China. EUT:HOMETHEATERPROJECTOR&BLUETOOTHKARAOKE ModelName:MET1575,RPJ602,PJ602,CPJ602,PPJ602,PJ1575 TradeMark:MET,RCA,PROSCAN,CURTIS,MODERN MeasurementProcedureUsed: APPLICABLESTANDARDS STANDARDTESTRESULT FCC47CFRPart2,SubpartJ FCC47CFRPart15,SubpartC PASS ICRSS-GEN,Issue5(04-2018)+A1(03-2019)+A2(02-2021) ICRSS-247Issue2(02-2017) PASS TheaboveequipmentwastestedbyEMTEK(SHENZHEN)CO.,LTD.Thetestdata,dataevaluation,test procedures,andequipmentconfigurationsshowninthisreportweremadeinaccordancewiththe proceduresgiveninANSIC63.10(2013)andtheenergyemittedbythesampleEUTtestedasdescribedin thisreportisincompliancewiththerequirementsofFCCRulesPart2,Part15.247,ICRSS-247Issue2 andICRSS-GEN,Issue5. Thetestresultsofthisreportrelateonlytothetestedsampleidentifiedinthisreport DateofTest:August10,2023toAugust22,2023 Preparedby: UnaYu/Editor Reviewer: JoeXia/Supervisor Approve&AuthorizedSigner:LisaWang/Manager ReportNo.ENS2308090008W00201RPage4of71Ve…

Text truncated - open the document above for the full version.

ReportNo.ENS2308090008W00201RPage41of71Ver.1.0 2DH5_Ant1_2402 2DH5_Ant1_2441 2DH5_Ant1_2480 ReportNo.ENS2308090008W00201RPage42of71Ver.1.0 3DH5_Ant1_2402 3DH5_Ant1_2441 3DH5_Ant1_2480 ReportNo.ENS2308090008W00201RPage43of71Ver.1.0 Bandedgemeasurements TestModeAntennaChNameFrequency[MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5Ant1 Low2402-6.38-49.17≤-26.38PASS High2480-7.37-48.61≤-27.37PASS LowHop_2402-7.38-54.83≤-27.38PASS HighHop_2480-7.46-54.74≤-27.46PASS 2DH5Ant1 Low2402-6.65-49.91≤-26.65PASS High2480-7.15-48.79≤-27.15PASS LowHop_2402-6.86-55.68≤-26.86PASS HighHop_2480-7.54-55.89≤-27.54PASS 3DH5Ant1 Low2402-6.63-50.67≤-26.63PASS High2480-7.15-50.83≤-27.15PASS LowHop_2402-6.94-55.72≤-26.94PASS HighHop_2480-7.34-56.44≤-27.34PASS ReportNo.ENS2308090008W00201RPage44of71Ver.1.0 DH5_Ant1_Low_2402 DH5_Ant1_High_2480 DH5_Ant1_Low_Hop_2402 ReportNo.ENS2308090008W00201RPage45of71Ver.1.0 DH5_Ant1_High_Hop_2480 2DH5_Ant1_Low_2402 2DH5_Ant1_High_2480 ReportNo.ENS2308090008W00201RPage46of71Ver.1.0 2DH5_Ant1_Low_Hop_2402 2DH5_Ant1_High_Hop_2480 3DH5_Ant1_Low_2402 ReportNo.ENS2308090008W00201RPage47of71Ver.1.0 3DH5_Ant1_High_2480 3DH5_Ant1_Low_Hop_2402 3DH5_Ant1_High_Hop_2480 ReportNo.ENS2308090008W00201RPage48of71Ver.1.0 ConductedSpuriousEmission TestModeAntennaFrequency[MHz] FreqRange [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5Ant1 2402 30~1000-6.38-64.26≤-26.38PASS 1000~26500-6.38-50.6≤-26.38PASS 2441 30~1000-7.46-64.91≤-27.46PASS 1000~26500-7.46-46.27≤-27.46PASS 2480 30~1000-7.37-64.34≤-27.37PASS 1000~26500-7.37-45.76≤-27.37PASS 2DH5Ant1 2402 30~1000-6.65-63.7≤-26.65PASS 1000~26500-6.65-50.31≤-26.65PASS 2441 30~1000-7.56-64.72≤-27.56PASS 1000~26500-7.56-47.22≤-27.56PASS 2480 30~1000-7.15-64.96≤-27.15PASS 1000~26500-7.15-49.95≤-27.15PASS 3DH5Ant1 2402 30~1000-6.63-64.08≤-26.63PASS 1000~26500-6.63-50.46≤-26.63PASS 2441 30~1000-7.64-64.31≤-27.64PASS 1000~26500-7.64-47.9≤-27.64PASS 2480 30~1000-7.15-64.69≤-27.15PASS 1000~26500-7.15-48.94≤-27.15PASS ReportNo.ENS2308090008W00201RPage49of71Ver.1.0 DH5_Ant1_2402_30~1000 DH5_Ant1_2402_1000~26500 DH5_Ant1_2441_30~1000 ReportNo.ENS2308090008W00201RPage50of71Ver.1.0 DH5_Ant1_2441_1000~26500 DH5_Ant1_2480_30~1000 DH5_Ant1_2480_1000~26500 ReportNo.ENS2308090008W00201RPage51of71Ver.1.0 2DH5_Ant1_2402_30~1000 2DH5_Ant1_2402_1000~26500 2DH5_Ant1_2441_30~1000 ReportNo.ENS2308090008W00201RPage52of71Ver.1.0 2DH5_Ant1_2441_1000~26500 2DH5_Ant1_2480_30~1000 2DH5_Ant1_2480_1000~26500 ReportNo.ENS2308090008W00201RPage53of71Ver.1.0 3DH5_Ant1_2402_30~1000 3DH5_Ant1_2402_1000~26500 3DH5_Ant1_2441_30~1000 ReportNo.ENS2308090008W00201RPage54of71Ver.1.0 3DH5_Ant1_2441_1000~26500 3DH5_Ant1_2480_30~1000 3DH5_Ant1_2480_1000~26500 ReportNo.ENS2308090008W00201RPage55of71Ver.1.0 9.7RADIATEDSPURIOUSEMISSION 9.7.1ApplicableStandard AccordingtoFCCPart15.247(d),15.205,15.209andKDB558074D0115.247MEASGUIDANCEv05r02 AccordingtoICRSS-GenandRSS-247 9.7.2ConformanceLimit AccordingtoFCCPart15.247(d):radiatedemissionswhichfallintherestrictedbands,asdefinedin§15.205(a), mustalsocomplywiththeradiatedemissionlimitsspecifiedin§15.209(a)(see§15.205(c)). AccordingtoFCCPart15.205,Restrictedbands MHzMHzMHzGHz 0.090-0.11016.42-16.423399.9-4104.5-5.15 10.495-0.50516.69475-16.69525608-6145.35-5.46 2.1735-2.190516.80425-16.80475960-12407.25-7.75 4.125-4.12825.5-25.671300-14278.025-8.5 4.17725-4.1777537.5-38.251435-1626.59.0-9.2 4.20725-4.2077573-74.61645.5-1646.59.3-9.5 6.215-6.21874.8-75.21660-171010.6-12.7 6.26775-6.26825123-1382200-230014.47-14.5 8.291-8.294149.9-150.052310-239015.35-16.2 8.362-8.366156.52475-156.525252483.5-250017.7-21.4 8.37625-8.38675156.7-156.92690-290022.01-23.12 8.41425-8.41475162.0125-167.173260-326723.6-24.0 12.29-12.293167.72-173.23332-333931.2-31.8 12.51975-12.52025240-2853345.8-335836.43-36.5 12.57675-12.57725322-335.43600-4400(2) 13.36-13.41 AccordingtoFCCPart15.205,thelevelofanytransmitterspuriousemissioninRestrictedbandsshallnotexceed theleveloftheemissionspecifiedinthefollowingtable RestrictedFrequency(MHz)FieldStrength(μV/m)FieldStrength(dBμV/m)MeasurementDistance 0.009-0.4902400/F(KHz)20log(uV/m)300 0.490-1.70524000/F(KHz)20log(uV/m)30 1.705-303029.530 30-88100403 88-21615043.53 216-960200463 Above960500543 9.7.3TestConfiguration Testaccordingtoclause7.2radiofrequencytestsetup2 9.7.4TestProcedure ThistestisrequiredforanyspuriousemissionthatfallsinaRestrictedBand,asdefinedinSection15.205.It mustbeperformedwiththehighestgainofeachtypeofantennaproposedforusewiththeEUT.Usethe followingspectrumanalyzersettings: ForAbove1GHz: TheEUTwasplacedonaturntablewhichis1.5mabovegroundplane. MaximumprocedurewasperformedonthehighestemissionstoensureEUTcompliance. Span=wideenoughtofullycapturetheemissionbeingmeasured RBW=1MHz VBW  RBW Sweep=auto Detectorfunction=peak ReportNo.ENS2308090008W00201RPage56of71Ver.1.0 Trace=maxhold ForBelow1GHz: TheEUTwasplacedonaturntablewhichis0.8mabovegroundplane. MaximumprocedurewasperformedonthehighestemissionstoensureEUTcompliance. Span=wideenoughtofullycapturetheemissionbeingmeasured RBW=100kHzfor VBW  RBW Sweep=auto Detectorfunction=peak Trace=maxhold ForBelow30MHz: TheEUTwasplacedonaturntablewhichis0.8mabovegroundplane. MaximumprocedurewasperformedonthehighestemissionstoensureEUTcompliance. Span=wideenoughtofullycapturetheemissionbeingmeasured RBW=9kHz VBW  RBW Sweep=auto Detectorfunction=peak Trace=maxhold ForBelow150KHz: TheEUTwasplacedonaturntablewhichis0.8mabovegroundplane. MaximumprocedurewasperformedonthehighestemissionstoensureEUTcompliance. Span=wideenoughtofullycapturetheemissionbeingmeasured RBW=200Hz VBWRBW Sweep=auto Detectorfunction=peak Trace=maxhold FollowtheguidelinesinANSIC63.10-2013withrespecttomaximizingtheemissionbyrotatingtheEUT, measuringtheemissionwhiletheEUTissituatedinthreeorthogonalplanes(ifappropriate),adjustingthe measurementantennaheightandpolarization,etc.Apre-ampandahighpassfilterarerequiredforthistest,in ordertoprovidethemeasuringsystemwithsufficientsensitivity.Allowthetracetostabilize.The…

Text truncated - open the document above for the full version.

1.1.PhotosofRadiationEmissionMeasurement PhotosofConductedEmissionMeasurement SpuriousEmissionTestSetup(Below1GHz) SpuriousEmissionTestSetup(Above1GHz) ----------------Theend----------------
