2BABY696PJ118Showtime Max 1080p Projector with Bluetooth

Home Theater Projector INSTRUCTION MANUAL MODEL NO. : PJ712W PLEASE READ BEFORE OPERATING THIS EQUIPMENT Important Safety Instructions 1. Read these Instructions. 2. Keep these Instructions. 3. Heed all Warnings. 4. Follow all instructions. 5. Do not use this apparatus near water. 6. Clean only with a dry cloth. 7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. 8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifier) that product heat. 9. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus. 10. Only use attachments/accessories specified by the manufacturer. 11. Unplug this apparatus during lightning storms or when unused for long periods of time. 12. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped. 13. Use only with a cart, stand, tripod, bracket, or table specified by the manufacturer or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-o v e r. 1 Additional Warnings and Precautions 1. Do not look directly into the projector light. 2. Don’t touch the project lens 3. Mains adapter is used as disconnect device and it should remain readily operable during intended use. In order to disconnect the apparatus from the mains completely, the mains plug should be disconnected from the mains socket outlet completely. 4. CAUTION: Use of controls or adjustments or performance of procedures other than those specified may result in hazardous radiation exposure. 5. WARNING: Changes or modified to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. 6. WARNING: Use of this unit near fluorescent lighting may cause interference regarding use of the remote. If the unit is displaying erratic behavior move away from any fluorescent lighting, as it may be the cause. 7. WARNING: Shock hazard - Do Not Open. 8. Caution and marking information is located at the rear or bottom of the apparatus. 9. WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain, moisture, dripping, or splashing. 10. Objects filled with liquids, such as vases, shall not be placed on the apparatus. 2 FCC Warning Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. • This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment .This equipment should be installed and operated with minimum distance 20cm between the radiator& your body. • This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment .This equipment should be installed and operated with minimum distance 20 cm between the radiator& your body. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. In The Box AC Power Adapter Remote control Main Unit Lens Cover User Manual 3 Table of Contents Important Safety Instructions - - - - - - - - - - - - - - - - - - - - - - - - - - - P1 Additional Warnings and Precautions - - - - - - - - - - - - - - - - - - - - - P2 FCC Warning - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - P3 In The Box - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - P3 Table of Contents - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - P4 Remove & Close The Lens Cover - - - - - - - - - - - - - - - - - - - - - - - - P5 Placing of Your Projector - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - P5 To Reduce Image Distortion - - - - - - - - - - - - - - - - - - - - - - - - - - - - P6 Distance Between The Projector And Screen - - - - - - - - - - - - - - - - P6 Installing your Projector in the Ceiling - - - - - - - - - - - - - - - - - - - - P6 Adjust The Vertical Location - - - - - - - - - - - - - - - - - - - - - - - - - - - - P7 Adjust The Focus And Keystone - - - - - - - - - - - - - - - - - - - - - - - P7 C…

Text truncated - open the document above for the full version.

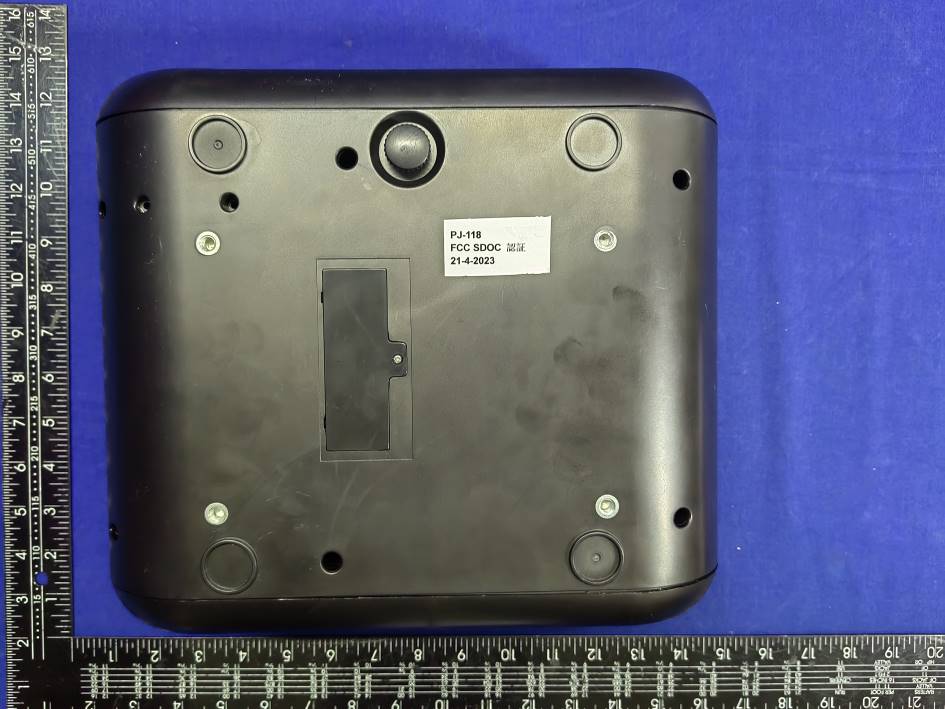

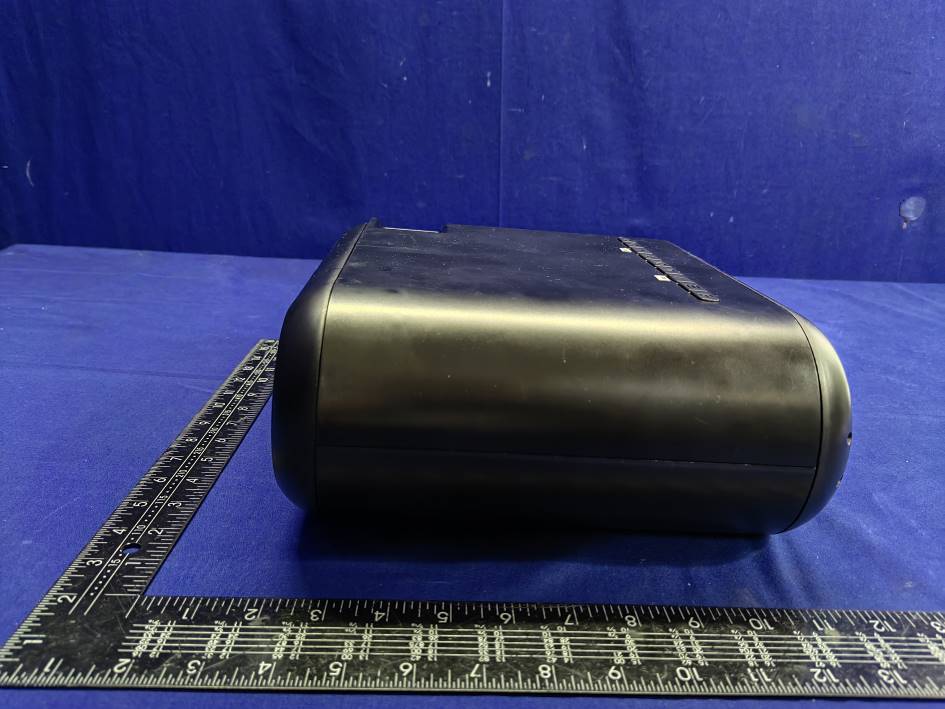

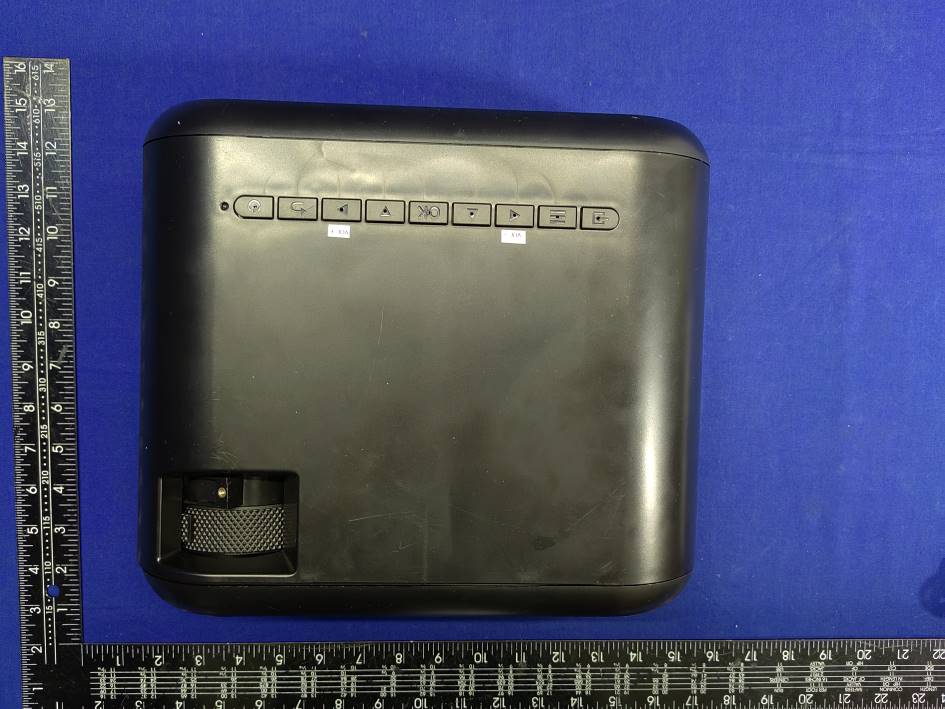

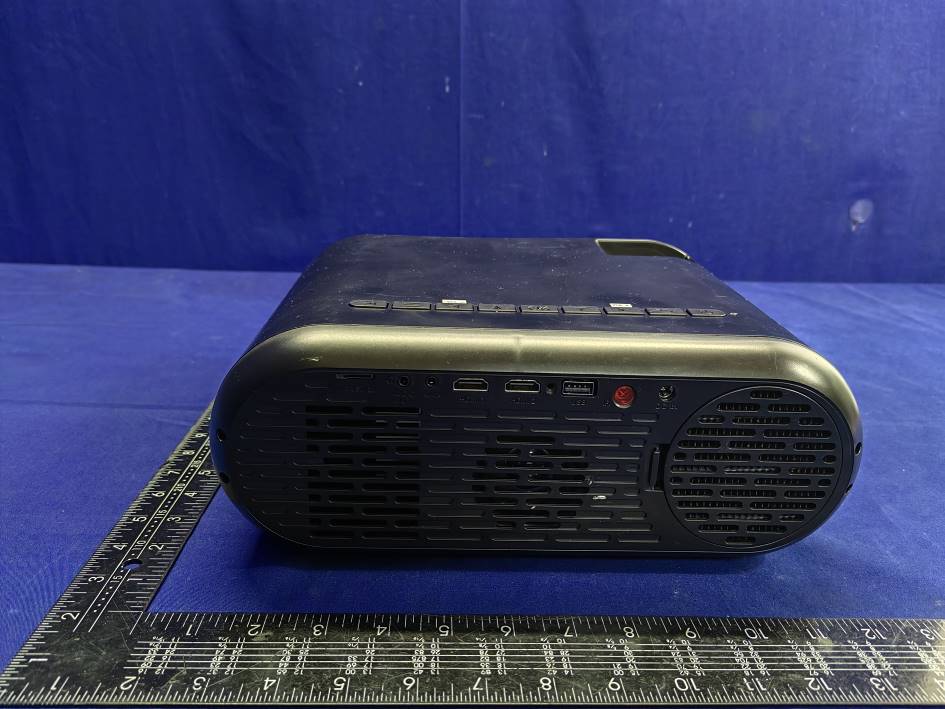

EUT EXTERNAL PHOTOGRAPHS ----------------The end----------------

EUT INTERNAL PHOTOGRAPHS BT Module BT Antenna ----------------The end----------------

FCC ID : 2BABY696PJ118 RF EXPOSURE EVALUATION According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency(RF) Radiation as specified in §1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density(mW/cm 2 ) Average Time (A) Limits for Occupational/Control Exposures 300-1500 -- -- F/300 6 1500-100000 -- -- 5 6 (B) Limits for General Population/Uncontrol Exposures 300-1500 -- -- F/1500 6 1500-100000 -- -- 1 30 11.1 Friis transmission formula: Pd= (Pout*G)\ (4*pi*R 2 ) Where Pd= Power density in mW/cm 2 Pout=output power to antenna in mW G= Numeric gain of the antenna relative to isotropic antenna Pi=3.1416 R= distance between observation point and center of the radiator in cm Pd the limit of MPE, 1mW/cm 2 . If we know the maximum gain of the nd total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. 11.2 Measurement Result Antenna gain: -0.68dBi BT Mode Channel Freq. (MHz) Measured power (dBm) Tune-up power (dBm) Max tune-up power (dBm) Antenna Gain Numeric Evaluation result (mW/cm2 ) Power density Limits (mW/cm2 ) GFSK 2402 3.25 3.0±1 4.0 0.8551 0.0004 1 GFSK 2441 2.95 3.0±1 4.0 0.8551 0.0004 1 GFSK 2480 3.16 3.0±1 4.0 0.8551 0.0004 1 1/4Π-DQPSK 2402 3.35 3.0±1 4.0 0.8551 0.0004 1 1/4Π-DQPSK 2441 3.08 3.0±1 4.0 0.8551 0.0004 1 1/4Π-DQPSK 2480 3.43 3.0±1 4.0 0.8551 0.0004 1 8DPSK 2402 3.45 3.0±1 4.0 0.8551 0.0004 1 8DPSK 2441 3.16 3.0±1 4.0 0.8551 0.0004 1 8DPSK 2480 3.42 3.0±1 4.0 0.8551 0.0004 1

Inverted F Antenna Specification Summary ITEM ANT SPEC Model Name 2.4G ANT Center Frequency Horizontal Vertical 2400MHz 2450MHz 2500MHz 2400MHz 2450MHz 2500MHz -1.73 -0.84 -0.68 -6.15 -3.70 -2.32 MAX. Gain -0.68 Polarization Horizontal and Vertical Azimuth Beam Pattern Omni-directional Impedance 50 Ohm Antenna Length 14.4mm Manufacture ZHUHAI JIELI TECHNOLOGY CO., LTD. Address No. 333, KeXing Road, XiangZhou District, Zhuhai City. Antenna Photo & Length (mm) Horizontal: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -40 Scale: 5/div Frequency (MHz) Gain(dB) Max Min Avg 2400 -1.73178 -30.0815 -8.48713 2450 -0.845801 -38.5605 -7.88012 2500 -0.685586 -24.0318 -6.79139 Vertical: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: 0 Min: -30 Scale: 5/div Frequency (MHz) Gain(dB) Max Min Avg 2400 -6.1530 -24.1420 -13.0295 2450 -3.7054 -26.5836 -10.6700 2500 -2.32122 -30.4301 -9.70536 ANT Test Labs：Attestation of Global Compliance Co., Ltd. Tested by: Cheung Yin Confirmed by: Yip Kin Tsuen

Report No. ENS2304240081W00201R Page 1 of 65 Ver.1.0 TEST REPORT Product Name : Showtime Max 1080p Projector with Bluetooth Model Number : MET118, PJ712W, PJ118 FCC ID : 2BABY696PJ118 Prepared for : GuangXi BeiLiu JinBao Electronic Co., Ltd. Address : XinShan Industrial Zone, XiLiang Town, Beiliu City, Guangxi, China. Prepared by : EMTEK (SHENZHEN) CO., LTD. Address : Building 69, Majialong Industry Zone,Nanshan District, Shenzhen, Guangdong, China Tel: (0755) 26954280 Fax: (0755) 26954282 Report Number : ENS2304240081W00201R Date(s) of Tests : April 25, 2023 to May 13, 2023 Date of issue : May 26, 2023 $二维码$ Report No. ENS2304240081W00201R Page 2 of 65 Ver.1.0 Table of Contents 1 TEST RESULT CERTIFICATION ................................................................................................................ 3 2 EUT TECHNICAL DESCRIPTION .............................................................................................................. 5 3 SUMMARY OF TEST RESULT ................................................................................................................... 6 4 TEST METHODOLOGY .............................................................................................................................. 7 4.1 GENERAL DESCRIPTION OF APPLIED STANDARDS ................................................................ 7 4.2 MEASUREMENT EQUIPMENT USED .......................................................................................... 7 4.3 DESCRIPTION OF TEST MODES ................................................................................................ 8 5 FACILITIES AND ACCREDITATIONS ........................................................................................................ 9 5.1 FACILITIES .................................................................................................................................... 9 5.2 EQUIPMENT.................................................................................................................................. 9 5.3 LABORATORY ACCREDITATIONS AND LISTINGS ..................................................................... 9 6 TEST SYSTEM UNCERTAINTY ............................................................................................................... 10 7 SETUP OF EQUIPMENT UNDER TEST .................................................................................................. 11 7.1 RADIO FREQUENCY TEST SETUP 1......................................................................................... 11 7.2 RADIO FREQUENCY TEST SETUP 2......................................................................................... 11 7.3 CONDUCTED EMISSION TEST SETUP ..................................................................................... 13 7.4 BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM ......................................................... 14 7.5 SUPPORT EQUIPMENT ............................................................................................................. 14 8 FREQUENCY HOPPING SYSTEM REQUIREMENTS ............................................................................ 15 8.1 STANDARD APPLICABLE .................................................................................................................. 15 8.2 EUT PSEUDORANDOM FREQUENCY HOPPING SEQUENCE ................................................................ 15 8.3 EQUAL HOPPING FREQUENCY USE ................................................................................................. 16 8.4 FREQUENCY HOPPING SYSTEM ....................................................................................................... 16 9 TEST REQUIREMENTS ........................................................................................................................... 17 9.1 20DB&99%BANDWIDTH ............................................................................................................ 17 9.2 CARRIER FREQUENCY SEPARATION ...................................................................................... 23 9.3 NUMBER OF HOPPING FREQUENCIES ................................................................................... 27 9.4 AVERAGE TIME OF OCCUPANCY (DWELL TIME) .................................................................... 31 9.5 MAXIMUM PEAK CONDUCTED OUTPUT POWER ................................................................... 33 9.6 CONDUCTED SUPRIOUS EMISSION ........................................................................................ 38 9.7 RADIATED SPURIOUS EMISSION ............................................................................................. 49 9.8 CONDUCTED EMISSION TEST ................................................................................................. 62 9.9 ANTENNA APPLICATION ............................................................................................................ 65 Report No. ENS2304240081W00201R Page 3 of 65 Ver.1.0 1 TEST RESULT CERTIFICATION Applicant : GuangXi BeiLiu JinBao Electronic Co., Ltd. Address : XinShan Industrial Zone, XiLiang Town, Beiliu City, Guangxi, China. Manufacturer : GuangXi BeiLiu JinBao Electronic Co., Ltd. Address : XinShan Industrial Zone, XiLiang Town, Beiliu City, Guangxi, China. EUT : Showtime Max 1080p Projector with Bluetooth Model Name : MET118, PJ712W, PJ118 Trade Mark : MET, GPX, Modern Measurement Procedure Used: APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 2, Subpart J FCC 47 CFR Part 15, Subpart C PASS IC RSS-GEN, Issue 5(04-2018)+A1(03-2019)+A2(02-2021) IC RSS-247 Issue 2(02-2017) PASS The above equipment was tested by EMTEK(SHENZHEN) CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10 (2013) and the energy emitted by the sample EUT tested as described in this report is in compliance with th…

Text truncated - open the document above for the full version.

Report No. ENS2304240081W00201R Page 40 of 65 Ver.1.0 Band edge measurements DH5_Ant1_Low_2402 DH5_Ant1_High_2480 DH5_Ant1_Low_Hop_2402 Report No. ENS2304240081W00201R Page 41 of 65 Ver.1.0 DH5_Ant1_High_Hop_2480 2DH5_Ant1_Low_2402 2DH5_Ant1_High_2480 Report No. ENS2304240081W00201R Page 42 of 65 Ver.1.0 3DH5_Ant1_Low_2402 3DH5_Ant1_High_2480 Report No. ENS2304240081W00201R Page 43 of 65 Ver.1.0 Conducted Spurious Emission DH5_Ant1_2402_30~1000 DH5_Ant1_2402_1000~26500 DH5_Ant1_2441_30~1000 Report No. ENS2304240081W00201R Page 44 of 65 Ver.1.0 DH5_Ant1_2441_1000~26500 DH5_Ant1_2480_30~1000 DH5_Ant1_2480_1000~26500 Report No. ENS2304240081W00201R Page 45 of 65 Ver.1.0 2DH5_Ant1_2402_30~1000 2DH5_Ant1_2402_1000~26500 2DH5_Ant1_2441_30~1000 Report No. ENS2304240081W00201R Page 46 of 65 Ver.1.0 2DH5_Ant1_2441_1000~26500 2DH5_Ant1_2480_30~1000 2DH5_Ant1_2480_1000~26500 Report No. ENS2304240081W00201R Page 47 of 65 Ver.1.0 3DH5_Ant1_2402_30~1000 3DH5_Ant1_2402_1000~26500 3DH5_Ant1_2441_30~1000 Report No. ENS2304240081W00201R Page 48 of 65 Ver.1.0 3DH5_Ant1_2441_1000~26500 3DH5_Ant1_2480_30~1000 3DH5_Ant1_2480_1000~26500 Report No. ENS2304240081W00201R Page 49 of 65 Ver.1.0 9.7 RADIATED SPURIOUS EMISSION 9.7.1 Applicable Standard According to FCC Part 15.247(d), 15.205, 15.209 and KDB 558074 D01 15.247 MEAS GUIDANCE v05r02 According to IC RSS-Gen and RSS-247 9.7.2 Conformance Limit According to FCC Part 15.247(d): radiated emissions which fall in the restricted bands, as defined in §15.205(a), must also comply with the radiated emission limits specified in §15.209(a) (see §15.205(c)). According to FCC Part15.205, Restricted bands MHz MHz MHz GHz 0.090-0.110 16.42-16.423 399.9-410 4.5-5.15 10.495-0.505 16.69475-16.69525 608-614 5.35-5.46 2.1735-2.1905 16.80425-16.80475 960-1240 7.25-7.75 4.125-4.128 25.5-25.67 1300-1427 8.025-8.5 4.17725-4.17775 37.5-38.25 1435-1626.5 9.0-9.2 4.20725-4.20775 73-74.6 1645.5-1646.5 9.3-9.5 6.215-6.218 74.8-75.2 1660-1710 10.6-12.7 6.26775-6.26825 123-138 2200-2300 14.47-14.5 8.291-8.294 149.9-150.05 2310-2390 15.35-16.2 8.362-8.366 156.52475-156.52525 2483.5-2500 17.7-21.4 8.37625-8.38675 156.7-156.9 2690-2900 22.01-23.12 8.41425-8.41475 162.0125-167.17 3260-3267 23.6-24.0 12.29-12.293 167.72-173.2 3332-3339 31.2-31.8 12.51975-12.52025 240-285 3345.8-3358 36.43-36.5 12.57675-12.57725 322-335.4 3600-4400 (2) 13.36-13.41 According to FCC Part15.205,the level of any transmitter spurious emission in Restricted bands shall not exceed the level of the emission specified in the following table Restricted Frequency(MHz) Field Strength ( μV/m) Field Strength (dBμV/m) Measurement Distance 0.009-0.490 2400/F(KHz) 20 log (uV/m) 300 0.490-1.705 24000/F(KHz) 20 log (uV/m) 30 1.705-30 30 29.5 30 30-88 100 40 3 88-216 150 43.5 3 216-960 200 46 3 Above 960 500 54 3 9.7.3 Test Configuration Test according to clause 7.2 radio frequency test setup 2 9.7.4 Test Procedure This test is required for any spurious emission that falls in a Restricted Band, as defined in Section 15.205. It must be performed with the highest gain of each type of antenna proposed for use with the EUT. Use the following spectrum analyzer settings: For Above 1GHz: The EUT was placed on a turn table which is 1.5m above ground plane. Maximum procedure was performed on the highest emissions to ensure EUT compliance. Span = wide enough to fully capture the emission being measured RBW = 1 MHz VBW ≥ RBW Sweep = auto Detector function = peak Report No. ENS2304240081W00201R Page 50 of 65 Ver.1.0 Trace = max hold For Below 1GHz: The EUT was placed on a turn table which is 0.8m above ground plane. Maximum procedure was performed on the highest emissions to ensure EUT compliance. Span = wide enough to fully capture the emission being measured RBW = 100 kHz for VBW ≥ RBW Sweep = auto Detector function = peak Trace = max hold For Below 30MHz: The EUT was placed on a turn table which is 0.8m above ground plane. Maximum procedure was performed on the highest emissions to ensure EUT compliance. Span = wide enough to fully capture the emission being measured RBW = 9kHz VBW ≥ RBW Sweep = auto Detector function = peak Trace = max hold For Below 150KHz: The EUT was placed on a turn table which is 0.8m above ground plane. Maximum procedure was performed on the highest emissions to ensure EUT compliance. Span = wide enough to fully capture the emission being measured RBW = 200Hz VBW ≥ RBW Sweep = auto Detector function = peak Trace = max hold Follow the guidelines in ANSI C63.10-2013 with respect to maximizing the emission by rotating the EUT, measuring the emission while the EUT is situated in three orthogonal planes (if appropriate), adjusting the measurement antenna height and polarization, etc. A pre-amp and a high pass filter are required for this test, in order to provide the measuring system with sufficient sensitivity. Allow the trace to stabilize. The peak reading of the emission, after being corrected by the antenna factor, cable loss, pre-amp gain, etc., is the peak field strength, which must comply with the limit specified in Section 15.35(b). Submit this data. Now set the VBW to 10 Hz, while maintaining all of the other instrument settings. This peak level, once corrected, must comply with the limit specified in Section 15.209. If the dwell time per channel of the hopping signal is less than 100 ms, then the reading obtained with the 10 Hz VBW may be further adjusted by a “duty cycle correction factor”, derived from 20log(dwell time/100 ms), in an effort to demonstrate compliance with the 15.209 limit. Submit this data. Repeat above procedures until all frequency measured was complete. 9.7.5 Test Results  Spurious Emission below 30MHz(9KHz to 30MHz) Temperature: 22 ̊ C Relative Humidity: 45% ATM Pressure: 1011 mbar Freq. (MHz) Ant.Pol. Emission Level(dBuV/m) Limit 3m(dBuV/m) Over(dB) H/V PK AV PK AV PK AV -- -- -- -- -- -- -- -- Note: the amplitude of spurious emission that is attenuated by more than 20dB below the perm…

Text truncated - open the document above for the full version.

TEST SETUP PHOTOGRAPHS 1.1. Photos of Conducted Emission Measurement 1.2. Photos of Radiation Emission Measurement Spurious Emission Test Setup (Below 1GHz) Spurious Emission Test Setup (Above 1GHz) ----------------The end----------------
